2011 Snorkel TM12

Maximum lift capacity: 227.00
Transport dimensions (LxWxH): 1.34x0.76x1.62
Front tyres remaining: 20
Rear tyres remaining : 20
Internal stock no.: SNORKEL - TM12 - 63228
Gross Weight: 780.00
Tyre brand: -
VAT: 0.00
Working height: 560.00
Max horizontal reach: 0.00
Other information:
Manufacturer: Snorkel.
Typ: TM12.
Building year: 2011

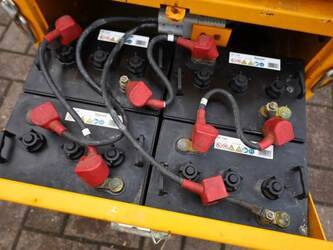

Fuel: Electric
Serial nr: TM12-01-054562
Working hours: 775 h

Max. working height: 5.6m
Platform capacity (SWL): 227kg
Max. drive height: 3.6m

Max. drive speed (elevated): 0.43km/h
Max. drive speed (stowed): 3.2 km/h
Gradeability: 25%

Tires: 279 mm non-marking rubber

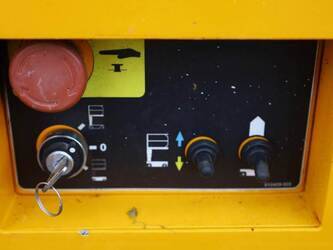

Controls: proportional

Platform size (stowed): 0.74m x 0.96m
Platform size (extended): 0.74m x 1.46m
Deck extension length: 0.5m

Overall length: 1.34m
Overall width: 0.76m
Stowed height: 1.62m
Weight: 780kg

CE (Declaration of Conformity)

More detailed pictures / product movie on our website.

pfeifermachinery.com

Above specifications are subject to change without prior notice and subject to errors.
