2020 Snorkel A46JRT

Maximum lift capacity: 227.00
Transport dimensions (LxWxH): 5.7x2.1x2.16
Front tyres remaining: 90
Rear tyres remaining : 90
Internal stock no.: SNORKEL - A46JRT - 61119
Gross Weight: 7550.00
Tyre brand: -
VAT: 0.00
Power type: Diesel
Working height: 1630.00
Traction type: 4 WD
Max horizontal reach: 735.00
Other information:
This machine has a valid inspection and can be sold with warranty. Inform about our conditions!

This articulating boomlift is also available for rent!

Manufacturer: Snorkel..
Typ: A46JRT
Building year: 2020
Fuel: Diesel
Serial number: 200800239
Working hours: 321 h

Max. working height: 16.3m
Max. horizontal reach: 7.35m
Clearance height at max. outreach: 7.67m
Platform size: 1.0m x 1.83m
Ground clearance: 330mm
Platform capacity (SWL): 227kg
Max. drive height: 14.3m
Max. drive speed (elevated): 1.3km/h
Max. drive speed (stowed): 6.8km/h

Gradeability: 45%
Jib length: 1.5m
Jib rotation: 140°
Jib arc: 140°
Superstructure rotation: 360° non continuous
Tailswing: 0m
Inside turning radius: 0.8m
Outside turning radius: 3.1m

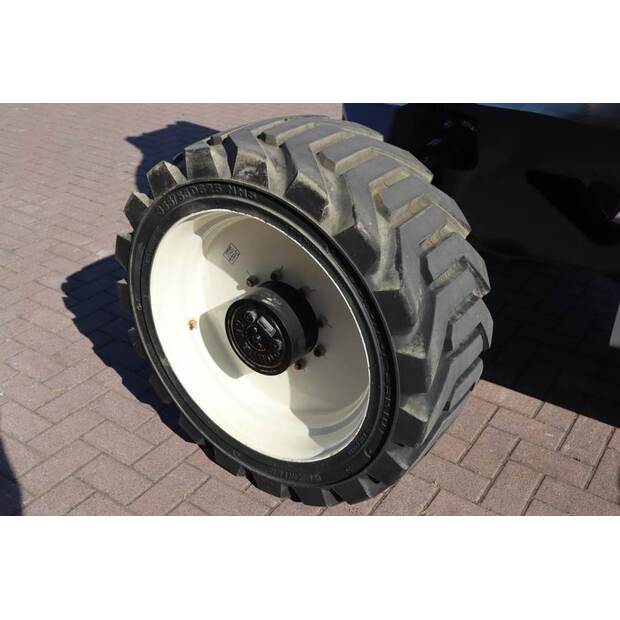

Tires: (355/55D625NHS 17.5)

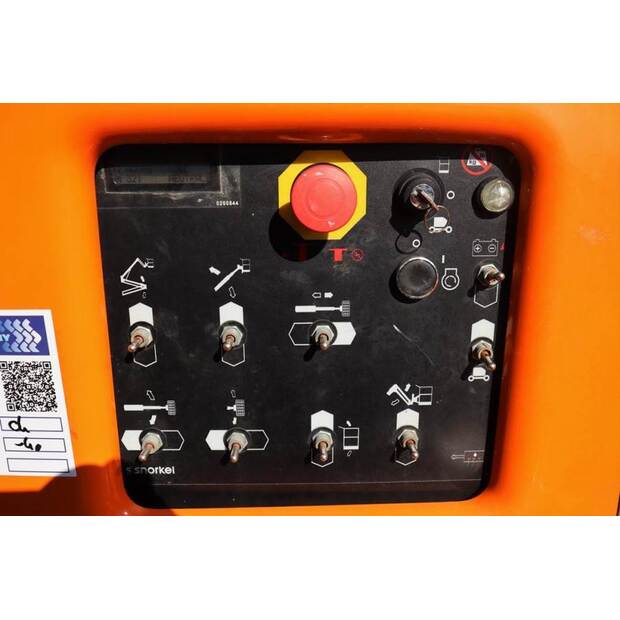

Controls: proportional
Drive system: 4 wheel drive
Power source: Kubota V1505 24.9hp Diesel
Weight: 7.550kg

CE (Declaration of Conformity)

More detailed pictures / product movie on our website.

pfeifermachinery.com

Above specifications are subject to change without prior notice and subject to errors.
