2025 MOVAX DH-45

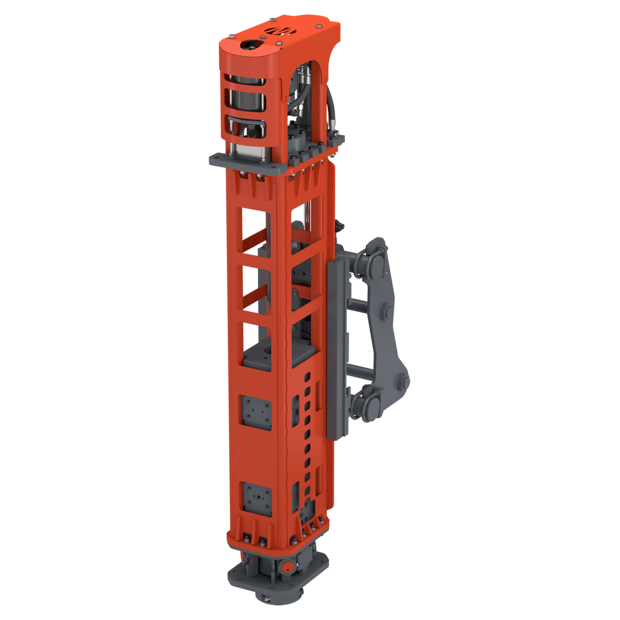

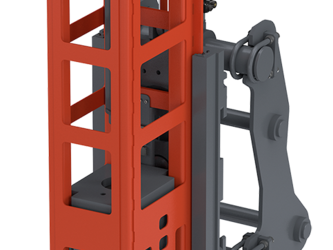

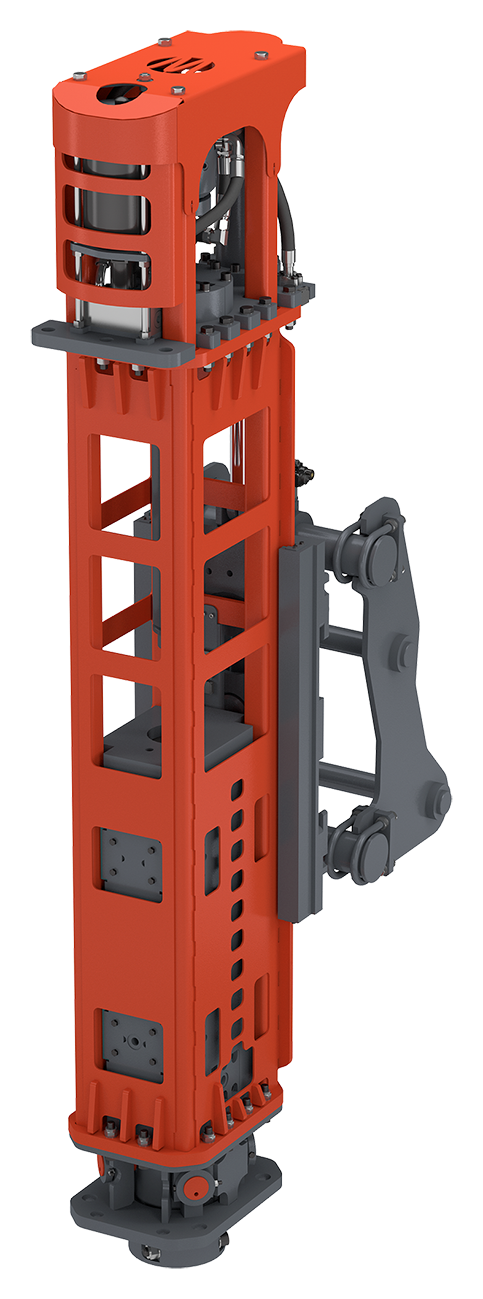

MOVAX DH-45 Piling Hammer

Technical Specifications

General:
- Total weight: 6,700 kg
- Ram weight: 4,000 kg
- Leader type: Floating
- Total height: 4,930
- Frame width: 650 mm
- Transport width: 1,200 mm
- Transport depth: 1,870 mm

Performance:
- Blows per minute: 0–100 (1/min)
- Impact energy: 0–45 kNm
- Drop height: 0–1.2 m
- Tilt angle: ±15°
- Rotation angle: N/A

Hydraulics:
- Operating pressure: 280 bar
- Pressure relief set: 350 bar
- Oil flow rate: 80–120 l/min

Carrier Requirements

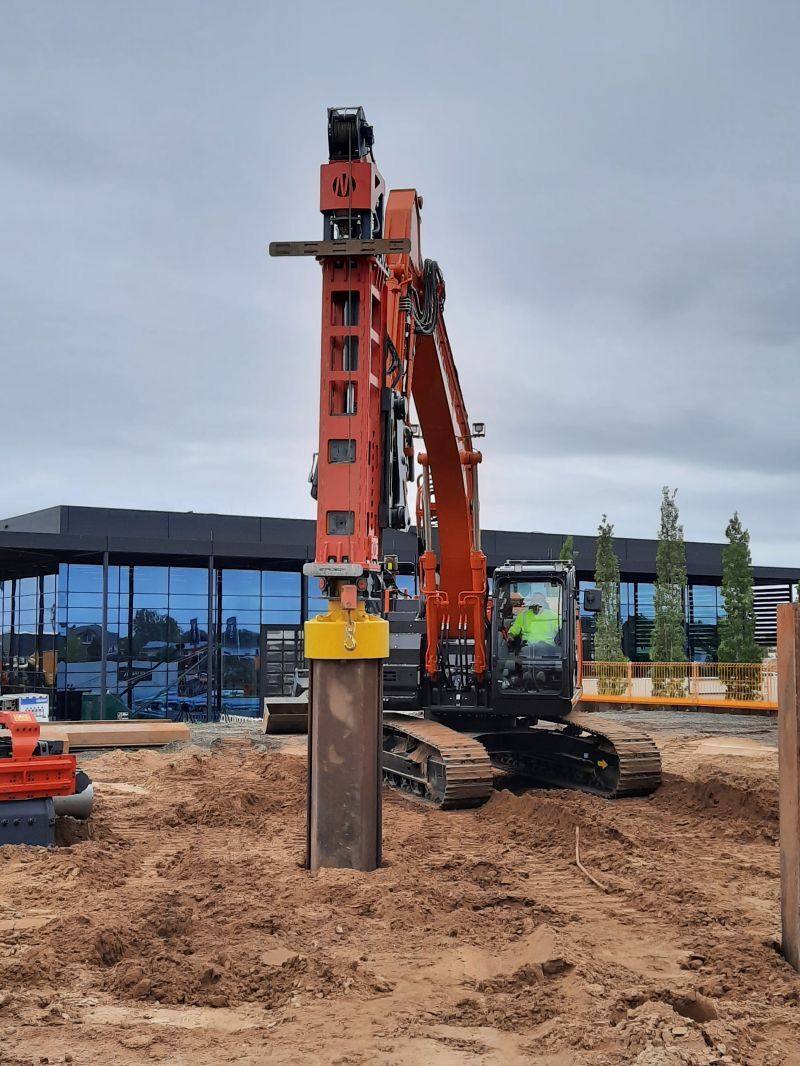

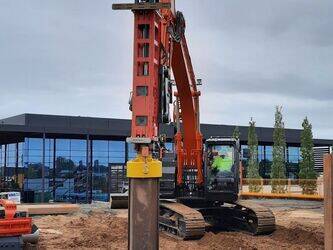

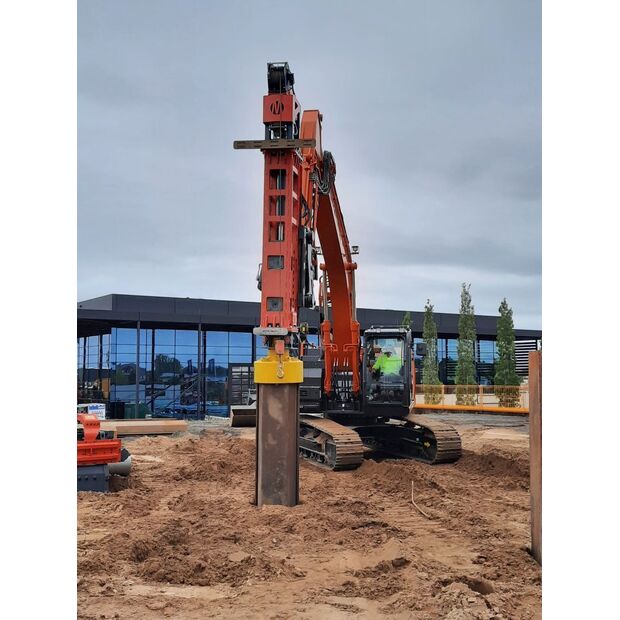

- Excavator class: 38–50 t
- Excavator class with tilt + rotate: 40–50 tons

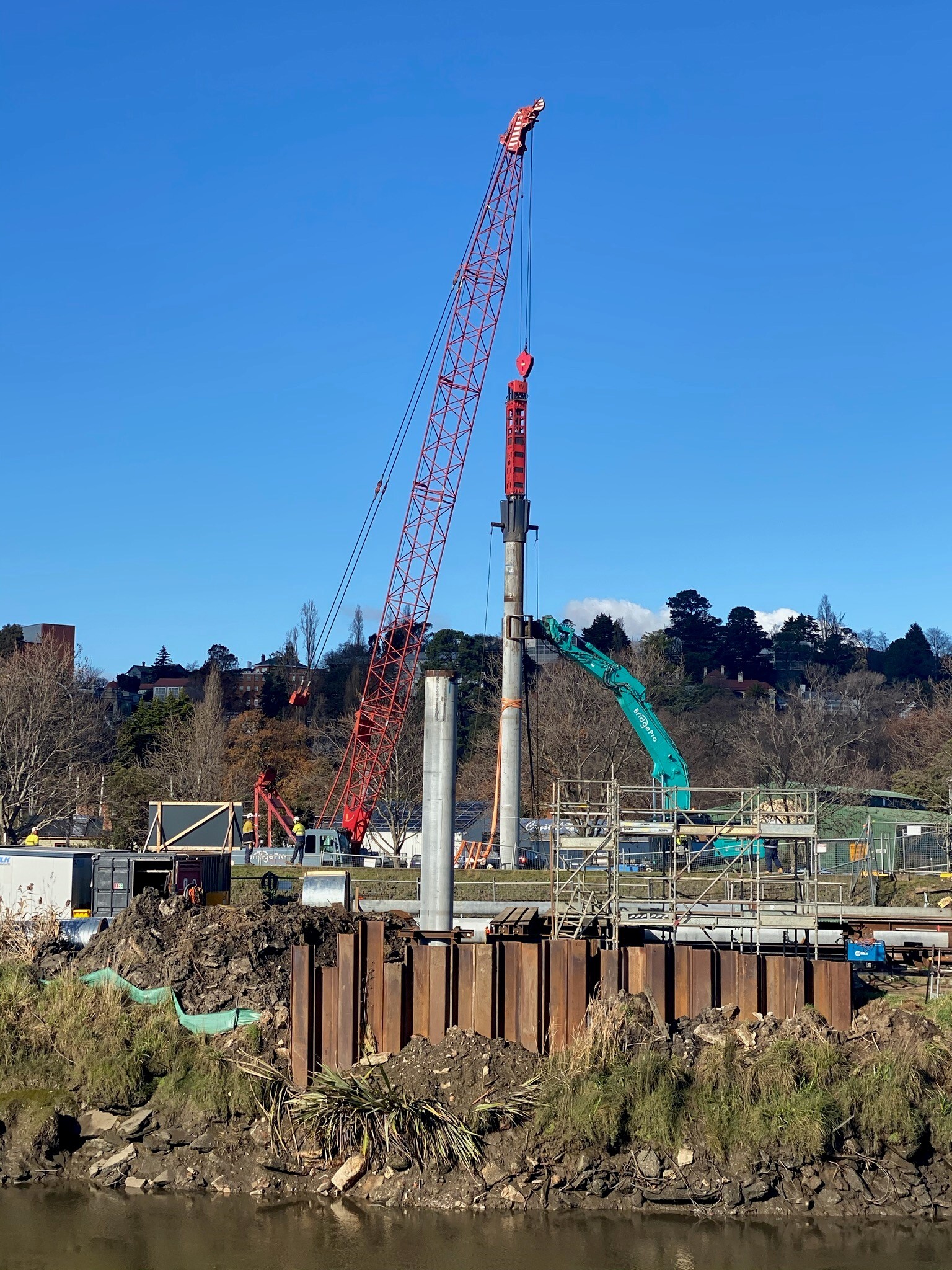

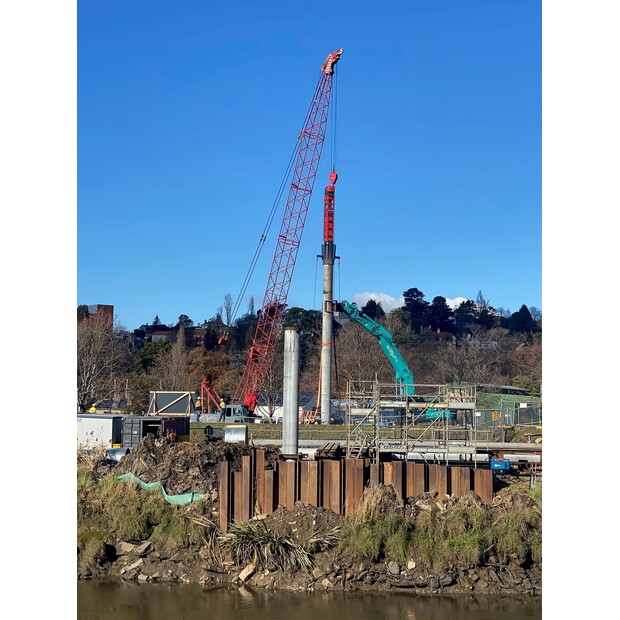

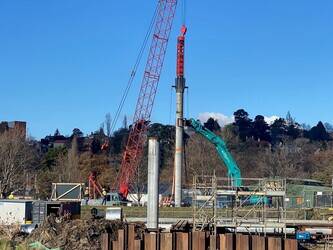

- Crane-mounted: 5080 mm
