XCMG XR150DII
Condition
D'occasion
1
de un
8
XCMG XR150DII
1
de un
8
Survivre
La Description

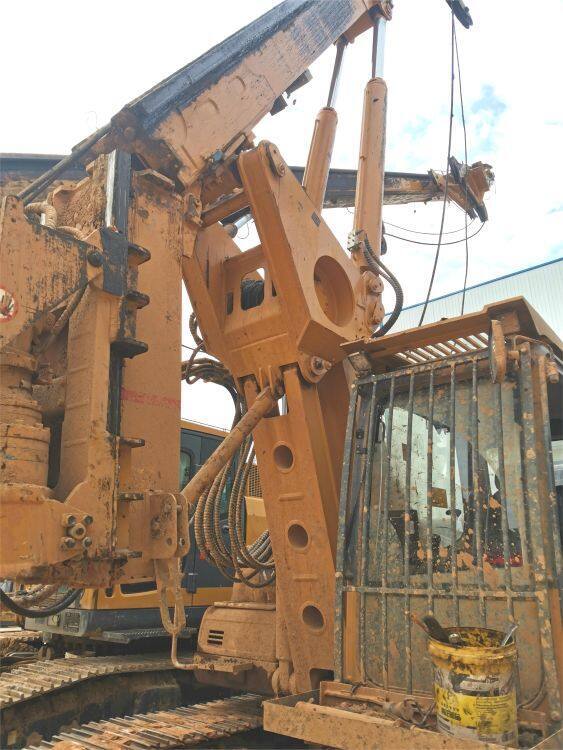

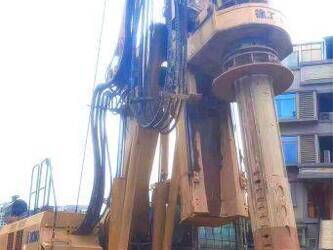

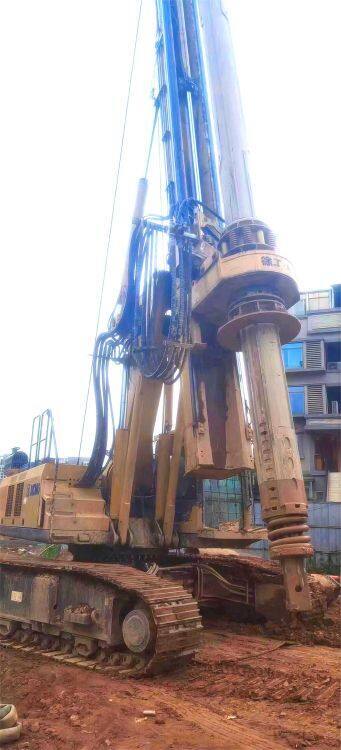

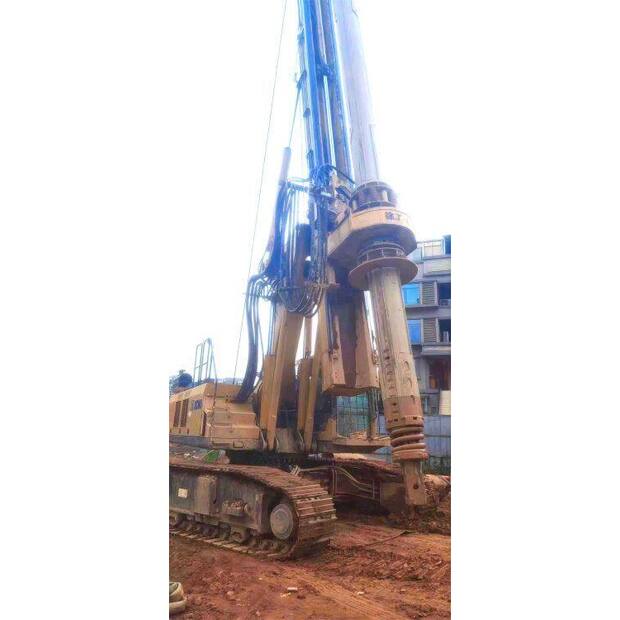

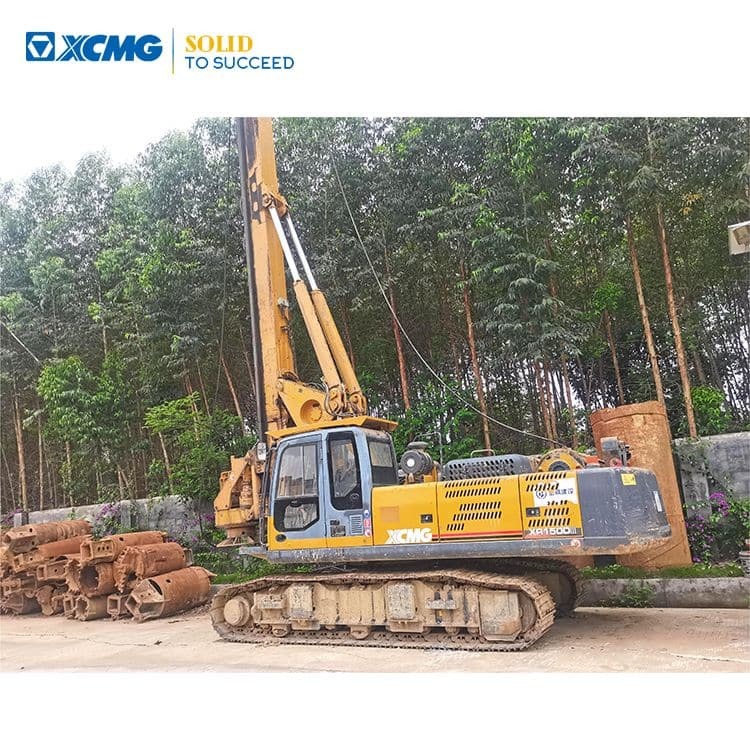

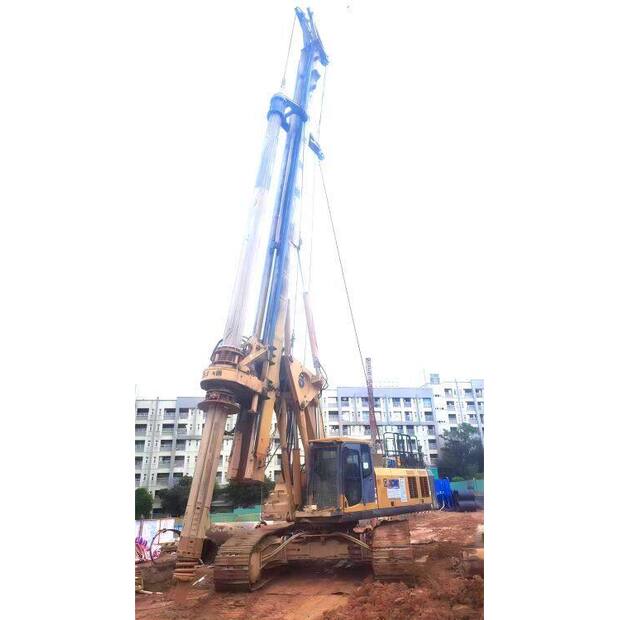

XCMG Piling machine XR150DII 150kn bored pile rig machine 55m used rotary drill rig
weight: 49000.000kg
: 7 days for ready goods
: 1 Piece
: Any Port In China
DescriptionUnitParameter value
Max. drilling diametermm1500
Max. drilling depthm56
Allowable luffing scope (from center of drill rod to slewing center)mm3250～3650
Drilling rig dimension in working condition (L × W × H)mm7550×4200×19040
Drilling rig dimension in transport condition (L × W × H)mm13150×2960×3140
Weight of overall unit (standard configuration, excluding drilling tool)t49
EngineModel QSB7
Rated power/speedkW150/（2050r/min）
Max. working pressure of hydraulic systemMPa35
Rotary driveMax. torquekN •m150
Rotational speedr/min7～33
Crowd cylinderMax. Pushing forcekN120
Max. Pulling forcekN160
Max.strokemm3500
Main winchMax.pulling forcekN160
Max. single-rope speedm/min72
Diameter of the steel wire ropemm26
Auxiliary winchMax.pulling forcekN50
Max. single-rope speedm/min60
Diameter of the steel wire ropemm16
Rotary table slewing angle°360
TravelingMax. traveling speed of the overall unitkm/h2.1
Max. climbable gradient of the overall unit%40
CrawlerWidth of crawler platemm700
External width of crawler (min.-max.)mm2960～4200
Center distance between two longitudinal wheels of crawlermm4310
Average ground pressurekPa83
XCMG Piling machine XR150DII 150kn bored pile rig machine 55m used rotary drill rigweight: 49000.000kg
: 7 days for ready goods
: 1 Piece
: Any Port In China
DescriptionUnitParameter value
Max. drilling diametermm1500
Max. drilling depthm56
Allowable luffing scope (from center of drill rod to slewing center)mm3250～3650
Drilling rig dimension in working condition (L × W × H)mm7550×4200×19040
Drilling rig dimension in transport condition (L × W × H)mm13150×2960×3140
Weight of overall unit (standard configuration, excluding drilling tool)t49
EngineModel QSB7
Rated power/speedkW150/（2050r/min）
Max. working pressure of hydraulic systemMPa35
Rotary driveMax. torquekN •m150
Rotational speedr/min7～33
Crowd cylinderMax. Pushing forcekN120
Max. Pulling forcekN160
Max.strokemm3500
Main winchMax.pulling forcekN160
Max. single-rope speedm/min72
Diameter of the steel wire ropemm26
Auxiliary winchMax.pulling forcekN50
Max. single-rope speedm/min60
Diameter of the steel wire ropemm16
Rotary table slewing angle°360
TravelingMax. traveling speed of the overall unitkm/h2.1
Max. climbable gradient of the overall unit%40
CrawlerWidth of crawler platemm700
External width of crawler (min.-max.)mm2960～4200
Center distance between two longitudinal wheels of crawlermm4310
Average ground pressurekPa83
weight: 49000.000kg
: 7 days for ready goods
: 1 Piece
: Any Port In China
DescriptionUnitParameter value
Max. drilling diametermm1500
Max. drilling depthm56
Allowable luffing scope (from center of drill rod to slewing center)mm3250～3650
Drilling rig dimension in working condition (L × W × H)mm7550×4200×19040
Drilling rig dimension in transport condition (L × W × H)mm13150×2960×3140
Weight of overall unit (standard configuration, excluding drilling tool)t49
EngineModel QSB7
Rated power/speedkW150/（2050r/min）
Max. working pressure of hydraulic systemMPa35
Rotary driveMax. torquekN •m150
Rotational speedr/min7～33
Crowd cylinderMax. Pushing forcekN120
Max. Pulling forcekN160
Max.strokemm3500
Main winchMax.pulling forcekN160
Max. single-rope speedm/min72
Diameter of the steel wire ropemm26
Auxiliary winchMax.pulling forcekN50
Max. single-rope speedm/min60
Diameter of the steel wire ropemm16
Rotary table slewing angle°360
TravelingMax. traveling speed of the overall unitkm/h2.1
Max. climbable gradient of the overall unit%40
CrawlerWidth of crawler platemm700
External width of crawler (min.-max.)mm2960～4200
Center distance between two longitudinal wheels of crawlermm4310
Average ground pressurekPa83
