XCMG XGC16000
Condition
D'occasion
1
de un
5
XCMG XGC16000
1
de un
5
Survivre
La Description

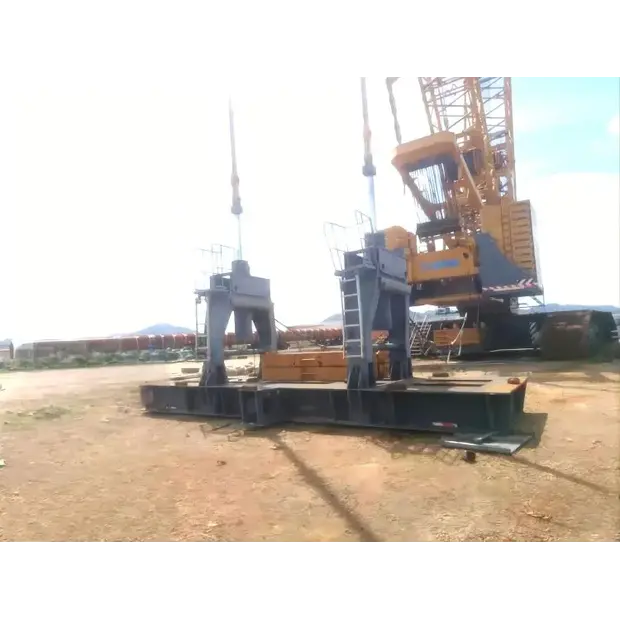

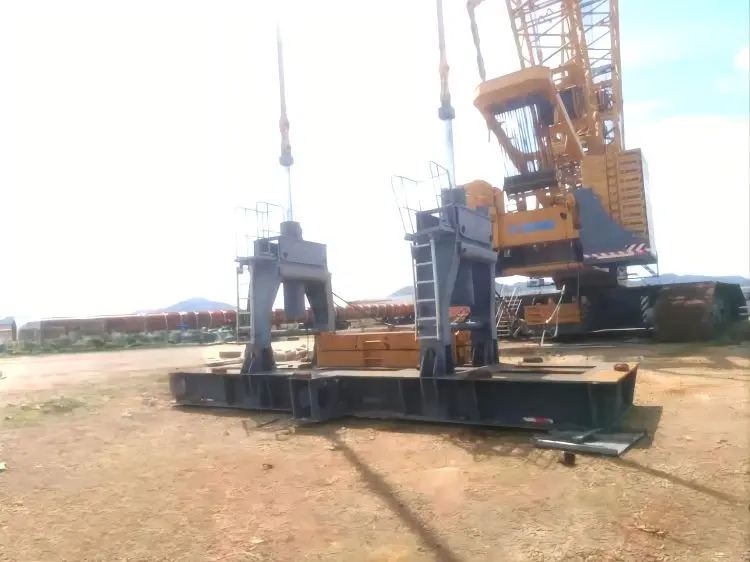

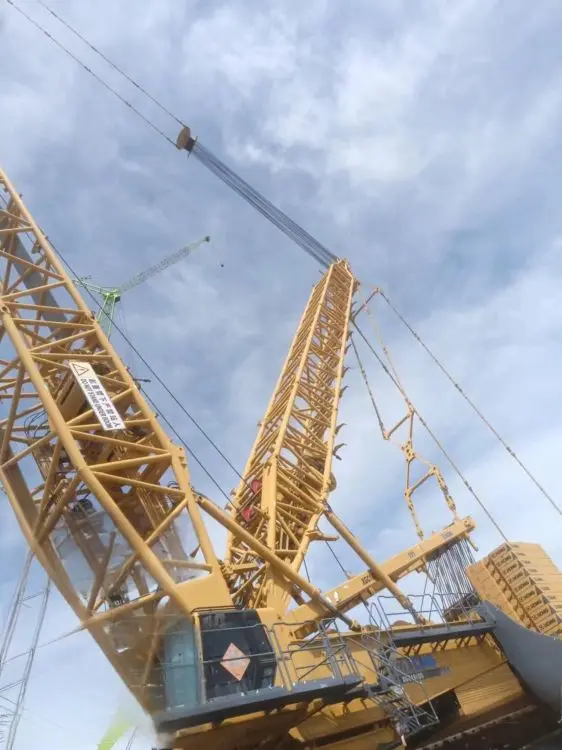

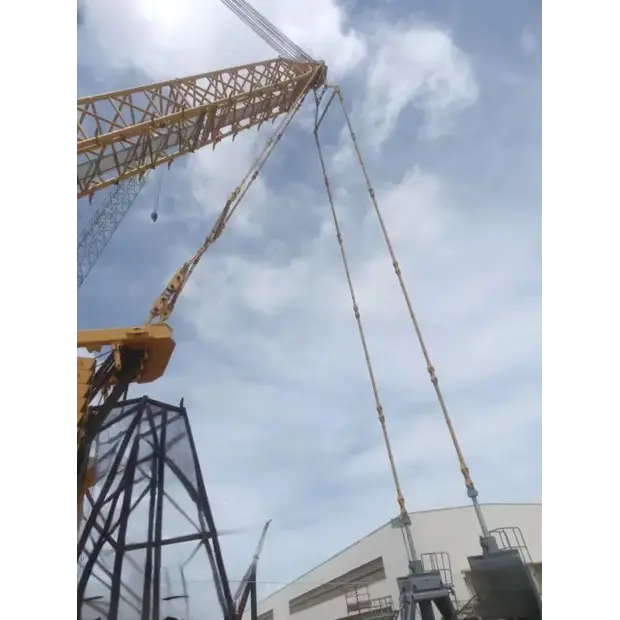

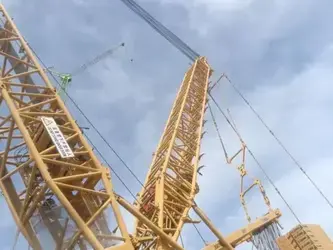

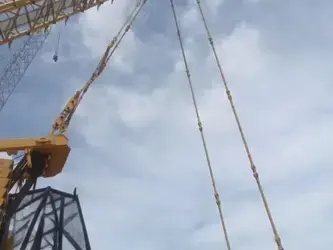

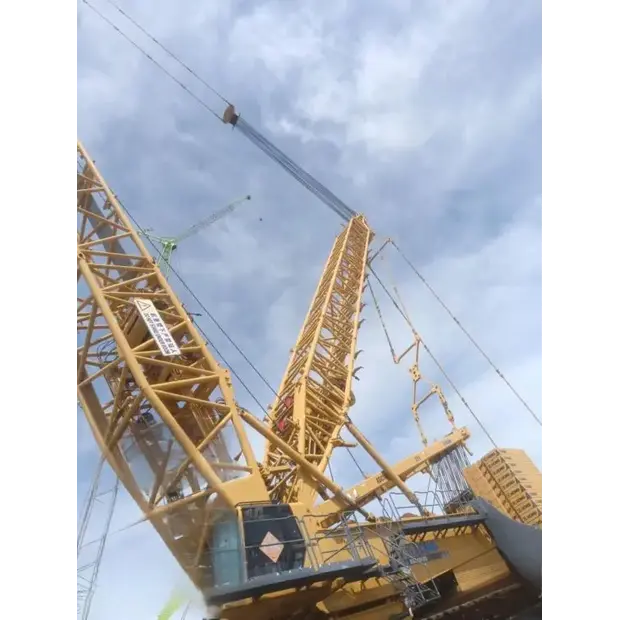

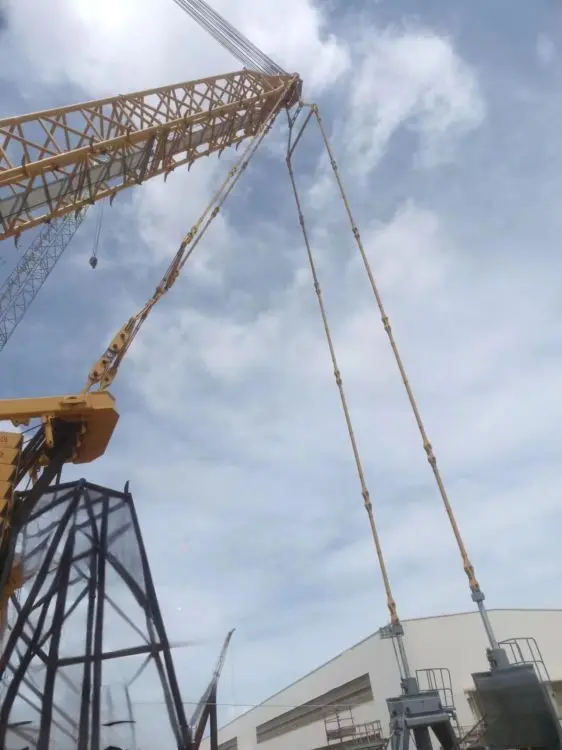

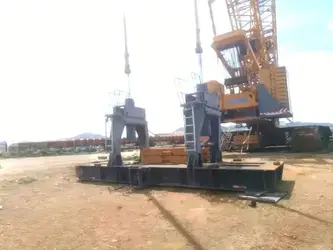

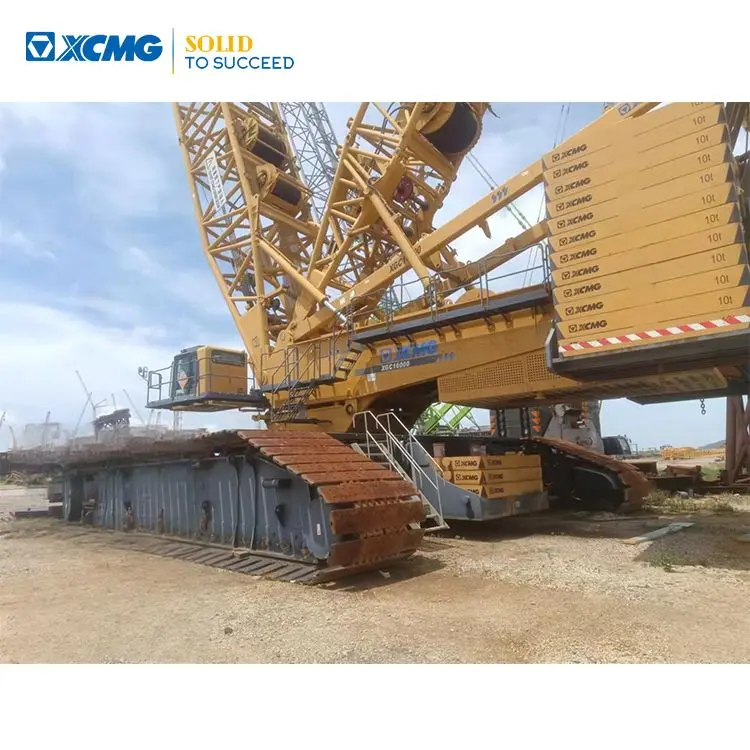

XCMG Official Second Hand XGC16000 Used Boom Crawler Crane 1250 Ton Mobile Crane Lift Price
Model Number: XGC16000
Brand Name: XCMG
Place of Origin: Guangxi, China
Max. Lifting Height: 258 m
Rated Loading Capacity: 1250 ton
weight: 1250000.000kg
Moving Type: Other
Year: 2014
Working Hours: 3298 h
: 7 days for ready goods
: 1 Piece
: Any Port In China
ItemUnitParameter value
Parameter Item-XGC16000
Operation performance parameter *
Max. rated lifting capacity for boom(t)1250
Max. rated lifting capacity for fixed jib(t)-
Max. rated lifting capacity for luffing jib(t)477
Max. load moment(t.m)15510
Max. rated lifting capacity for tower jib(t)477
Max. rated lifting capacity for boom single top(t)45
Max. rated lifting capacity for special jib(t)629
Dimension parameter *
Boom length(m)30~120( heavy type)/48~150(light type)
Boom luffing angle(°)-3~85
Fixed jib length(m)-
Tower jib length(m)30~108
Max. dimension of single unit in transport state(L×W×H)(m)15.5×3.4×3.12
Fixed jib offset angle(°)-
Special jib length(m)18
Speed parameter *
Max. single line speed for hoist mechanism(m/min)130
Max. single line speed for boom luffing mechanism(m/min)2×53
Max. single line speed for jib luffing mechanism(m/min)-
Max. slewing speed(r/min)0.9
Max. travel speed(km/h)0.8
Grade ability(%)30
Mean ground pressure(MPa)0.156
Max. single line speed for tower jib luffing mechanism(m/min)125
Max. single line speed for superlift luffing(m/min)130
Engine *
Model-QSK23
Engine power(kW)641
Emission-EU II
Mass parameter *
Overall crane mass(t)850(main hook, 30m boom)
Max. mass of single unit in transport state(t)59
