XCMG QAY650A

La Description

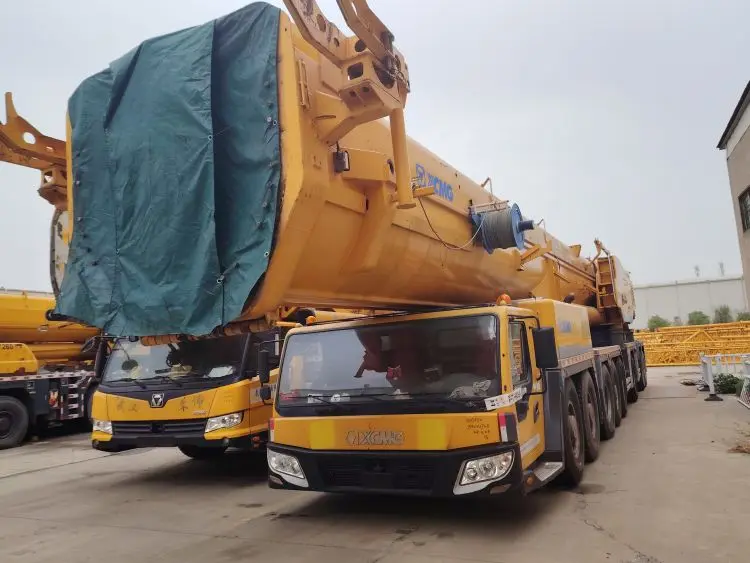

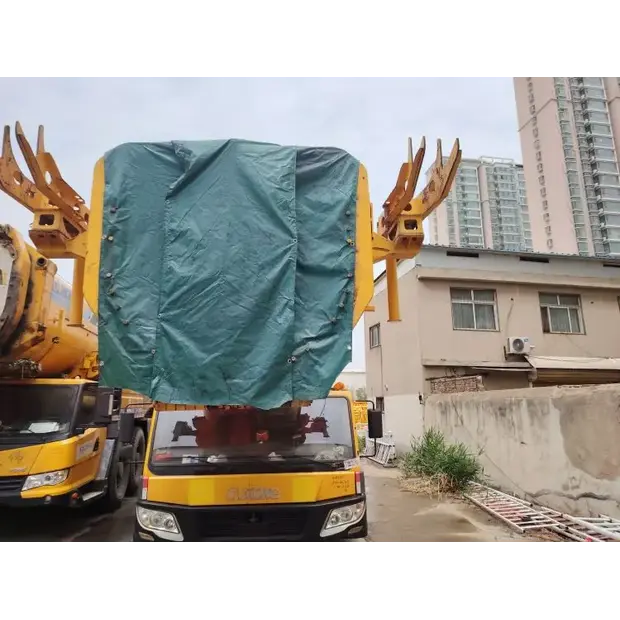

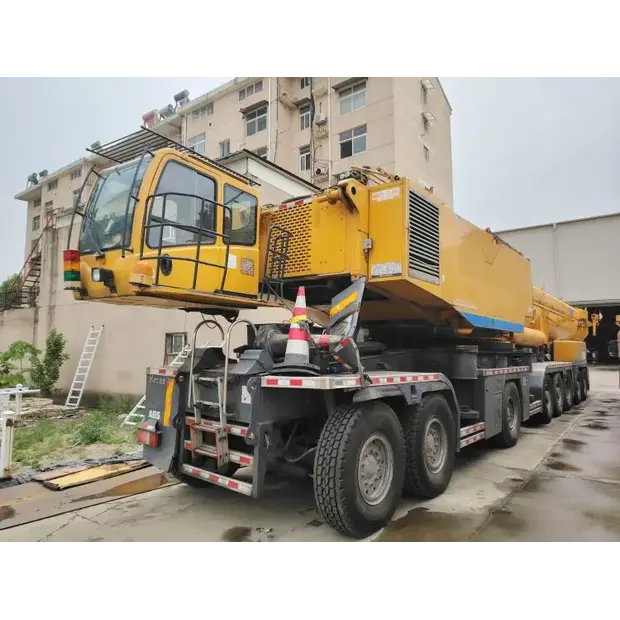

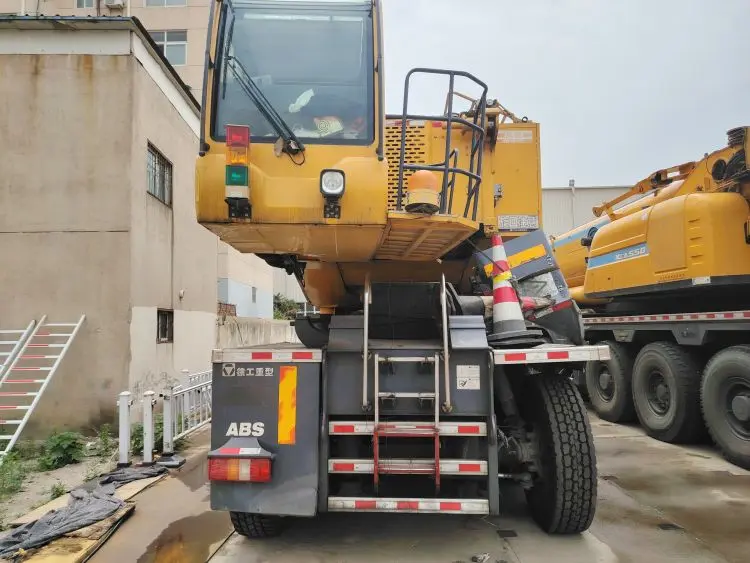

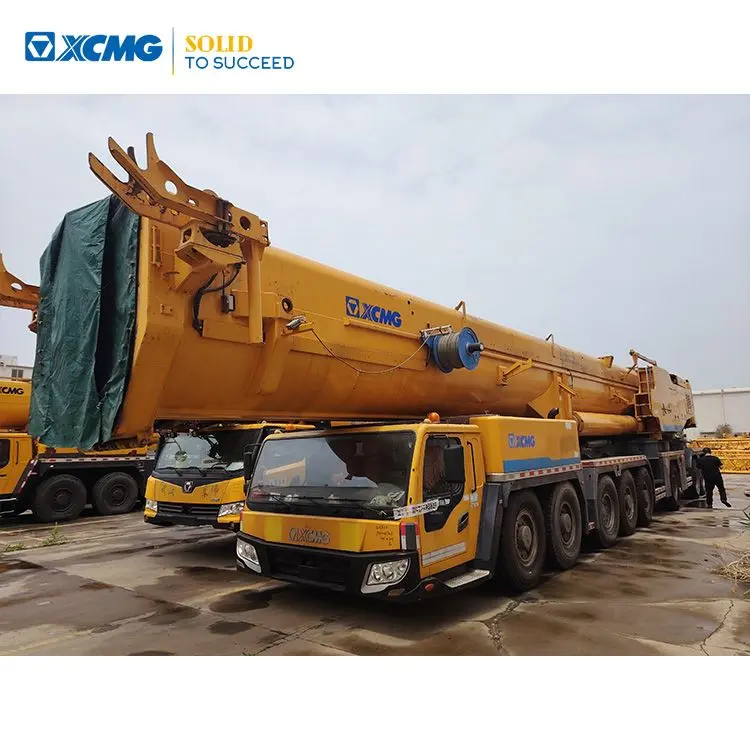

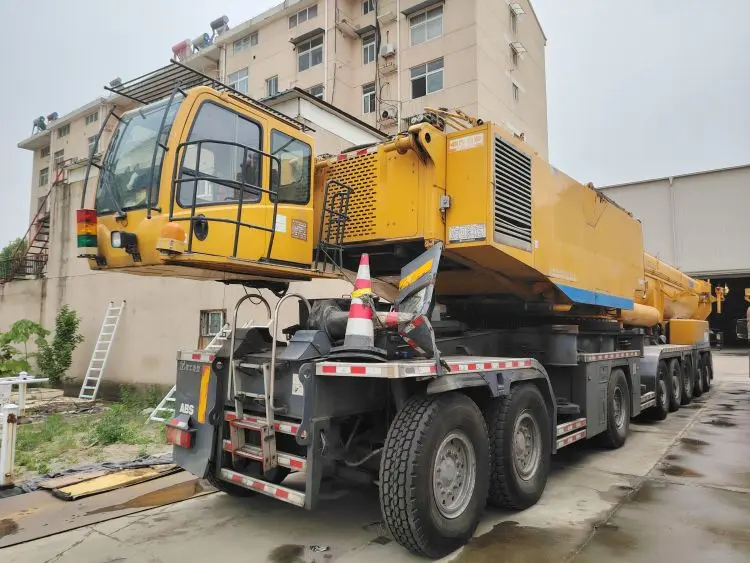

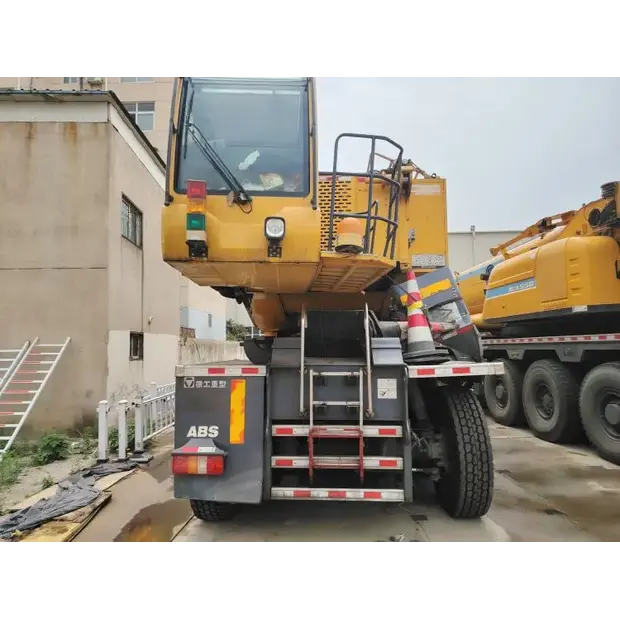

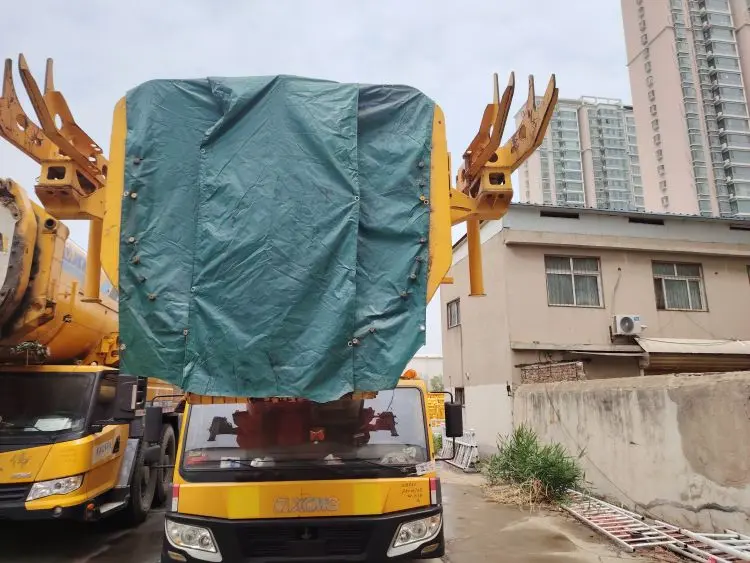

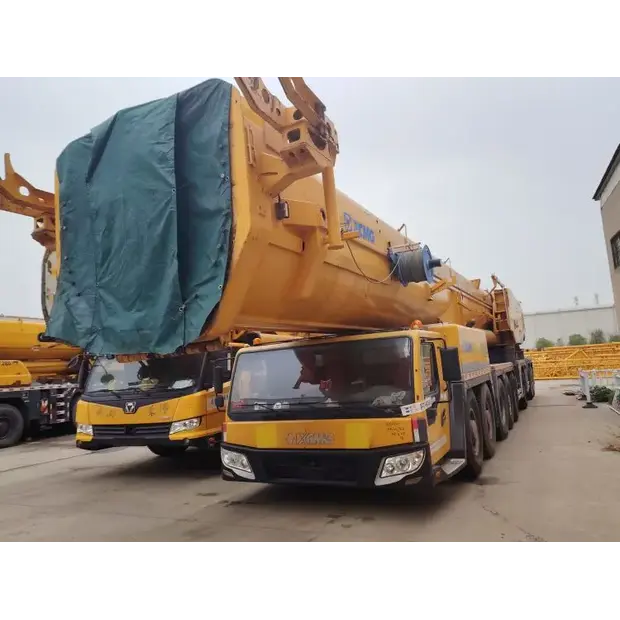

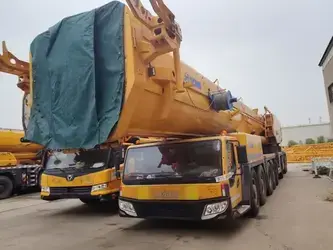

XCMG 2015 Year Truck Mounted Crane QAY650A Used Mobile Cranes For Sale
Certification: CE/ISO9001/CCC
Model Number: QAY650A
Brand Name: XCMG
Place of Origin: Jiangsu, China
Max. Lifting Load: 650Ton
Rated Lifting Moment: 19500KNM
Rated Loading Capacity: 650Ton
Application: Construction Industry
weight: 94400.000kg
Moving Type: Wheel
Max.travel speed: 80km/h
Min. around clearance: 330mm
Year: 2015
: 7 days for ready goods
: 1 Piece
: Any Port In China
Description UnitParameter value
Overall length/mm22695
Overall width/mm3000
Overall Height/mm4000
Axle base1st ,2nd axlemm1500
2nd ,3rd axle 2150
3rd ,4th axle 2150
1500
3430
3680
1500
Total vehicle mass in travel configuration/kg94400
Axle loadFront axlekg11680
Rear axle 12000
Engine rated power/kw/(r/min)205/2100
Engine rated torque/N.m/(r/min)1100/1600
Max. travel speed/km/h75
Min. steady travel speed/km/h2
Min. turning diameter/m29
Min. ground clearance/mm280
Approach angle/°12
Departure angle/°30
Max. total rated lifting capacity/t650
Time for boom raising/s≤1350
Time for boom extending fully/s≤300
XCMG 2015 Year Truck Mounted Crane QAY650A Used Mobile Cranes For Sale
Certification: CE/ISO9001/CCC
Model Number: QAY650A
Brand Name: XCMG
Place of Origin: Jiangsu, China
Max. Lifting Load: 650Ton
Rated Lifting Moment: 19500KNM
Rated Loading Capacity: 650Ton
Application: Construction Industry
weight: 94400.000kg
Moving Type: Wheel
Max.travel speed: 80km/h
Min. around clearance: 330mm
Year: 2015
: 7 days for ready goods
: 1 Piece
: Any Port In China
Description UnitParameter value
Overall length/mm22695
Overall width/mm3000
Overall Height/mm4000
Axle base1st ,2nd axlemm1500
2nd ,3rd axle 2150
3rd ,4th axle 2150
1500
3430
3680
1500
Total vehicle mass in travel configuration/kg94400
Axle loadFront axlekg11680
Rear axle 12000
Engine rated power/kw/(r/min)205/2100
Engine rated torque/N.m/(r/min)1100/1600
Max. travel speed/km/h75
Min. steady travel speed/km/h2
Min. turning diameter/m29
Min. ground clearance/mm280
Approach angle/°12
Departure angle/°30
Max. total rated lifting capacity/t650
Time for boom raising/s≤1350
Time for boom extending fully/s≤300
