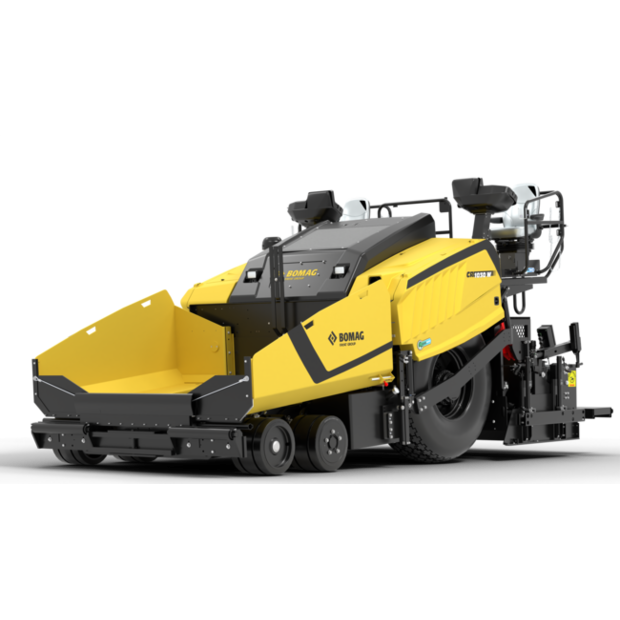

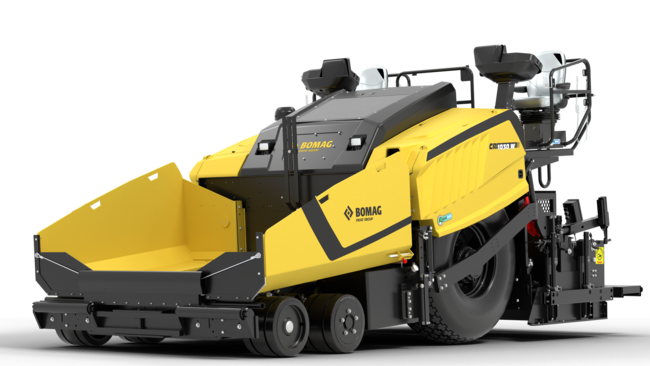

BOMAG CR 1030 W

Emission stage: Stage IV / TIER4f
Weight: 38,280 lb
Working width (min-max): 120.0 - 360.0 in
Highway paver CR 1030 W: Born for the road.
New Features and an Improved Operator Experience
BOMAG 10-foot tracked pavers now include an upgraded platform and better sound insulation for a better operator experience.
Dual, swing-out operator stations feature BOMAG SIDEVIEW innovation so the seat and console both swivel outward at four differing angles for unobstructed views
Open-grate design on the platform floor affords the operator direct-
A large multifunction color screen display on both consoles for easy viewing of critical operating function, gauges and parameters
Sound-insulated composite engine hood provides quieter paving for a better operator experience
Tier 4 final 260 hp engine delivers ample power for full-width paving, while having enough power in reserve to operate the screed’s generator and lights for nighttime paving
Stretch® 20 hydraulically extendible screed for infinitely variable paving widths from 10-20 feet (up to 30 feet with extensions)
Dual, swing-out operator stations feature BOMAG SIDEVIEW innovation so the seat and console both swivel outward at four differing angles for unobstructed views
Open-grate design on the platform floor affords the operator direct-
A large multifunction color screen display on both consoles for easy viewing of critical operating function, gauges and parameters
Sound-insulated composite engine hood provides quieter paving for a better operator experience
Tier 4 final 260 hp engine delivers ample power for full-width paving, while having enough power in reserve to operate the screed’s generator and lights for nighttime paving
Stretch® 20 hydraulically extendible screed for infinitely variable paving widths from 10-20 feet (up to 30 feet with extensions)
New Features and an Improved Operator Experience
BOMAG 10-foot tracked pavers now include an upgraded platform and better sound insulation for a better operator experience.
Dual, swing-out operator stations feature BOMAG SIDEVIEW innovation so the seat and console both swivel outward at four differing angles for unobstructed views
Open-grate design on the platform floor affords the operator direct-
A large multifunction color screen display on both consoles for easy viewing of critical operating function, gauges and parameters
Sound-insulated composite engine hood provides quieter paving for a better operator experience
Tier 4 final 260 hp engine delivers ample power for full-width paving, while having enough power in reserve to operate the screed’s generator and lights for nighttime paving
Stretch® 20 hydraulically extendible screed for infinitely variable paving widths from 10-20 feet (up to 30 feet with extensions)
Dual, swing-out operator stations feature BOMAG SIDEVIEW innovation so the seat and console both swivel outward at four differing angles for unobstructed views
Open-grate design on the platform floor affords the operator direct-
A large multifunction color screen display on both consoles for easy viewing of critical operating function, gauges and parameters
Sound-insulated composite engine hood provides quieter paving for a better operator experience
Tier 4 final 260 hp engine delivers ample power for full-width paving, while having enough power in reserve to operate the screed’s generator and lights for nighttime paving
Stretch® 20 hydraulically extendible screed for infinitely variable paving widths from 10-20 feet (up to 30 feet with extensions)
Fields of application
Asphalt paving with BOMAG pavers guarantees the highest efficiency and quality in road construction.

With BOMAG pavers you can choose the optimal road paver for your application from a wide range of products (5-21 t). We offer a vast array of machines and equipment from the flexibly-deployable pedestrian road paver to the heavy-duty paver.
Technology makes the difference.
BOMAG consistently sets industry standards and has developed numerous technologies that make everyday work easier, support machine operators and ensure high-quality work results.
Specifications
Standards
Turbocharged 260 hp Tier 4 engine
Power-tilt hood with radiator
Lockout/tagout capable E-stop and master electrical switch
Fume-recovery system
Frame Raise and Three-point suspension system with adjustable spreading auger height
Reinforced, sealed, tilting hopper wings with beveled corners
Hydraulically adjustable screed vibrators
Hydraulic power crown control
Adjustable material retaining plates
Two power-adjustable feed gates
Oscillating front wheel bogie assemblies
Hydrostatic steering
Thirty-foot hose reel for spray-down
Back-up alarm
Options
Stretch® 20 screed with electric heat
Counter-clockwise hand cranks
Electric-heated end gates
Hydraulically adjustable screed vibrators
Hydraulic power crown control
Grade and slope control
Multi-foot grade reference system
Sonic averaging systems
Bevel guide plates
Cutoff shoes, 12-inch and 24-inch sections
Screed extensions: 14 in, 26 in or 38 in
Front wheel assist - 4 wheel drive
Oscillating push rollers
Truck hitch
Umbrella
Auxiliary lighting
Auger & hydraulic tunnel extensions
A2 pre-plumbing for truck hitch
Hopper inserts: 22-ton & 27-ton options
Service kit
Emergency kit
Maintenance with a concept
Low cost of ownership.
The simplest and most cost-effective service is the one that isn’t necessary. The maintenance of our road pavers is as simple as their operation. As every function is controlled by its own switch, every switch can also be replaced separately. The engine compartment with the hydraulic systems is easily accessible from every side, and all the filters can be reached comfortably above the engine and centrally from both sides. To keep any downtimes as short as possible, we offer carefully selected maintenance and emergency kits.
Guaranteed quality and reliability.
BOMAG quality
BOMAG support and training
BOMAG fleet management
BOMAG Service Kits
If the label says BOMAG, you can expect top quality. This applies as much to the built-in machine components as it does to Original BOMAG spare parts and BOMAG service. We want your pavers and feeders to keep running.
High-quality wear parts ensure a particularly long service life for BOMAG pavers and feeders. The tamper bars are fully hardened, and the screed plates are made of 15 mm thick, wear-resistant steel (Brinell hardness 450).
Our online and classroom training sessions provide valuable know-how for everyday tasks. And you can also rely on our application engineers in an emergency – because they are on the road throughout the world.
Position, fuel consumption, operating hours – discover the hidden potential that enables you to use pavers and feeders even more efficiently. Your machines are just a mouse click away.
BOMAG supplies everything you need for maintenance, wear repairs or daily on-site servicing: operating fluids and Genuine Parts, tailor-made for every BOMAG feeder and paver. Reduce the risk of downtime to a minimum.
