Mercedes-Benz Arocs 3340A 6x6 Cargo

The Mercedes-Benz Arocs 3340A 6x6 Cargo is a robust truck, ideal for personnel and cargo transport in tough conditions. Its 394 hp engine and 6x6 drive system ensure excellent performance on rough terrain. The flexible cargo body with benches and twist locks makes it perfect for troop transport and container logistics. This truck offers reliability for challenging off-road missions and operations.

Specifications Mercedes-Benz Arocs 3340A 6x6:
- Drive: 6x6 configuration for superior traction in off-road environments.
- Maximum Gross Vehicle Weight (GVW): 27 tons, suitable for heavy transport.

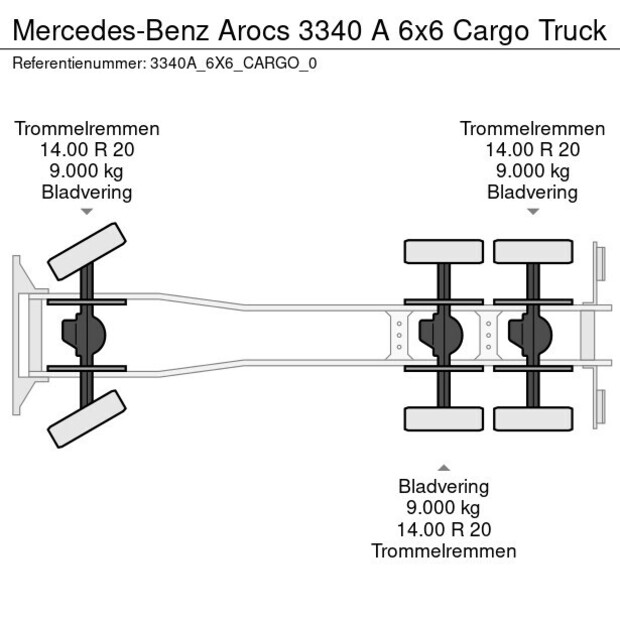

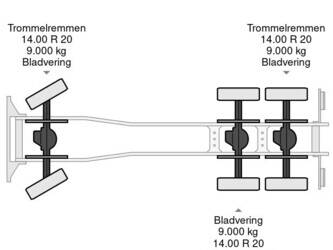

- Axle Configuration: Front axle 8.0 t, rear axles 2 x 13.0 t with differential lock.
- Suspension: Reinforced 3-leaf front suspension (8.0 t) and rear suspension (2 x 13.0 t).
- Wheelbase: 5100 mm, for stability and maneuverability.
- Engine: 12.8-liter inline-6 OM460 Euro III, 394 hp (290 kW), 1900 Nm.
- Transmission: Mercedes PowerShift 3 with off-road mode and VG 3000-3W transfer case.
- Tires: 365/85 R 20, optimized for off-road use.

Cargo Body Features:
- Dimensions: Length 7000 mm, width 2550 mm, internal height 2000 mm.
- Floor: Anti-slip checker plate steel (3/5 mm, S235JR) with 10 tie-down rings.
- Side Walls: Foldable, removable side walls and tailgate; flatrack configuration possible.
- Twist Locks: 4 units for ISO 20 ft containers.
- Benches: Foldable benches for 30 persons, 415 mm per seat.
- Roof and Tarpaulin: Steel bows with waterproof PVC tarpaulin (630 g/m², UV-resistant), white RAL color.
- Extras: Foldable steps, rubber pads, mud flaps with anti-stone chip coating.

Included Accessories:
- Lockable toolbox on chassis.
- Jerrycan holders for water and fuel.
- Spare wheel holder with manual winch.

Paintwork:
- Epoxy primer, sandblasted (SA 2½), waxed protection, white RAL color.

High Performance:
- Versatility: Flexible for personnel, cargo, or container transport.
- Durability: Robust steel construction for off-road use.
- Efficiency: Quick adjustment of the cargo body without tools.
- Reliability: Reinforced suspension and powerful engine.

Applications:
- Military Operations: Troop and equipment transport.
- Logistics: Cargo transport in remote areas.
- Container Transport: ISO 20 ft containers.

Additional Options:
- Lockable fuel caps, tank protection plate.
- LED lighting, first aid kit, warning triangle, 6 kg fire extinguisher.
- Built for Tough Conditions:

The Mercedes-Benz Arocs 3340A 6x6 Cargo excels in rugged off-road environments and demanding logistics operations — the ideal solution for heavy-duty transport challenges.

Availability: 4 units from September 2025. Images will be updated upon arrival.
