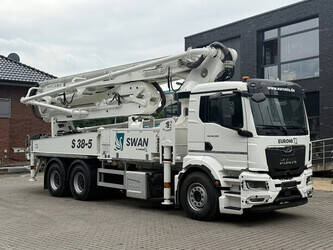

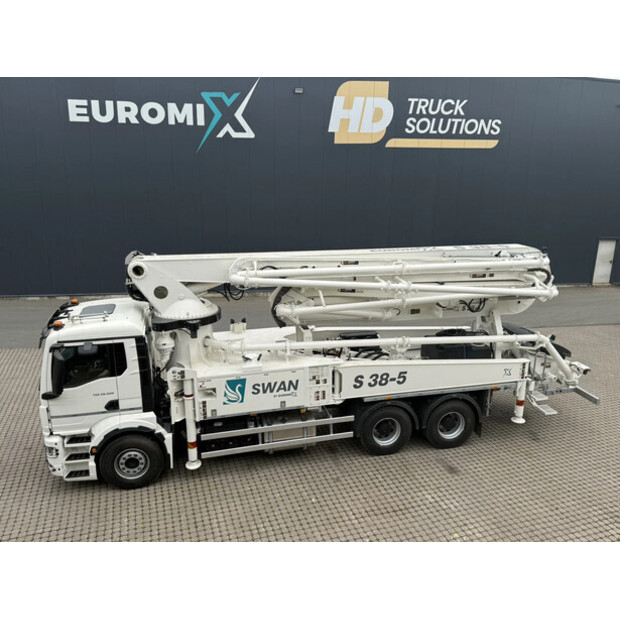

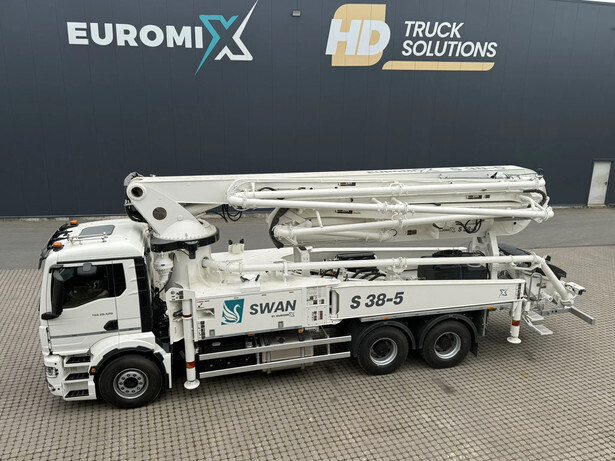

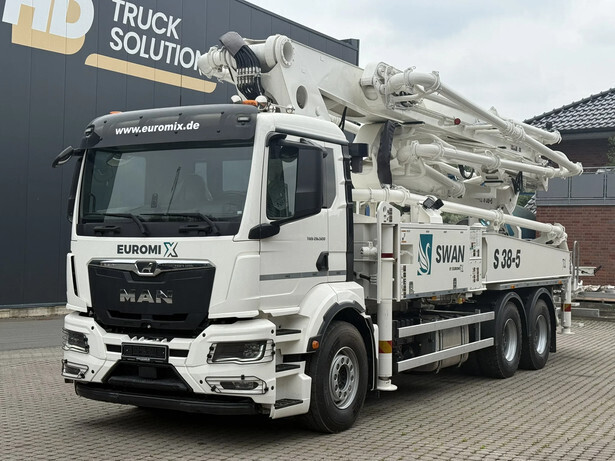

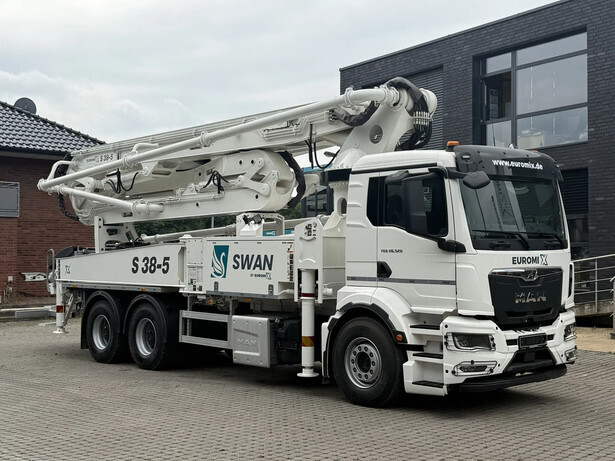

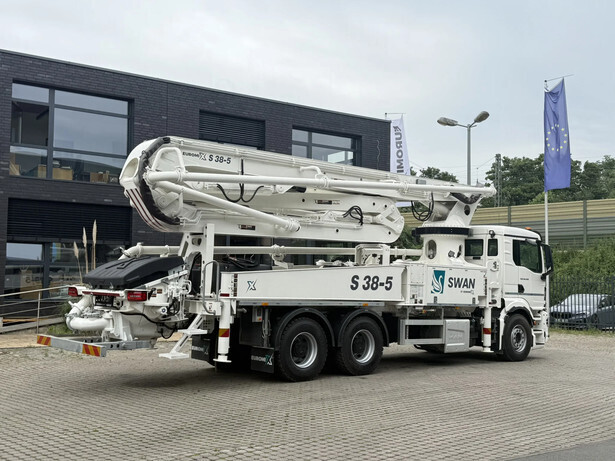

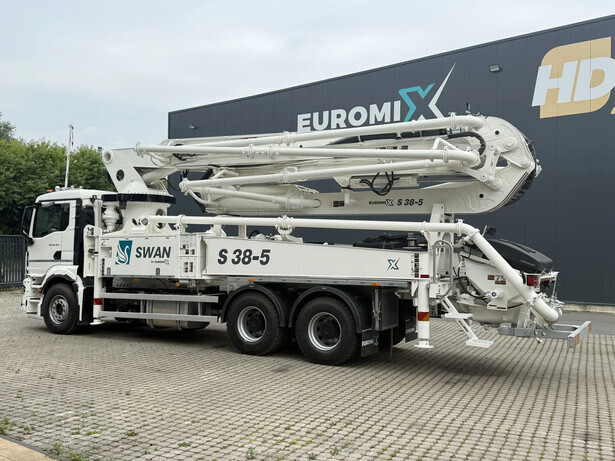

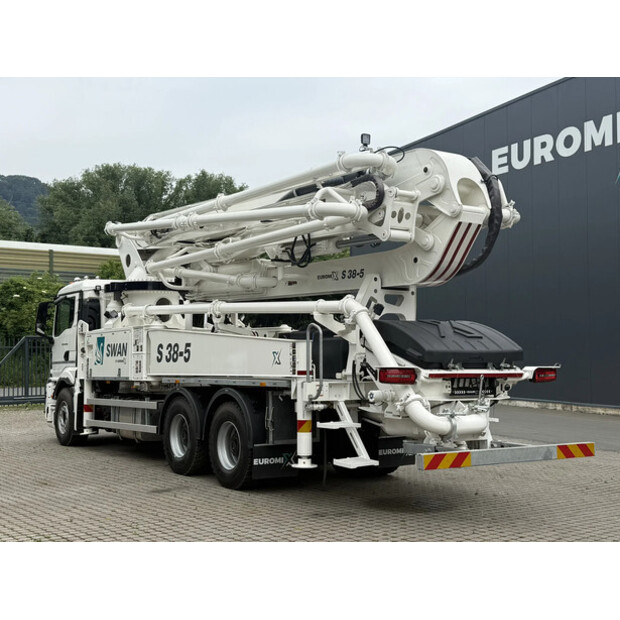

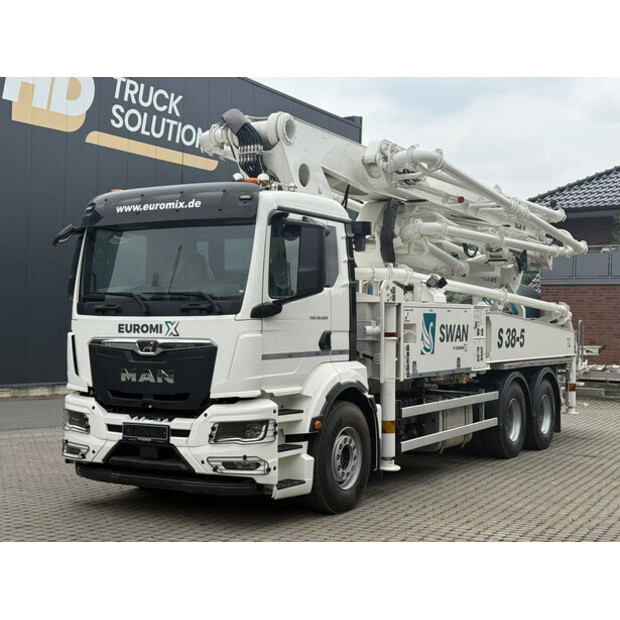

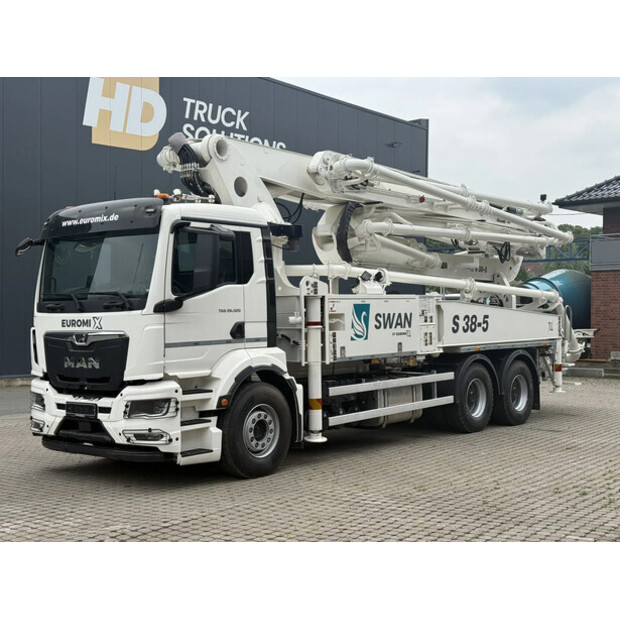

2025 MAN TGS 26.510

General information

New: Yes
Colour: White
Applicable material: Concrete

Technical information

Power: 510 kW (693 HP)
AdBlue system: Yes
Transmission: Automatic
Axle configuration: 6x4
Front axle: Steering
GVW: 26.000 kg

Functional

Make of bodywork: EuromixMTP SWAN TSP 38-5 160RZ
Pump: Yes

Environment

Emission class: Euro 6

Maintenance

APK (MOT): New APK (MOT) upon delivery

Financial information

VAT: The price shown is excluding VAT

Additional information

Please contact Harun Cevik (+491735100933, hc@euromix.de) or Denis Omeragic (+49 178 7800047, info@euromix.de) for more information

EUROMIX TO GO – new vehicles available immediately from stock in Porta Westfalica, Germany. Fully built, direct from the manufacturer – ideal for a short-term capacity increase or a replacement investment.

Price negotiable – please contact us.

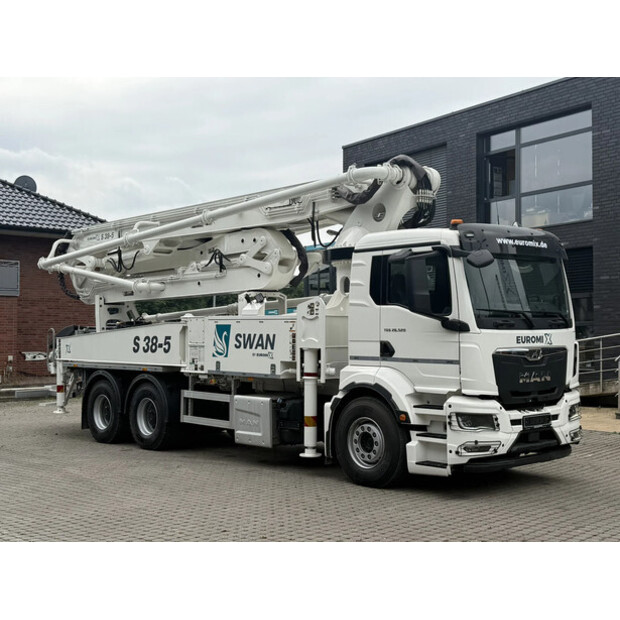

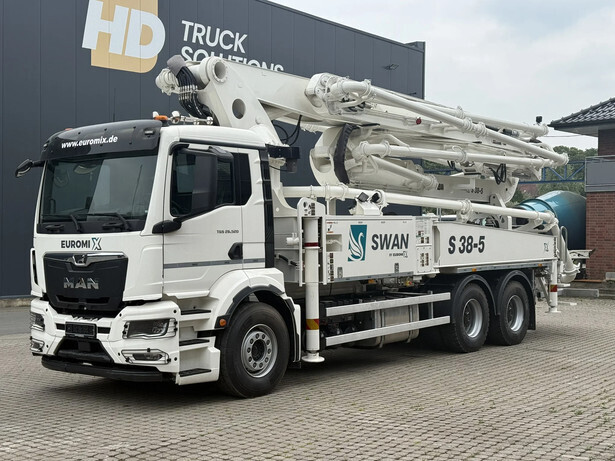

MAN TGS 26.520 BB 6x4 EURO 6e

Concrete pump EuromixMTP - SWAN TSP 38-5 160RZ

Pre-registered, first registration: 12 / 2025

Vehicle equipment:
MAN TipMatic 12.28 OD - MAN TipMatic Offroad,-TipMatic Efficiency,
300 l tank capacity - 35 l AdBlue tank capacity
High-performance engine brake MAN EVBec, multi-stage
MAN EasyStart hill holder
Differential locks driven rear axles
Suspension type leaf/leaf (BB) on front axles and driven rear axles
Sun visor, in front of windscreen
Windscreen wiper operation, automatic, with rain sensor (auto wipe)
Daytime running lights, LED - high beam assist - work lights at rear of cab,
Exterior mirrors, electrically adjustable, heated

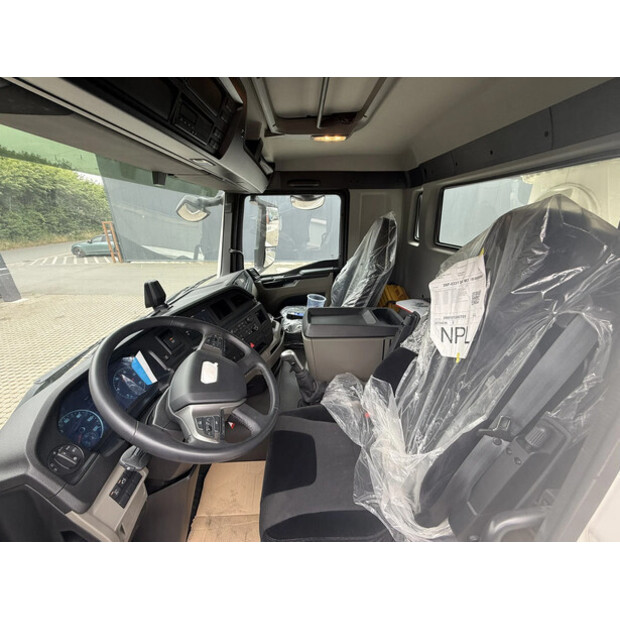

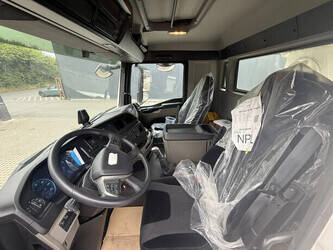

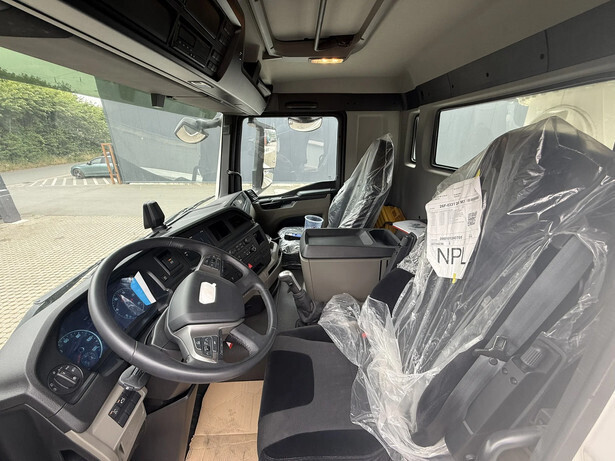

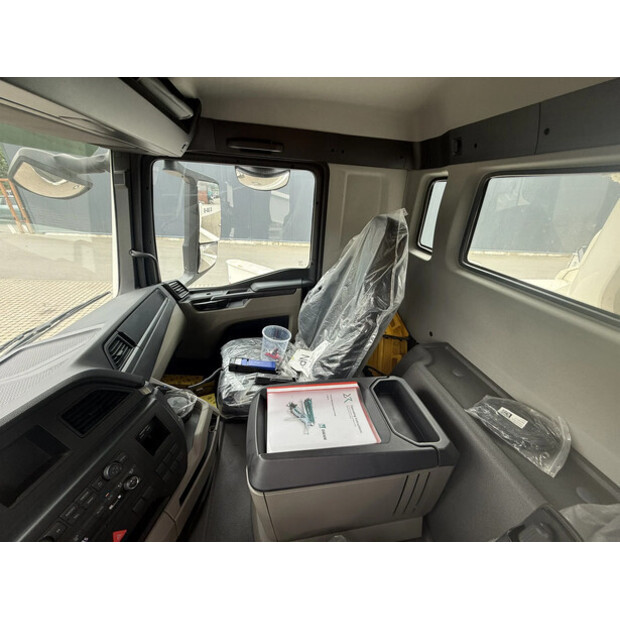

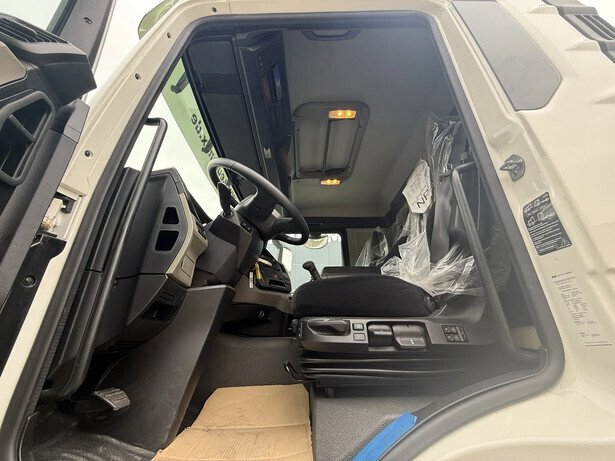

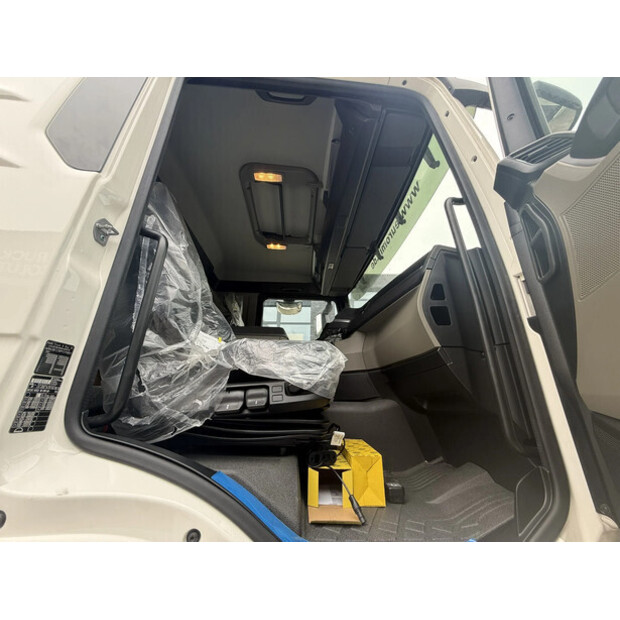

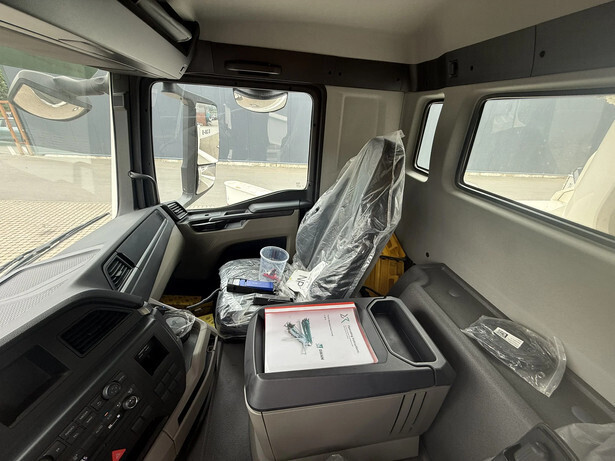

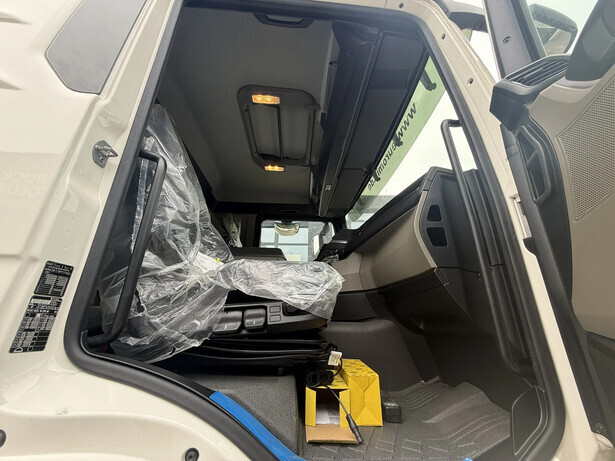

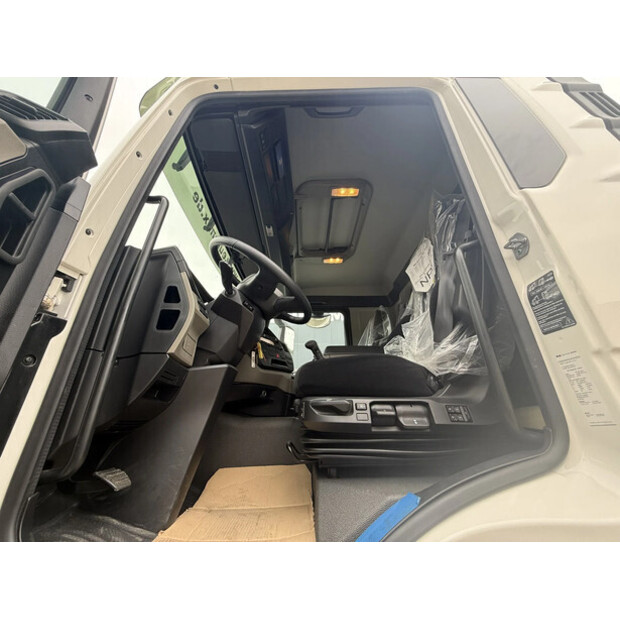

Comfort driver's seat, air-suspended - armrests driver's seat
Multifunction steering wheel, height and tilt adjustable
Preparation for Toll Collect toll system

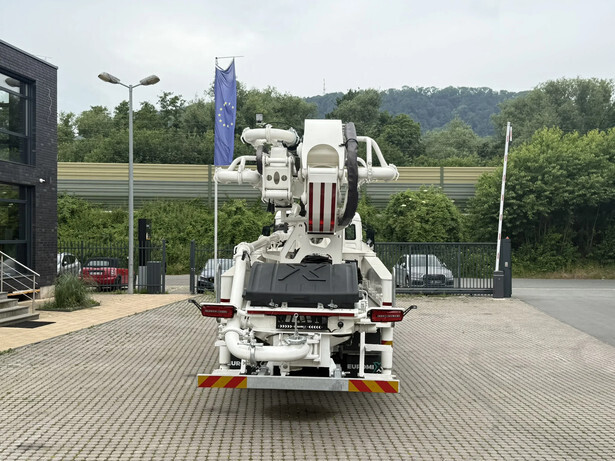

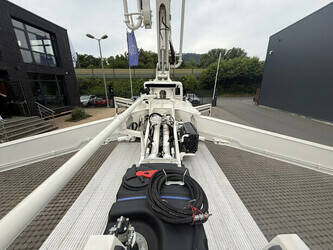

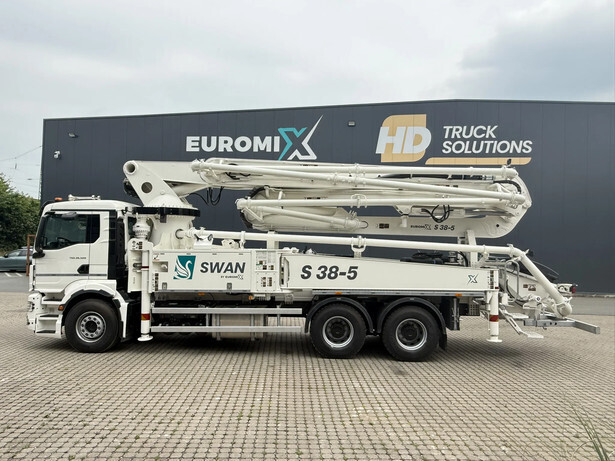

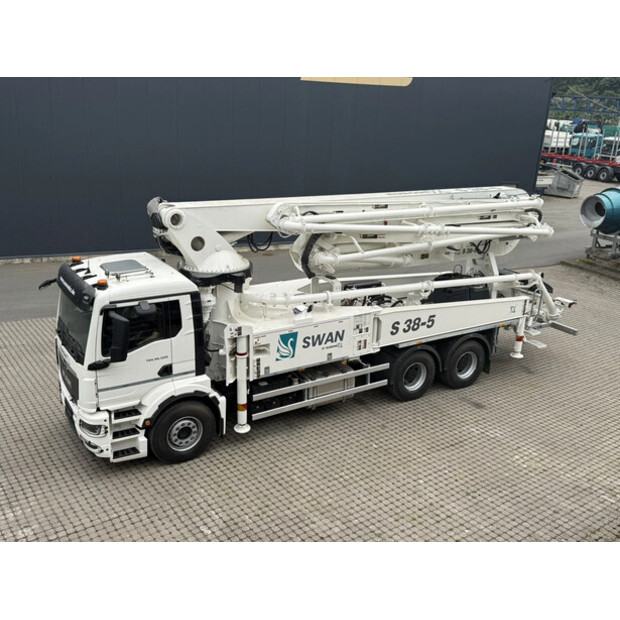

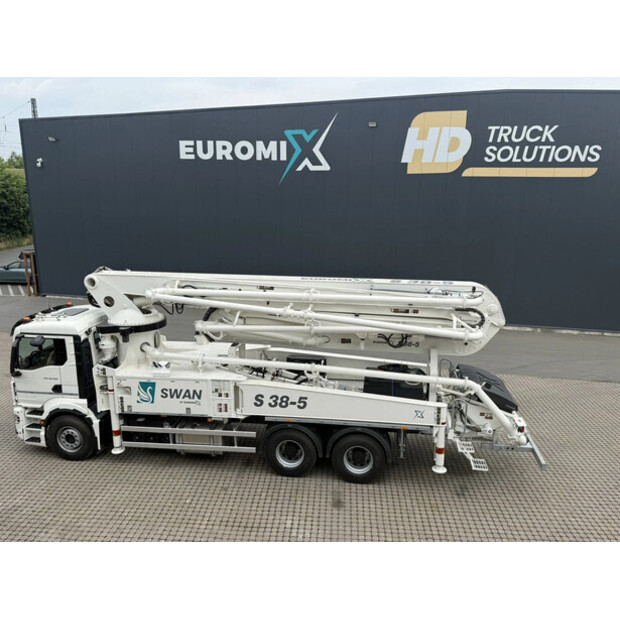

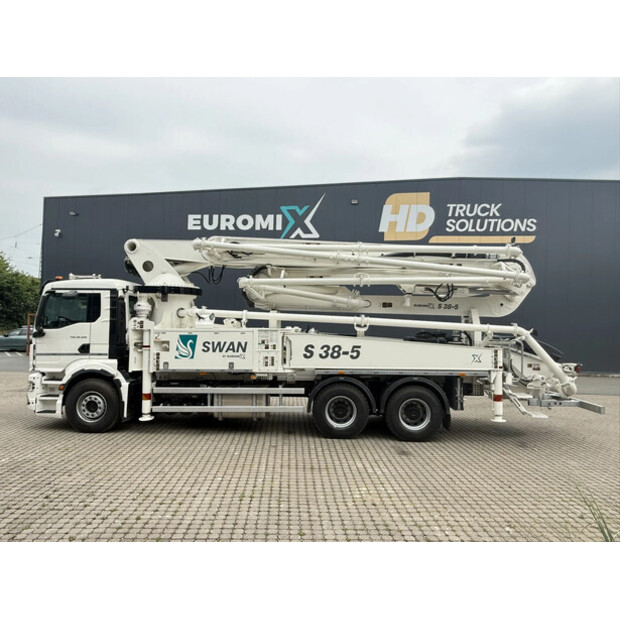

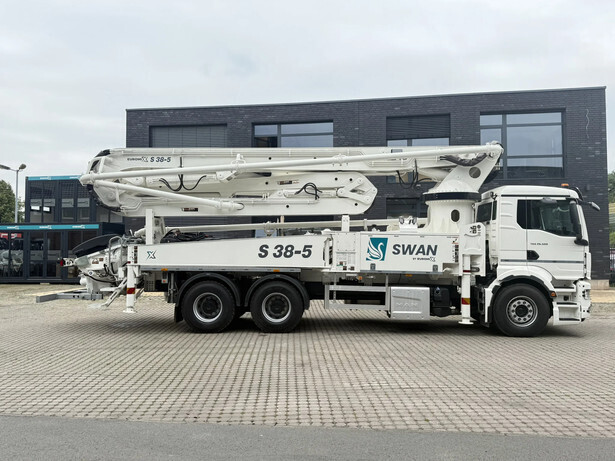

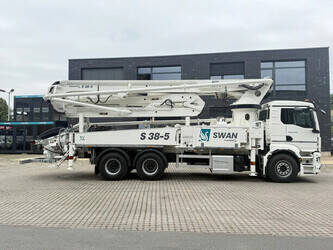

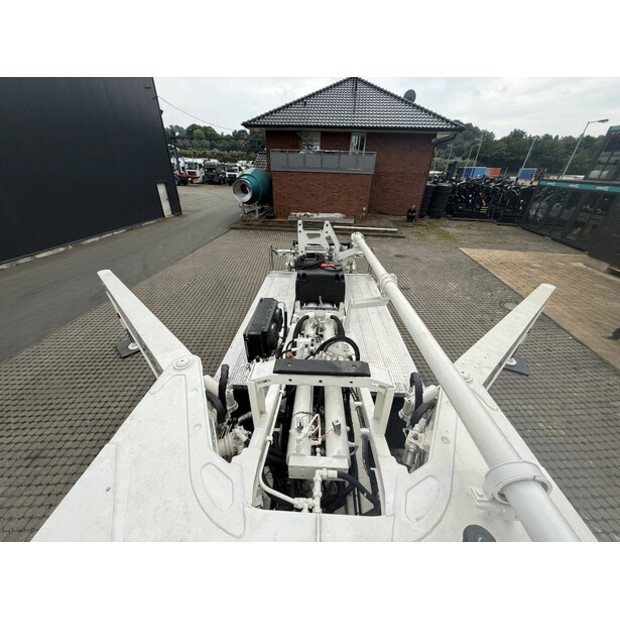

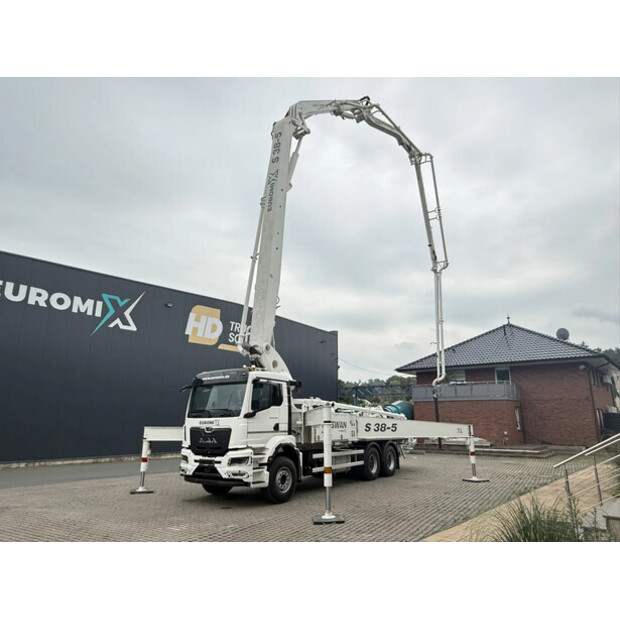

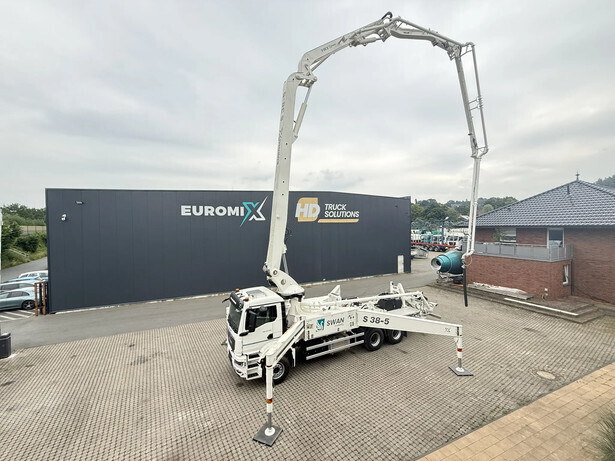

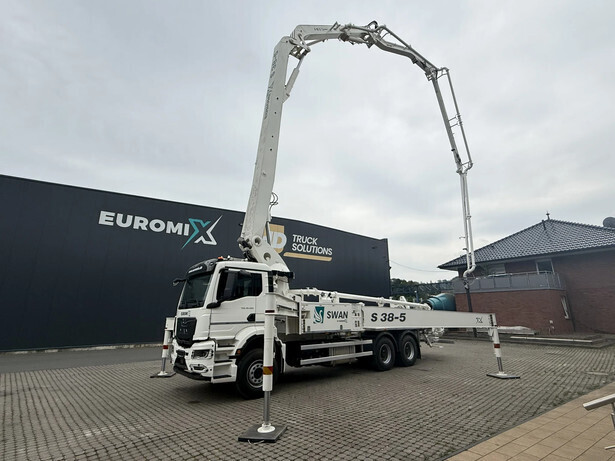

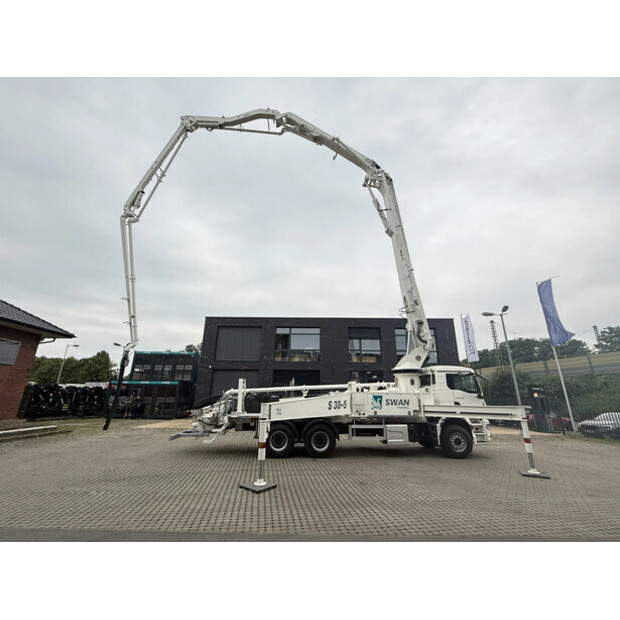

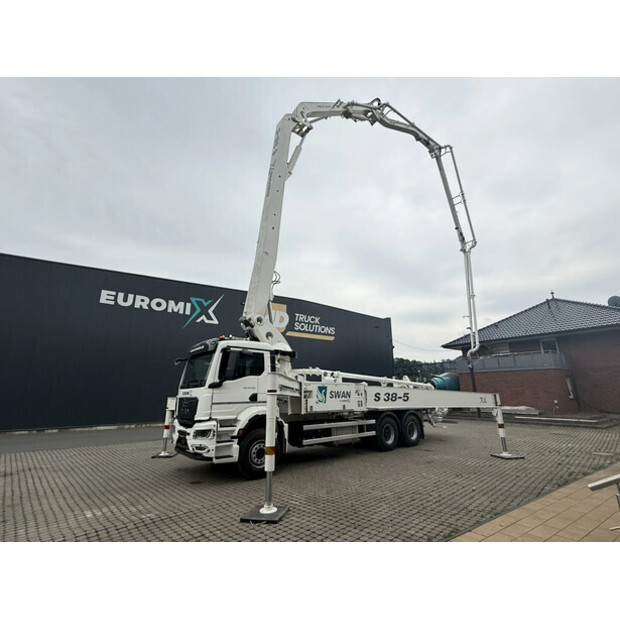

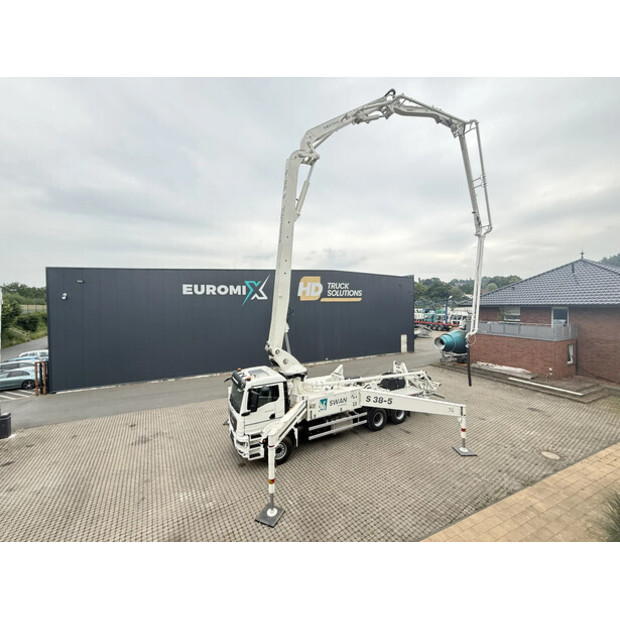

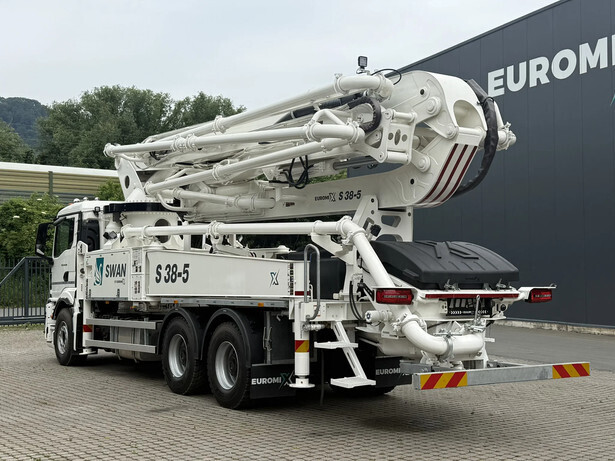

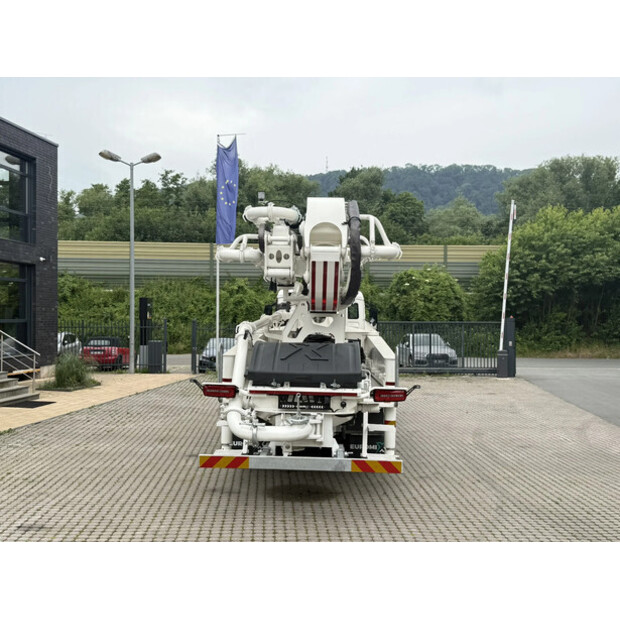

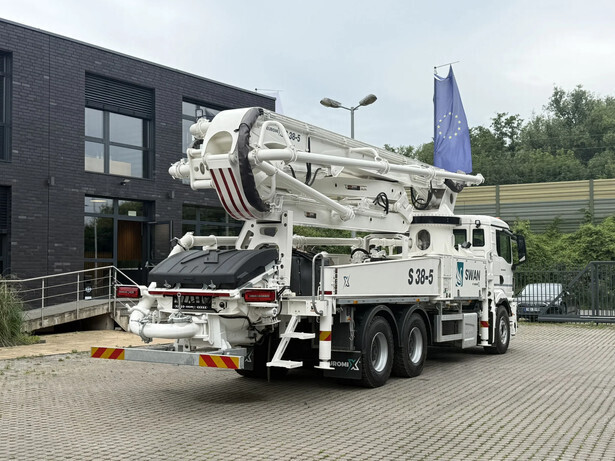

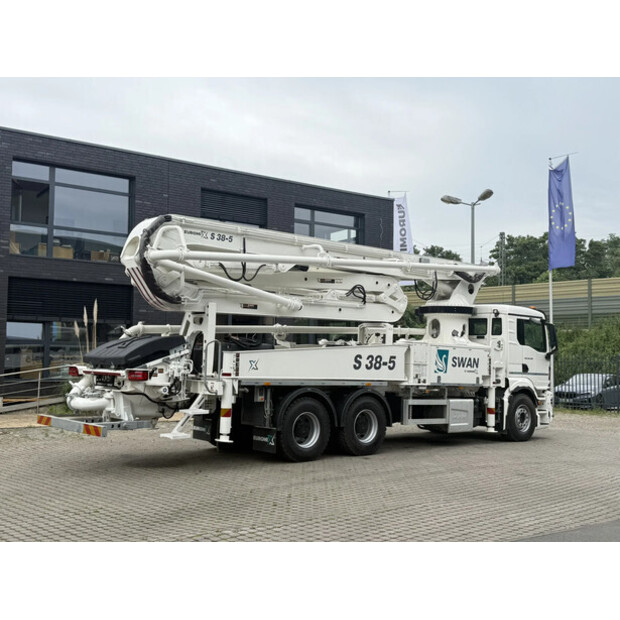

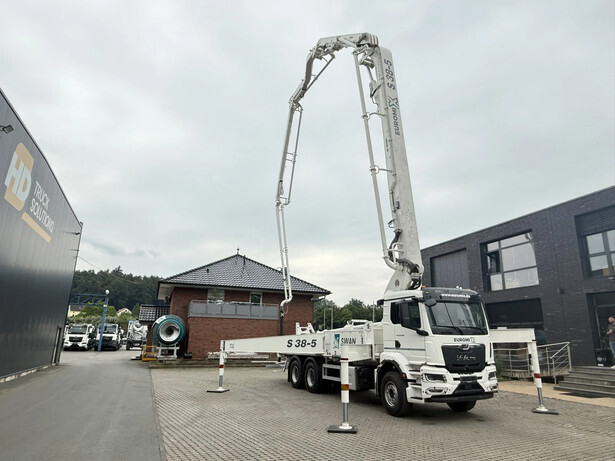

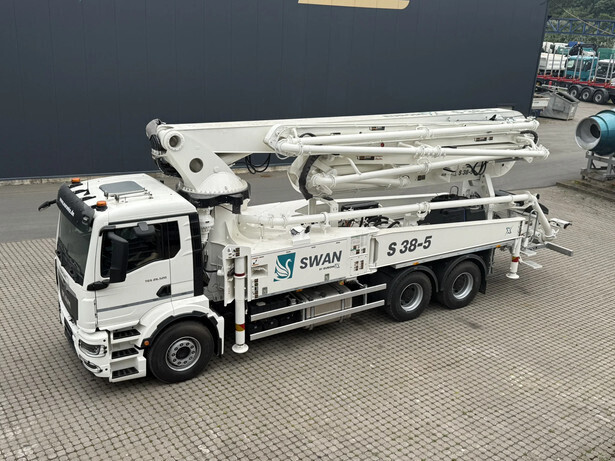

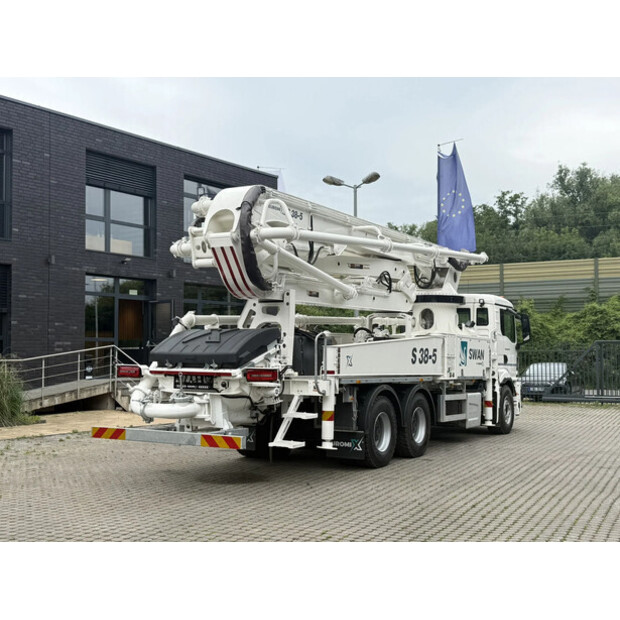

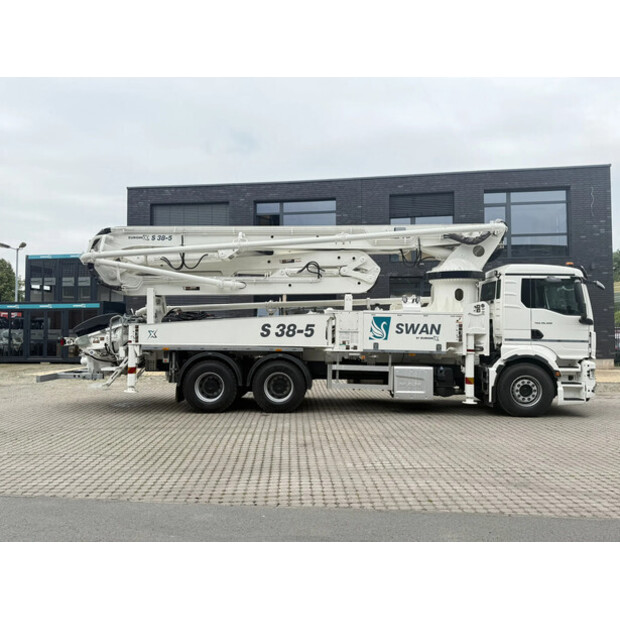

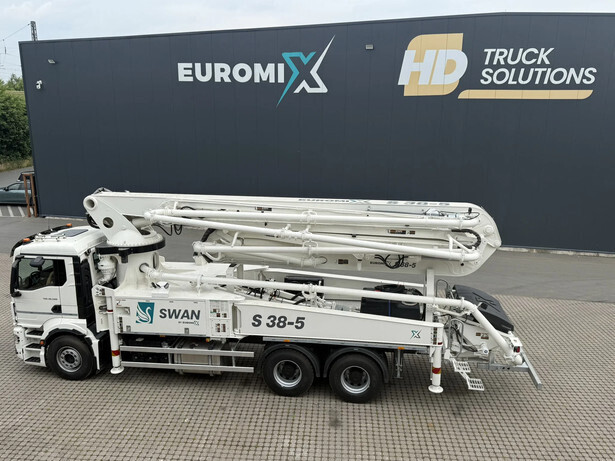

EuromixMTP - concrete pump SWAN TSP 38-5 160 RZ

Model: SWAN TSP 38-5 160 RZ

Section: concrete pump:
Max. theoretical concrete output : 160 m³/hr
Max. theoretical concrete pressure : 85 bar
Strokes 30 per min
Delivery cylinder: Ø230 mm x 2100 mm stroke
Main hydraulic cylinder : Ø2100 mm x Ø140 x Ø80 mm
Concrete valve: S-valve, water pump: 20 l/min - 170 bar

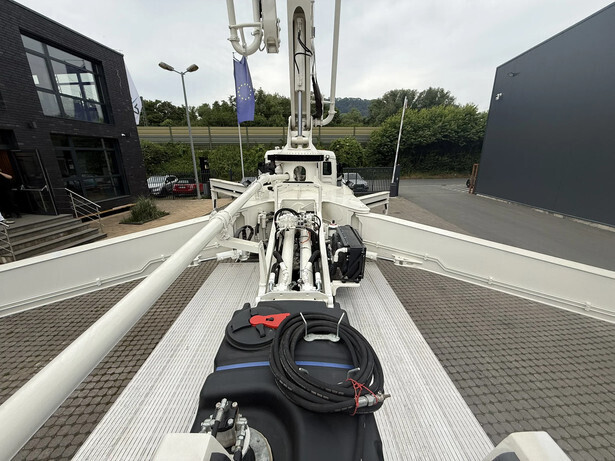

Water tank: 600 l, 12 m hose with spray gun

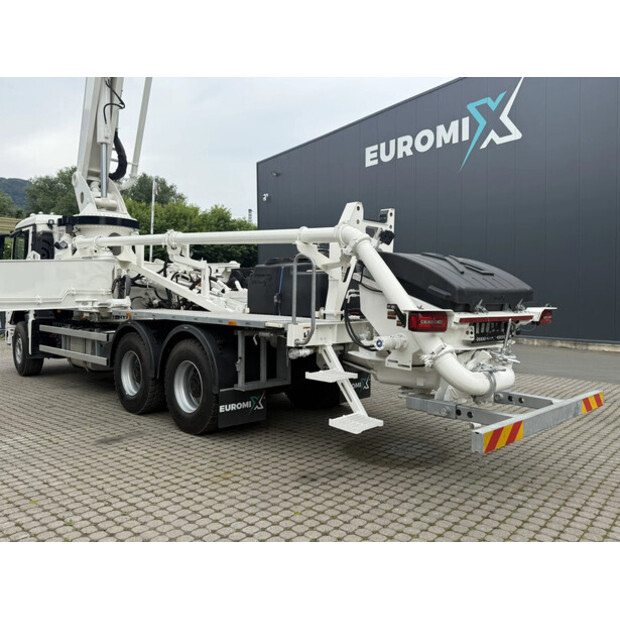

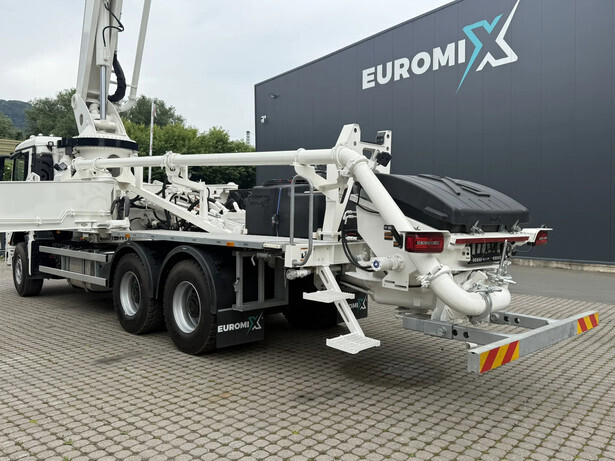

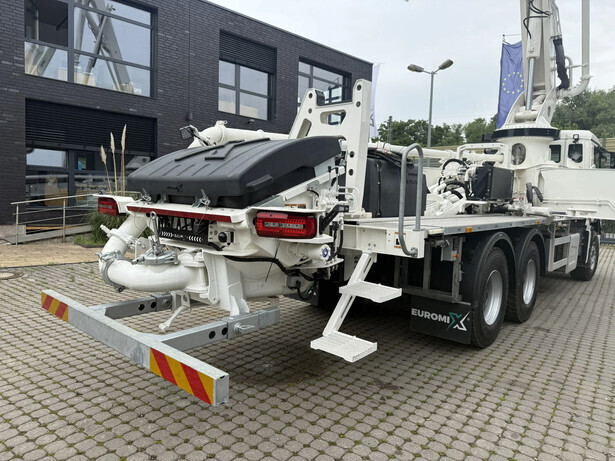

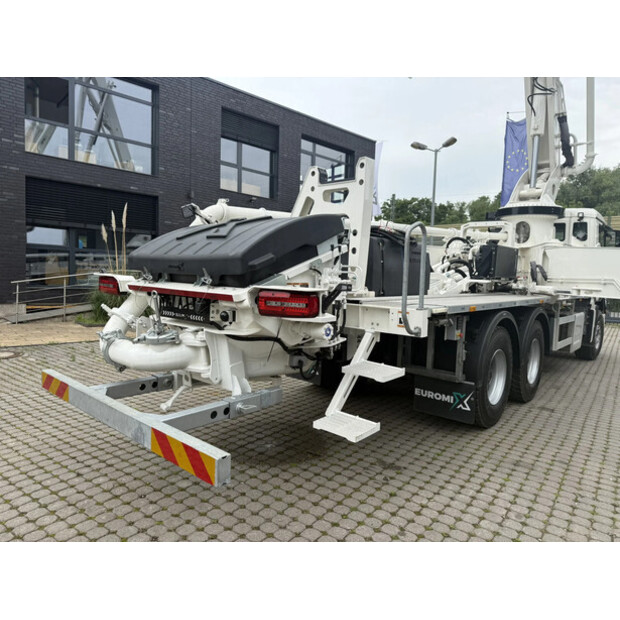

Concrete hopper : 600 litres

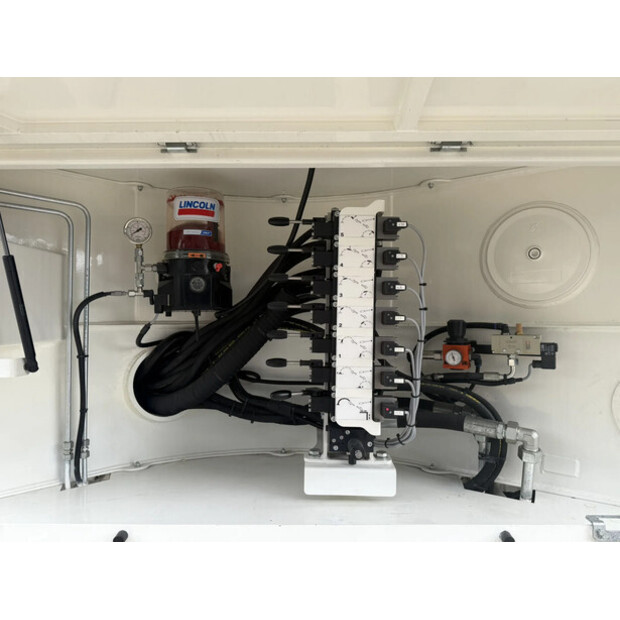

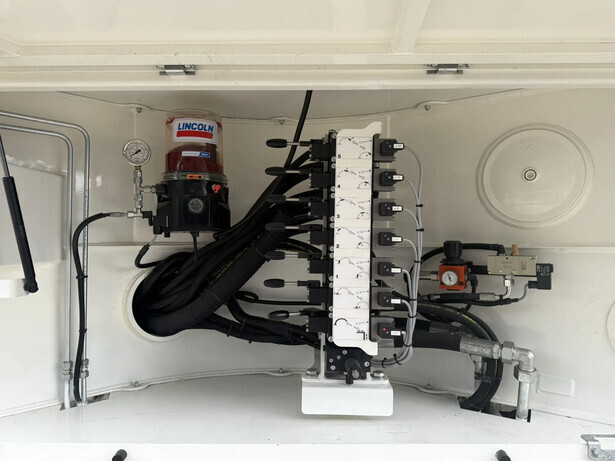

Lubrication :Lincoln automatic lubrication for hopper group
Hydraulic pumps : Rexroth 2xA4VG145, Rexroth A10VO28
Rexroth A17FO045, Blau Ascend AP 20.140/115
Switching system : magnetic sensor (proximity switch)

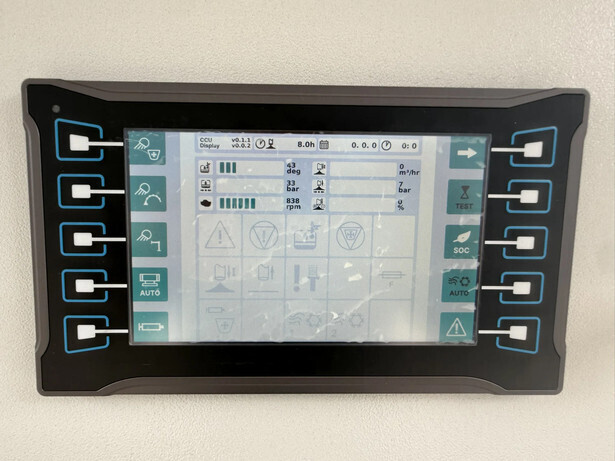

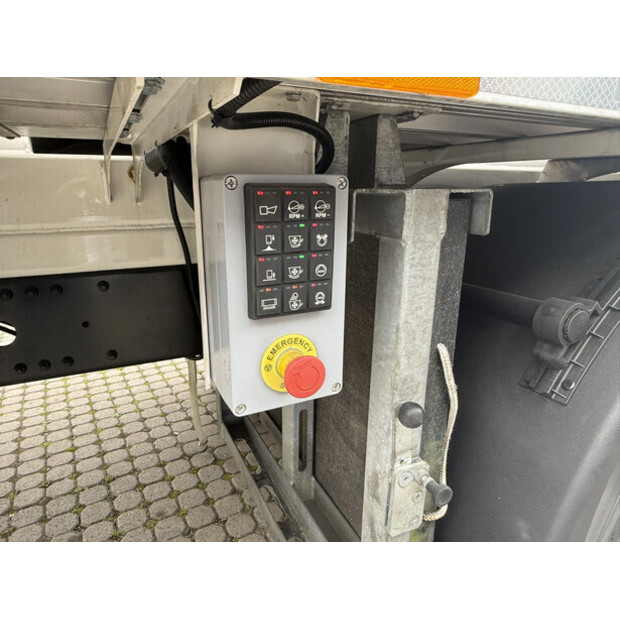

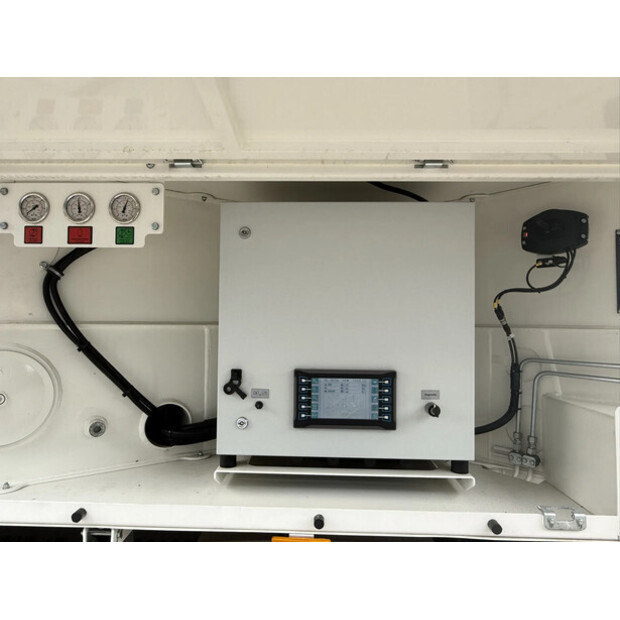

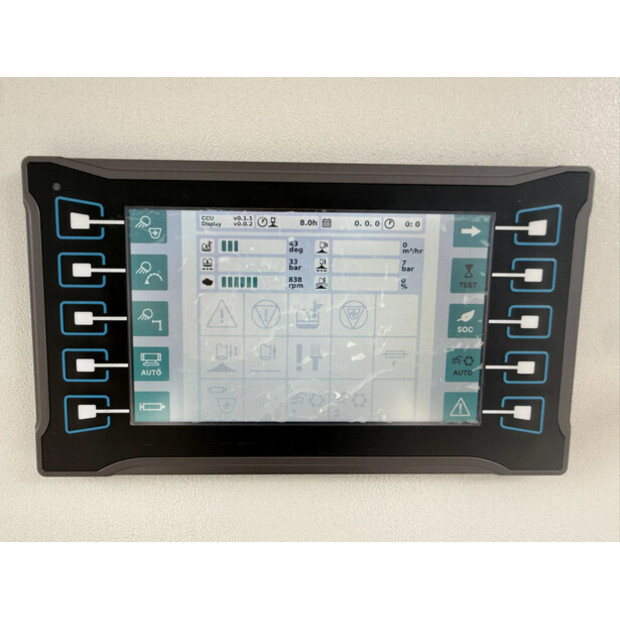

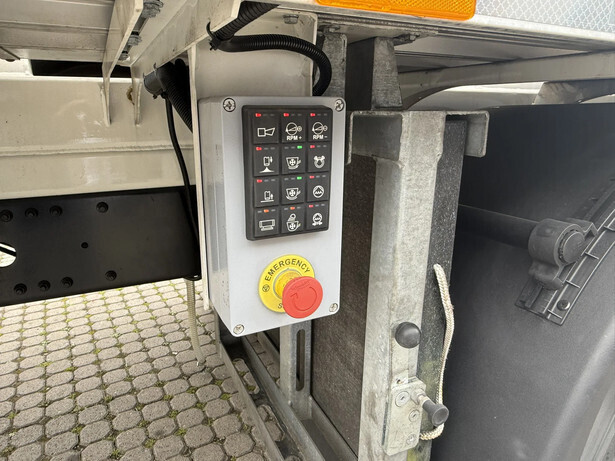

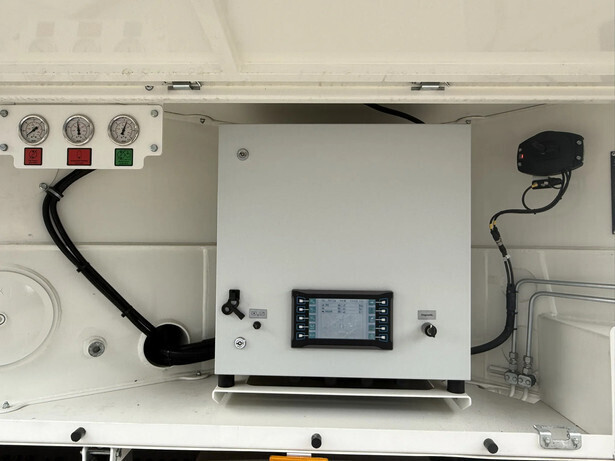

Control box: DIGITEX, waterproof

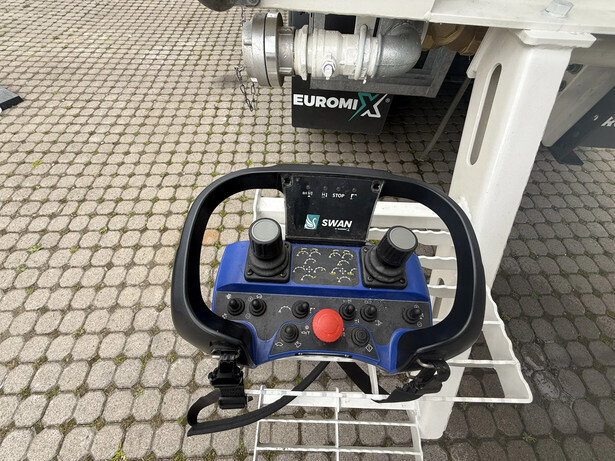

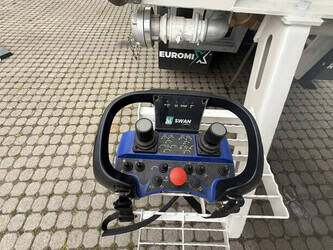

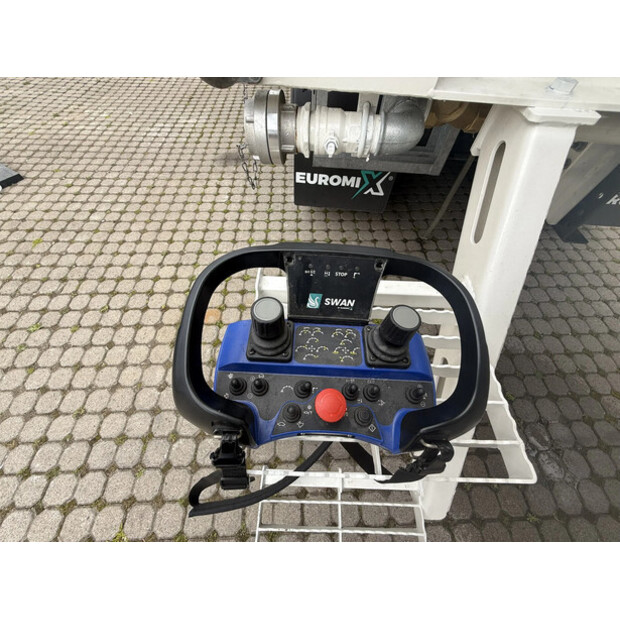

Remote control : Scanreco remote control + 30 m cable

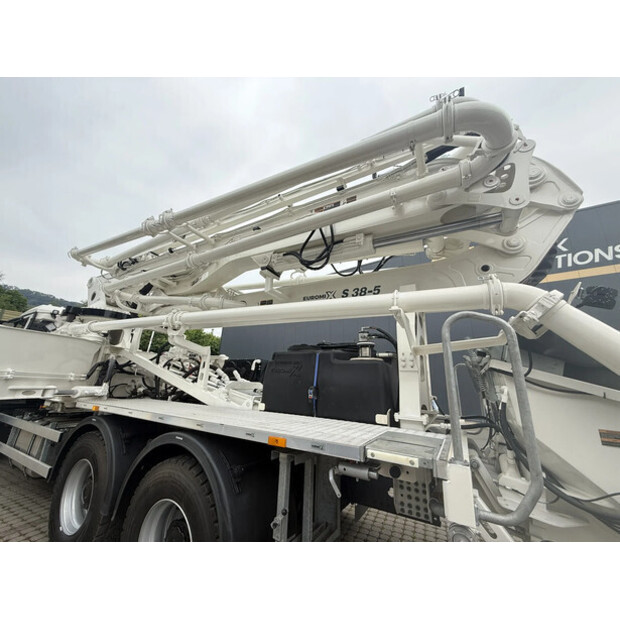

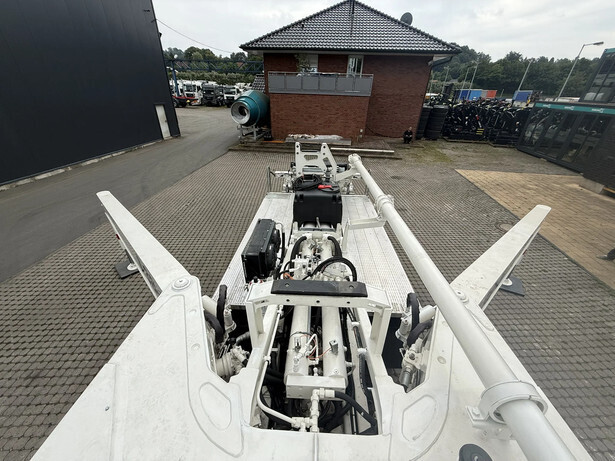

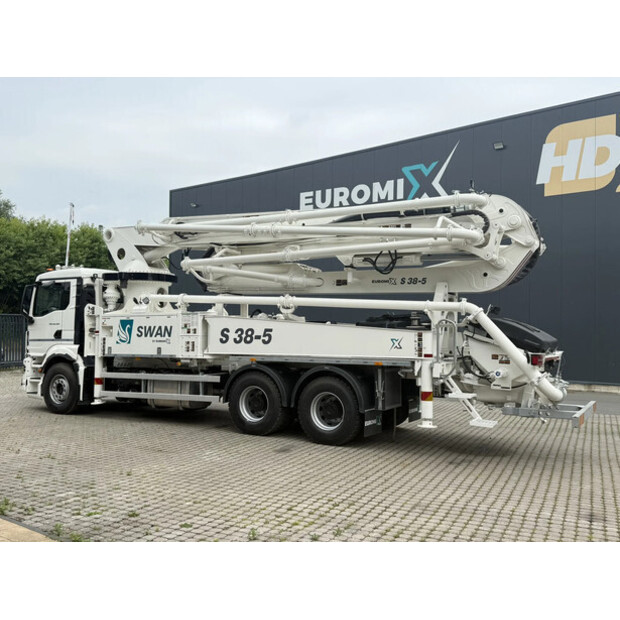

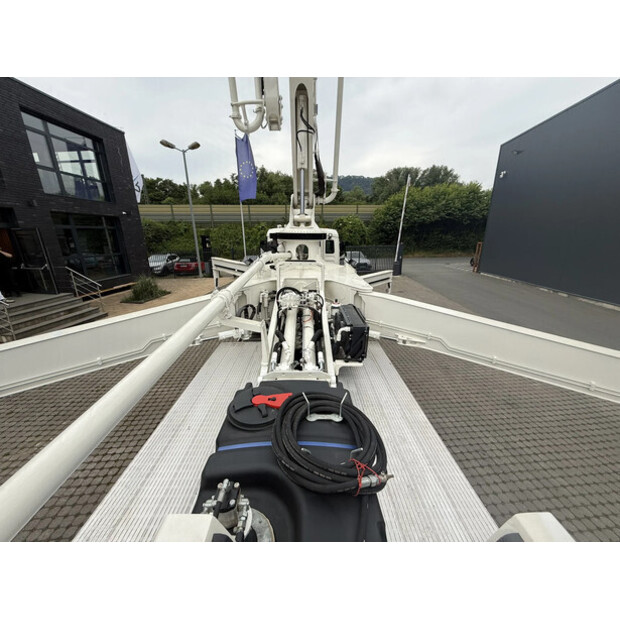

Section: boom:

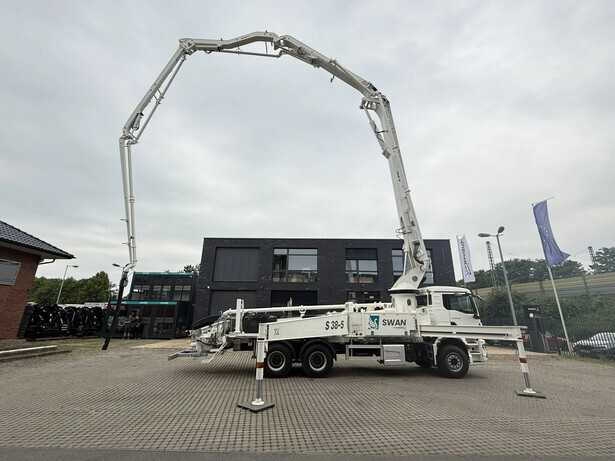

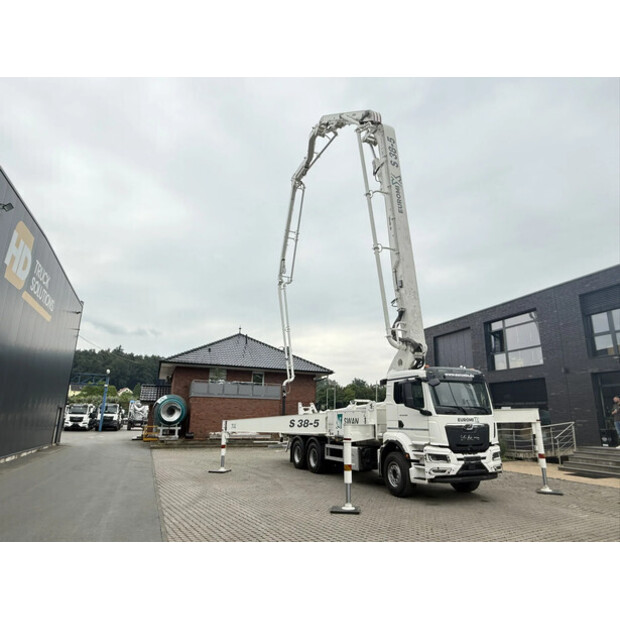

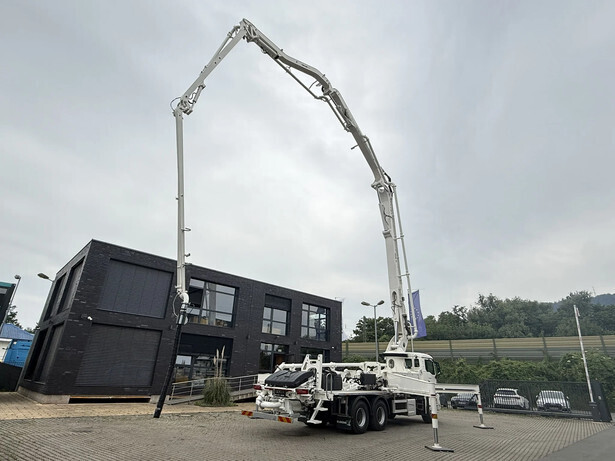

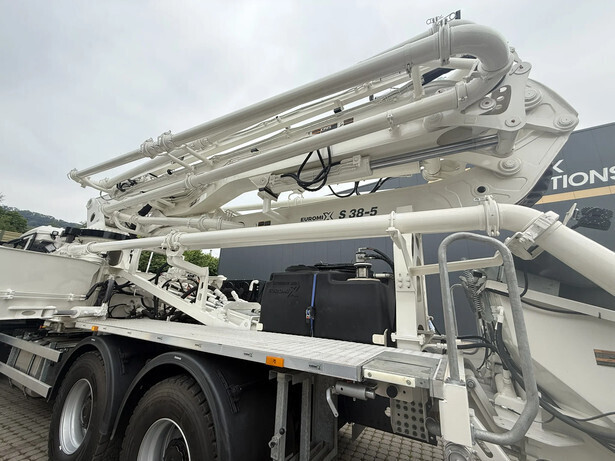

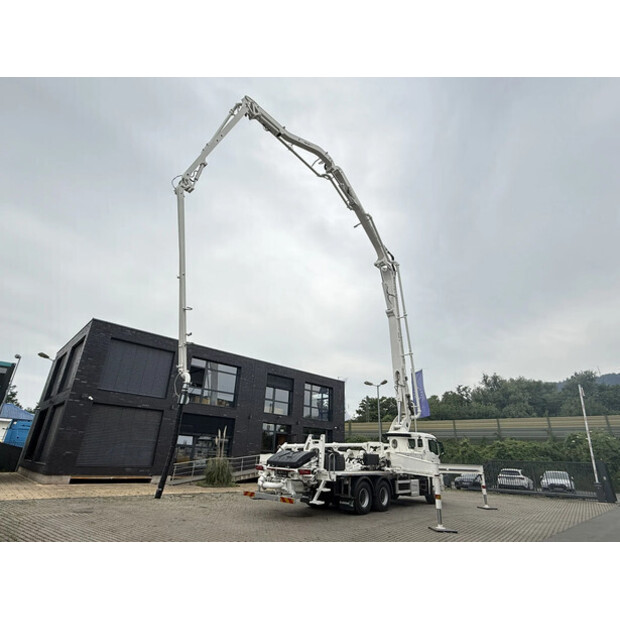

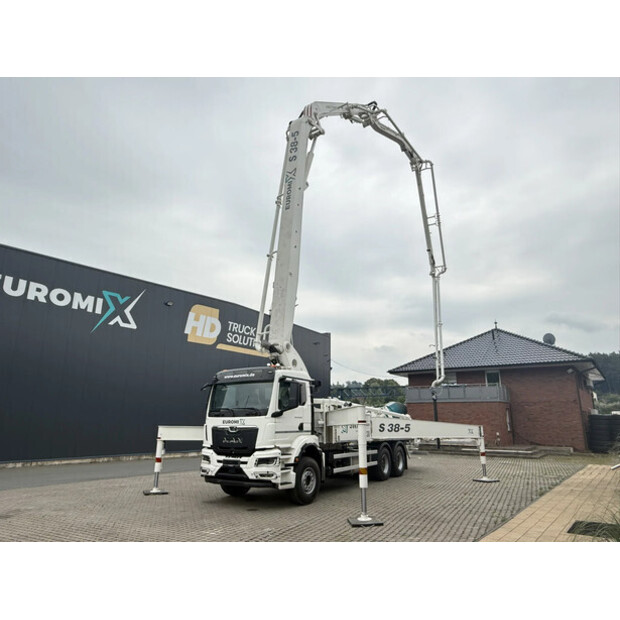

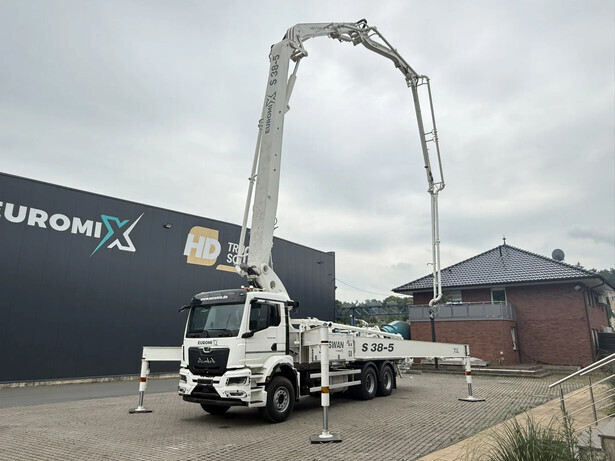

Boom S 38-5 ( boom 5 sections, RZ folding )
Type : RZ folding
Max. vertical reach : 37,5 m (without end hose)
Max. horizontal reach : 32,7 m (without end hose)
End hose : 3m single flange, DN 125

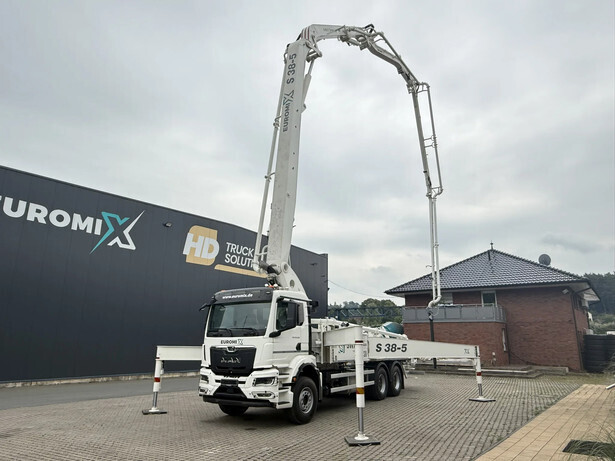

Outrigger type: X-type
Slewing ring: 365 degrees
Slewing speed: 0.3 RPM
Delivery line diameter: 125 mm (outer diameter 132 mm) 5,5" flanges & couplings
Control system
Outrigger spread front: 6.3 m
Outrigger spread rear: 8.2 m
