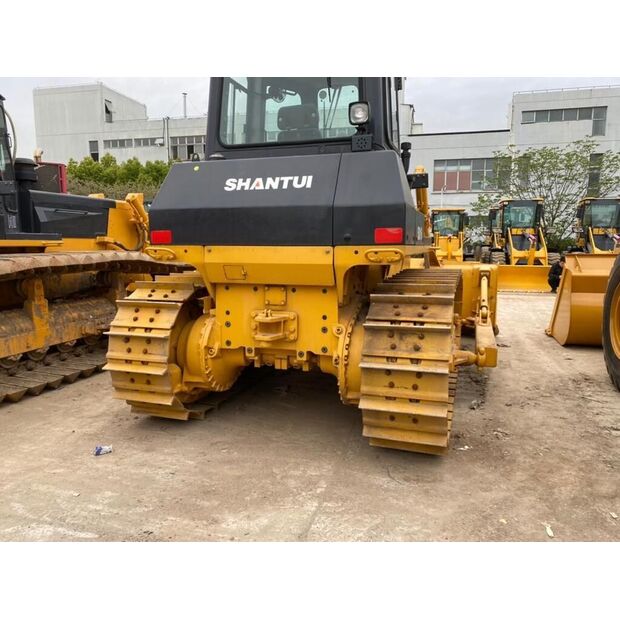

2024 Shantui SD16

Shantui SD16
Weight: 16000
Color: yellow
Vat: 17
EN: Model: Shantui/Cummins SD6D125L (Tier 2/Tier 3 compliant in some markets)

Power: ~160 HP (119 kW)

Torque: High low-end torque for demanding conditions.

Transmission & Drivetrain

Mechanical transmission (6 forward + 3 reverse gears)

Dry clutch system for reliability.

Final drives: Heavy-duty design for longevity.

Blade Capacity

Straight Blade (S-Blade): ~3.8 m³

Universal Blade (U-Blade): ~4.1 m³

Angle Blade (A-Blade): Adjustable for side casting.

Operating Weight

~16,500 kg (varies with configuration)

Undercarriage

Wide track shoes (560mm/720mm options) for better ground pressure distribution.

Sealed track rollers for reduced maintenance.

Performance

Max Speed: ~10.4 km/h (forward), ~12.3 km/h (reverse)

Drawbar Pull: ~18,000 kgf (high traction force)

Operator Comfort

Basic ROPS/FOPS cabin (no-frills but functional).

Mechanical controls (some newer models may have hydraulic controls).

Applications:
Earthmoving (road construction, land clearing)

Mining & Quarrying (ripping, pushing material)

Agriculture & Forestry (land preparation)

Infrastructure Projects (dams, railways)

Comparison with Competitors:
Similar models include:

Komatsu D65PX-18 (more advanced, higher price)

CAT D6R (higher performance, Tier 4 compliance)

LiuGong CLG416 (Chinese alternative)

Shantui SD16 Advantages:

Lower purchase & maintenance costs

Simple mechanical design (easier to repair)
Ref No:ZJ45993
