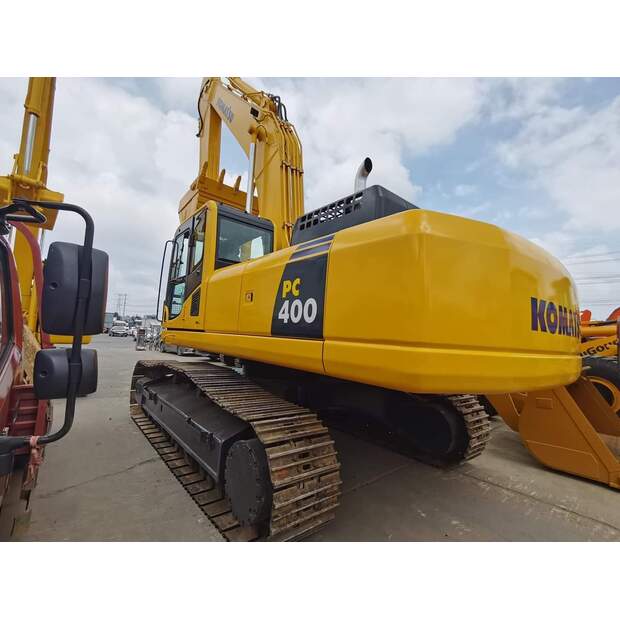

2022 Komatsu PC400-8
Prix
255,685
$
69,618
€
65,064
£
54,071
$
261,133
Année
2022
Hrs.
2,000
Condition
D'occasion
1
/
16

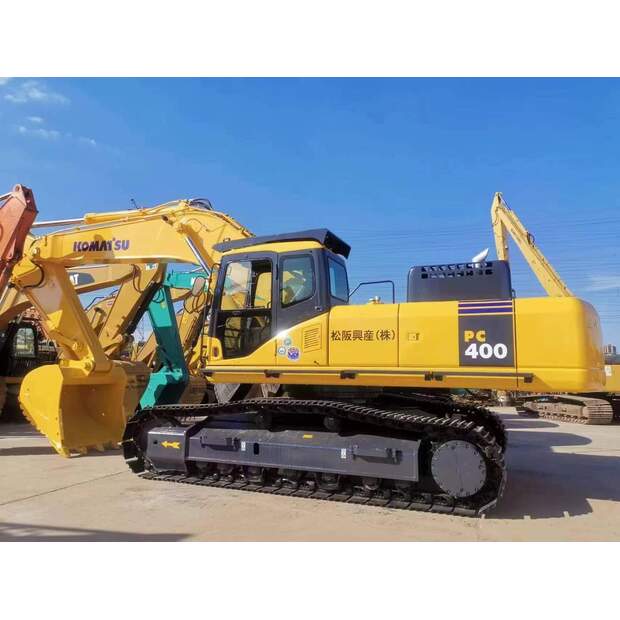

2022 Komatsu PC400-8
1
/
16
Survivre
Prix
255,685
$
69,618
€
65,064
£
54,071
$
261,133
Catégorie
Fabricant
Modèle
Année
2022
La Description
I. Basic Overview

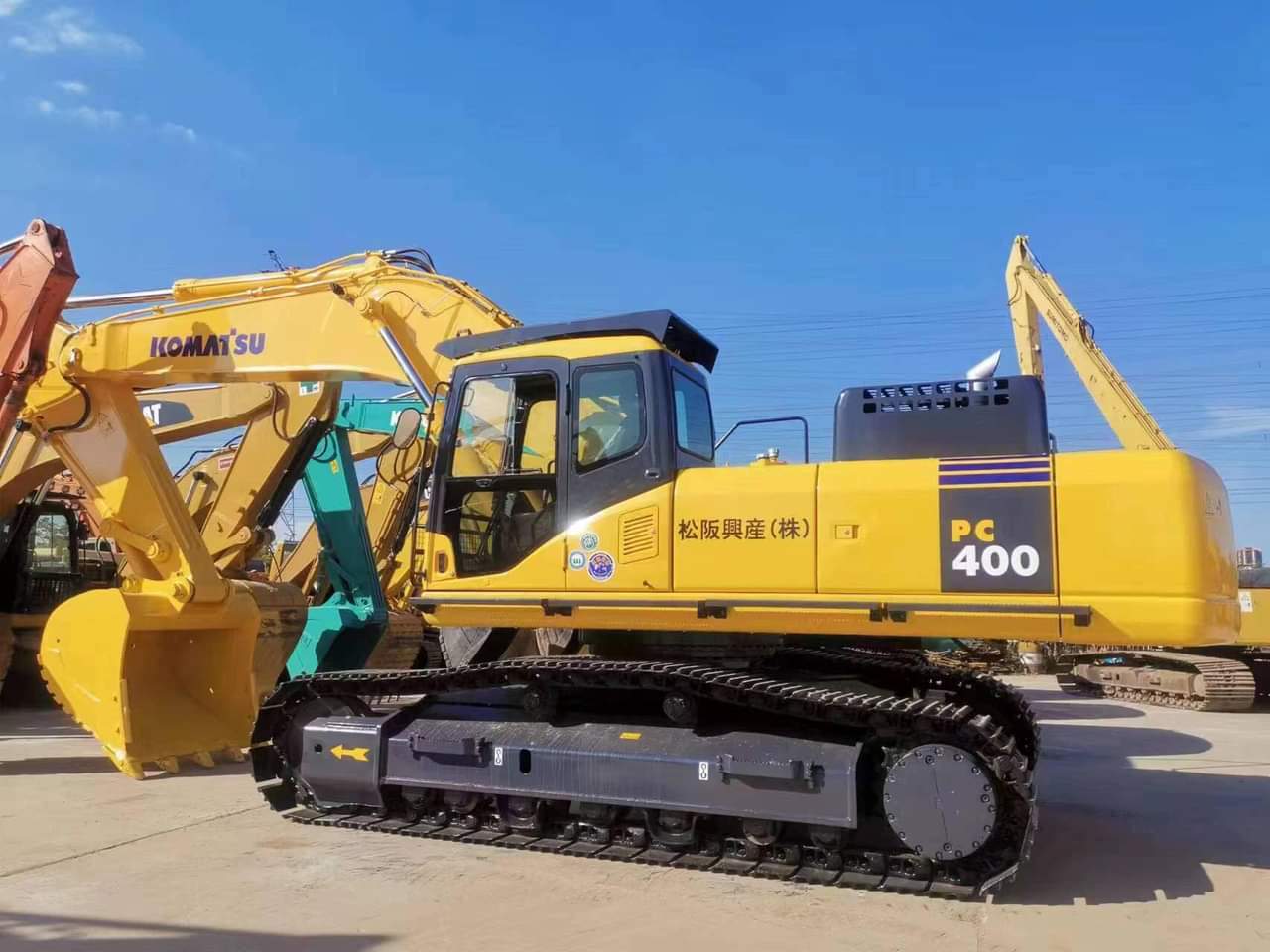

The Komatsu PC400-8 is a 40-ton tracked backhoe excavator. It uses a traditional power system and is suitable for high-intensity, continuous operations such as open-pit mining, large-scale earthmoving projects, and rock breaking. This model combines high efficiency, reliability, durability, and environmental friendliness, enjoying high recognition in the heavy-duty construction machinery market.
II. Core Technical Parameters
(I) Basic Machine Parameters
Operating Weight: 42100kg
Bucket Capacity: 1.9~2.1m³, large-capacity bucket design effectively improves operating efficiency
Boom Length: 7060mm
Stick Length: 3380mm
Overall Dimensions: Total transport length 11940mm, total width 3340mm, total height 3660mm, cab height 3285mm

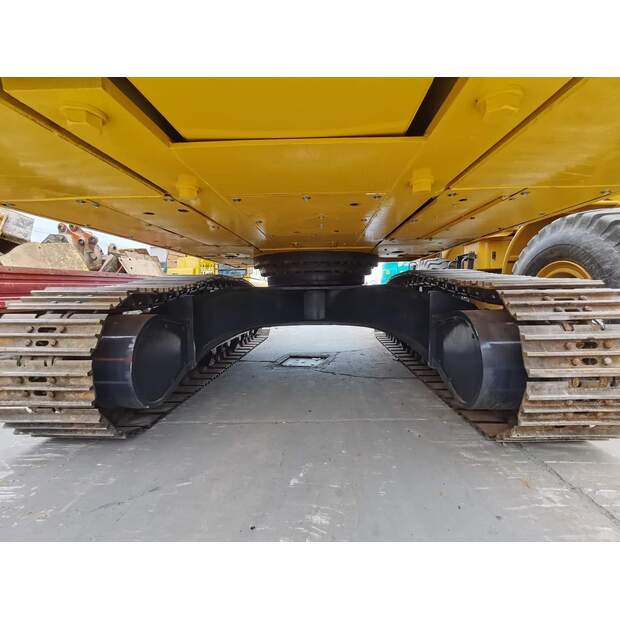

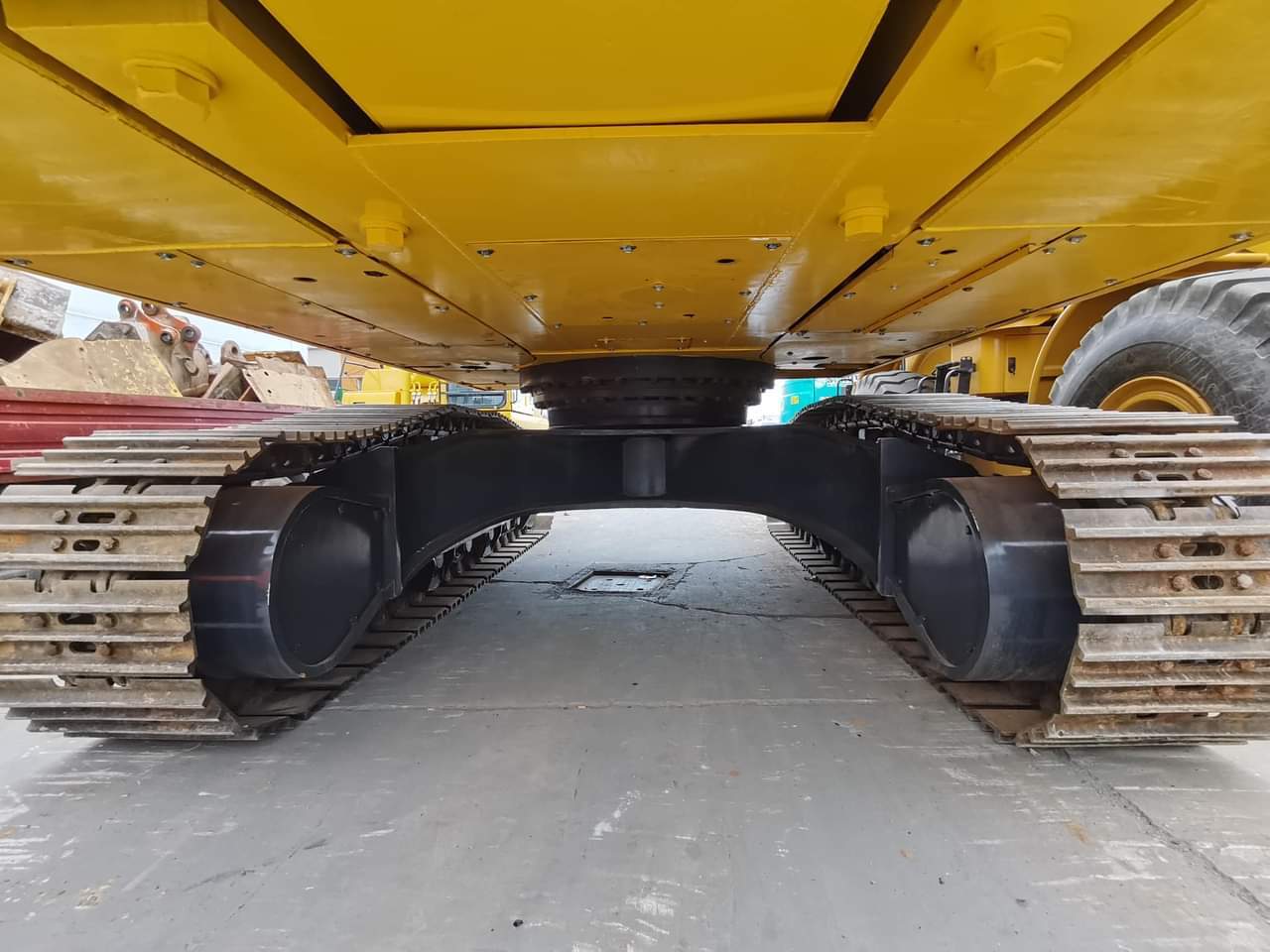

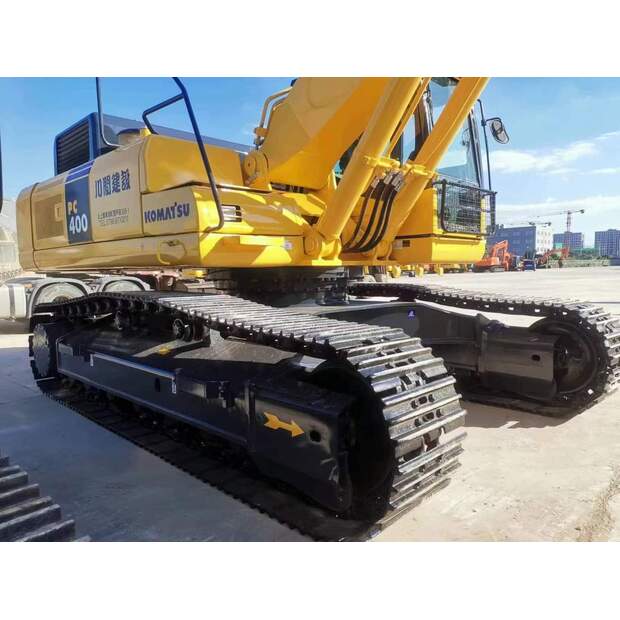

Track Parameters: Track ground contact length 4020mm, total length 5055mm, track shoe width 600mm, track gauge 2740mm, minimum ground clearance 567mm, rear swing radius 3605mm
(II) Power System Parameters

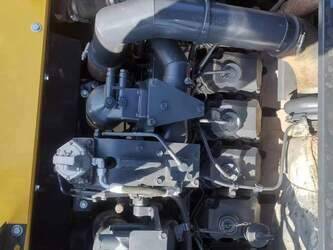

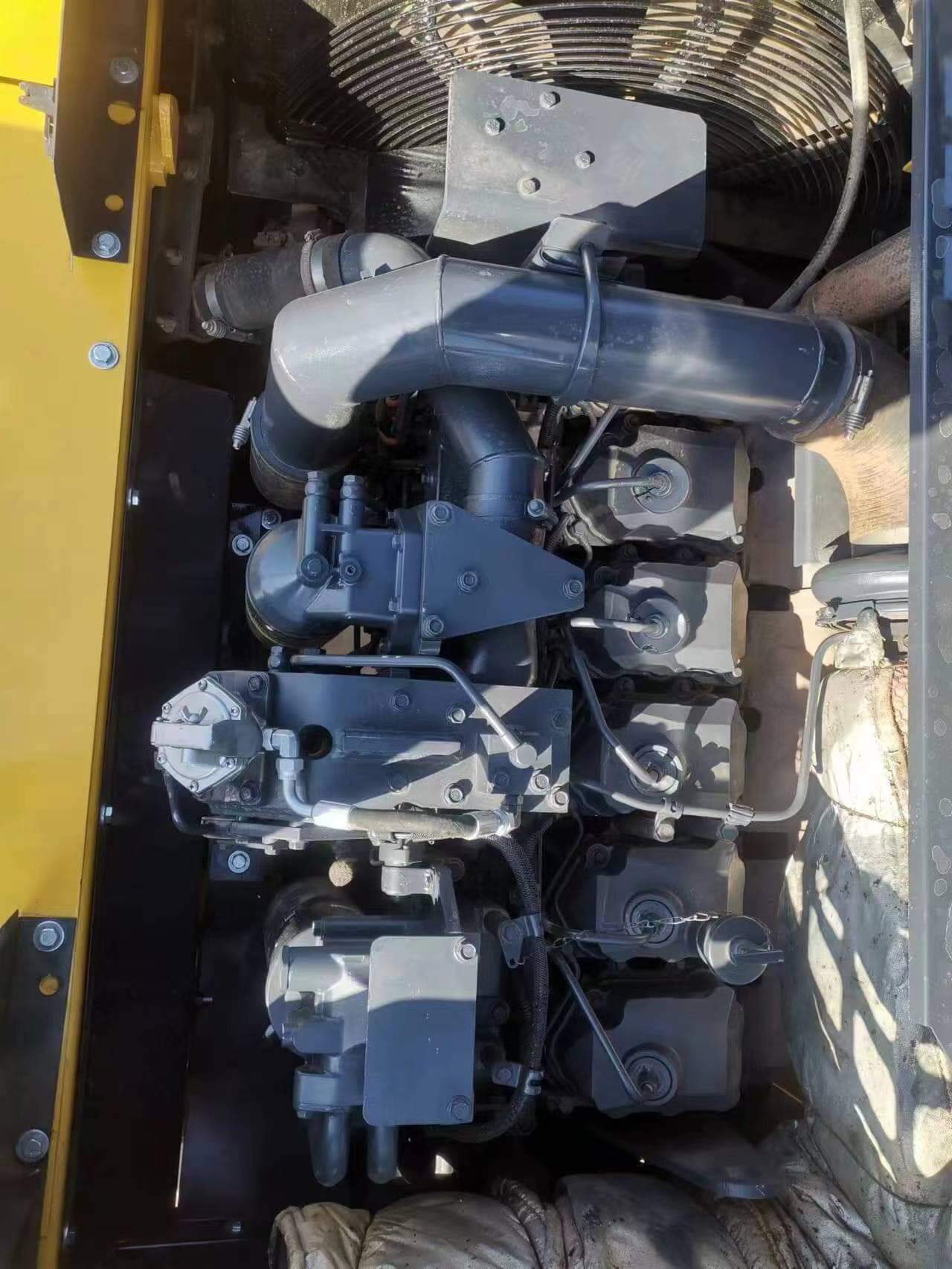

Engine Model: Komatsu SAA6D125E-5
Rated Power: 257kW (350PS)/1900rpm
Displacement: 11... 04L
Cylinder Configuration: 6 cylinders, bore × stroke 125 × 150 mm
Working Mode: Direct injection, turbocharged, electronically controlled speed throughout

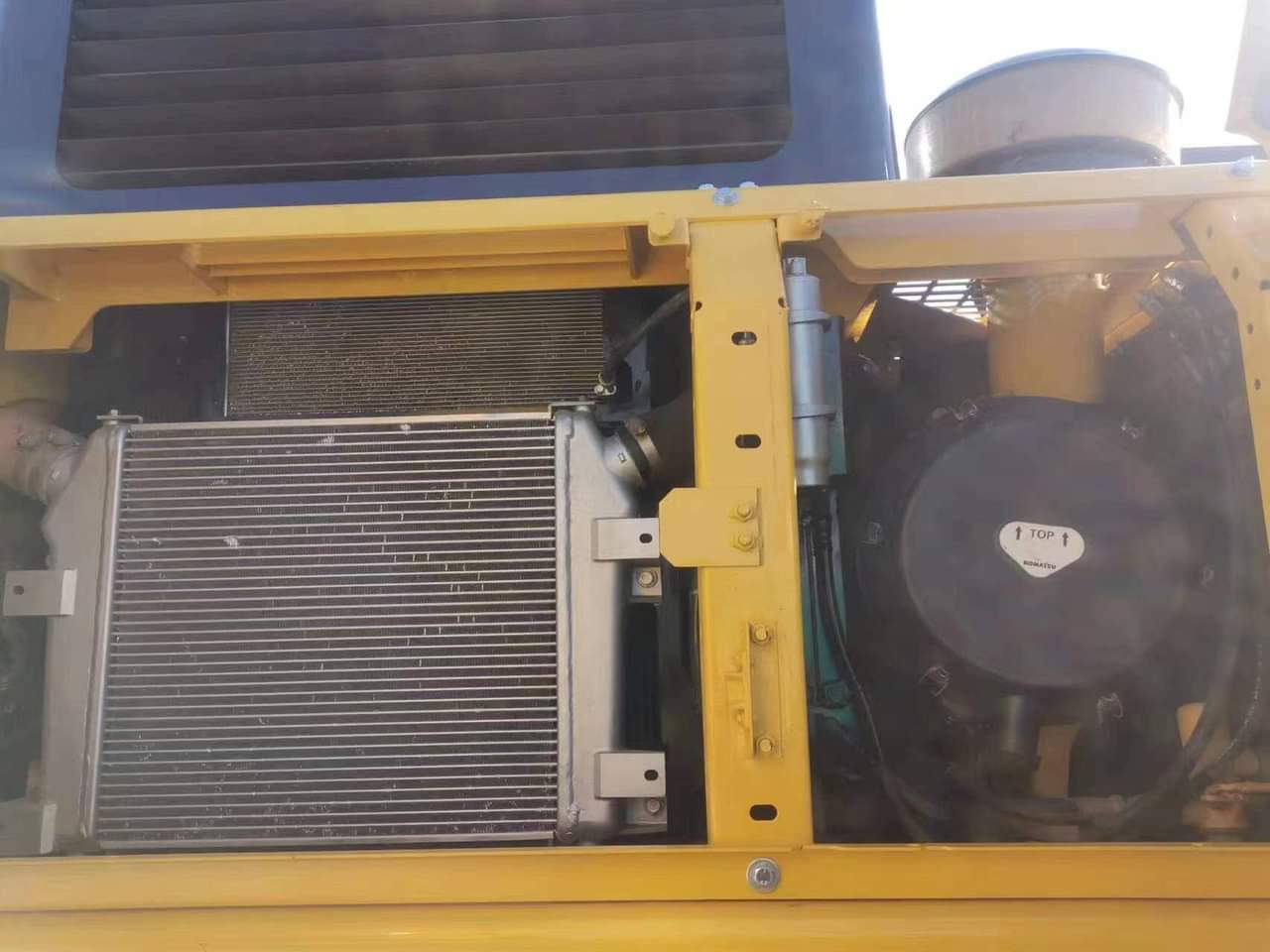

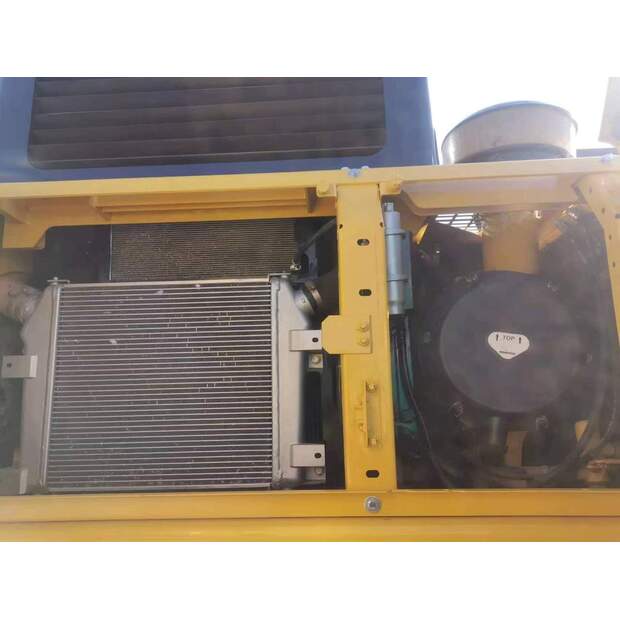

Cooling Method: Water-cooled
Environmental Standards: Meets EPA3 and EU 3A emission standards, excellent environmental performance

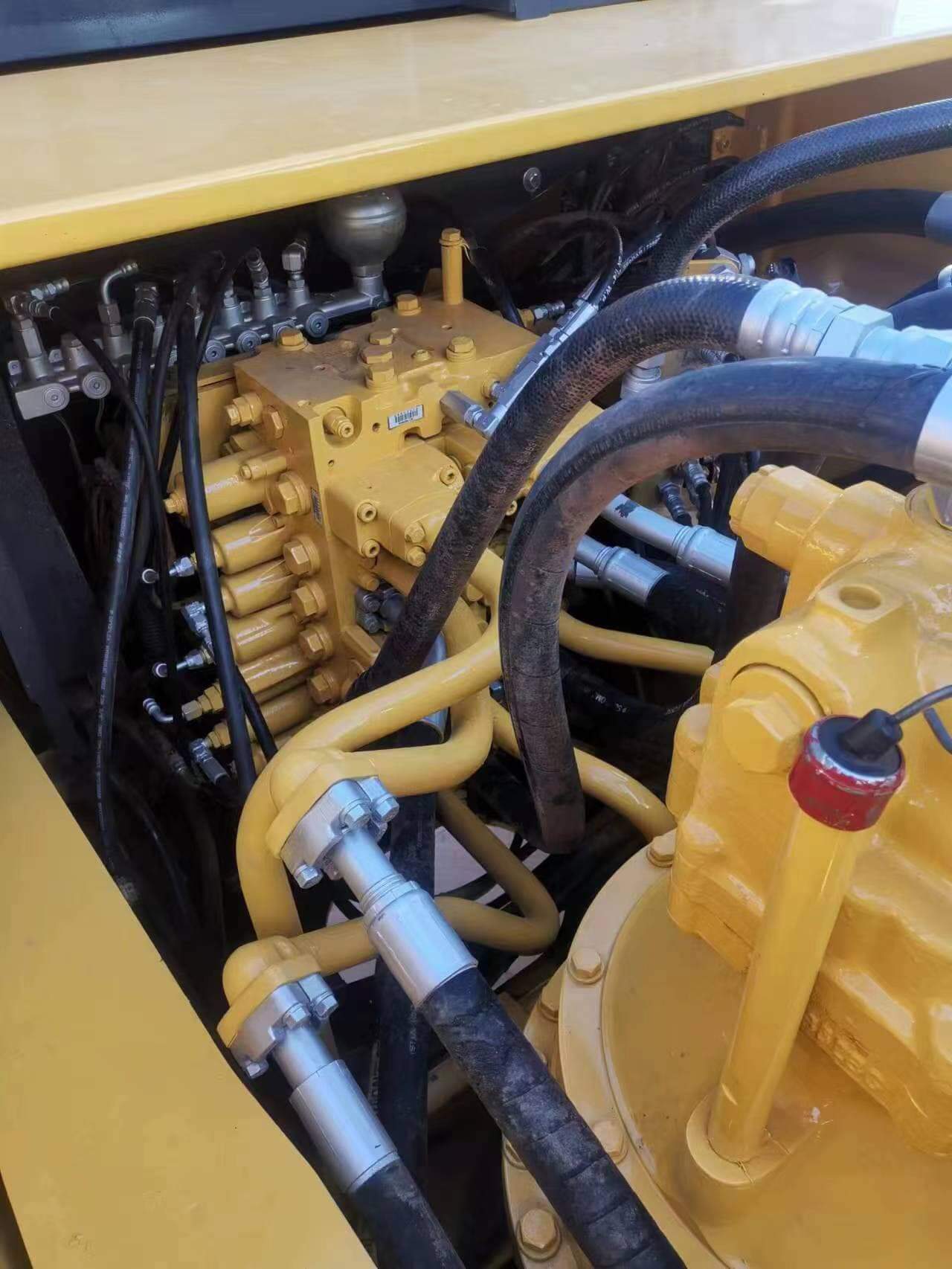

(III) Hydraulic System Parameters

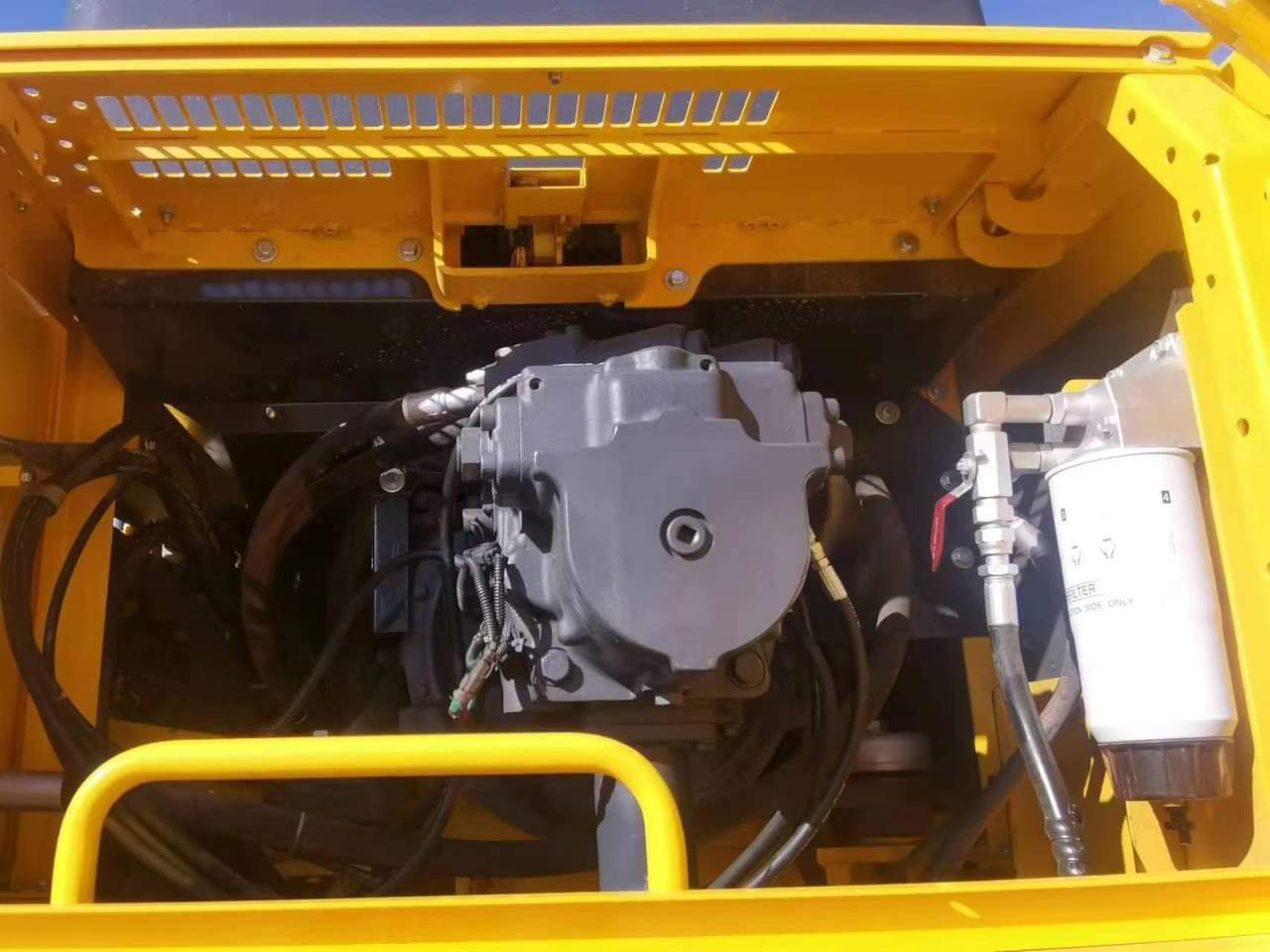

Main Pump Maximum Flow Rate: 690 L/min
Hydraulic Circuit Pressure: Travel hydraulic circuit 37.3 MPa, swing hydraulic circuit 27.9 MPa, control hydraulic circuit 3.2 MPa

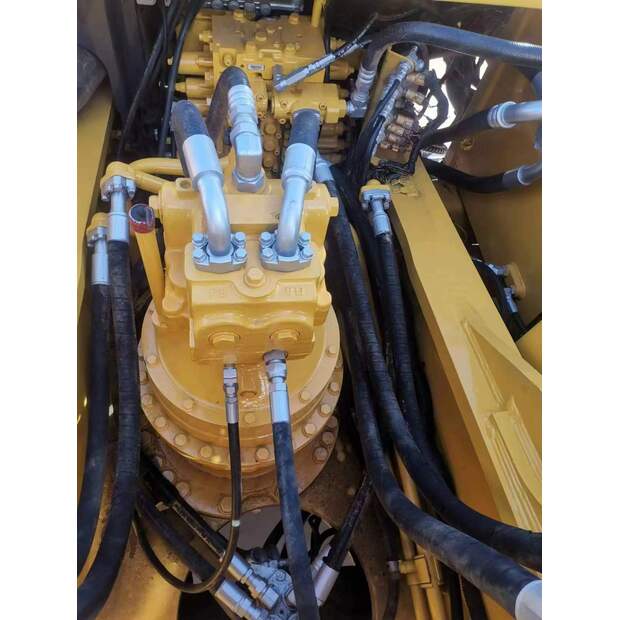

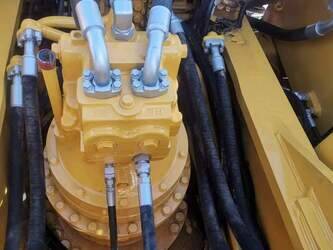

Hydraulic Motor Type: Travel hydraulic motors are axial piston type × 2, swing hydraulic motors are axial piston type × 1
Cylinder Parameters:
Boom Cylinder: 1 unit, bore × stroke × rod diameter 160 × 1570 × 110 mm
Stick Cylinder: 1 unit, bore × stroke × rod diameter 185 × 1985 × 130 mm
Bucket Cylinder: 1 unit Cylinder diameter × stroke × rod diameter: 160 × 1270 × 110 mm
Hydraulic breaker piping: Non-standard configuration
(IV) Performance parameters
Travel speed: High speed 5.5 km/h, medium speed 4.0 km/h, low speed 3.0 km/h
Swing speed: 9.1 rpm
Climbing ability: 70% (35°)
Ground pressure: 78.2 kPa
Digging force: Maximum bucket digging force 278 kN (28300 kgf), maximum stick digging force 233 kN (23800 kgf)
Operating range:
Maximum digging radius: 12005 mm, maximum digging radius on the ground plane 11800 mm
Maximum digging depth: 7790 mm
Maximum vertical digging depth: 6600 mm
Maximum digging height: 10925 mm
Maximum unloading height: 7625 mm
(V) Oil Capacity Parameters
Fuel Tank Capacity: 650L
Hydraulic Oil Tank Capacity: 248L
Engine Oil Replacement Capacity: 37L
Coolant Capacity: 36L
III. Supplementary Performance Features
In addition to the above core parameters, the Komatsu PC400-8 also possesses the following outstanding performance features:
Multi-mode Operation Selection: Allows switching between operation modes according to different working conditions, adapting to diverse construction needs.
High Reliability Design: Utilizes high-performance filter materials, extending oil and filter replacement intervals; equipped with an equipment management and monitoring system, effectively monitoring equipment status and reducing malfunctions; high-pressure series filter elements prevent hydraulic system contamination.
Safety Protection Configuration: A high-rigidity cab combined with seat belts protects the driver in rollover accidents; a hydraulic locking lever design prevents misoperation, and the engine can only be started when locked; a steel-protruding anti-slip plate significantly improves the anti-slip properties of the operating area.
I. Basic Overview
The Komatsu PC400-8 is a 40-ton tracked backhoe excavator. It uses a traditional power system and is suitable for high-intensity, continuous operations such as open-pit mining, large-scale earthmoving projects, and rock breaking. This model combines high efficiency, reliability, durability, and environmental friendliness, enjoying high recognition in the heavy-duty construction machinery market.
II. Core Technical Parameters
(I) Basic Machine Parameters
Operating Weight: 42100kg
Bucket Capacity: 1.9~2.1m³, large-capacity bucket design effectively improves operating efficiency
Boom Length: 7060mm
Stick Length: 3380mm
Overall Dimensions: Total transport length 11940mm, total width 3340mm, total height 3660mm, cab height 3285mm
Track Parameters: Track ground contact length 4020mm, total length 5055mm, track shoe width 600mm, track gauge 2740mm, minimum ground clearance 567mm, rear swing radius 3605mm
(II) Power System Parameters
Engine Model: Komatsu SAA6D125E-5
Rated Power: 257kW (350PS)/1900rpm
Displacement: 11... 04L
Cylinder Configuration: 6 cylinders, bore × stroke 125 × 150 mm
Working Mode: Direct injection, turbocharged, electronically controlled speed throughout
Cooling Method: Water-cooled
Environmental Standards: Meets EPA3 and EU 3A emission standards, excellent environmental performance
(III) Hydraulic System Parameters
Main Pump Maximum Flow Rate: 690 L/min
Hydraulic Circuit Pressure: Travel hydraulic circuit 37.3 MPa, swing hydraulic circuit 27.9 MPa, control hydraulic circuit 3.2 MPa
Hydraulic Motor Type: Travel hydraulic motors are axial piston type × 2, swing hydraulic motors are axial piston type × 1
Cylinder Parameters:
Boom Cylinder: 1 unit, bore × stroke × rod diameter 160 × 1570 × 110 mm
Stick Cylinder: 1 unit, bore × stroke × rod diameter 185 × 1985 × 130 mm
Bucket Cylinder: 1 unit Cylinder diameter × stroke × rod diameter: 160 × 1270 × 110 mm
Hydraulic breaker piping: Non-standard configuration
(IV) Performance parameters
Travel speed: High speed 5.5 km/h, medium speed 4.0 km/h, low speed 3.0 km/h
Swing speed: 9.1 rpm
Climbing ability: 70% (35°)
Ground pressure: 78.2 kPa
Digging force: Maximum bucket digging force 278 kN (28300 kgf), maximum stick digging force 233 kN (23800 kgf)
Operating range:
Maximum digging radius: 12005 mm, maximum digging radius on the ground plane 11800 mm
Maximum digging depth: 7790 mm
Maximum vertical digging depth: 6600 mm
Maximum digging height: 10925 mm
Maximum unloading height: 7625 mm
(V) Oil Capacity Parameters
Fuel Tank Capacity: 650L
Hydraulic Oil Tank Capacity: 248L
Engine Oil Replacement Capacity: 37L
Coolant Capacity: 36L
III. Supplementary Performance Features
In addition to the above core parameters, the Komatsu PC400-8 also possesses the following outstanding performance features:
Multi-mode Operation Selection: Allows switching between operation modes according to different working conditions, adapting to diverse construction needs.
High Reliability Design: Utilizes high-performance filter materials, extending oil and filter replacement intervals; equipped with an equipment management and monitoring system, effectively monitoring equipment status and reducing malfunctions; high-pressure series filter elements prevent hydraulic system contamination.
Safety Protection Configuration: A high-rigidity cab combined with seat belts protects the driver in rollover accidents; a hydraulic locking lever design prevents misoperation, and the engine can only be started when locked; a steel-protruding anti-slip plate significantly improves the anti-slip properties of the operating area.
The Komatsu PC400-8 is a 40-ton tracked backhoe excavator. It uses a traditional power system and is suitable for high-intensity, continuous operations such as open-pit mining, large-scale earthmoving projects, and rock breaking. This model combines high efficiency, reliability, durability, and environmental friendliness, enjoying high recognition in the heavy-duty construction machinery market.
II. Core Technical Parameters
(I) Basic Machine Parameters
Operating Weight: 42100kg
Bucket Capacity: 1.9~2.1m³, large-capacity bucket design effectively improves operating efficiency
Boom Length: 7060mm
Stick Length: 3380mm
Overall Dimensions: Total transport length 11940mm, total width 3340mm, total height 3660mm, cab height 3285mm
Track Parameters: Track ground contact length 4020mm, total length 5055mm, track shoe width 600mm, track gauge 2740mm, minimum ground clearance 567mm, rear swing radius 3605mm
(II) Power System Parameters
Engine Model: Komatsu SAA6D125E-5
Rated Power: 257kW (350PS)/1900rpm
Displacement: 11... 04L
Cylinder Configuration: 6 cylinders, bore × stroke 125 × 150 mm
Working Mode: Direct injection, turbocharged, electronically controlled speed throughout
Cooling Method: Water-cooled
Environmental Standards: Meets EPA3 and EU 3A emission standards, excellent environmental performance
(III) Hydraulic System Parameters
Main Pump Maximum Flow Rate: 690 L/min
Hydraulic Circuit Pressure: Travel hydraulic circuit 37.3 MPa, swing hydraulic circuit 27.9 MPa, control hydraulic circuit 3.2 MPa
Hydraulic Motor Type: Travel hydraulic motors are axial piston type × 2, swing hydraulic motors are axial piston type × 1
Cylinder Parameters:
Boom Cylinder: 1 unit, bore × stroke × rod diameter 160 × 1570 × 110 mm
Stick Cylinder: 1 unit, bore × stroke × rod diameter 185 × 1985 × 130 mm
Bucket Cylinder: 1 unit Cylinder diameter × stroke × rod diameter: 160 × 1270 × 110 mm
Hydraulic breaker piping: Non-standard configuration
(IV) Performance parameters
Travel speed: High speed 5.5 km/h, medium speed 4.0 km/h, low speed 3.0 km/h
Swing speed: 9.1 rpm
Climbing ability: 70% (35°)
Ground pressure: 78.2 kPa
Digging force: Maximum bucket digging force 278 kN (28300 kgf), maximum stick digging force 233 kN (23800 kgf)
Operating range:
Maximum digging radius: 12005 mm, maximum digging radius on the ground plane 11800 mm
Maximum digging depth: 7790 mm
Maximum vertical digging depth: 6600 mm
Maximum digging height: 10925 mm
Maximum unloading height: 7625 mm
(V) Oil Capacity Parameters
Fuel Tank Capacity: 650L
Hydraulic Oil Tank Capacity: 248L
Engine Oil Replacement Capacity: 37L
Coolant Capacity: 36L
III. Supplementary Performance Features
In addition to the above core parameters, the Komatsu PC400-8 also possesses the following outstanding performance features:
Multi-mode Operation Selection: Allows switching between operation modes according to different working conditions, adapting to diverse construction needs.
High Reliability Design: Utilizes high-performance filter materials, extending oil and filter replacement intervals; equipped with an equipment management and monitoring system, effectively monitoring equipment status and reducing malfunctions; high-pressure series filter elements prevent hydraulic system contamination.
Safety Protection Configuration: A high-rigidity cab combined with seat belts protects the driver in rollover accidents; a hydraulic locking lever design prevents misoperation, and the engine can only be started when locked; a steel-protruding anti-slip plate significantly improves the anti-slip properties of the operating area.
