2022 Caterpillar 305.5E2

1. Engine:
Model: Cat C2.4 DI
Net Power: 41.7hp (31.1kW)
Gross Power - 2400rpm – SAE J1995: 45.7hp (34.1kW)
Displacement: 146.5in³ (2.4L)
Bore: 3.4in (87mm)
Stroke: 4in (102.4mm)

2. Operating Weight: 11905lb (5400kg)

3. Dimensions:
Ground Clearance: 2.1ft (628mm)

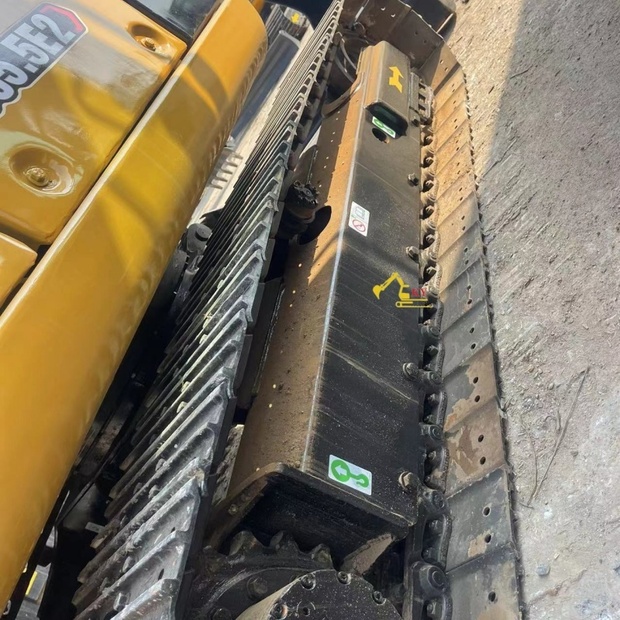

Track Length: 8ft (2440mm)
Shipping Height: 8.3ft (2540mm)
Transport Width: 6.4ft (1950mm)
Tail Swing Radius: 5.2ft (1580mm)
Track Gauge: 5.1ft (1550mm)
Length - Center-to-center roller spacing: 6.3ft (1920mm)
Shoe width: 1.3ft (400mm)
Shipping length: 18.9ft (5765mm)

4. Hydraulic system:
Operating pressure - equipment: 3626psi (25000kPa)
Operating pressure - travel: 3626psi (25000kPa)
Operating pressure - swing: 3133psi (21600kPa)
Pump flow at 2400rpm: 37gal/min (140l/min)
Digging force - bucket: 7868lbf (35kN)
Digging force - arm: 6115lbf (27.2kN)
Type: Load sensing hydraulic system with variable displacement piston pump

5. Swing system:
Swing torque: 10.3lb/ft (13.9N·m)
Machine swing speed: 10.5min⁻¹

6. Blade:
Width: 76.8in (1950mm)
Height: 14.2in (360mm)
Digging depth: 18.9in (480mm)
Lifting height: 14.4in (365mm)

7. Oil capacity:
Cooling system: 2.6gal (US) (9.8L)
Engine oil: 2.5gal (US) (9.5L)
Hydraulic oil tank: 15.3gal (US) (58L)
Fuel tank: 20.6gal (US) (78L)
Hydraulic system: 22.5gal (US) (85L)

8. Operating range:
Maximum reach - Ground level: 19.1ft (5830mm)
Maximum reach: 19.5ft (5955mm)
Maximum depth: 12.2ft (3720mm)
Maximum digging height: 17.9ft (5460mm)
Maximum dumping height: 12.6ft (3835mm)
Maximum vertical digging height: 7.3ft (2210mm)

In addition, its travel speed is 4.3/2.8km/h (high/low) and its gradeability is 25%.
