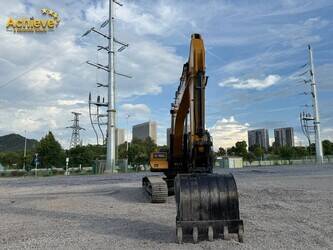

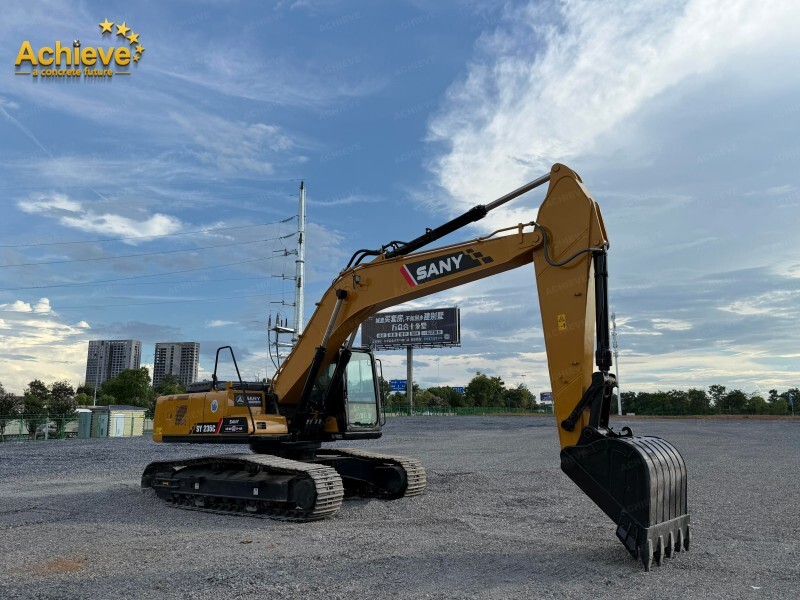

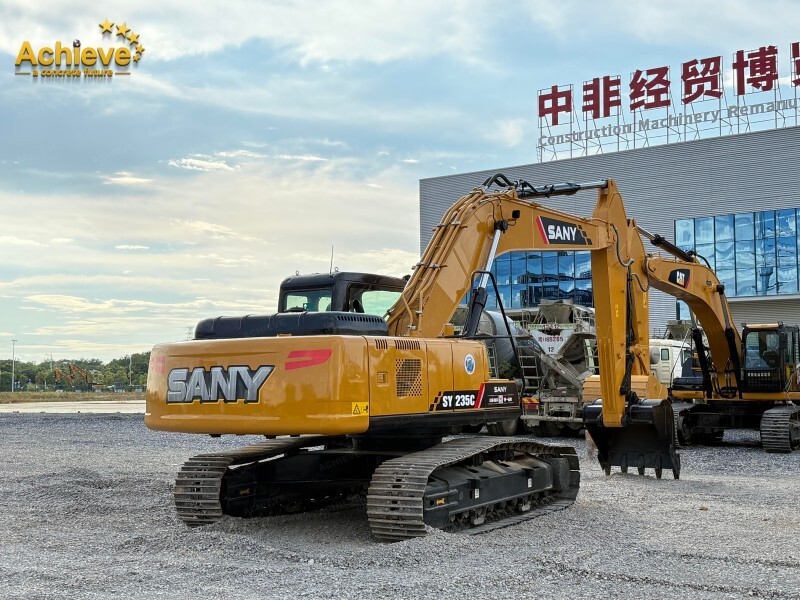

2021 Sany SY235C

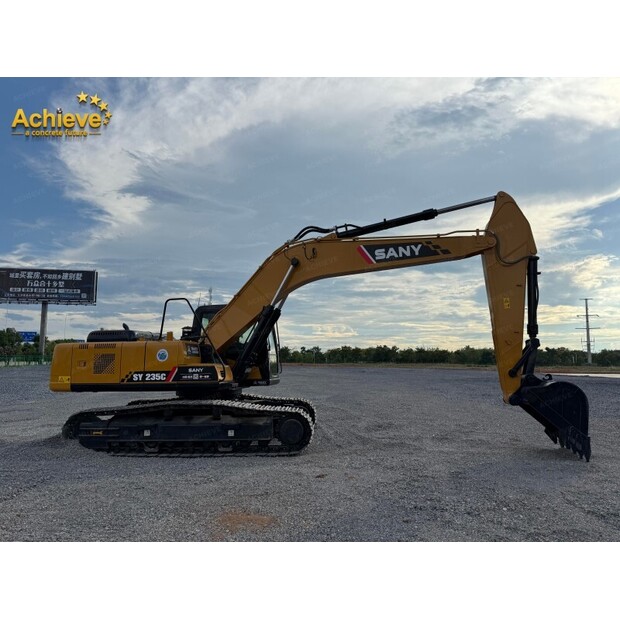

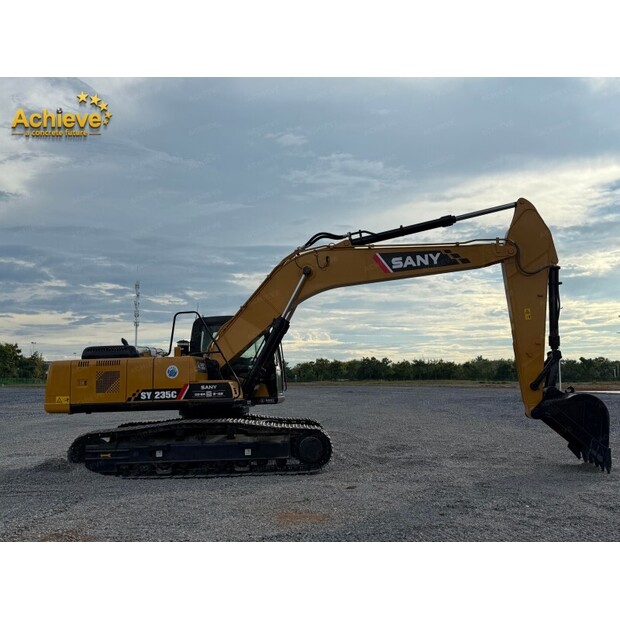

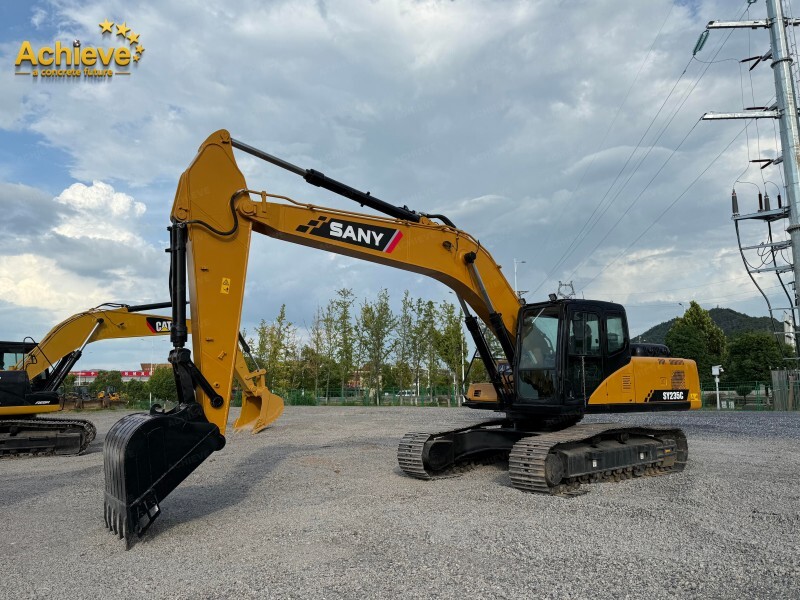

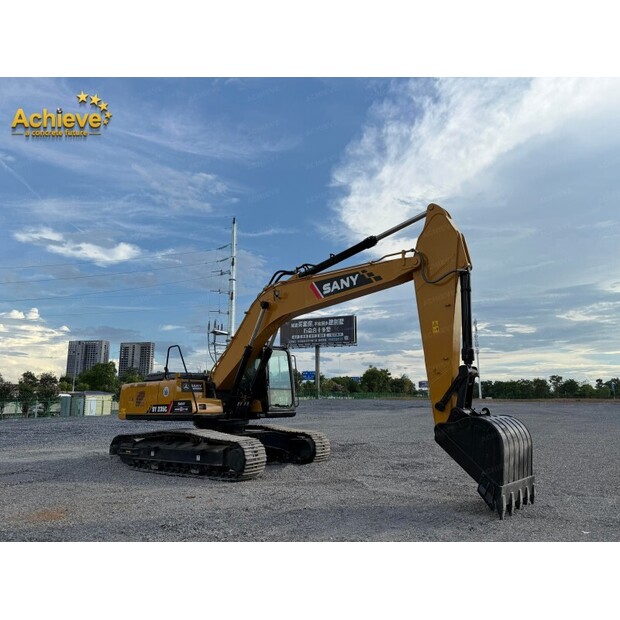

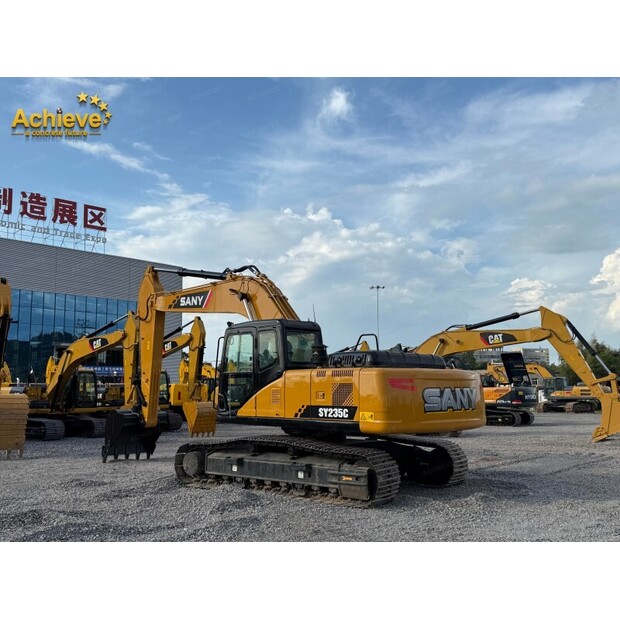

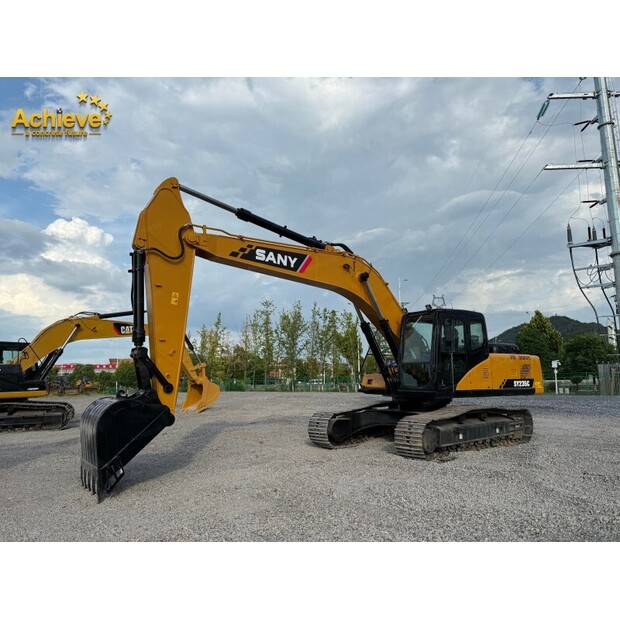

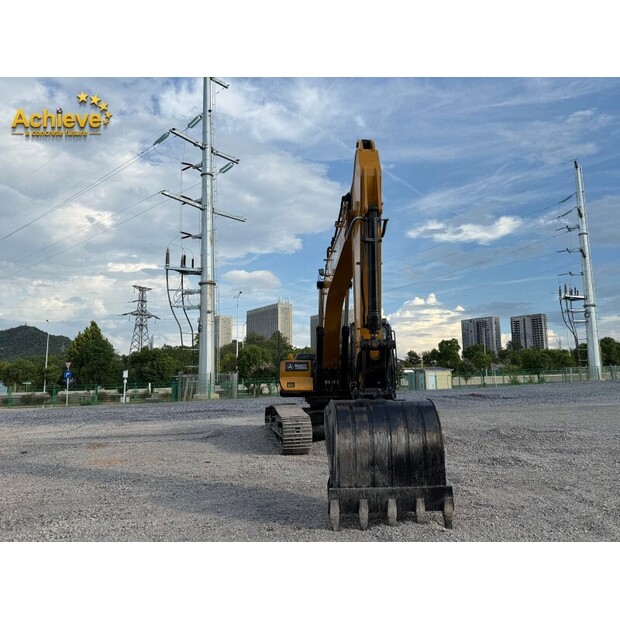

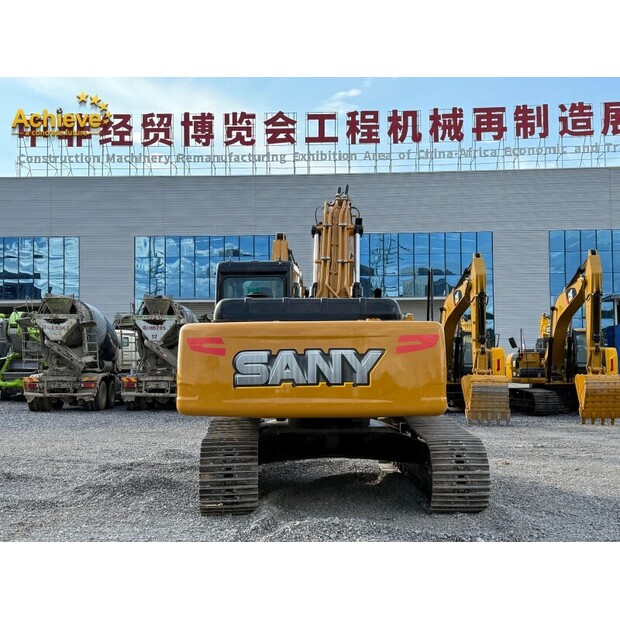

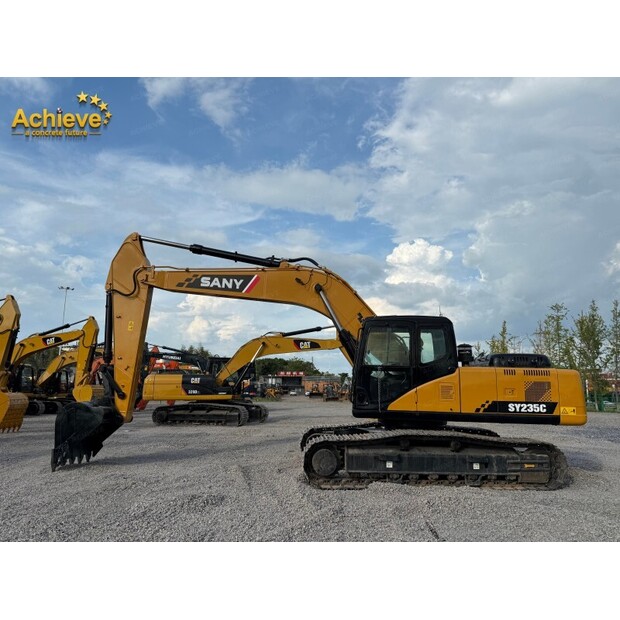

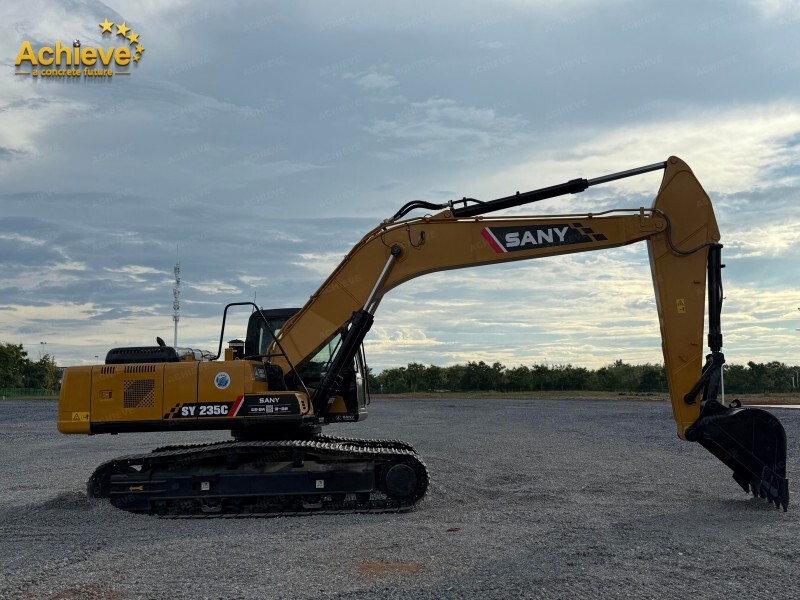

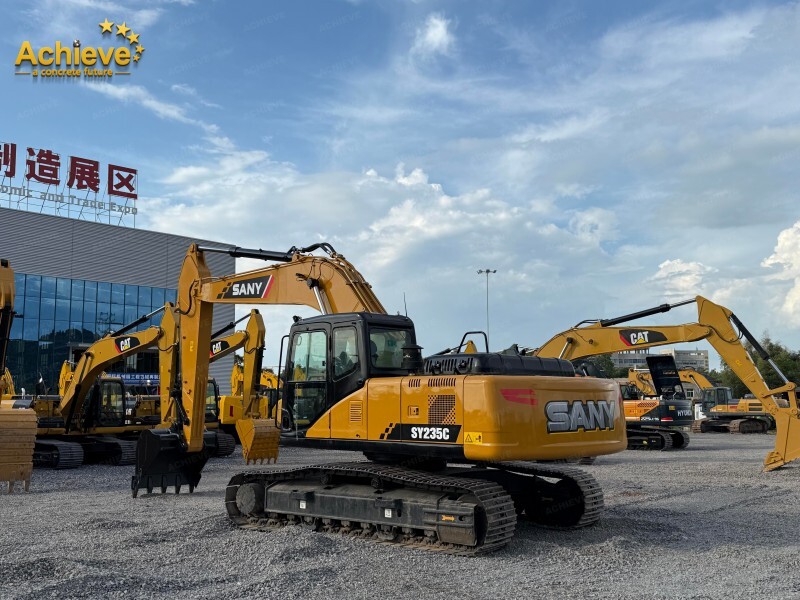

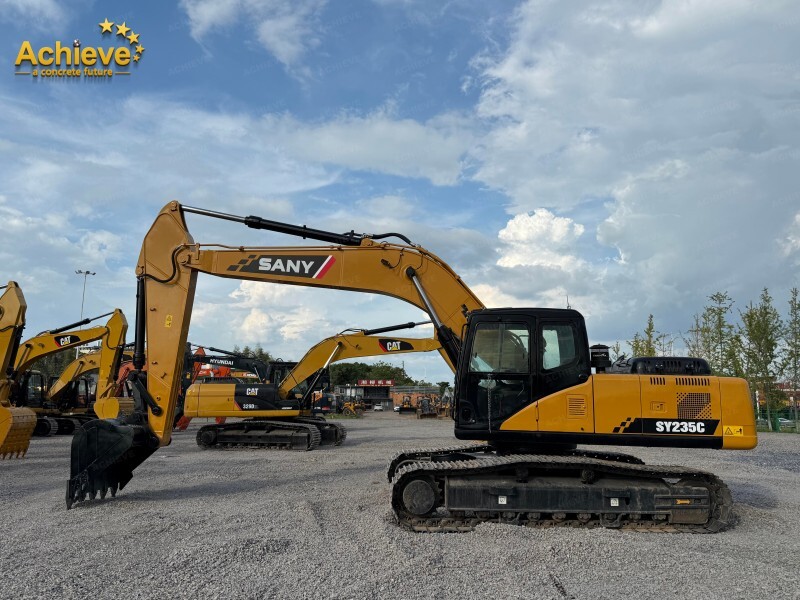

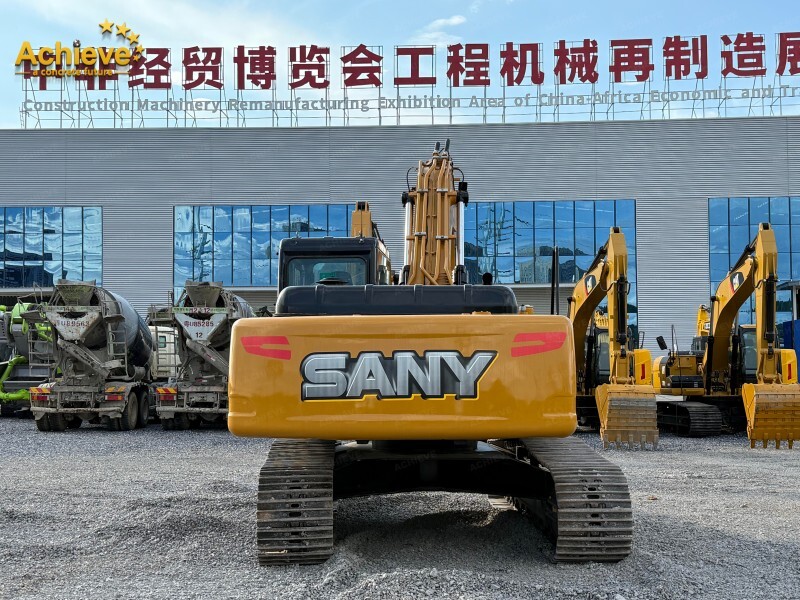

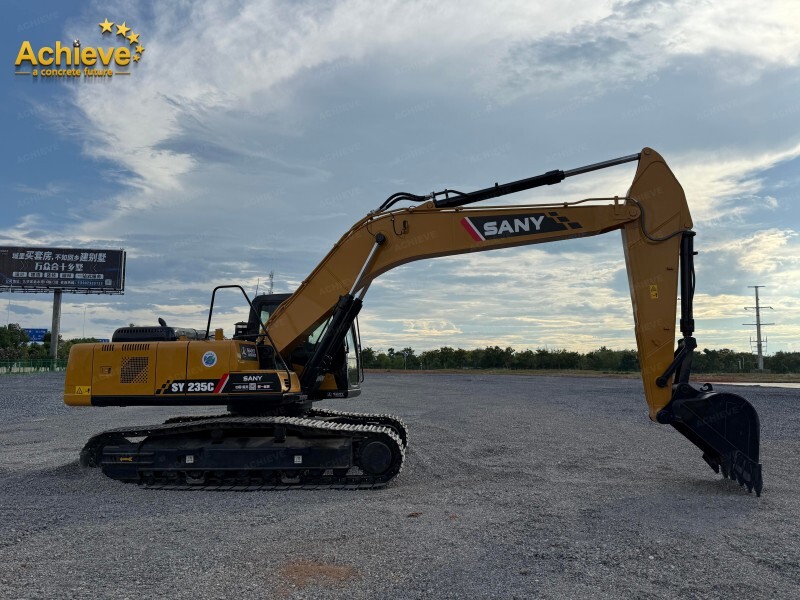

SANY SY235C Medium Excavator

Engine rated power: 128.5/2100 kW/rpmTotal weight: 24200kgBucket digging force: 175kN

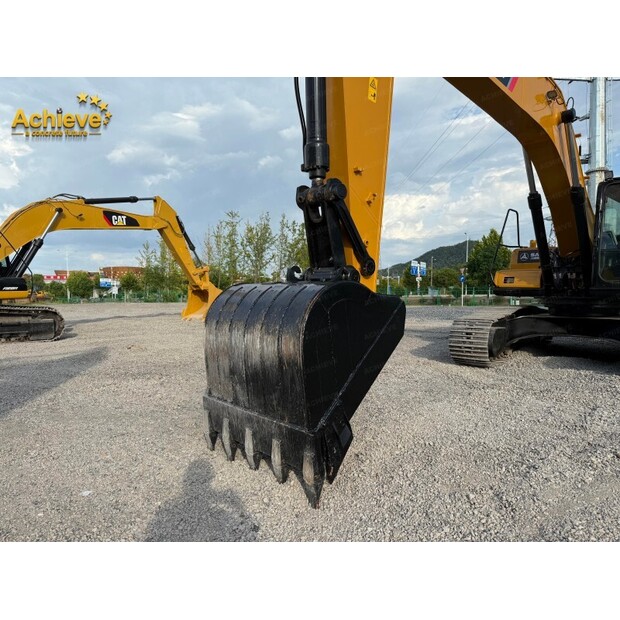

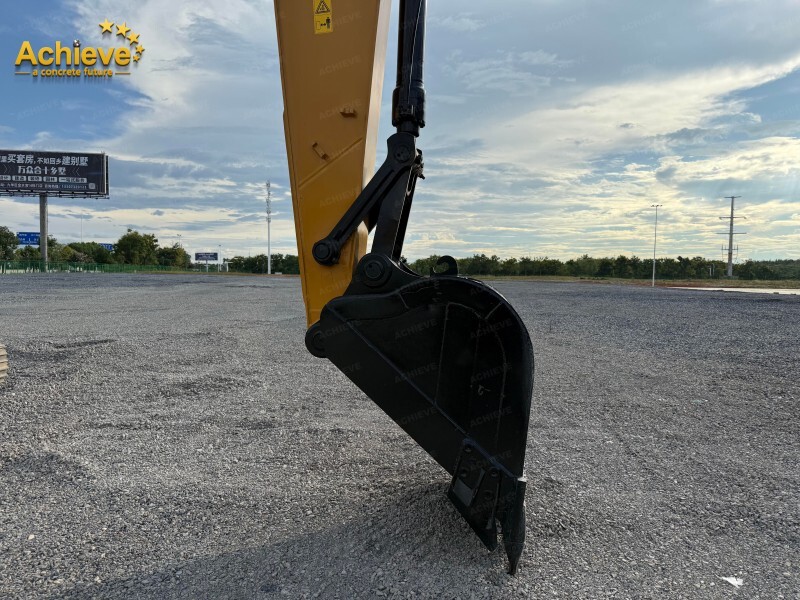

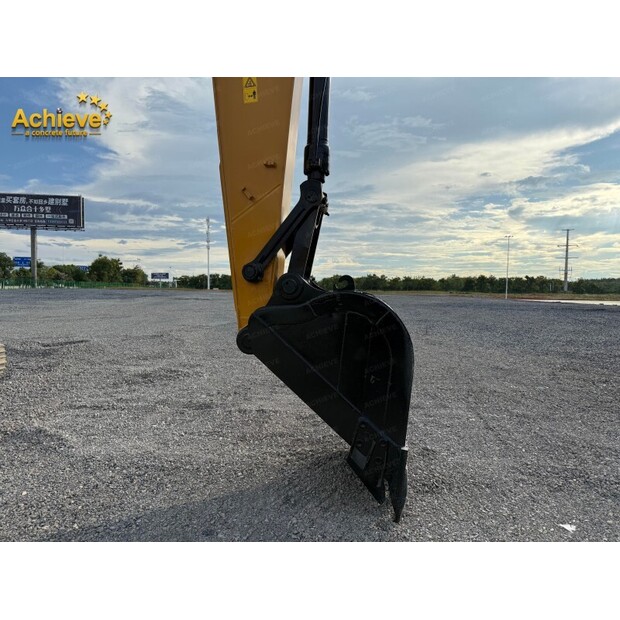

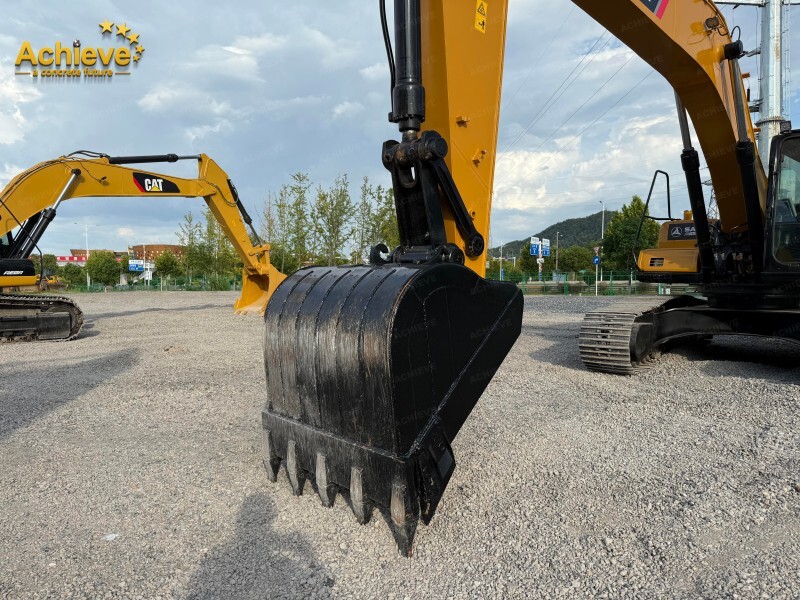

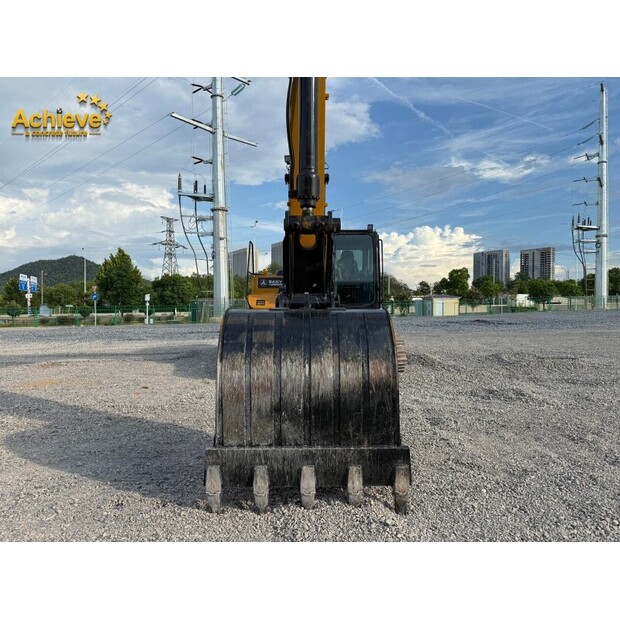

Bucket capacity: 1.2 m³Terms:

Earthworks, use in stone quarries, mining, road or bridge construction, canal digging

High efficiency and low consumptionHigh reliabilityResistant structureEnvironmentally friendly engine

HIGH EFFICIENCY AND LOW CONSUMPTION

With a dual-pump, dual-circuit constant power control system, the Isuzu 6BG1 engine can be used more efficiently. This perfect combination provides better operating efficiency with lower fuel consumption in heavy-duty mode with a heavy load or in normal or light mode with automatic engine speed regulation.

World-leading positive flow control technology

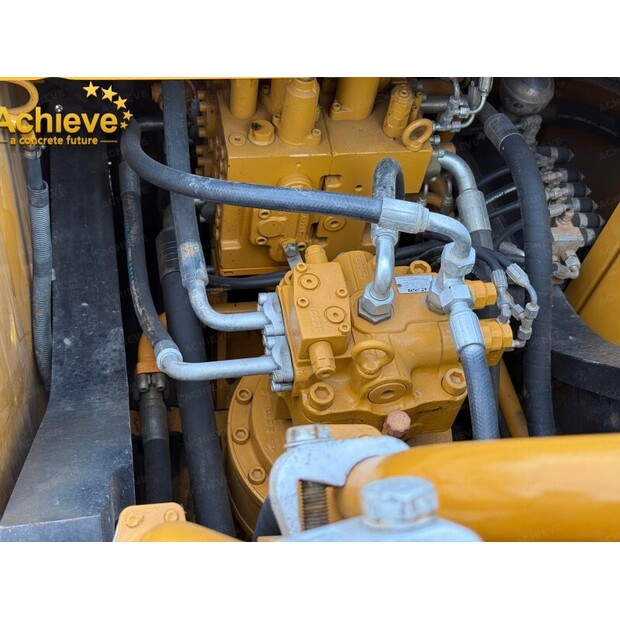

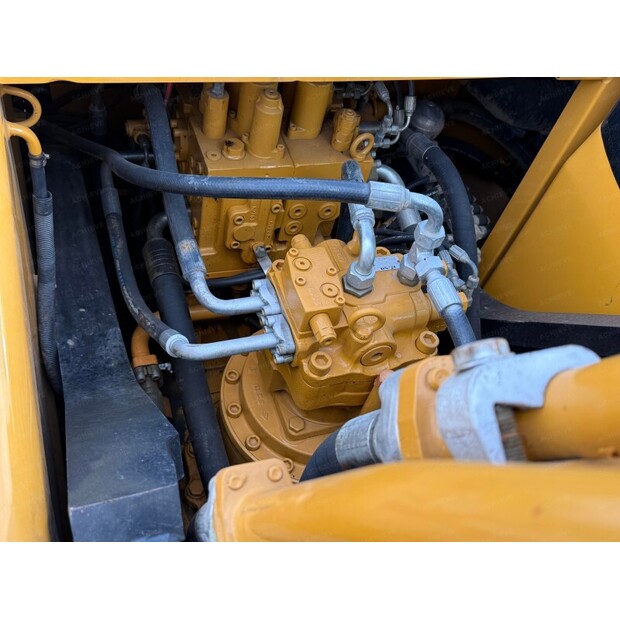

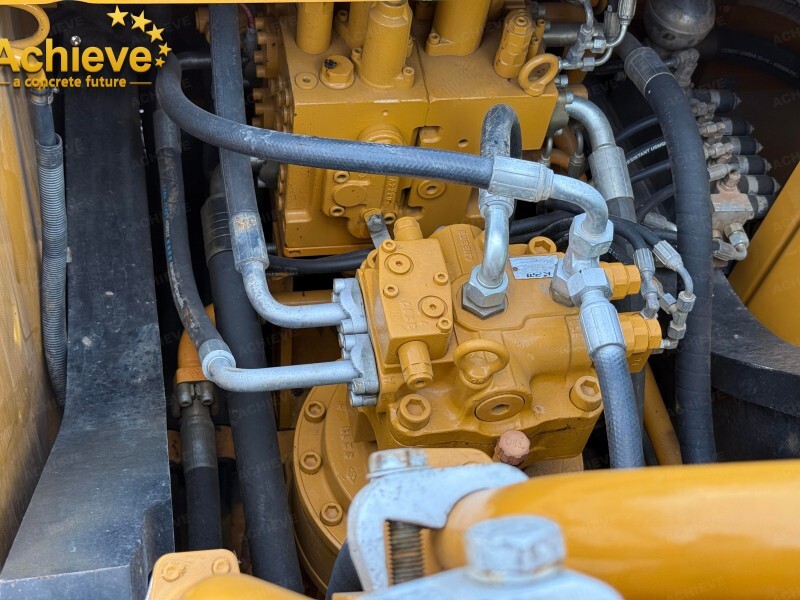

With hydraulic components supplied by internationally renowned companies and an advanced and mature electronic positive flow control hydraulic system, Sany excavators are able to maintain operating efficiency based on high system stability and better maneuverability.

Reduced pressure loss through the use of efficient hydraulic components.

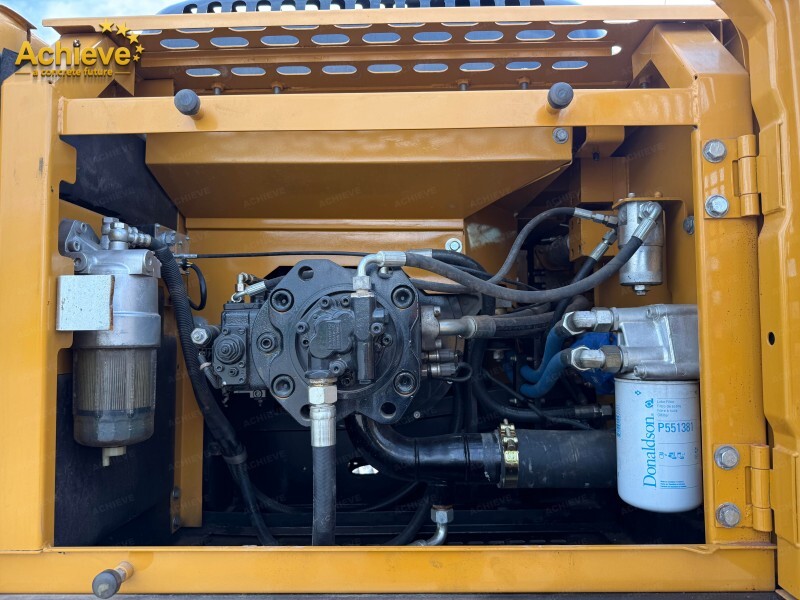

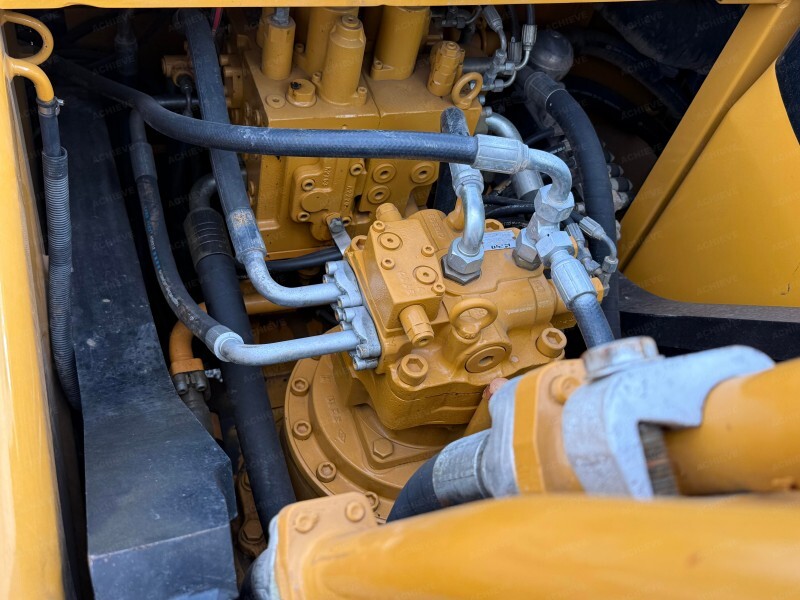

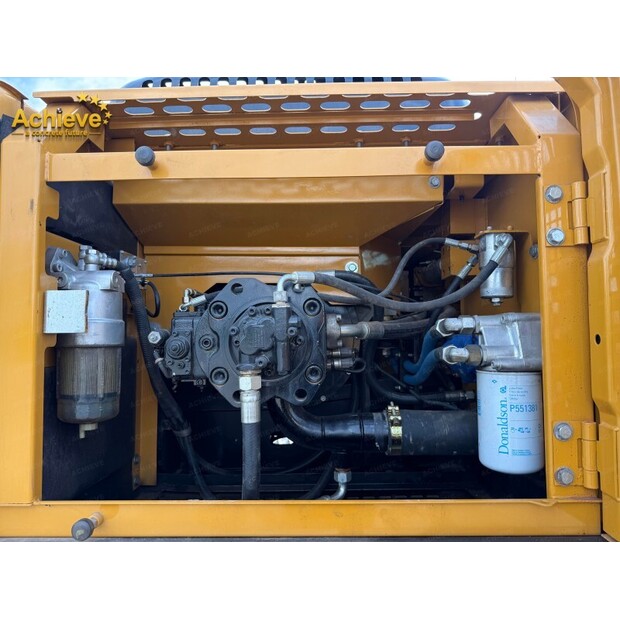

Improved pump efficiency: A large number of improvements, including improved clearances between internal pump parts, minimize leakage. The engine, main pump, main valve, and other core components manufactured for Sany by world-renowned suppliers are designed with the overall performance of the Sany excavator in mind. The positive-flow hydraulic system and advanced dynamic computer control technology are used to provide real-time matching between engine power and main pump power to maximize machine performance while reducing fuel consumption.

Innovative Controller Features

1. Customized precise controller for SANY.

2. Higher computing speed, 66% faster than the previous generation.

3. Automatic self-diagnosis and backup system.

4. Remote Diagnosis: Based on real-time applications shown on the centralized diagnostic monitor, remotely determine the location of faults that may occur.

5. Advanced computer dynamic control technology provides real-time matching between engine and main pump power.

SANY SY235C

HIGH RELIABILITY

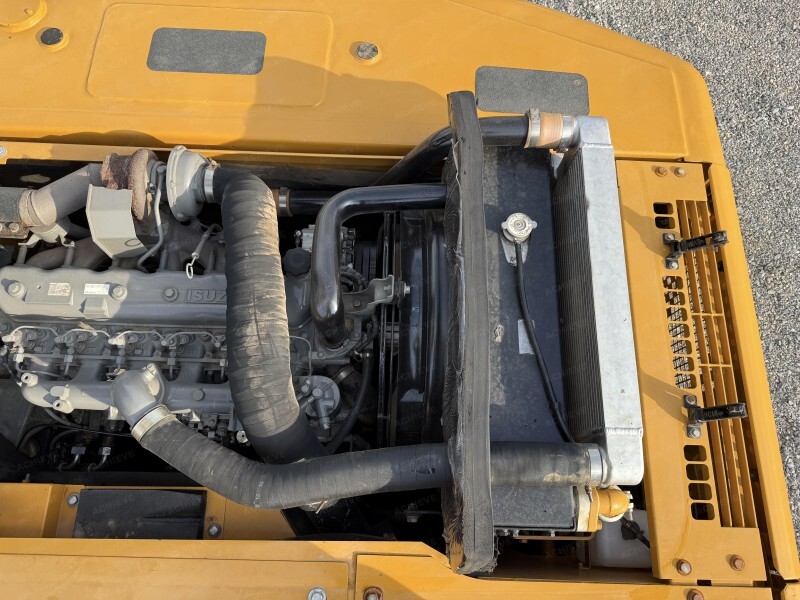

Excellent cooling effect

Fan Guard: The radiator fan is surrounded by a protective mesh that prevents objects from falling into the fan and damaging its blades.

Coolers arranged in series: water radiator, oil radiator, intercooler are side by side; the aluminum radiator has the best cooling effect.

STRONG STRUCTURE WITH GREATER RELIABILITY

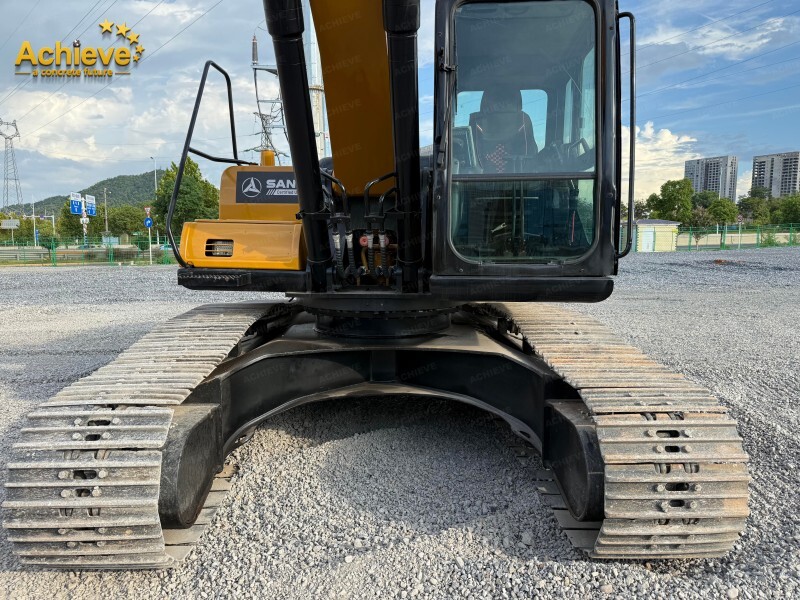

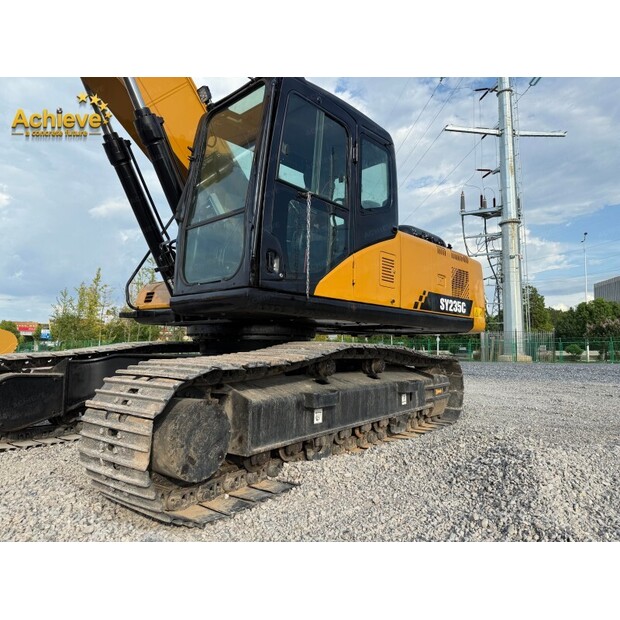

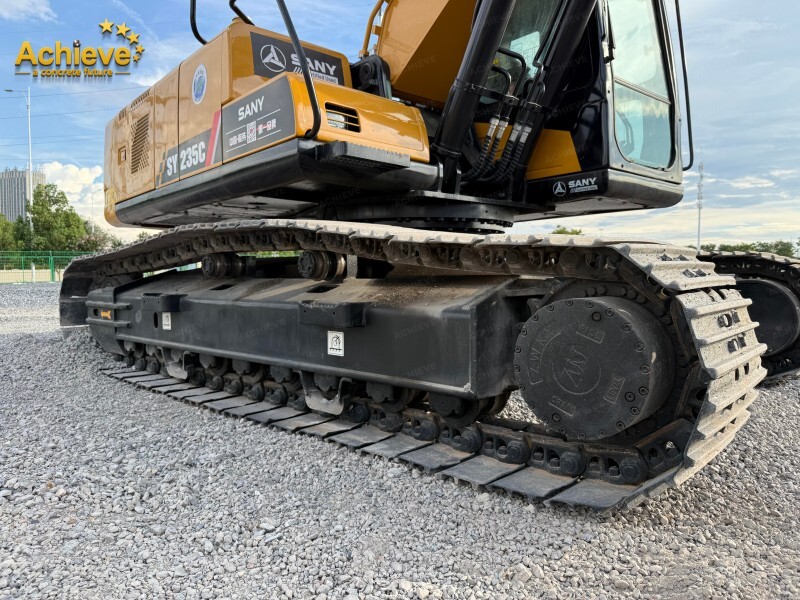

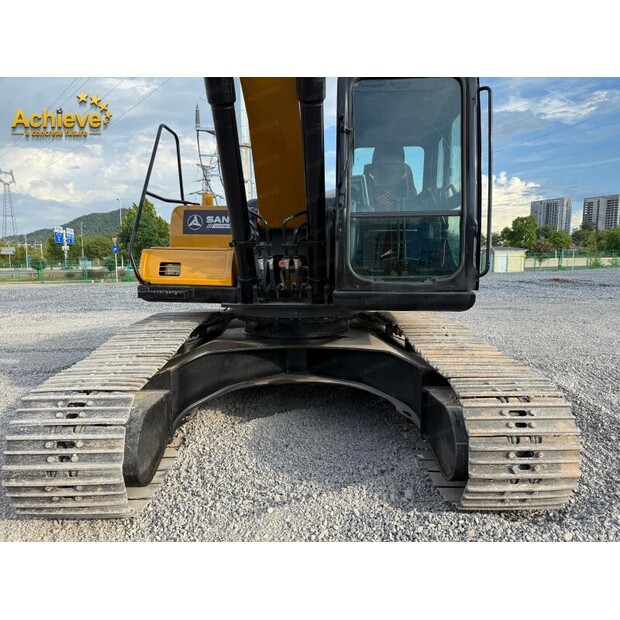

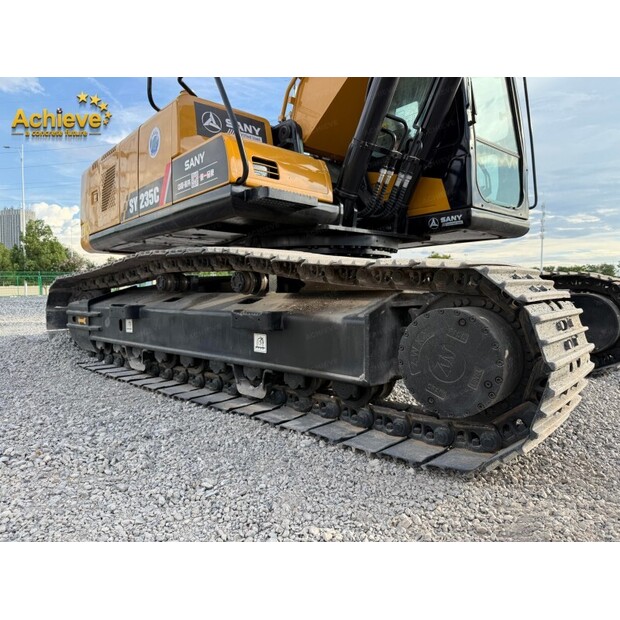

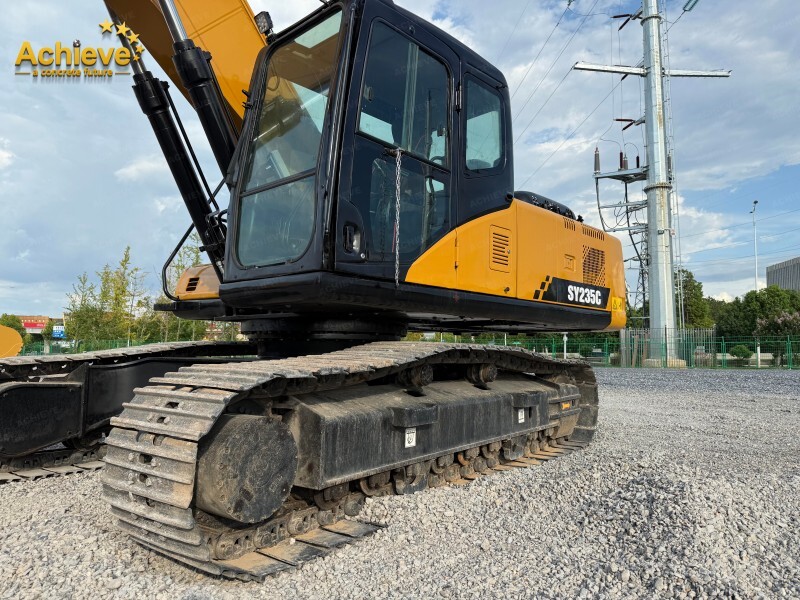

Track rollers, carrier rollers

The track rollers, carrier rollers, and idler wheel have internal lubrication for a longer service life. The three-grouser track shoe, laminated with a high-strength alloy, provides favorable contact, stability, and strength. The track chains have additional reinforced ribs to increase their strength and thus absorb shock when the machine moves over uneven surfaces.

SAFE AND COMFORTABLE CABIN ENVIRONMENT

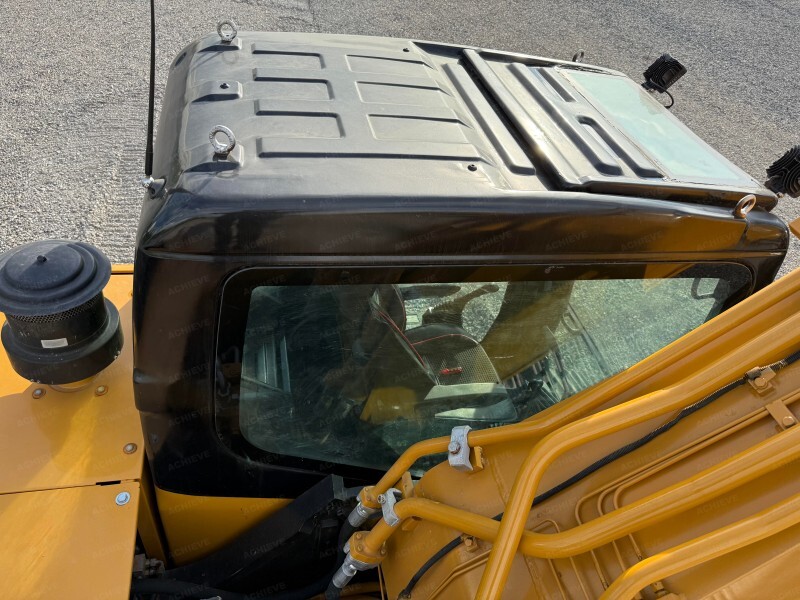

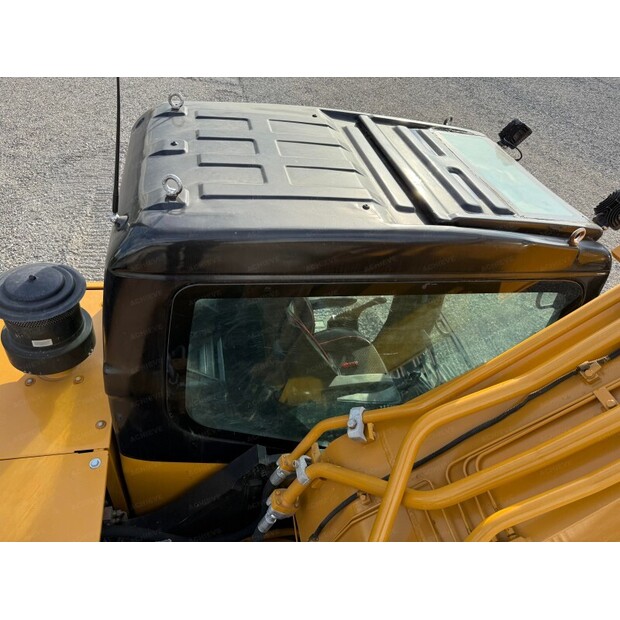

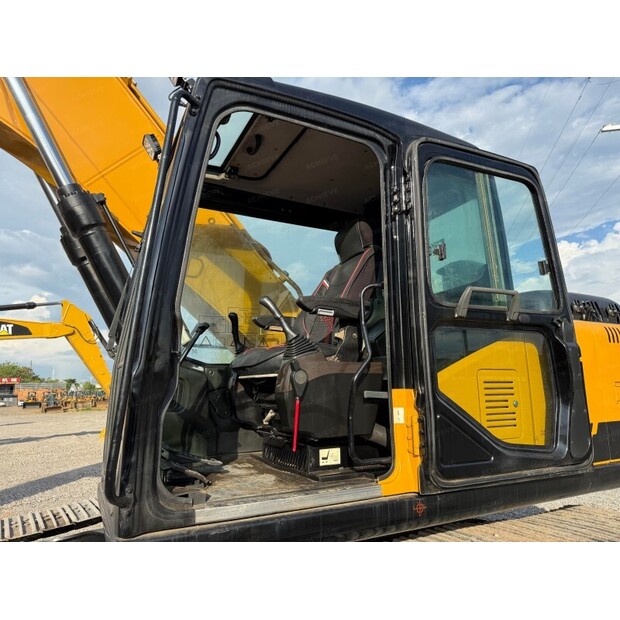

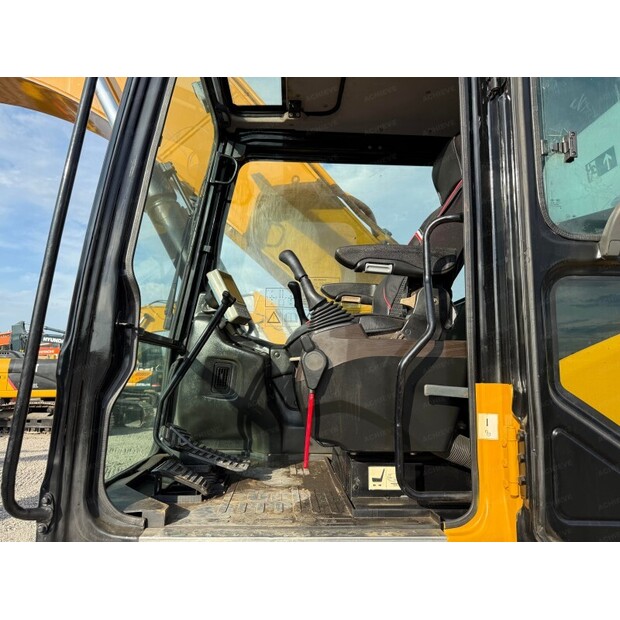

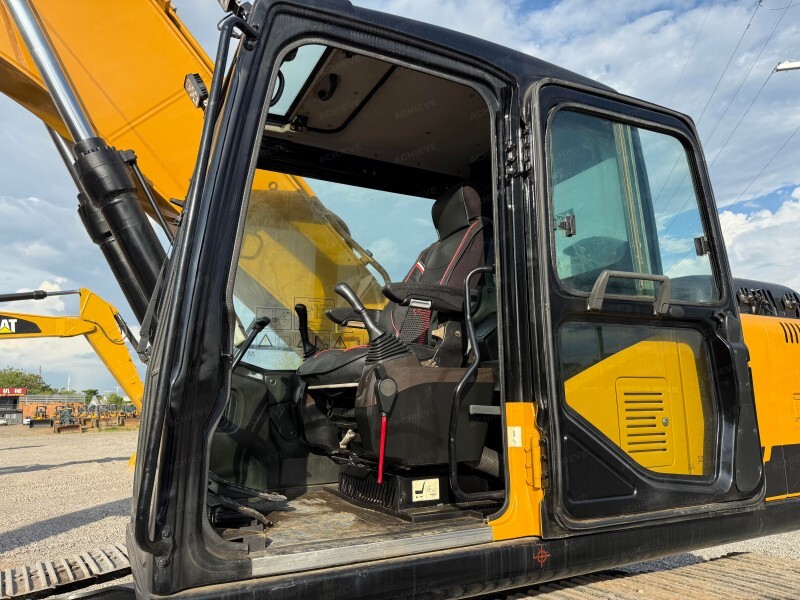

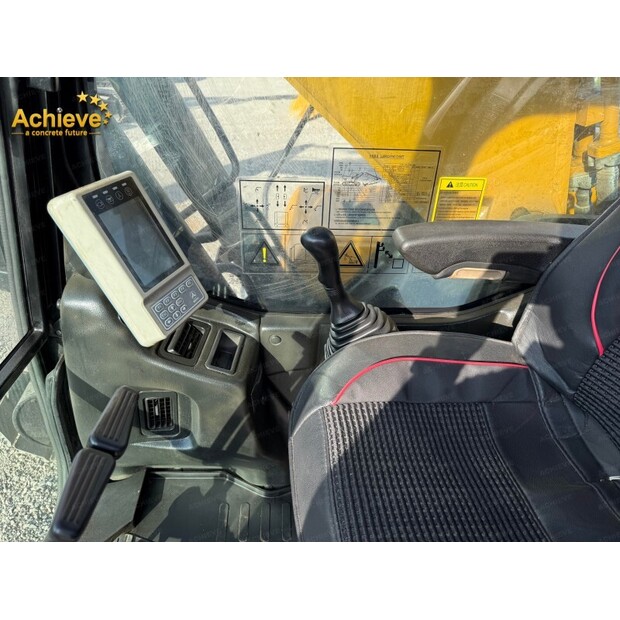

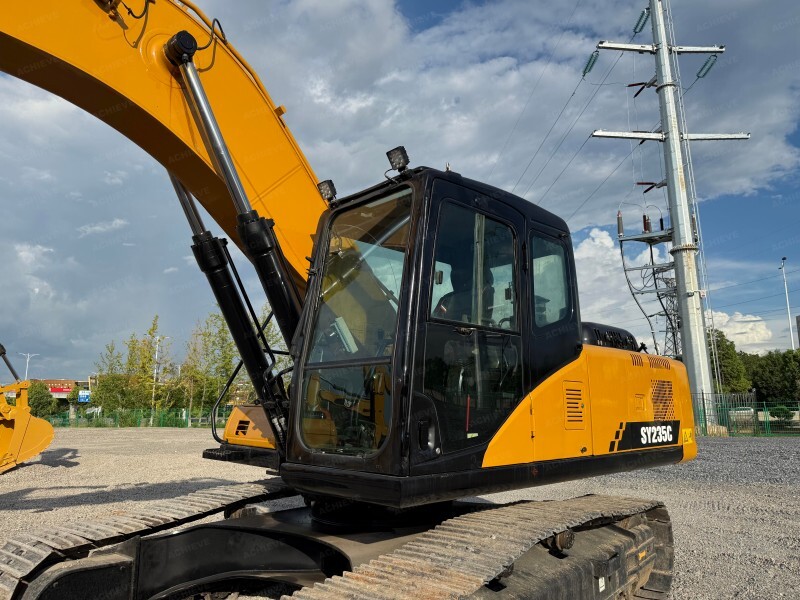

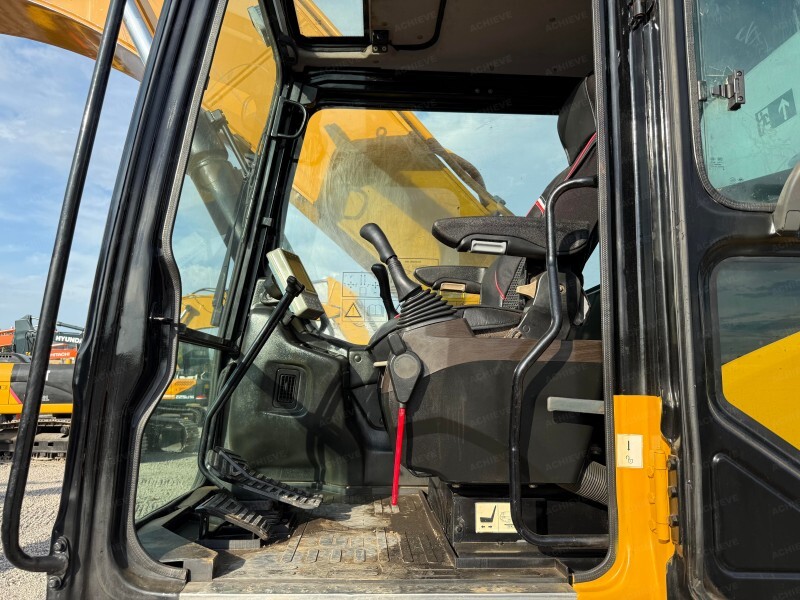

Large innovative cabin

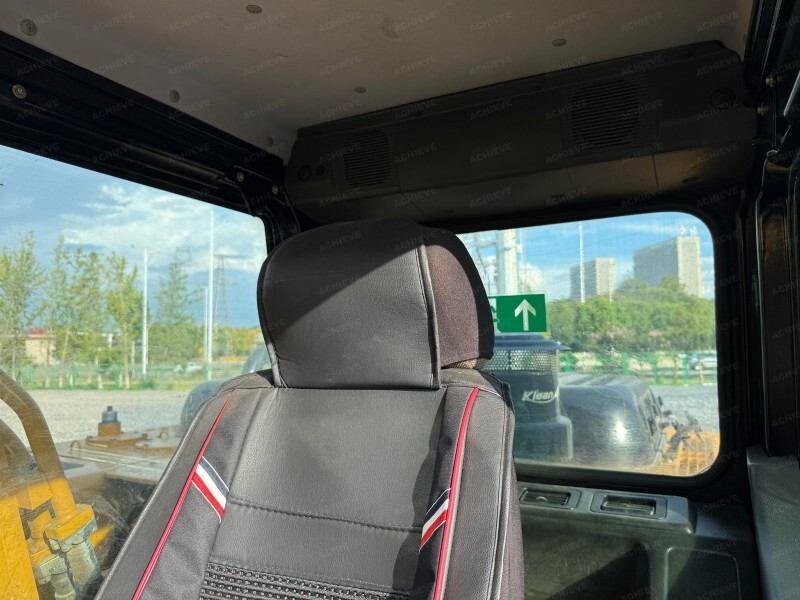

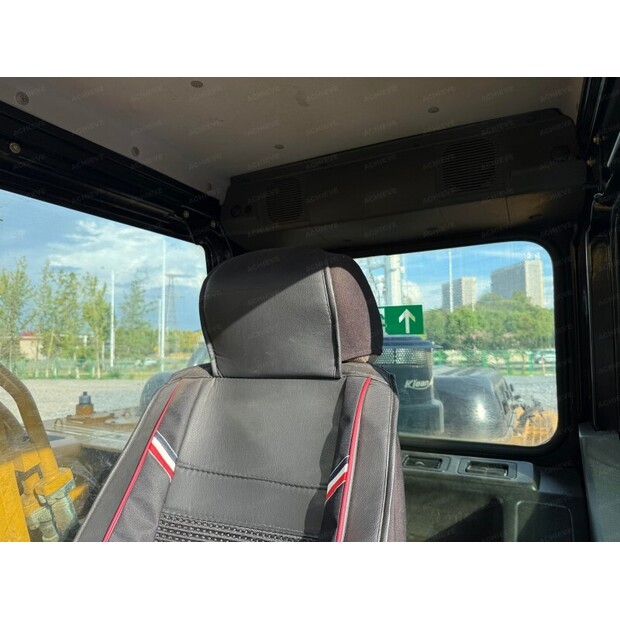

The innovative, large cab features an adjustable suspension seat. The seat's stiffness can also be adjusted to suit the operator's weight.

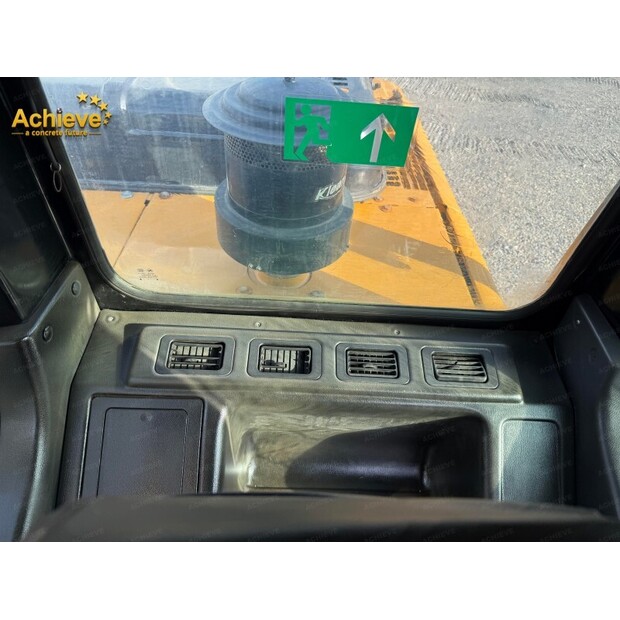

Automatic air conditioner

The high-capacity air conditioner keeps the air inside the cabin fresh by purifying both fresh and recirculated air. Rapid temperature control ensures a comfortable cabin temperature year-round.

Silicone rubber shock absorbers

The operator station is supported by an innovative silicone rubber shock absorber, which minimizes shock from rough road surfaces and impact on the engine or hydraulic system, and significantly increases cab stability and operator comfort.

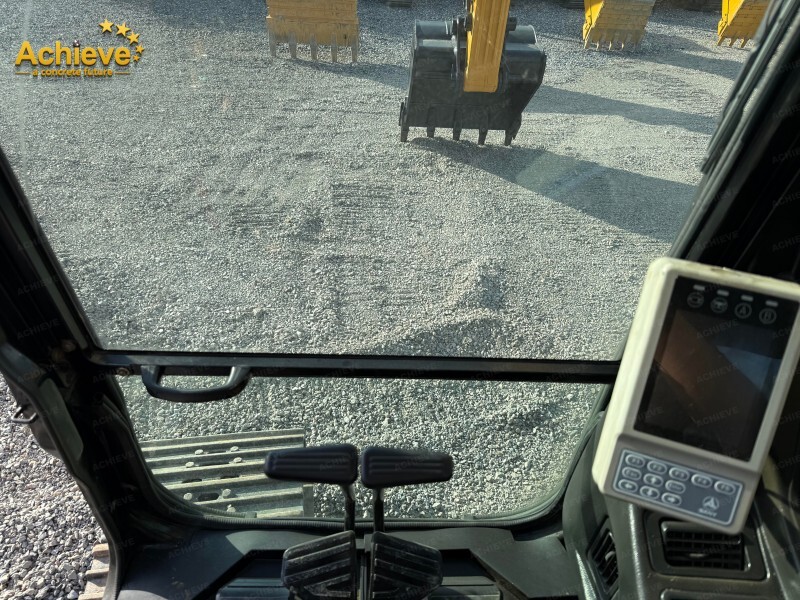

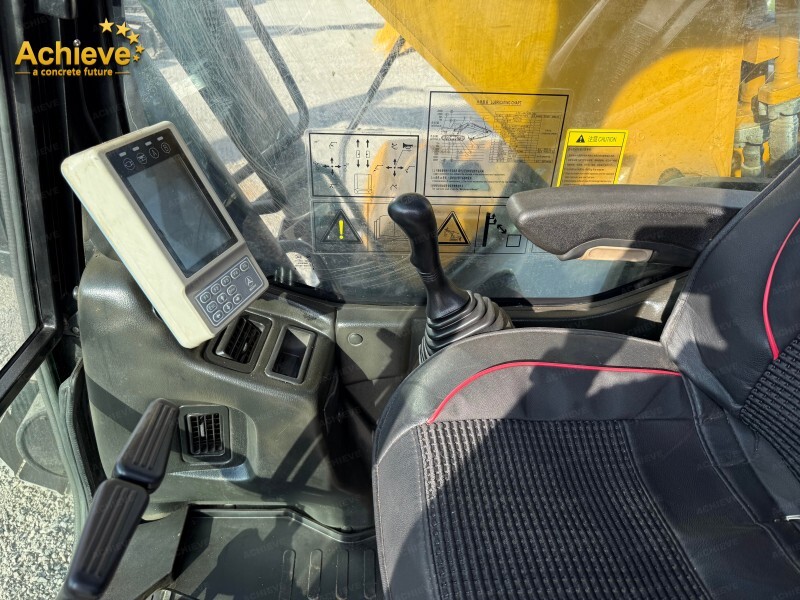

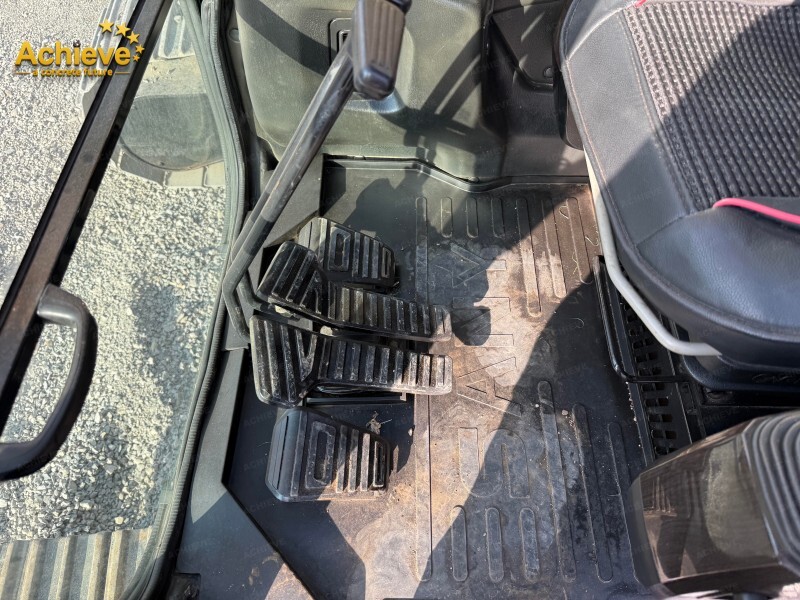

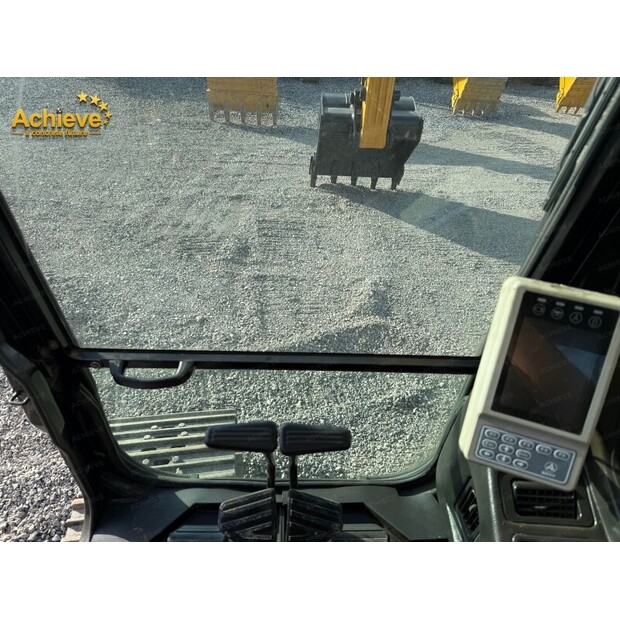

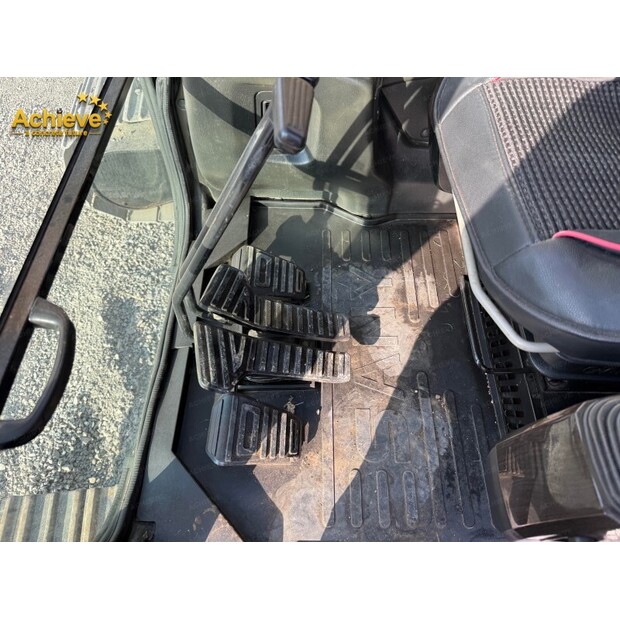

Longer control levers

The ergonomically designed and arranged control levers and joysticks can be easily operated.

Hydraulic locking control

When the hydraulic lock control is placed in the LOCK position, no control is active, preventing accidents caused by unintentional operation.

Large rearview mirror and emergency exit

A rearview mirror is mounted on each side of the cab, so that you can observe what is happening behind the excavator without turning around.

Anti-slip plates

Anti-slip plates on the machine body prevent operators from slipping during maintenance.

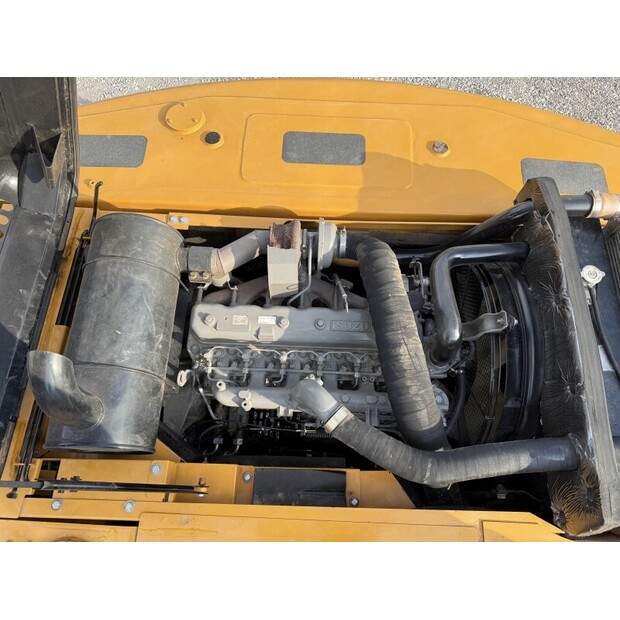

ENVIRONMENTALLY FRIENDLY ENGINE

Big economy

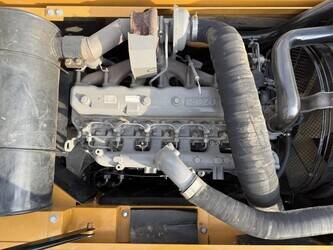

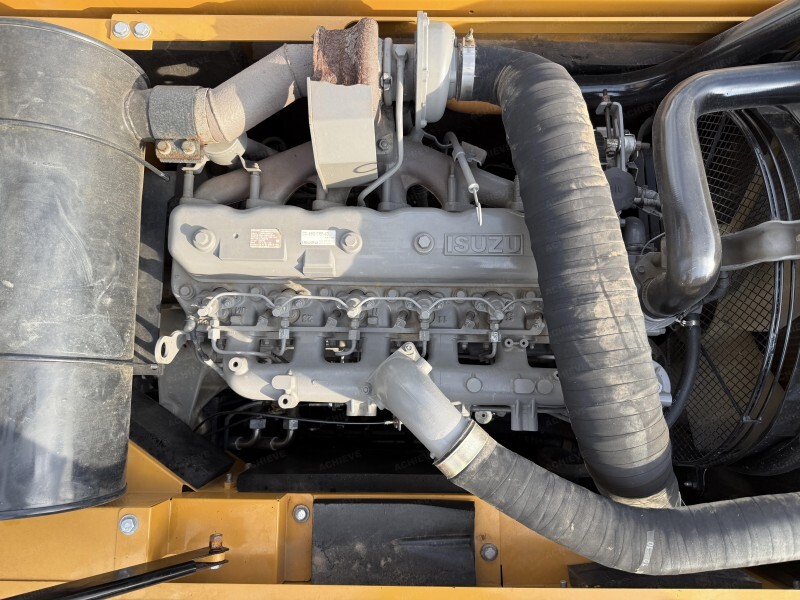

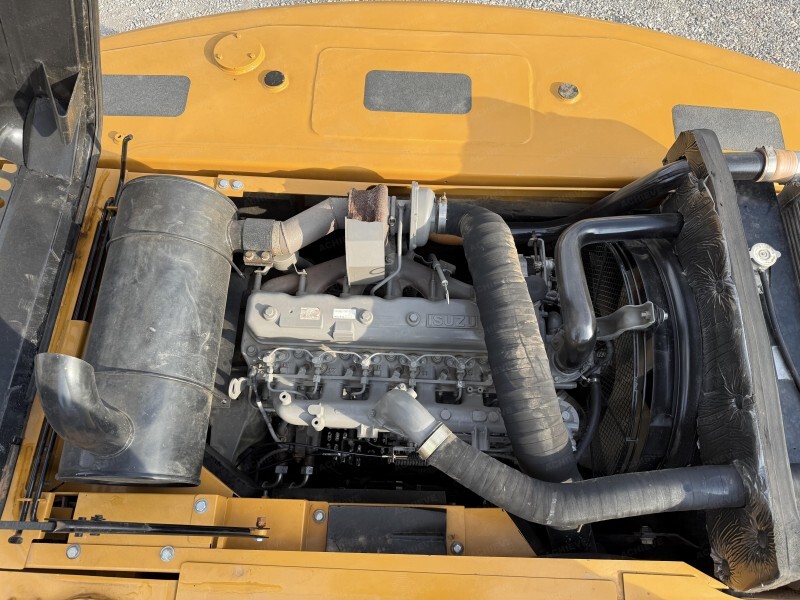

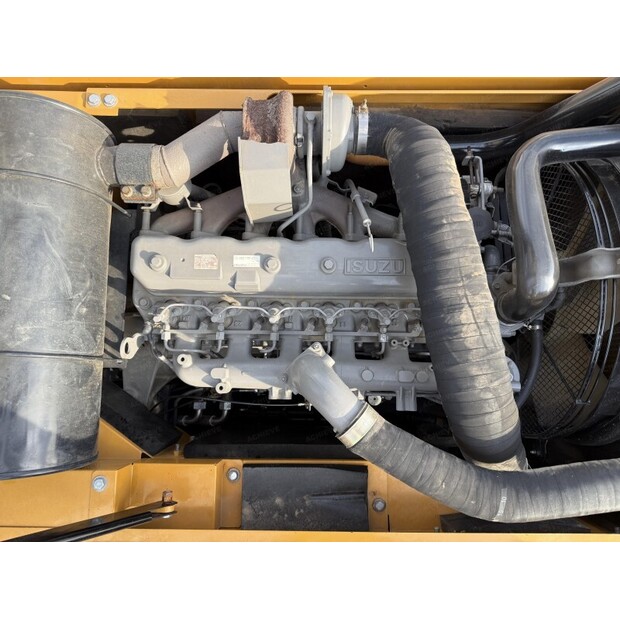

The ISUZU engine customized for Sany is able to precisely control the injection of fuel into the engine to ensure complete combustion of the fuel.

Advanced computer dynamic control (CDCS) technology provides real-time matching between engine and main pump power, for the perfect combination of power and economy.

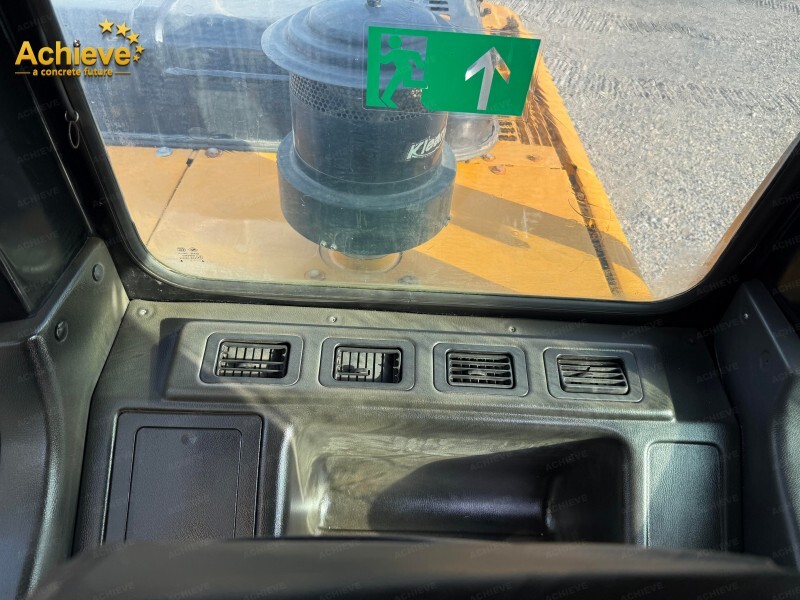

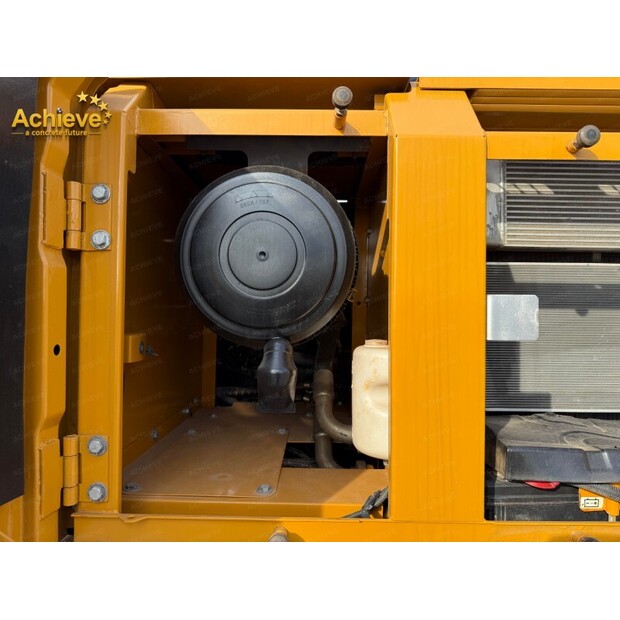

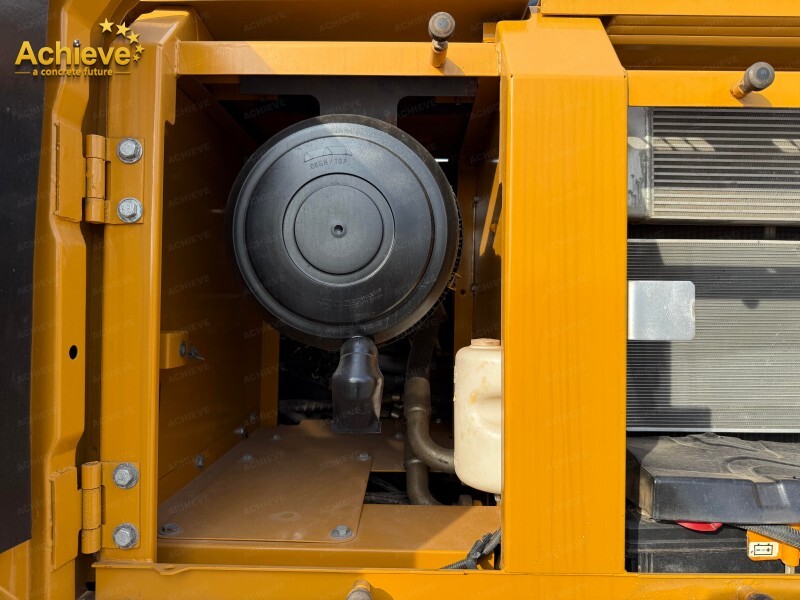

Three-stage air filtration

Equipped with an air pre-filter and dual air filter elements, the three-stage air filter ensures a sufficient supply of clean air that can reduce cylinder wear. Such a design is especially useful in harsh, windy, or dusty working environments.

Four working modes: H, S, L and B

Heavy Duty Mode (H): Maximum output power for efficient operation.

Standard Mode (S): 90% of rated power, reducing fuel consumption and noise.

Light Duty Mode (L): 80% of rated power, ensuring fuel economy.

Grinder mode (mode B): The corresponding flow rate can be regulated according to the grinder model in grinder mode.

H, S and L modes meet customer needs for maximum efficiency with reduced fuel consumption under various operating conditions.

SCIENTIFIC STRUCTURE FOR EASIER AND FASTER MAINTENANCE

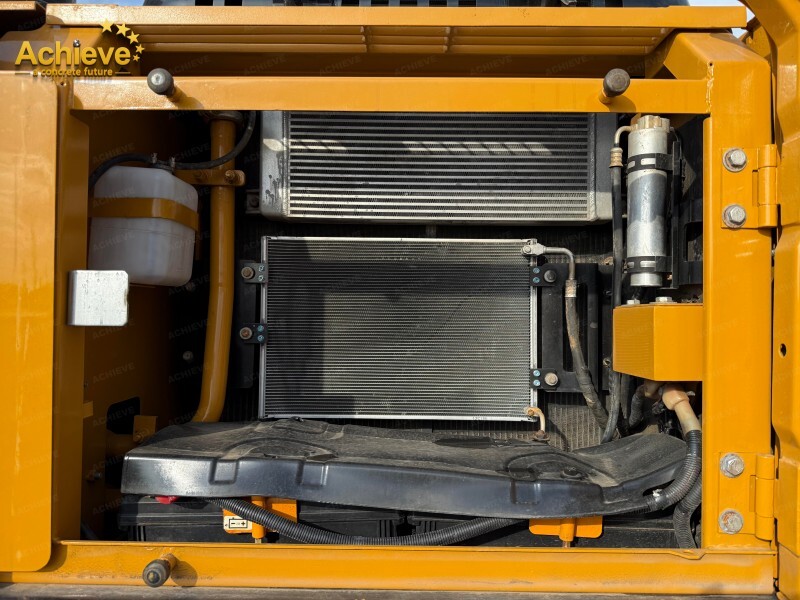

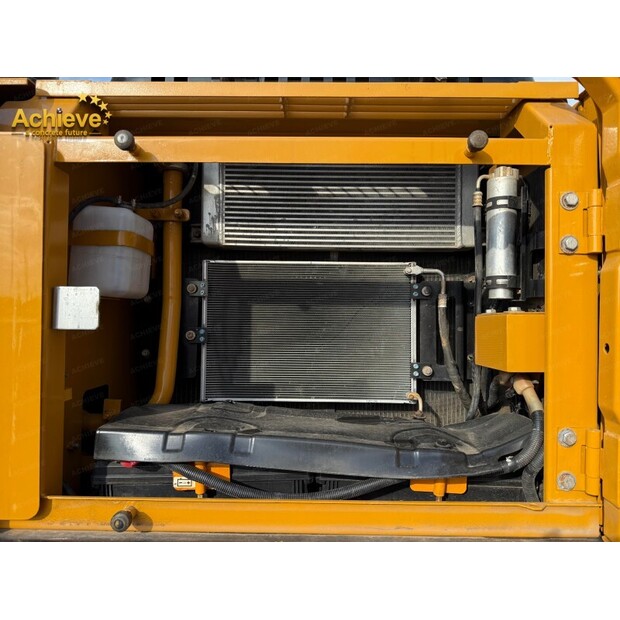

Cooling units arranged in series

Coolant radiator, oil cooler, intercooler and condenser are placed side by side for easy cleaning and maintenance.

Drain plug below

The radiator, fuel tank, hydraulic oil tank and crankcase are equipped with screw-on plugs at the bottom, convenient for draining foreign substances and waste fluids during oil change or cleaning.

Easy cleaning of the radiator

Opening the left rear access door gives you access to the engine radiator.

Standard engine oil drain cock

Using this faucet can prevent you from dirtying your clothes and the floor when you drain the oil.
