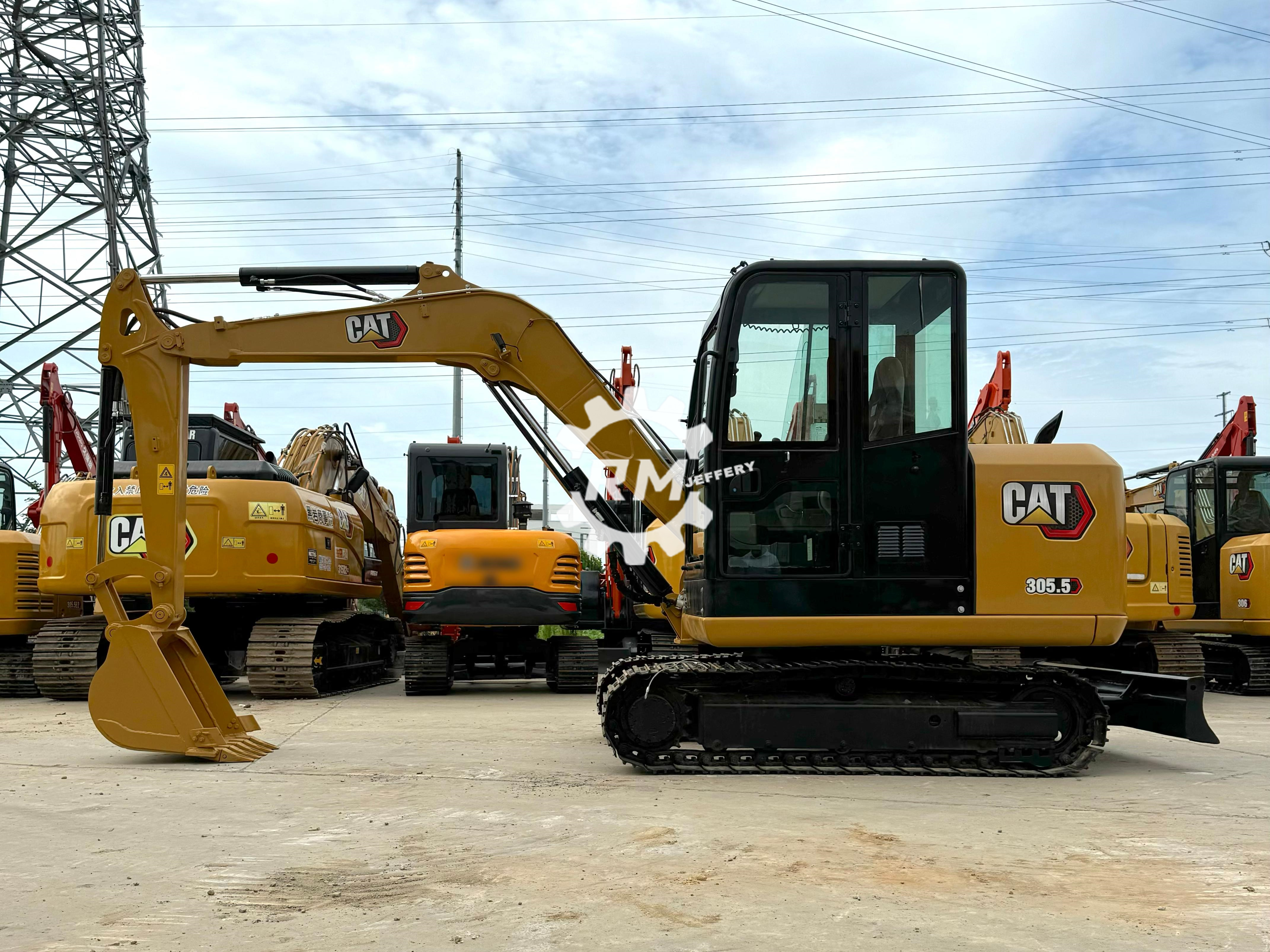

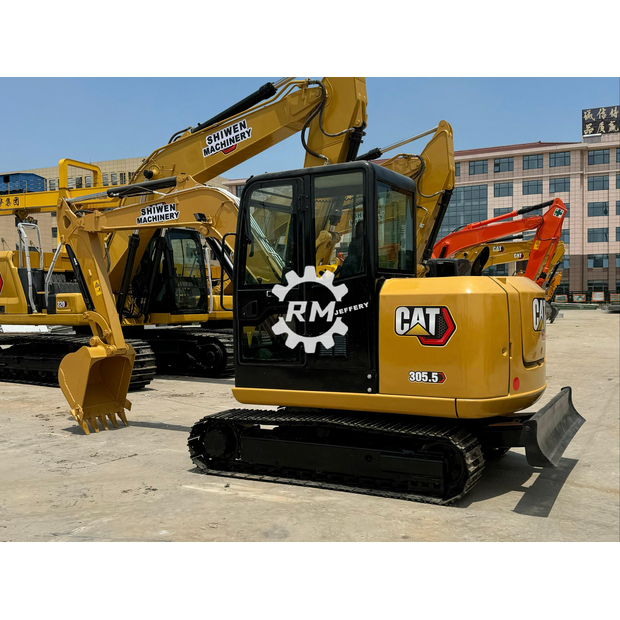

2020 Caterpillar 305.5

The detailed parameters of the Cat 305.5 hydraulic excavator are as follows:

Engine parameters:
Model: Cat C2.4 DI
Rated power: 34.1 kW (46 hp) @ 2400 rpm
Displacement: 2.4 liters
Cylinder diameter x stroke: 87 mm x 102.4 mm
Cooling method: Water cooling
Working weight: 5350 kg (including the working weight of the cab)
Size parameters:
Transport length: 5765 mm
Transportation width: 1950 mm
Transport height: 2540 mm
Track shoe width: 400 mm
Track gauge: 1550 mm
Rear turning radius: 1580 mm
Total length of track: 2440 mm
Minimum ground clearance: 628 mm
Hydraulic system parameters:
Bucket excavation force: 35 kN
Excavating force of boom: 27.2 kN
Rotary working pressure: 21600 kPa
Equipment working pressure: 24500 kPa
Maximum flow rate of main pump: 140 l/min
Performance parameters:
Rotation speed: 10.5 rpm
Climbing ability: 25 °
Walking speed: 4.3 km/h (high)/2.8 km/h (low)
Maximum traction force: 40.2 kN
