2017 Sinoboom GTJZ0608M

Maximum lift capacity: 230.00
Maximum lift height: 0.00
Transport dimensions (LxWxH): 1.78x0.81x2.11
Front tyres remaining: 0
Rear tyres remaining : 0
Internal stock no.: SINOBOOM - GTJZ0608M - 60211
Gross Weight: 1526.00
Tyre brand: -
VAT: 0.00
Working height: 780.00
Traction type: 2 WD
Other information:

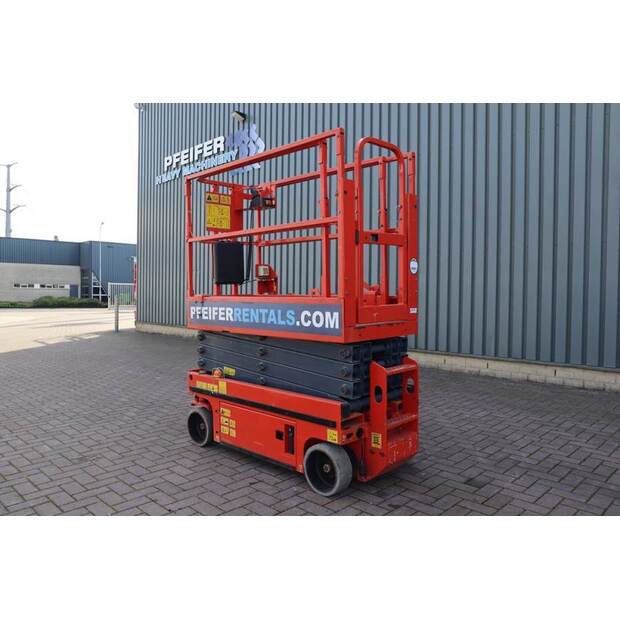

Sinoboom Scissorlift
This machine comes with CE declaration

This machine has a valid inspection and can be sold with warranty. Inform about our conditions!

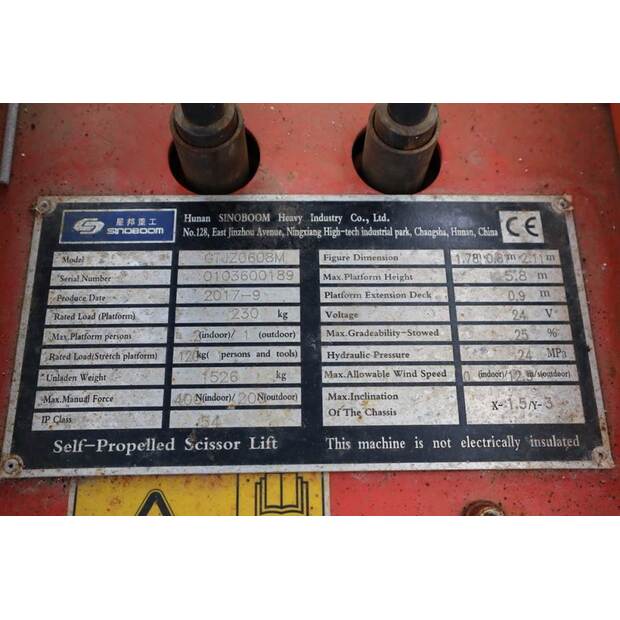

Manufacturer: Sinoboom
Typ: GTJZ0608M
Building year: 2017
Fuel: Electric
Serial number: 0103600189
Loading / lifting capacity: 230 kg

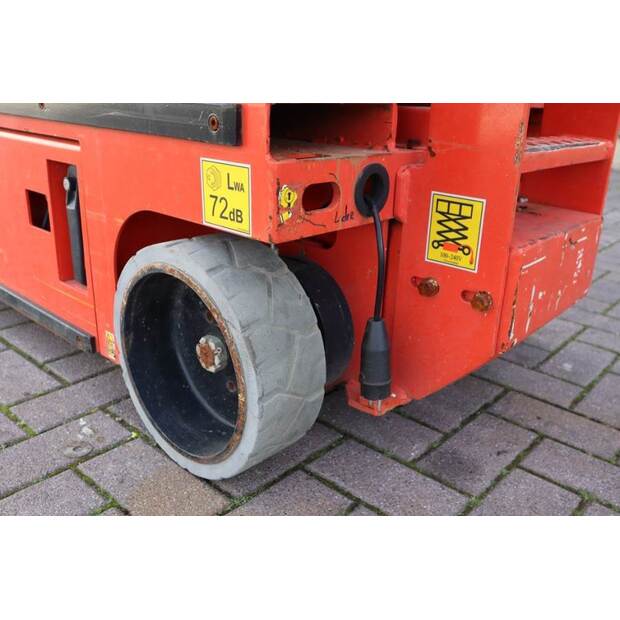

Tire size / type 305x115mm / Non marking
Drive speed: 3.2 km/h
Gearbox typ: Hydrostatic

* Working height max.: 7.8m
* Wheelbase: 1.315m
* Ground clearance: 0.07 m
* Platform size L*W*H: 1.64 m*0.76 m*1.1 m
* Drive & steer model: 2WD * front-wheel
* Drive speed - stowed: 0 -3.2 km/
* Drive speed - raised: 0 - 0.8 km/h
* Turning radius - inside: 0.27 m
* Turning radius - outside: 1.63 m

CE (Declaration of Conformity).

More detailed pictures / product movie on our website.

pfeifermachinery.com

Above specifications are subject to change without prior notice and subject to errors
