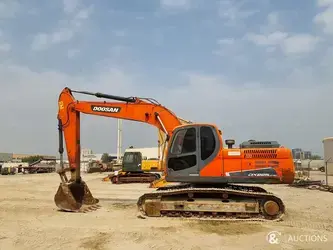

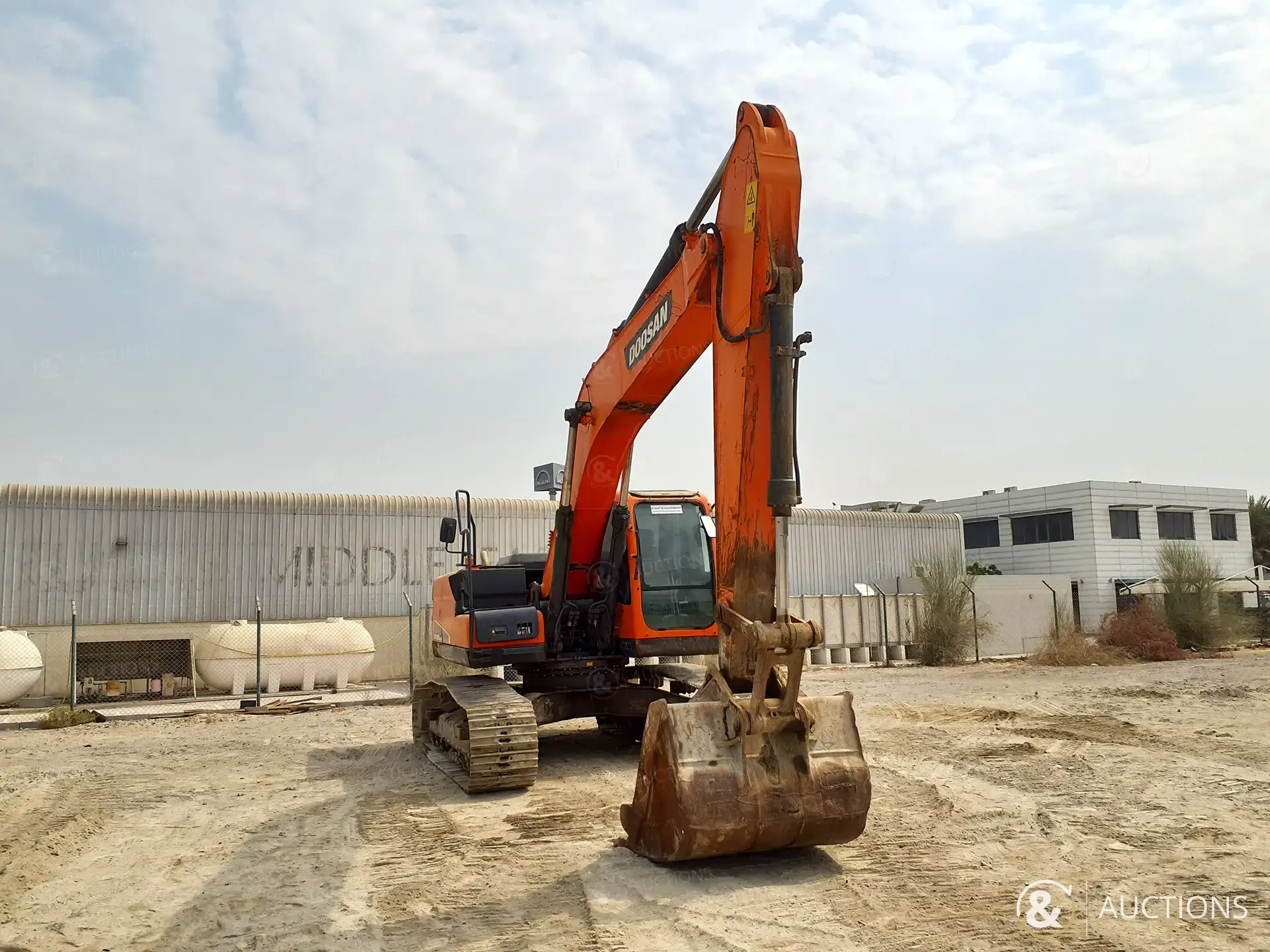

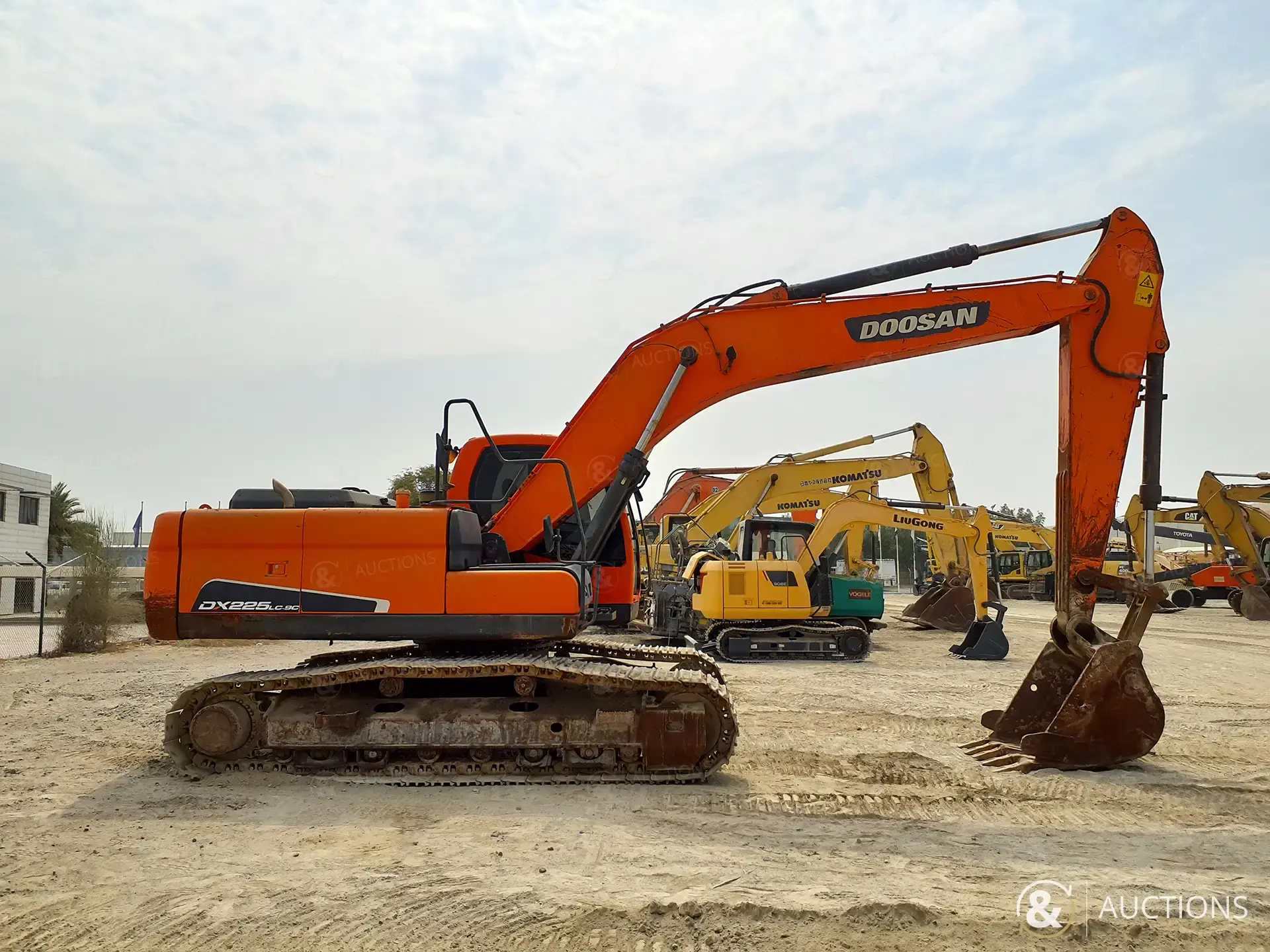

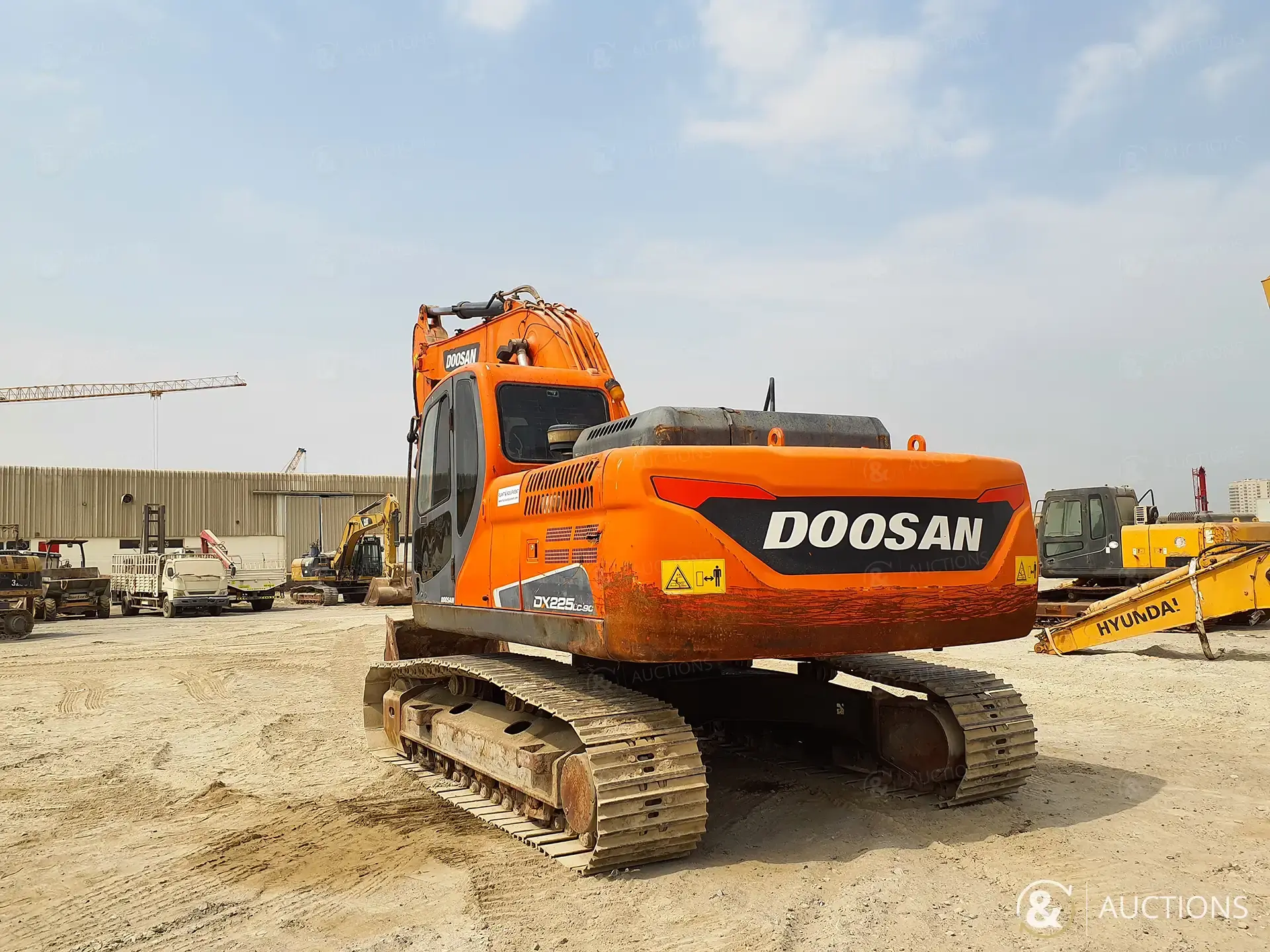

2016 Doosan DX225LC-9C
INSPECTÉ

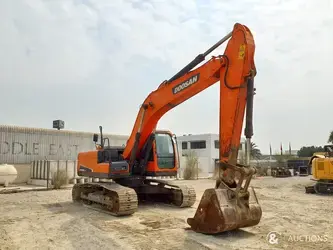

2016 Doosan DX225LC-9C
INSPECTÉ
Prix
161,598
$
44,000
€
41,121
£
34,174
$
165,041
1
de un
78

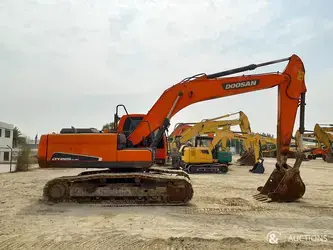

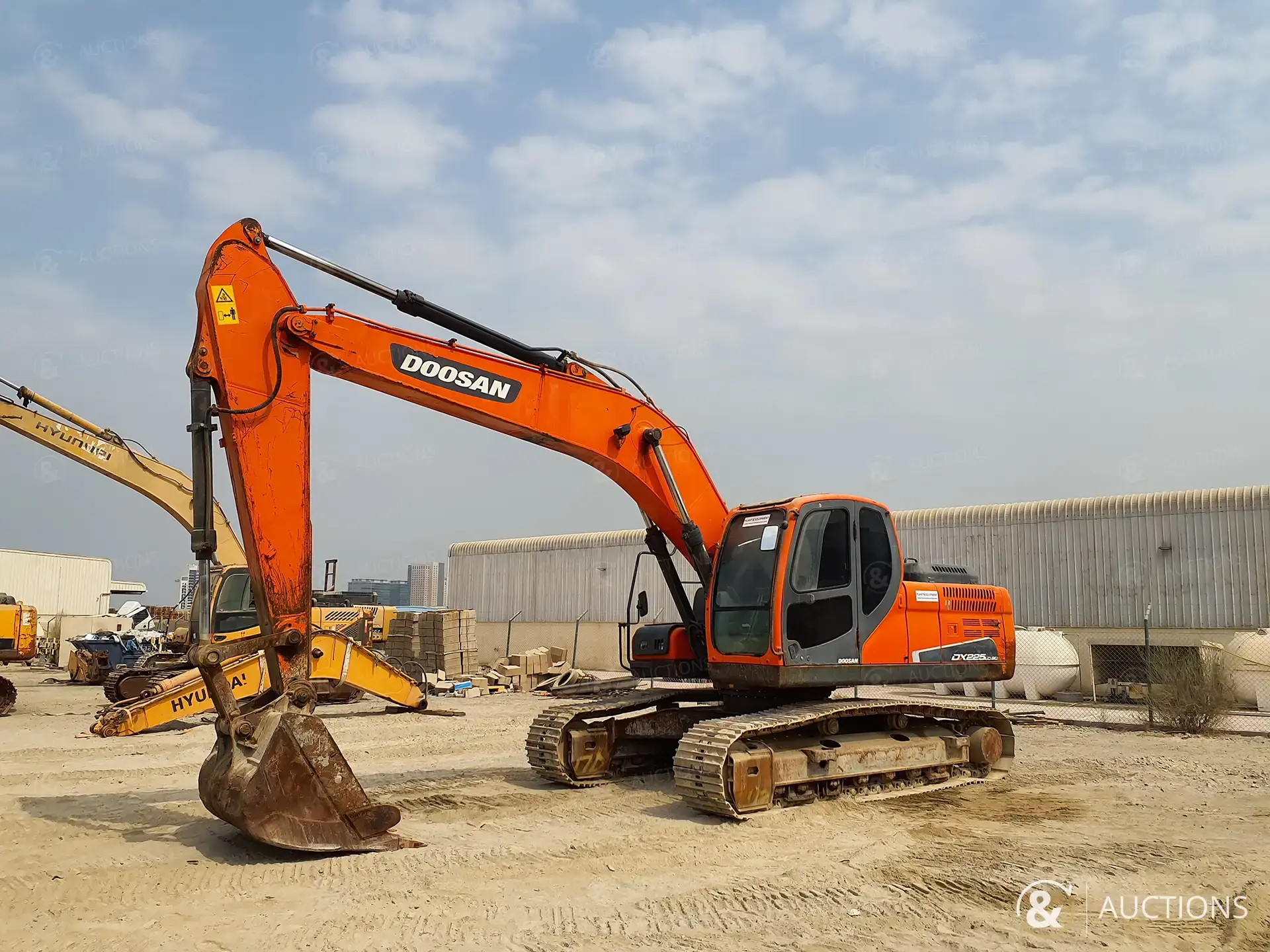

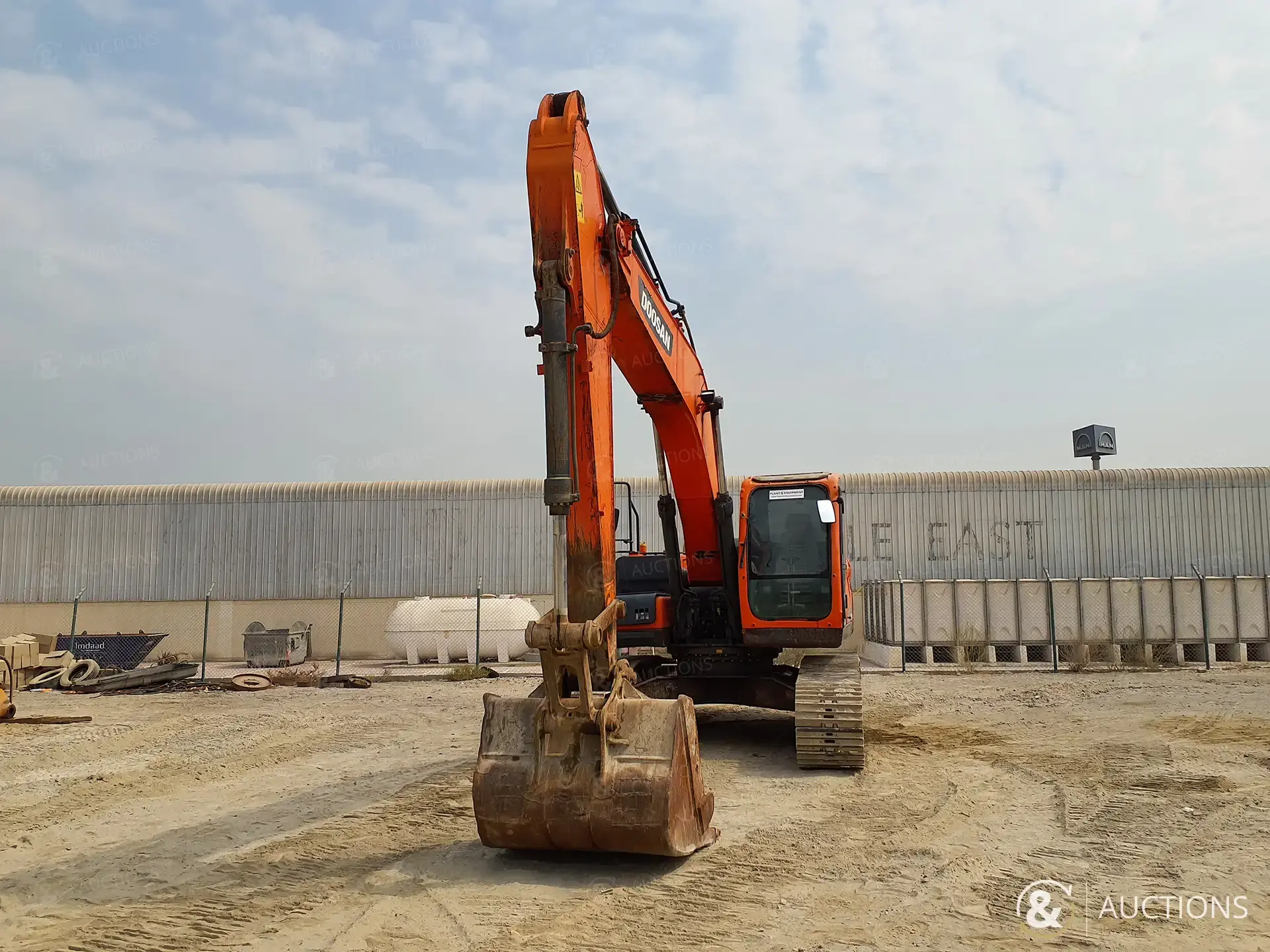

2016 Doosan DX225LC-9C
1
de un
78
Voir
Exterior
Cabin
Engine
Hydraulics
Tools
Undercarriage
Voir
Exterior
Cabin
Engine
Hydraulics
Tools
Undercarriage
Survivre
Prix
161,598
$
44,000
€
41,121
£
34,174
$
165,041
Catégorie
Fabricant
Modèle
Année
2016
Emplacement du parc de Plant & Equipment
Global Equipment Trading FZE
(Filiale de Plant & Equipment Holding Company)
Zone franche de Jebel Ali (JAFZA), parcelle numéro S10516, près de la porte 9 – Dubaï, Émirats arabes unis.
La Description
***GCC DUTIES NOT PAID***
Weight: 21.500 Kg
Transport length: 9.485 mm
Transport width: 2.990 mm
Transport height: 3.005 mm
Engine type: Doosan DL06 (Electronic Injection)
Engine power: 68 kgf.m (667 Nm) at 1.400 rpm
***GCC DUTIES NOT PAID***
Weight: 21.500 Kg
Transport length: 9.485 mm
Transport width: 2.990 mm
Transport height: 3.005 mm
Engine type: Doosan DL06 (Electronic Injection)
Engine power: 68 kgf.m (667 Nm) at 1.400 rpm
Weight: 21.500 Kg
Transport length: 9.485 mm
Transport width: 2.990 mm
Transport height: 3.005 mm
Engine type: Doosan DL06 (Electronic Injection)
Engine power: 68 kgf.m (667 Nm) at 1.400 rpm
Montre plus Montrer moins
Rapport d'inspection
Vue
Service d'inspection assuré par
Détails de l'inspection
Key Features & Condition
| Safety Certification Label | N/A |
| Boom Hydraulic Check Valve | N/A |
| Adjustable Boom System | N/A |
| Automatic Lubrication System | N/A |
| Arm Hydraulic Check Valve | N/A |
| Diesel Particulate Filter | N/A |
| Hydraulic Hammer Lines | N/A |
| Grapple And Shear Hydraulic Lines | N/A |
| Diesel Exhaust Fluid System Addblue | N/A |
| Stabilizer Blade Condition | N/A |
| Horn | N/A |

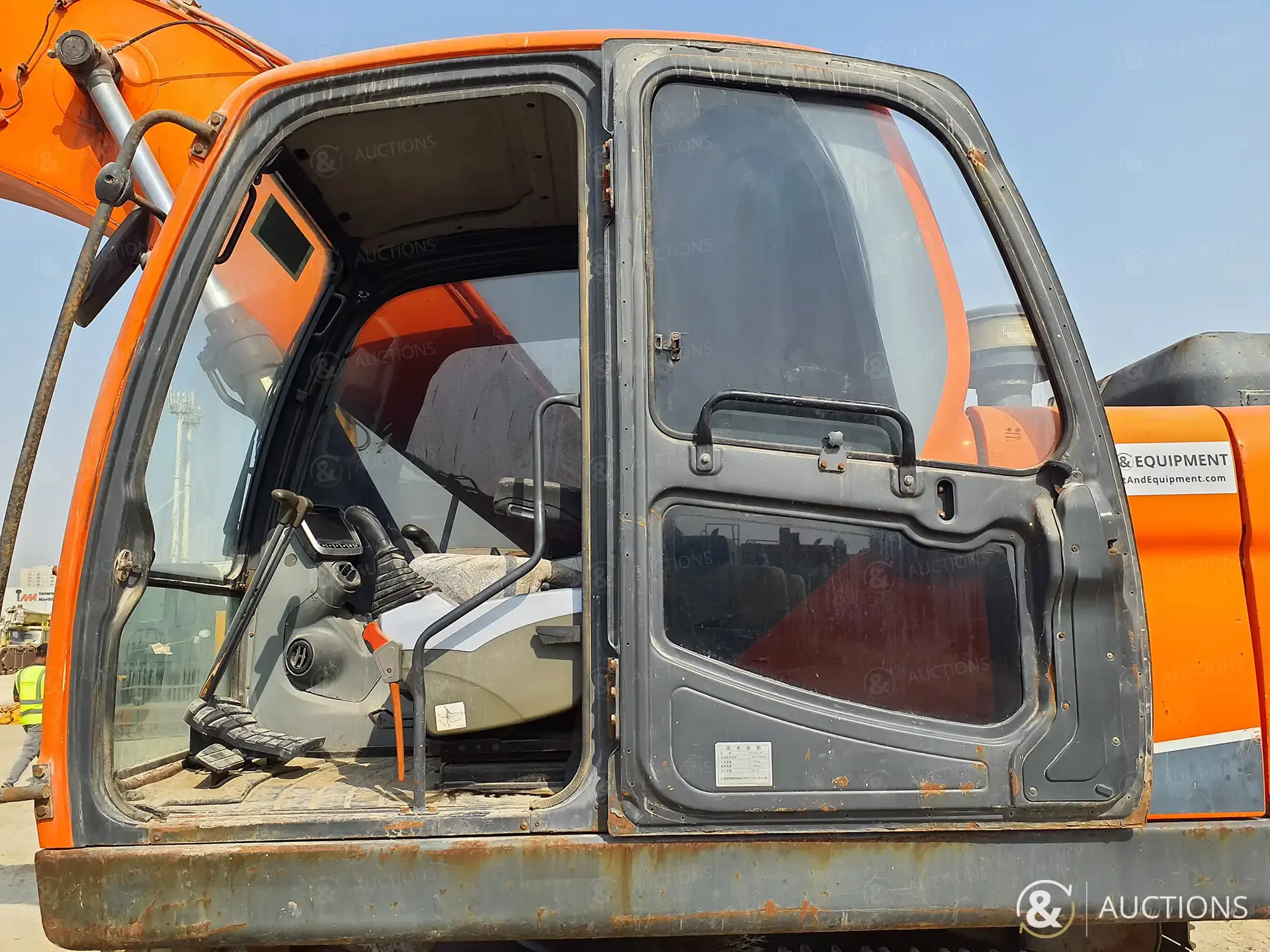

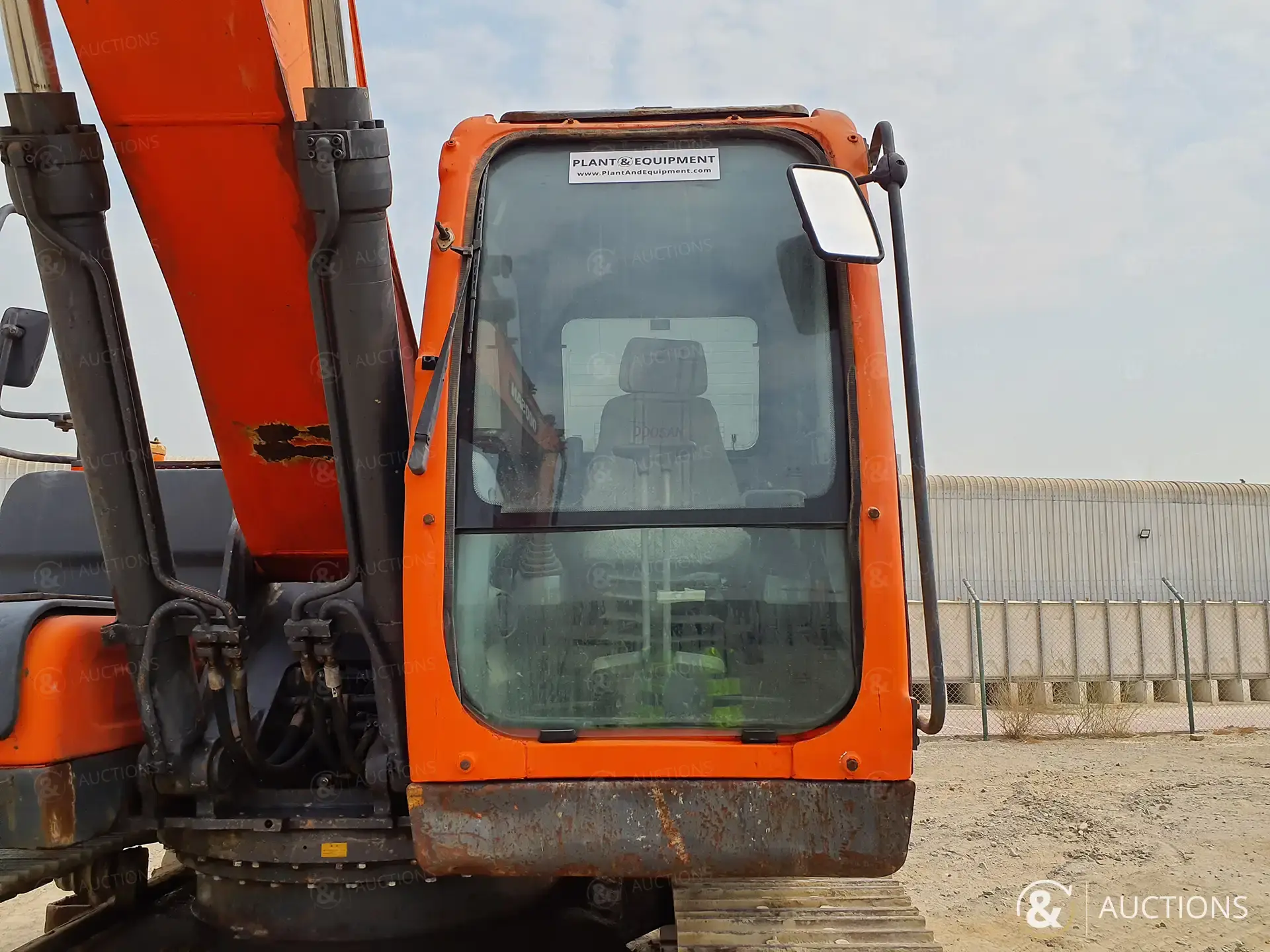

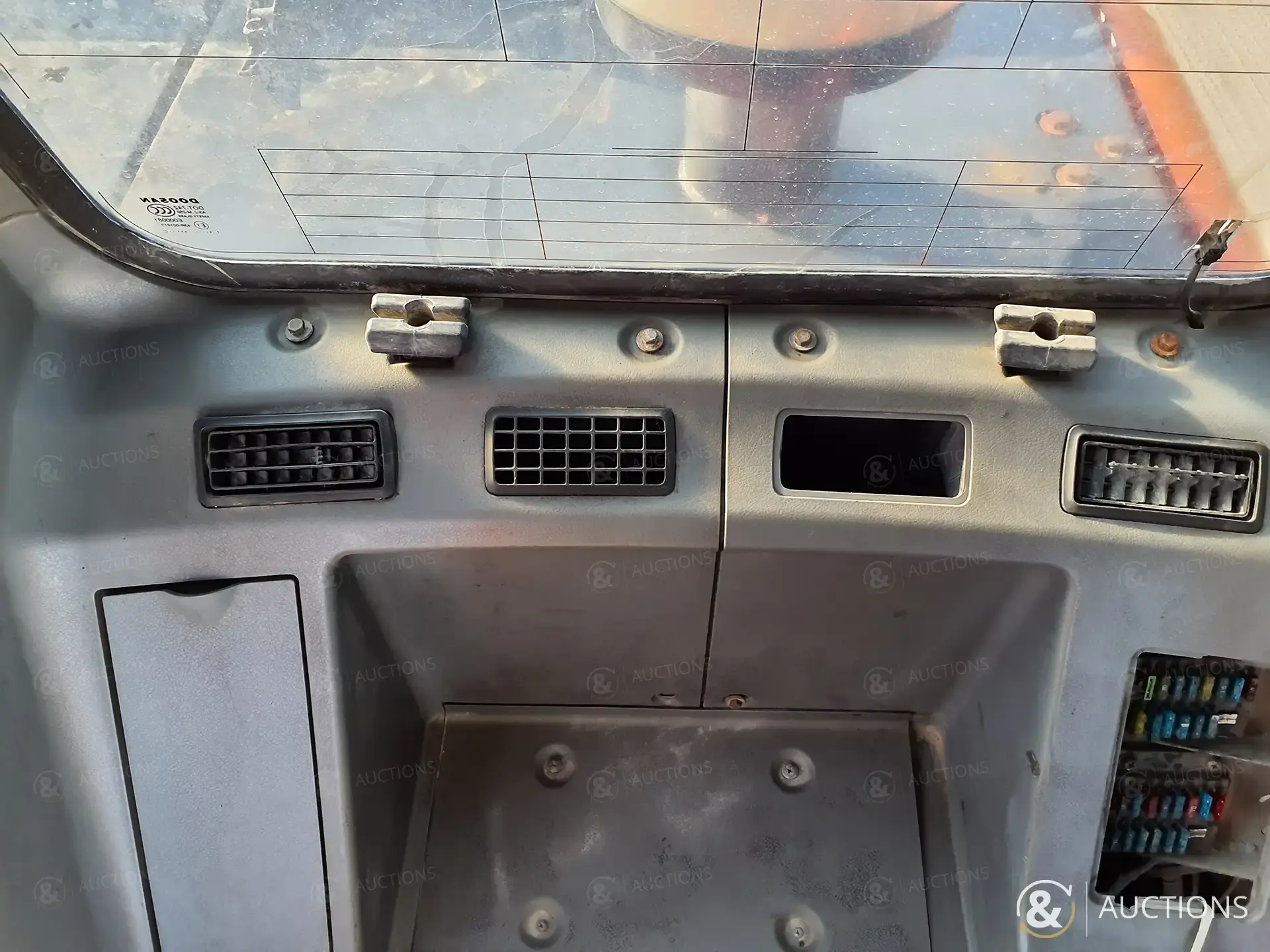

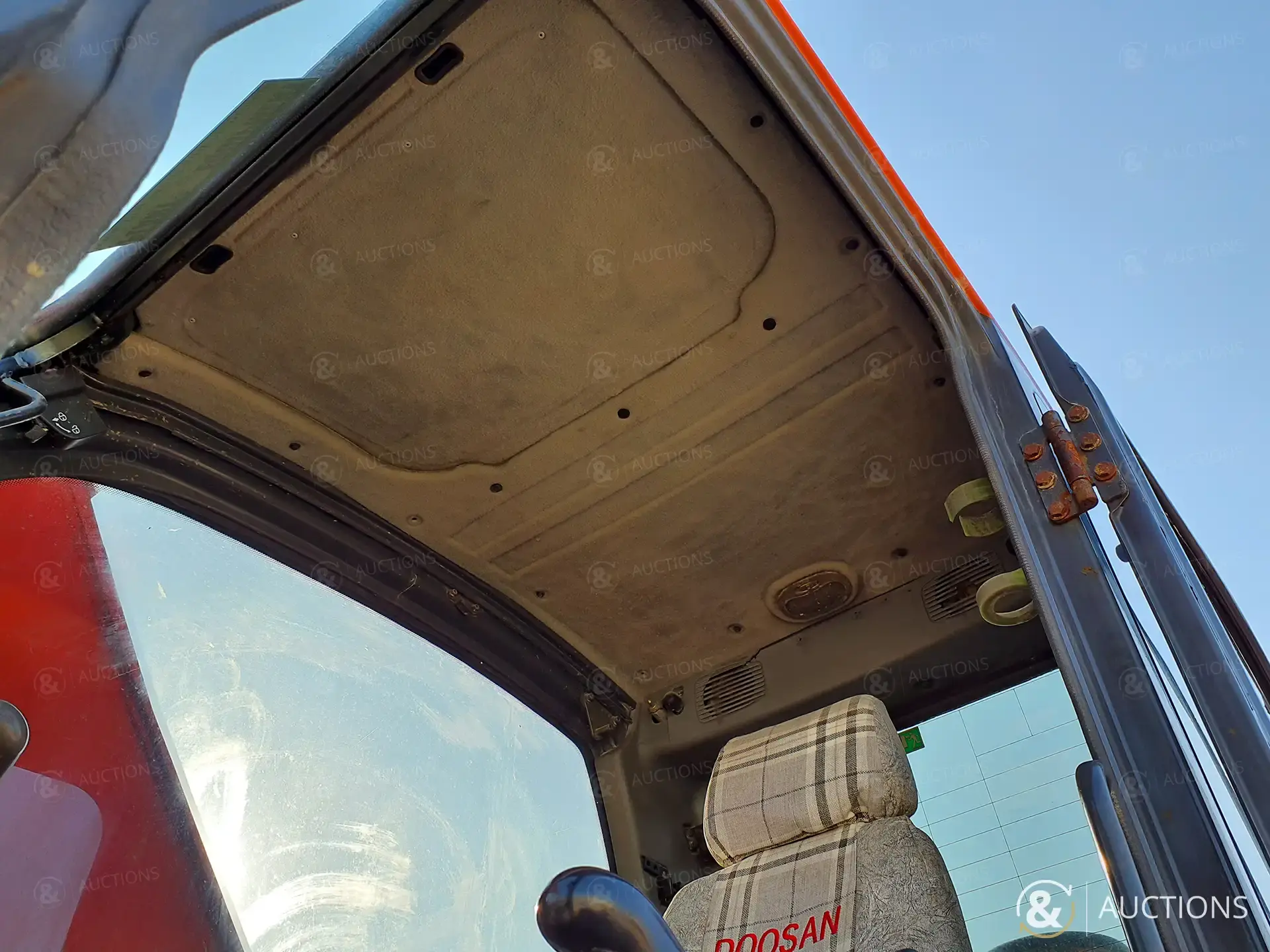

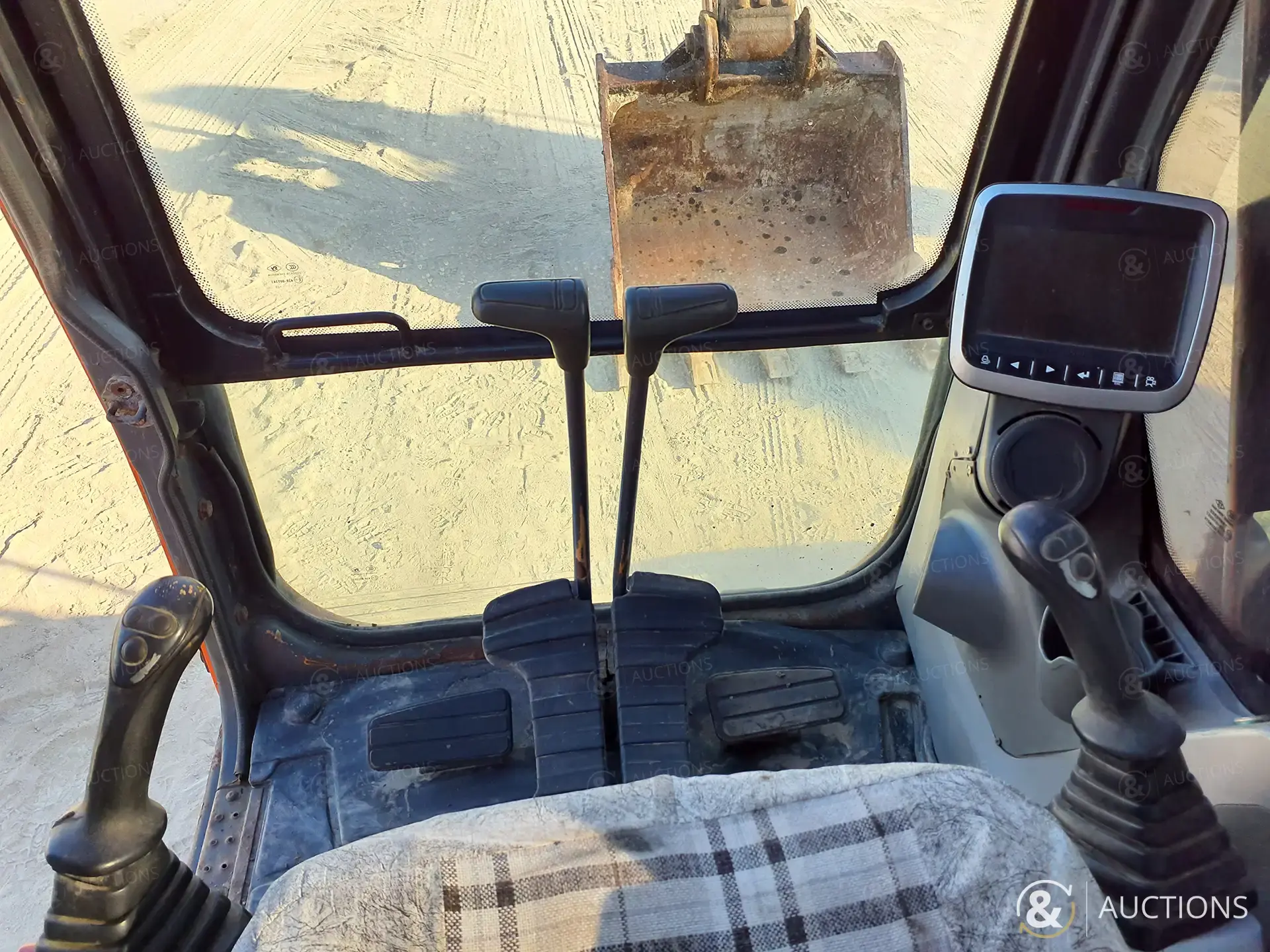

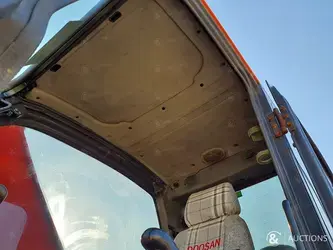

Operator Cabin Details
| Seat And Arm Support | Ok |
| Cab Doors & Covers | Ok |
| Control Levers, Control Stick | Ok |
| Windows And Mirrors | Ok |

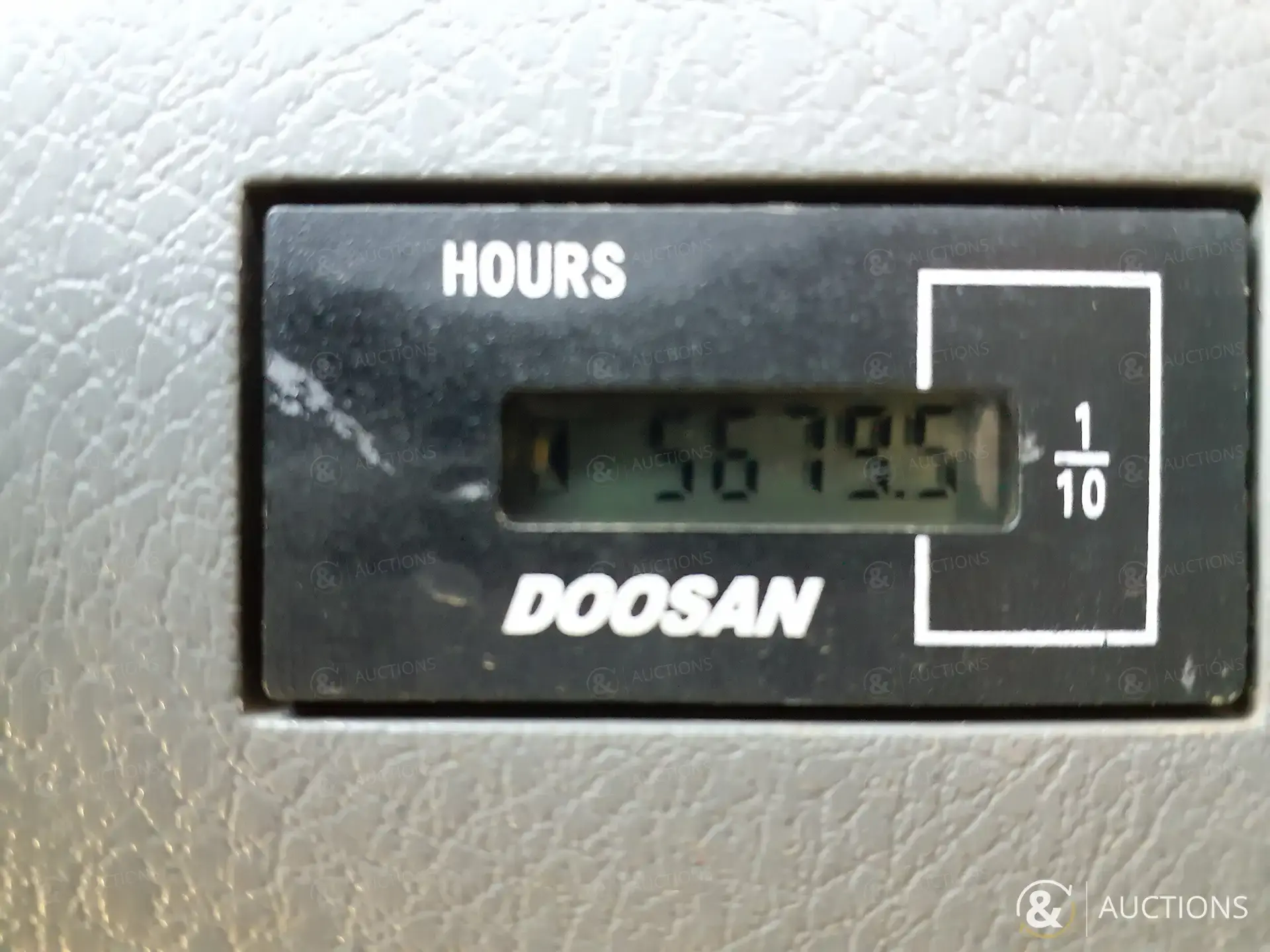

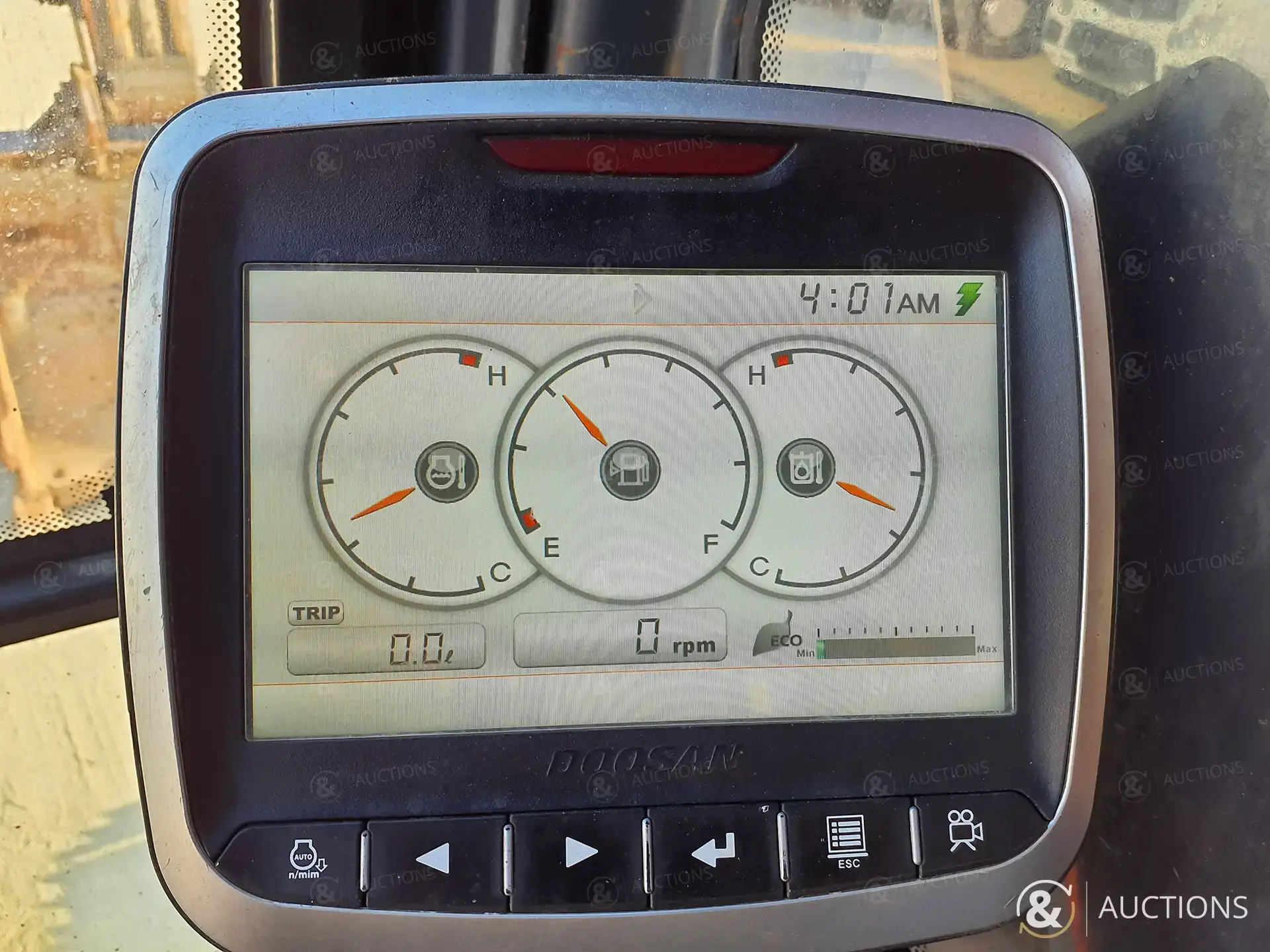

| Dashboard Screen, Gauges | Ok, Some Warn Lights Are Active |
| Warning Alarms Message | Ok |
| Washer, Wipers | Not Functional |
| Air Conditioning & Heating System | Not Functional |
| Cab Floor Covering | Ok |
| Cab Structure, Gard | Ok |
| Electrical System | Need Minor Service |

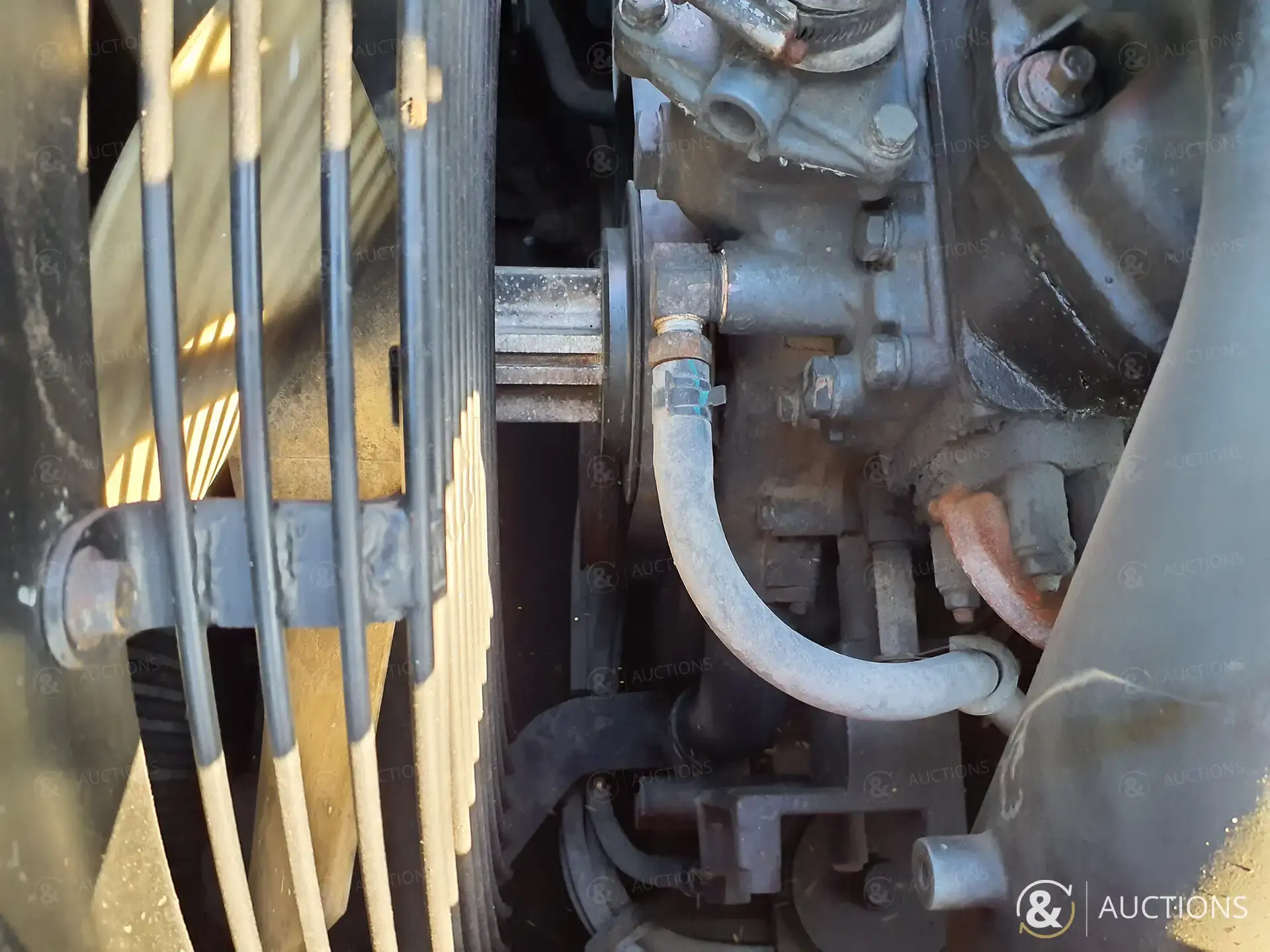

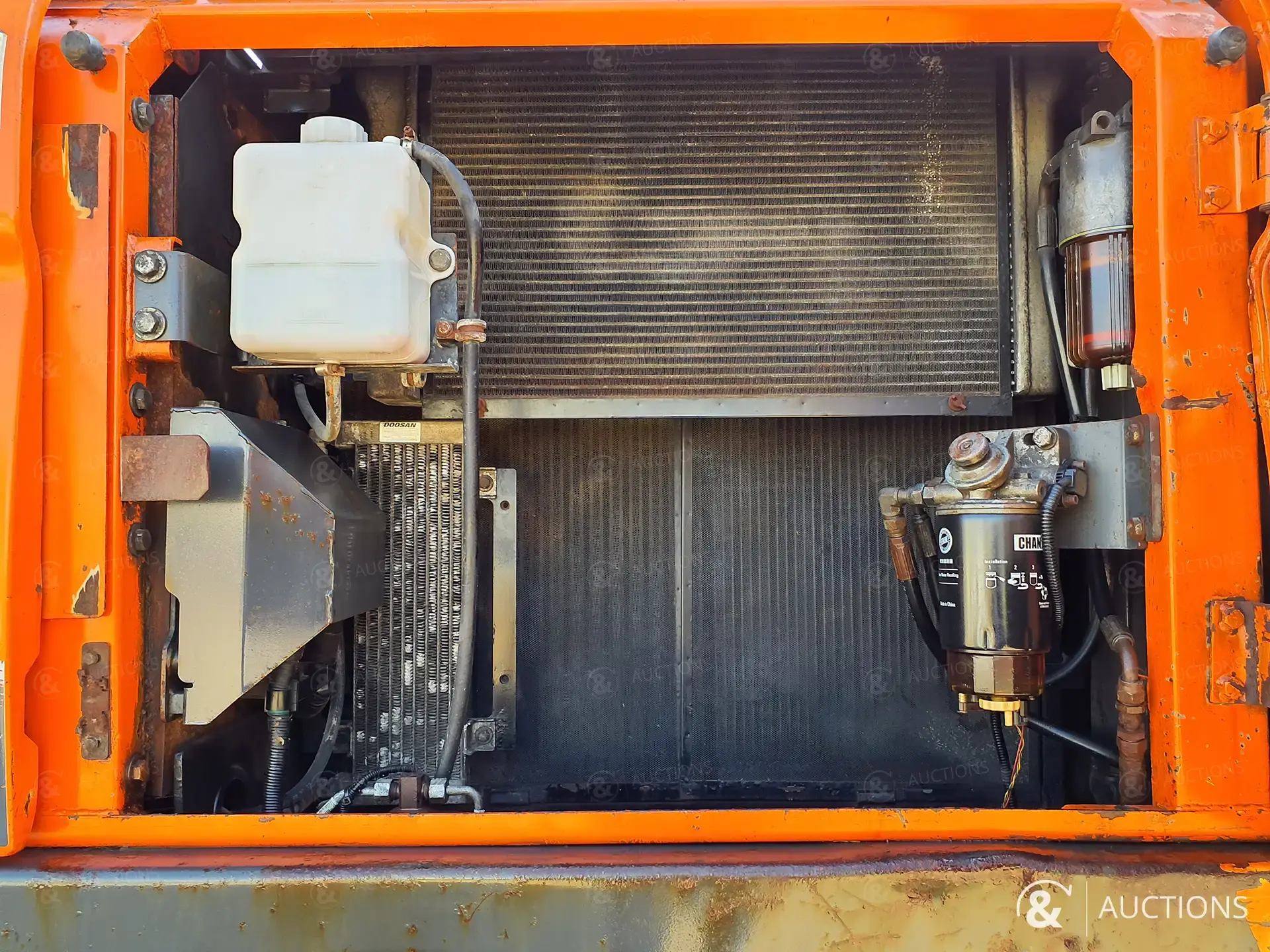

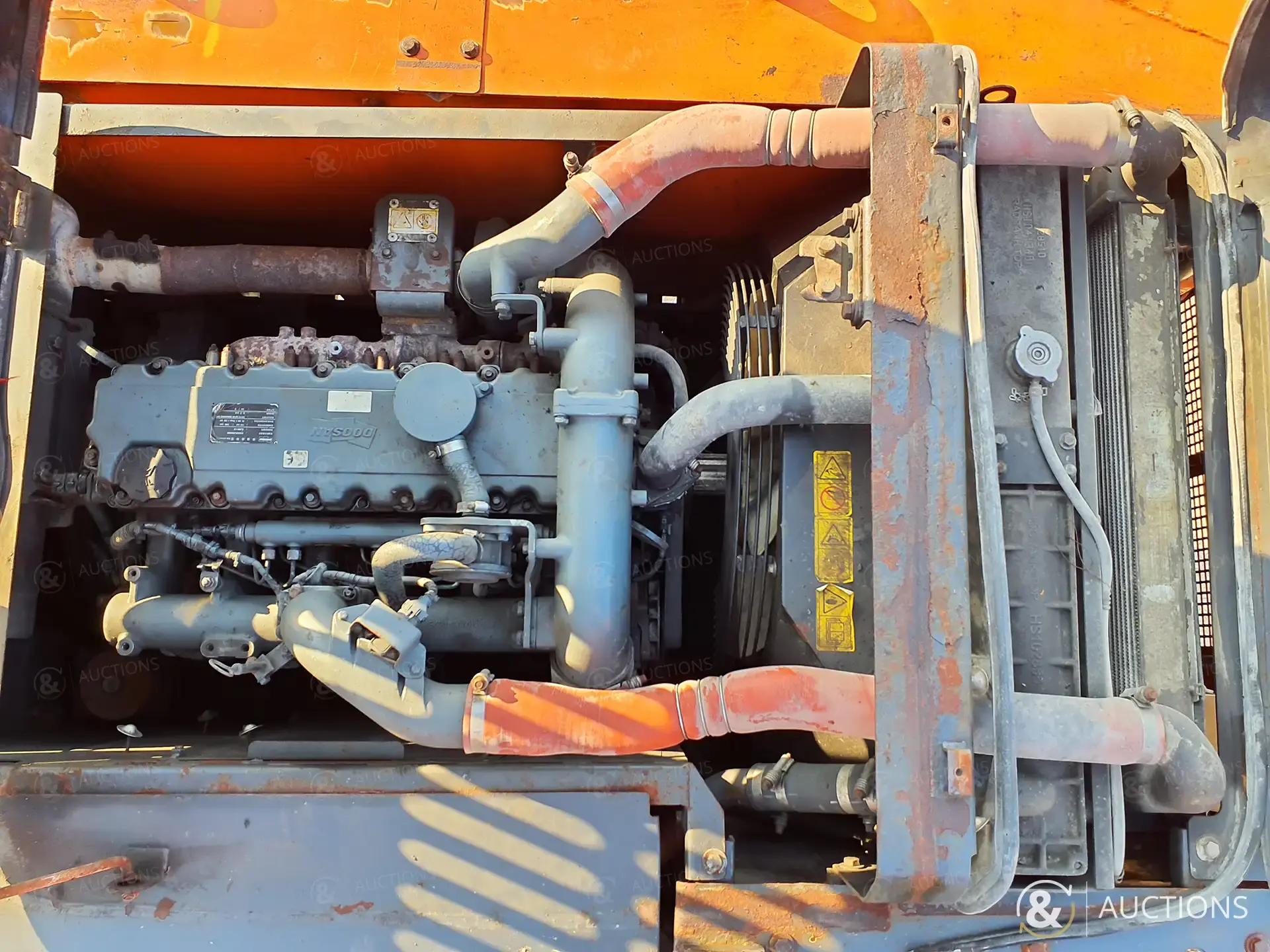

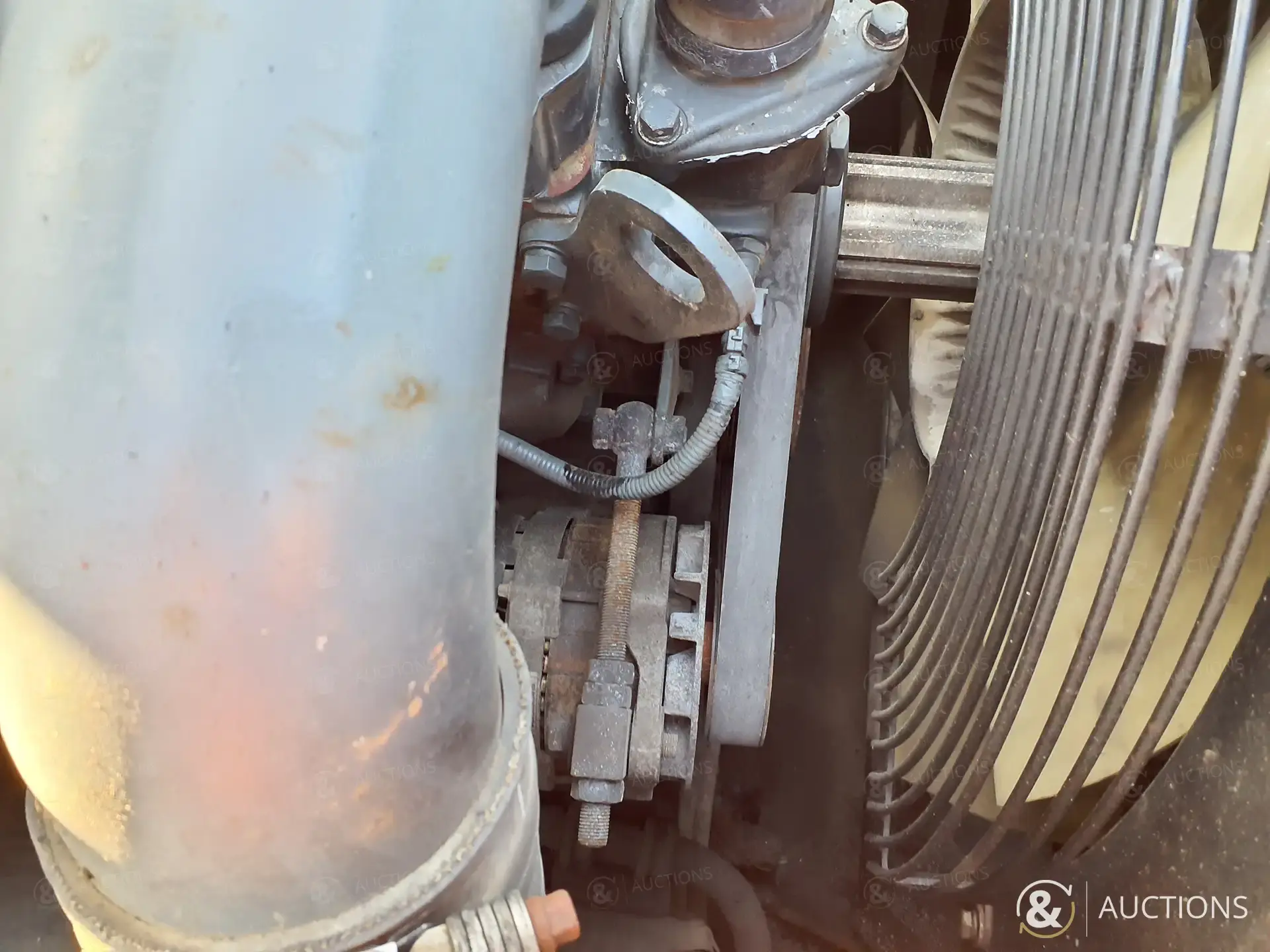

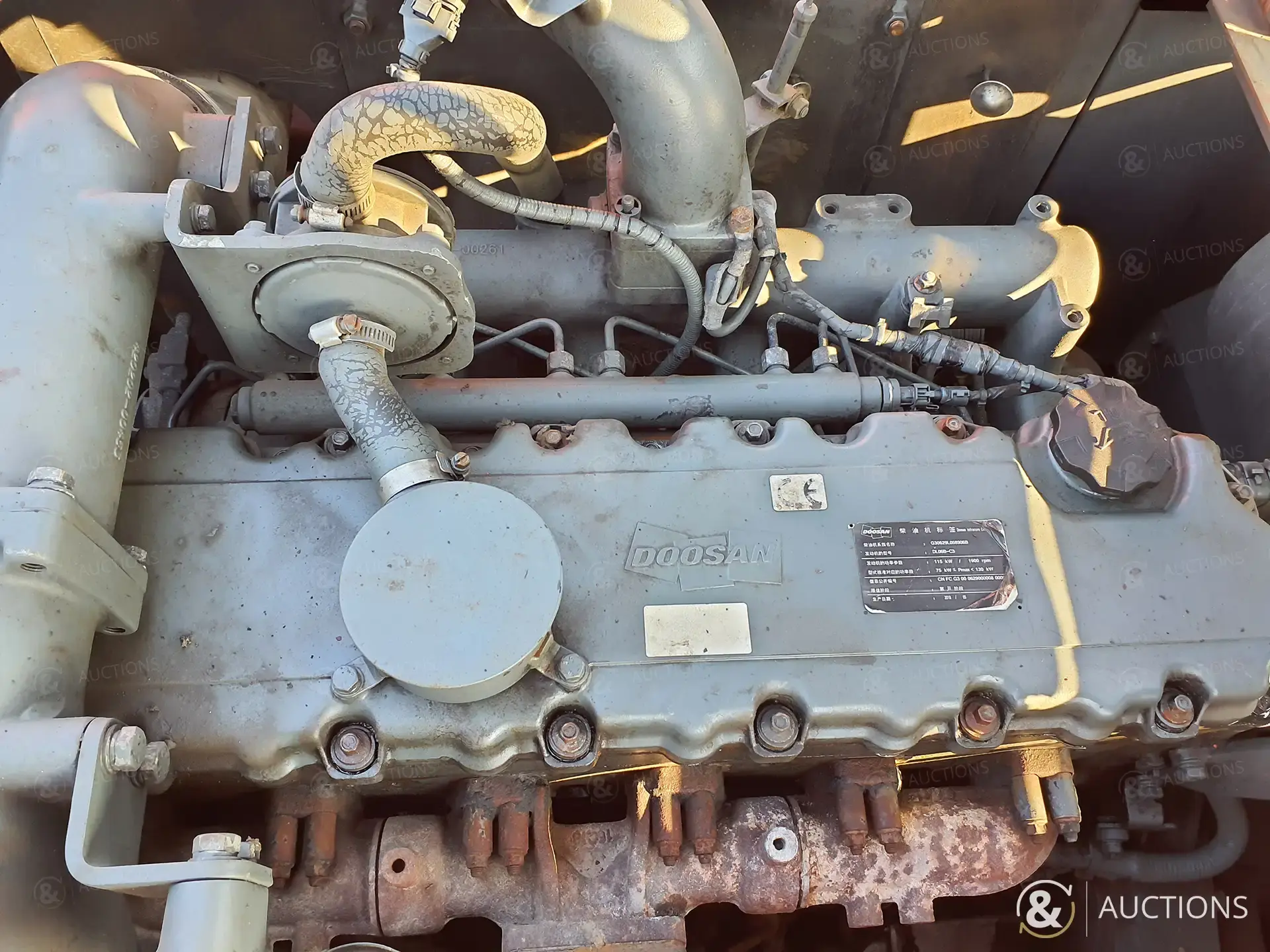

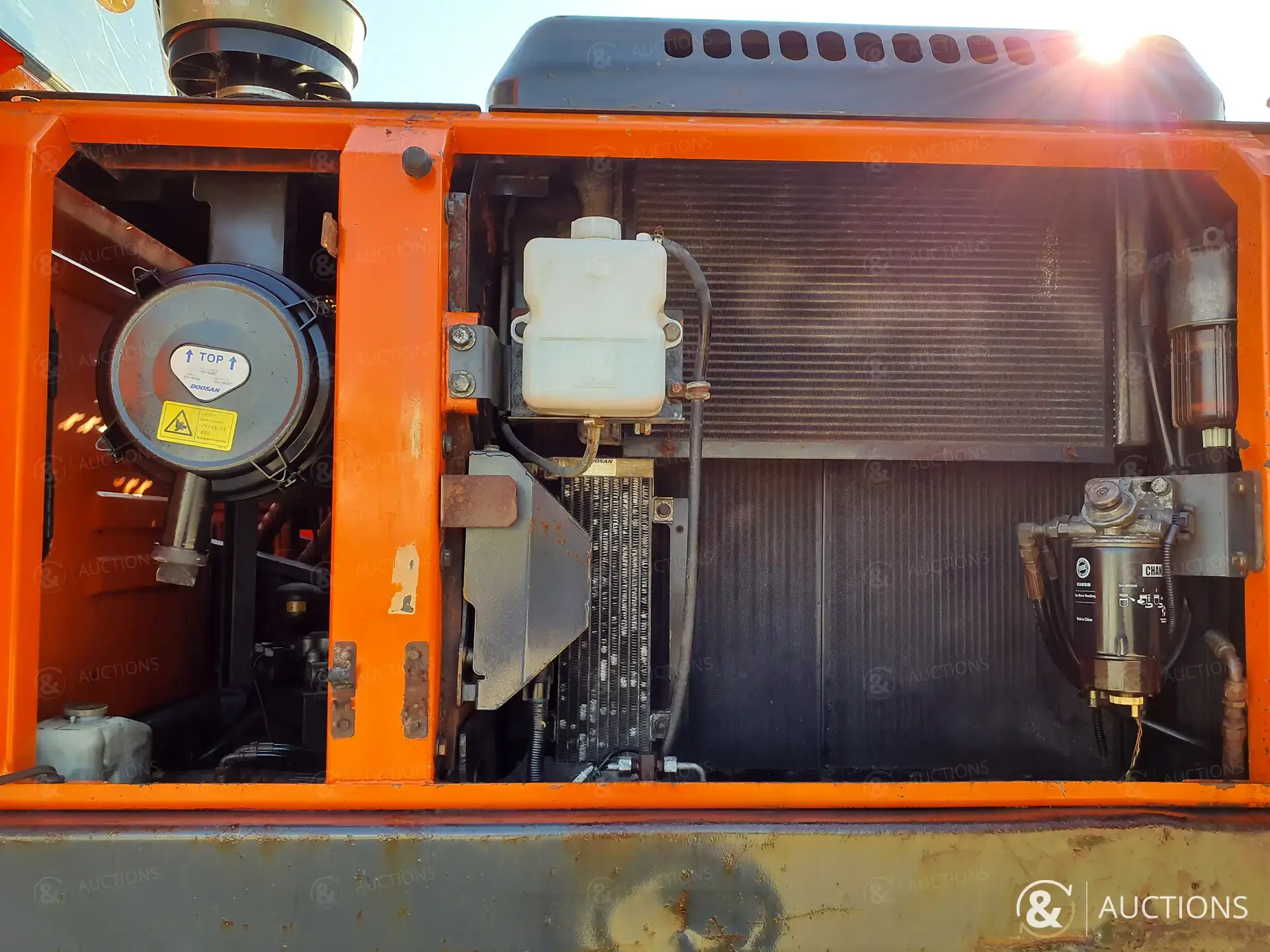

Engine & Performance

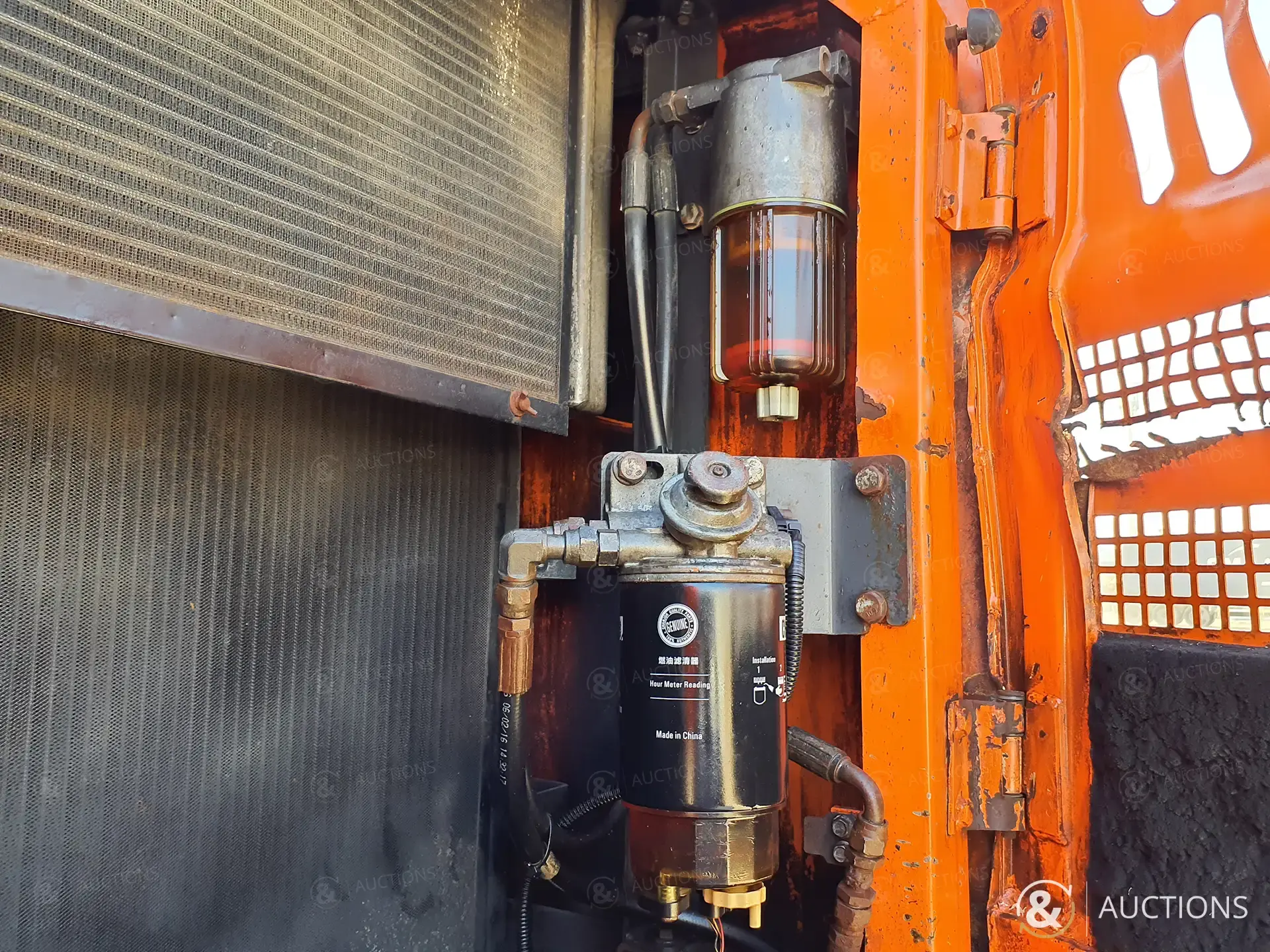

| Fuel Injection System | Electronic |

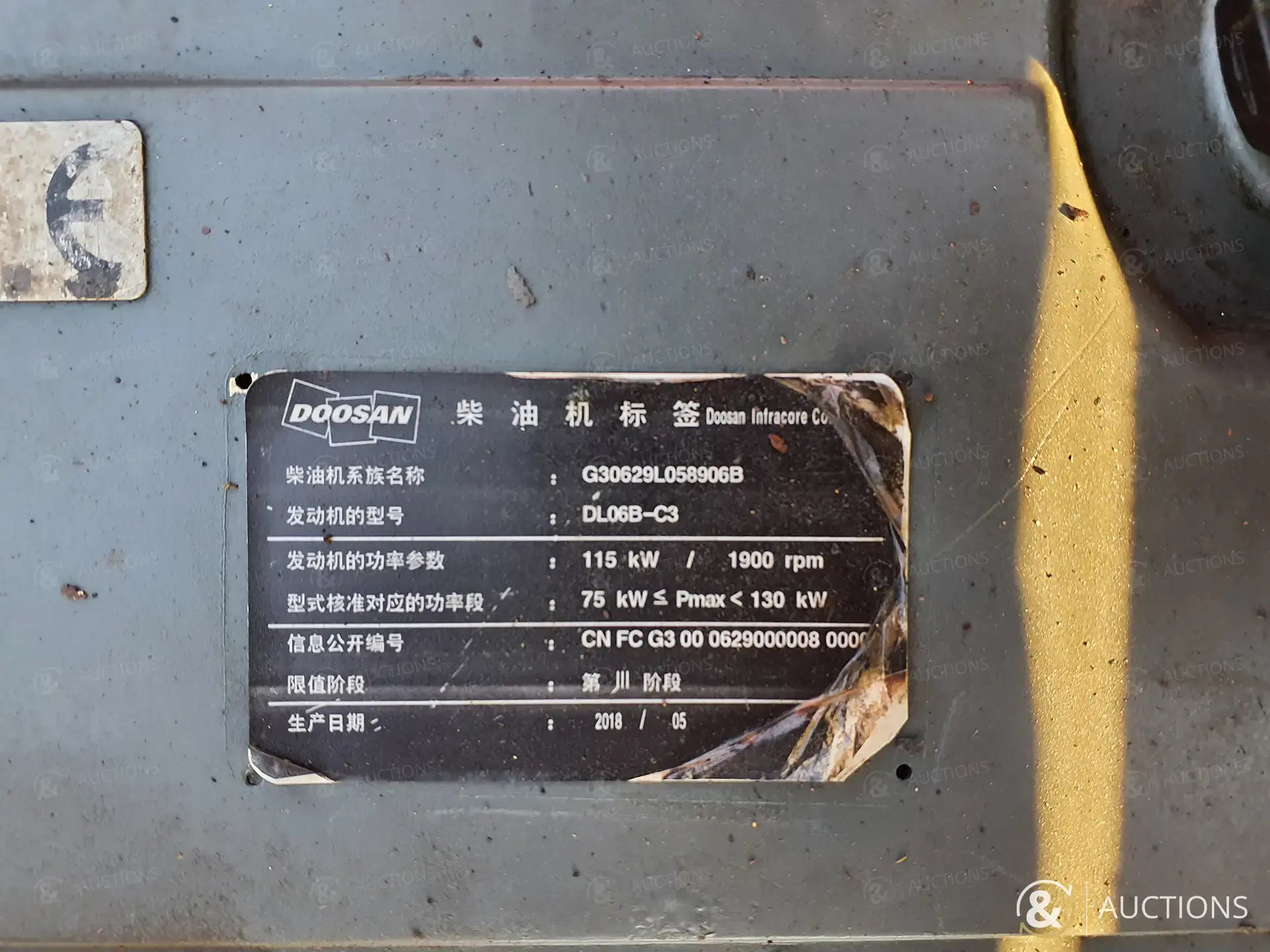

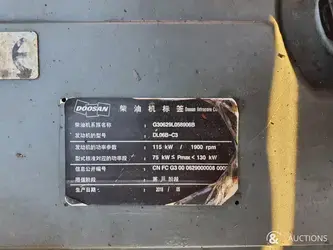

| Engine Model | Doosan DL06 |

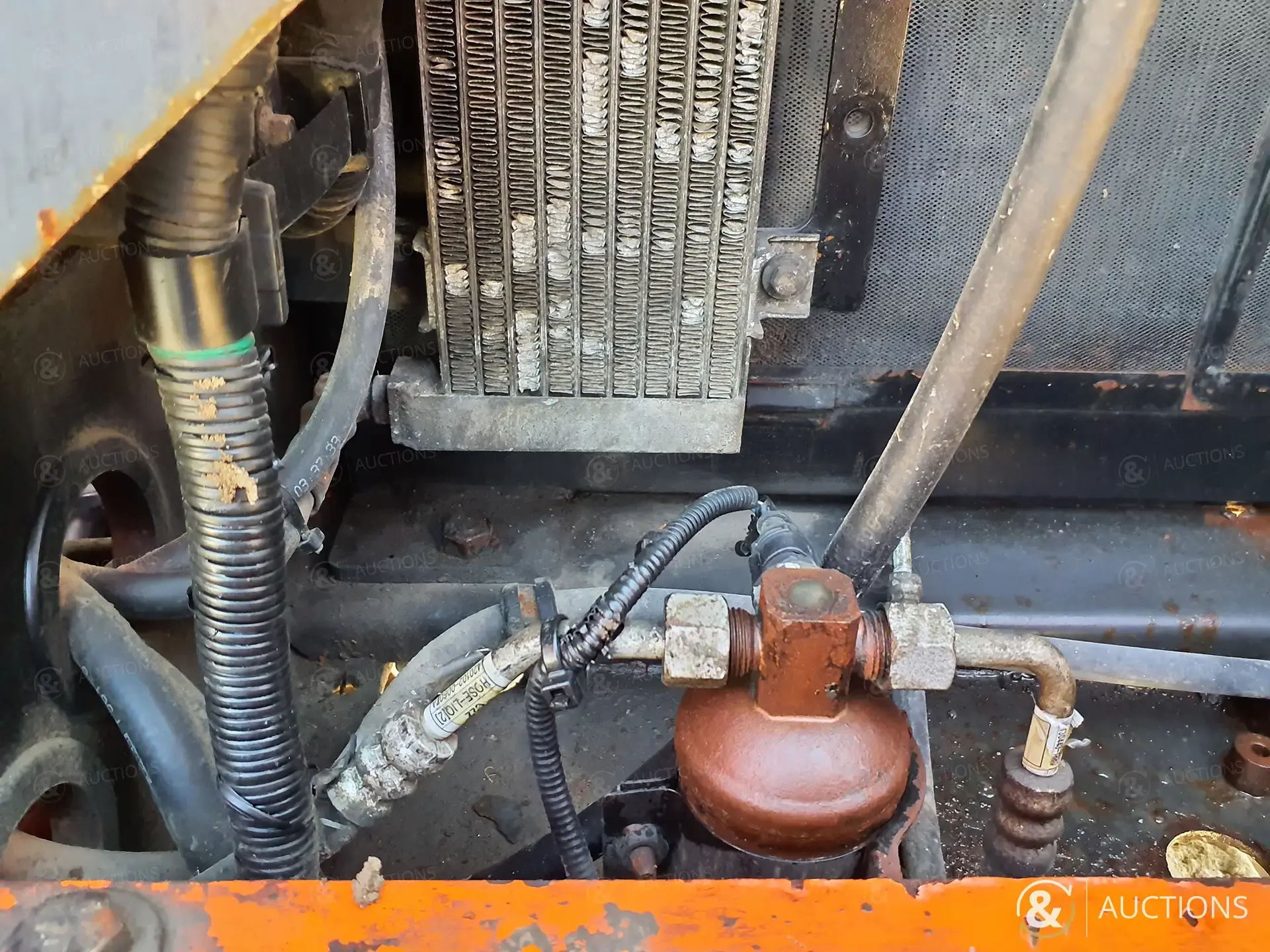

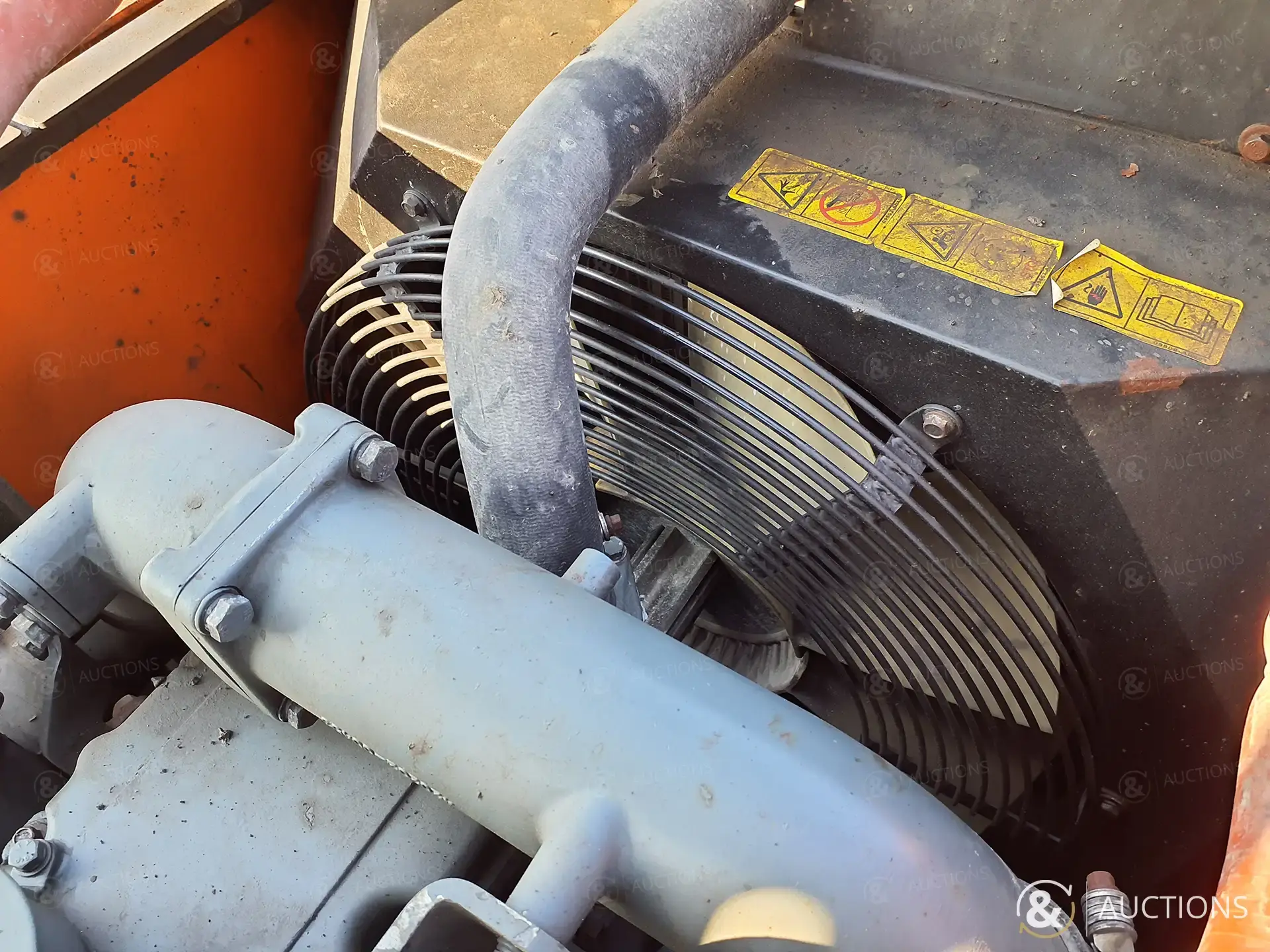

| Engine Cooling System | Ok |
| Engine Oil Check | Ok |
| Cooling System | Ok |
| Coolant | Ok |

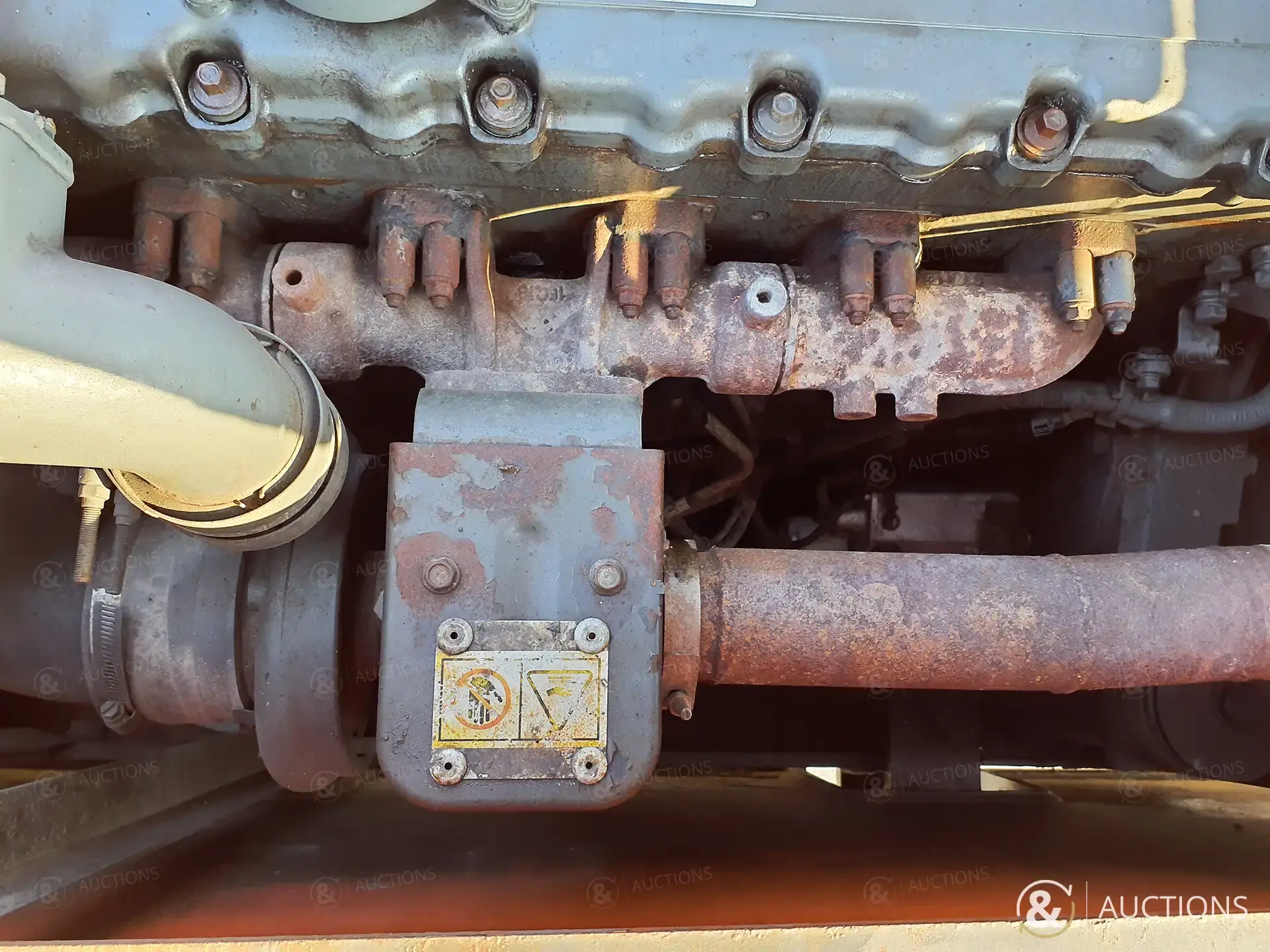

| Exhaust System & Muffler | Ok |

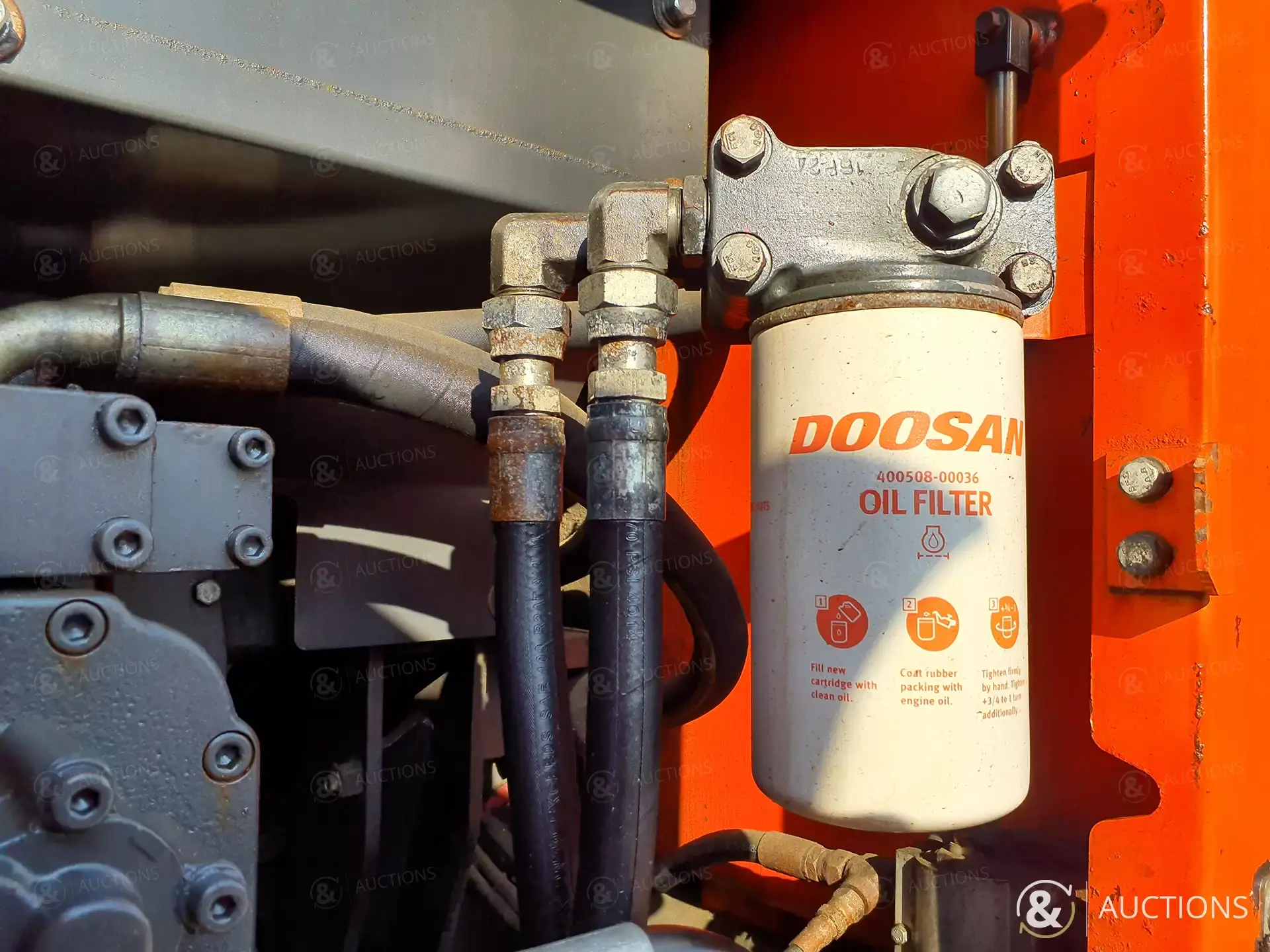

| Belts & Air/Oil Filters | Ok |
| Smoke Check | Normal |
| Blowby | Normal |
| Leaks & Seals | Ok |

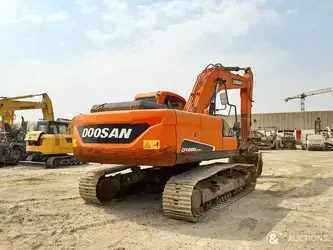

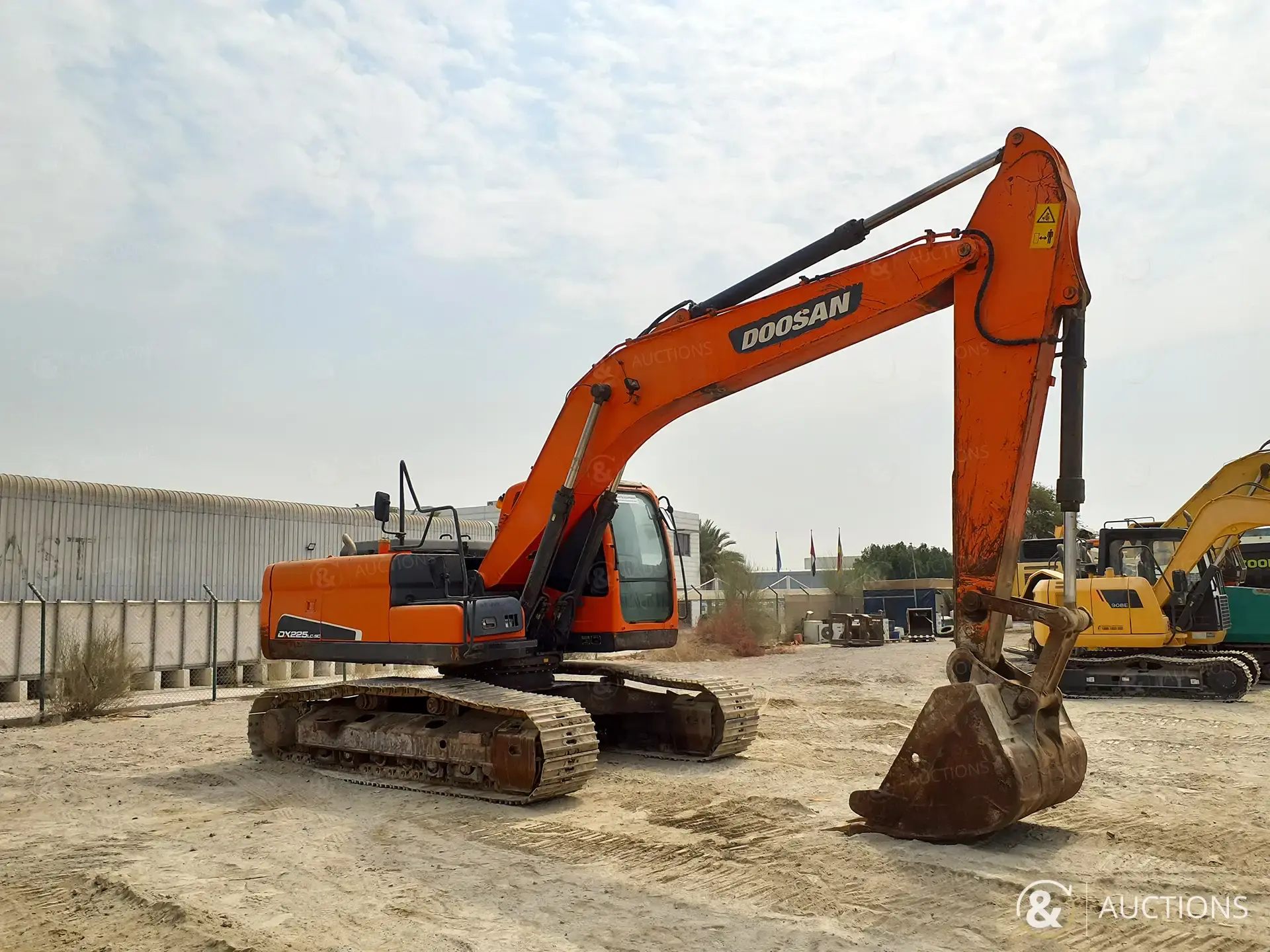

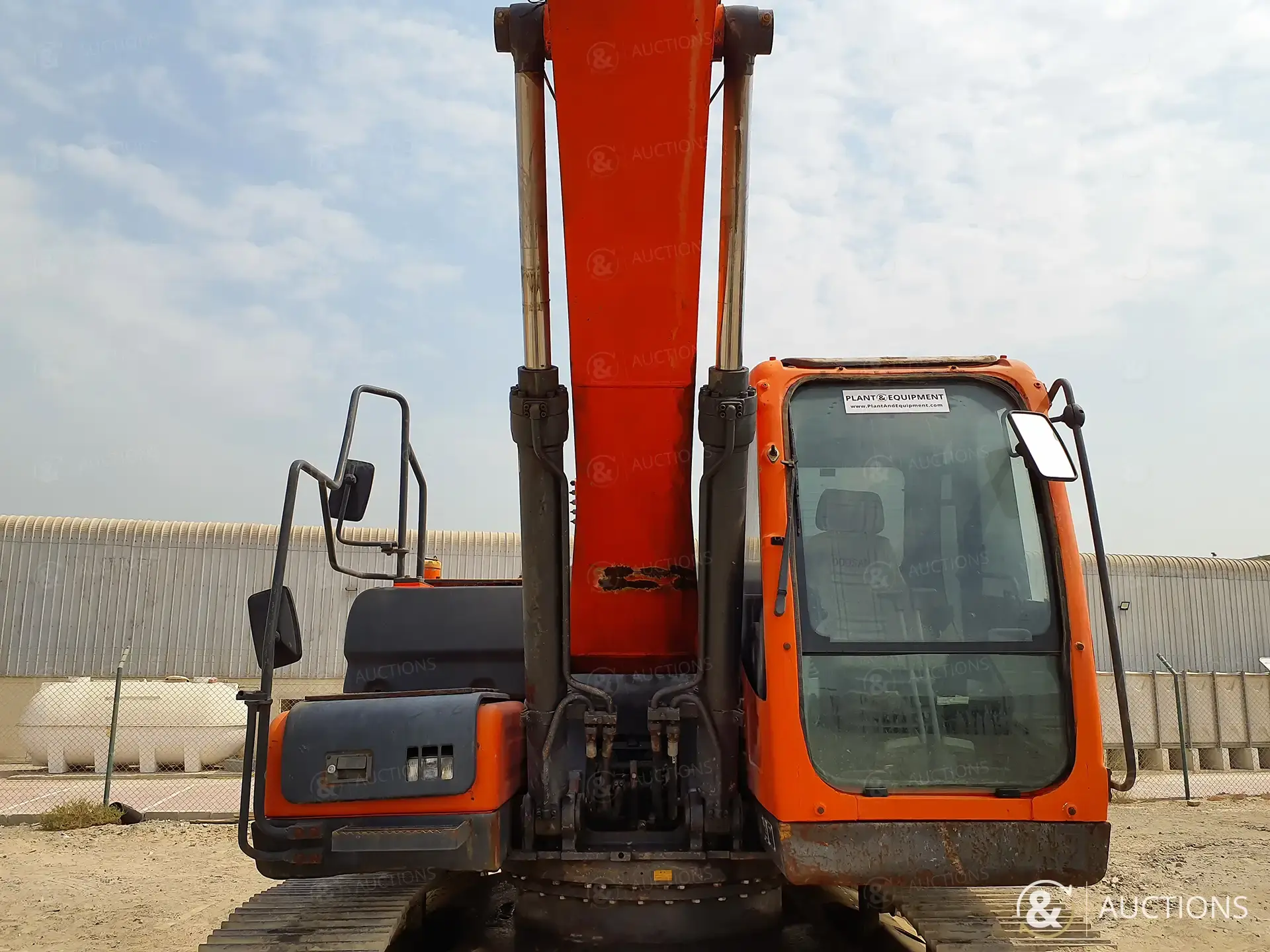

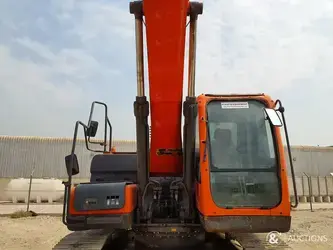

Exterior Condition & Visual Inspection
| Main Frame & Track Frame | Ok, Minor Dents |
| Protective Covers & Sheets | Ok, Under Swing Cover Is Missing |
| Engine Hood | Ok |
| Side Access Doors | Ok, Left Door Minor Dent |
| Steps And Handrails | Ok |

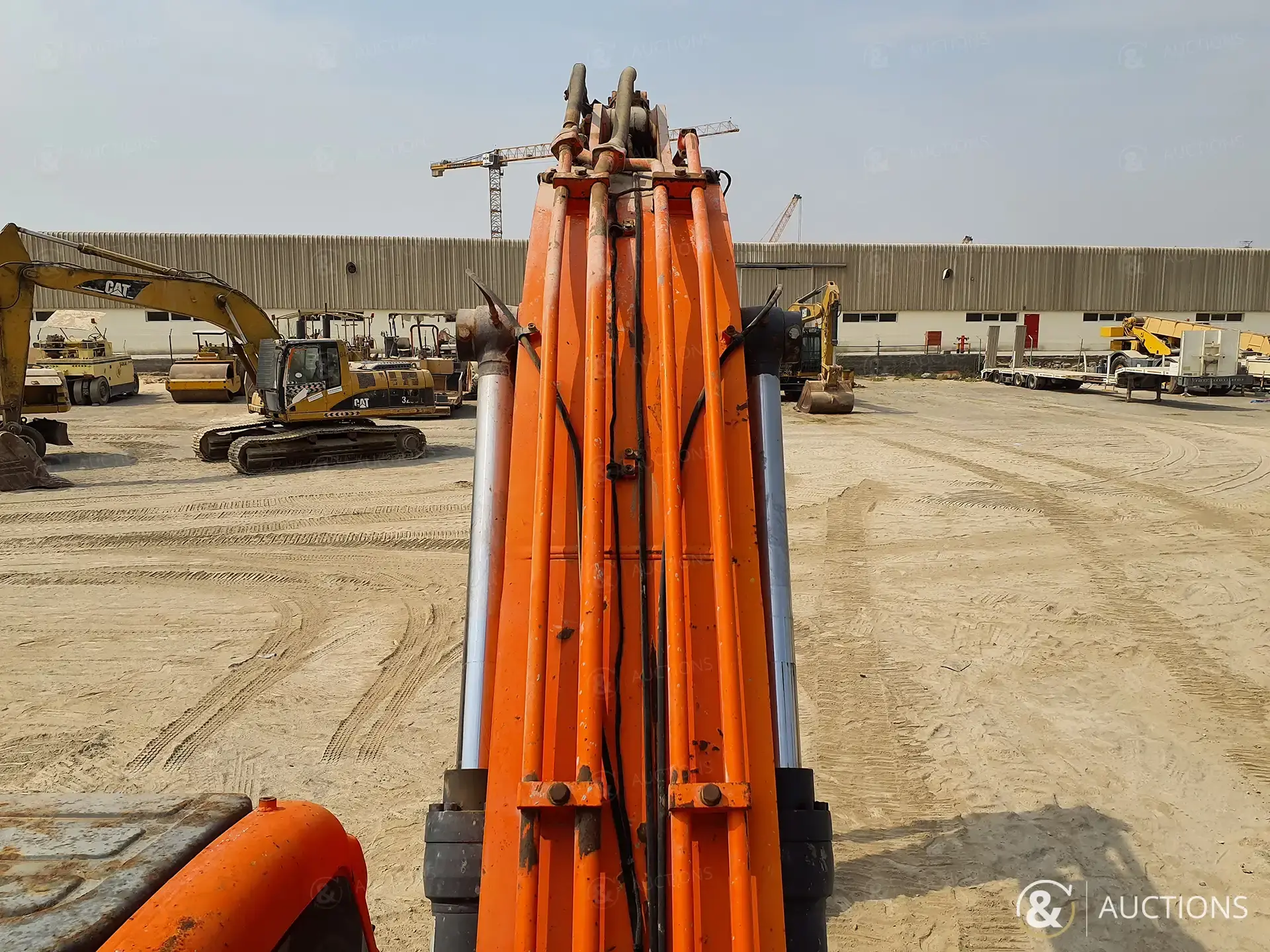

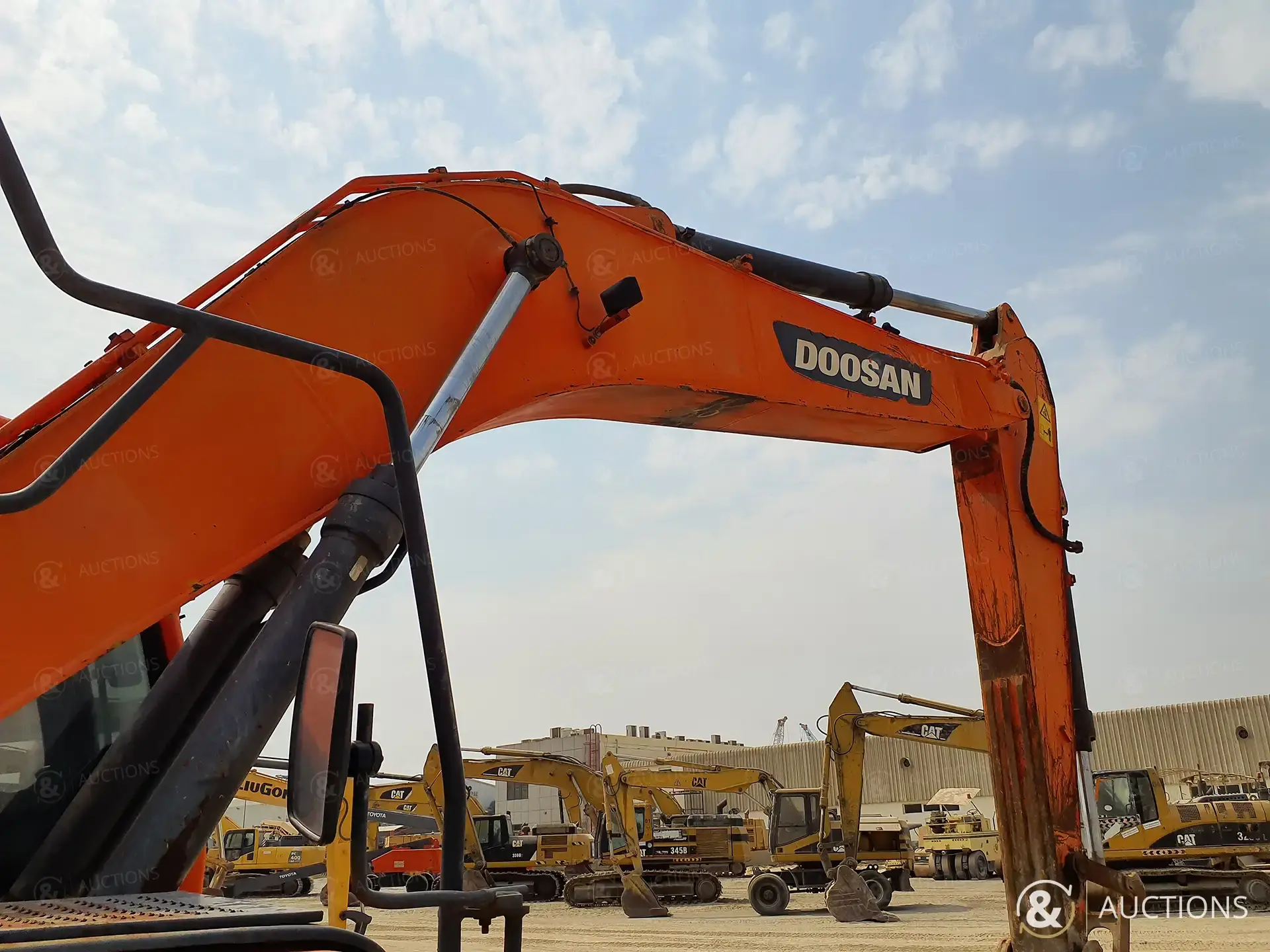

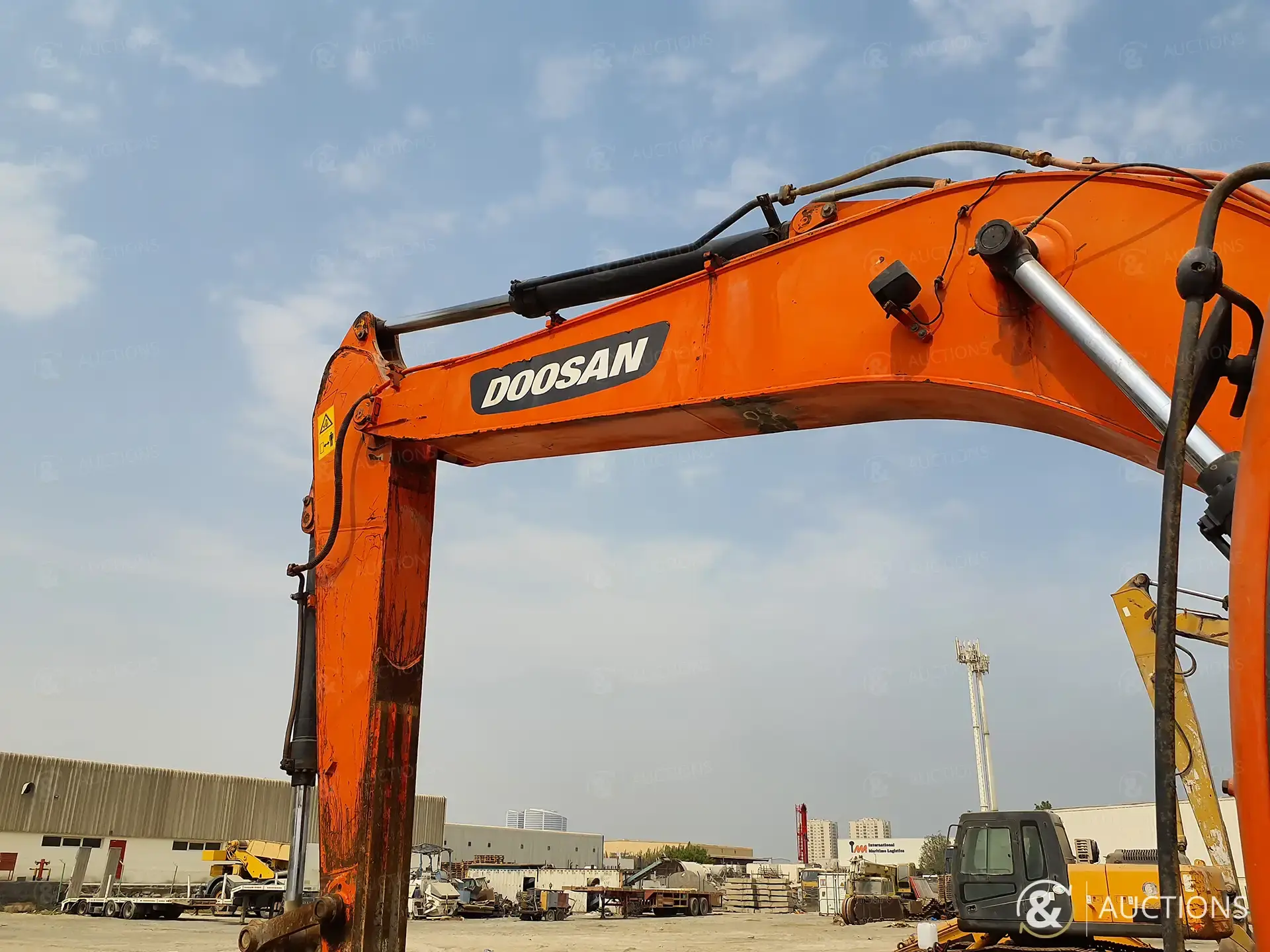

| Boom Condition | Ok |
| Bumpers & Catwalk Condition | Ok |
| Arm Condition | Ok |
| Lights | Not Functional |
| Battery Check | Need Change |
| Cabin Compartments | Ok |
| Exterior Paint Condition | Ok |

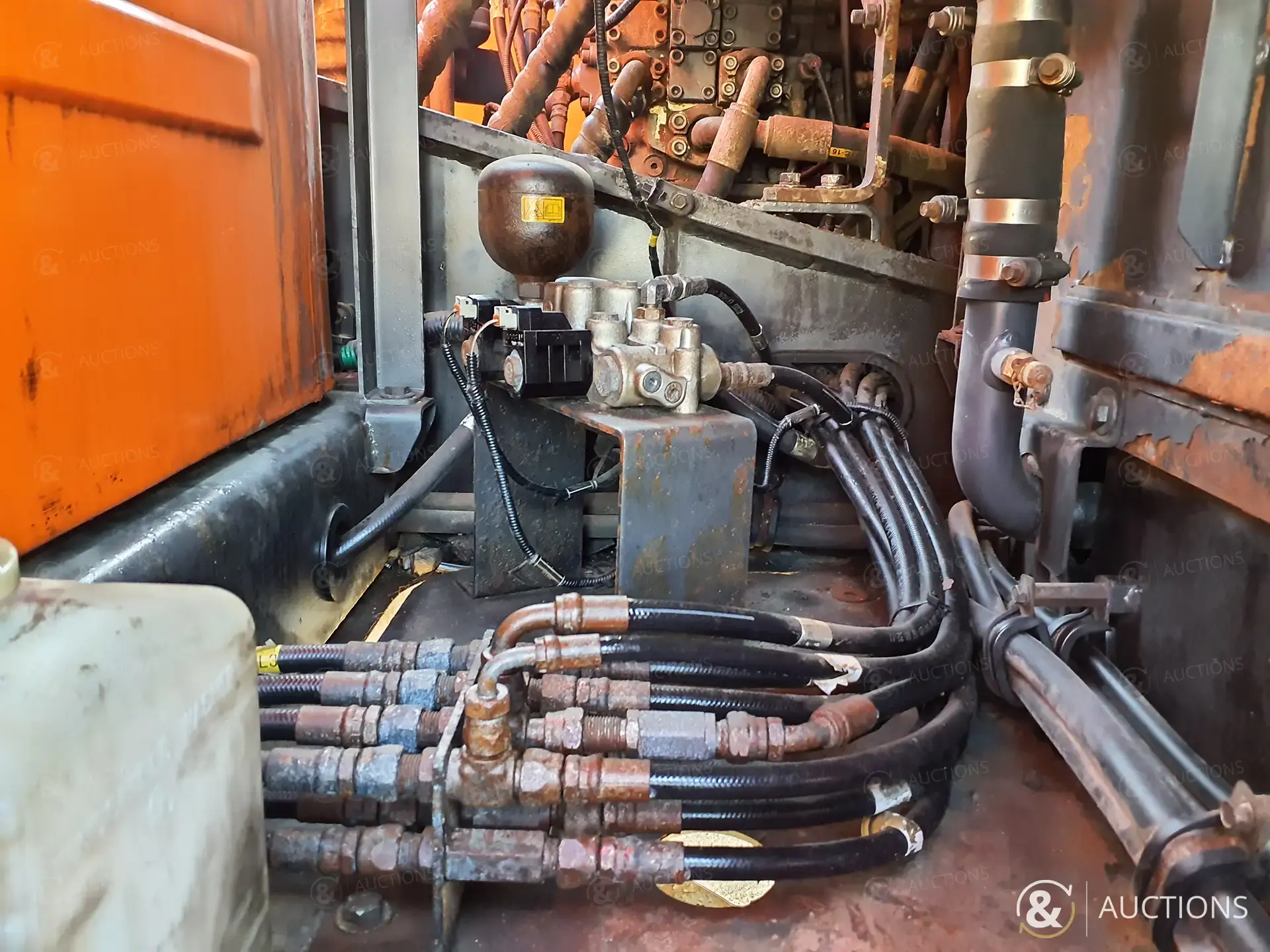

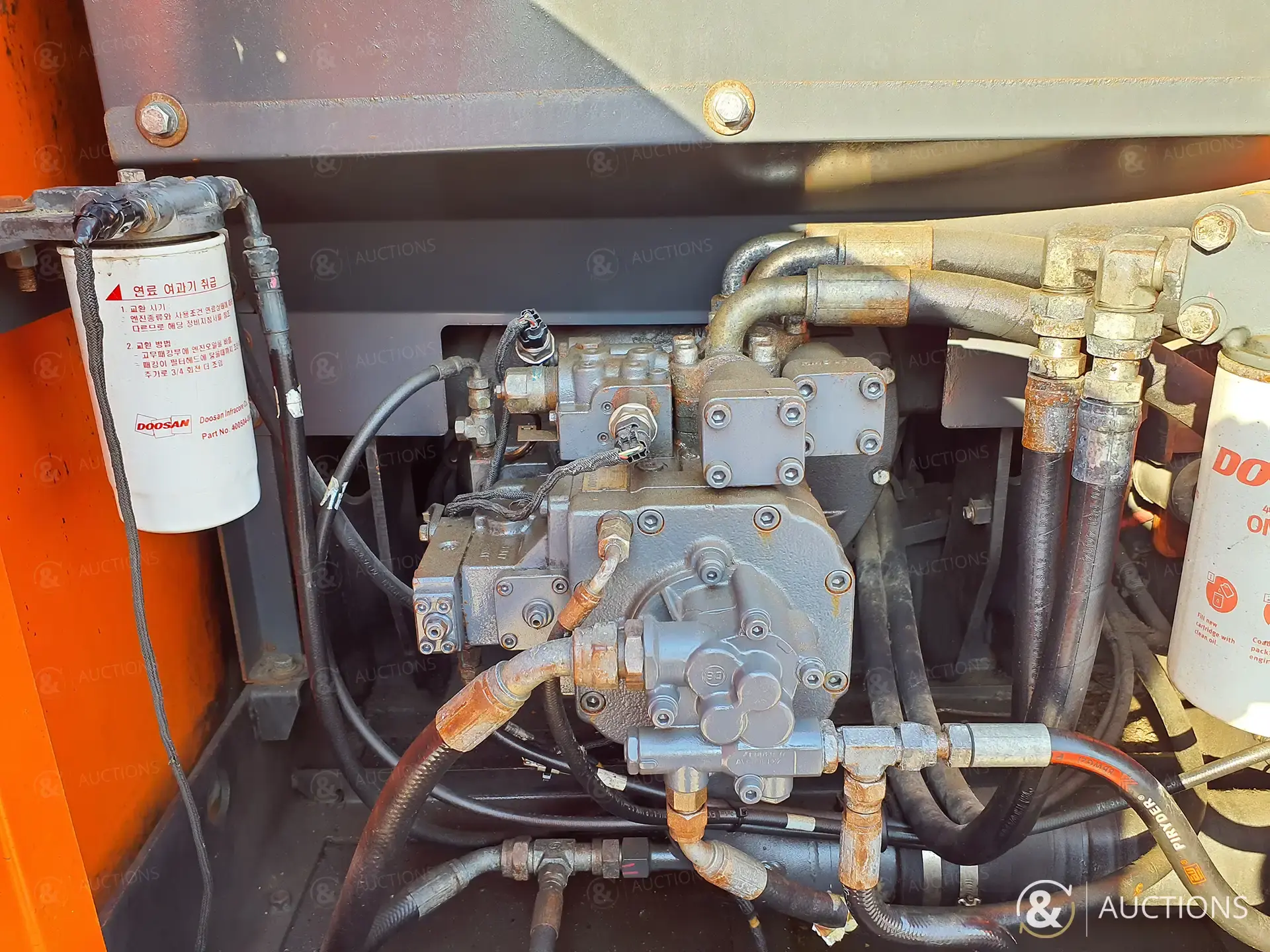

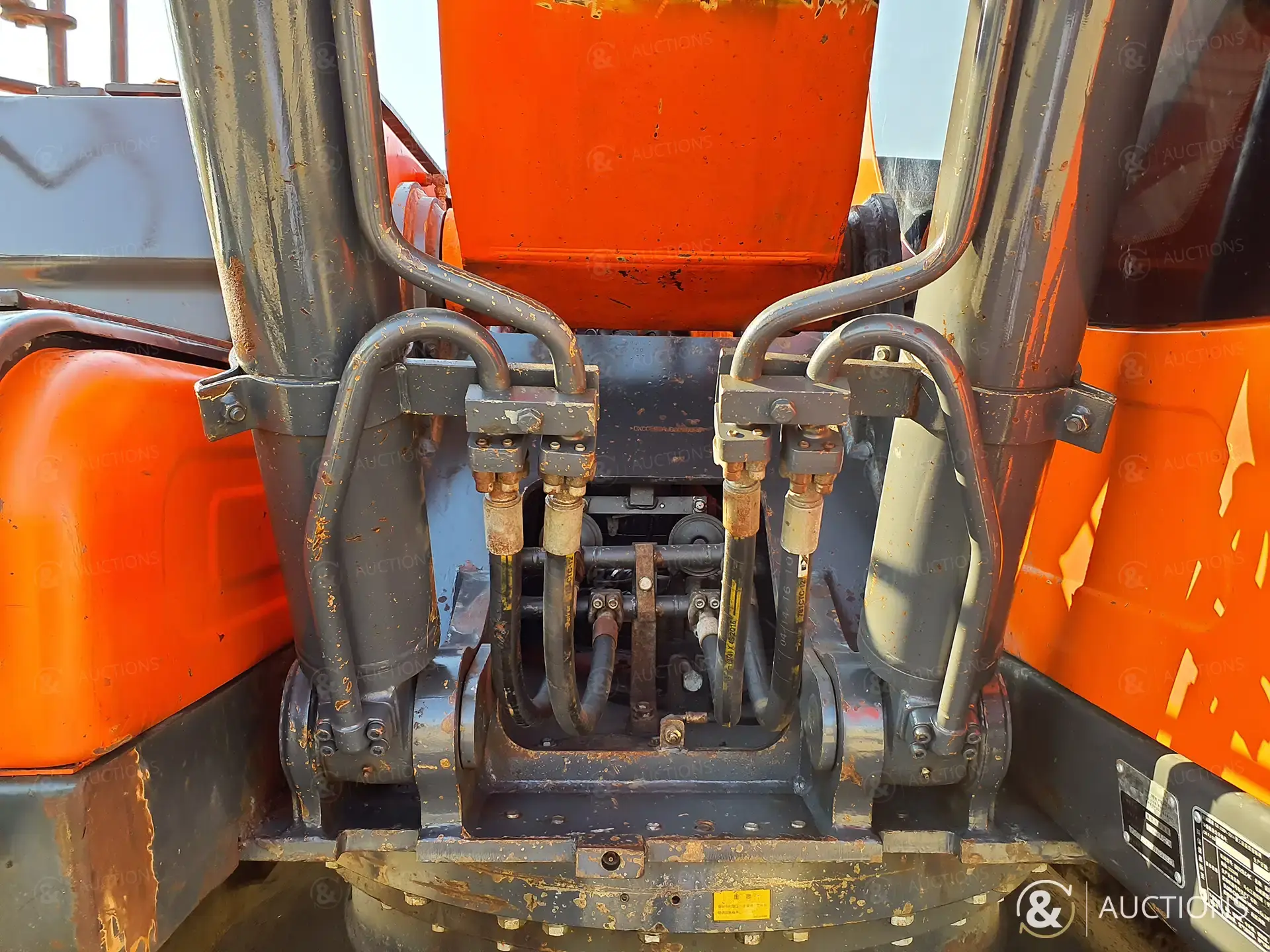

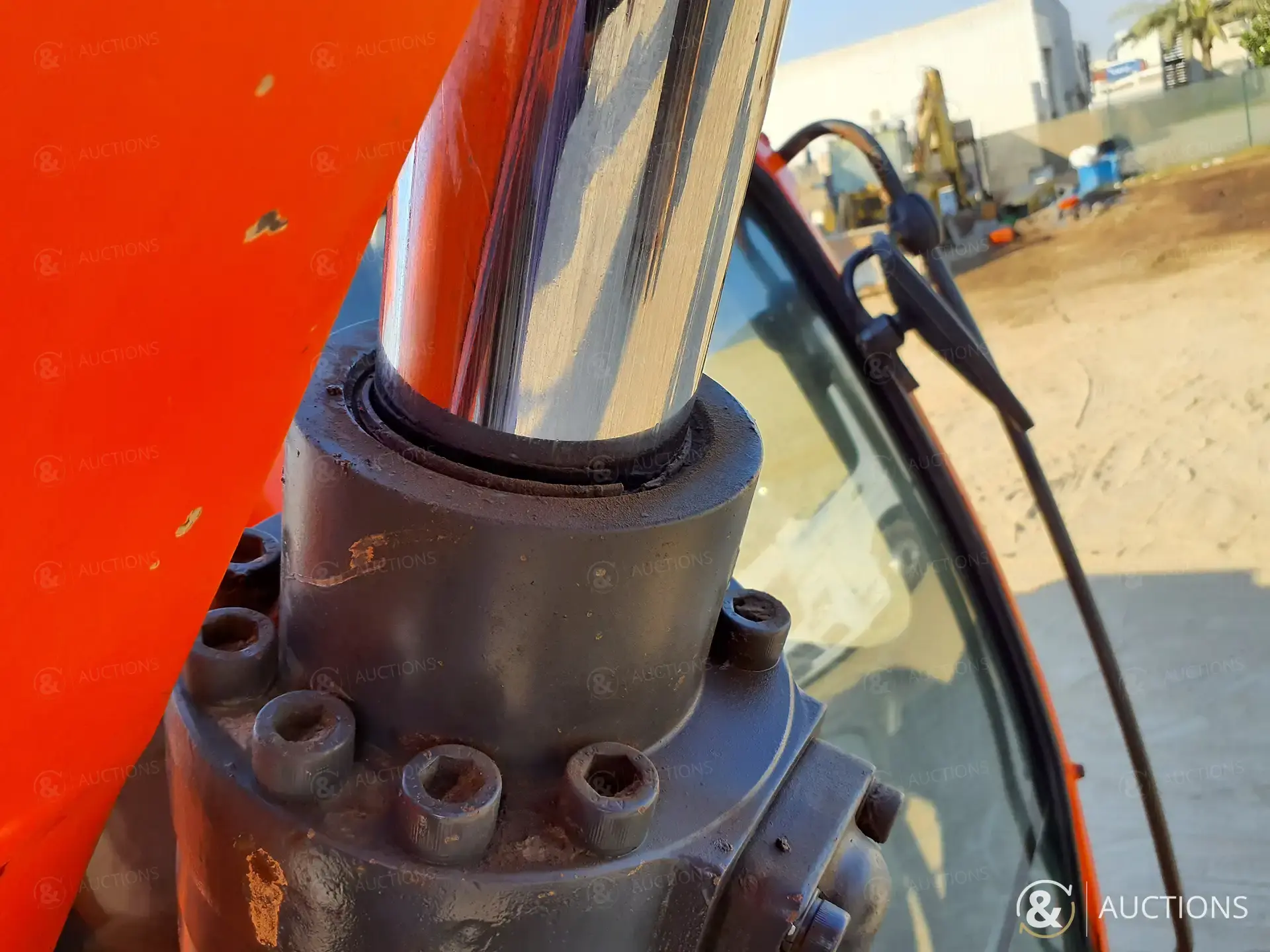

Hydraulic System
| Hydraulic Leaks | Ok |

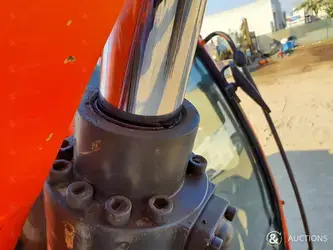

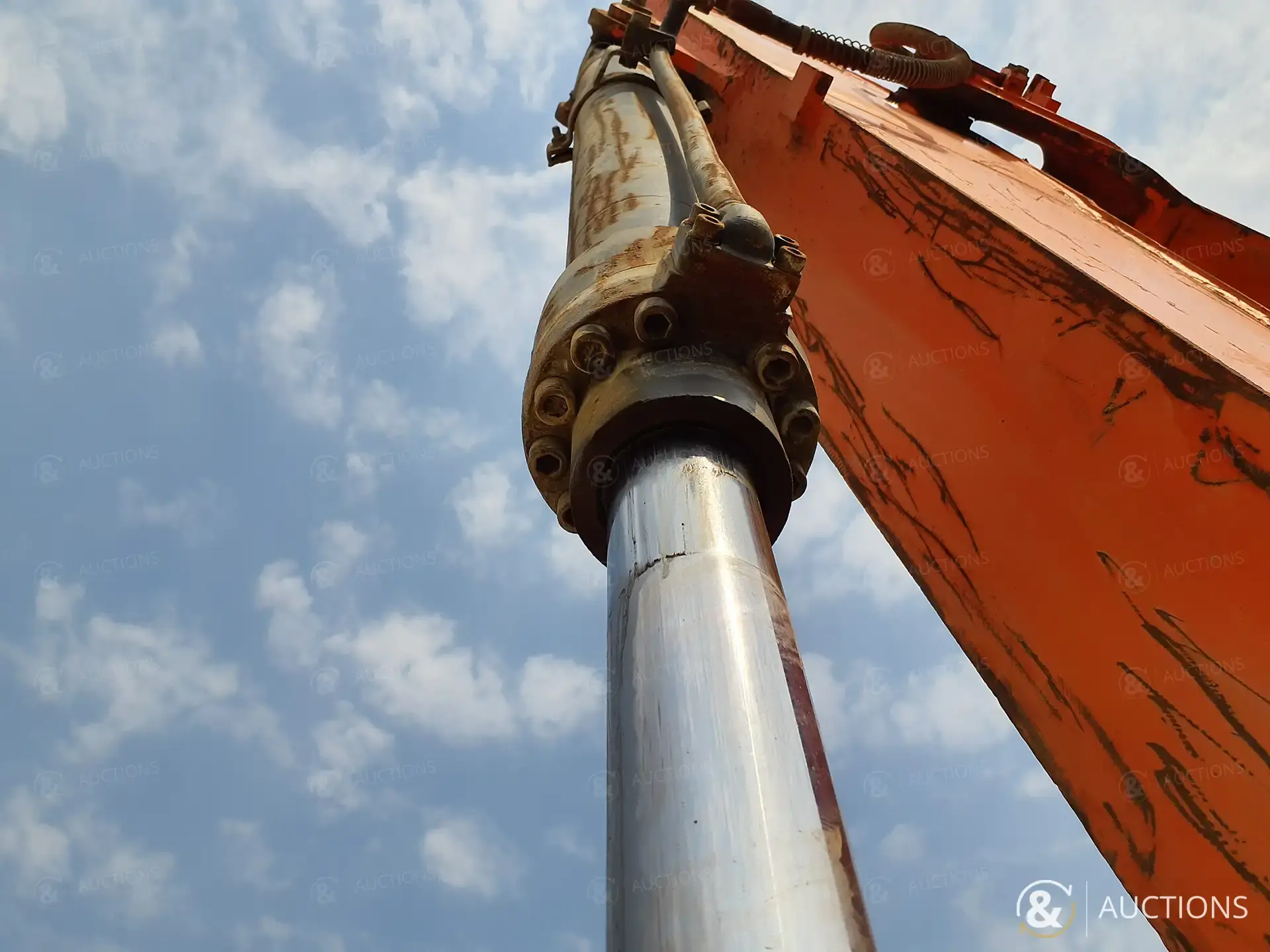

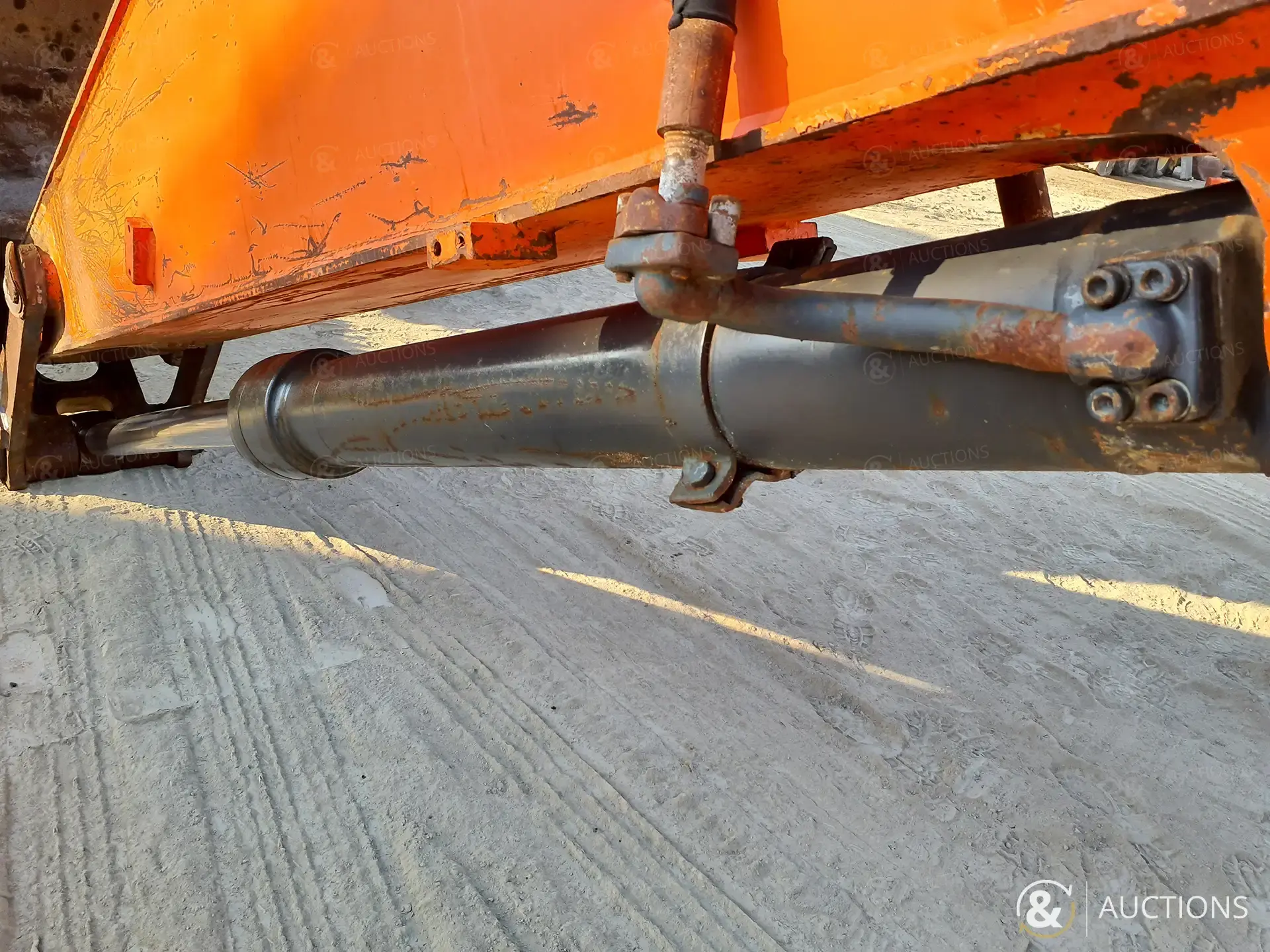

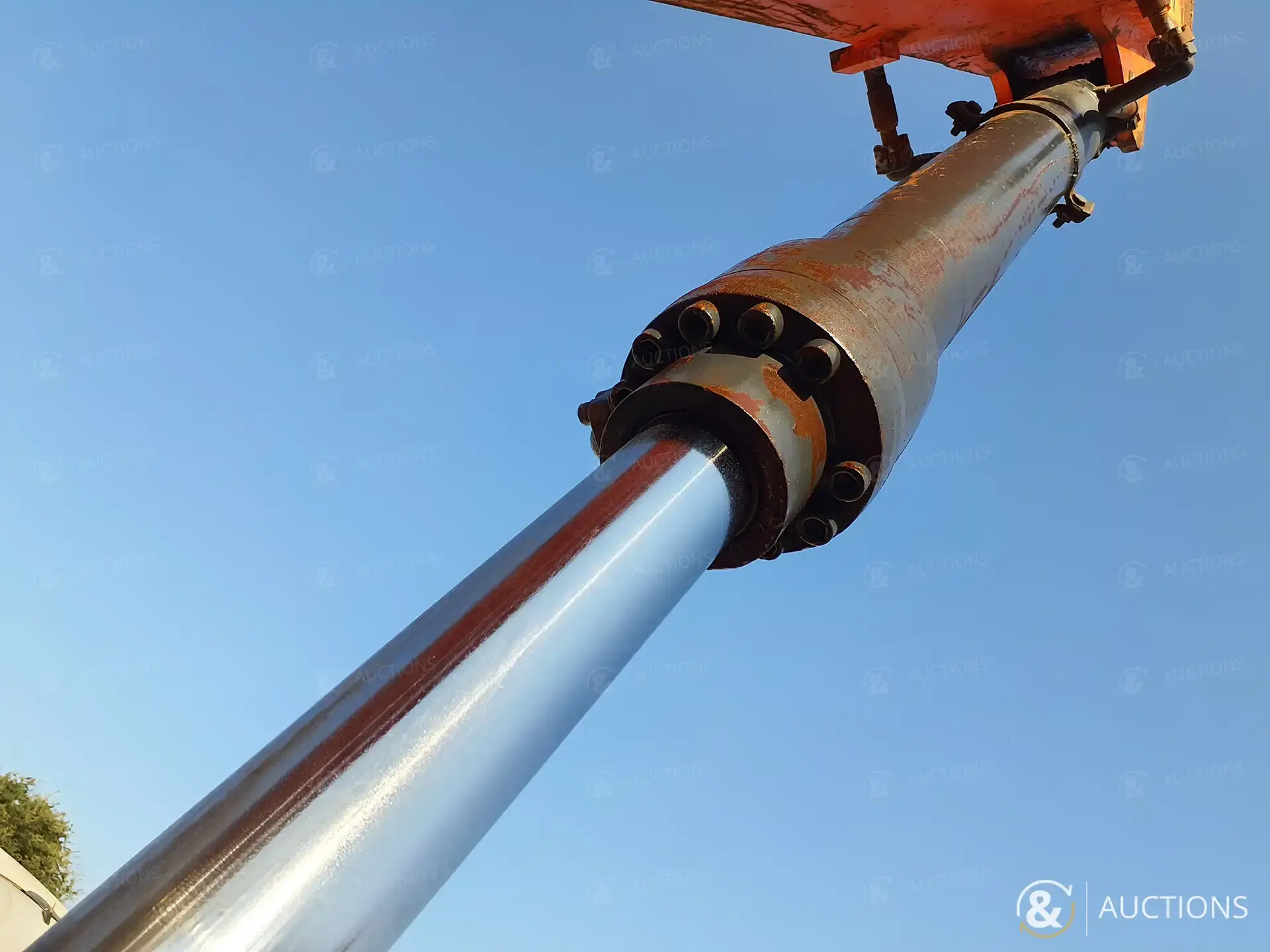

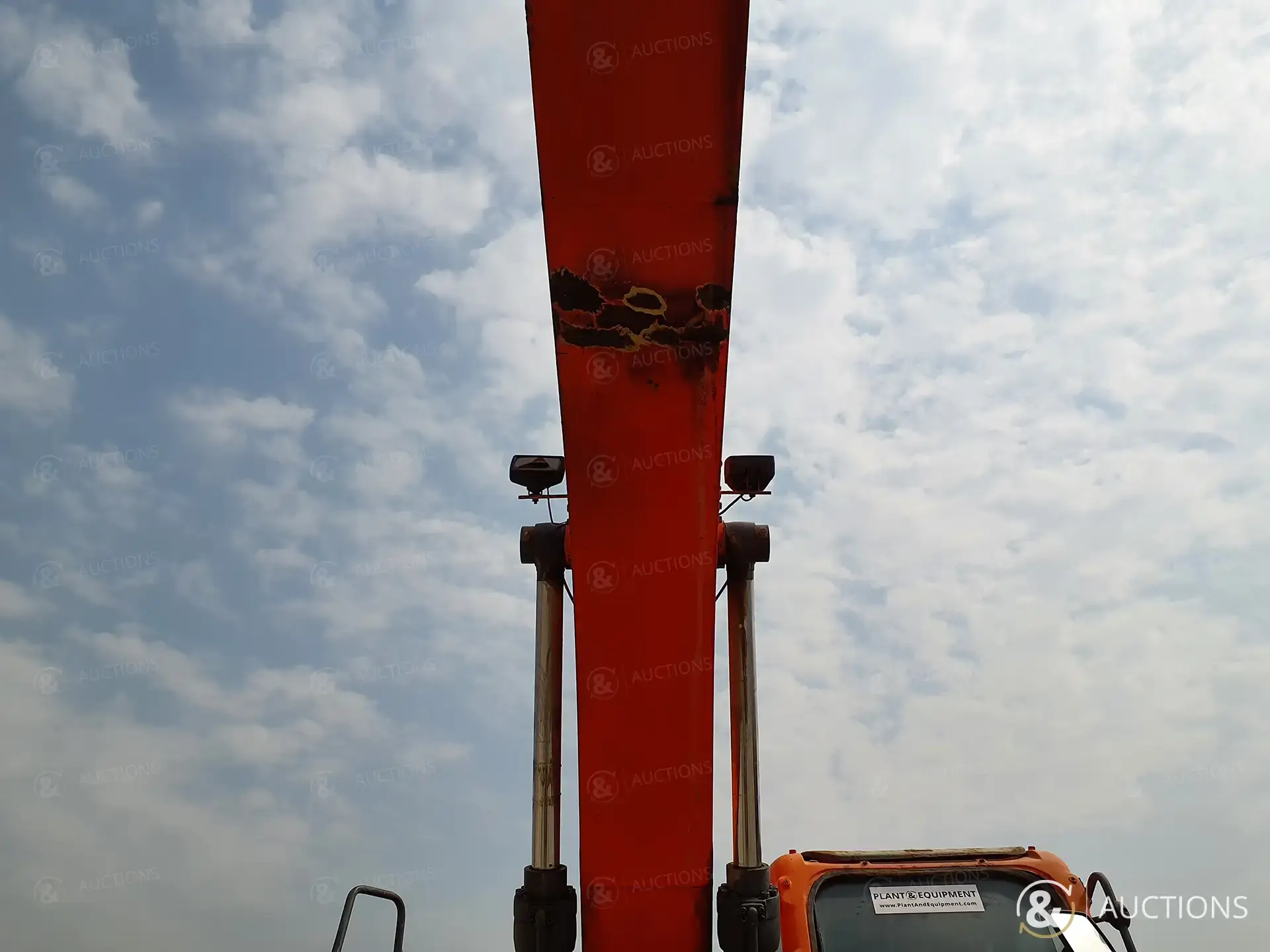

| Boom Hydraulic Jack | Ok, Left Cylinder Minor Leak |

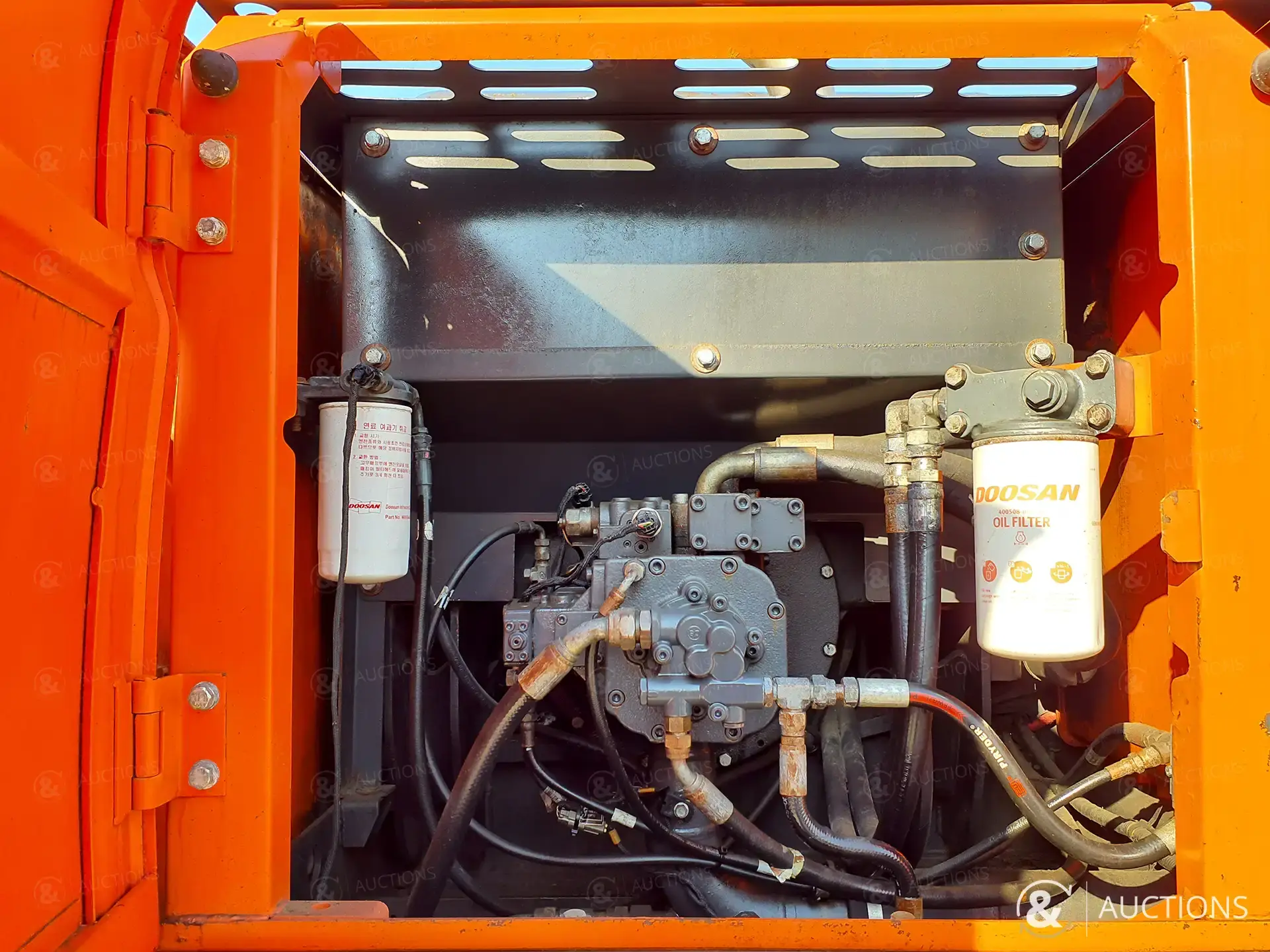

| Hydraulic Pump & Valve Block | Ok |
| Bucket Hydraulic Jack | Ok |
| Arm Hydraulic Jack | Ok, Minor Leak |
Performance Analysis
| Boom Pins Condition | Ok |
| Excavator Self- Drift Test | Ok |
| Arm Pins Condition | Ok, Minor Loose |
| Hydraulic Pump Noise Check | Ok, Little Noisy |
| Bucket Pins Condition | Ok, Minor Loose, Washer Is Missing |
| Slewing Ring Bearing Movement Check | Ok |
| Swing Drive And Brake Test | Ok |
| Drive Force Test | Ok |

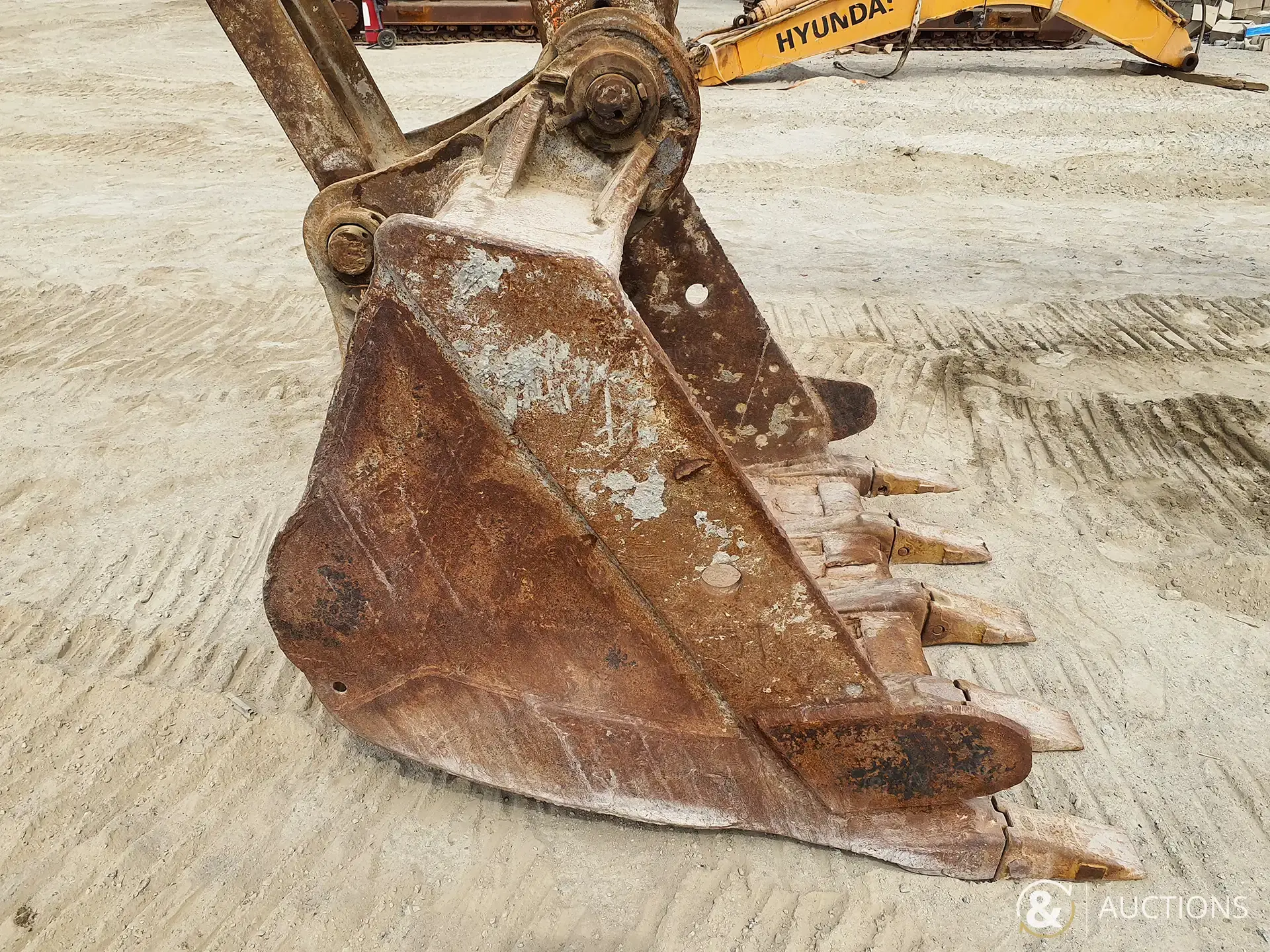

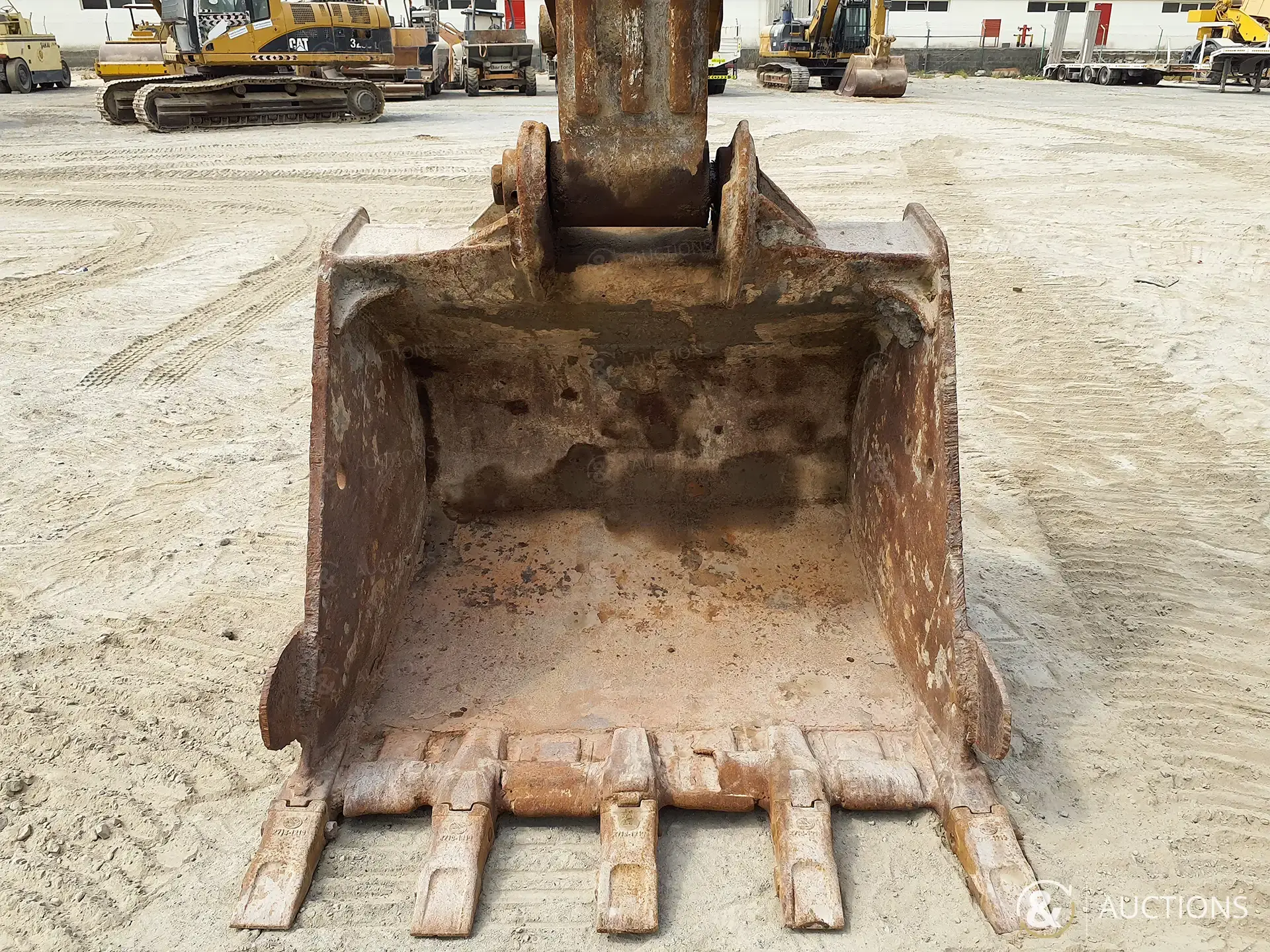

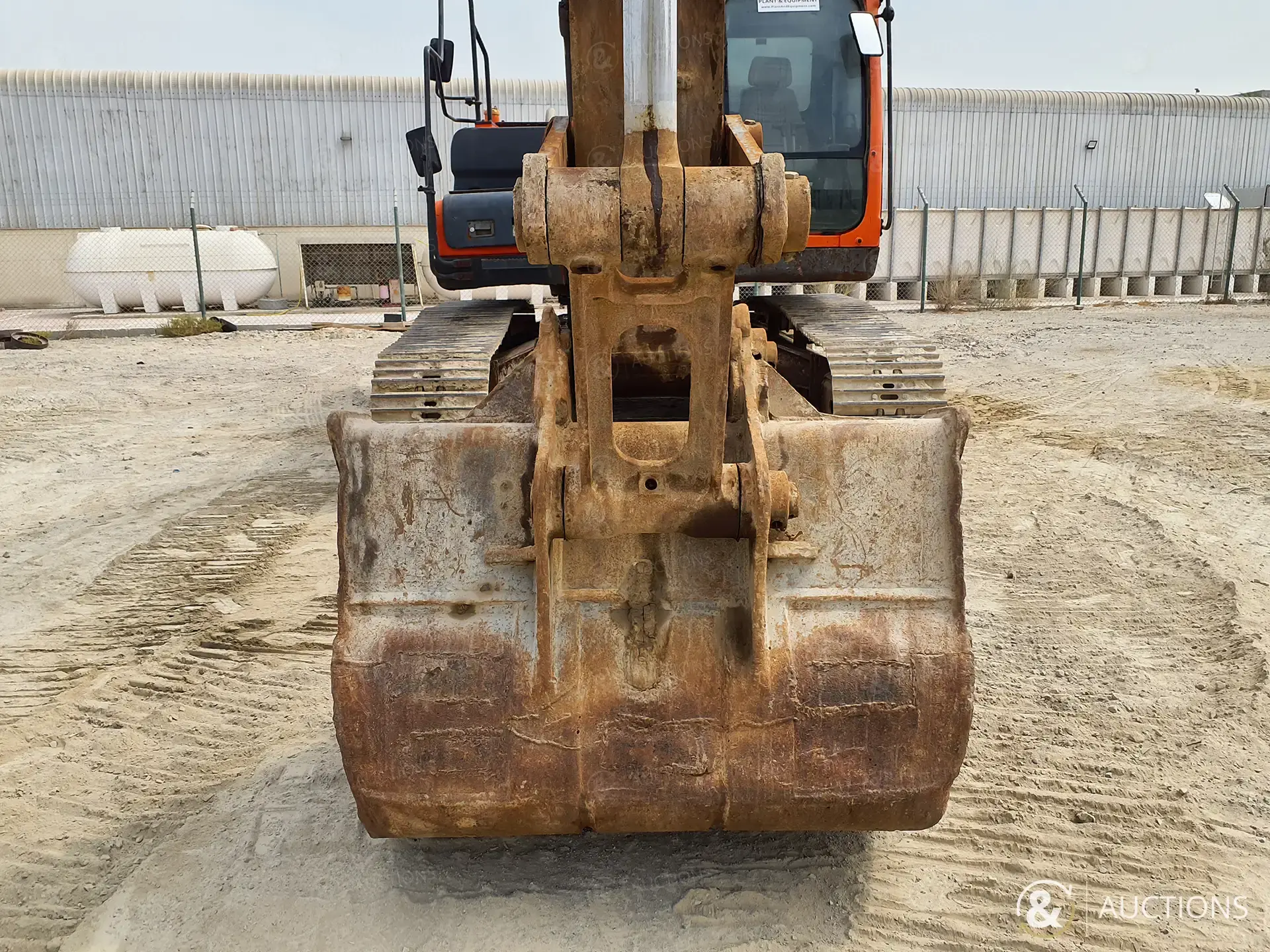

Attachments

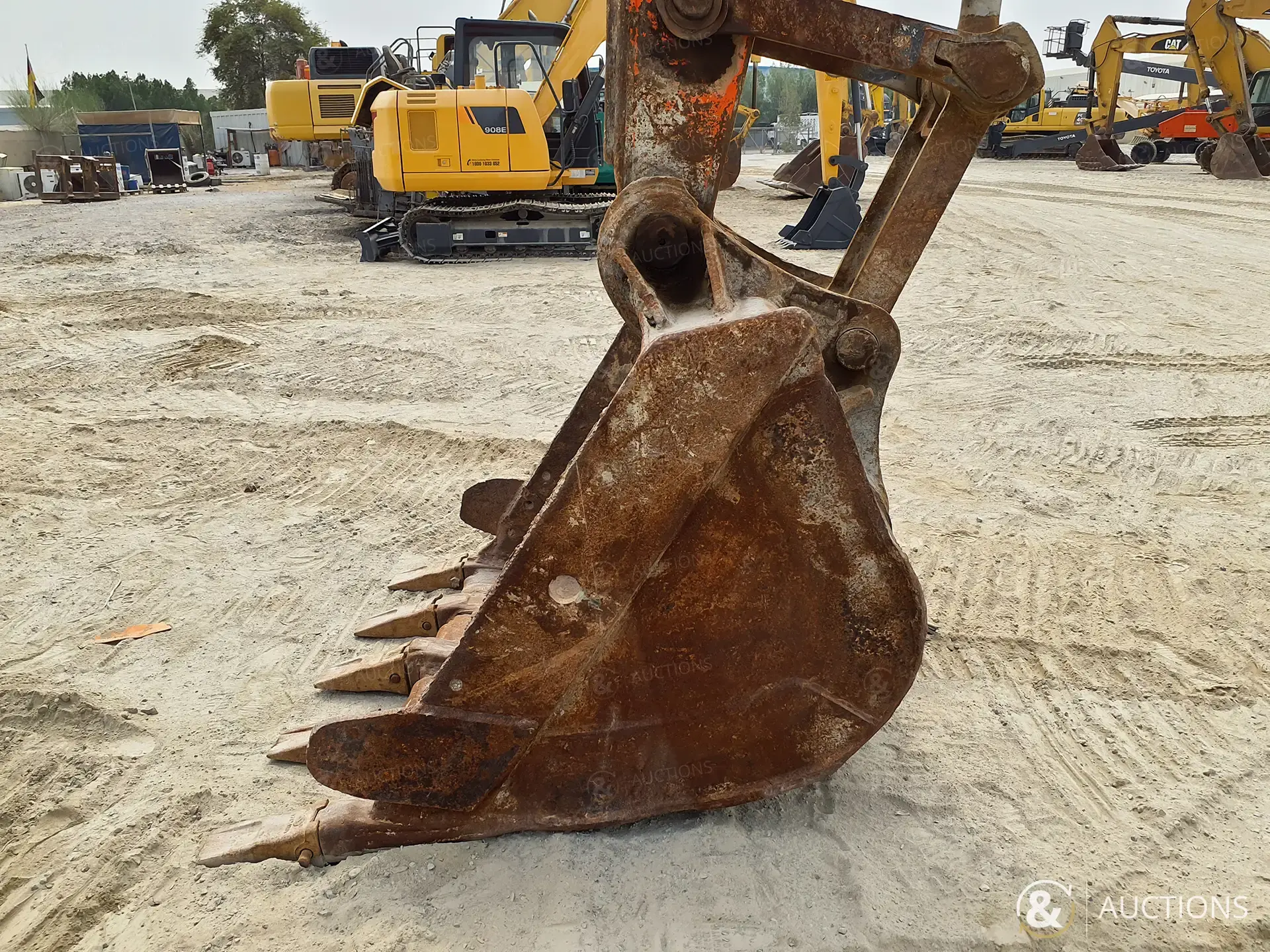

| Attachments Model | Bucket |
| Size | W1250, H1000, D800 (Mm) |
| Status | Ok, Minor Dents And Welding |
| Coupler Status | Ok |
| Second Attachments Model | N/A |
| Size | N/A |
| Status | N/A |

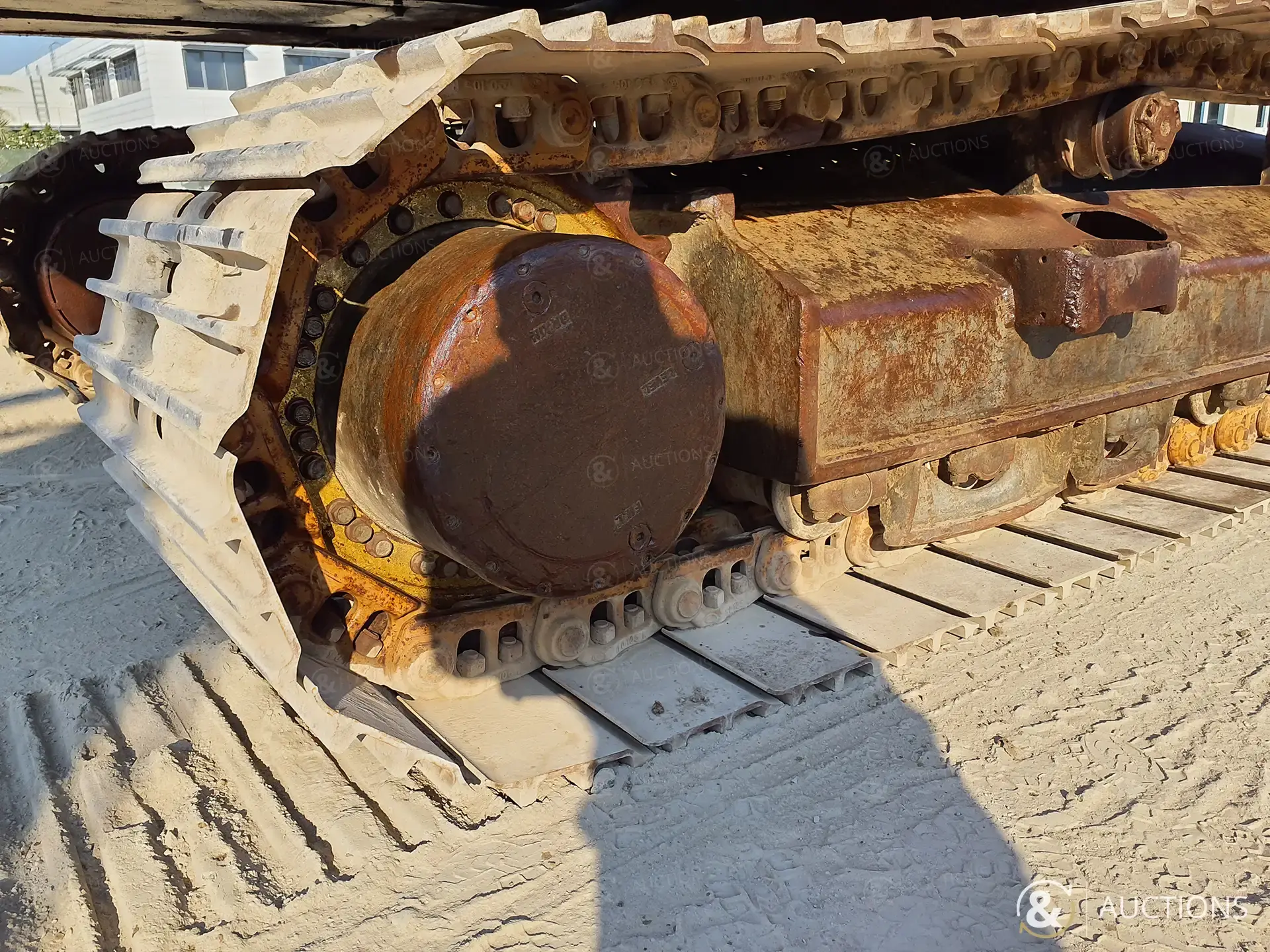

Undercarriage
| Bushings | 40% |
| Track Shoes | Right 70% - Left 50% |
| Idlers | 80% |
| Shoe Width In Mm: | 600 Mm |
| Track Pitch In Mm: | 55 Mm |
| Carrier Rollers | 40% |
| Track Rollers | 30% |
| Track Links | Right 60% - Left 50% |
| Sprocket Segments | Right 70% - Left 50% |
