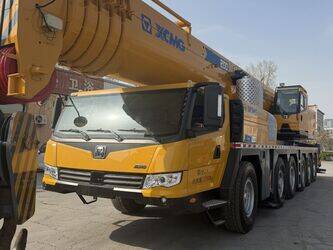

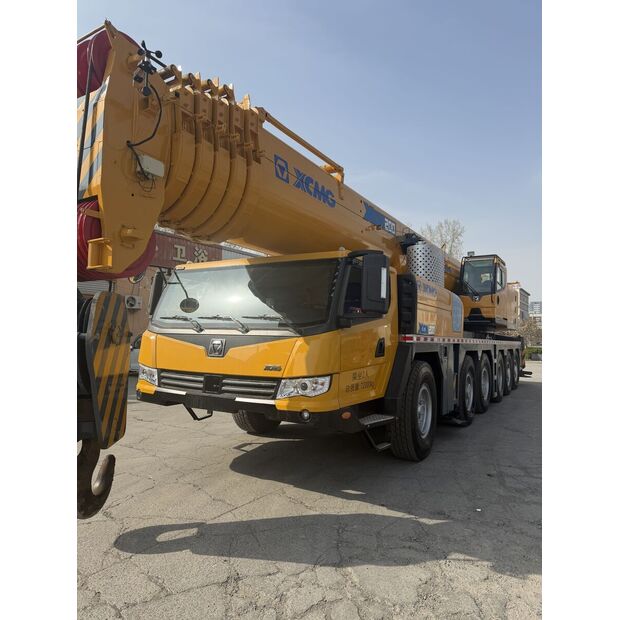

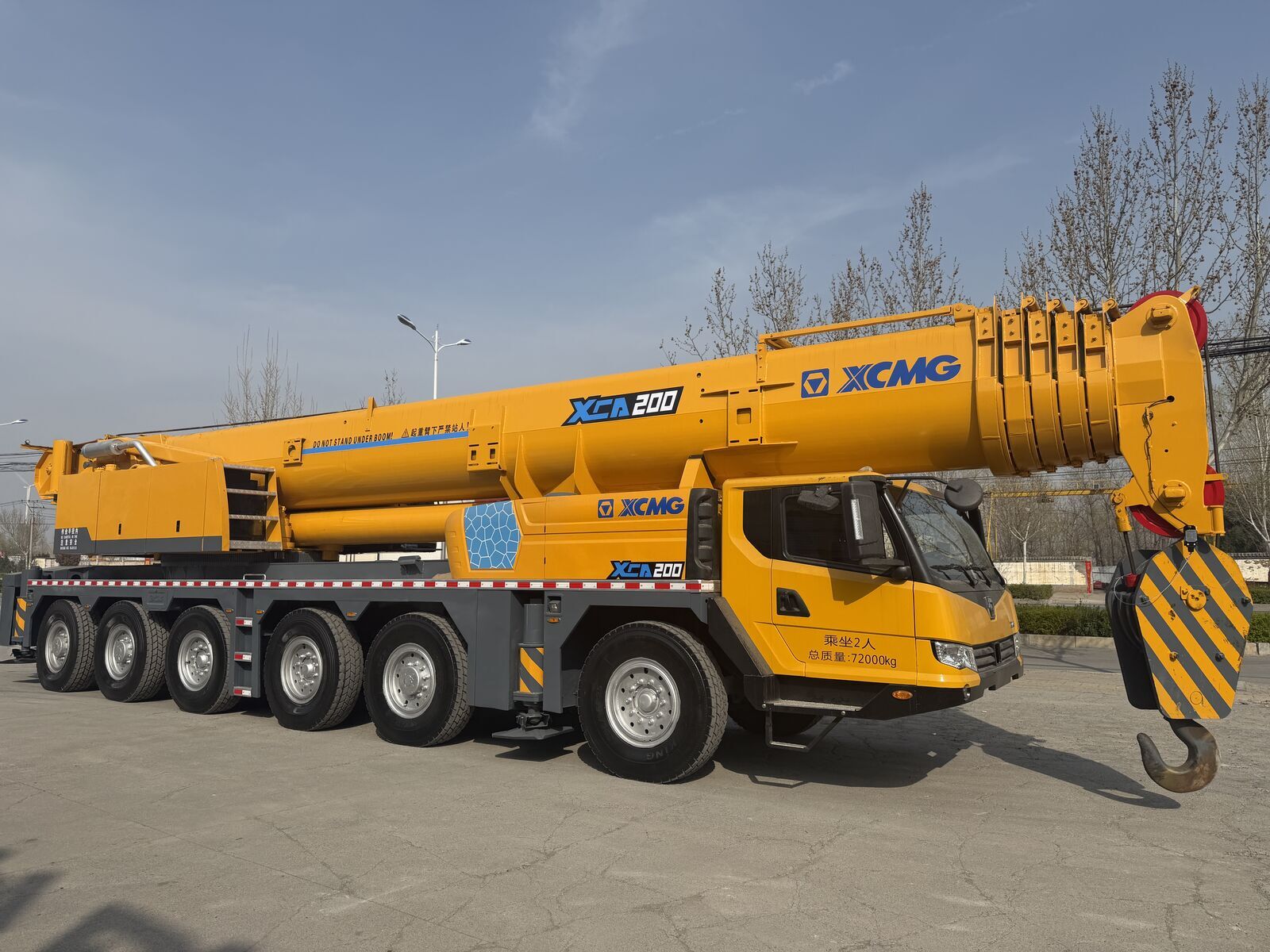

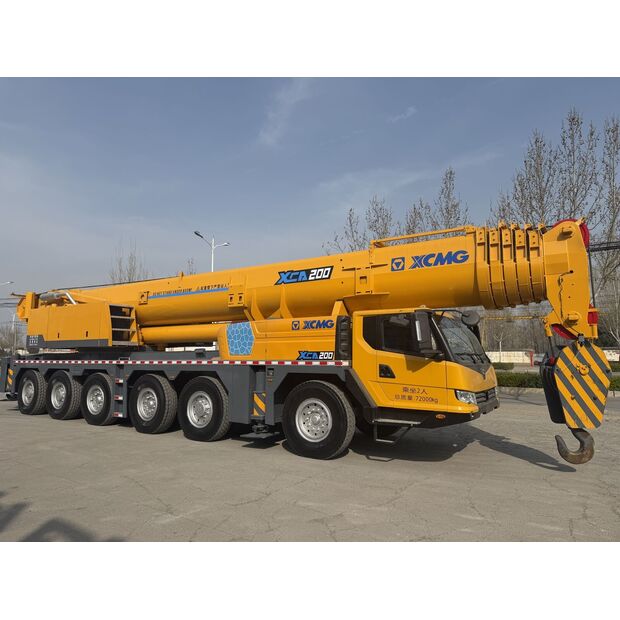

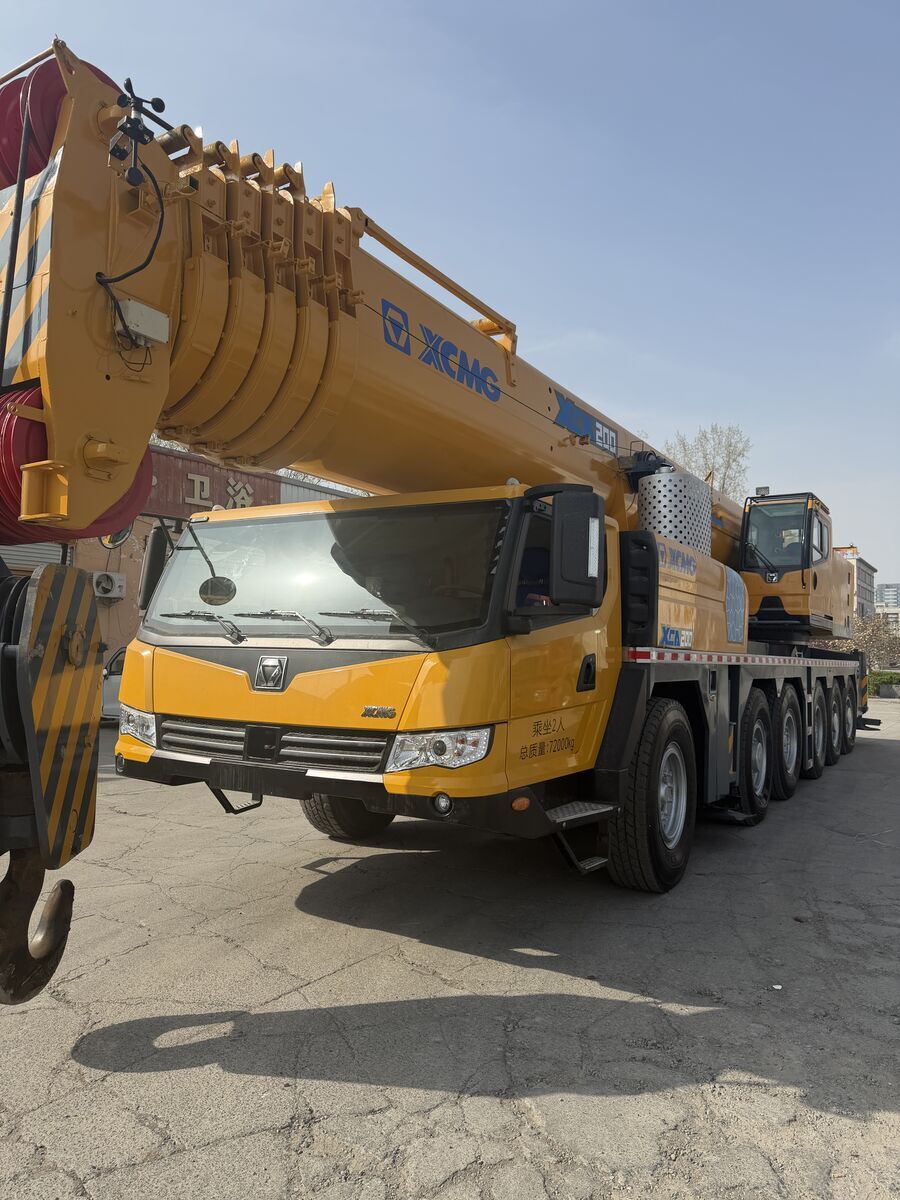

2012 XCMG XCA200

XCMG XCA200
Speed: 80
Vat: 17
EN: XCMG All-terrain crane 200Ton XCA200 （ Refurnished） Year model：2012 Main boom length：61M Jib length：20M Counterweight：65Ton upper Engine:Benz down Engine:Volvo Maximum Rated Lifting Capacity：200t 1. Core Lifting Performance Parameters Maximum Rated Lifting Capacity：200t Maximum Lifting Moment (Basic Boom)：6657kN·m Main Boom Length：13.4 ~ 72m Maximum Main Boom Length (Fully Extended)：72m Maximum Lifting Height (Main Boom Only)：72m Maximum Lifting Height (Main + Auxiliary Boom)：107.3m Minimum Working Radius (Boom Radius)：3m Maximum Working Radius (Fully Extended Main Boom)：66m Auxiliary Boom Length (Standard)：35.3m Rated Capacity at Fully Extended Main Boom (Max Radius)：10.5t Rated Capacity at Minimum Radius (3m)：200t 2. Boom & Hoisting System Parameters Main Boom Type：7-section U-shaped telescopic boom Boom Extension (Max Total Boom Length)：107.3 (Main + Auxiliary)m Main Hoist No-Load Lifting Speed：≥130m/min Auxiliary Hoist Lifting Speed：≥130m/min Boom Telescoping Speed：Adjustable Slewing Speed：0 ~ 1.5r/min 3. Travel & Chassis Parameters Maximum Travel Speed：80 ~ 84km/h Maximum Gradeability：65% Minimum Ground Clearance：300mm Minimum Turning Radius：5030mm Drive Mode：8×8×8 (All-wheel drive, all-wheel steering) Total Vehicle Mass (Transport State)：54990kg Axle Load (Transport State)：11650/11650/11650/10020/10020kg 4. Counterweight & Structural Parameters Maximum Counterweight：72000 (72t)kg Counterweight Configuration：Modular multi-stage assembly Outrigger Span (Full Extension)：8.5×8.5m Outrigger Span (Half Extension)：5.8×7.6m
Ref No:JR50432
