XCMG XMR15S
Condition
Used
1
of
6
XCMG XMR15S
1
of
6
Overview
Description

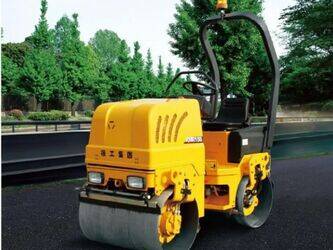

XCMG XMR15S 1 Ton Roller Compactor Vibratory Mini Roller
Model Number: XMR15S
Brand Name: XCMG
Place of Origin: Jiangsu,China
Rated Load: 1.6 ton
Certification: CE/ISO9001
weight: 1600.000kg
Moving Type: Wheel
: 7 days for ready goods
: 1 Piece
: 10,000 Set/ Sets per Month
: Over 5000
: Any Port In China
ItemXMR15S
Operating weight (kg)1600
Load on front drum (kg)800
Load on rear wheels (kg)800
Static linear load(F) (N/cm)88
Static linear load(R) (N/cm)88
Vibration frequency (Hz)70
Vibration frequency (mm)0.4
Centrifugal force (kN)17
Drum width (mm)893
Drum diameter (mm)582
Speed (km/h)0~9
Theoretical gradeability (%)30
Steering angle (°)±34°
Swing angle (°)±7°
Min.turning radius (mm)2700
EnginePerkins403D-11
Rated power (kw/rpm)17.3/2600
Engine oil consumption (g.kw/h)235
Fuel tank capacity (L)24
Hydraulic oil tank capacity (L)15
Water tank (L)110
Overall Dimensions(L*W*H) (mm)2118*977*2279
Wheel base (mm)1350
Minimum ground clearance (mm )250
XCMG XMR15S 1 Ton Roller Compactor Vibratory Mini RollerModel Number: XMR15S
Brand Name: XCMG
Place of Origin: Jiangsu,China
Rated Load: 1.6 ton
Certification: CE/ISO9001
weight: 1600.000kg
Moving Type: Wheel
: 7 days for ready goods
: 1 Piece
: 10,000 Set/ Sets per Month
: Over 5000
: Any Port In China
ItemXMR15S
Operating weight (kg)1600
Load on front drum (kg)800
Load on rear wheels (kg)800
Static linear load(F) (N/cm)88
Static linear load(R) (N/cm)88
Vibration frequency (Hz)70
Vibration frequency (mm)0.4
Centrifugal force (kN)17
Drum width (mm)893
Drum diameter (mm)582
Speed (km/h)0~9
Theoretical gradeability (%)30
Steering angle (°)±34°
Swing angle (°)±7°
Min.turning radius (mm)2700
EnginePerkins403D-11
Rated power (kw/rpm)17.3/2600
Engine oil consumption (g.kw/h)235
Fuel tank capacity (L)24
Hydraulic oil tank capacity (L)15
Water tank (L)110
Overall Dimensions(L*W*H) (mm)2118*977*2279
Wheel base (mm)1350
Minimum ground clearance (mm )250
Model Number: XMR15S
Brand Name: XCMG
Place of Origin: Jiangsu,China
Rated Load: 1.6 ton
Certification: CE/ISO9001
weight: 1600.000kg
Moving Type: Wheel
: 7 days for ready goods
: 1 Piece
: 10,000 Set/ Sets per Month
: Over 5000
: Any Port In China
ItemXMR15S
Operating weight (kg)1600
Load on front drum (kg)800
Load on rear wheels (kg)800
Static linear load(F) (N/cm)88
Static linear load(R) (N/cm)88
Vibration frequency (Hz)70
Vibration frequency (mm)0.4
Centrifugal force (kN)17
Drum width (mm)893
Drum diameter (mm)582
Speed (km/h)0~9
Theoretical gradeability (%)30
Steering angle (°)±34°
Swing angle (°)±7°
Min.turning radius (mm)2700
EnginePerkins403D-11
Rated power (kw/rpm)17.3/2600
Engine oil consumption (g.kw/h)235
Fuel tank capacity (L)24
Hydraulic oil tank capacity (L)15
Water tank (L)110
Overall Dimensions(L*W*H) (mm)2118*977*2279
Wheel base (mm)1350
Minimum ground clearance (mm )250
