XCMG XCT20
Price
AED
267,372
$
72,800
€
68,037
£
56,542
رس
273,068
Condition
Used
1
of
6
XCMG XCT20
1
of
6
Overview
Price
AED
267,372
$
72,800
€
68,037
£
56,542
رس
273,068
Category
Make
Model
Description

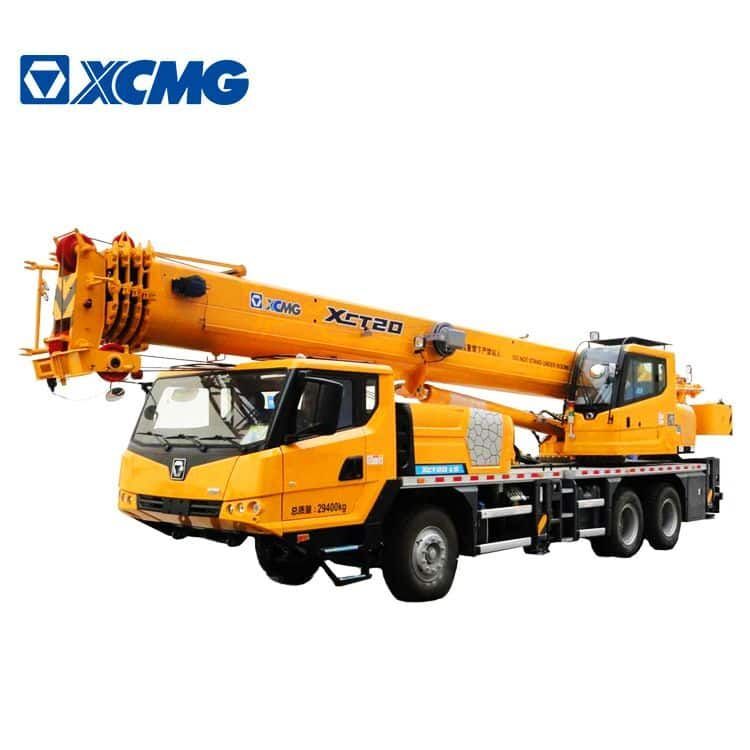

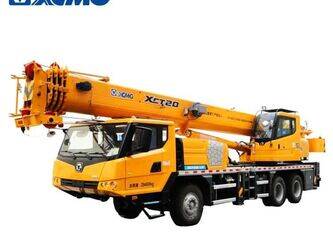

XCMG used 20t truck crane XCT20 with cheap price
Certification: CE/ISO9001/CCC
Model Number: XCT20
Brand Name: XCMG
Place of Origin: Jiangsu, China
Max. Lifting Height: 42.8m
Max. Lifting Load: 20ton
Rated Loading Capacity: 20ton
Application: Construction Industry
weight: 23300.000kg
Moving Type: Wheel
ItemXCT20L4
Dimension
Overall length (mm)12535
Overall width (mm)2500
Overall height (mm)3420
Weight
Total weight in travel (kg)26020
Power
Engine modelSC7H260Q4 / WP7.270.E434
Engine rated power (kW/(r/min))192/2300 199/2100
Engine rated torque (N.m/(r/min))1000/1200~1600 1160/1200-1500
Travel
Max. travel speed (km/h)85/80
Min. turning diameter （m）20
Min. ground clearance (mm)261
Approach angle (°)19/12
Departure angle (°)13
Max. grade ability (%)45/50
Fuel consumption for 100km (L)30
Main performance
Max. rated total lifting capacity (t)20
Min. rated working radius (m）3
Turning radius at turntable tail （m）3.425
Max. lifting torque （KN.m）957
Base boom （m）10.9
Max.main boom（m）34.5
Fully extended boom+ jib（m）42.12
Max.main boom+jib （m）42.8
Working speed
Boom full extension time（s）50
XCMG used 20t truck crane XCT20 with cheap priceCertification: CE/ISO9001/CCC
Model Number: XCT20
Brand Name: XCMG
Place of Origin: Jiangsu, China
Max. Lifting Height: 42.8m
Max. Lifting Load: 20ton
Rated Loading Capacity: 20ton
Application: Construction Industry
weight: 23300.000kg
Moving Type: Wheel
ItemXCT20L4
Dimension
Overall length (mm)12535
Overall width (mm)2500
Overall height (mm)3420
Weight
Total weight in travel (kg)26020
Power
Engine modelSC7H260Q4 / WP7.270.E434
Engine rated power (kW/(r/min))192/2300 199/2100
Engine rated torque (N.m/(r/min))1000/1200~1600 1160/1200-1500
Travel
Max. travel speed (km/h)85/80
Min. turning diameter （m）20
Min. ground clearance (mm)261
Approach angle (°)19/12
Departure angle (°)13
Max. grade ability (%)45/50
Fuel consumption for 100km (L)30
Main performance
Max. rated total lifting capacity (t)20
Min. rated working radius (m）3
Turning radius at turntable tail （m）3.425
Max. lifting torque （KN.m）957
Base boom （m）10.9
Max.main boom（m）34.5
Fully extended boom+ jib（m）42.12
Max.main boom+jib （m）42.8
Working speed
Boom full extension time（s）50
Certification: CE/ISO9001/CCC
Model Number: XCT20
Brand Name: XCMG
Place of Origin: Jiangsu, China
Max. Lifting Height: 42.8m
Max. Lifting Load: 20ton
Rated Loading Capacity: 20ton
Application: Construction Industry
weight: 23300.000kg
Moving Type: Wheel
ItemXCT20L4
Dimension
Overall length (mm)12535
Overall width (mm)2500
Overall height (mm)3420
Weight
Total weight in travel (kg)26020
Power
Engine modelSC7H260Q4 / WP7.270.E434
Engine rated power (kW/(r/min))192/2300 199/2100
Engine rated torque (N.m/(r/min))1000/1200~1600 1160/1200-1500
Travel
Max. travel speed (km/h)85/80
Min. turning diameter （m）20
Min. ground clearance (mm)261
Approach angle (°)19/12
Departure angle (°)13
Max. grade ability (%)45/50
Fuel consumption for 100km (L)30
Main performance
Max. rated total lifting capacity (t)20
Min. rated working radius (m）3
Turning radius at turntable tail （m）3.425
Max. lifting torque （KN.m）957
Base boom （m）10.9
Max.main boom（m）34.5
Fully extended boom+ jib（m）42.12
Max.main boom+jib （m）42.8
Working speed
Boom full extension time（s）50
Show more Show less
