Description

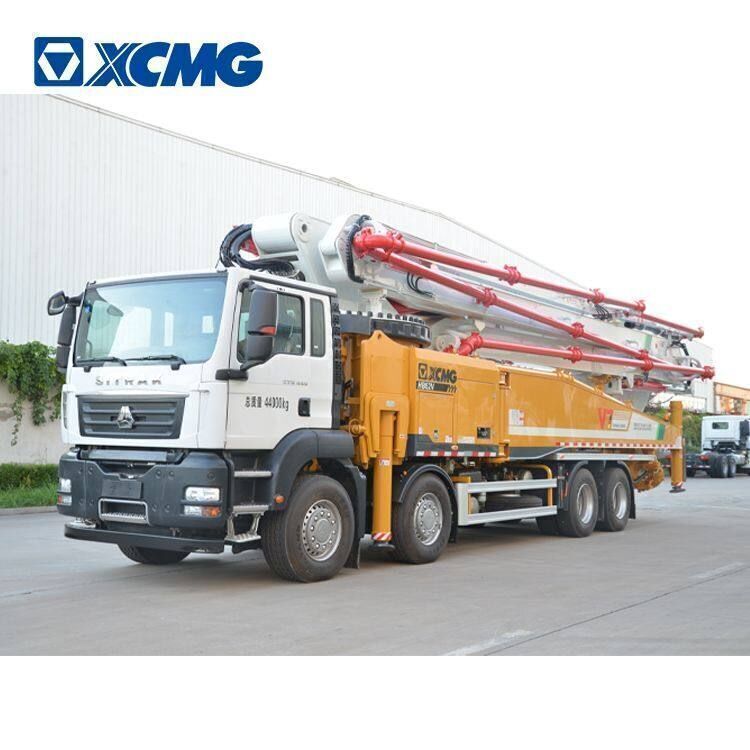

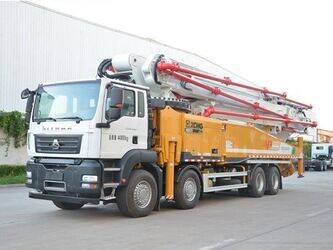

XCMG Factory Used Concrete Truck Mounted Pumps HB56V With High Quality
weight: 36000.000kg
Weight: 36000 kg
Max. horizontal conveying distance: 50M
Max. vertical conveying distance: 55.1m
Productivity: 180M³/H
wheel base: 5600mm
: 7 days for ready goods
: 1 Piece
: Any Port In China
CategoryItemUnitHB56V
OverallOutline dimensionmm14280*2550*4000
Overall weightkg36000
ChassisModel-WP13.510E62
Wheelbasemm5600+1400
Max.powerkW294
Emission standard-
Pumping systemTheoreticalm³/h180
Concrete pumping pressureMPa10.2
Theoretical pumping timesTimes/min27
Delivery cylinder diameter x strokemmφ260×2000
Placing boomReach heightm55.1
Reach depthm40.1
Slewing radiusm50
Slewing angle°±360
OthersTransfer tuble-Rock valve
XCMG Factory Used Concrete Truck Mounted Pumps HB56V With High Quality
weight: 36000.000kg
Weight: 36000 kg
Max. horizontal conveying distance: 50M
Max. vertical conveying distance: 55.1m
Productivity: 180M³/H
wheel base: 5600mm
: 7 days for ready goods
: 1 Piece
: Any Port In China
CategoryItemUnitHB56V
OverallOutline dimensionmm14280*2550*4000
Overall weightkg36000
ChassisModel-WP13.510E62
Wheelbasemm5600+1400
Max.powerkW294
Emission standard-
Pumping systemTheoreticalm³/h180
Concrete pumping pressureMPa10.2
Theoretical pumping timesTimes/min27
Delivery cylinder diameter x strokemmφ260×2000
Placing boomReach heightm55.1
Reach depthm40.1
Slewing radiusm50
Slewing angle°±360
OthersTransfer tuble-Rock valve
