XCMG HB52V
Condition
Used
1
of
8
XCMG HB52V
1
of
8
Overview
Description

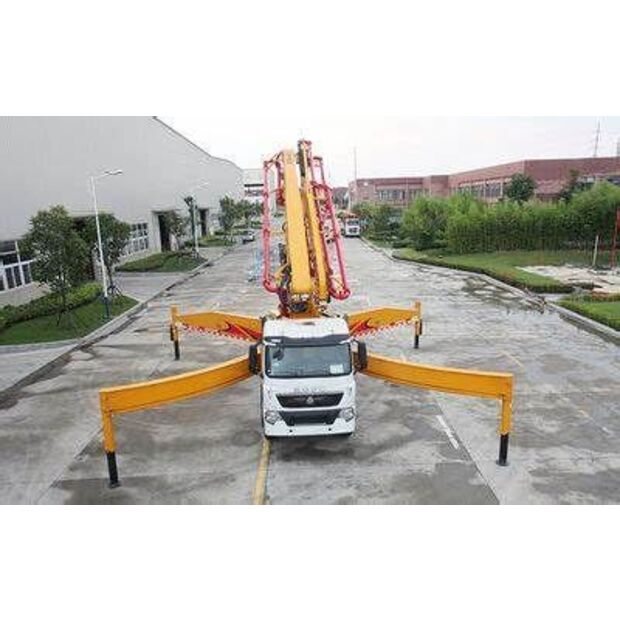

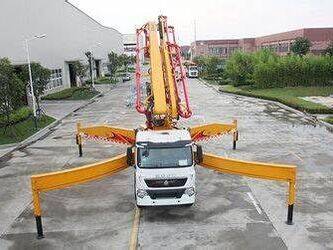

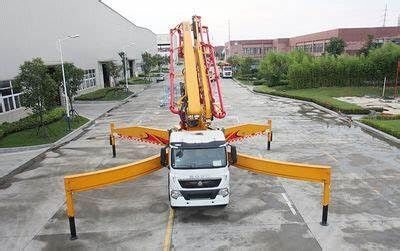

XCMG Official Used HB52V Schwing 52m Concrete Pump Truck Mounted Boom Concrete Pump Price
weight: 34000.000kg
Applicable Industries: Construction works
Dimension(L*W*H): 13040*2530*4000mm
Max. horizontal conveying distance: 46m
Max. vertical conveying distance: 51.2m
Reach depth: 36.1m
: 7 days for ready goods
: 1 Piece
: Any Port In China
CategoryItemUnitHB52V
OverallOutline dimensionmm13040*2530*400012900*2530*4000
Overall weightkg3400035000
ChassisModel-ZZ5347V524HE1Actros3341 E5
Wheelbasemm4800+14004800+1350
Max.powerkW294300
Emission standard-China V
Pumping systemTheoreticalm³/h170
Concrete pumping pressureMPa8
Theoretical pumping timesTimes/min23～26
Delivery cylinder diameter x strokemmφ260×2000
Placing boomReach heightm51.2
Reach depthm36.1
Slewing radiusm46
Slewing angle°±270
OthersTransfer tuble-Rock valve
XCMG Official Used HB52V Schwing 52m Concrete Pump Truck Mounted Boom Concrete Pump Priceweight: 34000.000kg
Applicable Industries: Construction works
Dimension(L*W*H): 13040*2530*4000mm
Max. horizontal conveying distance: 46m
Max. vertical conveying distance: 51.2m
Reach depth: 36.1m
: 7 days for ready goods
: 1 Piece
: Any Port In China
CategoryItemUnitHB52V
OverallOutline dimensionmm13040*2530*400012900*2530*4000
Overall weightkg3400035000
ChassisModel-ZZ5347V524HE1Actros3341 E5
Wheelbasemm4800+14004800+1350
Max.powerkW294300
Emission standard-China V
Pumping systemTheoreticalm³/h170
Concrete pumping pressureMPa8
Theoretical pumping timesTimes/min23～26
Delivery cylinder diameter x strokemmφ260×2000
Placing boomReach heightm51.2
Reach depthm36.1
Slewing radiusm46
Slewing angle°±270
OthersTransfer tuble-Rock valve
weight: 34000.000kg
Applicable Industries: Construction works
Dimension(L*W*H): 13040*2530*4000mm
Max. horizontal conveying distance: 46m
Max. vertical conveying distance: 51.2m
Reach depth: 36.1m
: 7 days for ready goods
: 1 Piece
: Any Port In China
CategoryItemUnitHB52V
OverallOutline dimensionmm13040*2530*400012900*2530*4000
Overall weightkg3400035000
ChassisModel-ZZ5347V524HE1Actros3341 E5
Wheelbasemm4800+14004800+1350
Max.powerkW294300
Emission standard-China V
Pumping systemTheoreticalm³/h170
Concrete pumping pressureMPa8
Theoretical pumping timesTimes/min23～26
Delivery cylinder diameter x strokemmφ260×2000
Placing boomReach heightm51.2
Reach depthm36.1
Slewing radiusm46
Slewing angle°±270
OthersTransfer tuble-Rock valve
