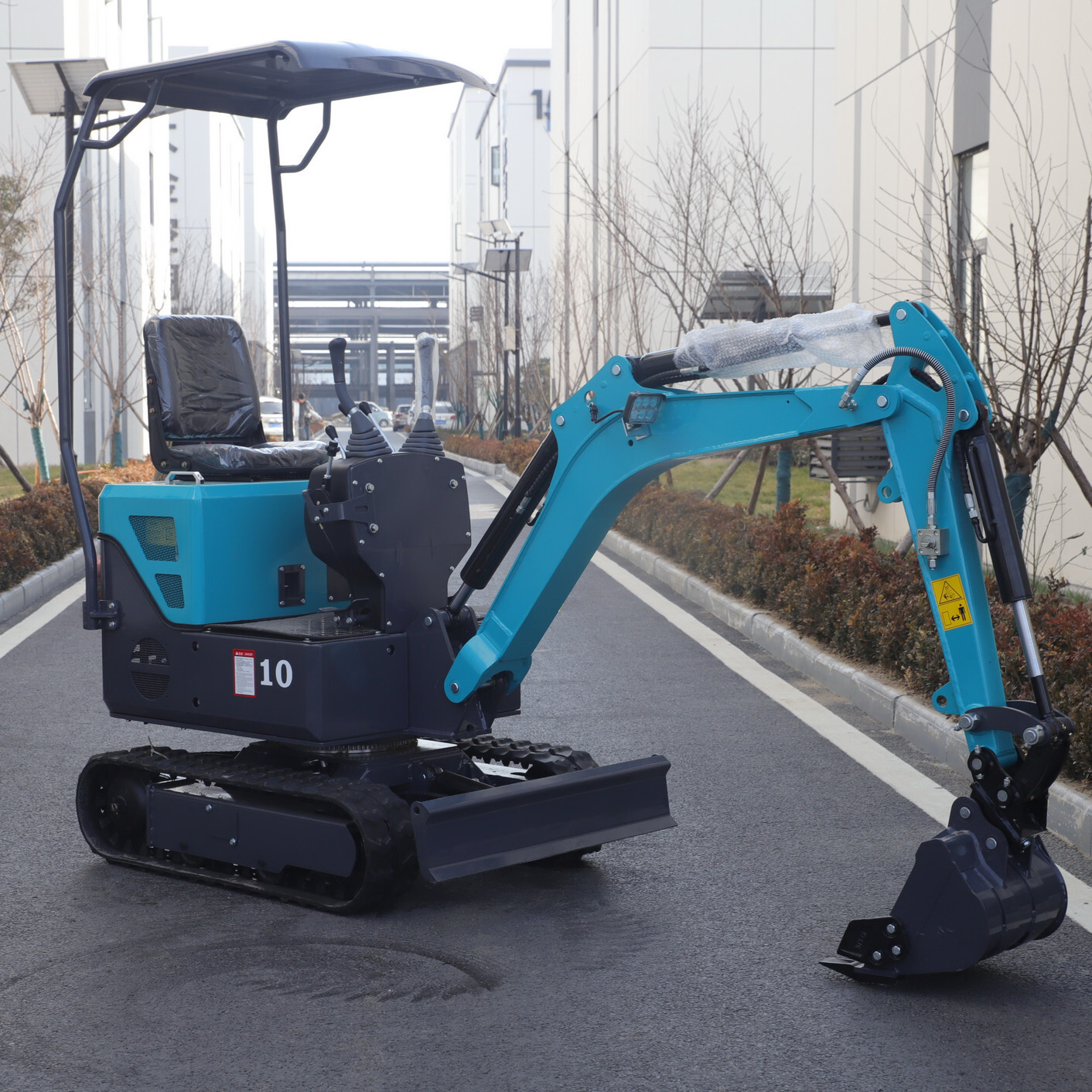

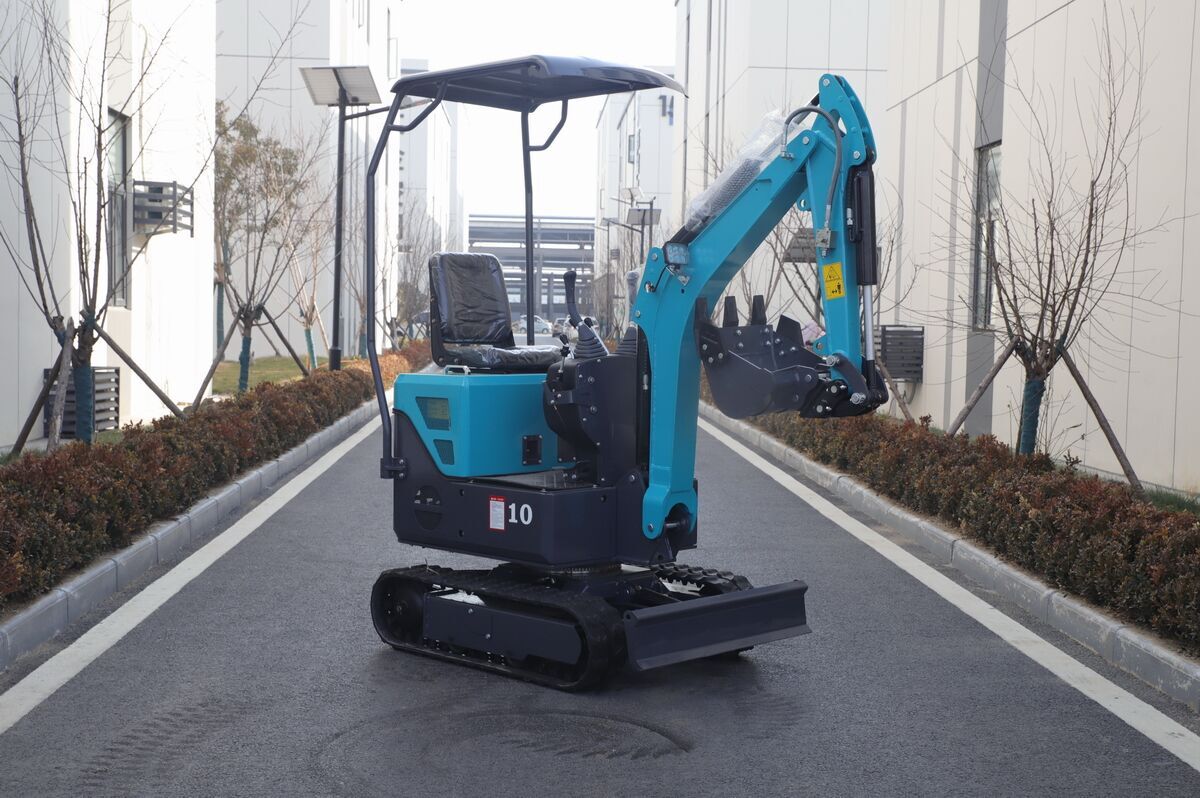

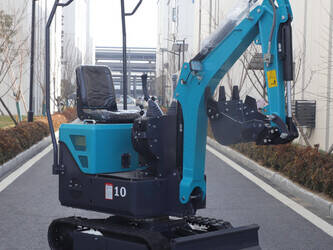

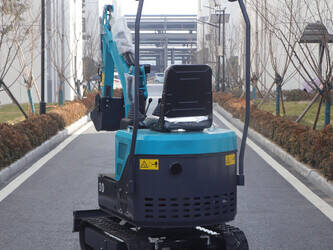

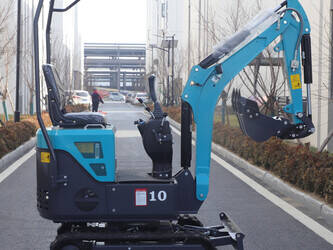

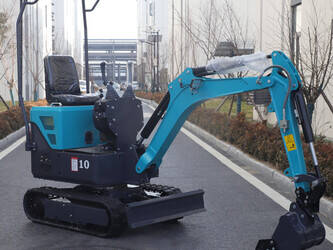

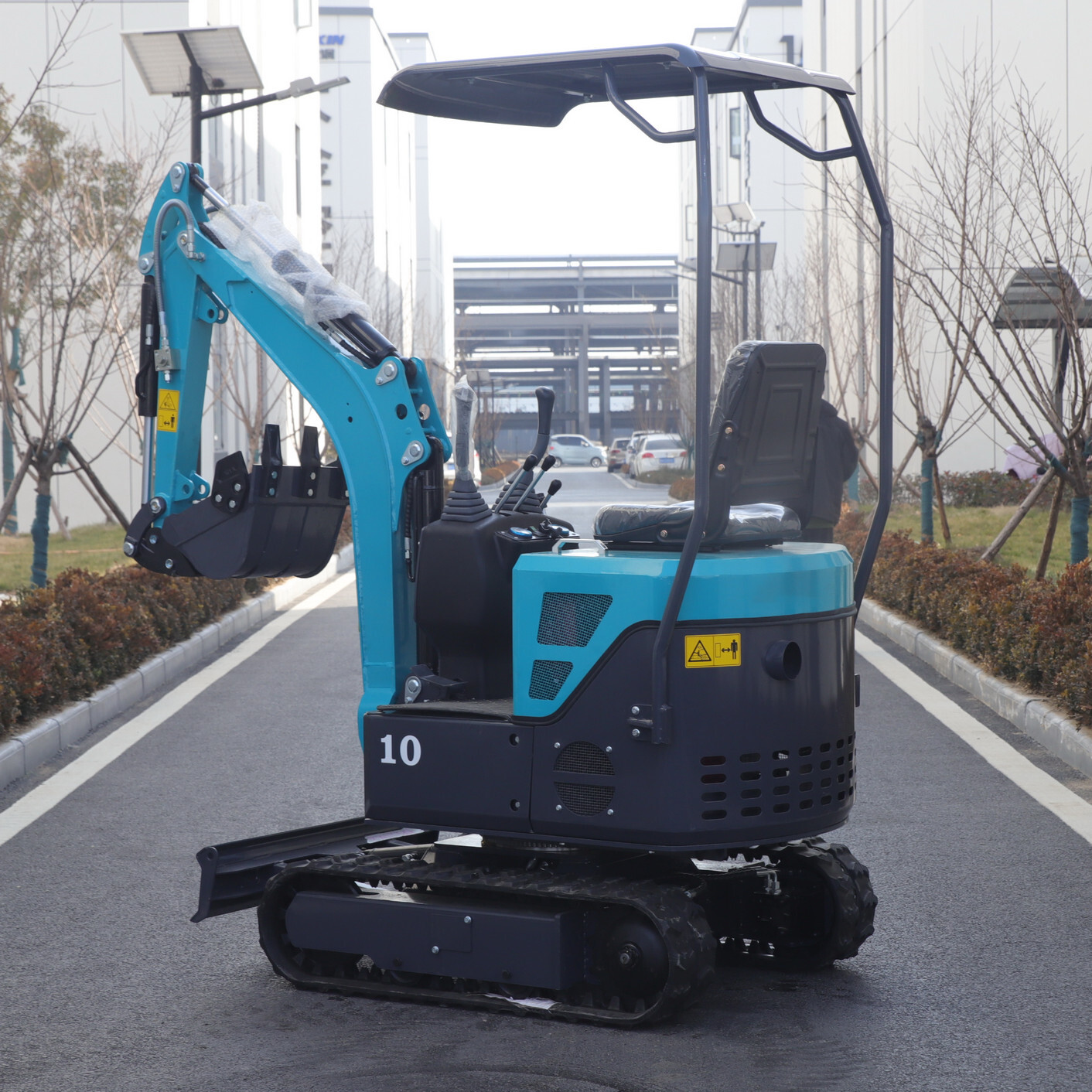

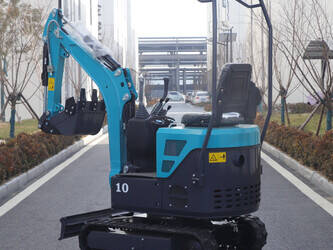

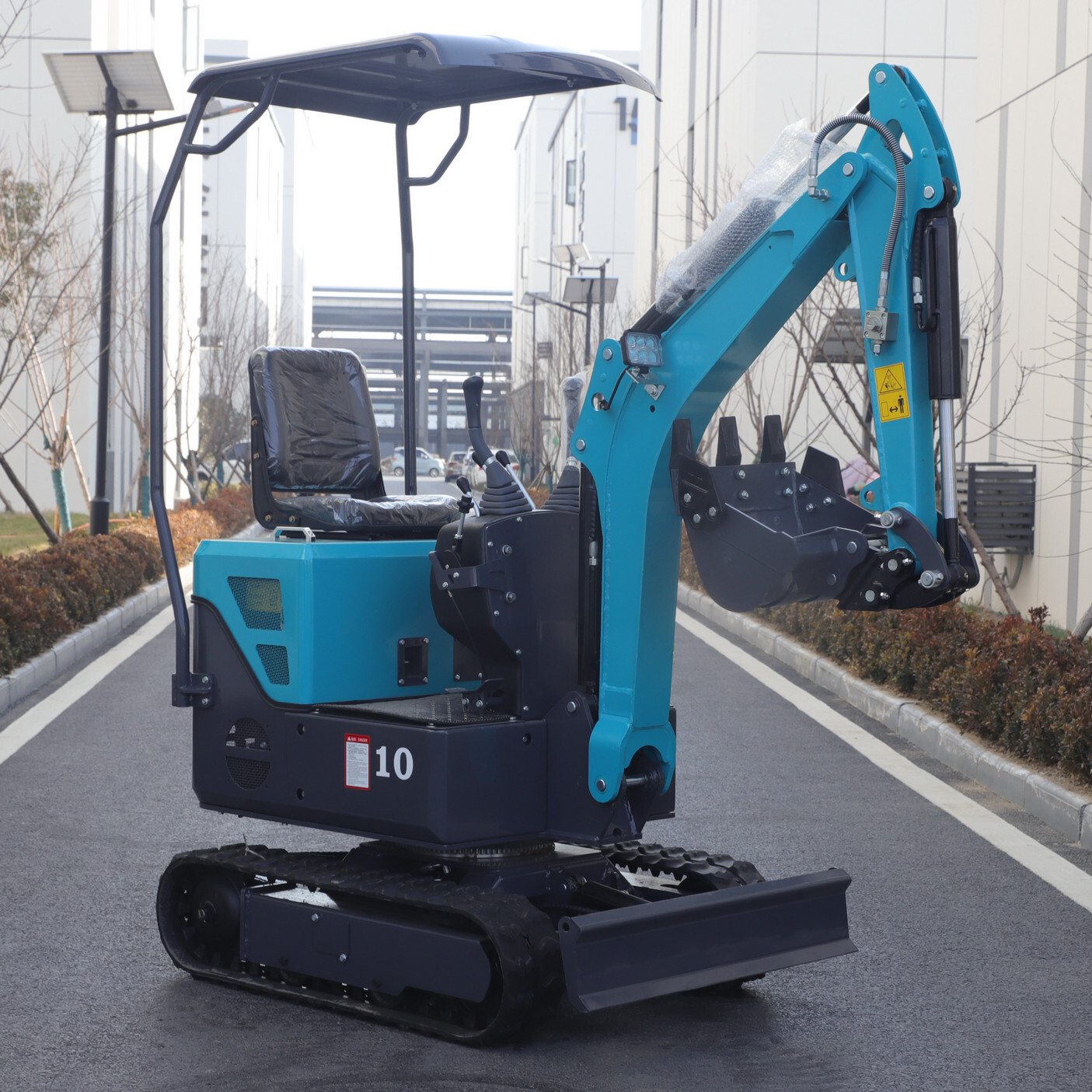

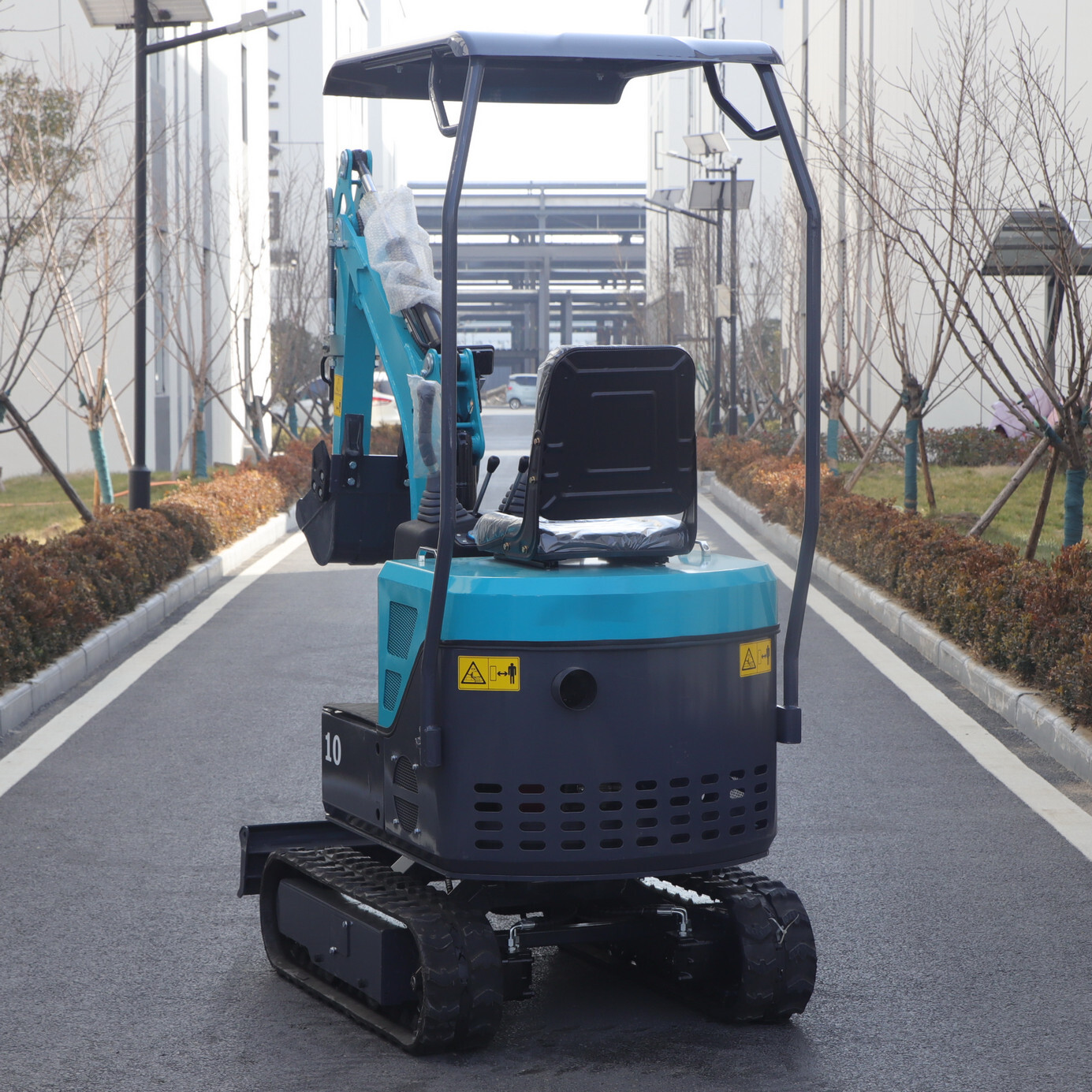

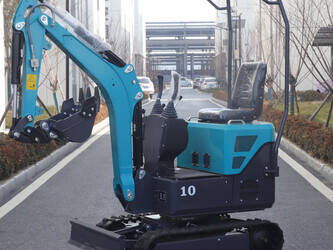

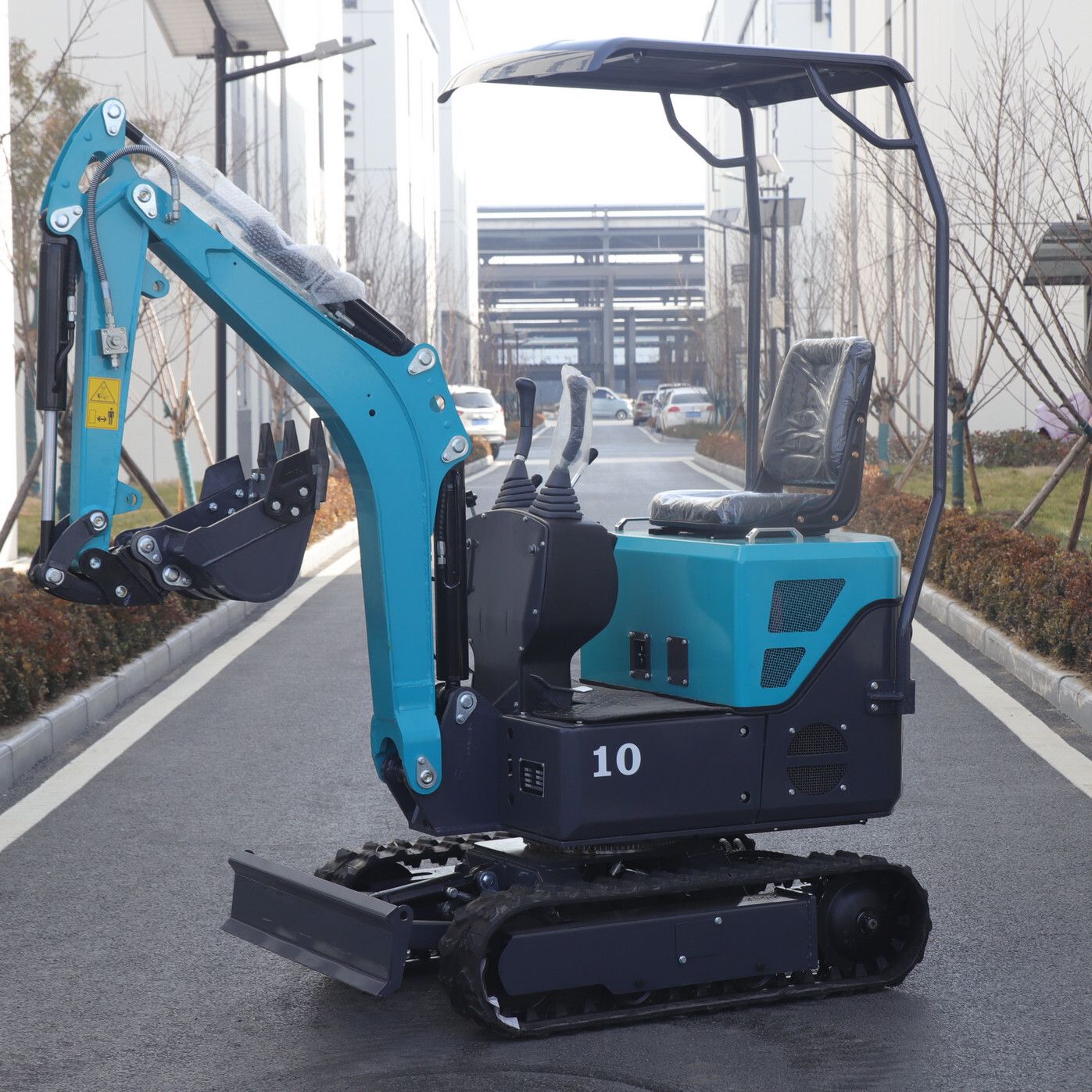

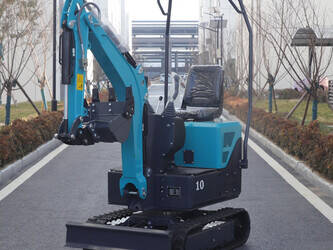

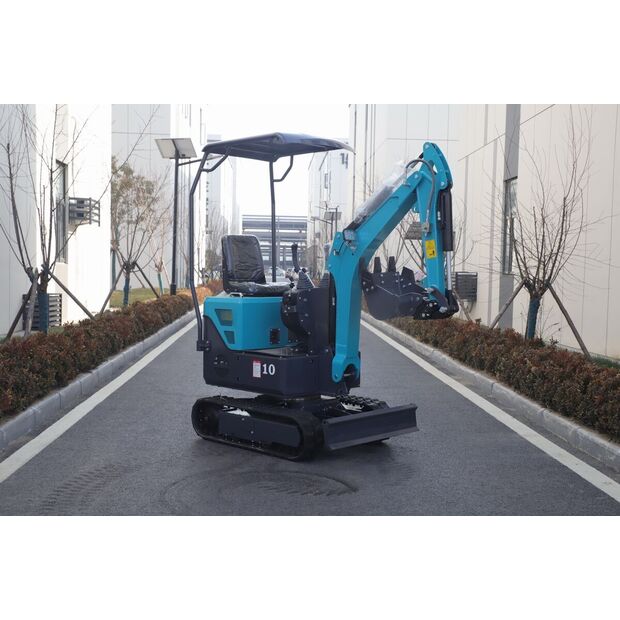

2026 Qingdao Promising TC10BD

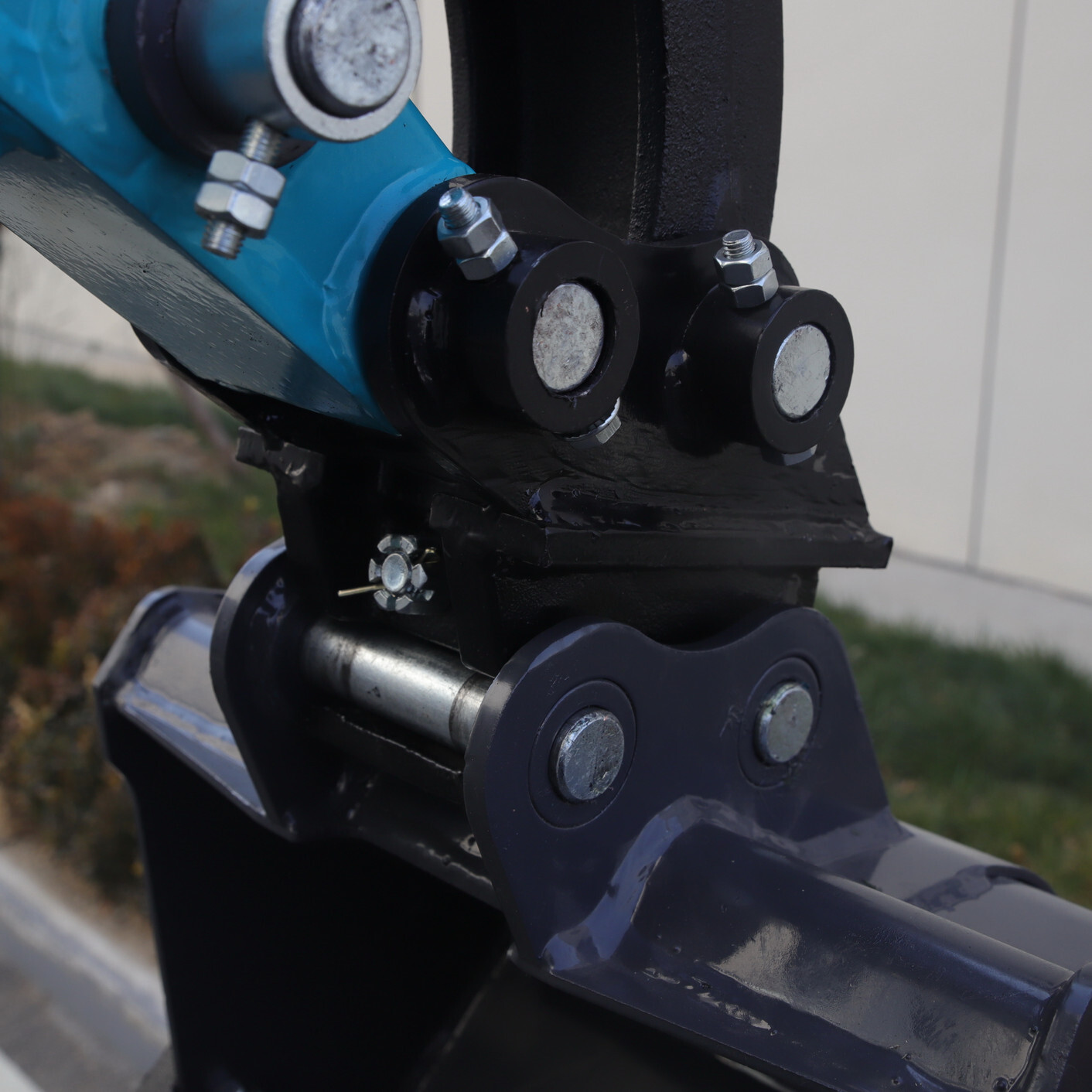

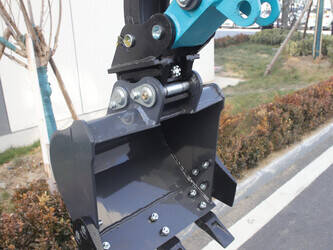

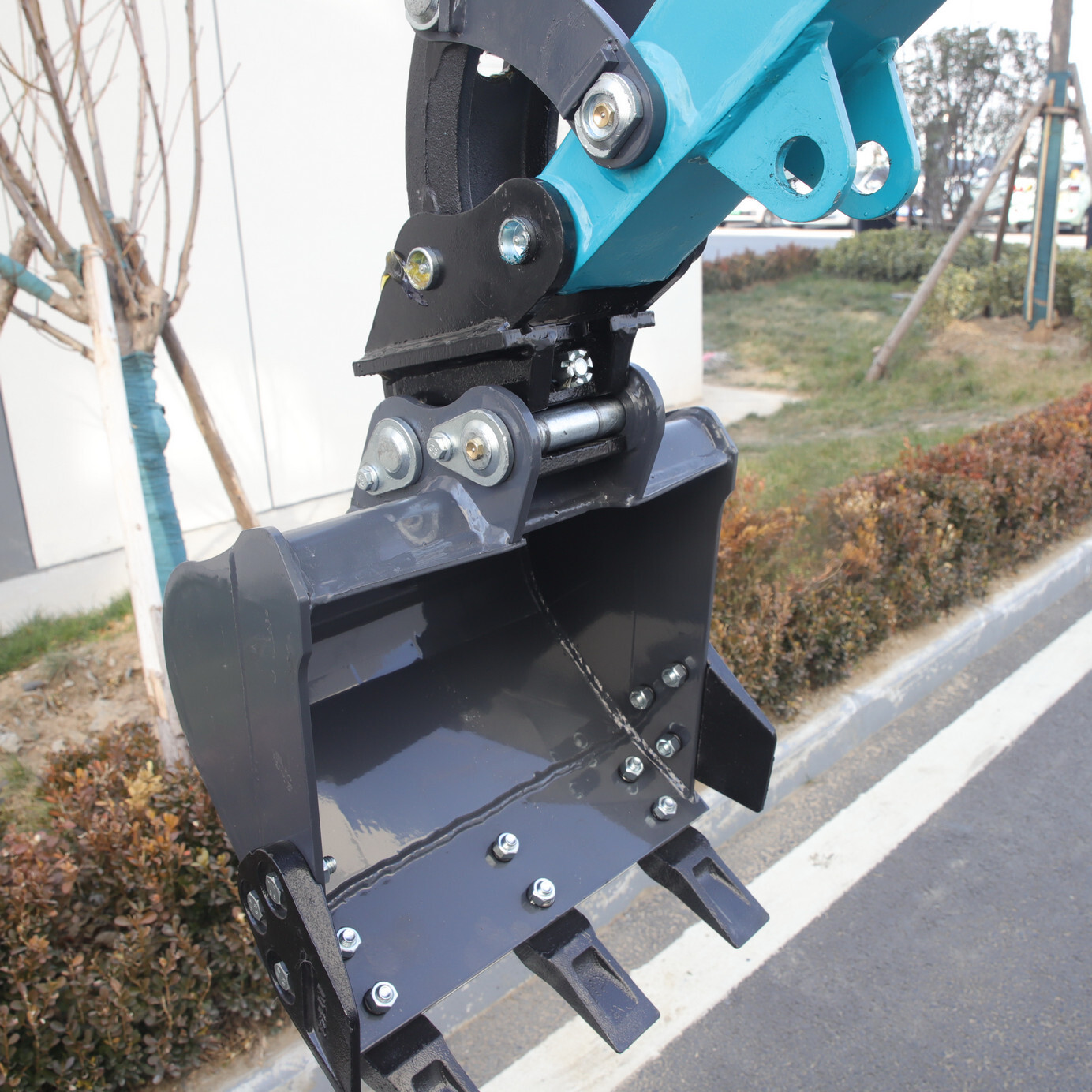

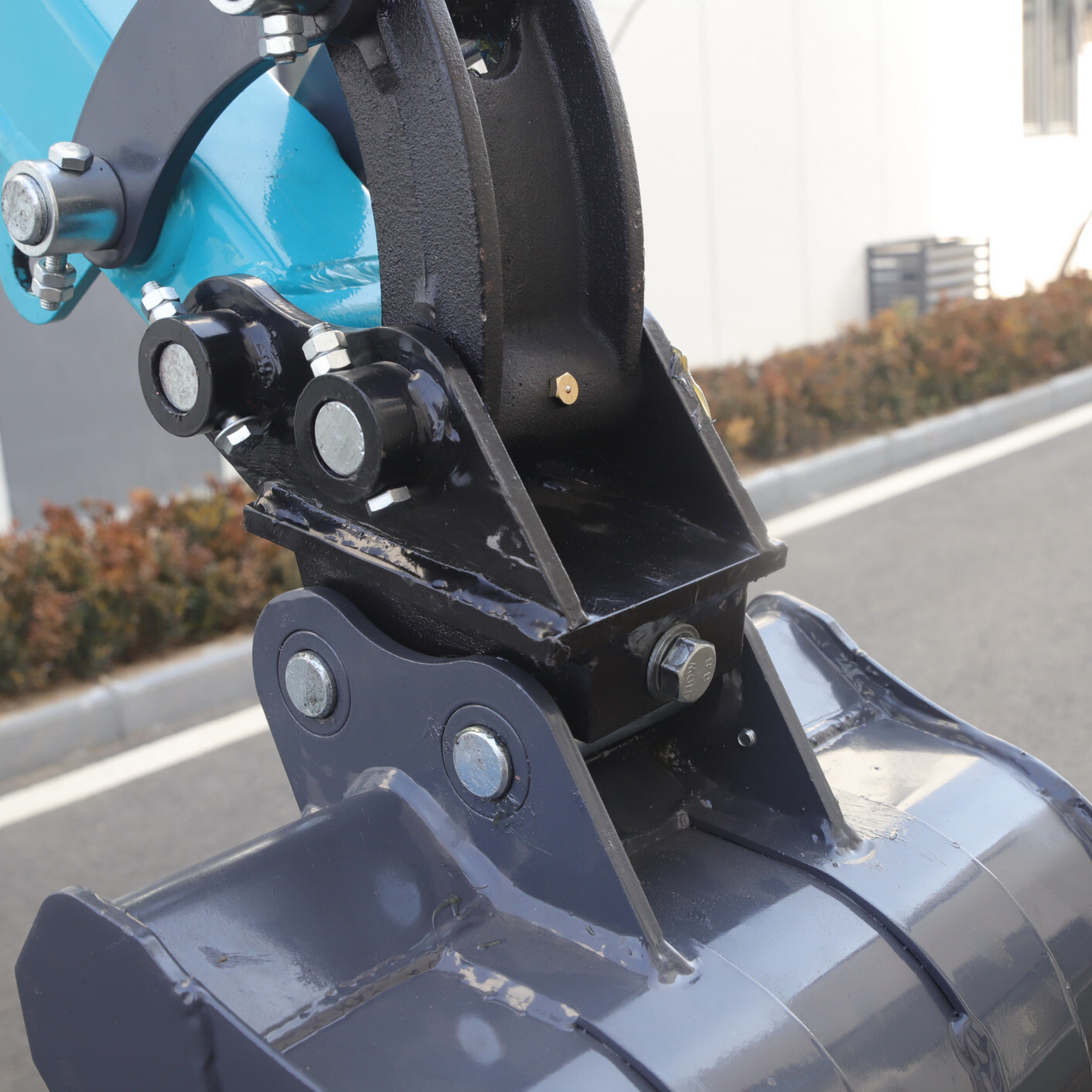

Application: It is used in various working environments such as gardens, farms, indoor demolition, road repair, concrete crushing, cable burial, water pipe laying, gardening, construction projects, etc. It has multiple functions such as digging, crushing, ditch clearing, drilling, and bulldozing. Feature: 1. The travel motor is enclosed inside to better protect the motor from damage and extend its service life. 2. The four-post ceiling is more stable and safer. 3. Constructed from high-quality, thickened steel and treated with a powder-coating process for rust and corrosion resistance. 4. The hydraulic cylinder is equipped with a cylinder guard to protect it from damage. 5. With 360-degree body rotation, its agile chassis brings convenience to outdoor operations. Main Technical Parameters: Spec: Rubber Track Weight: Gross Weight: 775 kg Engine: Type : Air-cooled Model: KOOP 192FA Rated Output Power/RPM:7.6 (10) 3000 kW (HP)/rpm Track: Track Size : 180*72*37 Track Width: 180 mm Bucket: Standard Bucket Capacity: 0.025m³ Standard Bucket Width: 400mm Working Performance: Max Digging Force (Bucket): 6 KN Max Digging Depth: 1735mm Max Vertical Digging Depth: 1580 mm Max Digging Height: 2700 mm Max Dumping Height: 1845 mm Max Digging Reach at Ground Level: 3060 mm Min Front Swing Radius mm 1295 Speed: Travel Speed: 1.8 Km/h Swing Speed: 9.5 rpm Hydraulic System: Pump Type: Plunger Pump Pump Flow: 30 L/min System Pressure: 18 MPa Fuel Tank Capacity: Diesel Tank: 5L Hydraulic Oil Tank: 14L Transport Dimensions: Overall Length × Overall Width × Overall Height: 2890*930*2190 mm Note: 1. Technical specifications are for standard model (without cabin) only. 2. Other optional parts & accessories and colors are available upon request. 3. All specifications and design characteristics are subject to change without prior notice. Mini Excavator, Mini Digger, Compact Excavator, Micro Excavator, Mini-Hoe, Mini-Ex, Mini Hoe, Mini Ex, Small Excavator, Track-hoe, Mini Excavators, Mini Diggers, Compact Excavators, Micro Excavators, Mini-Hoes, Mini-Ex’s, Mini Hoes, Mini Ex’s, Small Excavators, Track-hoes, Chinese Mini Excavator, Chinese Mini Digger, Chinese Compact Excavator, Chinese Micro Excavator, Chinese Mini-Hoe, Chinese Mini-Ex, Chinese Mini Hoe, Chinese Mini Ex, Chinese Small Excavator, Chinese Track-hoe, China Mini Excavator, China Mini Digger, China Compact Excavator, China Micro Excavator, China Mini-Hoe, China Mini-Ex, China Mini Hoe, China Mini Ex, China Small Excavator, China Track-hoe, Mini Excavator Made in China, Mini Digger Made in China, Compact Excavator Made in China, Micro Excavator Made in China, Mini-Hoe Made in China, Mini-Ex Made in China, Mini Hoe Made in China, Mini Ex Made in China, Small Excavator Made in China, Track-hoe Made in China, Mini Excavator from China, Mini Digger from China, Compact Excavator from China, Micro Excavator from China, Mini-Hoe from China, Mini-Ex from China, Mini Hoe from China, Mini Ex from China, Small Excavator from China, Track-hoe from China
