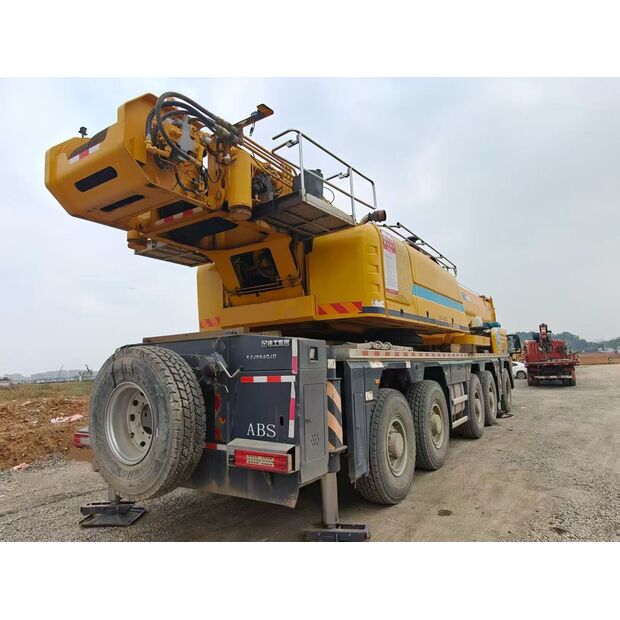

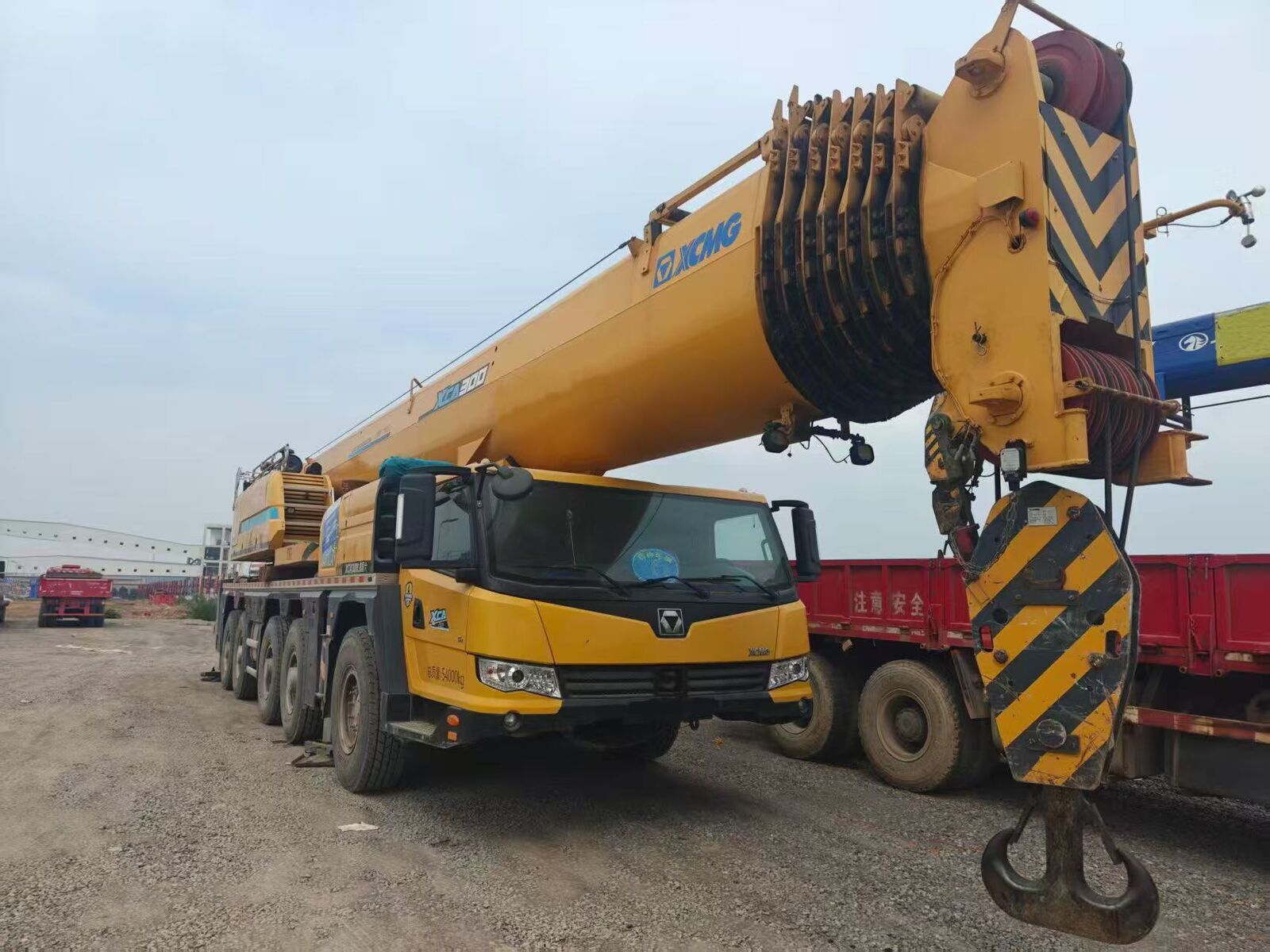

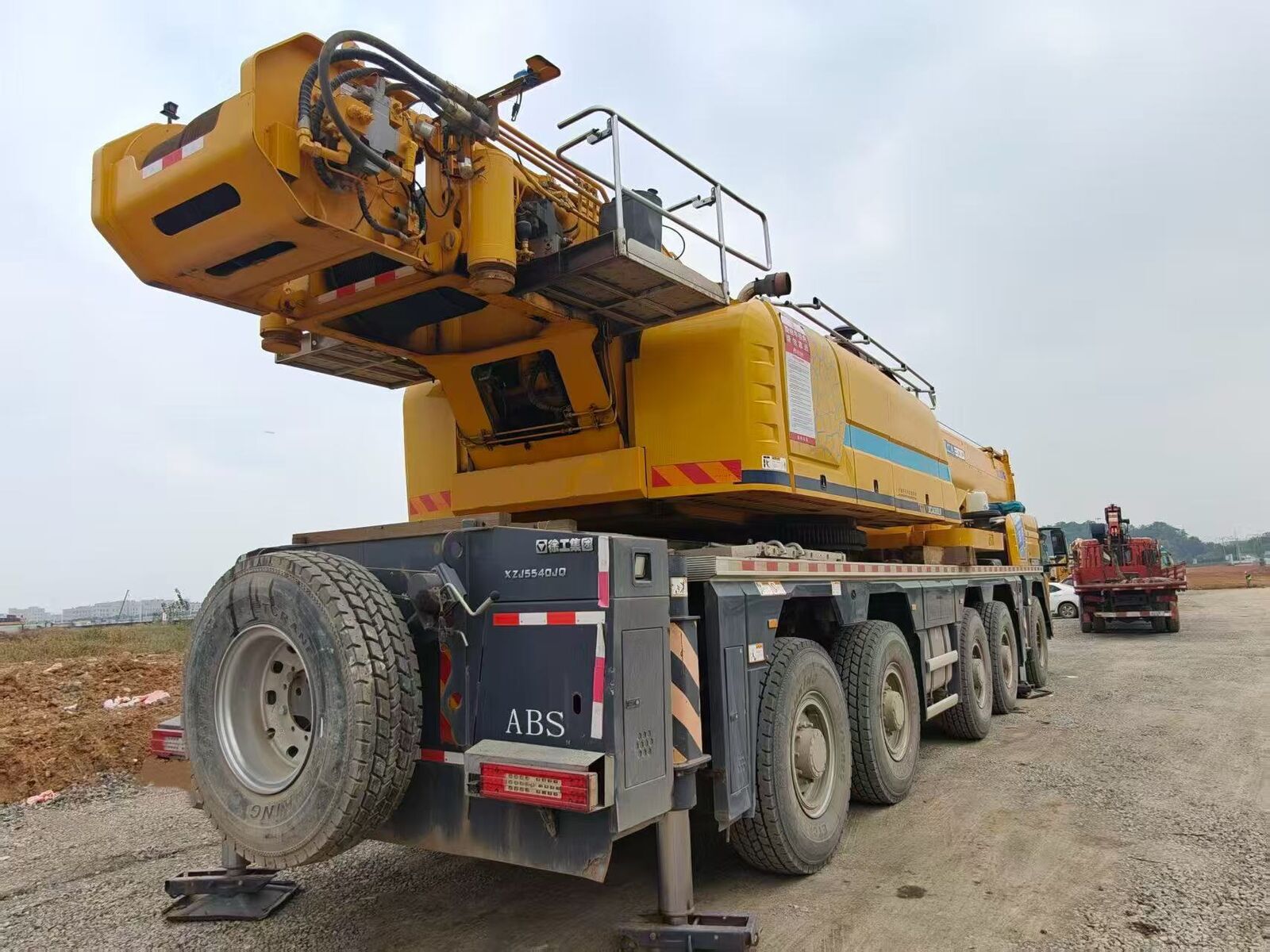

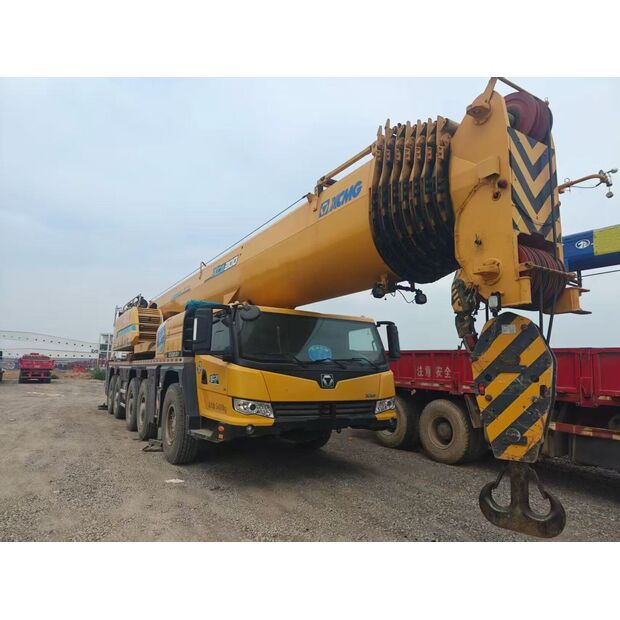

2022 XCMG XCA200L8
Year
2022
Condition
Used
1
/
3
Verified Seller
2022 XCMG XCA200L8
1
/
3
Overview
Description
XCMG XCA200L8
Speed: 8084
Vat: 17
EN: Xcmg all terrain crane 200Ton （XCA200L8） 1. Core Lifting Performance Maximum Rated Lifting Capacity: 200 t Maximum Lifting Moment (Basic Boom): 7800 kN·m Main Boom Configuration: 8-section high-strength steel U-shaped telescopic boom Main Boom Length Range: 13.7 m ~ 88 m (fully extended maximum main boom length: 88 m) Maximum Lifting Height (Main Boom Only): 88 m Maximum Lifting Height (Main + Auxiliary Boom): 115 m (with 36 m ultra-long auxiliary boom) Minimum Working Radius (Boom Radius): 3 m Maximum Working Radius (Fully Extended Main Boom): 70 m Auxiliary Boom Options: 20 m standard jib / 36 m ultra-long jib (supports 0°/20°/40° installation angles) Rated Capacity at End of Fully Extended Main Boom (Max Radius): 12 t Rated Capacity at Minimum Radius (3 m): 200 t 2. Hoisting & Operation System Main Hoist No-Load Lifting Speed: ≥130 m/min Main Hoist Full-Load Lifting Speed: ≥45 m/min Auxiliary Hoist Lifting Speed: ≥110 m/min (no-load) Slewing Speed Range: 0 ~ 1.5 r/min Main Boom Full Telescoping Time: ≤180 s Boom Luffing Time (Full Raise): ≤80 s Control System: Full hydraulic proportional control, intelligent load moment limiter (LML), CAN bus intelligent control system Outrigger Span (Full Extension): 9.0 m × 9.0 m Outrigger Span (Half Extension): 6.0 m × 7.8 m 3. Chassis & Travel Performance Chassis Configuration: 5-axle all-terrain chassis, 10×8×10 all-wheel drive, all-wheel steering Maximum Travel Speed: 80 ~ 84 km/h Maximum Gradeability: 65% Minimum Turning Radius: ≤12 m Minimum Ground Clearance: 350 mm Approach/Departure Angle: 20° / 18° Total Vehicle Mass (Transport State, with Partial Counterweight): 55,000 kg Axle Load (Transport State): 11,000 kg per axle (compliant with road transport regulations) Tire Specification: 445/95 R25 heavy-duty engineering tires 4. Counterweight & Structural System Maximum Counterweight: 76,000 kg (76 t) Counterweight Design: Modular self-assembly system, supports automatic loading/unloading without auxiliary cranes Counterweight Transport Configuration: Can carry 20 t counterweight for road transfer, meeting road load limits Overall Dimensions (Transport State): 15,800 mm (L) × 3,000 mm (W) × 4,000 mm (H) 5. Power System Chassis Engine: Weichai WP13.540E62 / Cummins X12 series, Euro VI / National VI emission standard Chassis Rated Power: 405 kW (540 HP) Superstructure Engine: Cummins QSB6.7 series, 176 kW (240 HP) Fuel Tank Capacity: 600 L (chassis) + 300 L (superstructure) Transmission: 12-speed automatic gearbox, multi-mode drive switching (4WD/8WD/10WD)
Ref No:UZ50432
XCMG XCA200L8Speed: 8084
Vat: 17
EN: Xcmg all terrain crane 200Ton （XCA200L8） 1. Core Lifting Performance Maximum Rated Lifting Capacity: 200 t Maximum Lifting Moment (Basic Boom): 7800 kN·m Main Boom Configuration: 8-section high-strength steel U-shaped telescopic boom Main Boom Length Range: 13.7 m ~ 88 m (fully extended maximum main boom length: 88 m) Maximum Lifting Height (Main Boom Only): 88 m Maximum Lifting Height (Main + Auxiliary Boom): 115 m (with 36 m ultra-long auxiliary boom) Minimum Working Radius (Boom Radius): 3 m Maximum Working Radius (Fully Extended Main Boom): 70 m Auxiliary Boom Options: 20 m standard jib / 36 m ultra-long jib (supports 0°/20°/40° installation angles) Rated Capacity at End of Fully Extended Main Boom (Max Radius): 12 t Rated Capacity at Minimum Radius (3 m): 200 t 2. Hoisting & Operation System Main Hoist No-Load Lifting Speed: ≥130 m/min Main Hoist Full-Load Lifting Speed: ≥45 m/min Auxiliary Hoist Lifting Speed: ≥110 m/min (no-load) Slewing Speed Range: 0 ~ 1.5 r/min Main Boom Full Telescoping Time: ≤180 s Boom Luffing Time (Full Raise): ≤80 s Control System: Full hydraulic proportional control, intelligent load moment limiter (LML), CAN bus intelligent control system Outrigger Span (Full Extension): 9.0 m × 9.0 m Outrigger Span (Half Extension): 6.0 m × 7.8 m 3. Chassis & Travel Performance Chassis Configuration: 5-axle all-terrain chassis, 10×8×10 all-wheel drive, all-wheel steering Maximum Travel Speed: 80 ~ 84 km/h Maximum Gradeability: 65% Minimum Turning Radius: ≤12 m Minimum Ground Clearance: 350 mm Approach/Departure Angle: 20° / 18° Total Vehicle Mass (Transport State, with Partial Counterweight): 55,000 kg Axle Load (Transport State): 11,000 kg per axle (compliant with road transport regulations) Tire Specification: 445/95 R25 heavy-duty engineering tires 4. Counterweight & Structural System Maximum Counterweight: 76,000 kg (76 t) Counterweight Design: Modular self-assembly system, supports automatic loading/unloading without auxiliary cranes Counterweight Transport Configuration: Can carry 20 t counterweight for road transfer, meeting road load limits Overall Dimensions (Transport State): 15,800 mm (L) × 3,000 mm (W) × 4,000 mm (H) 5. Power System Chassis Engine: Weichai WP13.540E62 / Cummins X12 series, Euro VI / National VI emission standard Chassis Rated Power: 405 kW (540 HP) Superstructure Engine: Cummins QSB6.7 series, 176 kW (240 HP) Fuel Tank Capacity: 600 L (chassis) + 300 L (superstructure) Transmission: 12-speed automatic gearbox, multi-mode drive switching (4WD/8WD/10WD)
Ref No:UZ50432
Speed: 8084
Vat: 17
EN: Xcmg all terrain crane 200Ton （XCA200L8） 1. Core Lifting Performance Maximum Rated Lifting Capacity: 200 t Maximum Lifting Moment (Basic Boom): 7800 kN·m Main Boom Configuration: 8-section high-strength steel U-shaped telescopic boom Main Boom Length Range: 13.7 m ~ 88 m (fully extended maximum main boom length: 88 m) Maximum Lifting Height (Main Boom Only): 88 m Maximum Lifting Height (Main + Auxiliary Boom): 115 m (with 36 m ultra-long auxiliary boom) Minimum Working Radius (Boom Radius): 3 m Maximum Working Radius (Fully Extended Main Boom): 70 m Auxiliary Boom Options: 20 m standard jib / 36 m ultra-long jib (supports 0°/20°/40° installation angles) Rated Capacity at End of Fully Extended Main Boom (Max Radius): 12 t Rated Capacity at Minimum Radius (3 m): 200 t 2. Hoisting & Operation System Main Hoist No-Load Lifting Speed: ≥130 m/min Main Hoist Full-Load Lifting Speed: ≥45 m/min Auxiliary Hoist Lifting Speed: ≥110 m/min (no-load) Slewing Speed Range: 0 ~ 1.5 r/min Main Boom Full Telescoping Time: ≤180 s Boom Luffing Time (Full Raise): ≤80 s Control System: Full hydraulic proportional control, intelligent load moment limiter (LML), CAN bus intelligent control system Outrigger Span (Full Extension): 9.0 m × 9.0 m Outrigger Span (Half Extension): 6.0 m × 7.8 m 3. Chassis & Travel Performance Chassis Configuration: 5-axle all-terrain chassis, 10×8×10 all-wheel drive, all-wheel steering Maximum Travel Speed: 80 ~ 84 km/h Maximum Gradeability: 65% Minimum Turning Radius: ≤12 m Minimum Ground Clearance: 350 mm Approach/Departure Angle: 20° / 18° Total Vehicle Mass (Transport State, with Partial Counterweight): 55,000 kg Axle Load (Transport State): 11,000 kg per axle (compliant with road transport regulations) Tire Specification: 445/95 R25 heavy-duty engineering tires 4. Counterweight & Structural System Maximum Counterweight: 76,000 kg (76 t) Counterweight Design: Modular self-assembly system, supports automatic loading/unloading without auxiliary cranes Counterweight Transport Configuration: Can carry 20 t counterweight for road transfer, meeting road load limits Overall Dimensions (Transport State): 15,800 mm (L) × 3,000 mm (W) × 4,000 mm (H) 5. Power System Chassis Engine: Weichai WP13.540E62 / Cummins X12 series, Euro VI / National VI emission standard Chassis Rated Power: 405 kW (540 HP) Superstructure Engine: Cummins QSB6.7 series, 176 kW (240 HP) Fuel Tank Capacity: 600 L (chassis) + 300 L (superstructure) Transmission: 12-speed automatic gearbox, multi-mode drive switching (4WD/8WD/10WD)
Ref No:UZ50432
Show more Show less
