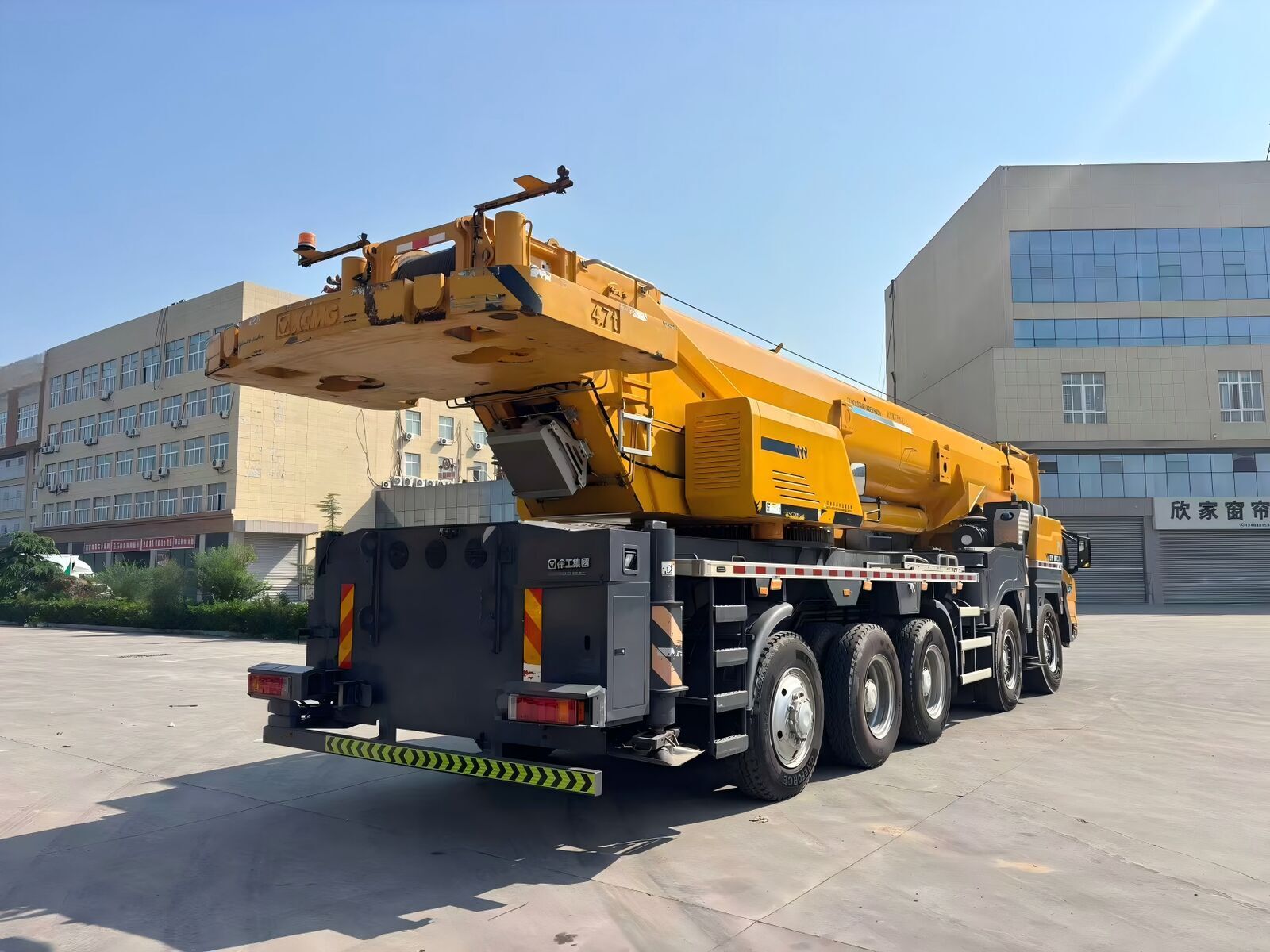

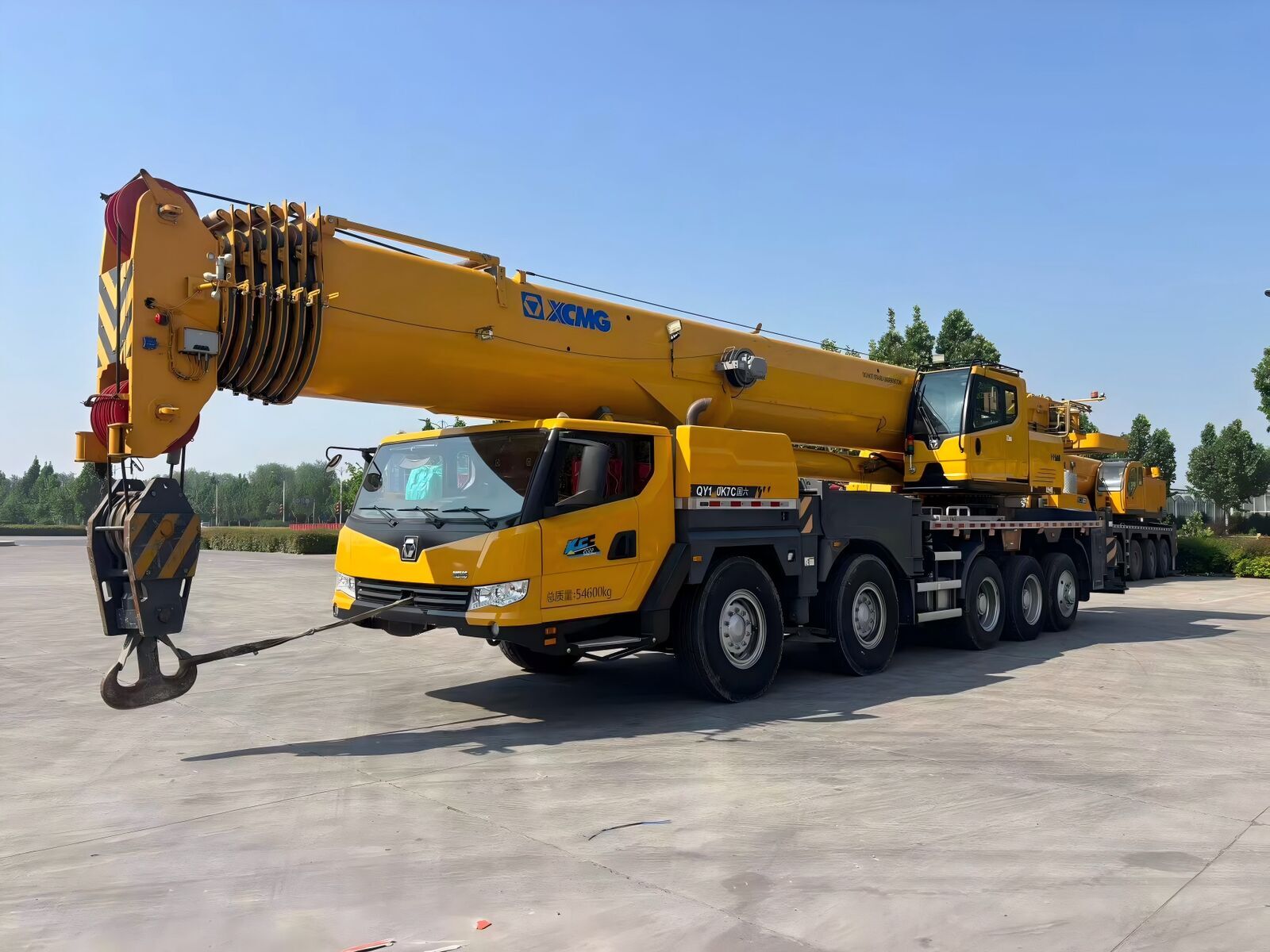

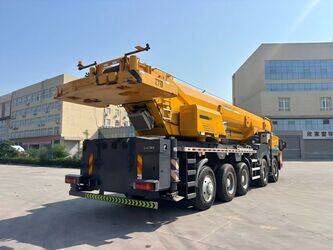

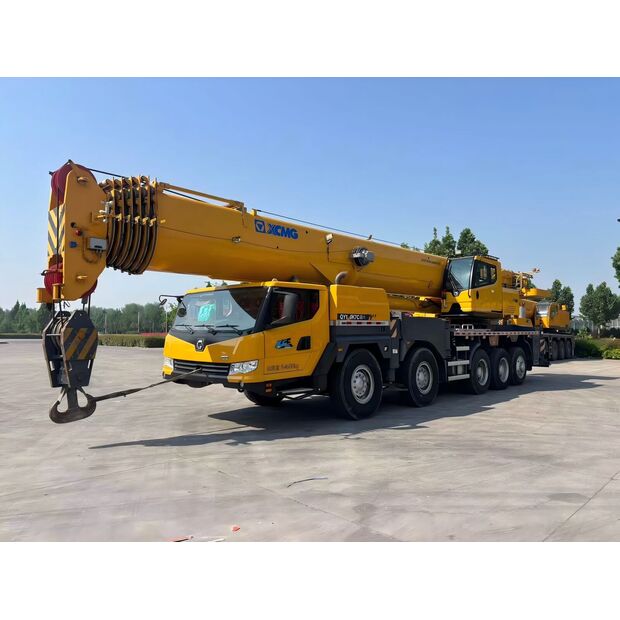

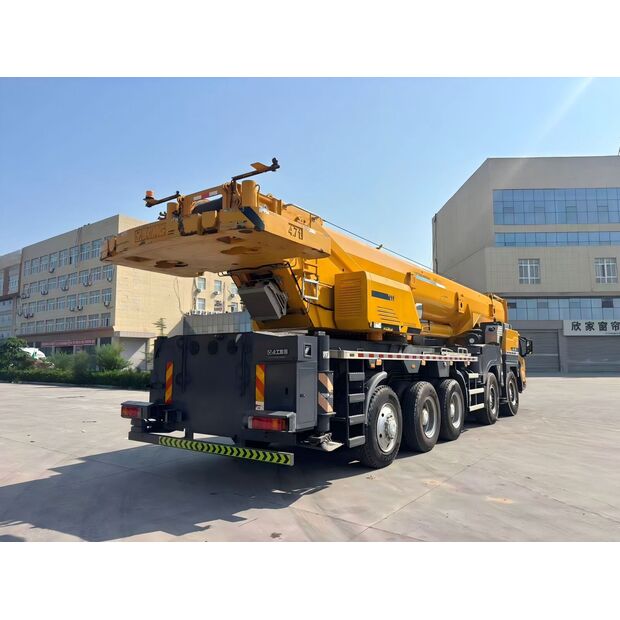

2022 XCMG QY100K7C
Overview
Report Ad
Safety Tips
Description
XCMG QY100K7C
Speed: 80
Vat: 17
Axle number: 5
Overall height: 3.96
Overall length: 16.225
Overall width: 3

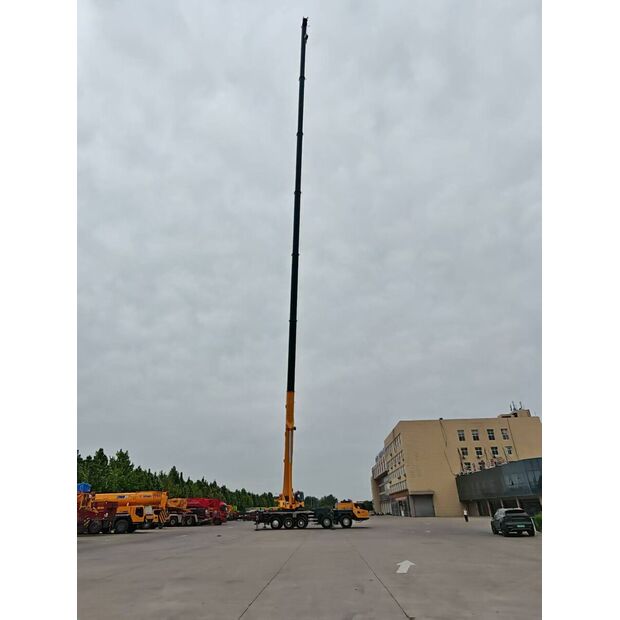

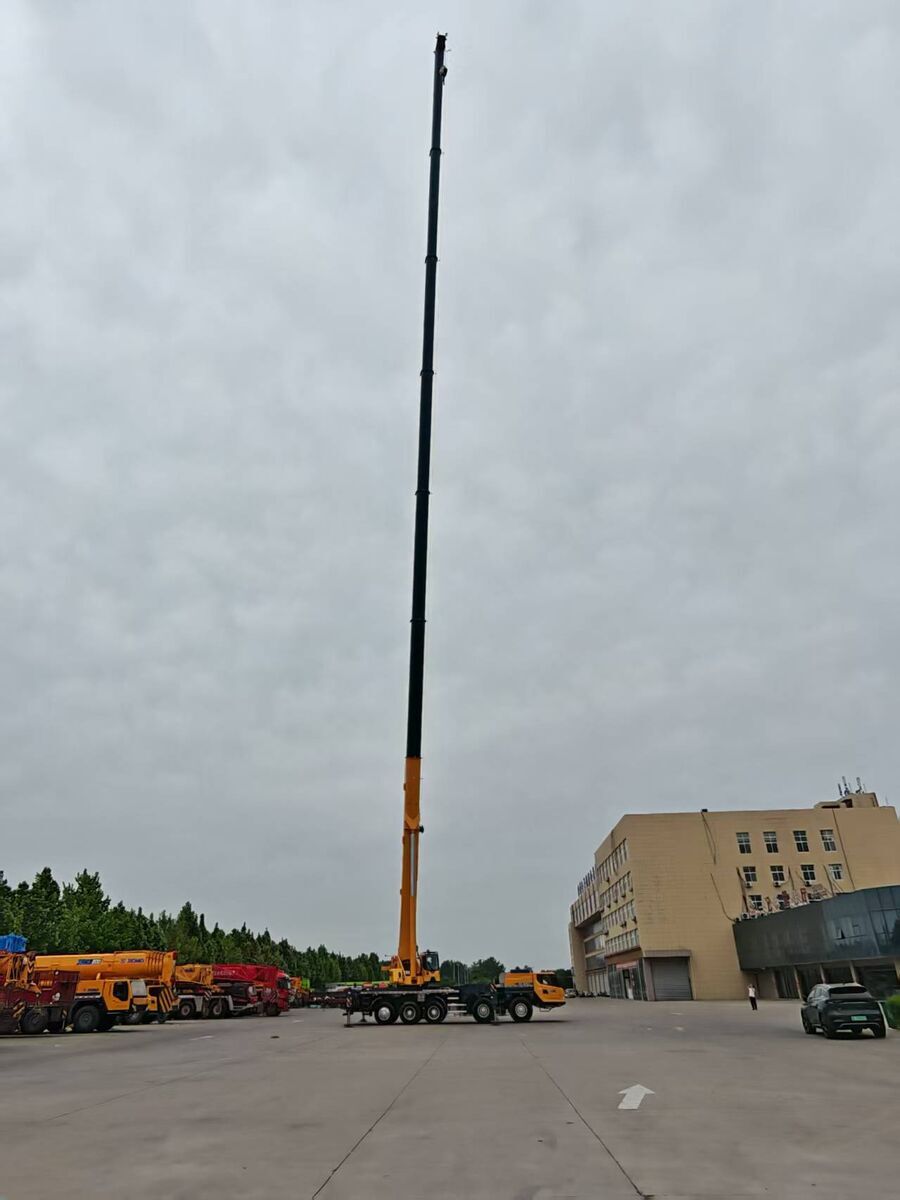

EN: XCMG Mobile crane 100T（QY100K7C） All-terrain crane Year of manufacture:2022 Main boom：75M Jib length：27.5M Counterweight：39T 1. Basic Parameters Model: QY100K7C Max. Rated Lifting Capacity: 100 t Min. Rated Working Radius: 3 m Max. Lifting Torque (Base Boom): 4025 kN·m 2. Boom & Jib System Main Boom (Sections): 7-section, 14.1 m – 76 m3. Max. Lifting Height (Main Boom): 76 m Max. Lifting Height (Main Boom + Jib): 102.5 m Jib Length: 18.1 m + 4 m 3. Chassis & Dimensions Chassis Type: 5-axle, full rectangular frame Overall Length: 16225 mm Overall Width: 3000 mm Overall Height: 3960 mm Wheelbase: 2200 + 2922 + 1420 + 1505 mm Track Width: Axles 1, 2: 2562 mm Axles 3, 4: 2268 mm Axle 5: 2468 mm Total Weight (Travel Mode): 54600 kg 4. Outriggers Longitudinal Span: 8.59 m (8.03 m) Lateral Span (Fully Extended): 8.1 m 5. Power System Engine Model: WP10.5H430E62 (China VI) Rated Power: 316 kW @ 1900 rpm Rated Torque: 2000 N·m @ 1000–1400 rpm 6. Travel Performance Max. Travel Speed: ≥80 km/h Min. Turning Diameter: ≤23 m Max. Gradeability: 45% Min. Ground Clearance: 310 mm Braking Distance (30 km/h): ≤10 m 7. Working Speeds Max. Slewing Speed: ≥1.5 r/min Main Hoisting Speed: ≥130 m/min Aux. Hoisting Speed: ≥90 m/min
Ref No:AW50775
