2022 Hinowa LL20.10IIIS

Maximum lift capacity: 230.00
Transport dimensions (LxWxH): 5.01x0.8x1.99
Front tyres remaining: 0
Rear tyres remaining : 0
Internal stock no.: HINOWA - LL20.10IIIS - 30141
Gross Weight: 2840.00
Tyre brand: -
VAT: 0.00
Power type: Gas/Petrol
Working height: 2015.00
Max horizontal reach: 970.00
Other information:
Manufacturer: Hinowa
Typ: LL20.10MK
Building year: 2022
Fuel: Gasoline
Serial number: 3R020

Max. Working height: 20.15m
Max. Horizontal working outreach: 9.70m
Capacity platform: 230kg

Standard basket dimensions: 1335x690x1100mm
Basket rotation: 124°(+/-62°)
Maximum stabilisation angle: 15°
Max slope allowedin travel mode: 16°/28,7%
Total weight : 2.840 kg

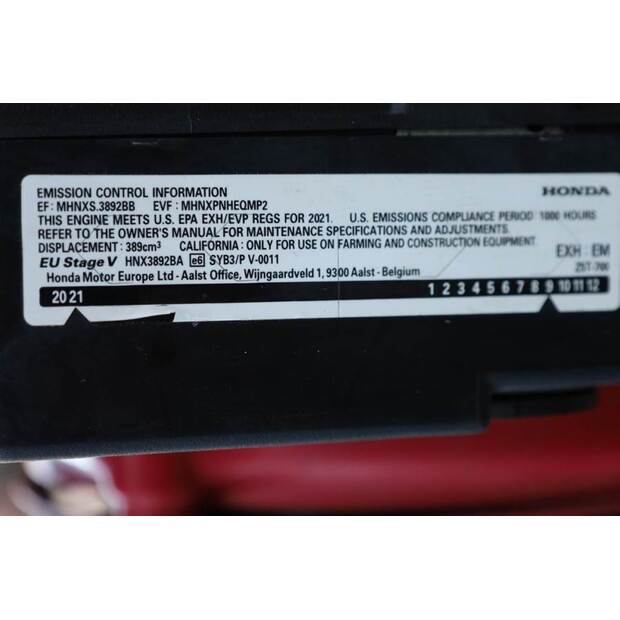

Petrol engine: HONDA iGX390
Max. Travel speed - petrol version: 0.4 - 1.0 - 1.95 Km/h

Undercarriage width open/close: 795 - 1095mm
Stabilization area: 2922 x 2925mm

* CE (Declaration of Conformity)

More detailed pictures / product movie on our website.

pfeifermachinery.com

Above specifications are subject to change without prior notice and subject to errors.
