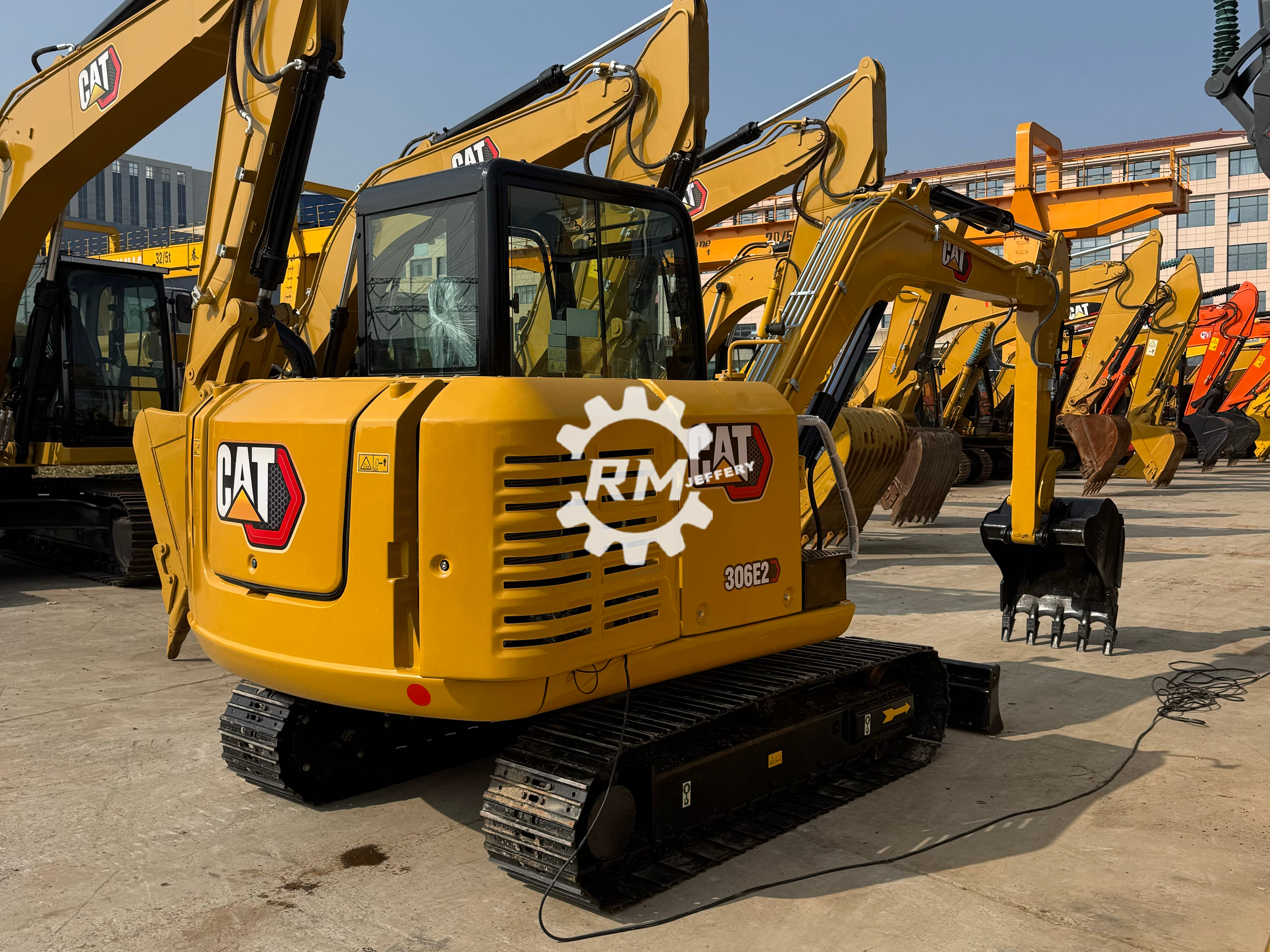

2018 Caterpillar 306E2

The main parameters of Caterpillar 306E2 small hydraulic crawler excavator are as follows: 1. Engine Model: Cat ® C2.4 (DI Turbo) turbocharged engine Rated power: 34.7 kW (approximately 47.2 hp), compliant with SAE J1349/ISO 9249 standard; 36.5 kW under ISO 14396 standard Displacement: 2.4 liters Cylinder diameter x stroke: 87 mm x 102.4 mm 2. Overall dimensions and weight Work quality: 5800 kg Transportation dimensions (length x width x height): 5785 x 1950 x 2540 mm Track parameters Width: 400 mm Grounding length: 1920 mm Track gauge: 1550 mm Rear turning radius: 1580-1690 mm (different configurations) 3. Hydraulic system Maximum pressure of the main system: 25000 kPa Maximum pressure of the rotary system: 21600 kPa Fuel tank capacity Fuel tank: 78 liters Hydraulic oil tank: 58 L 4. Operational performance Driving speed: dual speed design, low speed 2.8 km/h, high speed 4.3 km/h Traction force: 46.4 kN Climbing ability: ≥ 50% Ground pressure ratio: 33.8 kPa 5. Scope of homework Maximum excavation depth: 3870 mm Maximum excavation radius: 6090-6140mm (different configurations) Maximum unloading height: 3900-3960 mm 6. Other configurations Bucket capacity: standard 0.25 m ³ Cab: Ergonomically designed 477-4 model Chassis system: Steel tracks, equipped with push shovel floating function to improve leveling efficiency
