2015 Caterpillar 323D
Price
AED
69,047
$
18,800
€
17,570
£
14,601
رس
70,518
Year
2015
Condition
Used
1
of
8

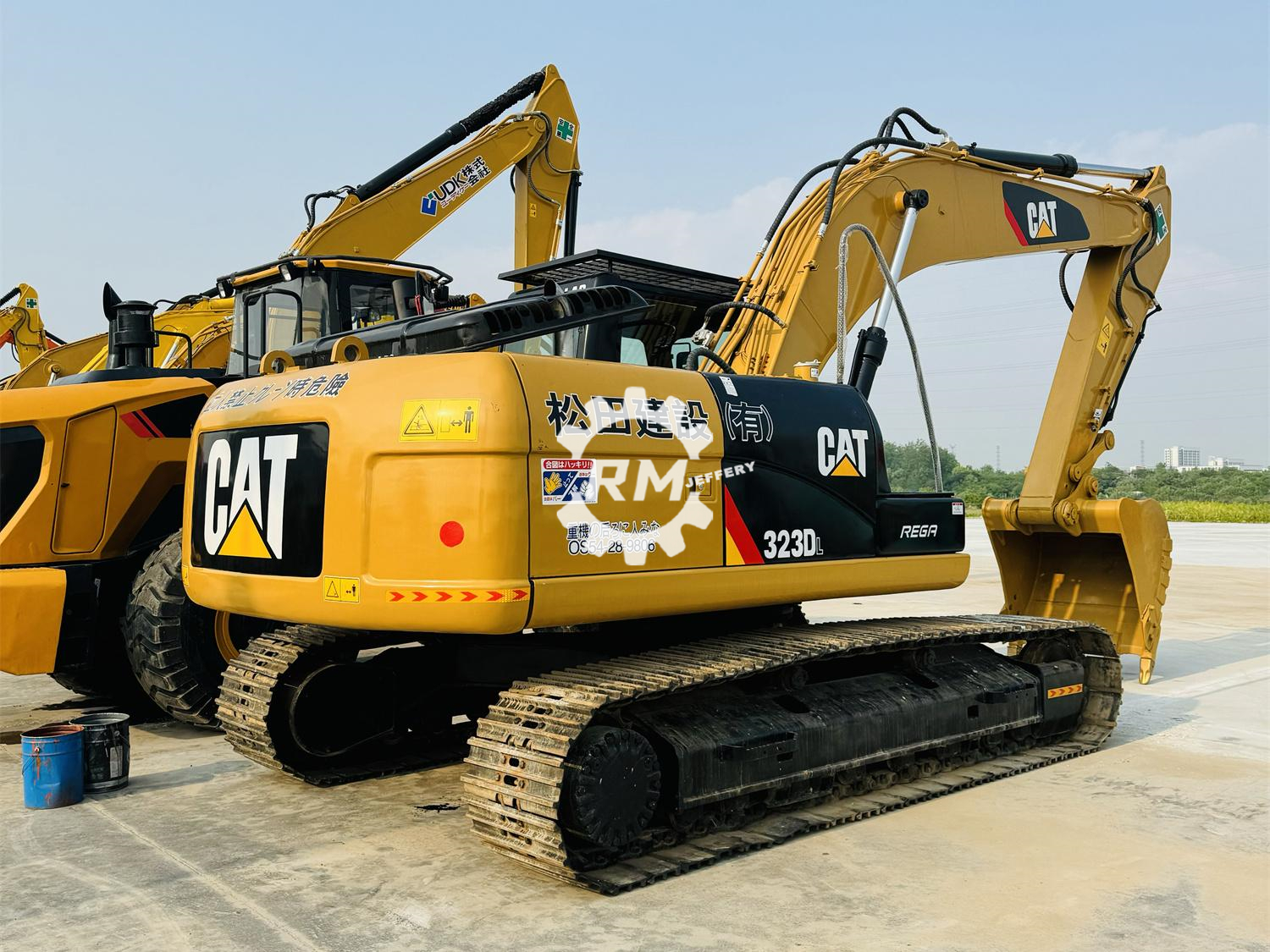

2015 Caterpillar 323D
1
of
8
Overview
Price
AED
69,047
$
18,800
€
17,570
£
14,601
رس
70,518
Category
Make
Model
Year
2015
Description
Basic specifications.
Working weight of the whole machine: about 23 tons (some data shows 23300kg).
Bucket capacity: The standard configuration is 1.2 cubic meters.
Arm length: 5700 millimeters.
Rod length: 2900 millimeters.
Power system.
Equipped with a Cat C6.4 ACERT engine, with a rated power of 110 kW (150 horsepower) and a speed of 2000 rpm.
The displacement is 6.4 liters, the number of cylinders is 6, and the cylinder diameter x stroke is 102 x 130 millimeters.
Hydraulic system.
Maximum flow rate of the main pump: 205 liters per minute.
Main overflow set pressure: 3.5 megapascals (MPa).
The pressure of both the walking hydraulic circuit and the turning hydraulic circuit is 3.5 MPa.
Homework performance.
Rotation speed: 11.5 revolutions per minute.
Walking speed: 3.5 kilometers per hour at low speed and 5.7 kilometers per hour at high speed.
Climbing ability: 70% (35 ° slope).
Grounding voltage ratio: not clearly indicated.
Scope of homework.
Maximum excavation depth: about 6.7 meters (6.38 meters at a horizontal level of 2.5 meters).
Maximum unloading height: approximately 6.5 meters.
Basic specifications.
Working weight of the whole machine: about 23 tons (some data shows 23300kg).
Bucket capacity: The standard configuration is 1.2 cubic meters.
Arm length: 5700 millimeters.
Rod length: 2900 millimeters.
Power system.
Equipped with a Cat C6.4 ACERT engine, with a rated power of 110 kW (150 horsepower) and a speed of 2000 rpm.
The displacement is 6.4 liters, the number of cylinders is 6, and the cylinder diameter x stroke is 102 x 130 millimeters.
Hydraulic system.
Maximum flow rate of the main pump: 205 liters per minute.
Main overflow set pressure: 3.5 megapascals (MPa).
The pressure of both the walking hydraulic circuit and the turning hydraulic circuit is 3.5 MPa.
Homework performance.
Rotation speed: 11.5 revolutions per minute.
Walking speed: 3.5 kilometers per hour at low speed and 5.7 kilometers per hour at high speed.
Climbing ability: 70% (35 ° slope).
Grounding voltage ratio: not clearly indicated.
Scope of homework.
Maximum excavation depth: about 6.7 meters (6.38 meters at a horizontal level of 2.5 meters).
Maximum unloading height: approximately 6.5 meters.
Working weight of the whole machine: about 23 tons (some data shows 23300kg).
Bucket capacity: The standard configuration is 1.2 cubic meters.
Arm length: 5700 millimeters.
Rod length: 2900 millimeters.
Power system.
Equipped with a Cat C6.4 ACERT engine, with a rated power of 110 kW (150 horsepower) and a speed of 2000 rpm.
The displacement is 6.4 liters, the number of cylinders is 6, and the cylinder diameter x stroke is 102 x 130 millimeters.
Hydraulic system.
Maximum flow rate of the main pump: 205 liters per minute.
Main overflow set pressure: 3.5 megapascals (MPa).
The pressure of both the walking hydraulic circuit and the turning hydraulic circuit is 3.5 MPa.
Homework performance.
Rotation speed: 11.5 revolutions per minute.
Walking speed: 3.5 kilometers per hour at low speed and 5.7 kilometers per hour at high speed.
Climbing ability: 70% (35 ° slope).
Grounding voltage ratio: not clearly indicated.
Scope of homework.
Maximum excavation depth: about 6.7 meters (6.38 meters at a horizontal level of 2.5 meters).
Maximum unloading height: approximately 6.5 meters.
Show more Show less
