اكس سي ام جي XR280D
اكس سي ام جي XR280D
حالة المعدة
مستعملة
١
من
٨
اكس سي ام جي XR280D
١
من
٨
نظرة عامة
الوصف

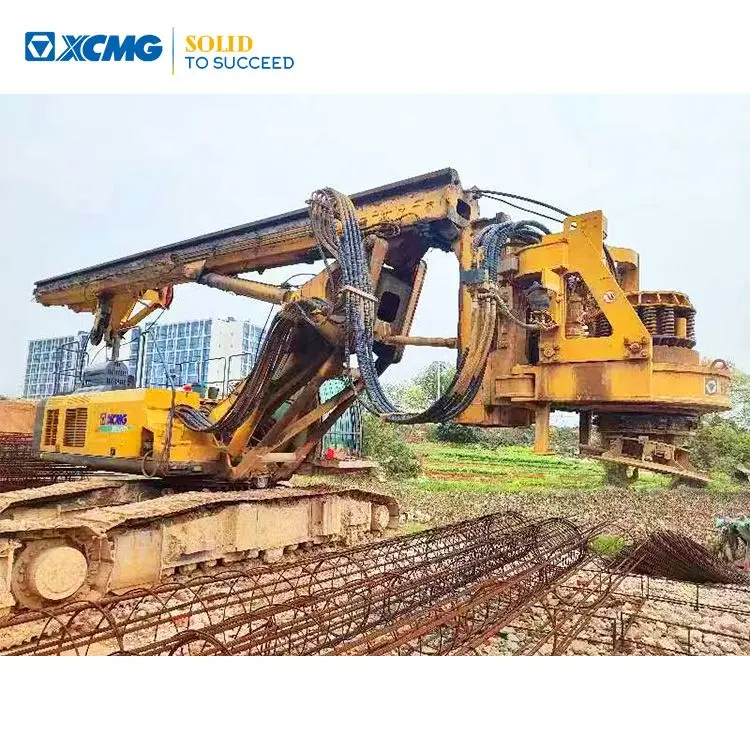

XCMG Used Rotary Drilling Rig XR280D Drill Rig For Sale
weight: 96000.000kg
Area: Sichuan Province
Brand: XCMG
Model: XR280D
Type: Rotary drill
Working_condition: other
YEAR: 2020
Work Hours: 7000 H
: 7 days for ready goods
: 1 Piece
: Any Port In China
TypeUnitParameter
Max. drilling diameterm2.5
Max. drilling depthm94
EngineModel/TAD1352VE
PowerkW315
Rotary driveMax. output torquekN.m300
Rotary speedr/min6-27
Crowd cylinderMax. pull-down piston pushkN260
Max. pull-down piston pullkN330
Max. pull-down piston strokem6
Crowd winchMax. pull-down piston pushkN330
Max. pull-down piston pullkN330
Max. pull-down piston strokem13
Main winchMax. pulling forcekN330
Max. speedm/min75
Auxiliary winchMax. pulling forcekN100
Max. speedm/min41
Mast inclinationLateral/ forwards/ backwards°±4/5/15
UndercarrigeMax. traveling speedkm/h1.5
Max. grade ability%35
Min. clearancemm445
Track shoe widthmm800
Distance between tracksmm3500-4800
Hydraulic systemWorking pressureMPa33
Overall weightMax. traveling speed of the overall unitt106
DimensionWorking conditionmm10825*4800*25200
Transportation conditionmm19750*3500*3790
XCMG Used Rotary Drilling Rig XR280D Drill Rig For Saleweight: 96000.000kg
Area: Sichuan Province
Brand: XCMG
Model: XR280D
Type: Rotary drill
Working_condition: other
YEAR: 2020
Work Hours: 7000 H
: 7 days for ready goods
: 1 Piece
: Any Port In China
TypeUnitParameter
Max. drilling diameterm2.5
Max. drilling depthm94
EngineModel/TAD1352VE
PowerkW315
Rotary driveMax. output torquekN.m300
Rotary speedr/min6-27
Crowd cylinderMax. pull-down piston pushkN260
Max. pull-down piston pullkN330
Max. pull-down piston strokem6
Crowd winchMax. pull-down piston pushkN330
Max. pull-down piston pullkN330
Max. pull-down piston strokem13
Main winchMax. pulling forcekN330
Max. speedm/min75
Auxiliary winchMax. pulling forcekN100
Max. speedm/min41
Mast inclinationLateral/ forwards/ backwards°±4/5/15
UndercarrigeMax. traveling speedkm/h1.5
Max. grade ability%35
Min. clearancemm445
Track shoe widthmm800
Distance between tracksmm3500-4800
Hydraulic systemWorking pressureMPa33
Overall weightMax. traveling speed of the overall unitt106
DimensionWorking conditionmm10825*4800*25200
Transportation conditionmm19750*3500*3790
weight: 96000.000kg
Area: Sichuan Province
Brand: XCMG
Model: XR280D
Type: Rotary drill
Working_condition: other
YEAR: 2020
Work Hours: 7000 H
: 7 days for ready goods
: 1 Piece
: Any Port In China
TypeUnitParameter
Max. drilling diameterm2.5
Max. drilling depthm94
EngineModel/TAD1352VE
PowerkW315
Rotary driveMax. output torquekN.m300
Rotary speedr/min6-27
Crowd cylinderMax. pull-down piston pushkN260
Max. pull-down piston pullkN330
Max. pull-down piston strokem6
Crowd winchMax. pull-down piston pushkN330
Max. pull-down piston pullkN330
Max. pull-down piston strokem13
Main winchMax. pulling forcekN330
Max. speedm/min75
Auxiliary winchMax. pulling forcekN100
Max. speedm/min41
Mast inclinationLateral/ forwards/ backwards°±4/5/15
UndercarrigeMax. traveling speedkm/h1.5
Max. grade ability%35
Min. clearancemm445
Track shoe widthmm800
Distance between tracksmm3500-4800
Hydraulic systemWorking pressureMPa33
Overall weightMax. traveling speed of the overall unitt106
DimensionWorking conditionmm10825*4800*25200
Transportation conditionmm19750*3500*3790
أظهر المزيد عرض أقل
