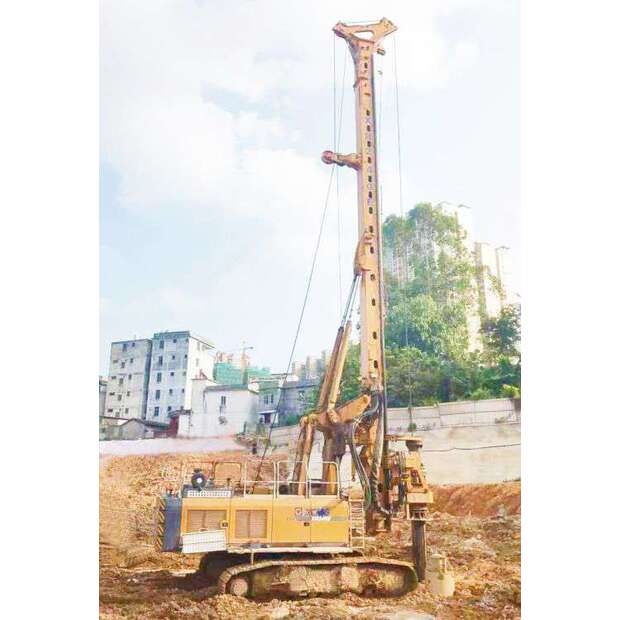

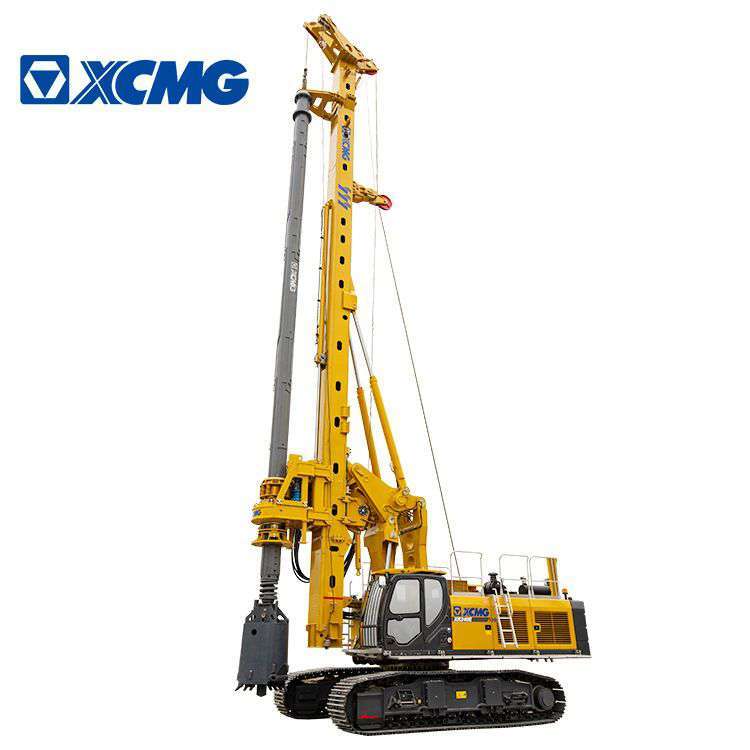

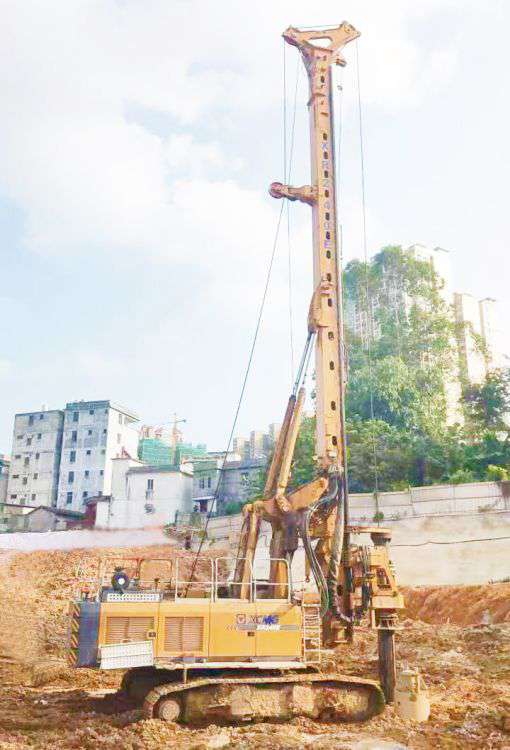

XCMG Used Xr240e Small Bored Pile Drilling Rig Machine XR240E
weight: 82000.000kg
: 7 days for ready goods
: 1 Piece
: Any Port In China
ItemUnitParameters
Working capacityMax diametermmΦ2200mm(Crowd Cylinder)
Φ2000mm(Crowd Winch)
Max depthm70

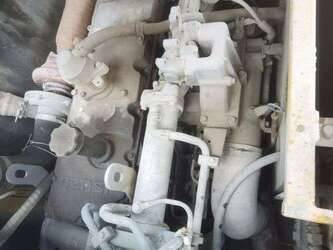

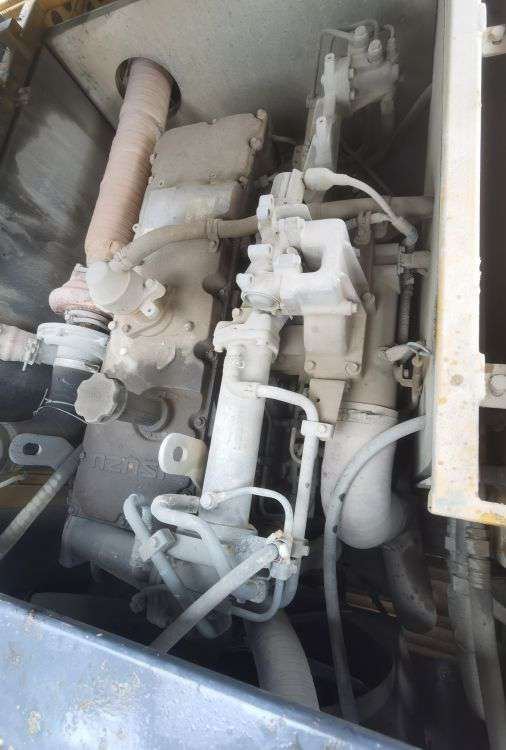

EngineModel-Volvo TAD1171VE
Rated powerkw265
Tank volumeL580
Rotary driveMax torquekN.m240
Speedr/min7-30
Working conditionOverall working heightm22.7
Overall working weightt82
CrawlerCrawler widthmm3250-4400
Shoes widthmm800
Shoes lengthmm5715
Driving forcekN.m485
Travel speedkm/h0-1.8
MastLateral°4
Forward°5
Crowd cylinderMax crowded forcekN210
Max extraction forcekN220
Strokemm5000
Slow speedm/min5.8
High speedm/min12
Crowd winch (optional)Max crowded/ extraction forcekN250/250
Strokem13
Slow speedm/min7
High speedm/min30
Diameter of ropesmm24
Main winchMax extraction forcekN240
Speedm/min0-70
Diameter of ropesmm32
Auxiliary winchMax extraction forcekN80
Speedm/min0-70
Diameter of ropesmm20
Hydraulic systemMax flowL2x280+90
Max working pressureMpa34
