اكس سي ام جي XR220D
اكس سي ام جي XR220D
حالة المعدة
مستعملة
١
من
٨
اكس سي ام جي XR220D
١
من
٨
نظرة عامة
الوصف

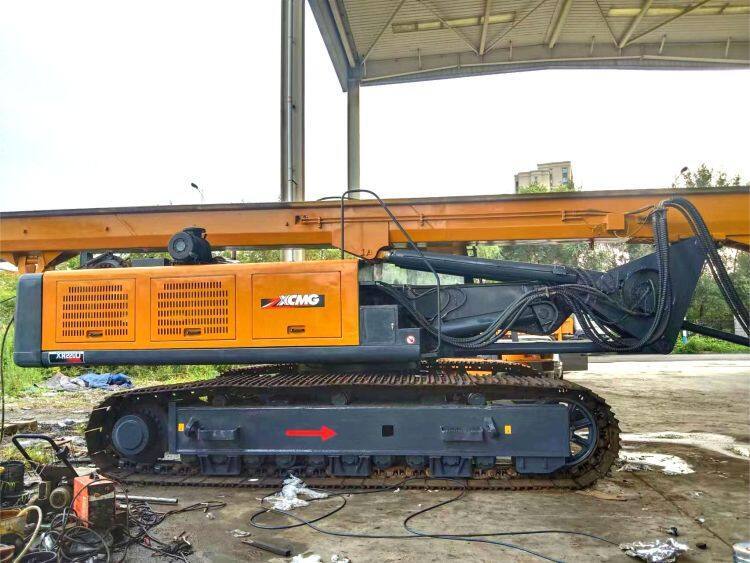

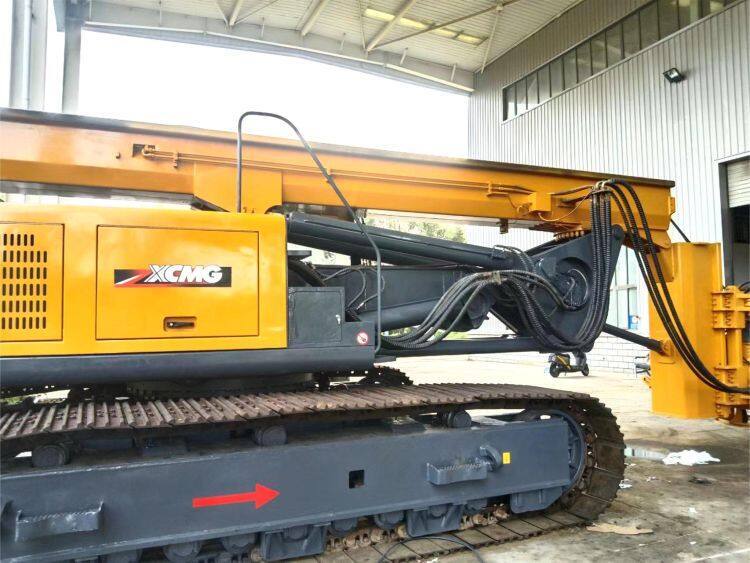

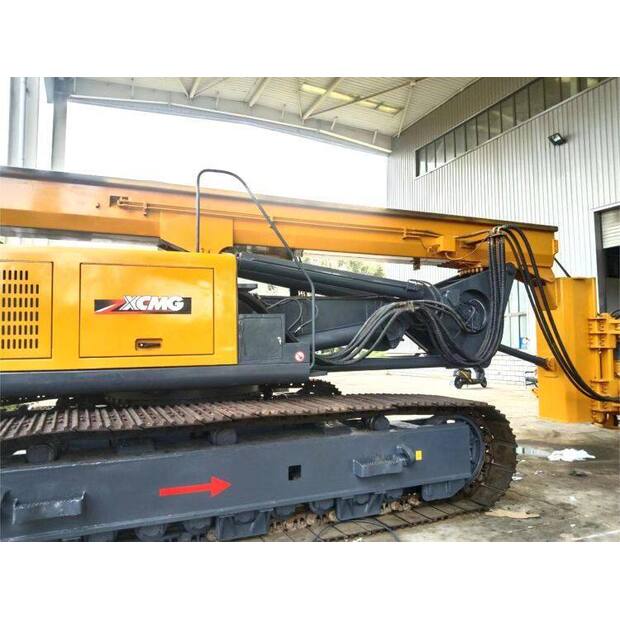

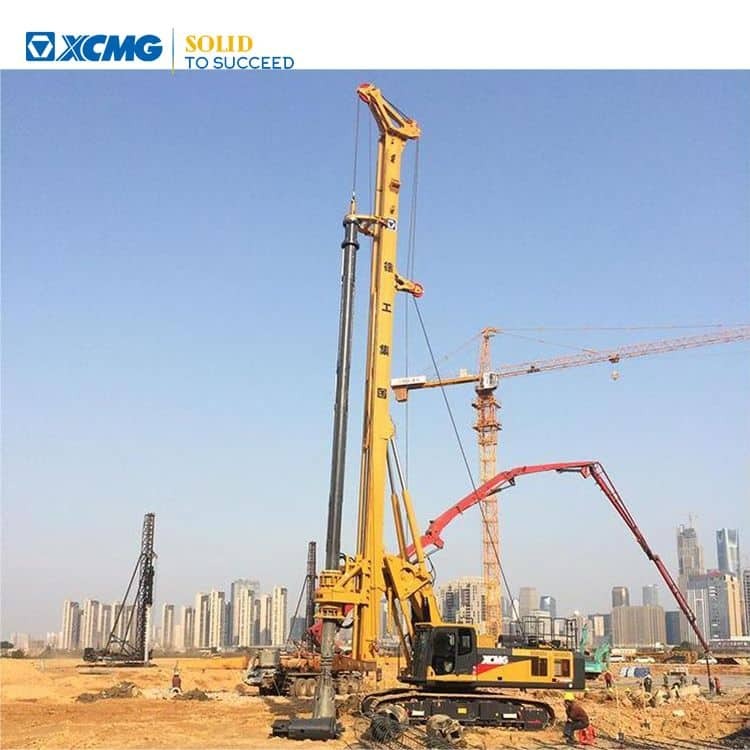

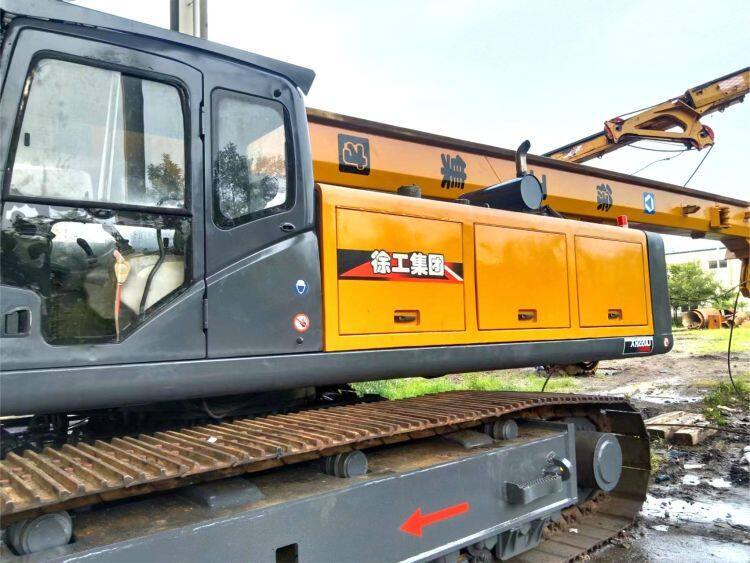

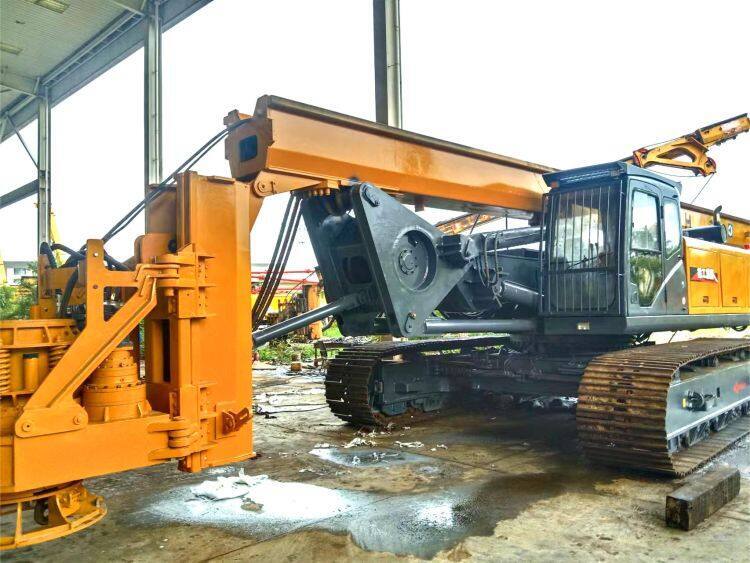

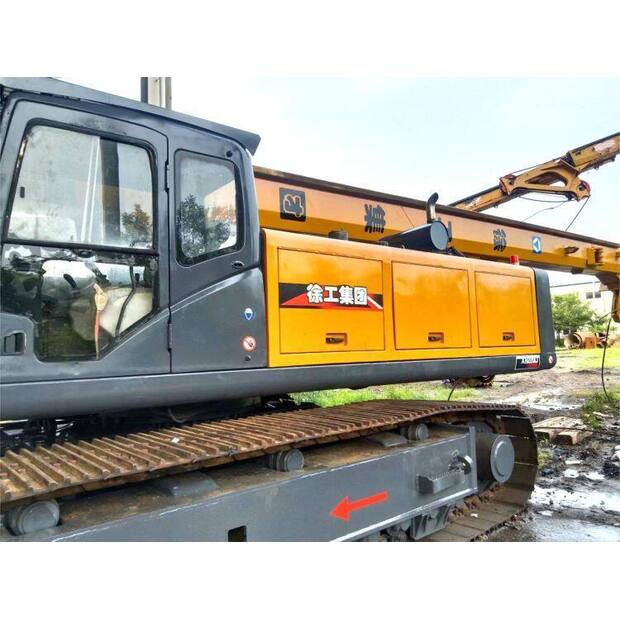

XCMG Officail XR220D used hydraulic rotary drilling rig for sale
weight: 70000.000kg
: 7 days for ready goods
: 1 Piece
: Any Port In China
DescriptionUnitParameter
Max. drilling diametermm2000
Max. drilling depthm67
EngineModel QSL-325
Rated power/speedkW242/(2200r/min)
Rotary driveMax. torquekN.m220
Rotational speedr/min7-25
Crowd cylinderMax. Pushing forcekN200
Max. Pulling forcekN200
Max. strokemm5000
Main winchMax. pulling forcekN230
Max. single-rope speedm/min70
Diameter of the steel wire ropemm30
Auxiliary winchMax. pulling forcekN80
Max. single-rope speedm/min60
Diameter of the steel wire ropemm20
TravelingMax. traveling speed of the overall unitkm/h1.5
Max. climbable gradient of the overall unit%35
Hydraulic systemWorking pressureMPa35
Rotary table slewing angle°360
Weight of overall unitt76
DimensionWorking conditionmm8968*4400*22180
Transportation conditionmm16360*3250*3535
XCMG Officail XR220D used hydraulic rotary drilling rig for saleweight: 70000.000kg
: 7 days for ready goods
: 1 Piece
: Any Port In China
DescriptionUnitParameter
Max. drilling diametermm2000
Max. drilling depthm67
EngineModel QSL-325
Rated power/speedkW242/(2200r/min)
Rotary driveMax. torquekN.m220
Rotational speedr/min7-25
Crowd cylinderMax. Pushing forcekN200
Max. Pulling forcekN200
Max. strokemm5000
Main winchMax. pulling forcekN230
Max. single-rope speedm/min70
Diameter of the steel wire ropemm30
Auxiliary winchMax. pulling forcekN80
Max. single-rope speedm/min60
Diameter of the steel wire ropemm20
TravelingMax. traveling speed of the overall unitkm/h1.5
Max. climbable gradient of the overall unit%35
Hydraulic systemWorking pressureMPa35
Rotary table slewing angle°360
Weight of overall unitt76
DimensionWorking conditionmm8968*4400*22180
Transportation conditionmm16360*3250*3535
weight: 70000.000kg
: 7 days for ready goods
: 1 Piece
: Any Port In China
DescriptionUnitParameter
Max. drilling diametermm2000
Max. drilling depthm67
EngineModel QSL-325
Rated power/speedkW242/(2200r/min)
Rotary driveMax. torquekN.m220
Rotational speedr/min7-25
Crowd cylinderMax. Pushing forcekN200
Max. Pulling forcekN200
Max. strokemm5000
Main winchMax. pulling forcekN230
Max. single-rope speedm/min70
Diameter of the steel wire ropemm30
Auxiliary winchMax. pulling forcekN80
Max. single-rope speedm/min60
Diameter of the steel wire ropemm20
TravelingMax. traveling speed of the overall unitkm/h1.5
Max. climbable gradient of the overall unit%35
Hydraulic systemWorking pressureMPa35
Rotary table slewing angle°360
Weight of overall unitt76
DimensionWorking conditionmm8968*4400*22180
Transportation conditionmm16360*3250*3535
أظهر المزيد عرض أقل
