اكس سي ام جي XGC180
اكس سي ام جي XGC180
حالة المعدة
مستعملة
١
من
٩
اكس سي ام جي XGC180
١
من
٩
نظرة عامة
الوصف

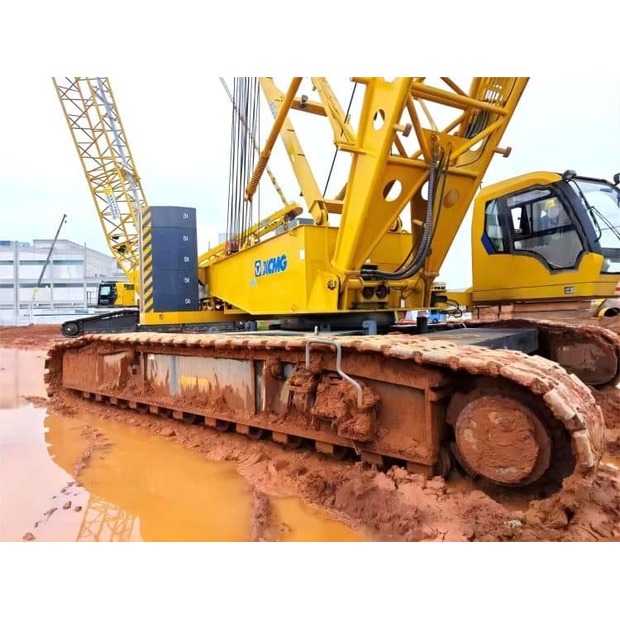

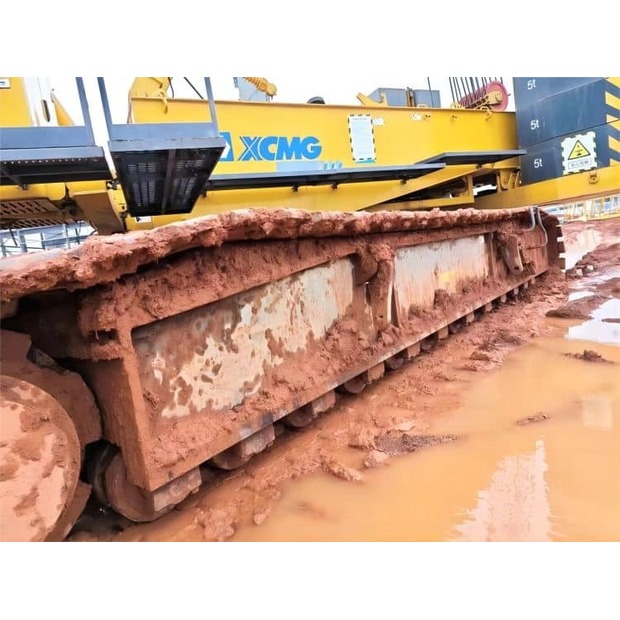

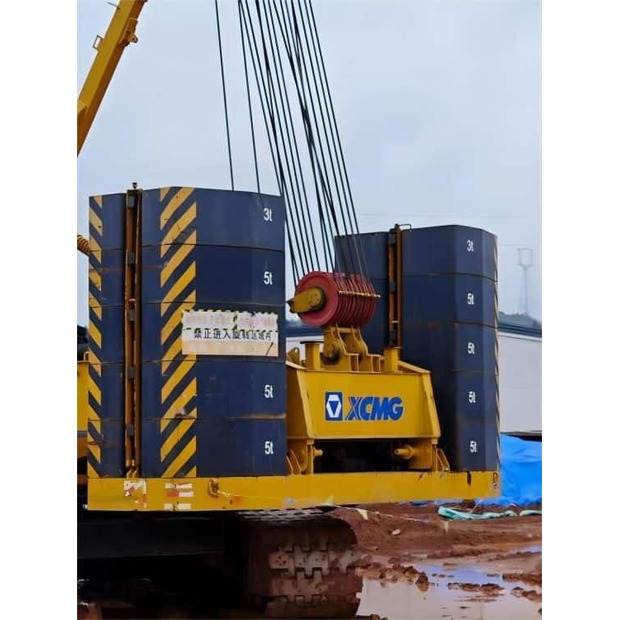

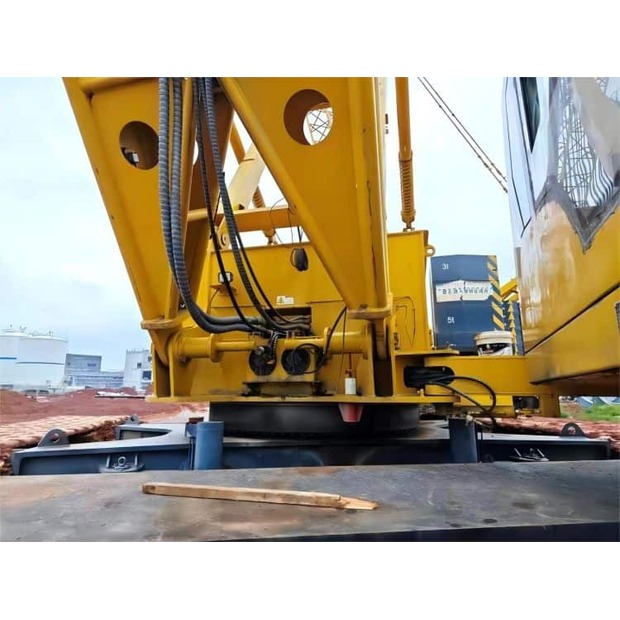

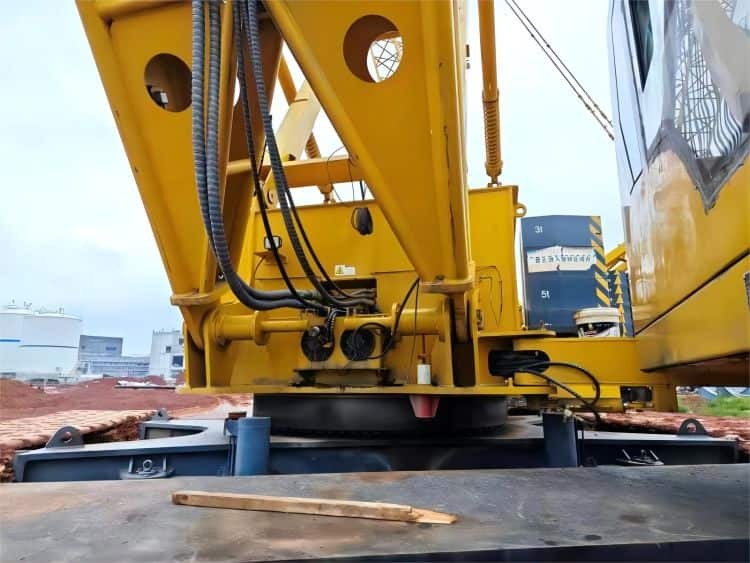

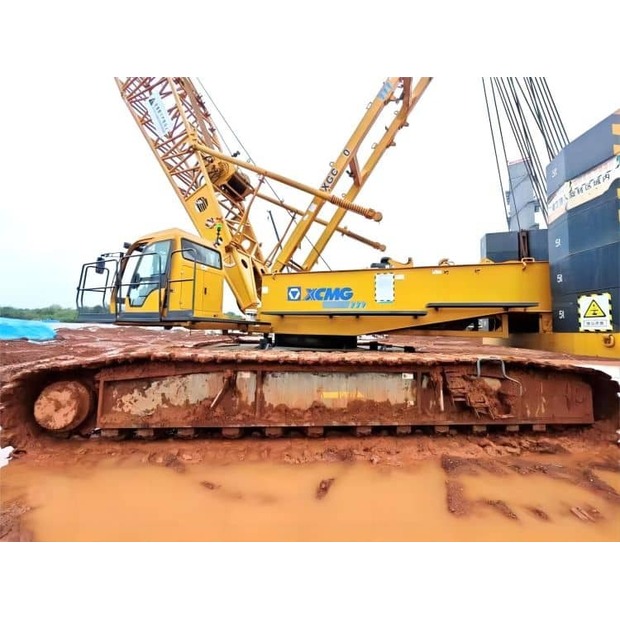

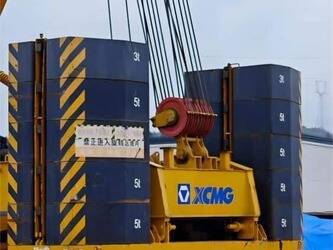

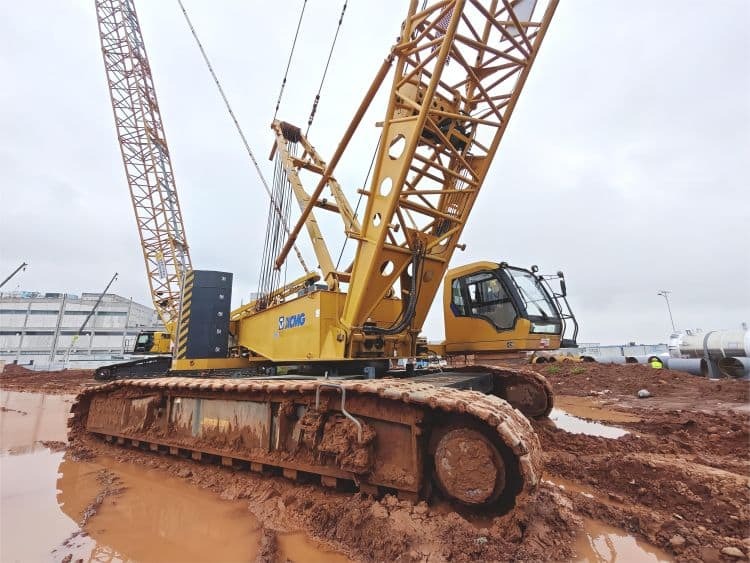

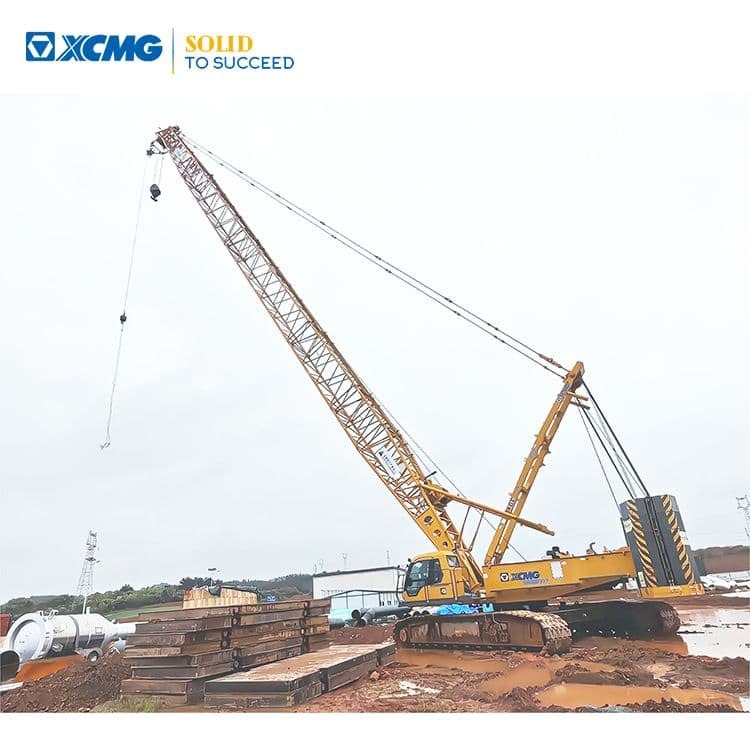

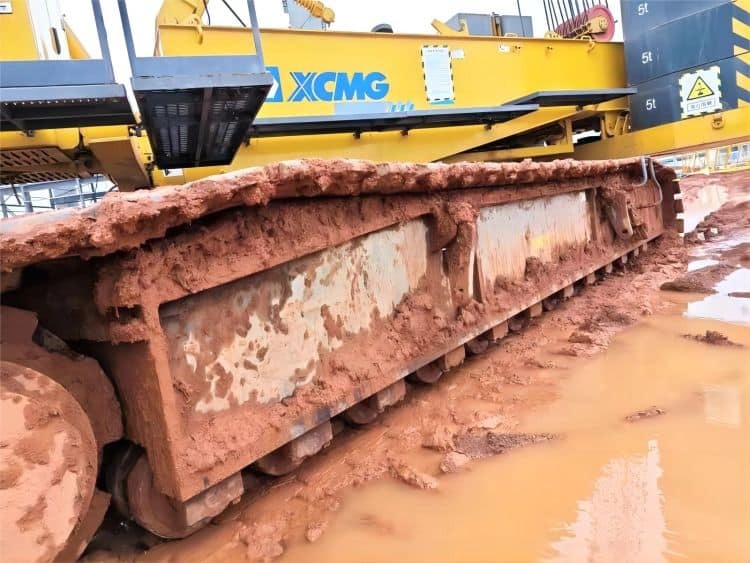

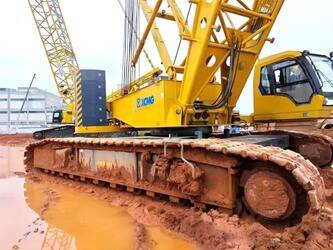

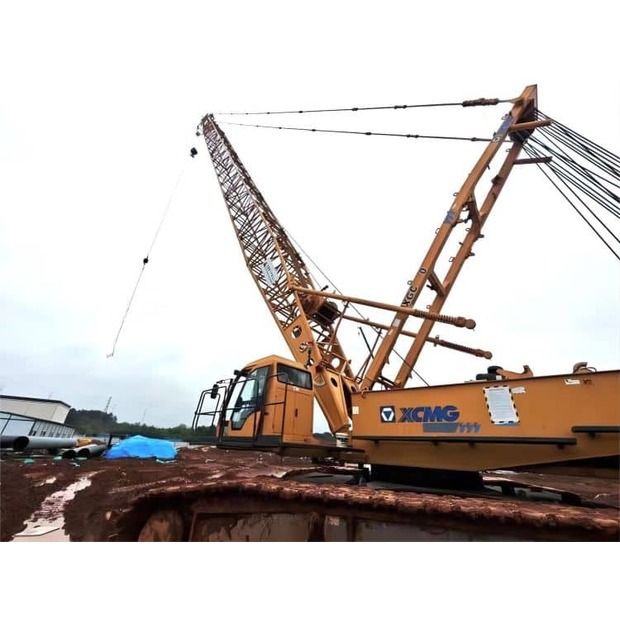

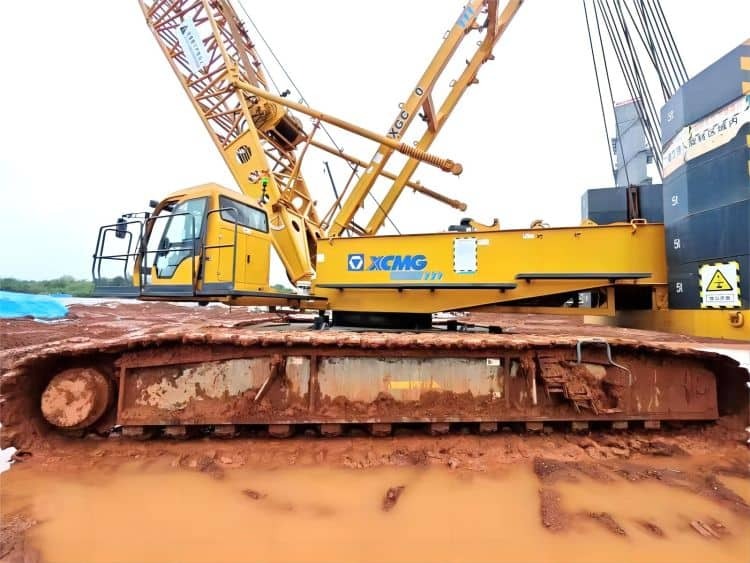

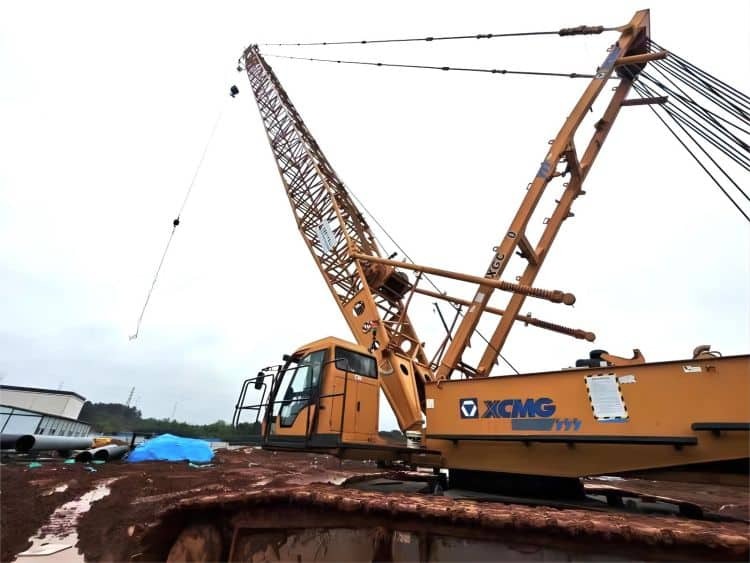

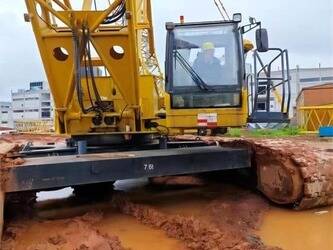

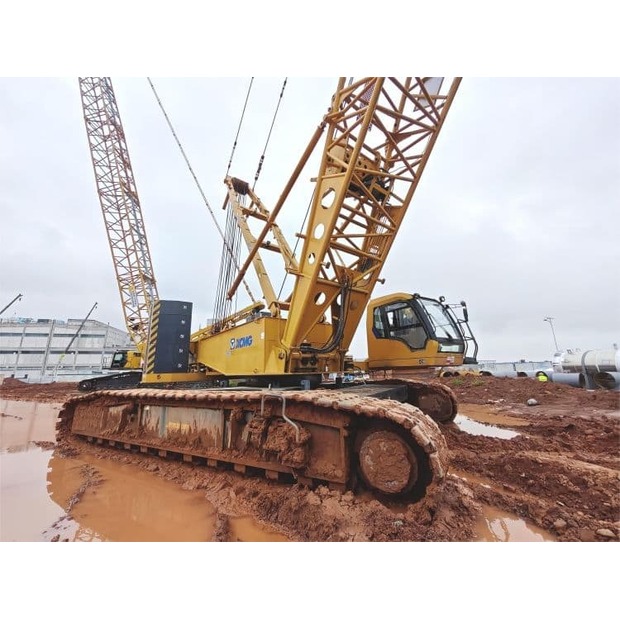

XCMG Official Used 180 ton Crawler Crane XGC180 for sale
weight: 39000.000kg
Certification: CE/ISO9001
Moving Type: Crawler
: 7 days for ready goods
: 1 Piece
: Any Port In China
ItemUnitParameter value
Parameter Item-XGC180
Operation performance parameter *
Max. rated lifting capacity for boom(t)180
Max. rated lifting capacity for fixed jib(t)33.5
Max. rated lifting capacity for luffing jib(t)50
Max. load moment(t.m)1043.8
Max. rated lifting capacity for tower jib(t)50
Boom length(m)19~82
Boom luffing angle(°)30~83
Fixed jib length(m)13~31
Tower jib length(m)20~59
Max. dimension of single unit in transport state(L×W×H)(m)12.5×3.0×3.3
Fixed jib offset angle(°)15,30
Max. single line speed for hoist mechanism(m/min)120/138
Max. single line speed for boom luffing mechanism(m/min)2×34/2×43
Max. single line speed for jib luffing mechanism(m/min)41.6
Max. slewing speed(r/min)1.5/2.0
Max. travel speed(km/h)1.3
Grade ability(%)30
Mean ground pressure(MPa)0.105
Max. single line speed for tower jib luffing mechanism(m/min)41.6
Model-QSL8.9-C340/QSL9-C325
Engine power(kW)250/242
Emission-National III/EU III
Overall crane mass(t)162.5(main hook, allcounterweights, 19m boom)
Max. mass of single unit in transport state(t)39
XCMG Official Used 180 ton Crawler Crane XGC180 for saleweight: 39000.000kg
Certification: CE/ISO9001
Moving Type: Crawler
: 7 days for ready goods
: 1 Piece
: Any Port In China
ItemUnitParameter value
Parameter Item-XGC180
Operation performance parameter *
Max. rated lifting capacity for boom(t)180
Max. rated lifting capacity for fixed jib(t)33.5
Max. rated lifting capacity for luffing jib(t)50
Max. load moment(t.m)1043.8
Max. rated lifting capacity for tower jib(t)50
Boom length(m)19~82
Boom luffing angle(°)30~83
Fixed jib length(m)13~31
Tower jib length(m)20~59
Max. dimension of single unit in transport state(L×W×H)(m)12.5×3.0×3.3
Fixed jib offset angle(°)15,30
Max. single line speed for hoist mechanism(m/min)120/138
Max. single line speed for boom luffing mechanism(m/min)2×34/2×43
Max. single line speed for jib luffing mechanism(m/min)41.6
Max. slewing speed(r/min)1.5/2.0
Max. travel speed(km/h)1.3
Grade ability(%)30
Mean ground pressure(MPa)0.105
Max. single line speed for tower jib luffing mechanism(m/min)41.6
Model-QSL8.9-C340/QSL9-C325
Engine power(kW)250/242
Emission-National III/EU III
Overall crane mass(t)162.5(main hook, allcounterweights, 19m boom)
Max. mass of single unit in transport state(t)39
weight: 39000.000kg
Certification: CE/ISO9001
Moving Type: Crawler
: 7 days for ready goods
: 1 Piece
: Any Port In China
ItemUnitParameter value
Parameter Item-XGC180
Operation performance parameter *
Max. rated lifting capacity for boom(t)180
Max. rated lifting capacity for fixed jib(t)33.5
Max. rated lifting capacity for luffing jib(t)50
Max. load moment(t.m)1043.8
Max. rated lifting capacity for tower jib(t)50
Boom length(m)19~82
Boom luffing angle(°)30~83
Fixed jib length(m)13~31
Tower jib length(m)20~59
Max. dimension of single unit in transport state(L×W×H)(m)12.5×3.0×3.3
Fixed jib offset angle(°)15,30
Max. single line speed for hoist mechanism(m/min)120/138
Max. single line speed for boom luffing mechanism(m/min)2×34/2×43
Max. single line speed for jib luffing mechanism(m/min)41.6
Max. slewing speed(r/min)1.5/2.0
Max. travel speed(km/h)1.3
Grade ability(%)30
Mean ground pressure(MPa)0.105
Max. single line speed for tower jib luffing mechanism(m/min)41.6
Model-QSL8.9-C340/QSL9-C325
Engine power(kW)250/242
Emission-National III/EU III
Overall crane mass(t)162.5(main hook, allcounterweights, 19m boom)
Max. mass of single unit in transport state(t)39
أظهر المزيد عرض أقل
