اكس سي ام جي XE700DA
اكس سي ام جي XE700DA
حالة المعدة
مستعملة
١
من
٧
اكس سي ام جي XE700DA
١
من
٧
نظرة عامة
الوصف

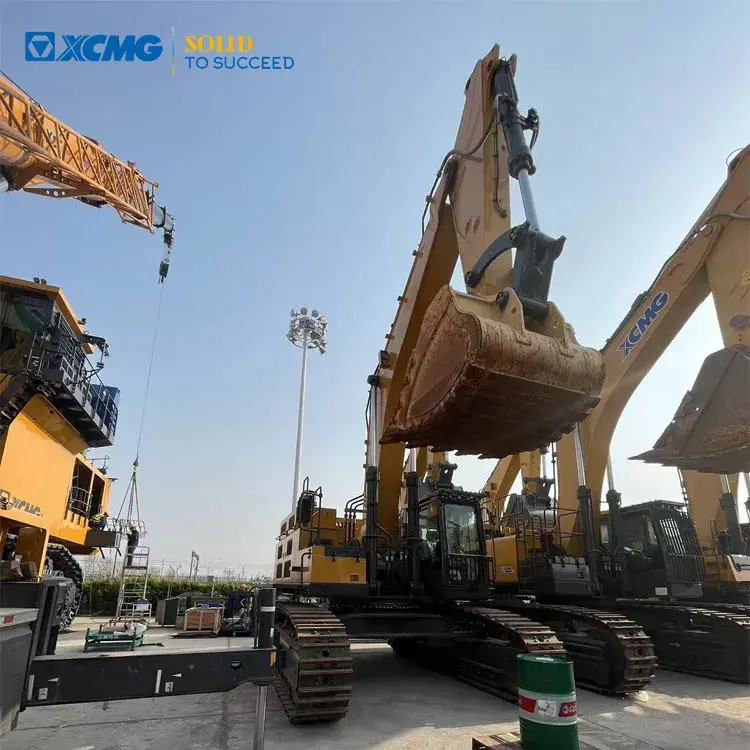

XCMG used Hydraulic Crawler Excavator XE700DA
Model Number: XE700DA
Brand Name: XCMG
Place of Origin: Jiangsu, China
Machine Weight: 69000 kg
Maximum Digging Depth: 6900 mm
Maximum Digging Height: 11350 mm
Bucket capacity: 4.6 m³
Operating Weight: 69000 kg
Max Digging Radius: 11580 mm
Rated Speed: 1800 rpm
weight: 69000.000kg
Moving Type: Other
Area: Jiangsu Province
Brand: XCMG
Model: XE700DA
Type: Crawler excavator
Working_condition: other
YEAR: Mar 2022
Used_hours: 99
: 7 days for ready goods
: 1 Piece
: Any Port In China
DescriptionUnitParameter value
Operating weightkg69000
Bucket capacitym³2.4-4.6
EngineModelEngineQSX15
StyleDirect injection---√
Four strokes---√
Water cooling---√
Turbo-charging---√
Air to air intercooler---√
No. of cylinders---6
Output powerkW/ r/min336/1800
torque/speedN.m2102/1400
DisplacementL15
Main performanceTravel speed(H/L)km/h4.2/3.0
Gradeability%35
Rotary speedr/min7
Ground pressurekPa101.4
Bucket digging forcekN363
Arm digging forcekN300
Travel traction forcekN450
Hydraulic systemMain pump--2
Rated flow of main pumpL/min2×450
Pressure of prime valveMPa31.4/34.3
Pressure of travel systemMPa34.3
Pressure of swing systemMPa28.5
Pressure of pilot systemMPa3.9
Oil CapacityFuel tank capacityL950
Hydraulic tank capacityL500
Engine oil capacityL48
Appearance sizeOverall lengthmm12130
Overall widthmm4410
Overall heightmm4700
Length of crawlermm5955
Overall width of chassismm4000
Width of crawlermm650
Wheel base of crawlermm4685
Crawler gaugemm2800/3350
Clearance under counterweightmm1565
Min. ground clearancemm853
Min. tail swing radiusmm4090
Max. digging heightmm11300
Working scopeMax. dumping heightmm7320
Max. digging depthmm6950
Max. digging depth at the range of level 8 feetmm6800
Max. vertical wall digging depthmm5550
Max. digging reachmm11580
Min. swing radiusmm4750
XCMG used Hydraulic Crawler Excavator XE700DAModel Number: XE700DA
Brand Name: XCMG
Place of Origin: Jiangsu, China
Machine Weight: 69000 kg
Maximum Digging Depth: 6900 mm
Maximum Digging Height: 11350 mm
Bucket capacity: 4.6 m³
Operating Weight: 69000 kg
Max Digging Radius: 11580 mm
Rated Speed: 1800 rpm
weight: 69000.000kg
Moving Type: Other
Area: Jiangsu Province
Brand: XCMG
Model: XE700DA
Type: Crawler excavator
Working_condition: other
YEAR: Mar 2022
Used_hours: 99
: 7 days for ready goods
: 1 Piece
: Any Port In China
DescriptionUnitParameter value
Operating weightkg69000
Bucket capacitym³2.4-4.6
EngineModelEngineQSX15
StyleDirect injection---√
Four strokes---√
Water cooling---√
Turbo-charging---√
Air to air intercooler---√
No. of cylinders---6
Output powerkW/ r/min336/1800
torque/speedN.m2102/1400
DisplacementL15
Main performanceTravel speed(H/L)km/h4.2/3.0
Gradeability%35
Rotary speedr/min7
Ground pressurekPa101.4
Bucket digging forcekN363
Arm digging forcekN300
Travel traction forcekN450
Hydraulic systemMain pump--2
Rated flow of main pumpL/min2×450
Pressure of prime valveMPa31.4/34.3
Pressure of travel systemMPa34.3
Pressure of swing systemMPa28.5
Pressure of pilot systemMPa3.9
Oil CapacityFuel tank capacityL950
Hydraulic tank capacityL500
Engine oil capacityL48
Appearance sizeOverall lengthmm12130
Overall widthmm4410
Overall heightmm4700
Length of crawlermm5955
Overall width of chassismm4000
Width of crawlermm650
Wheel base of crawlermm4685
Crawler gaugemm2800/3350
Clearance under counterweightmm1565
Min. ground clearancemm853
Min. tail swing radiusmm4090
Max. digging heightmm11300
Working scopeMax. dumping heightmm7320
Max. digging depthmm6950
Max. digging depth at the range of level 8 feetmm6800
Max. vertical wall digging depthmm5550
Max. digging reachmm11580
Min. swing radiusmm4750
Model Number: XE700DA
Brand Name: XCMG
Place of Origin: Jiangsu, China
Machine Weight: 69000 kg
Maximum Digging Depth: 6900 mm
Maximum Digging Height: 11350 mm
Bucket capacity: 4.6 m³
Operating Weight: 69000 kg
Max Digging Radius: 11580 mm
Rated Speed: 1800 rpm
weight: 69000.000kg
Moving Type: Other
Area: Jiangsu Province
Brand: XCMG
Model: XE700DA
Type: Crawler excavator
Working_condition: other
YEAR: Mar 2022
Used_hours: 99
: 7 days for ready goods
: 1 Piece
: Any Port In China
DescriptionUnitParameter value
Operating weightkg69000
Bucket capacitym³2.4-4.6
EngineModelEngineQSX15
StyleDirect injection---√
Four strokes---√
Water cooling---√
Turbo-charging---√
Air to air intercooler---√
No. of cylinders---6
Output powerkW/ r/min336/1800
torque/speedN.m2102/1400
DisplacementL15
Main performanceTravel speed(H/L)km/h4.2/3.0
Gradeability%35
Rotary speedr/min7
Ground pressurekPa101.4
Bucket digging forcekN363
Arm digging forcekN300
Travel traction forcekN450
Hydraulic systemMain pump--2
Rated flow of main pumpL/min2×450
Pressure of prime valveMPa31.4/34.3
Pressure of travel systemMPa34.3
Pressure of swing systemMPa28.5
Pressure of pilot systemMPa3.9
Oil CapacityFuel tank capacityL950
Hydraulic tank capacityL500
Engine oil capacityL48
Appearance sizeOverall lengthmm12130
Overall widthmm4410
Overall heightmm4700
Length of crawlermm5955
Overall width of chassismm4000
Width of crawlermm650
Wheel base of crawlermm4685
Crawler gaugemm2800/3350
Clearance under counterweightmm1565
Min. ground clearancemm853
Min. tail swing radiusmm4090
Max. digging heightmm11300
Working scopeMax. dumping heightmm7320
Max. digging depthmm6950
Max. digging depth at the range of level 8 feetmm6800
Max. vertical wall digging depthmm5550
Max. digging reachmm11580
Min. swing radiusmm4750
