اكس سي ام جي XE305D
اكس سي ام جي XE305D
حالة المعدة
مستعملة
١
من
٨
اكس سي ام جي XE305D
١
من
٨
نظرة عامة
الوصف

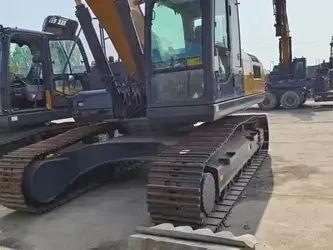

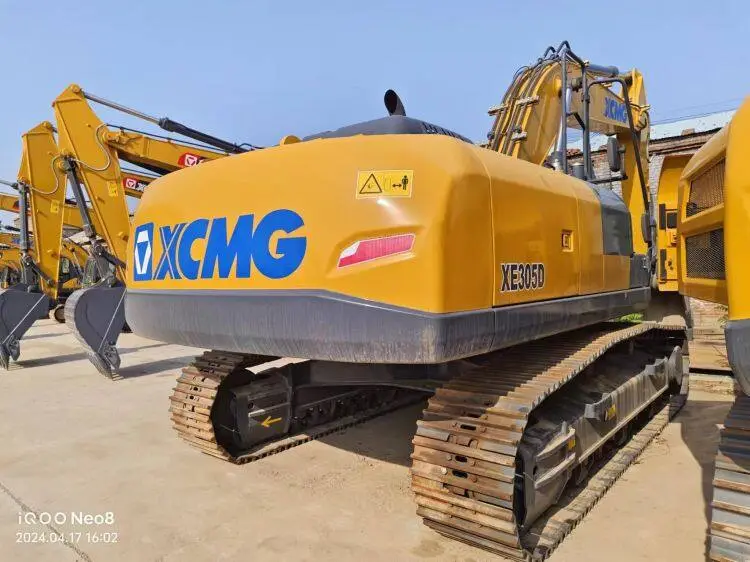

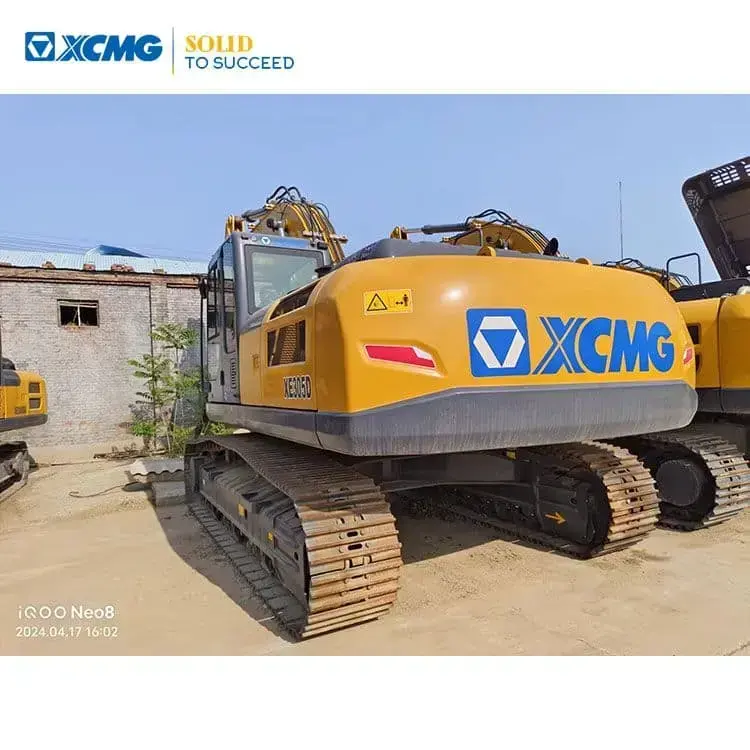

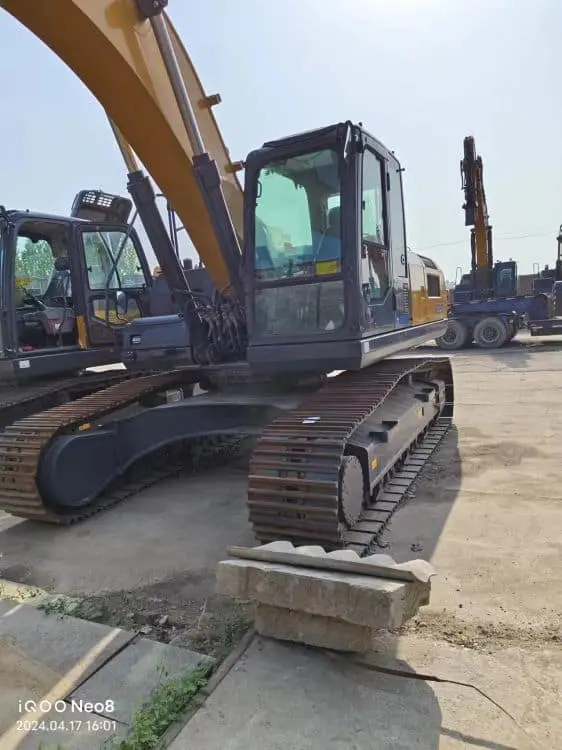

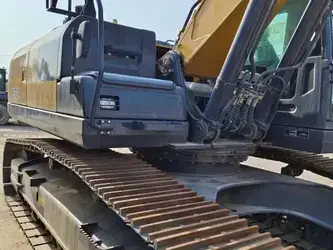

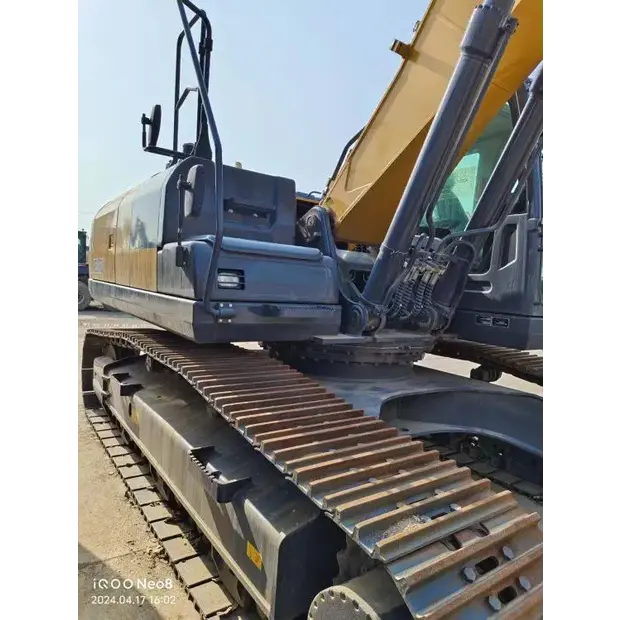

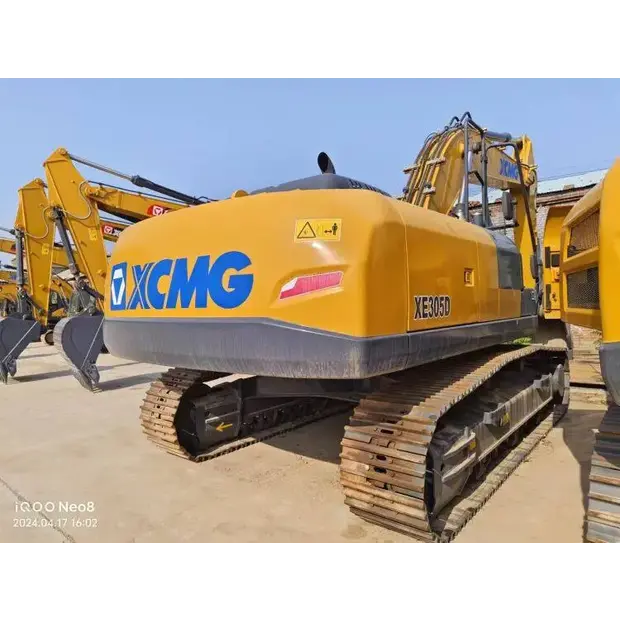

XCMG 2018 year hydraulic crawler big used excavator machine XE305D

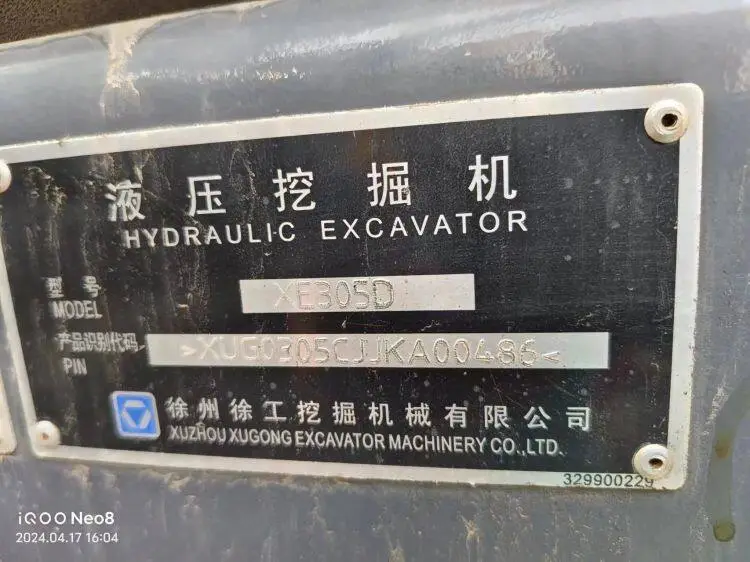

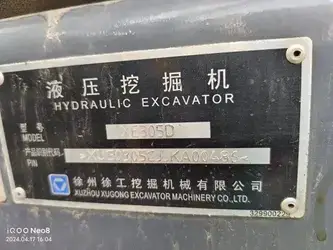

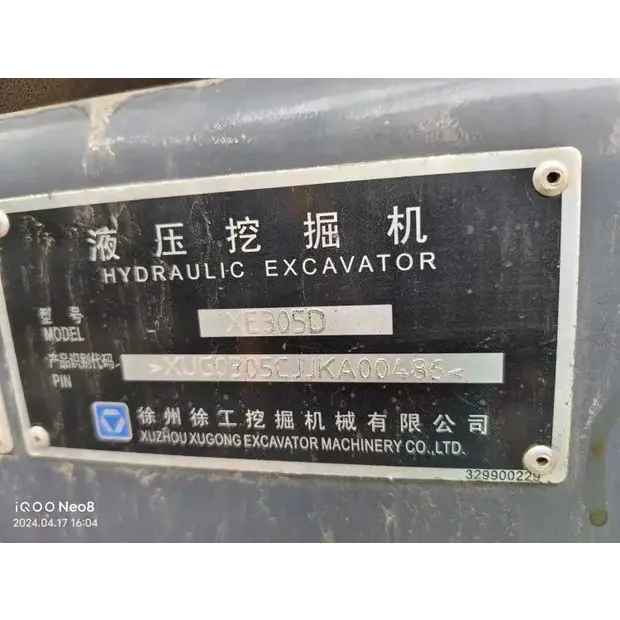

Model Number: XE305D
Brand Name: XCMG
Place of Origin: Jiangsu, China
Machine Weight: 30800 kg
Maximum Digging Depth: 7200 mm
Maximum Digging Height: 10146 mm
Bucket capacity: 1.27-1.6 m³
Operating Weight: 32500 kg
Max Digging Radius: 3076 mm
Rated Speed: 60 km/h
weight: 30800.000kg
Moving Type: Other
Year: 2018
Length*Width*Heigth: 10170 mm* 3190mm* 3130mm
: 7 days for ready goods
: 1 Piece
: Any Port In China
ModelUnitXE305D
Operating weightKg32500
Bucket capacitym³1.27-1.6

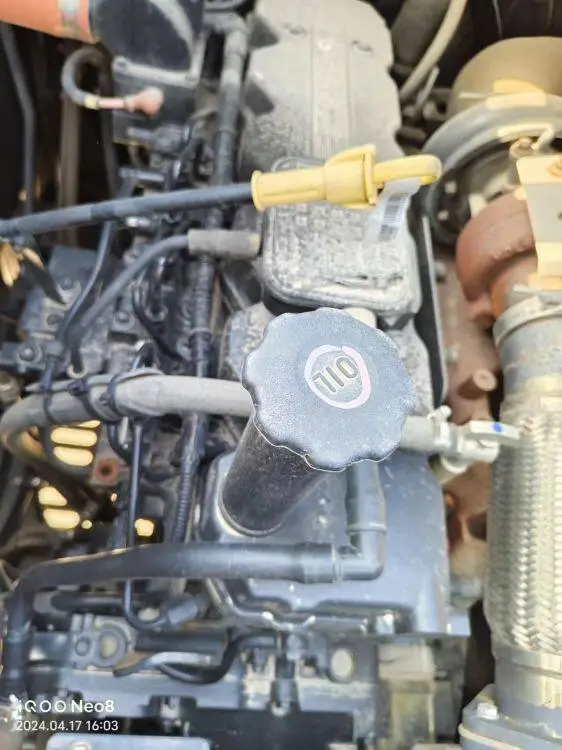

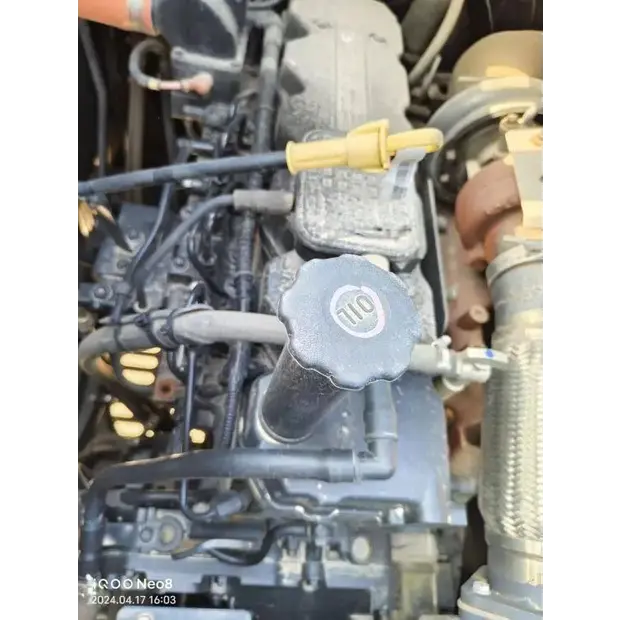

EngineModel engine/QSB7
Injection/√
Four strokes/√
Water cooling/√
Turbo-charging/√
No. of cylinders/6
Rated power/speedkw/rpm169/2050
Maximum torque/speedN.m/rpm895/1250
DisplacementL6.7
Main performanceTravel speedkm/h5.2/3.1
Swing speedr/min9.8
Gradeability°35
Ground pressurekPa56.4
Bucket digging forcekN198
Arm digging forcekN138
Maximum tractive forcekN252

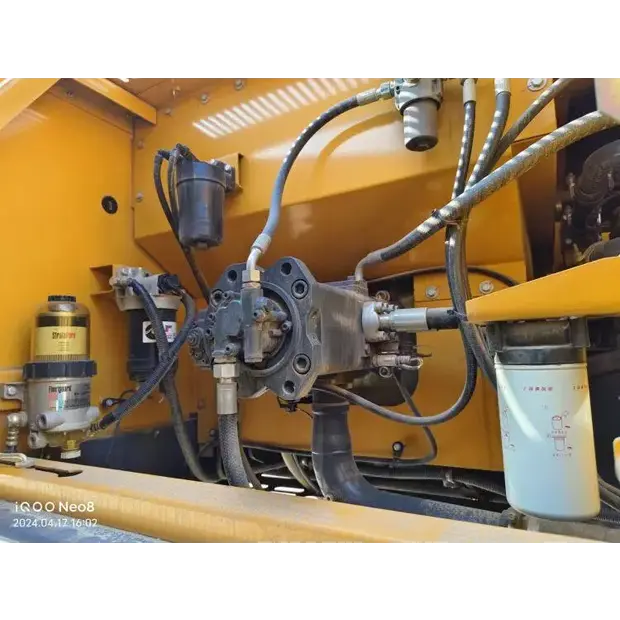

Hydraulic systemRated flow of main pumpL/min2×259
Travel system pressureMPa34.3
Swing system pressureMPa30
Pilot system pressureMPa3.9
Oil CapacityFuel tank capacityL520
Hydraulic tank capacityL270
Engine oil capacityL20
Appearance sizeOverall lengthmm10645
Overall widthmm3190
Overall heightmm3410
Width of platformmm3050
Total width of chassismm3190
Track shoe widthmm600
Wheel base of crawlermm4028
Track gaugemm2590
Counterweight clearancemm1198
Min. ground clearancemm538
Working rangeMax. digging heightmm10146
Max. dumping heightmm7180
Max. digging depthmm7200
Max. vertical wall digging depthmm5190
Max. digging radiusmm10665
Min. swing radiusmm3076
StandardLength of boommm6200
Length of armmm3110
Bucket capacitym³1.4
XCMG 2018 year hydraulic crawler big used excavator machine XE305DModel Number: XE305D
Brand Name: XCMG
Place of Origin: Jiangsu, China
Machine Weight: 30800 kg
Maximum Digging Depth: 7200 mm
Maximum Digging Height: 10146 mm
Bucket capacity: 1.27-1.6 m³
Operating Weight: 32500 kg
Max Digging Radius: 3076 mm
Rated Speed: 60 km/h
weight: 30800.000kg
Moving Type: Other
Year: 2018
Length*Width*Heigth: 10170 mm* 3190mm* 3130mm
: 7 days for ready goods
: 1 Piece
: Any Port In China
ModelUnitXE305D
Operating weightKg32500
Bucket capacitym³1.27-1.6
EngineModel engine/QSB7
Injection/√
Four strokes/√
Water cooling/√
Turbo-charging/√
No. of cylinders/6
Rated power/speedkw/rpm169/2050
Maximum torque/speedN.m/rpm895/1250
DisplacementL6.7
Main performanceTravel speedkm/h5.2/3.1
Swing speedr/min9.8
Gradeability°35
Ground pressurekPa56.4
Bucket digging forcekN198
Arm digging forcekN138
Maximum tractive forcekN252
Hydraulic systemRated flow of main pumpL/min2×259
Travel system pressureMPa34.3
Swing system pressureMPa30
Pilot system pressureMPa3.9
Oil CapacityFuel tank capacityL520
Hydraulic tank capacityL270
Engine oil capacityL20
Appearance sizeOverall lengthmm10645
Overall widthmm3190
Overall heightmm3410
Width of platformmm3050
Total width of chassismm3190
Track shoe widthmm600
Wheel base of crawlermm4028
Track gaugemm2590
Counterweight clearancemm1198
Min. ground clearancemm538
Working rangeMax. digging heightmm10146
Max. dumping heightmm7180
Max. digging depthmm7200
Max. vertical wall digging depthmm5190
Max. digging radiusmm10665
Min. swing radiusmm3076
StandardLength of boommm6200
Length of armmm3110
Bucket capacitym³1.4
Model Number: XE305D
Brand Name: XCMG
Place of Origin: Jiangsu, China
Machine Weight: 30800 kg
Maximum Digging Depth: 7200 mm
Maximum Digging Height: 10146 mm
Bucket capacity: 1.27-1.6 m³
Operating Weight: 32500 kg
Max Digging Radius: 3076 mm
Rated Speed: 60 km/h
weight: 30800.000kg
Moving Type: Other
Year: 2018
Length*Width*Heigth: 10170 mm* 3190mm* 3130mm
: 7 days for ready goods
: 1 Piece
: Any Port In China
ModelUnitXE305D
Operating weightKg32500
Bucket capacitym³1.27-1.6
EngineModel engine/QSB7
Injection/√
Four strokes/√
Water cooling/√
Turbo-charging/√
No. of cylinders/6
Rated power/speedkw/rpm169/2050
Maximum torque/speedN.m/rpm895/1250
DisplacementL6.7
Main performanceTravel speedkm/h5.2/3.1
Swing speedr/min9.8
Gradeability°35
Ground pressurekPa56.4
Bucket digging forcekN198
Arm digging forcekN138
Maximum tractive forcekN252
Hydraulic systemRated flow of main pumpL/min2×259
Travel system pressureMPa34.3
Swing system pressureMPa30
Pilot system pressureMPa3.9
Oil CapacityFuel tank capacityL520
Hydraulic tank capacityL270
Engine oil capacityL20
Appearance sizeOverall lengthmm10645
Overall widthmm3190
Overall heightmm3410
Width of platformmm3050
Total width of chassismm3190
Track shoe widthmm600
Wheel base of crawlermm4028
Track gaugemm2590
Counterweight clearancemm1198
Min. ground clearancemm538
Working rangeMax. digging heightmm10146
Max. dumping heightmm7180
Max. digging depthmm7200
Max. vertical wall digging depthmm5190
Max. digging radiusmm10665
Min. swing radiusmm3076
StandardLength of boommm6200
Length of armmm3110
Bucket capacitym³1.4
أظهر المزيد عرض أقل
