اكس سي ام جي XE155DK
اكس سي ام جي XE155DK
حالة المعدة
مستعملة
١
من
٨
اكس سي ام جي XE155DK
١
من
٨
نظرة عامة
الوصف

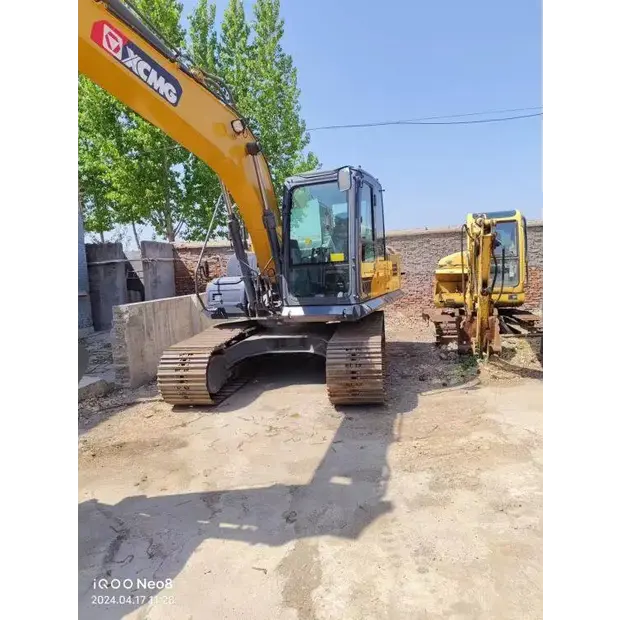

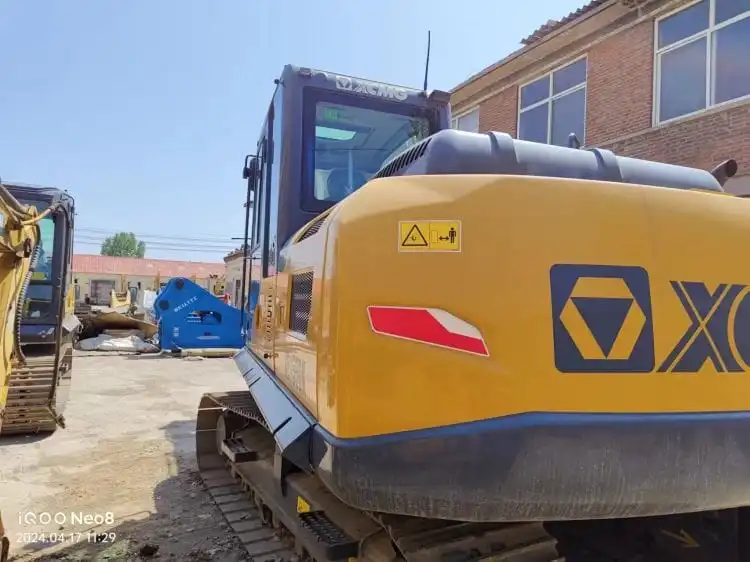

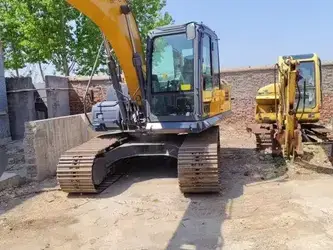

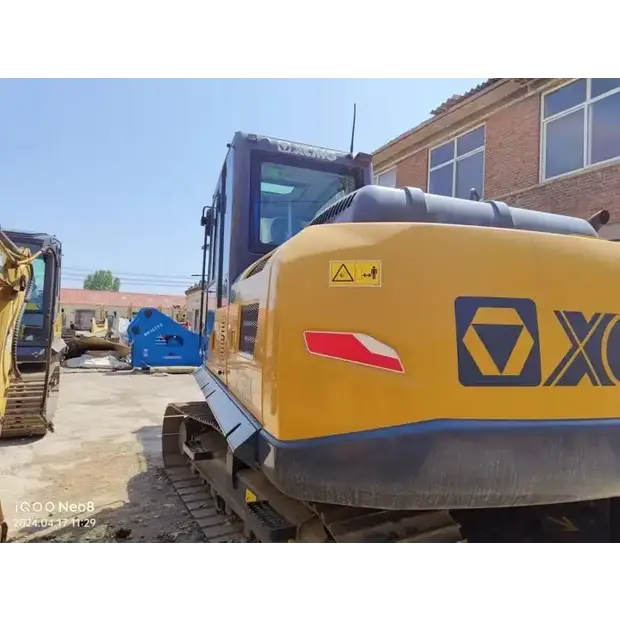

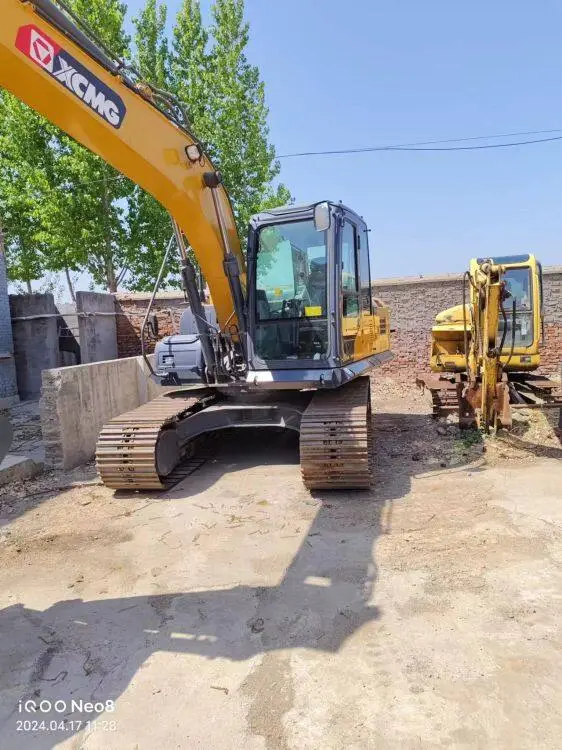

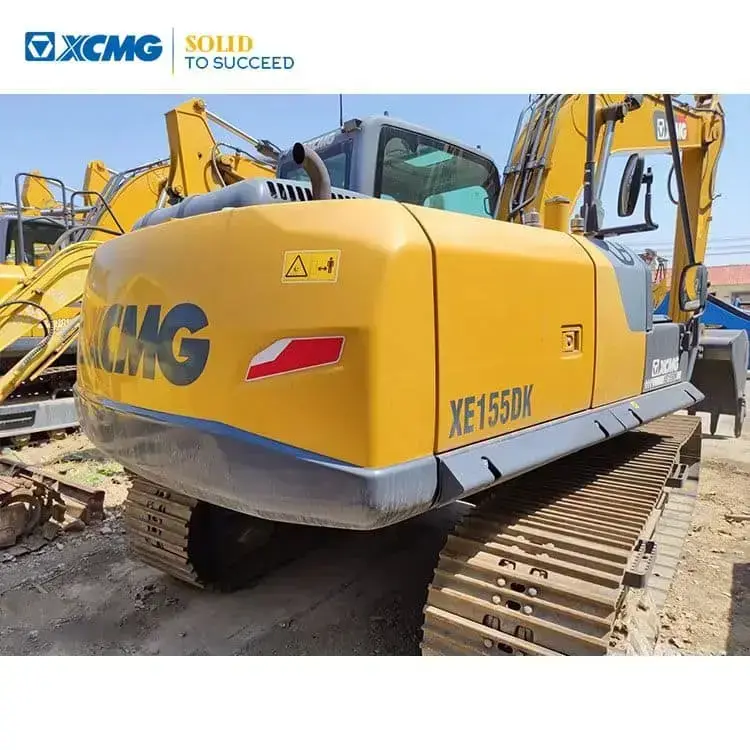

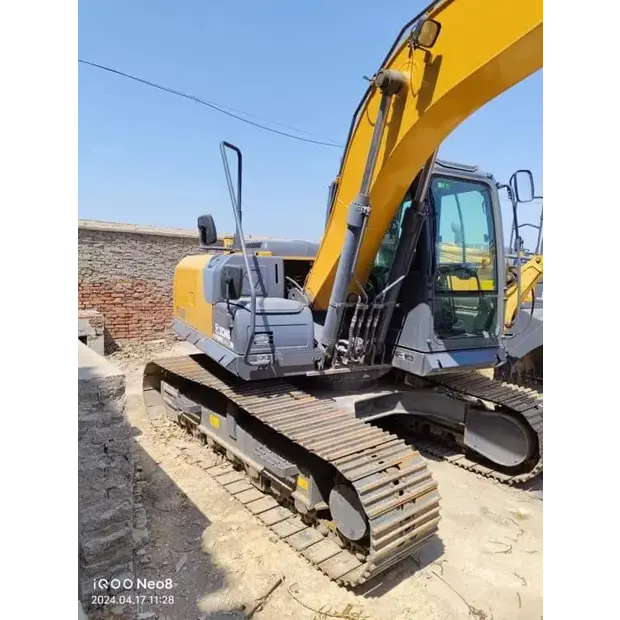

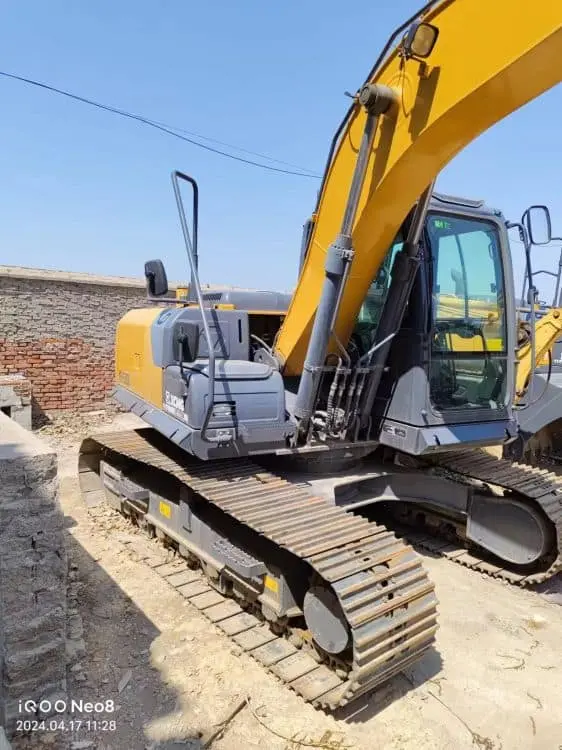

XCMG 2019 year used Hydraulic Crawler Digger XE155DK

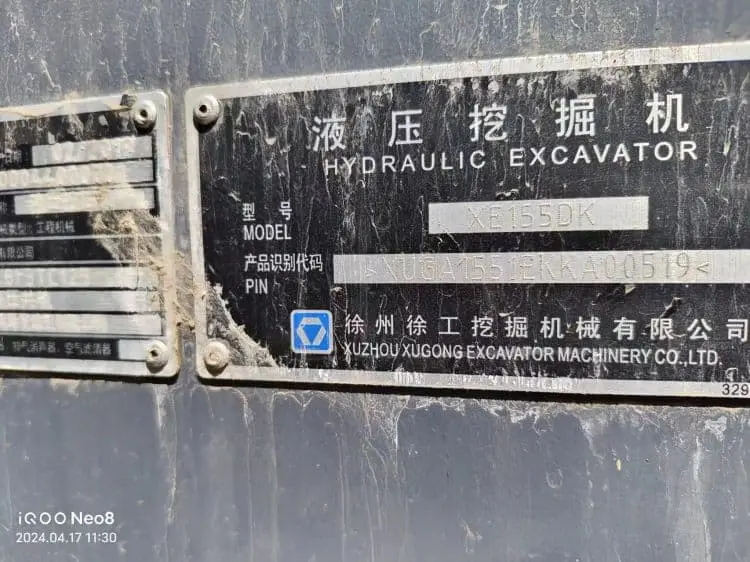

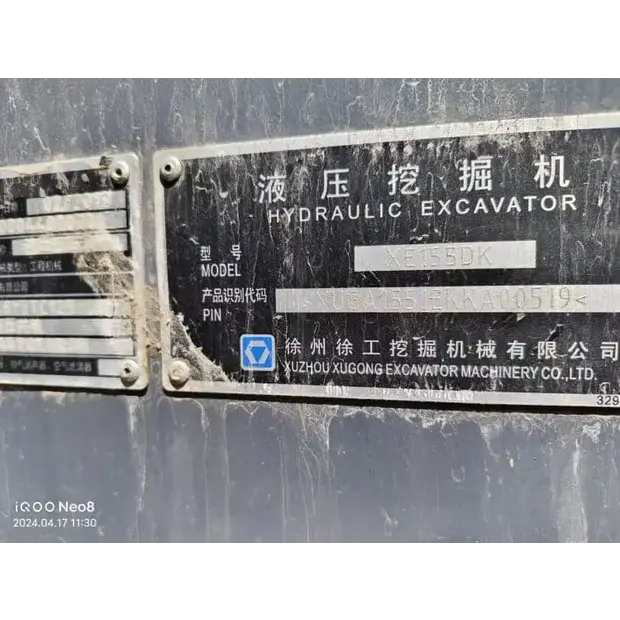

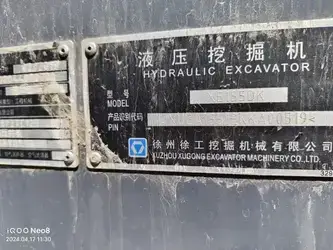

Model Number: XE155DK
Brand Name: XCMG
Place of Origin: Jiangsu, China
Machine Weight: 14600 kg
Maximum Digging Depth: 5535 mm
Maximum Digging Height: 8649 mm
Bucket capacity: 0.72 m3
Operating Weight: 14600 kg
Max Digging Radius: 8304mm
Rated Speed: 2200rpm
weight: 14600.000kg
Moving Type: Other
Year: 2019
Length*Width*Heigth: 7795 mm* 2672mm* 2900mm
: 7 days for ready goods
: 1 Piece
: Any Port In China
Sales modelUnitXE155DK
Operating weightKg14600
Bucket capacitym³0.32-0.71

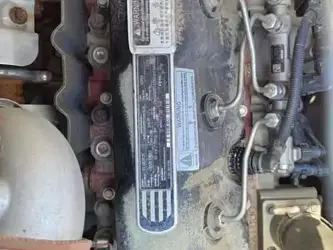

EngineModel/QSF3.8
Direct injection/√
Four strokes/√
Water cooling/√
Turbo-charging/√
No. of cylinders/4
Output powerkw/rpm93/2200
Maximum torque/speedN.m/rpm500/1300
DisplacementL3.8
Main performanceTravel speedkm/h5.3/3.2
Swing speedr/min11.7
Gradeability°35
Ground pressurekPa37
Bucket digging forcekN106.9
Arm digging forcekN73.4
Maximum tractionkN134

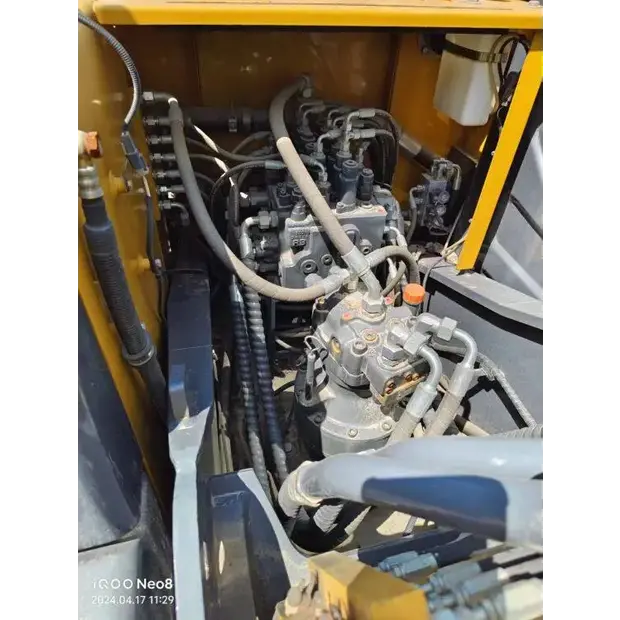

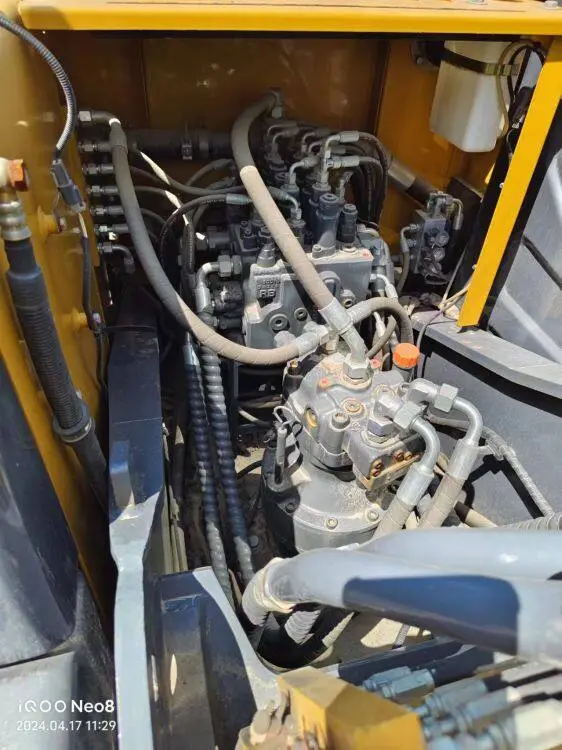

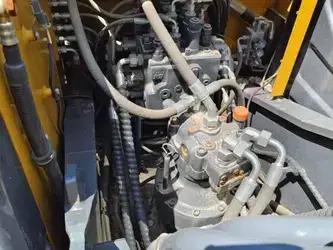

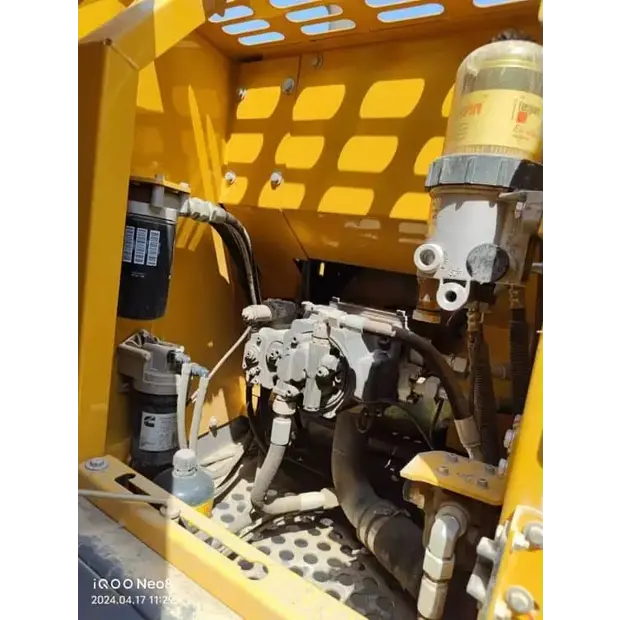

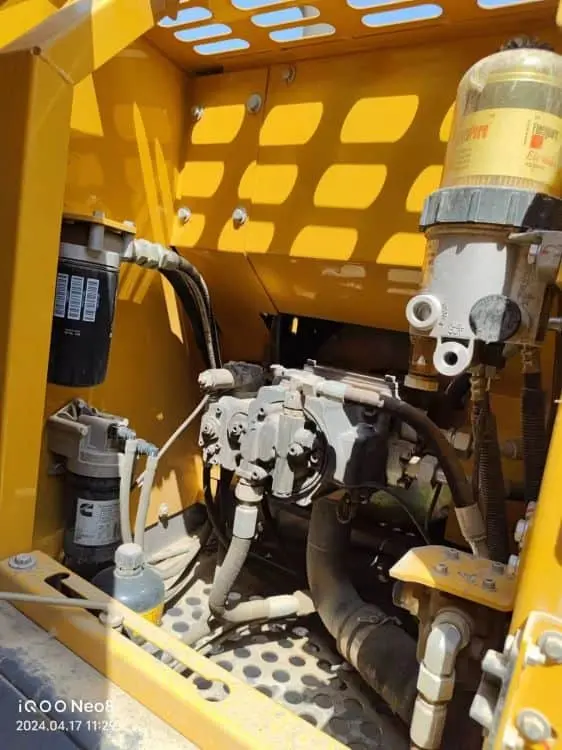

Hydraulic systemRated flow of main pumpL/min123.5*2
Main safety valve pressureMPa34.3/37
Travel system pressureMPa34.4
Rotary system pressureMPa25
Pilot system pressureMPa3.9
Oil CapacityFuel tank capacityL260
Hydraulic tank capacityL105
Engine oil capacityL11.7
Appearance sizeOverall lengthmm7795
Overall widthmm2672
Overall heightmm2900
Width of platformmm2672
Track lengthmm3658
Overall width of chassismm2590
Track widthmm600
Length to center of rollersmm2910
Track gaugemm1990
Counterweight clearancemm948
Min. ground clearancemm477
Min. tail swing radiusmm2325
Track heightmm836
Working scopeMax. digging heightmm8649
Max. dumping heightmm6185
Max. digging depthmm5535
Maximum depth cut for 2240mm(8 ft) level bottommm5324
Max. vertical wall digging depthmm4697
Max. digging radiusmm8304
Min. swing radiusmm2445
Standard configurationLength of boommm4600
Length of armmm2520
Bucket capacitym³0.65
Optional configurationLength of boomm³/
Length of armm³2100/3010
Bucket capacitym³0.32/0.4/0.71 Earth Working bucket0.52 Rock bucket
XCMG 2019 year used Hydraulic Crawler Digger XE155DKModel Number: XE155DK
Brand Name: XCMG
Place of Origin: Jiangsu, China
Machine Weight: 14600 kg
Maximum Digging Depth: 5535 mm
Maximum Digging Height: 8649 mm
Bucket capacity: 0.72 m3
Operating Weight: 14600 kg
Max Digging Radius: 8304mm
Rated Speed: 2200rpm
weight: 14600.000kg
Moving Type: Other
Year: 2019
Length*Width*Heigth: 7795 mm* 2672mm* 2900mm
: 7 days for ready goods
: 1 Piece
: Any Port In China
Sales modelUnitXE155DK
Operating weightKg14600
Bucket capacitym³0.32-0.71

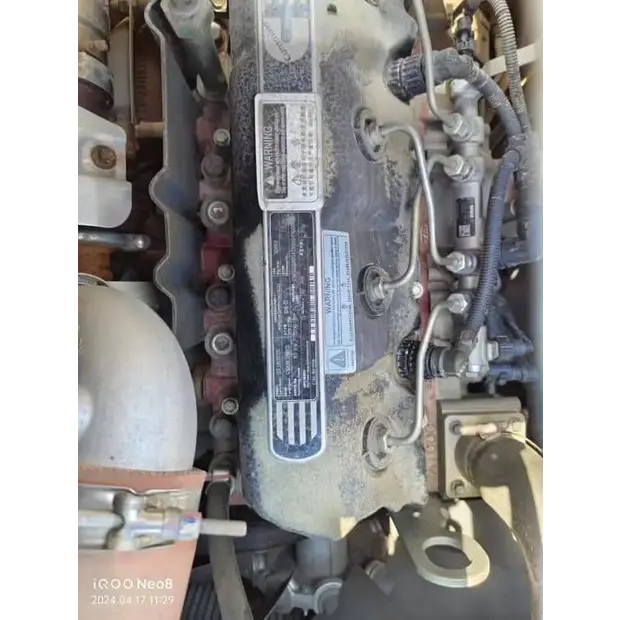

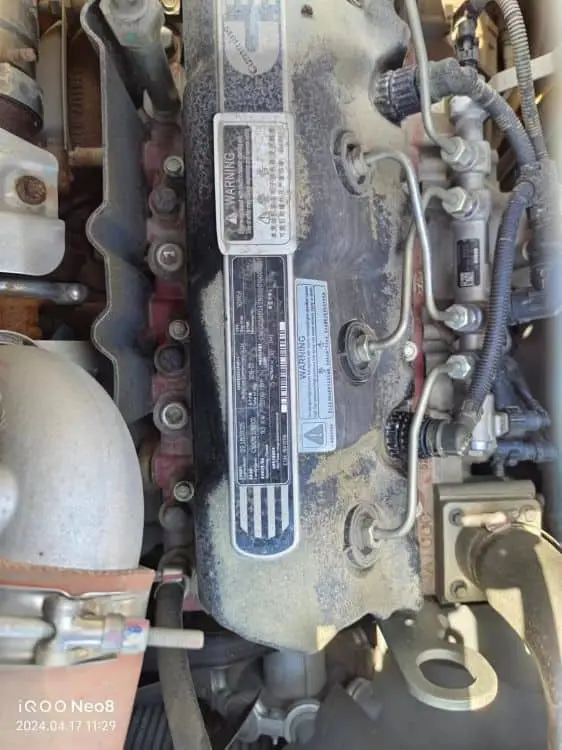

EngineModel/QSF3.8
Direct injection/√
Four strokes/√
Water cooling/√
Turbo-charging/√
No. of cylinders/4
Output powerkw/rpm93/2200
Maximum torque/speedN.m/rpm500/1300
DisplacementL3.8
Main performanceTravel speedkm/h5.3/3.2
Swing speedr/min11.7
Gradeability°35
Ground pressurekPa37
Bucket digging forcekN106.9
Arm digging forcekN73.4
Maximum tractionkN134
Hydraulic systemRated flow of main pumpL/min123.5*2
Main safety valve pressureMPa34.3/37
Travel system pressureMPa34.4
Rotary system pressureMPa25
Pilot system pressureMPa3.9
Oil CapacityFuel tank capacityL260
Hydraulic tank capacityL105
Engine oil capacityL11.7
Appearance sizeOverall lengthmm7795
Overall widthmm2672
Overall heightmm2900
Width of platformmm2672
Track lengthmm3658
Overall width of chassismm2590
Track widthmm600
Length to center of rollersmm2910
Track gaugemm1990
Counterweight clearancemm948
Min. ground clearancemm477
Min. tail swing radiusmm2325
Track heightmm836
Working scopeMax. digging heightmm8649
Max. dumping heightmm6185
Max. digging depthmm5535
Maximum depth cut for 2240mm(8 ft) level bottommm5324
Max. vertical wall digging depthmm4697
Max. digging radiusmm8304
Min. swing radiusmm2445
Standard configurationLength of boommm4600
Length of armmm2520
Bucket capacitym³0.65
Optional configurationLength of boomm³/
Length of armm³2100/3010
Bucket capacitym³0.32/0.4/0.71 Earth Working bucket0.52 Rock bucket
Model Number: XE155DK
Brand Name: XCMG
Place of Origin: Jiangsu, China
Machine Weight: 14600 kg
Maximum Digging Depth: 5535 mm
Maximum Digging Height: 8649 mm
Bucket capacity: 0.72 m3
Operating Weight: 14600 kg
Max Digging Radius: 8304mm
Rated Speed: 2200rpm
weight: 14600.000kg
Moving Type: Other
Year: 2019
Length*Width*Heigth: 7795 mm* 2672mm* 2900mm
: 7 days for ready goods
: 1 Piece
: Any Port In China
Sales modelUnitXE155DK
Operating weightKg14600
Bucket capacitym³0.32-0.71
EngineModel/QSF3.8
Direct injection/√
Four strokes/√
Water cooling/√
Turbo-charging/√
No. of cylinders/4
Output powerkw/rpm93/2200
Maximum torque/speedN.m/rpm500/1300
DisplacementL3.8
Main performanceTravel speedkm/h5.3/3.2
Swing speedr/min11.7
Gradeability°35
Ground pressurekPa37
Bucket digging forcekN106.9
Arm digging forcekN73.4
Maximum tractionkN134
Hydraulic systemRated flow of main pumpL/min123.5*2
Main safety valve pressureMPa34.3/37
Travel system pressureMPa34.4
Rotary system pressureMPa25
Pilot system pressureMPa3.9
Oil CapacityFuel tank capacityL260
Hydraulic tank capacityL105
Engine oil capacityL11.7
Appearance sizeOverall lengthmm7795
Overall widthmm2672
Overall heightmm2900
Width of platformmm2672
Track lengthmm3658
Overall width of chassismm2590
Track widthmm600
Length to center of rollersmm2910
Track gaugemm1990
Counterweight clearancemm948
Min. ground clearancemm477
Min. tail swing radiusmm2325
Track heightmm836
Working scopeMax. digging heightmm8649
Max. dumping heightmm6185
Max. digging depthmm5535
Maximum depth cut for 2240mm(8 ft) level bottommm5324
Max. vertical wall digging depthmm4697
Max. digging radiusmm8304
Min. swing radiusmm2445
Standard configurationLength of boommm4600
Length of armmm2520
Bucket capacitym³0.65
Optional configurationLength of boomm³/
Length of armm³2100/3010
Bucket capacitym³0.32/0.4/0.71 Earth Working bucket0.52 Rock bucket
أظهر المزيد عرض أقل
