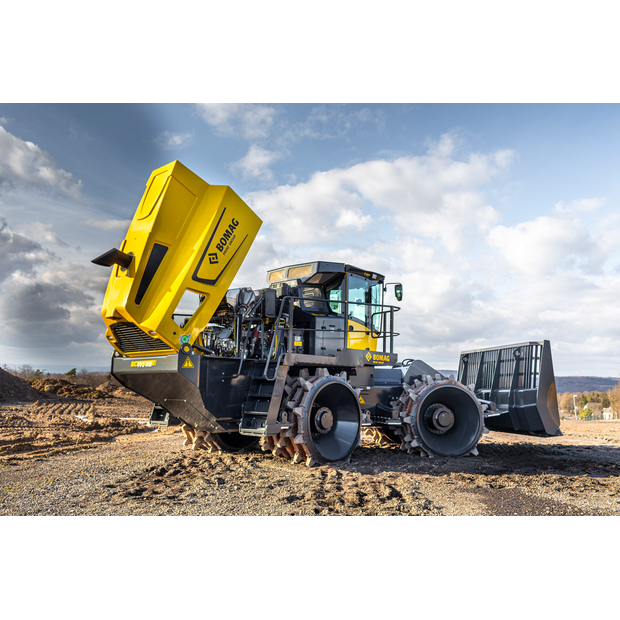

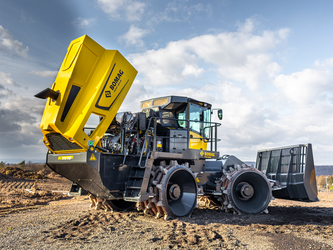

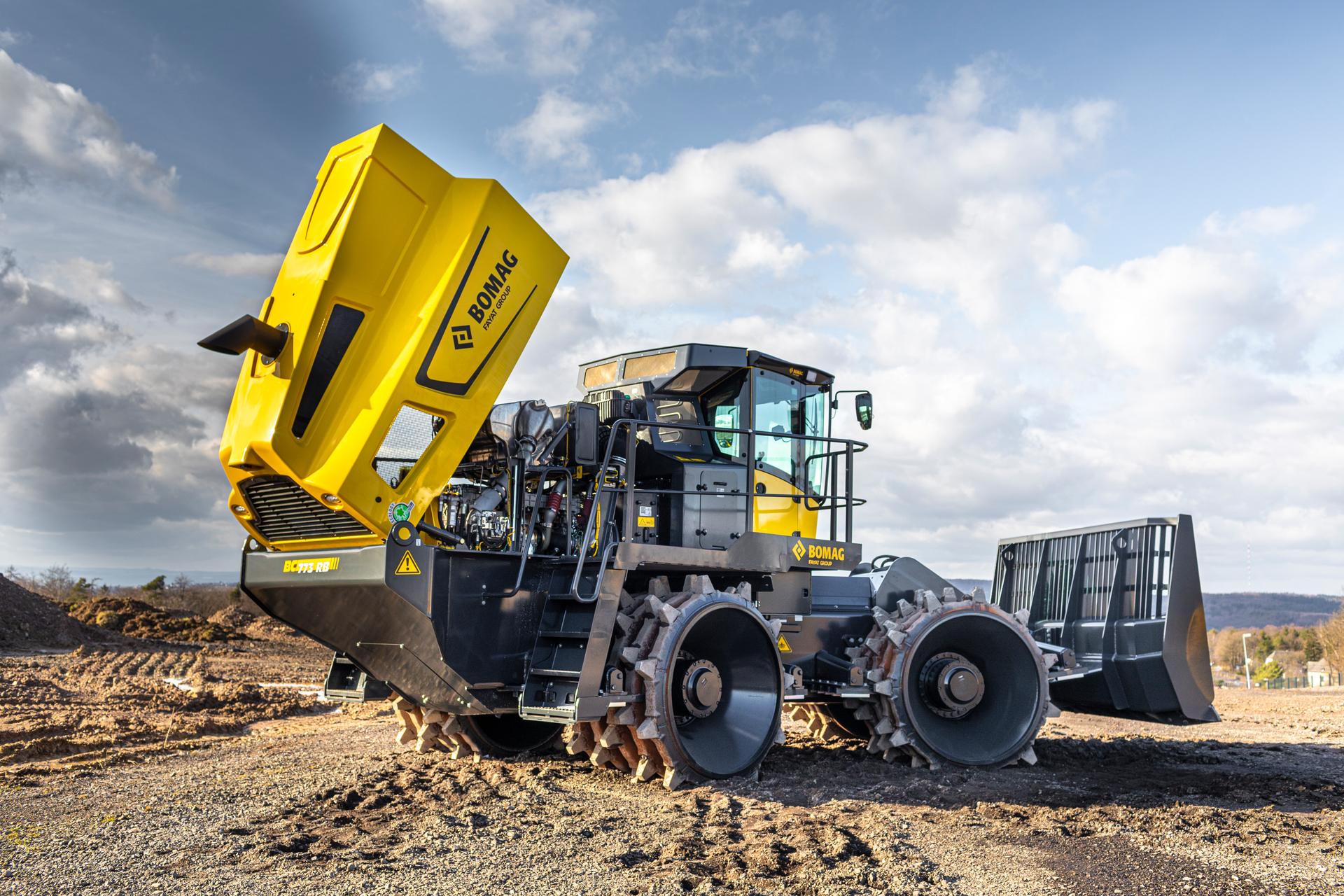

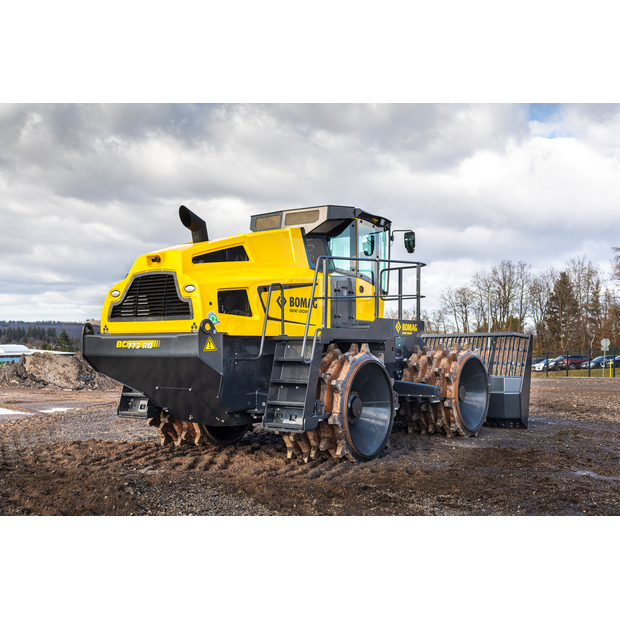

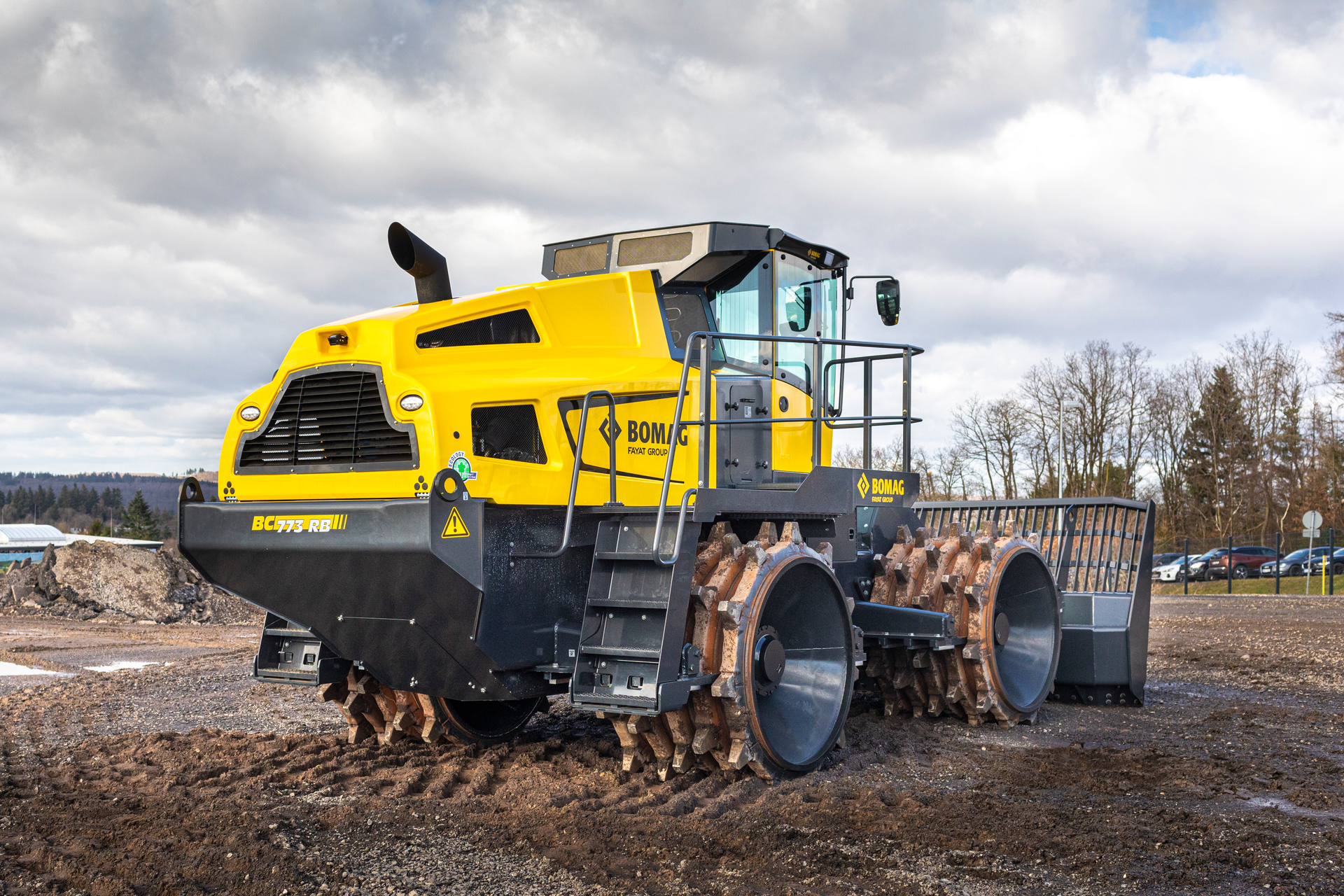

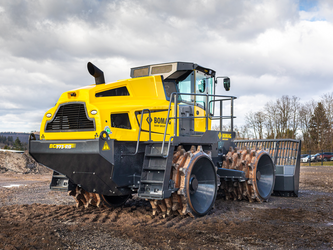

بوماج BC 773 RB-5

Emission stage: Stage V / TIER4
Weight: 73,634 lb
Performance: 450.0 hp
BC 773 RB-5: The multitool among refuse compactors.
BOMAG refuse compactors – the key to your success.
BOMAG refuse compactors in the 30 to 40 ton-class have many convincing design advantages that have been tried and tested over decades of practical use on landfill sites. Together with an uncompromising quality philosophy, they are up to every challenge on modern landfill sites. The result is a refuse compactor with outstanding efficiency, which uses the latest technology to combine high productivity with low operating costs and excellent serviceability. BOMAG's Operator Support System helps optimise performance and relieves the burden on drivers.
BOMAG refuse compactors – the key to your success.
BOMAG refuse compactors in the 30 to 40 ton-class have many convincing design advantages that have been tried and tested over decades of practical use on landfill sites. Together with an uncompromising quality philosophy, they are up to every challenge on modern landfill sites. The result is a refuse compactor with outstanding efficiency, which uses the latest technology to combine high productivity with low operating costs and excellent serviceability. BOMAG's Operator Support System helps optimise performance and relieves the burden on drivers.
Fields of application
Refuse compaction - for optimal distribution and compaction to extend the service life of a landfill site.

Not all compaction is the same. Refuse compactors from BOMAG are synonymous with the best possible use of landfill volume, and at the same time offer ideal and homogeneous compaction. This ensures the optimum stability of a landfill site. BOMAG refuse compactors are specially designed for use on landfill sites of all sizes, regardless of whether the refuse is industrial, household, bulky or construction waste. Refuse compactors are equipped with a dozer blade (RB) or a loading bucket (RS).
Technology makes the difference.
BOMAG consistently sets industry standards and has developed numerous technologies that make everyday work easier, support machine operators and ensure high-quality work results.
Specifications
Standards
Electronic engine management
Electronic monitoring module with engine shut-down
Engine air intake at a height of 3,30 m
Dry air filter
Cold starting system
Multi fuel filter system
Fuel bleeding pump
Hydraulic all-wheel drive (Quad pump drive)
Wear control in hydraulic circuit
Hydraulically operated articulated steering system
Oscillating articulated joint between front and rear frames
Automatic central lubrication system (Bucket system, manual)

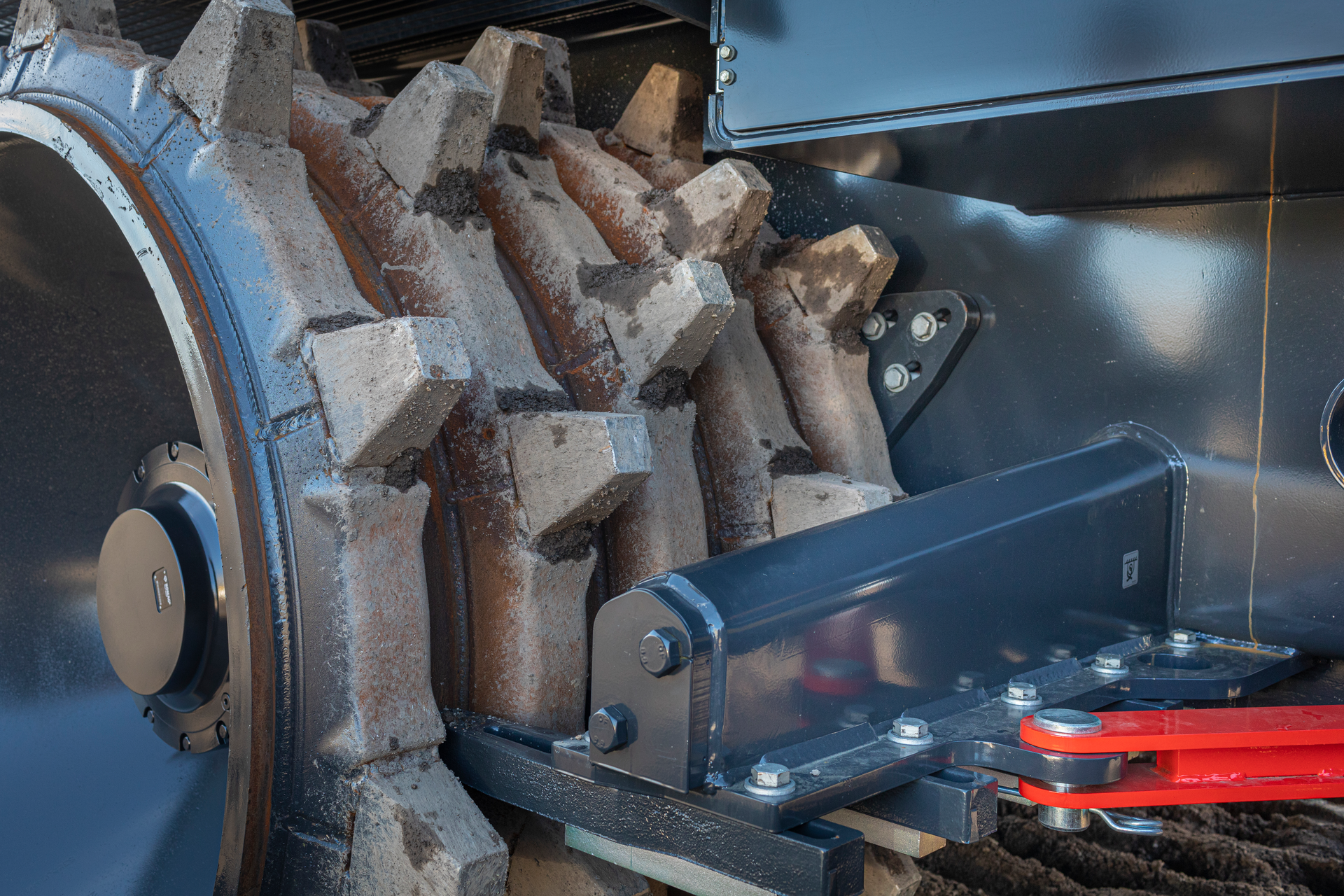

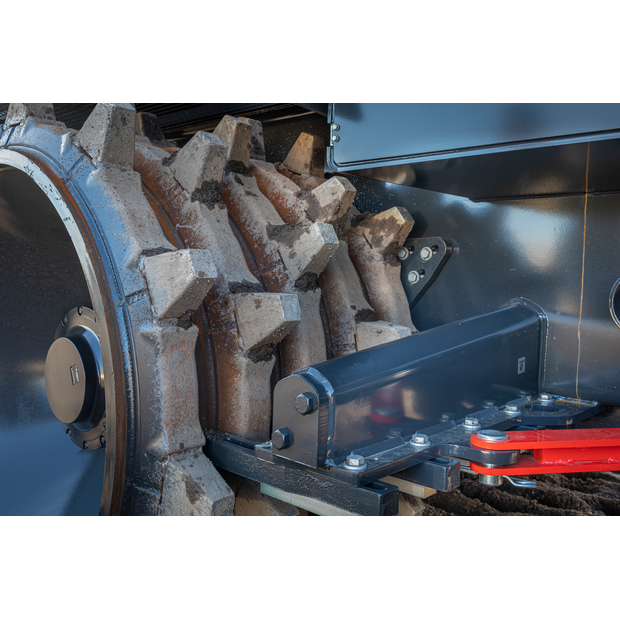

Adjustable scrapers in front of and behind each wheel

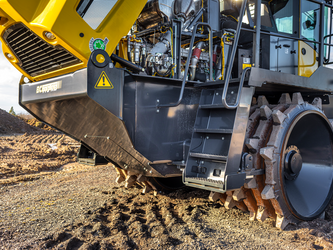

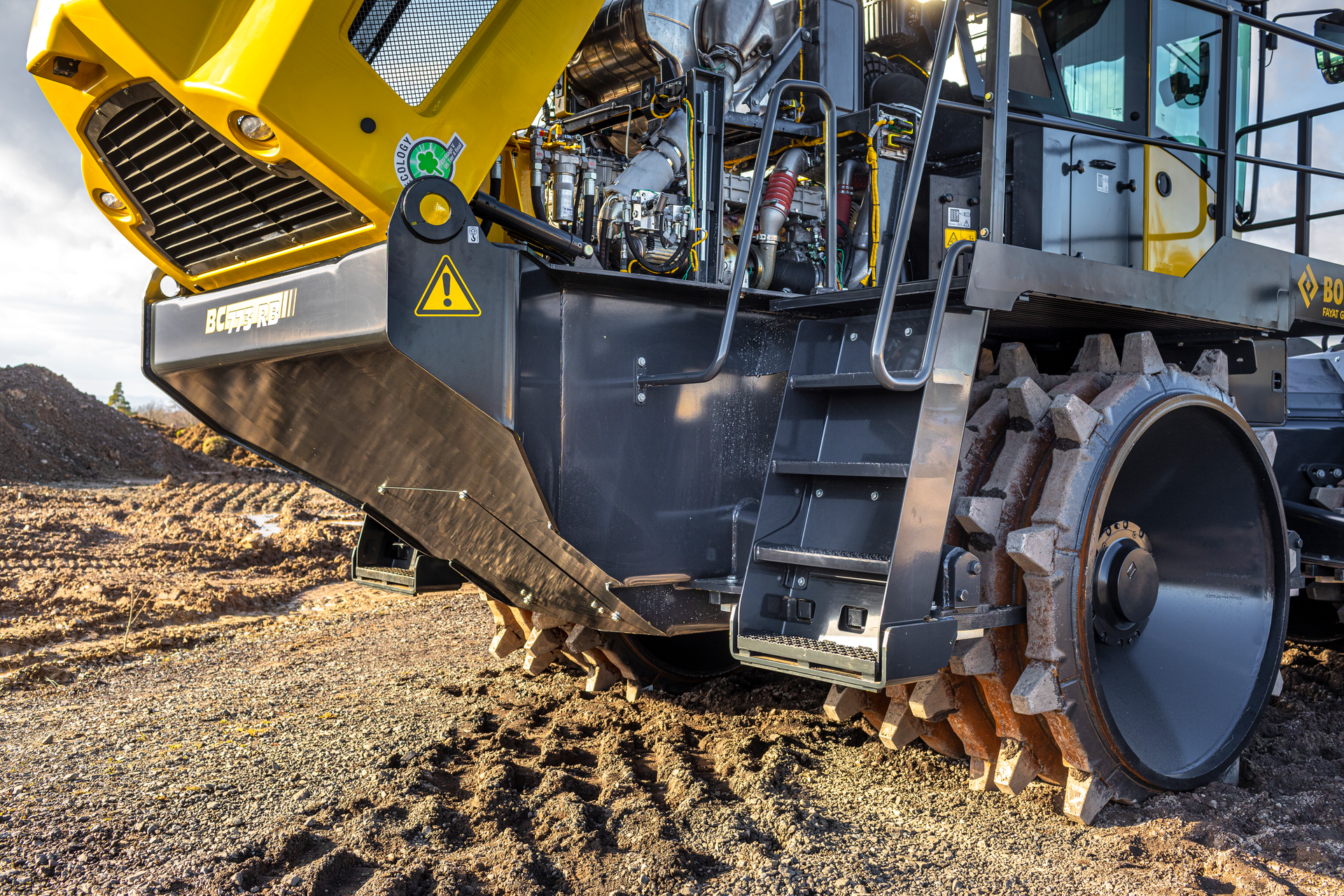

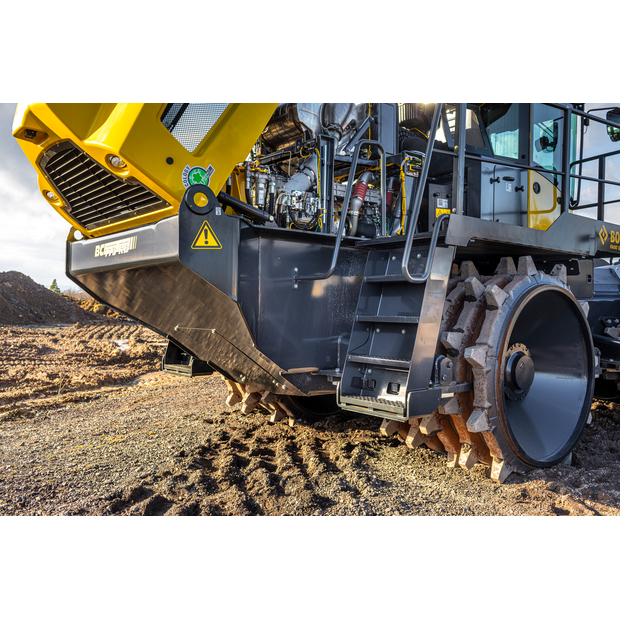

All drive components well protected by the closed frame pan
Wire deflector and drive protection on inner side of wheels
ROPS/FOPS
Noise insulated cab
Vibration insulated cab suspension
Cab ventilation with overpressure
Activated charcoal filter for odour restriction
Automatic heating - air conditioning
Tinted safety glass panes
Sun shades
Hinged window, left
Windscreen wiper/washer, front
Interval switch for windscreen wipers
Outer rear-view mirror, electrically adjustable
Heated outside mirror
Heatable rear windscreens
Air suspended seat
Seat belt
Seat heating
Head rest
Control units for bucket/dozer blade and travel direction control integrated in the driver’s seat
Adjustable joystick steering
Display instruments
CD-Radio
24 V electrics
Generator 150 A
Battery disconnecting switch
LED Working lights, 4 front/4 rear/2 lateral
Rotary beacon
Audible backup alarm
Warning horn
Access steps right / left
Towing eyes front / rear
Hydr. driven, reversible and speed controlled radiator fan
Rearview camera
Options
Polygonal compaction wheels, teeth with replaceable caps
Premium compaction wheels with highly wear resistant teeth
Blade 3800mm
Semi-U-Blade 3750mm
Semi-U-Blade 4480mm
PS3 Bucket 3800mm
Blade 4350mm
Pre start cabin heating
Fire extinguisher
Special painting
Environmentally compliant hydraulic oil
Protective ventilation system (Pre-installation)
Lockable hood lock (anti-theft protection)
Tool kit
Tarpomatic (Pre-installation)
Tachograph
Cold start device 115V
Cold start device 230V
TELEMATIC POWER
