2026 Boratas BLT130

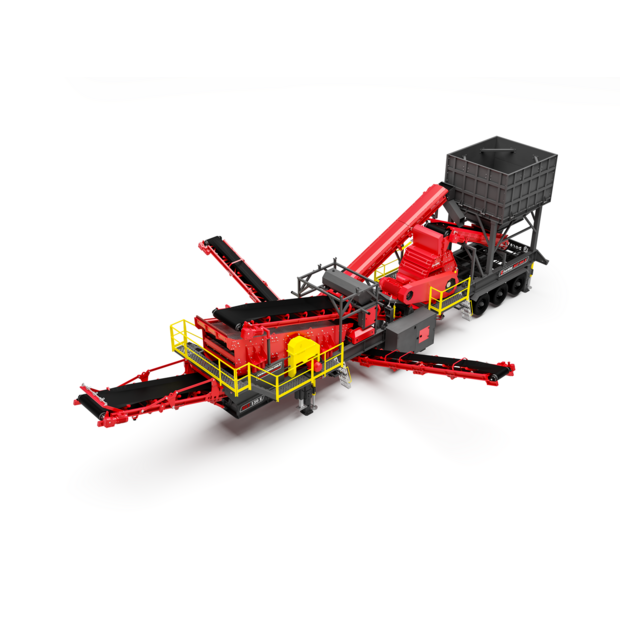

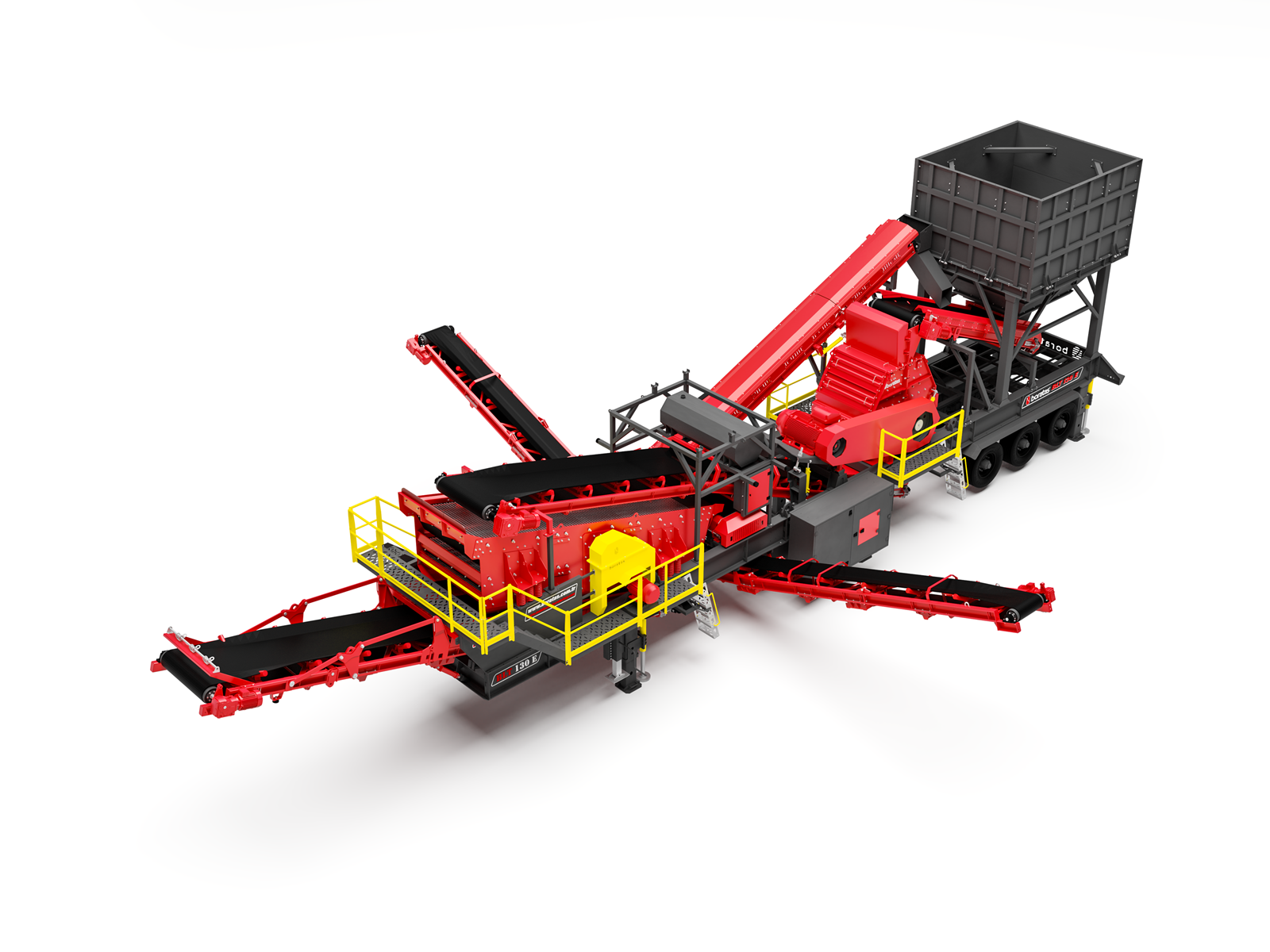

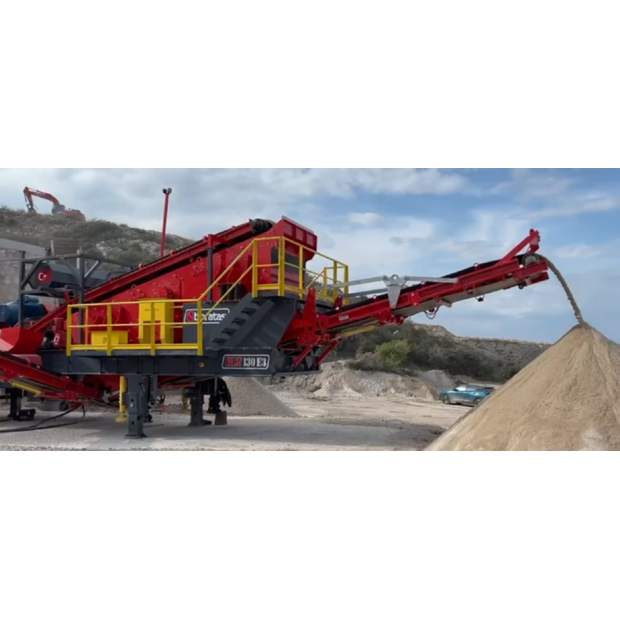

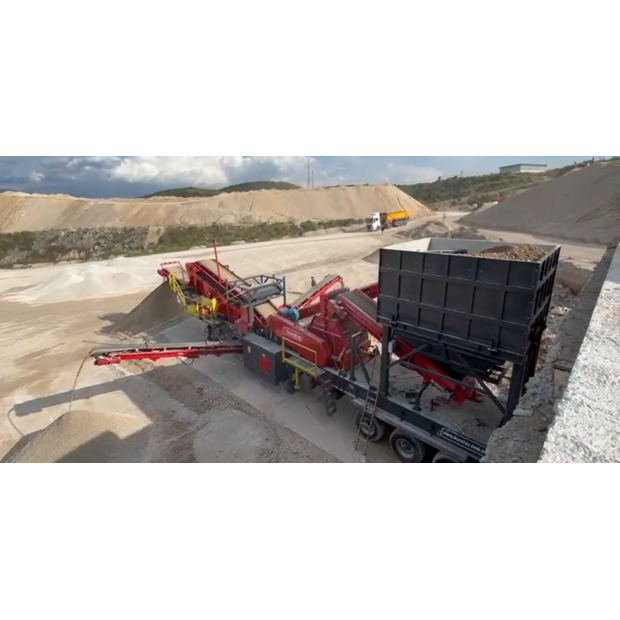

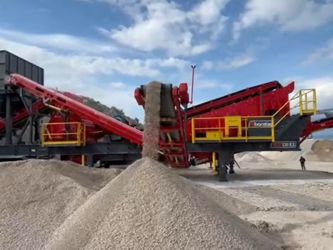

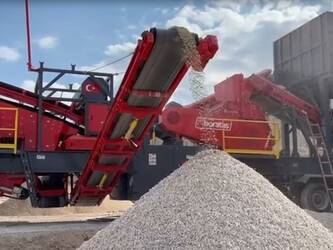

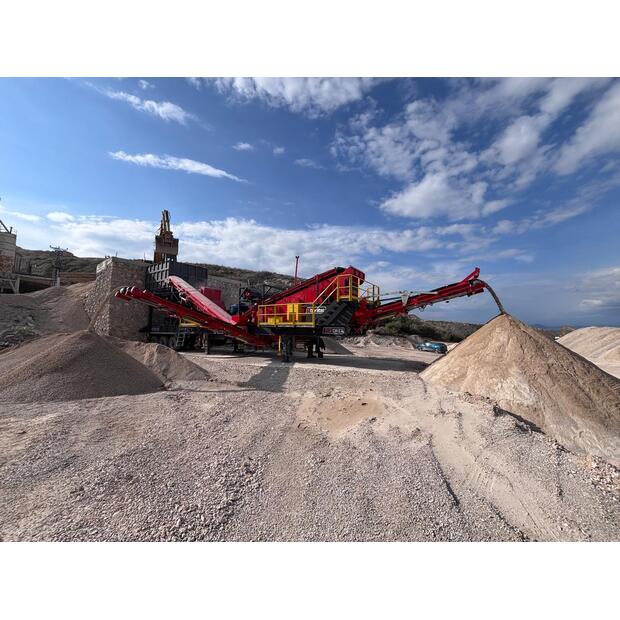

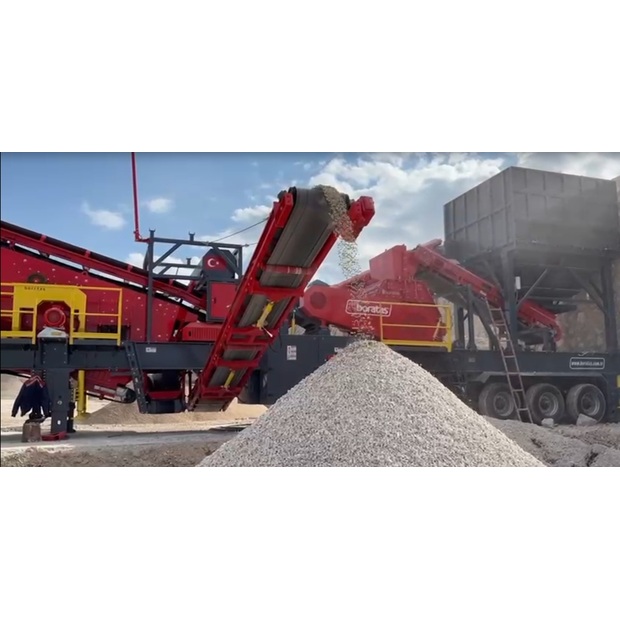

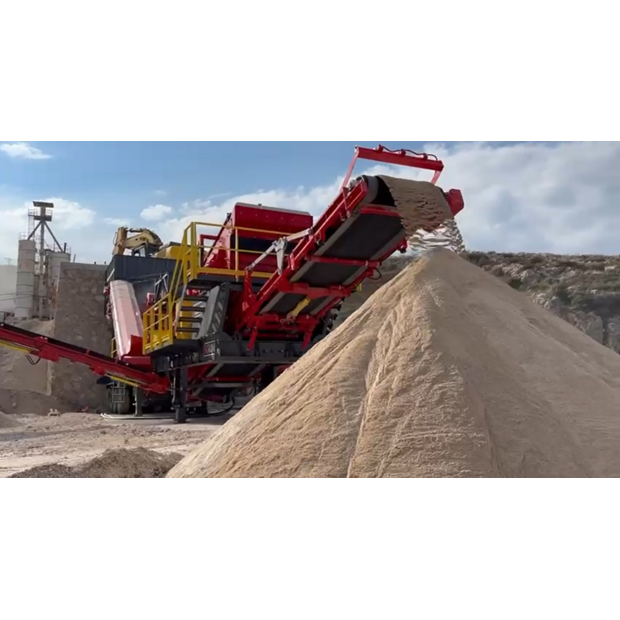

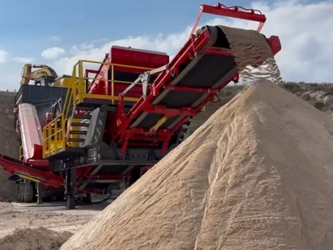

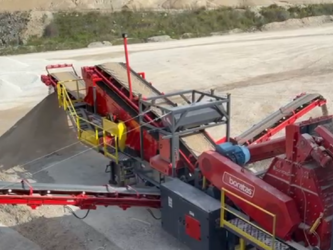

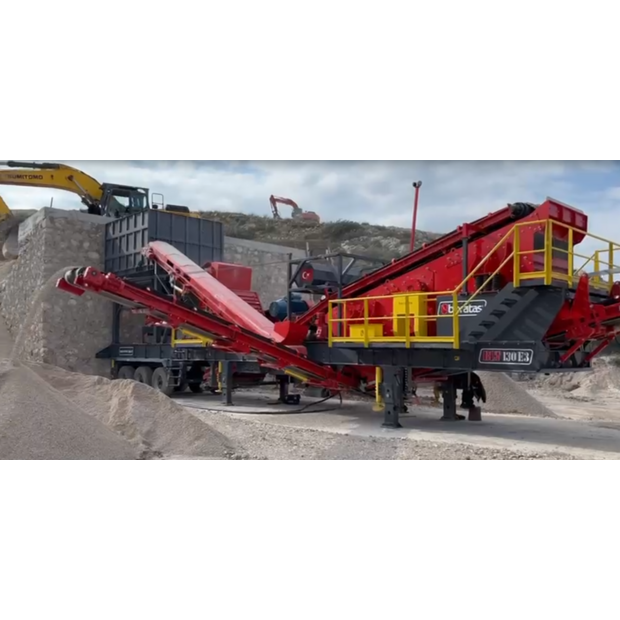

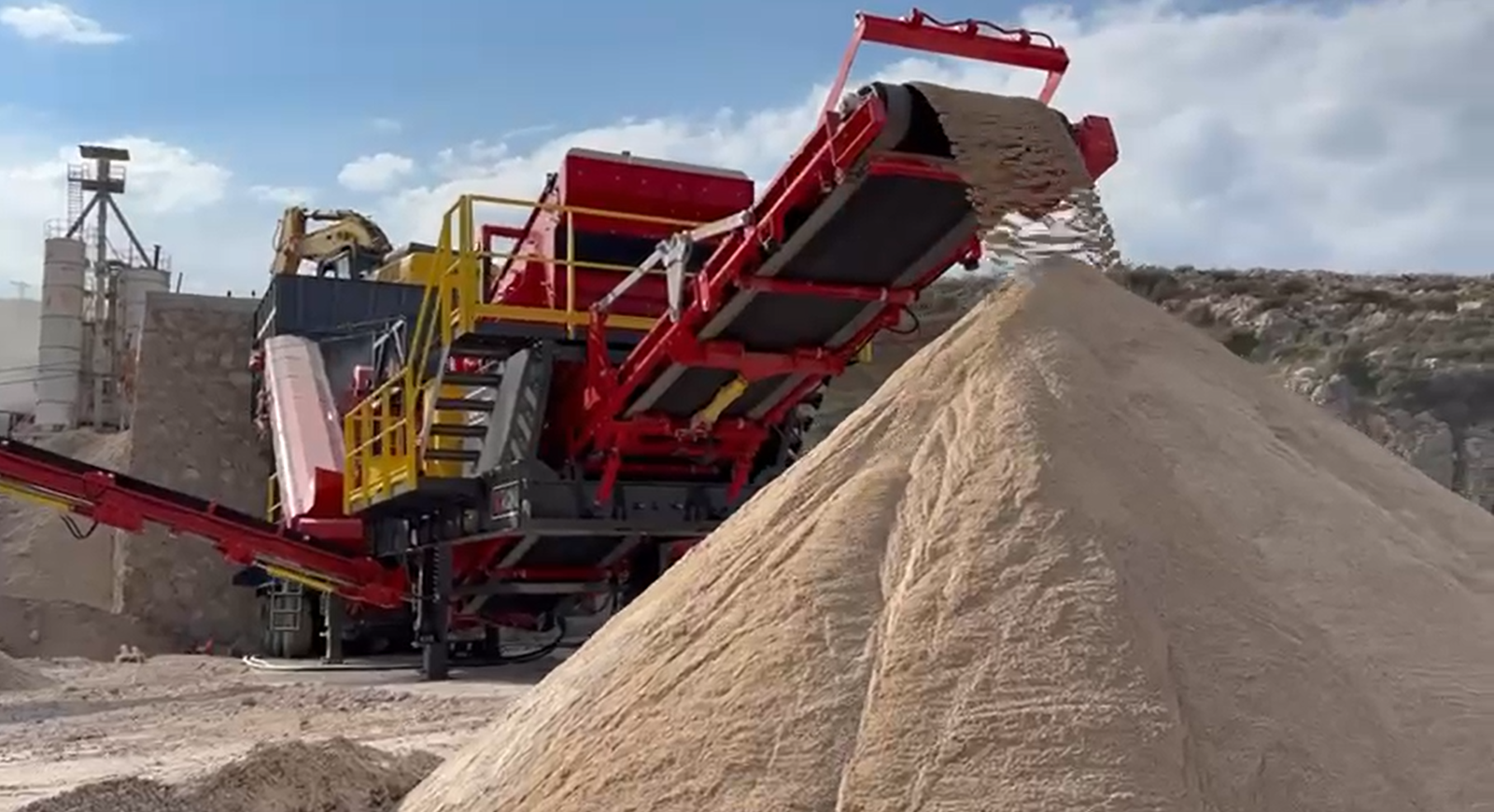

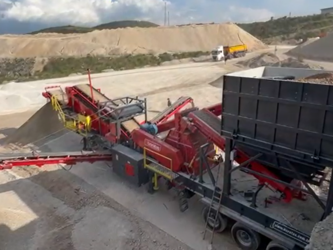

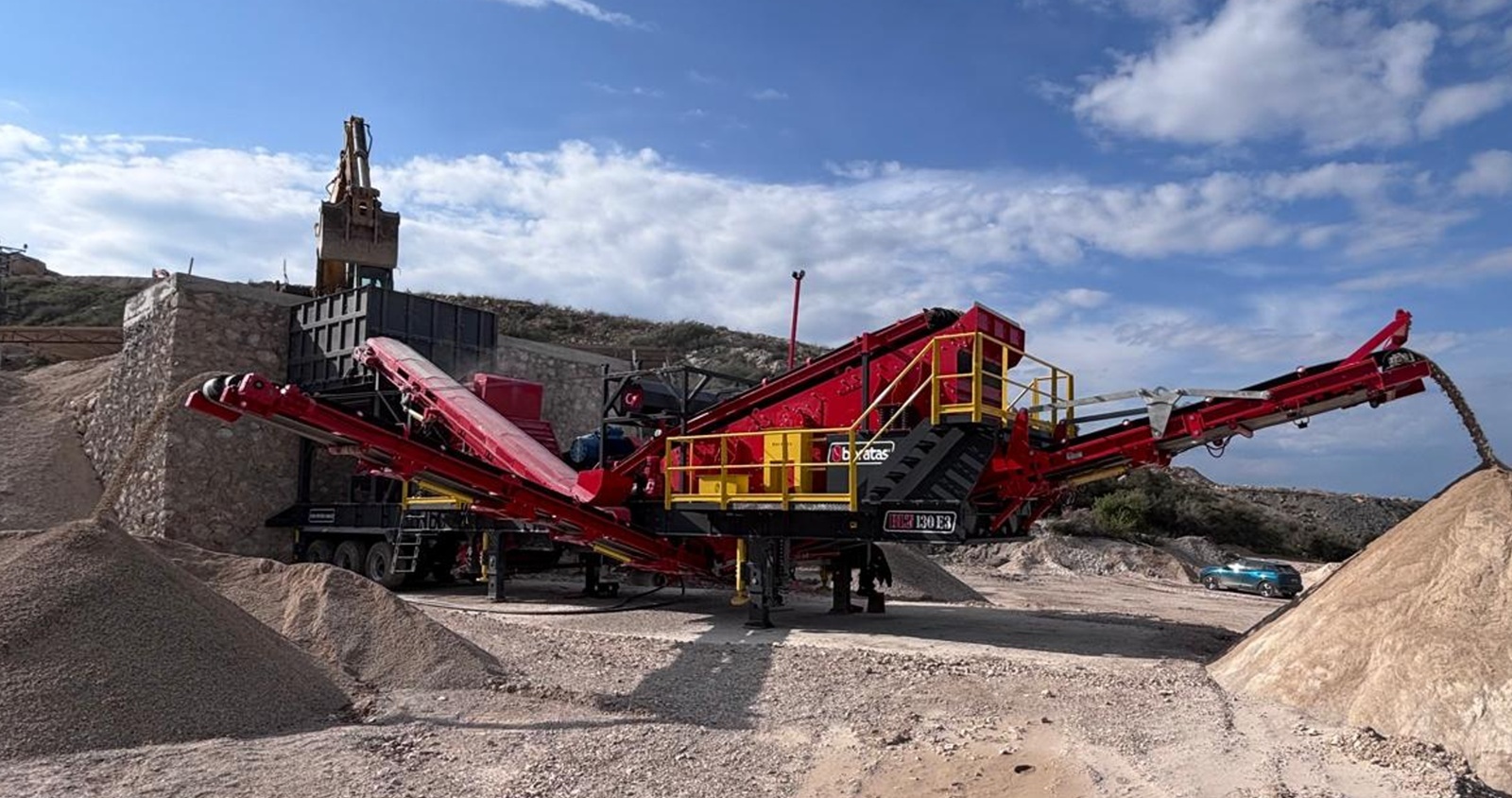

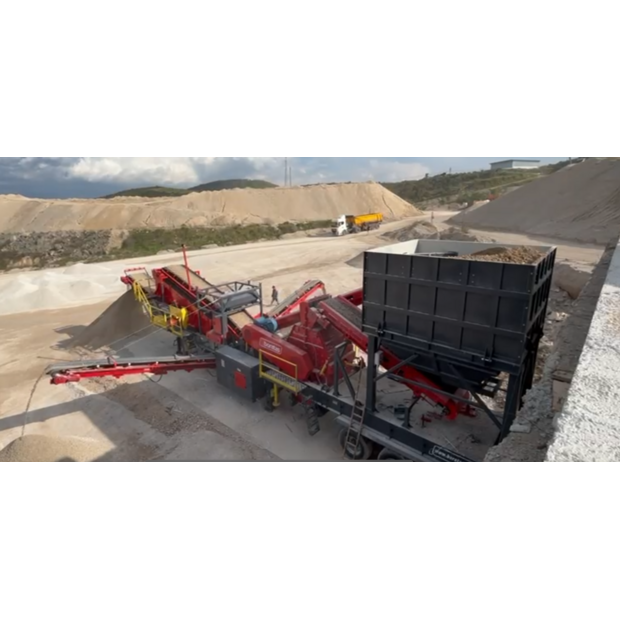

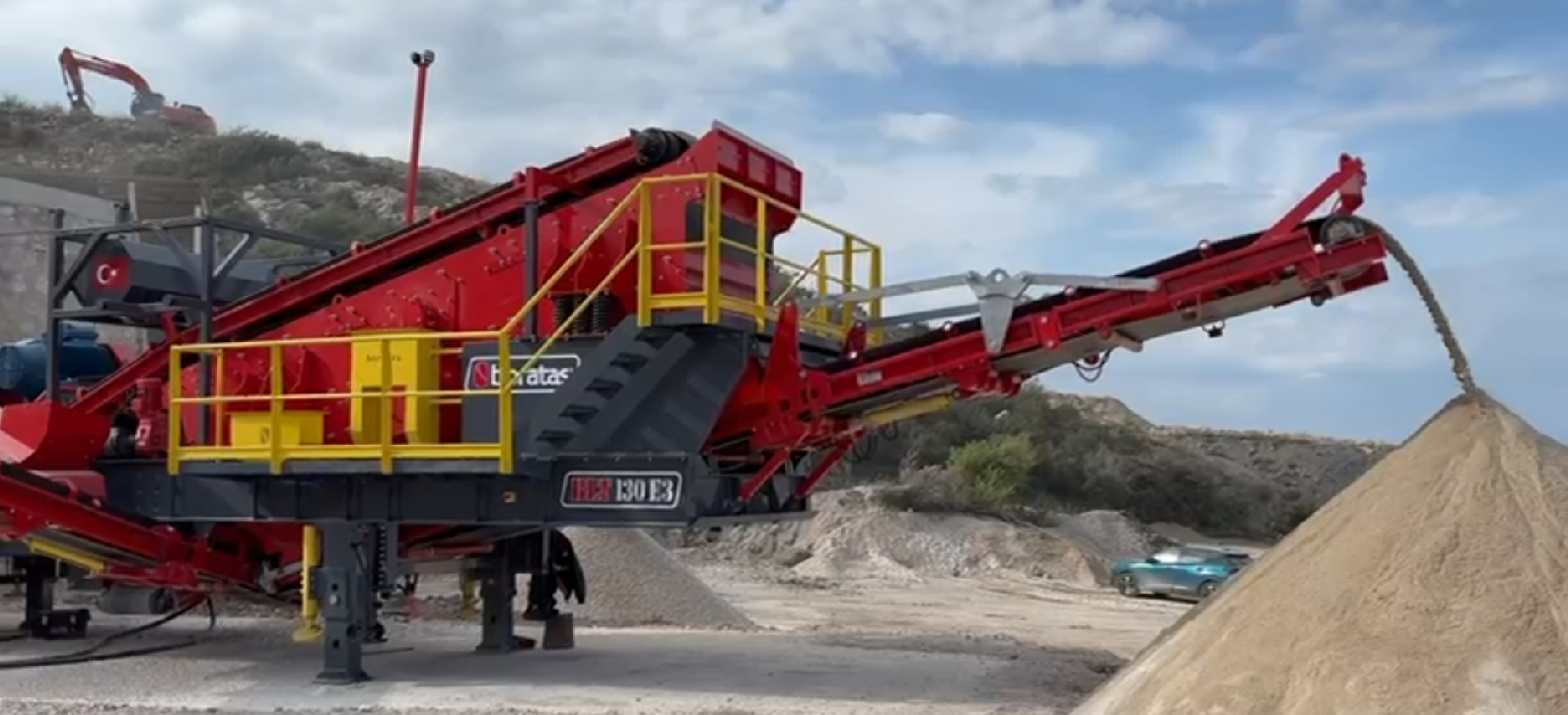

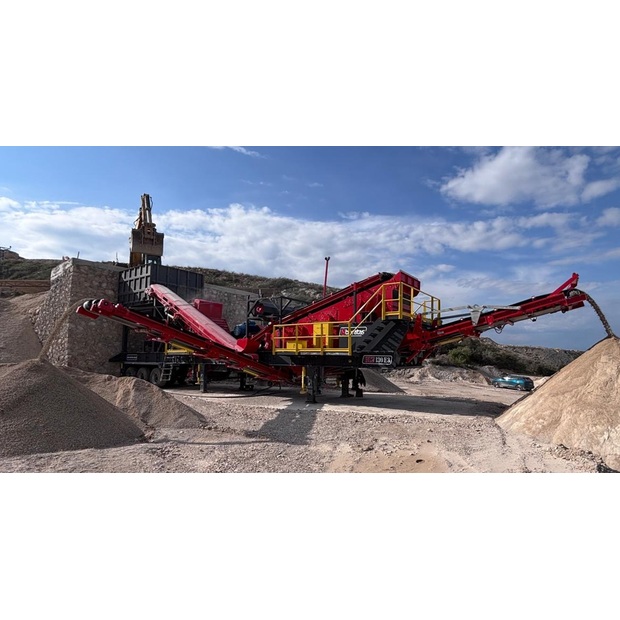

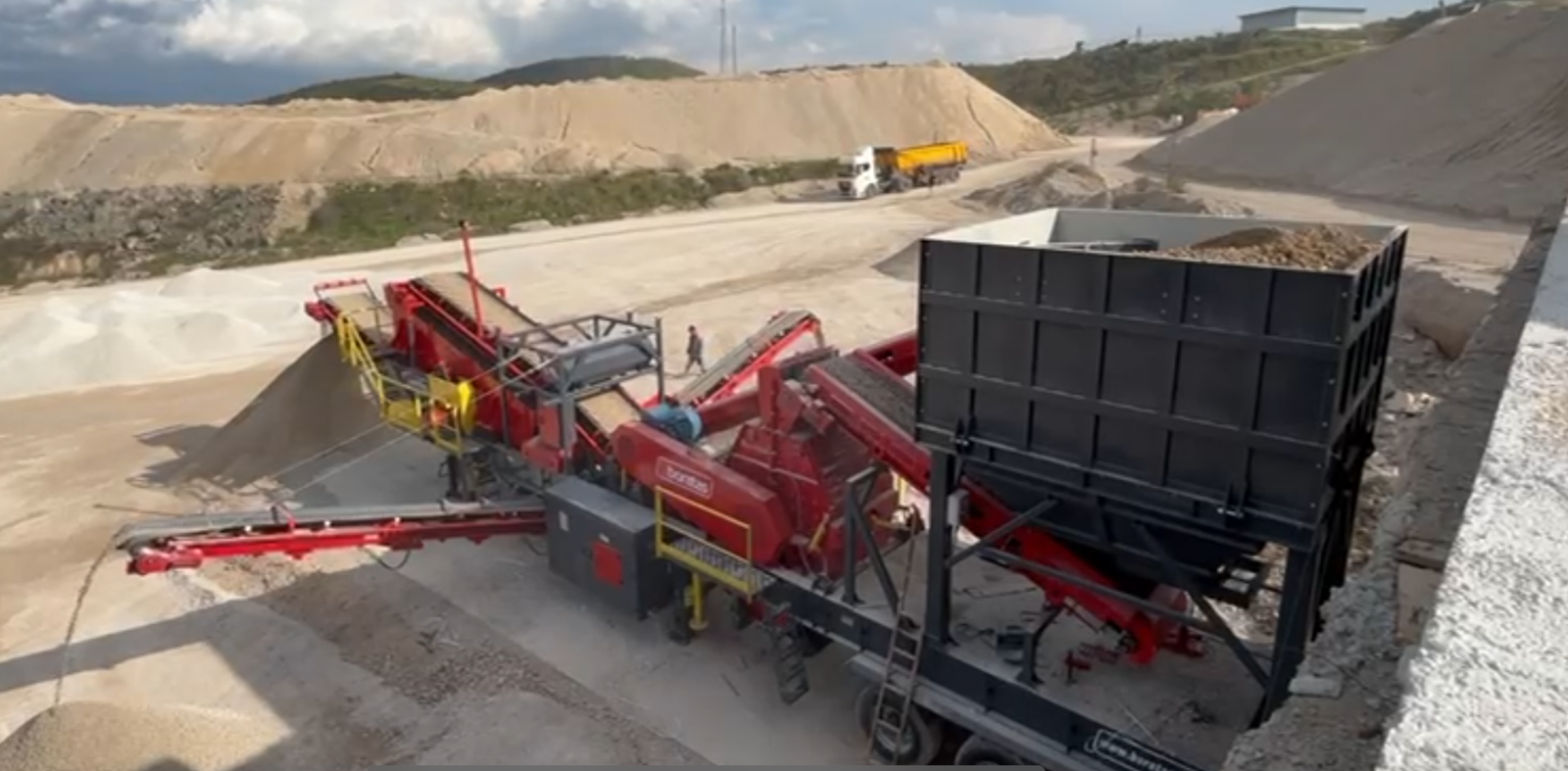

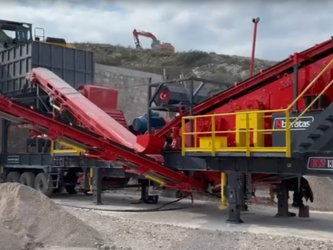

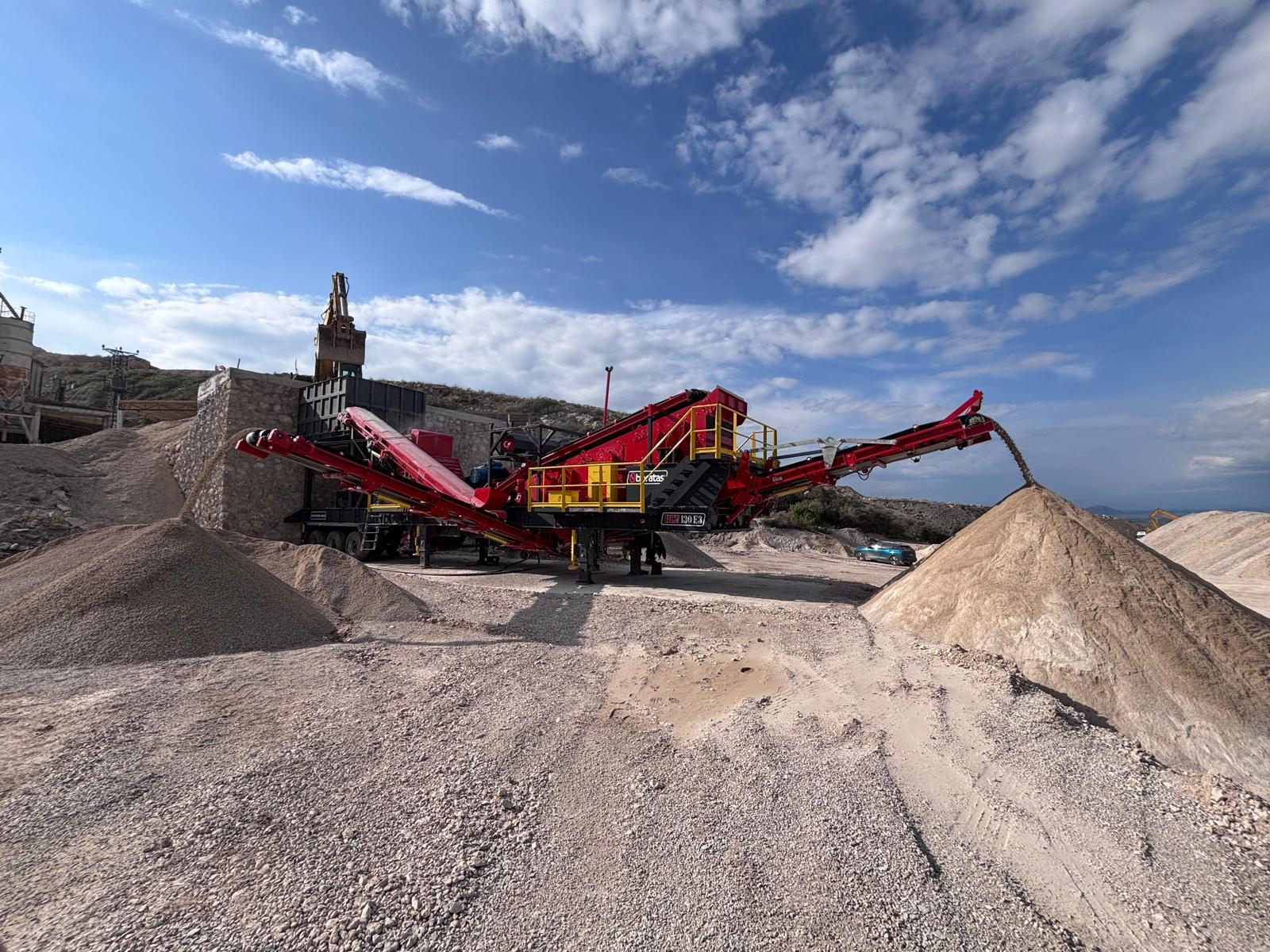

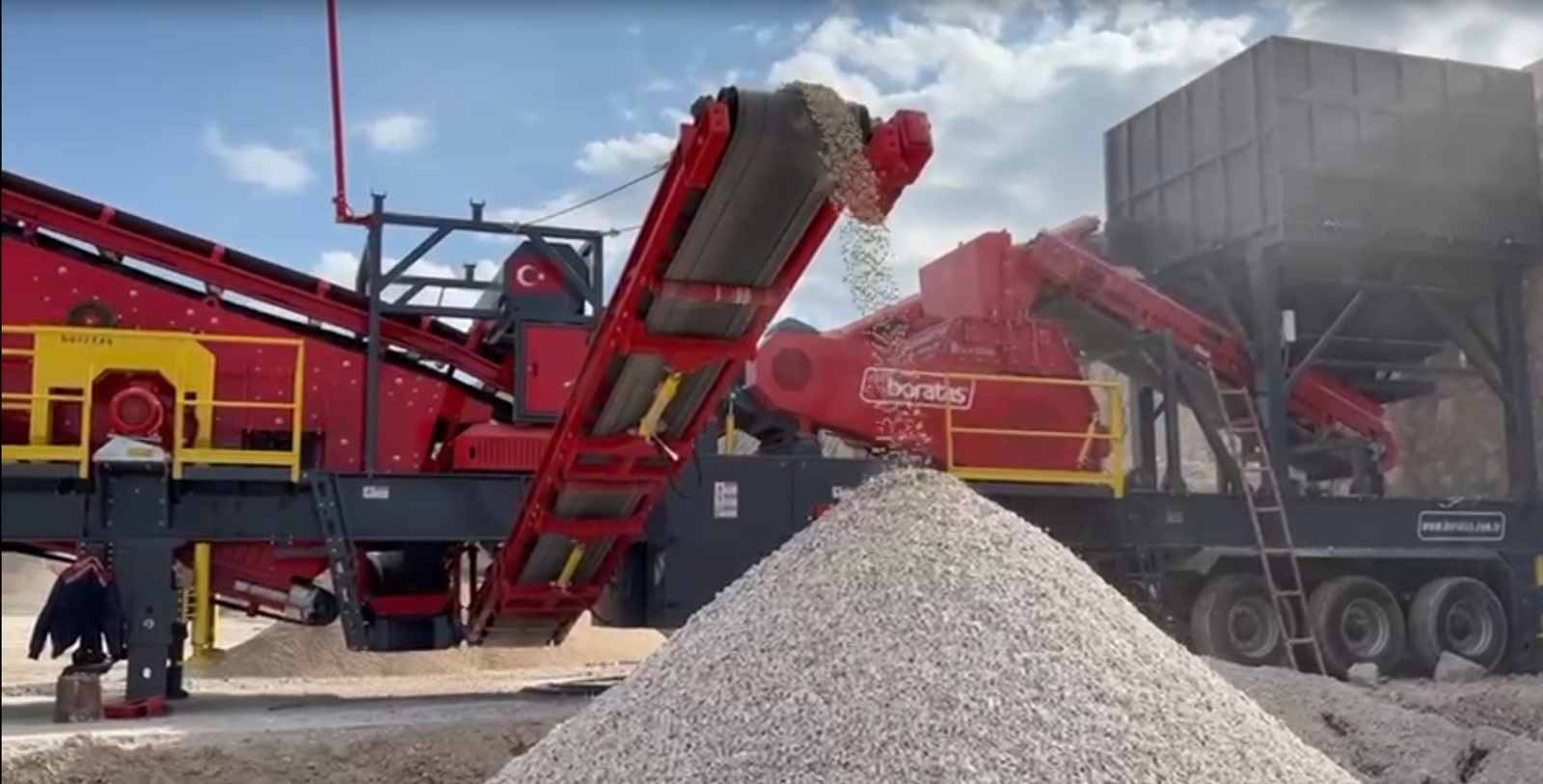

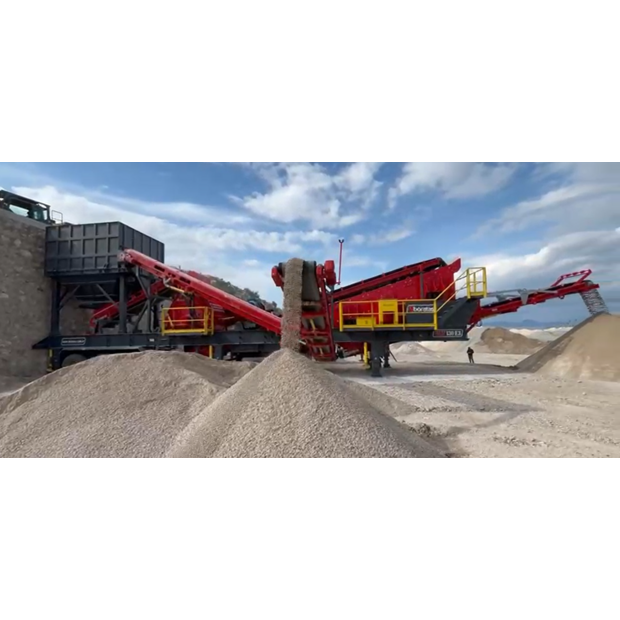

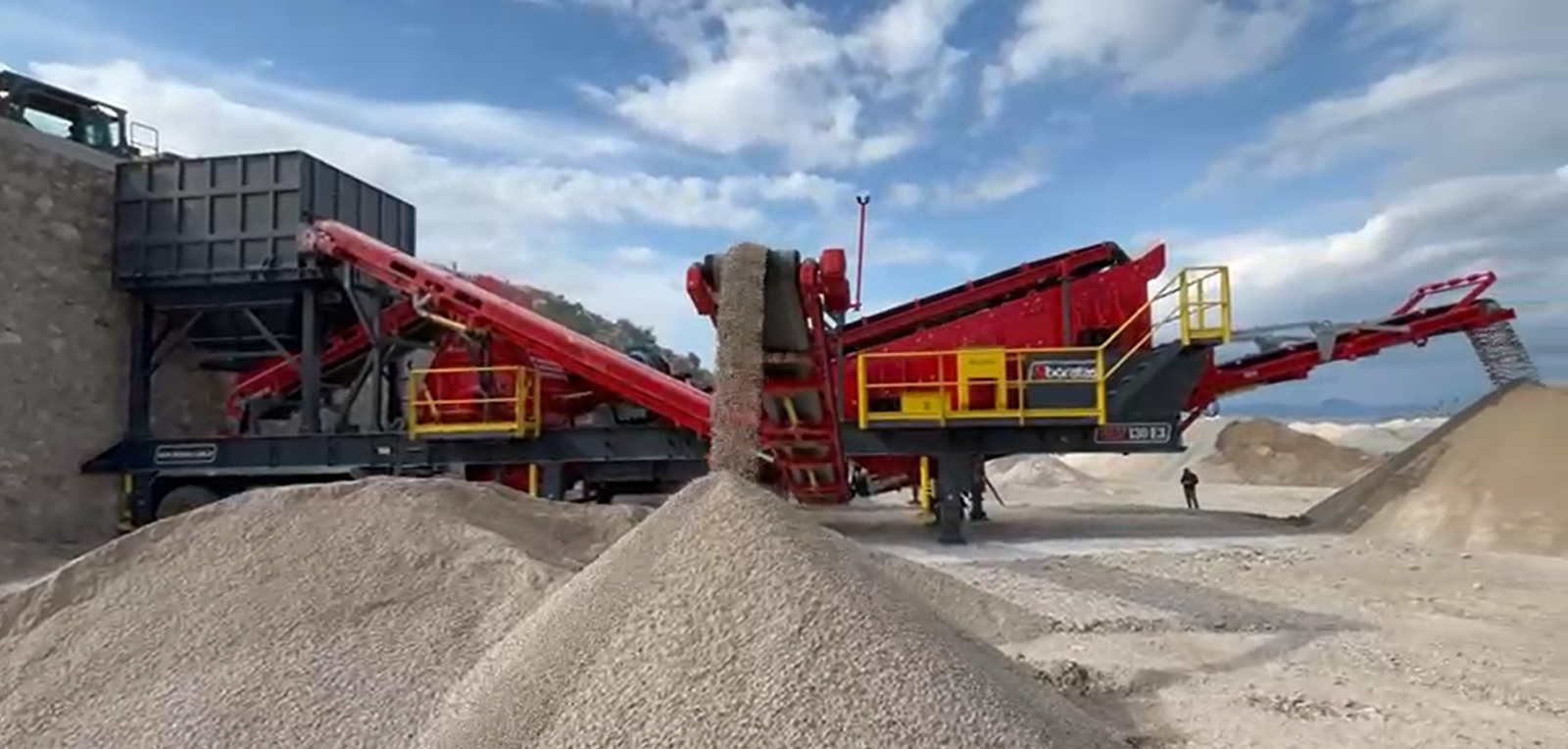

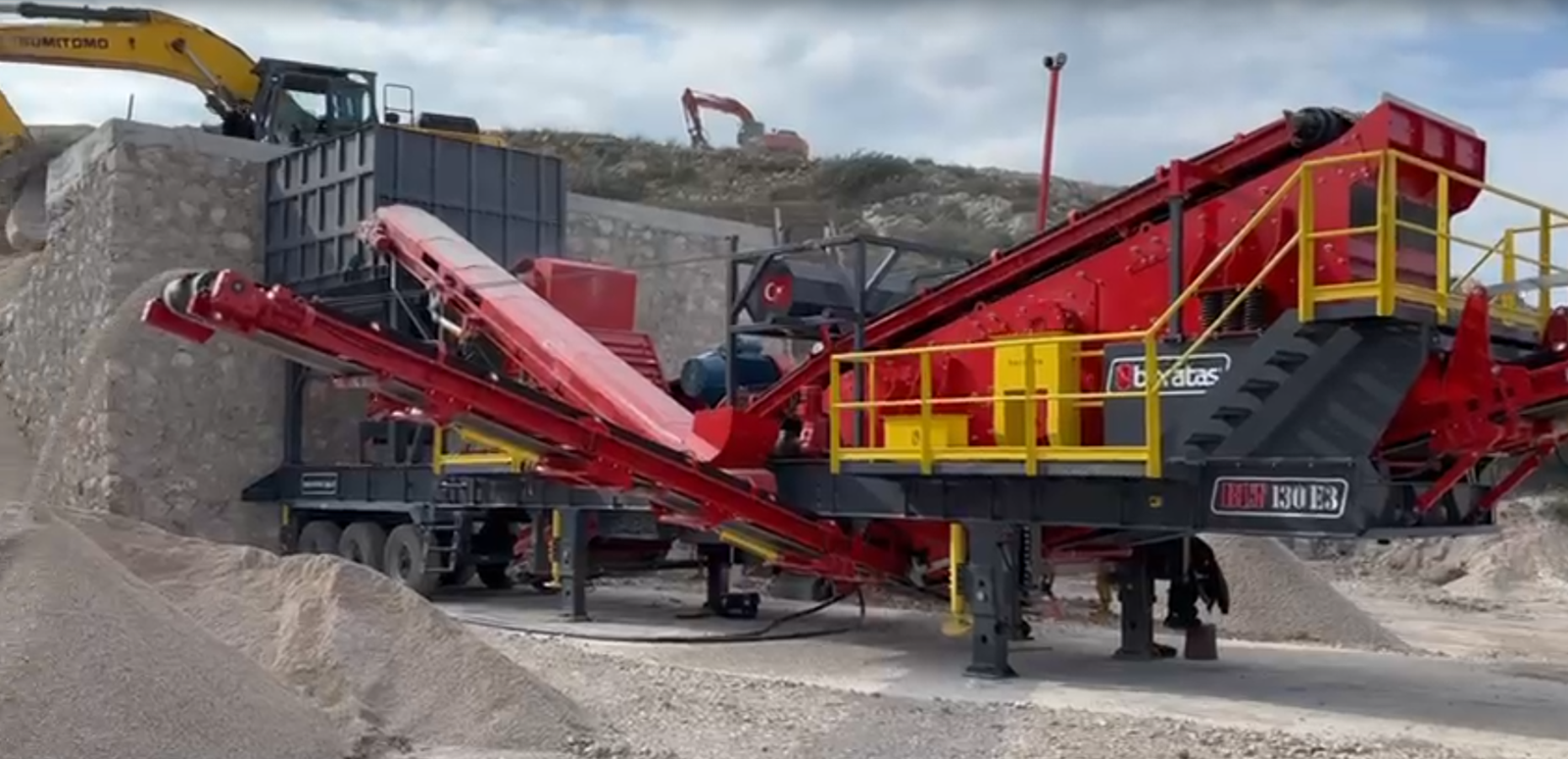

Boratas BLT130 is a wheel-mounted tertiary impact crushing and screening unit designed for final-stage crushing where fine material production, and controlled sizing and shaping are required. It is typically used in quarry and construction aggregate applications, especially for concrete and asphalt mixes where consistent grading and cubical product quality matter.

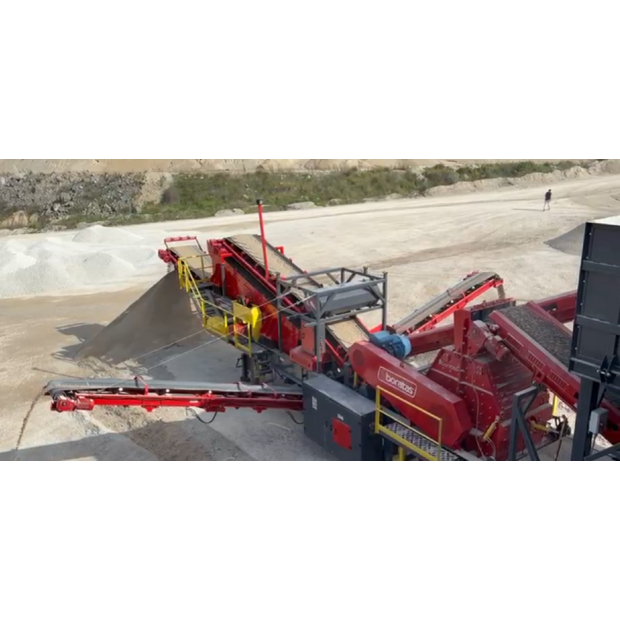

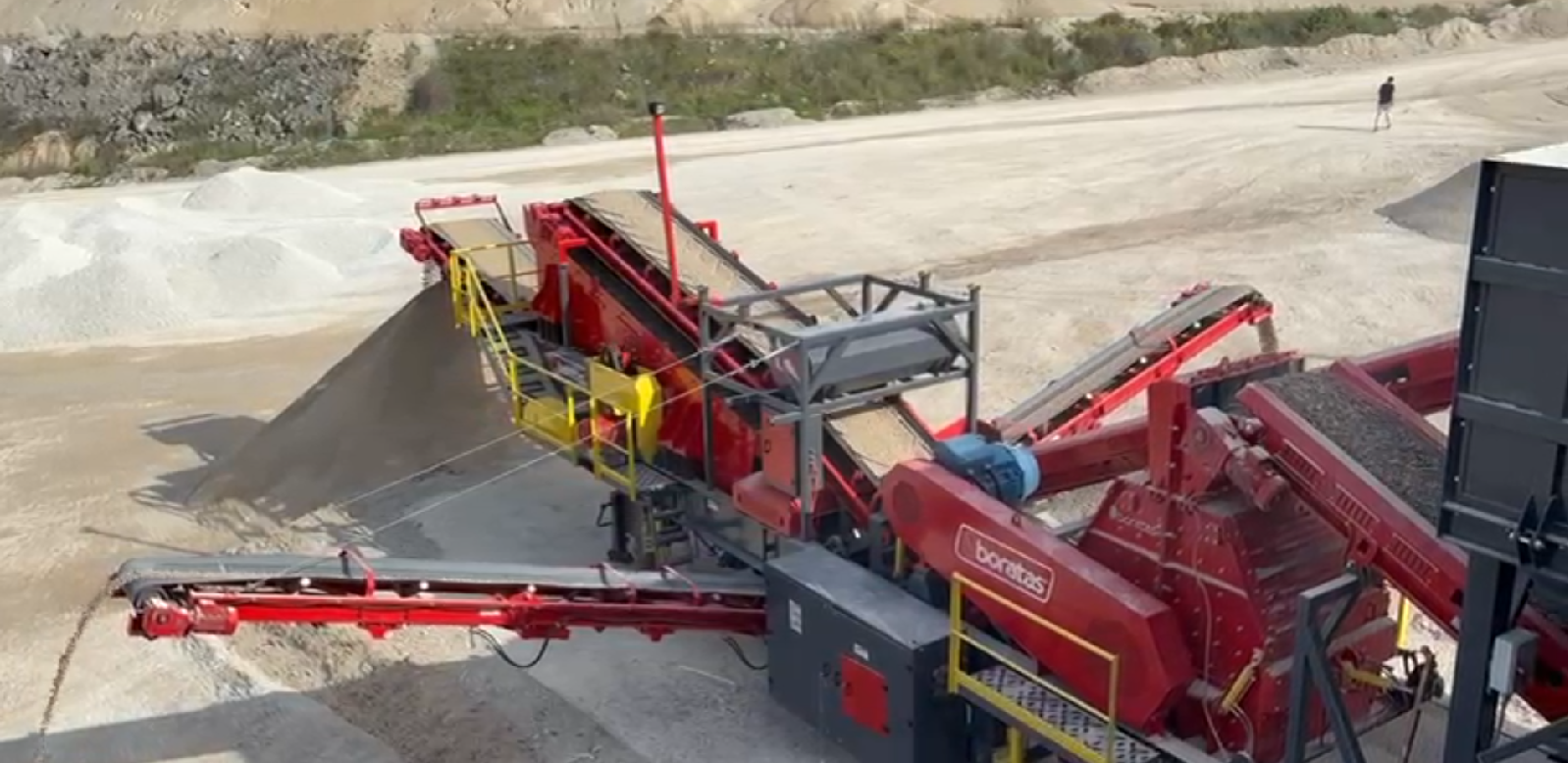

The BLT130 can be fed with material up to approximately 150 mm and is designed to produce fine fractions such as 0–4 mm or 0–5 mm. It combines a tertiary impact crusher with an integrated vibrating screen on single wheeled chassis, allowing both crushing and classification in a compact setup. The screening unit can be supplied with 2, 3, or 4 decks depending on the needed end product fractions.

The unit is designed primarily for electric operation and is intended to be connected to an external power source. On request, an optional diesel generator can be supplied for projects requiring temporary or off-grid power, supporting flexible use across different sites without changing the core crushing and screening configuration.

Manufactured in compliance with international quality standards.
Supported by Boratas warranty and after-sales service.
For further technical details and project-specific solutions, kindly visit our website:
https://www.boratasglobal.com/en/products/wheeled-mobile-tertiary-impact-crusher/wheeled-mobile-tertiary-impact-crusher-blt130e3

******************************************************************

Standard Features:

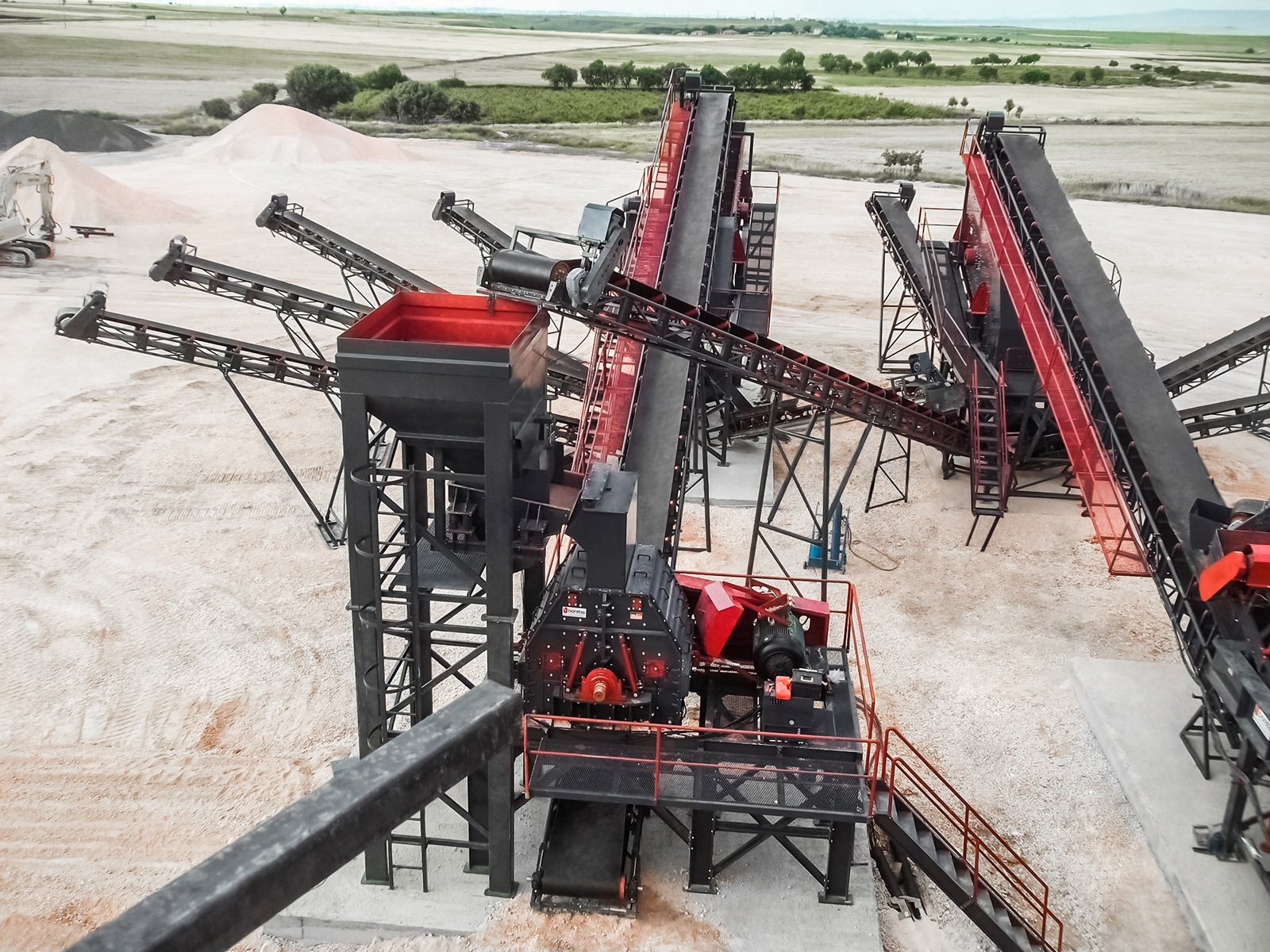

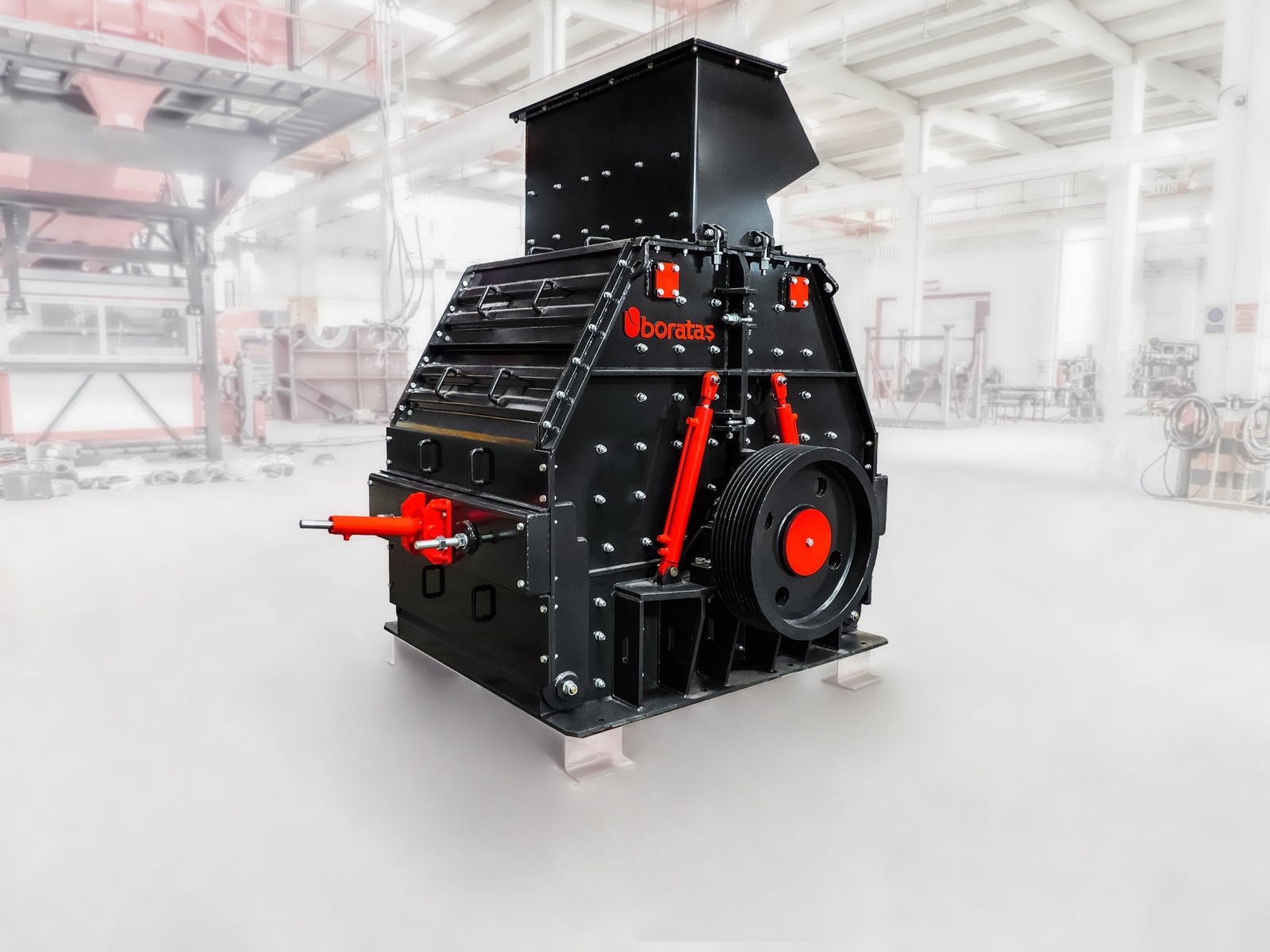

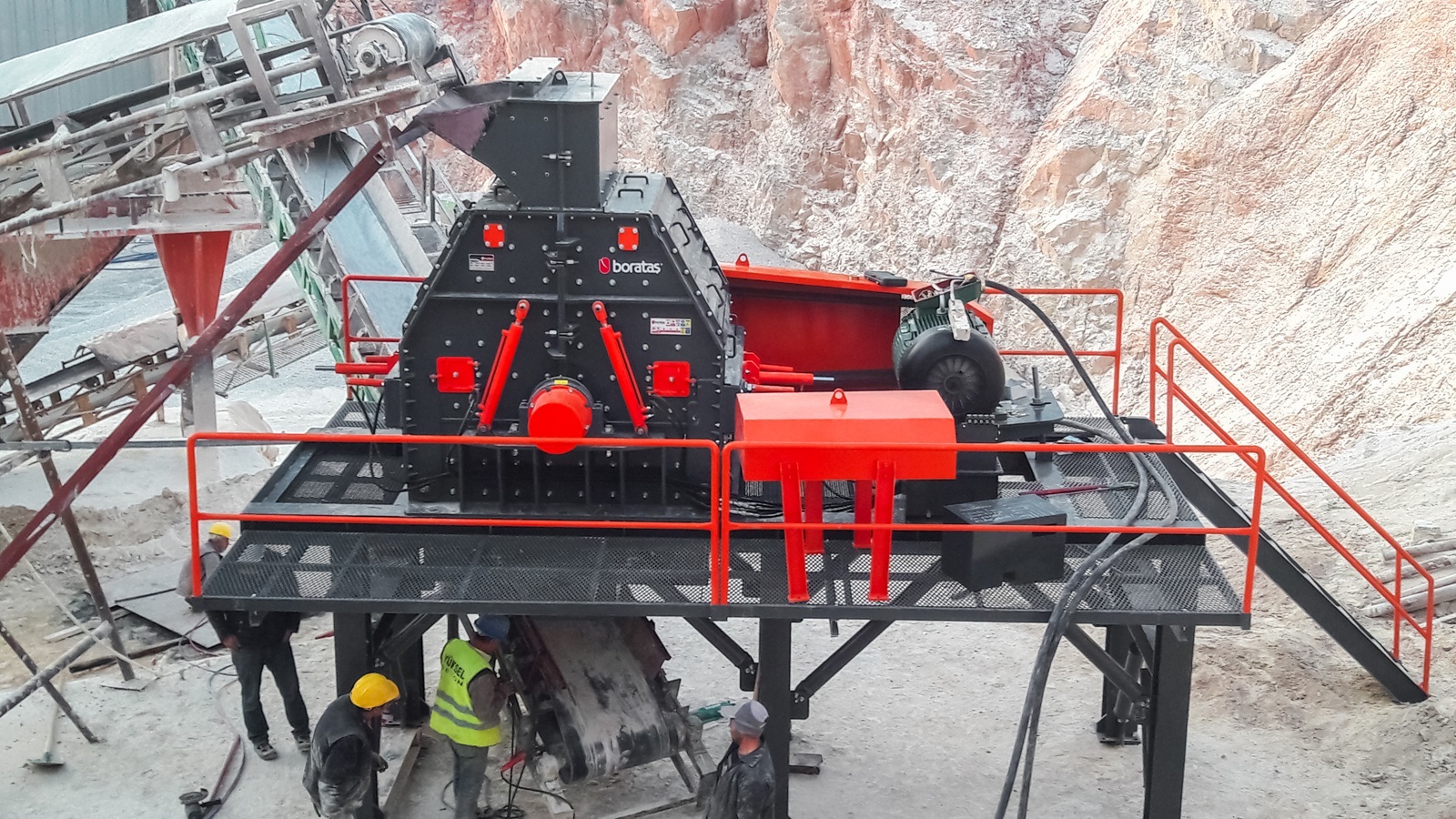

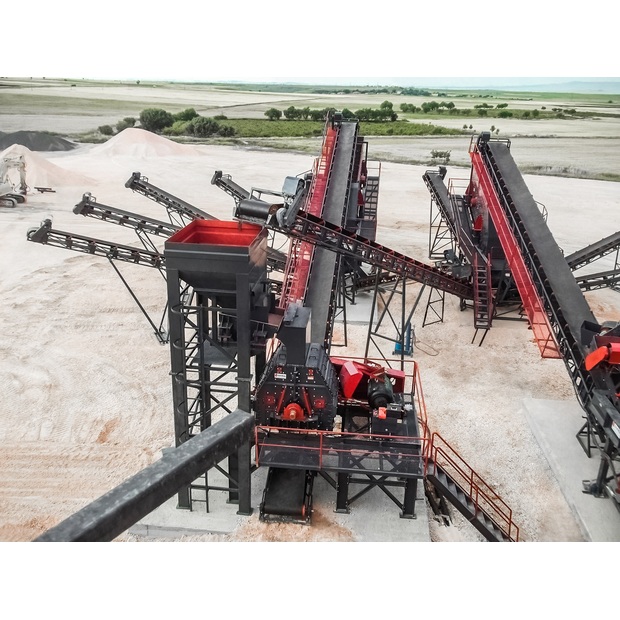

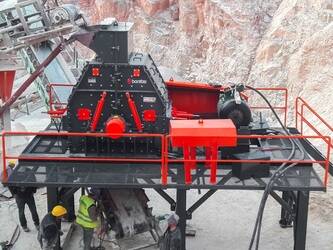

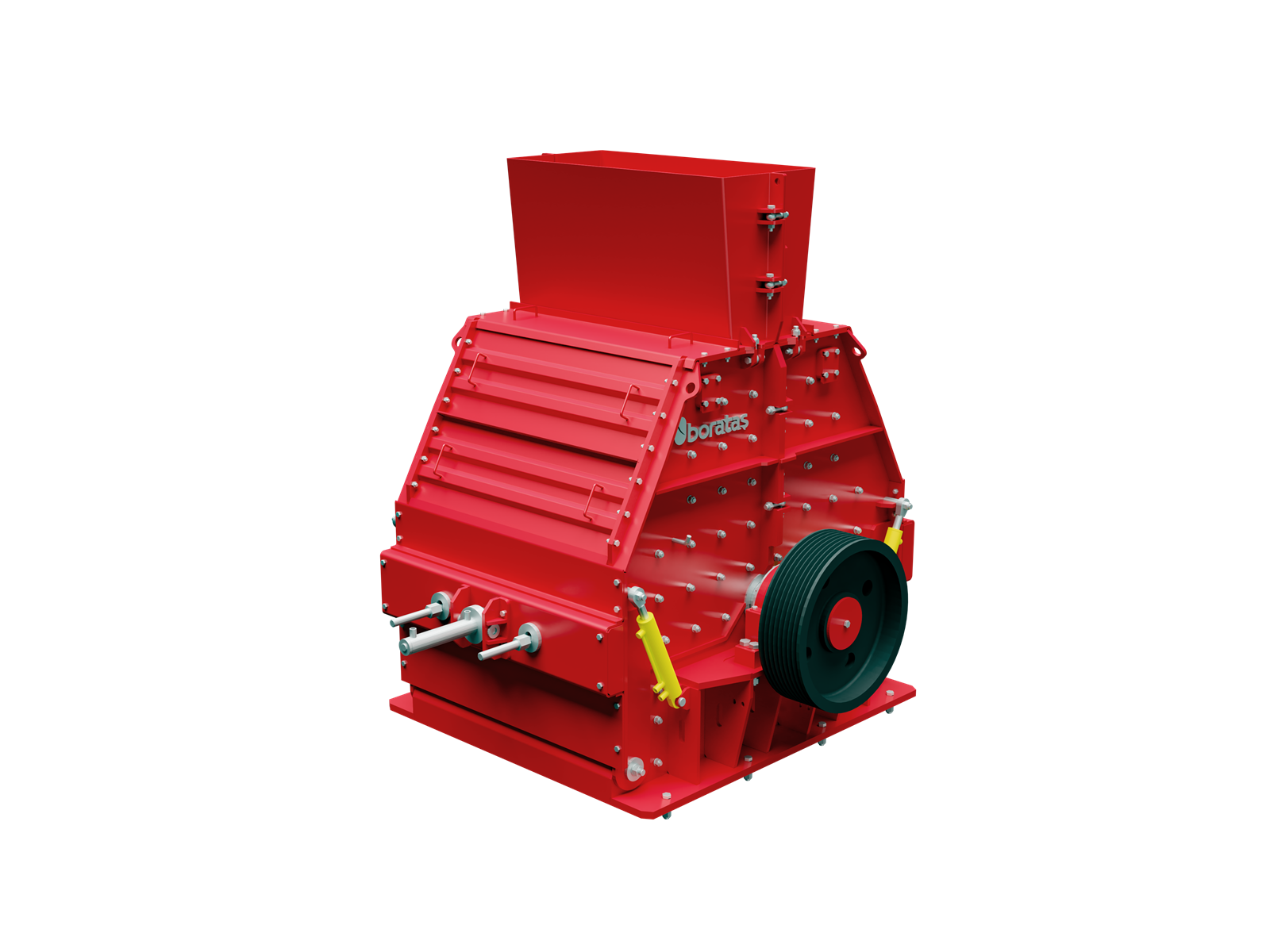

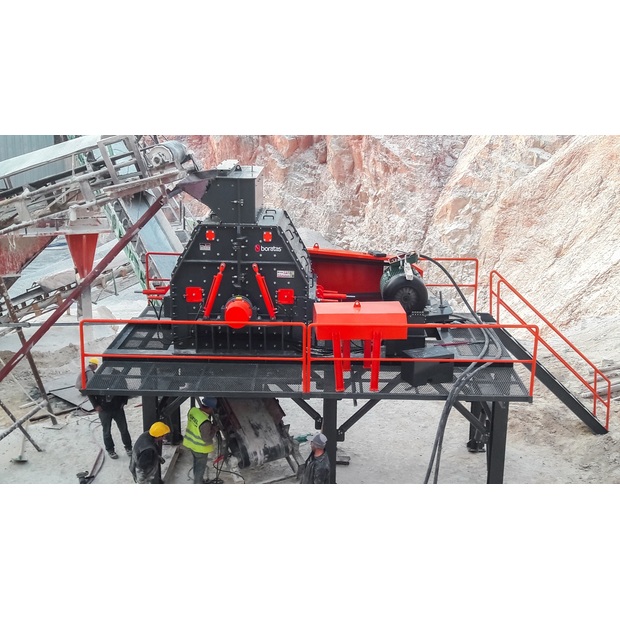

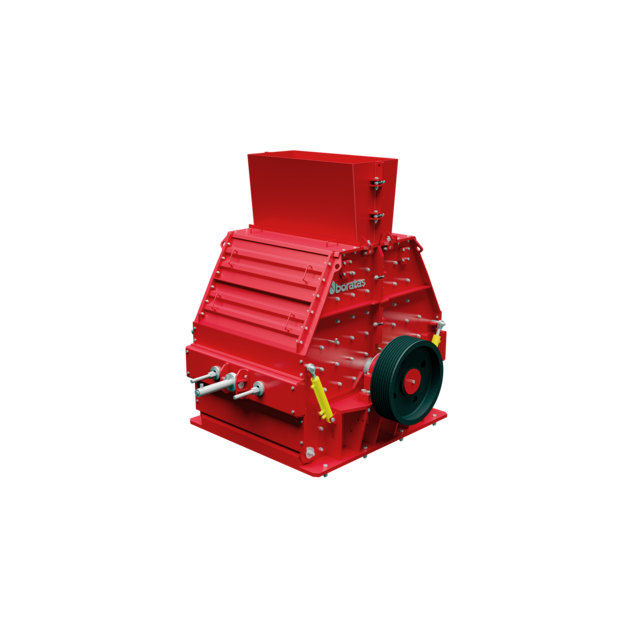

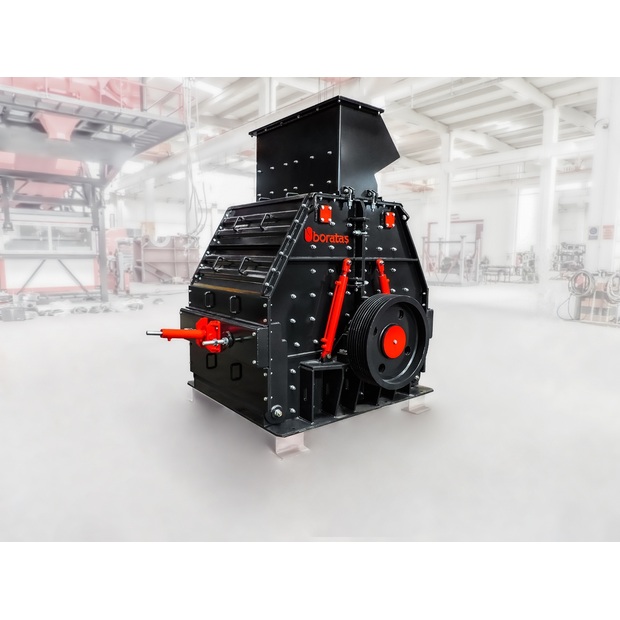

• TDK series high capacity tertiary impact crusher

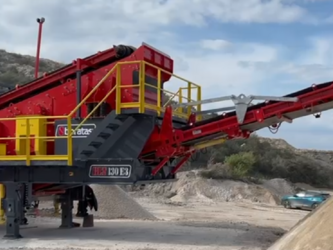

• Integrated vibrating screen, 2 / 3 / 4 deck options

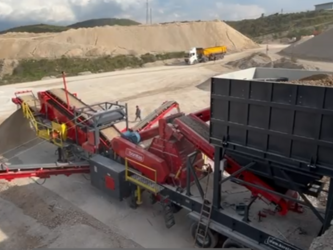

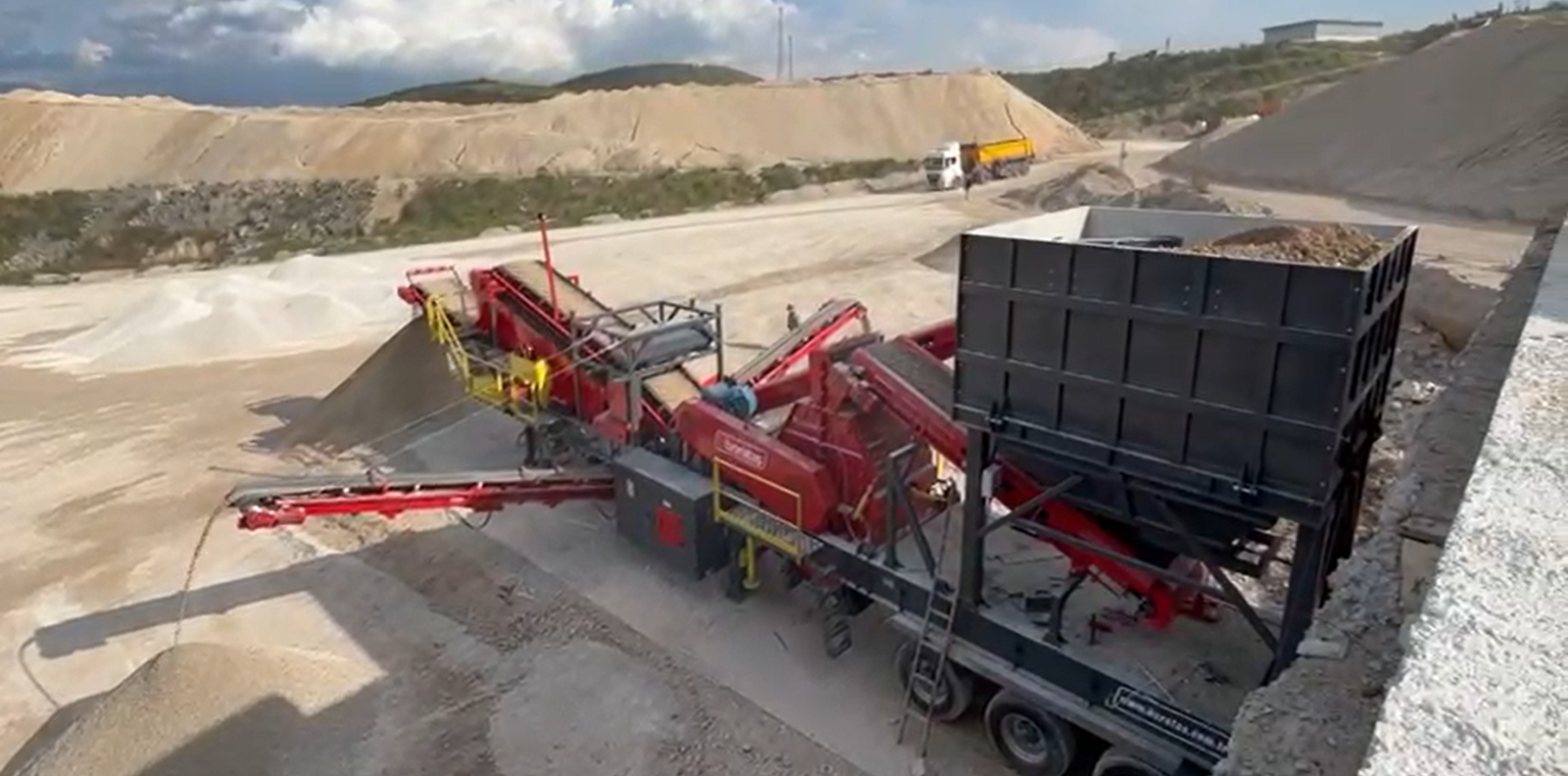

• Wheel-mounted mobile chassis
• Hydraulic folding conveyor belts

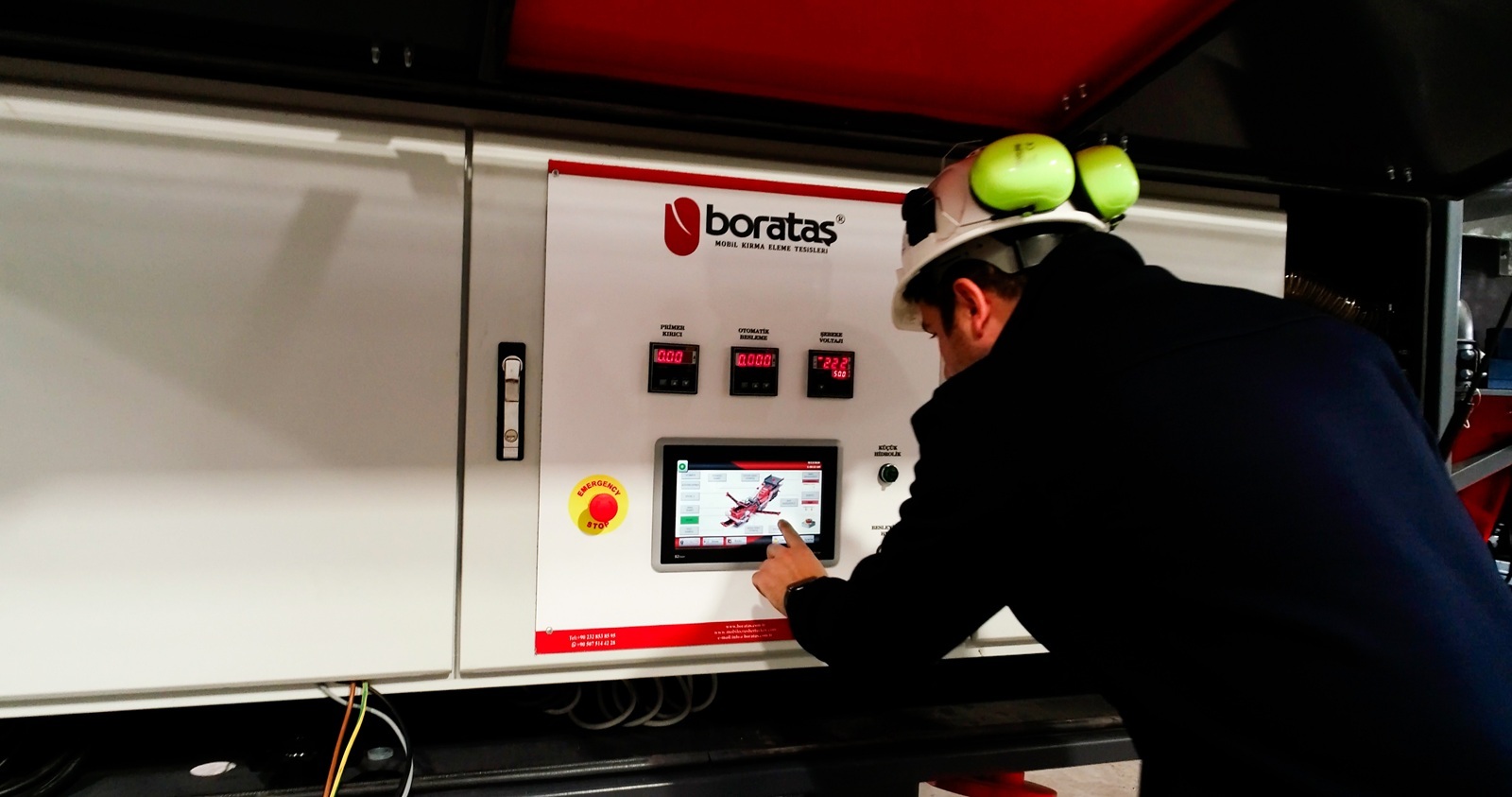

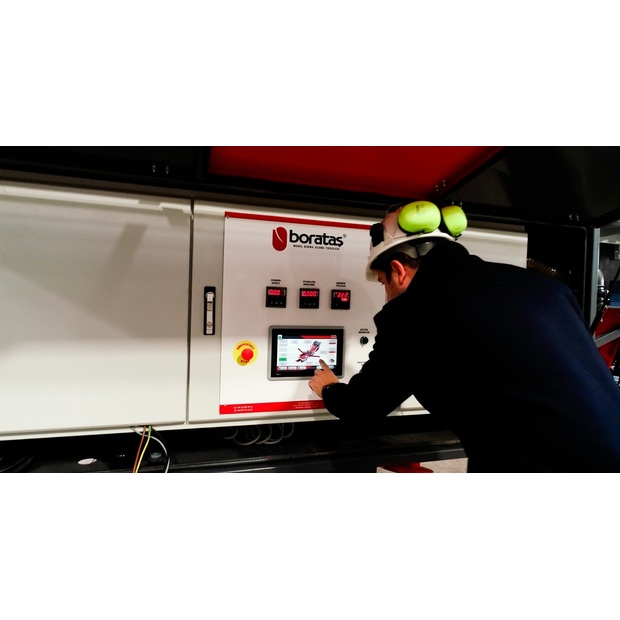

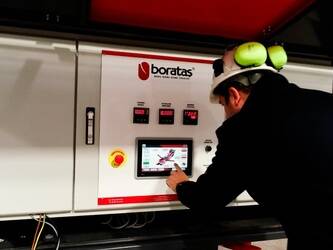

• PLC control system and wireless remote control
• Electric powered operation
• Gear driven conveyor belts

Optional Features:
• Magnetic metal separator
• Hardox lined hopper
• Automatic lubrication system
• Dust reduction system


Key Features:

Final Stage Crushing for Fine Fractions
Designed for tertiary crushing to produce fine graded materials such as 0–4 mm or 0–5 mm with controlled sizing.

Integrated Crushing and Screening on One Chassis
Crusher and screen operate together to reduce handling and support accurate classification in a compact footprint.

Multi-Deck Screen Options
Screen deck configurations (2, 3, or 4) allow flexibility based on required final product fractions.

Electric Drive with Optional Generator Support
Designed for electric operation, with generator option available for temporary or off-grid projects.

Wear and Adjustment Logic for Product Control
Final product size is controlled through adjustment between rotor and breaker anvil, supporting stable output quality.
