2026 Boratas BLJ120

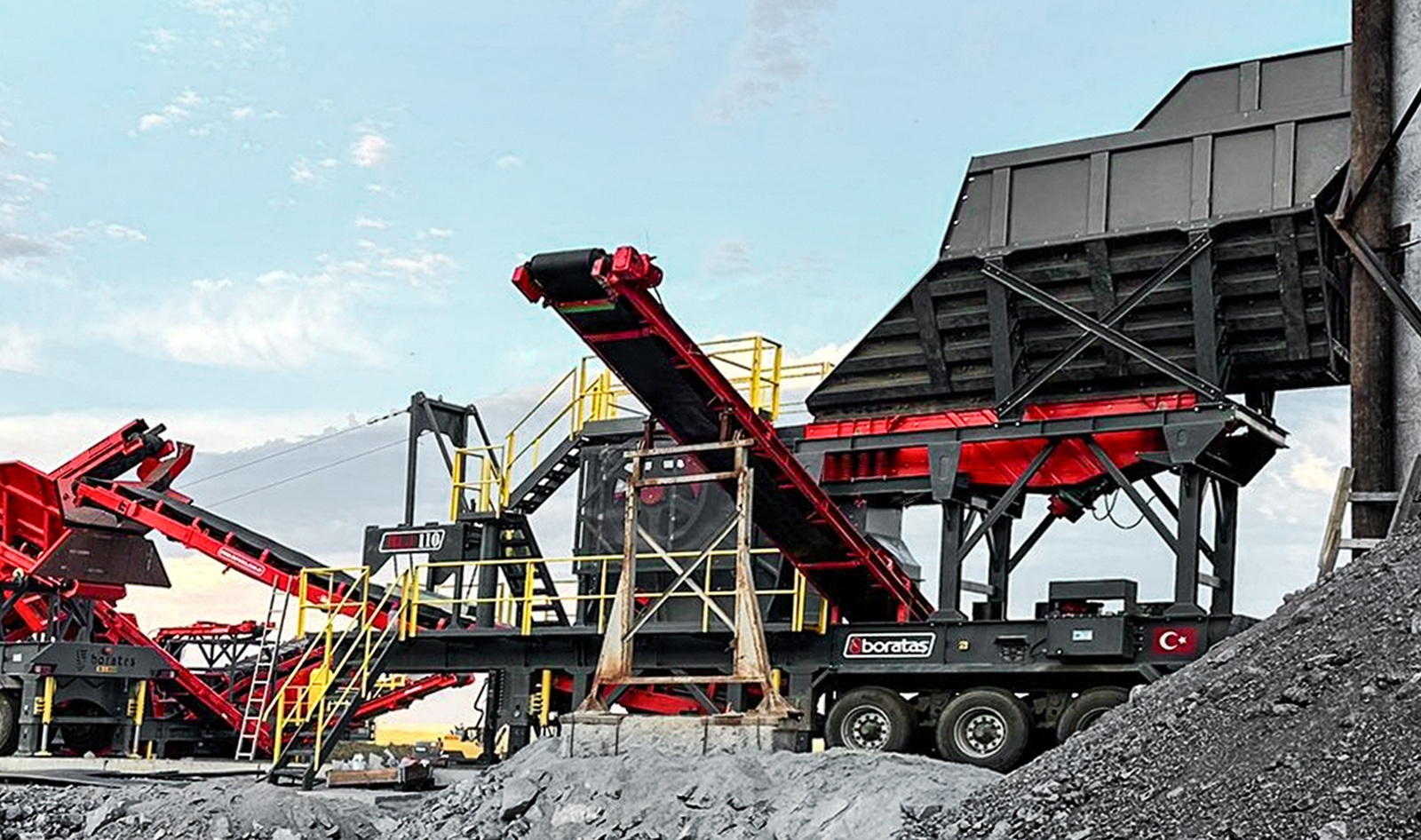

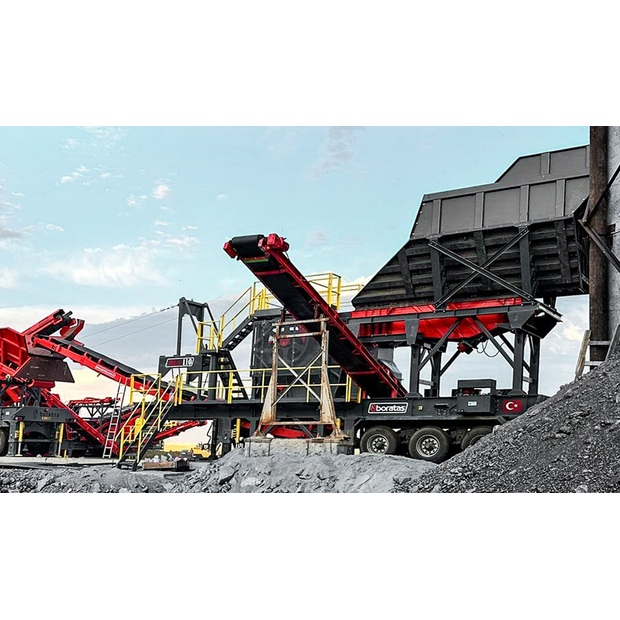

Boratas Wheeled Mobile Jaw Crusher BLJ120 is a high-capacity mobile primary crushing unit developed for efficient material reduction in demanding applications such as quarrying, mining, and recycling. By combining proven jaw crusher technology with a wheeled transport configuration, the BLJ120 provides stable throughput and operational flexibility across a wide range of job sites.

The Boratas jaw crusher plant has adaptable design allows rapid relocation, quick commissioning, and effective primary crushing of mineral ores, granite, basalt, and other hard rocks and highly abrasive materials. The wheeled chassis simplifies transportation between sites, helping contractors and quarry operators minimize downtime and overall logistics costs.

The wheel-mounted machine can be integrated into larger crushing and screening systems, either as a two-chassis configuration with a cone crusher or as a three-chassis setup combined with a vertical shaft impact crusher. This makes the BLJ120 well suited for multi-stage large scale operations where compact design and mobility are key considerations.

Full Electric Drive Configuration
Our semi-mobile crushers are primarily designed for electric operation and is intended to be connected to an external power supply. An optional diesel generator can be provided upon request for applications requiring autonomous operation or temporary power availability.

Technical Specifications

• Capacity: up to 350 tph
• Max. Feed Size: 750 mm
• Jaw Opening: 1200 x 700 mm
• Total Motor Power: 166 kW
• Weight: 45,000 kg

Manufactured in compliance with international quality standards and supported by Boratas warranty after-sales service.

Explore more details regarding our trakced and wheeled mobile jaw crushers on our website www.boratasglobal.com. Feel free to contact us for your project-specific inquiries.

Standard Features:
• Feeding hopper and grizzly vibro feeder

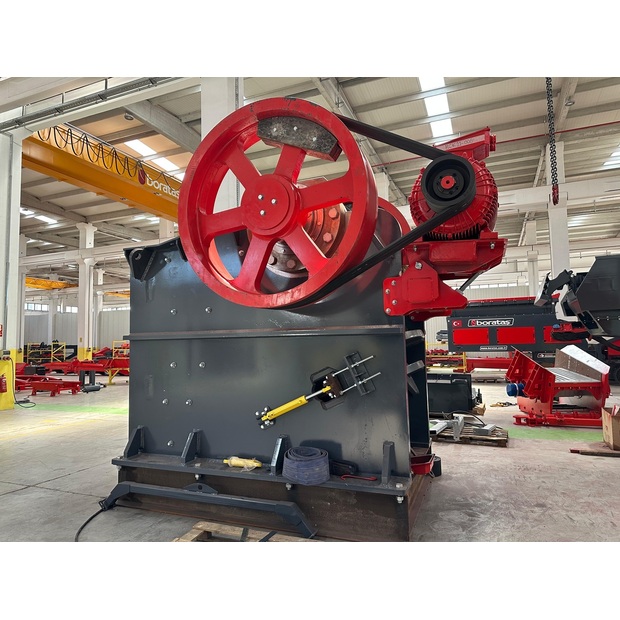

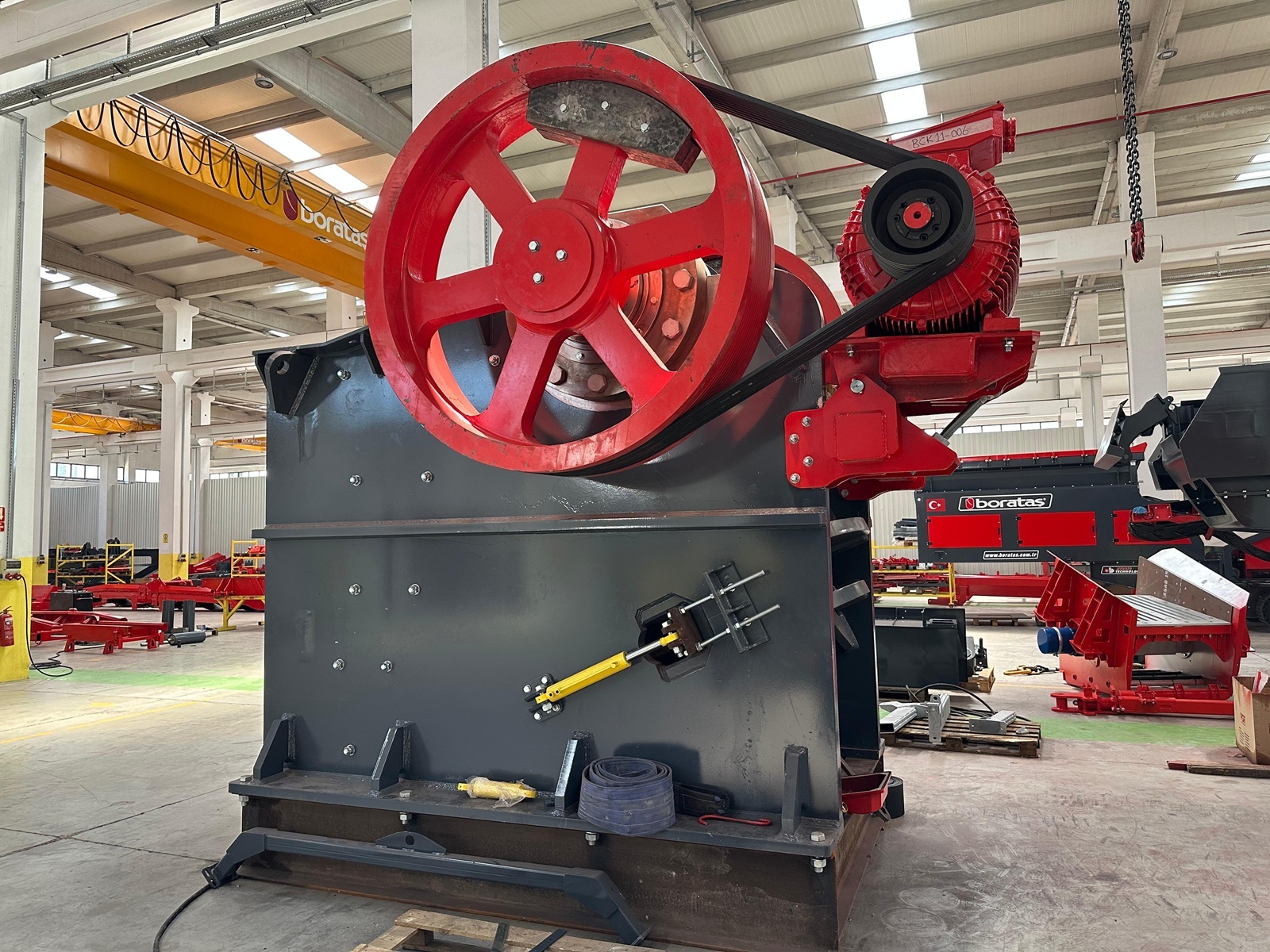

• High-capacity jaw crusher unit
• Wheeled mobile chassis
• Hydraulic folding conveyors

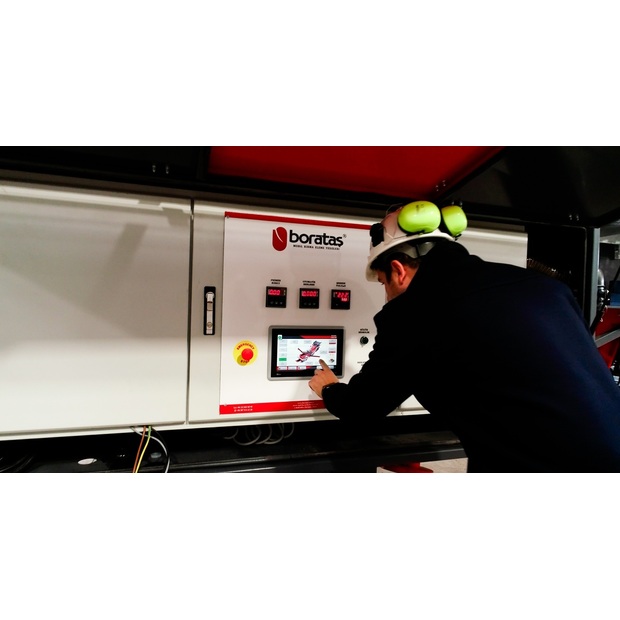

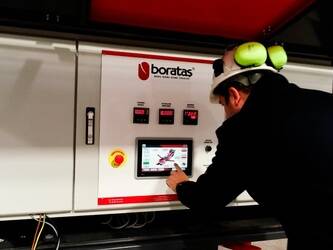

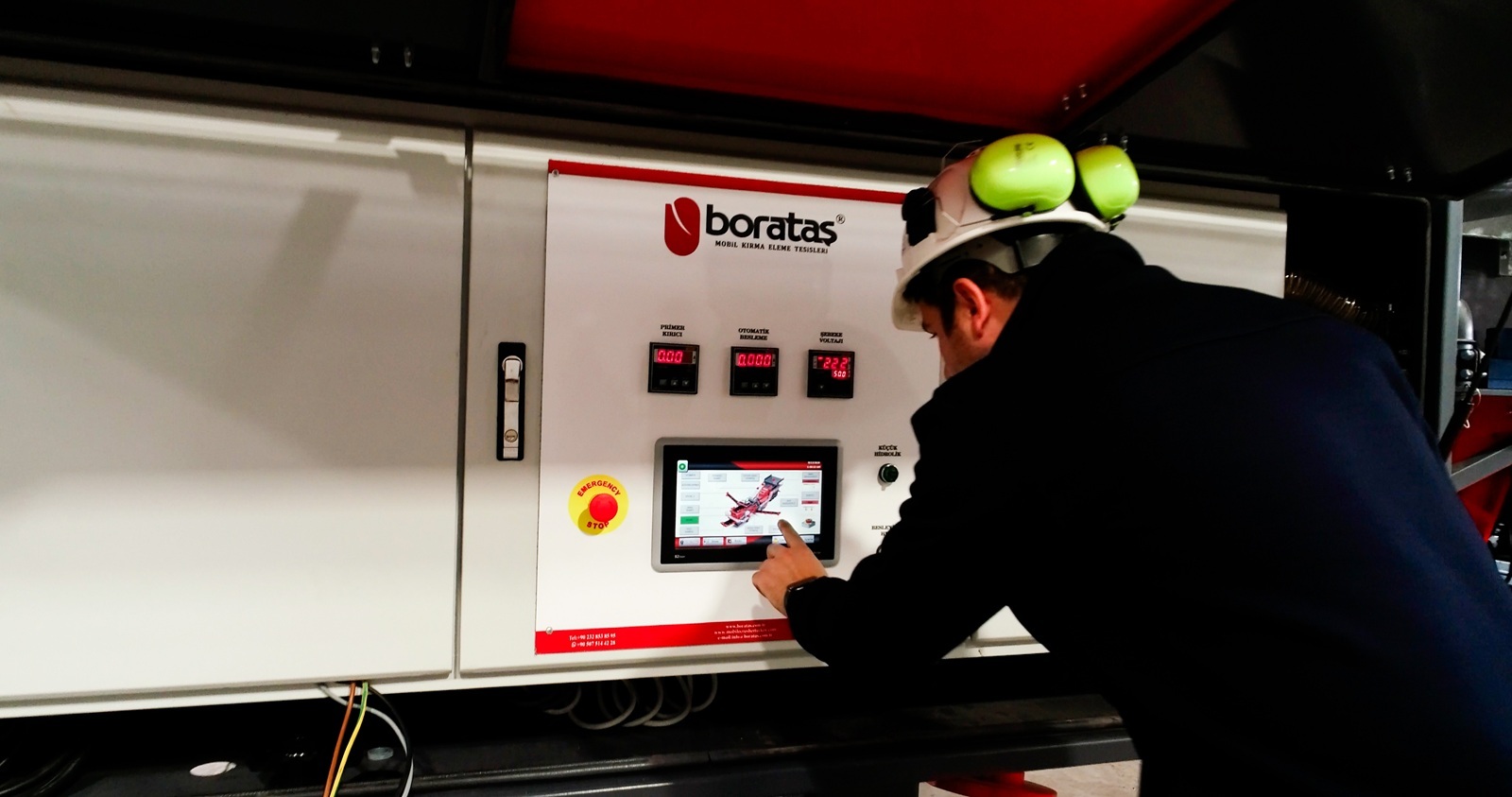

• PLC-based control system
• Electrical drive system
• Gear motor-driven conveyors

Optional Features:
• Magnetic metal separator
• Hardox-lined hopper
• Automatic lubrication system
• Dust suppression system
