2025 موفاكس SG - 75

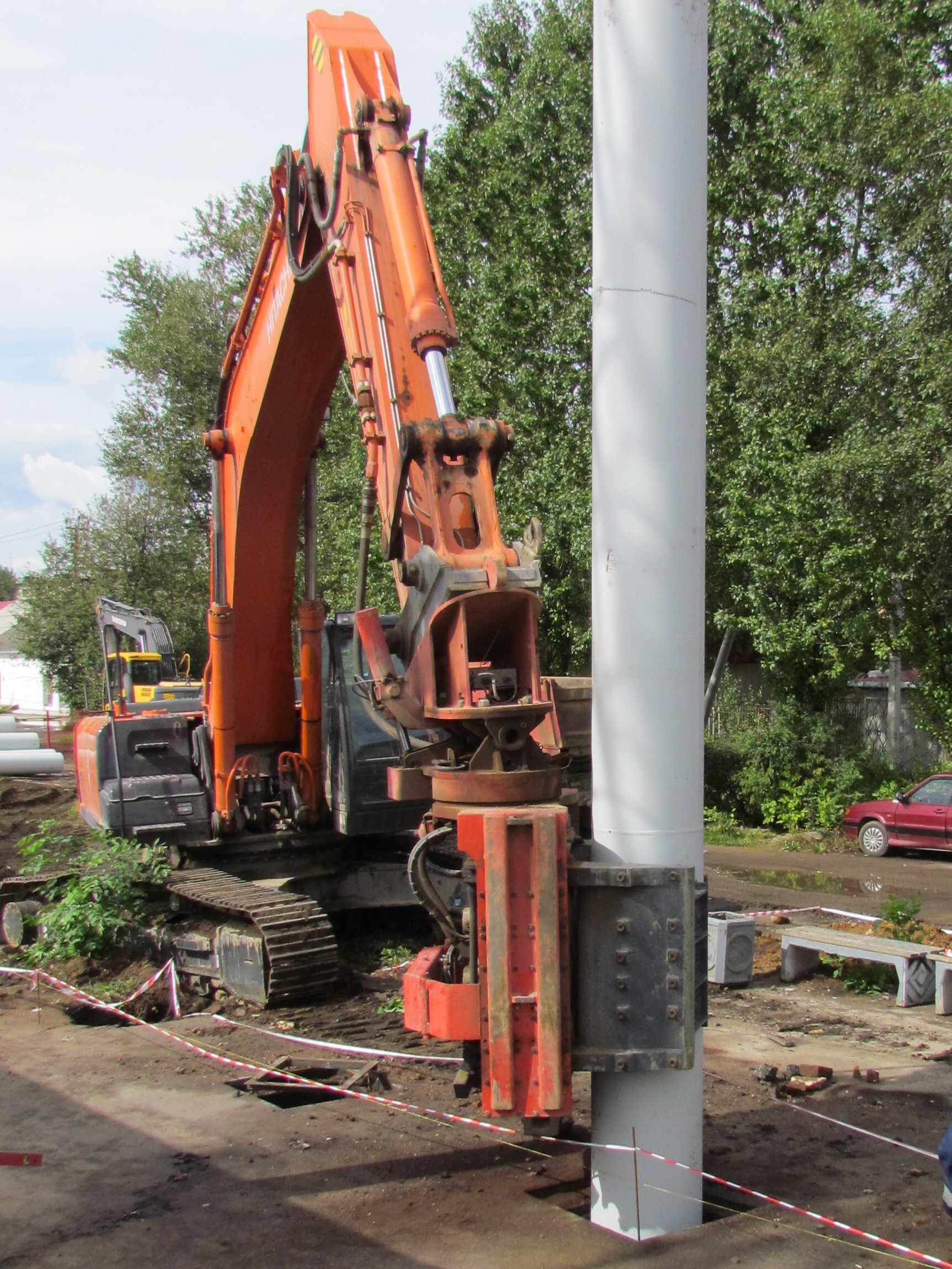

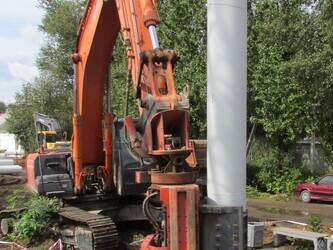

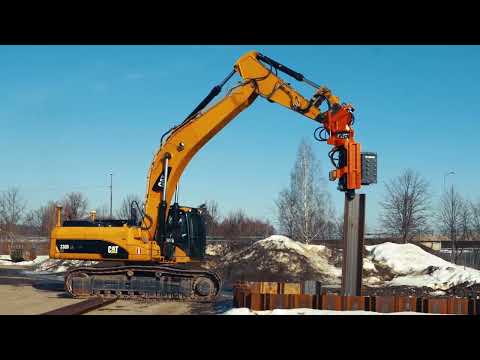

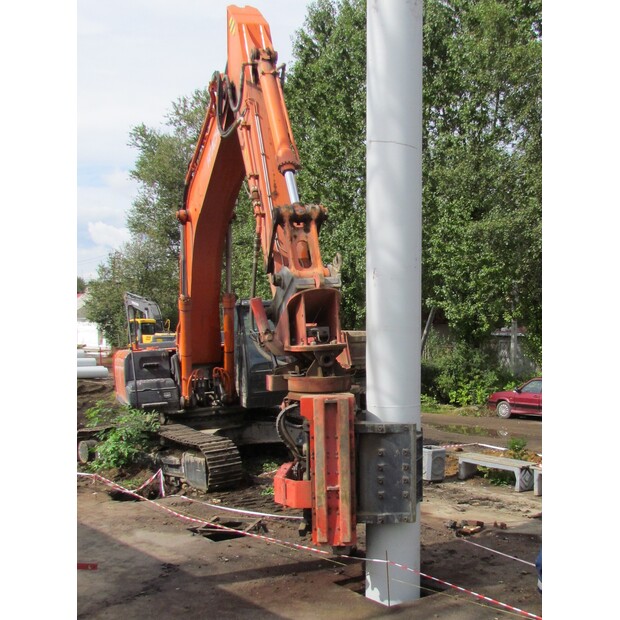

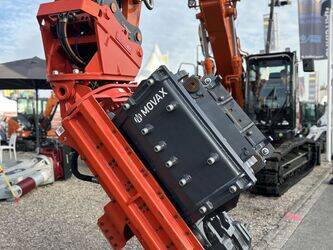

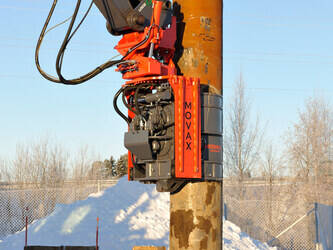

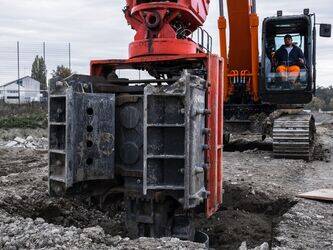

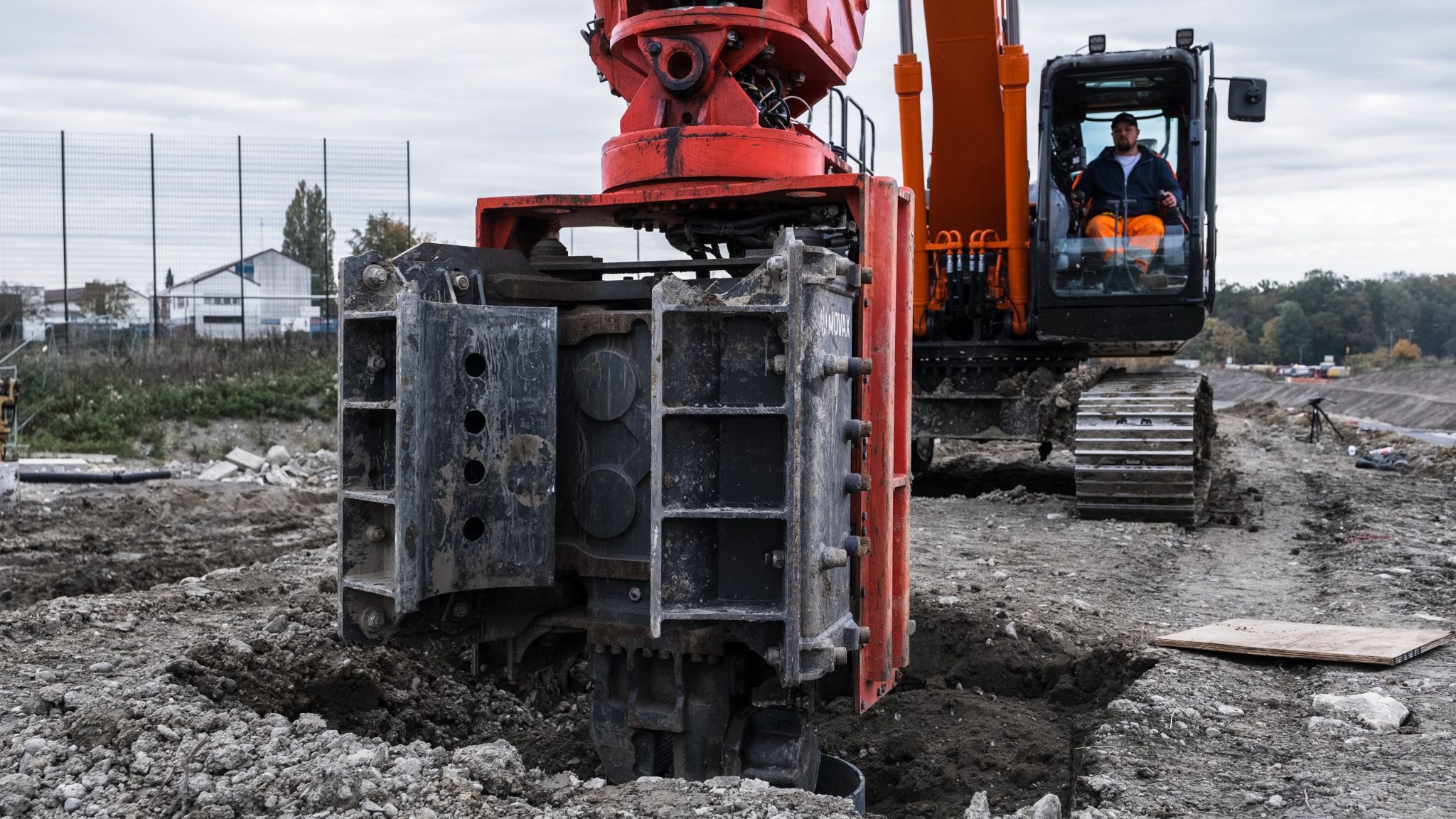

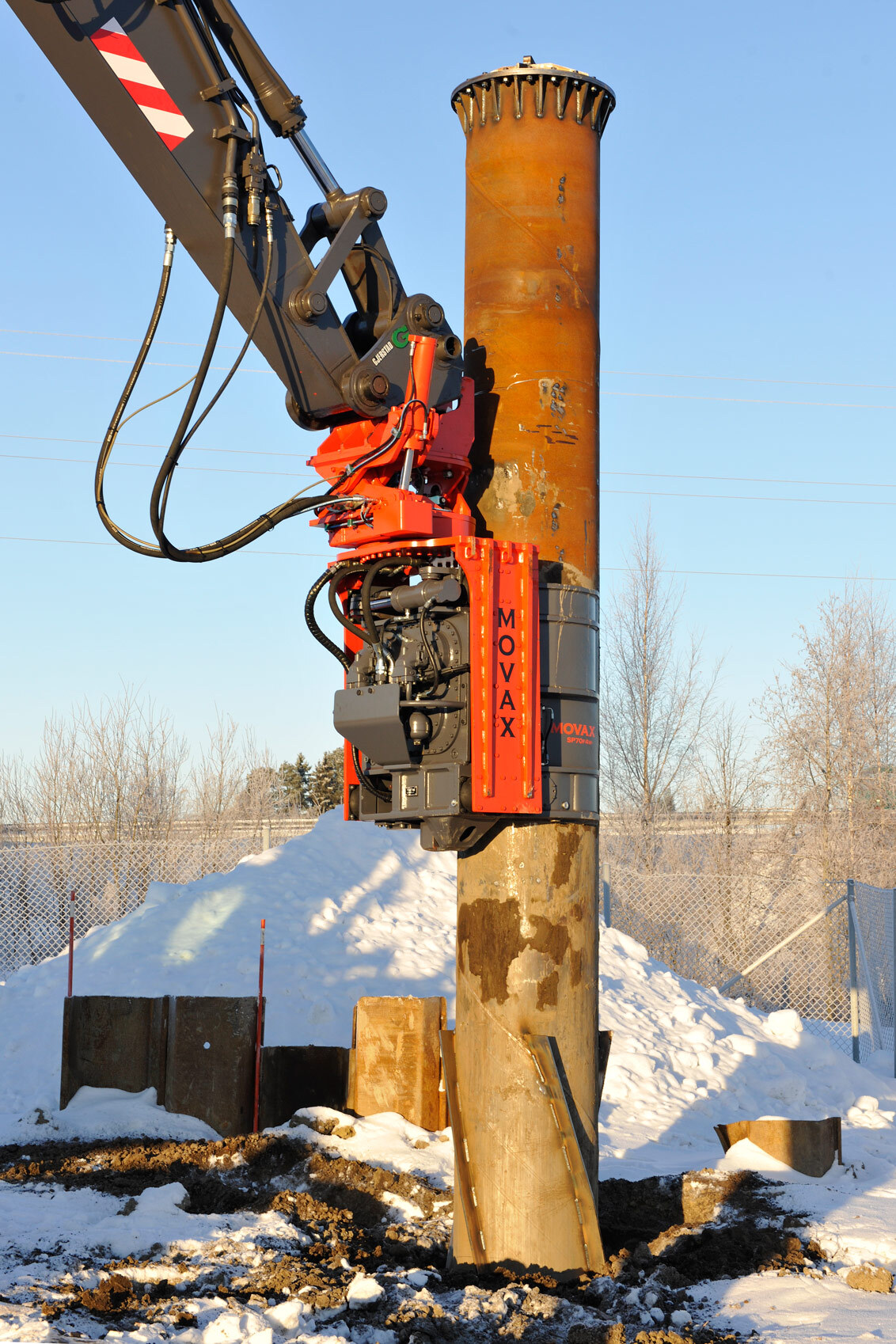

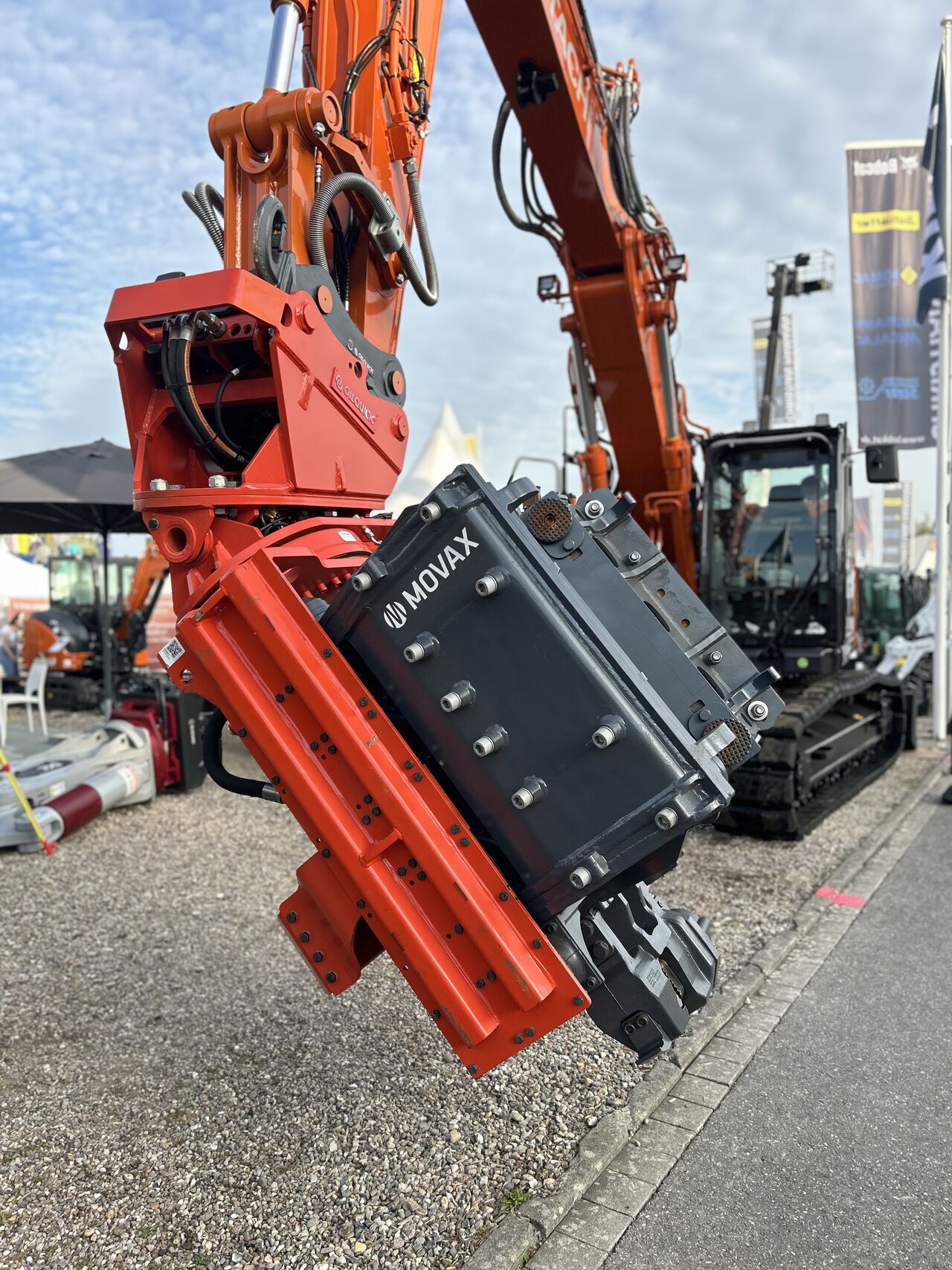

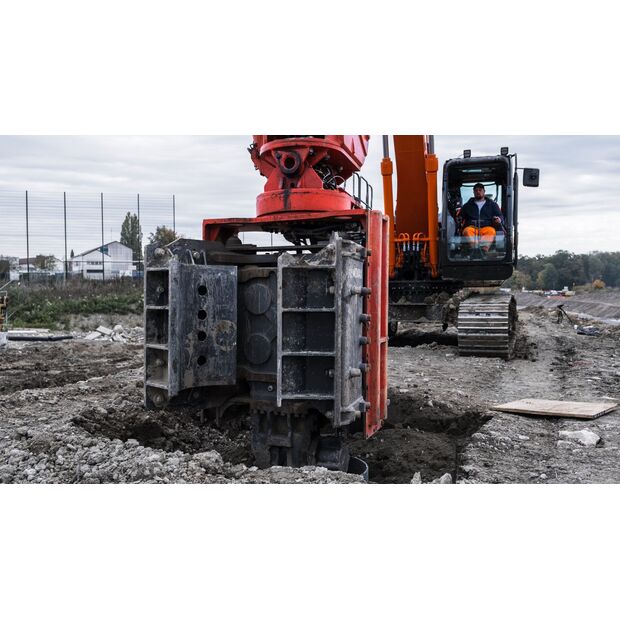

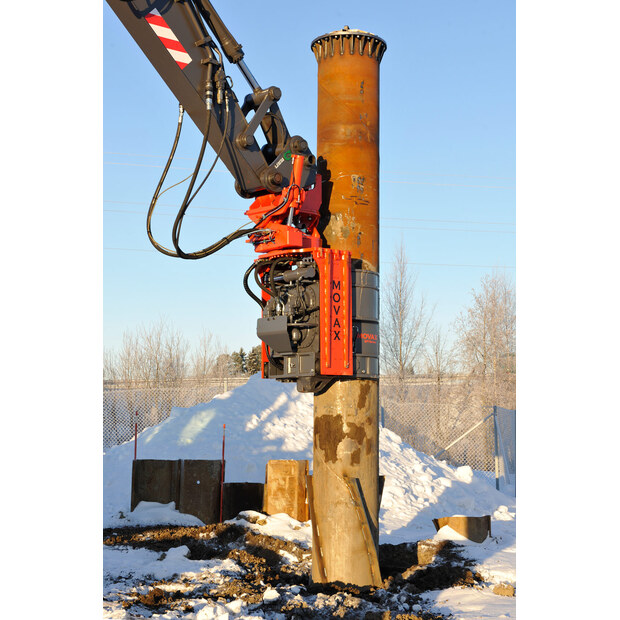

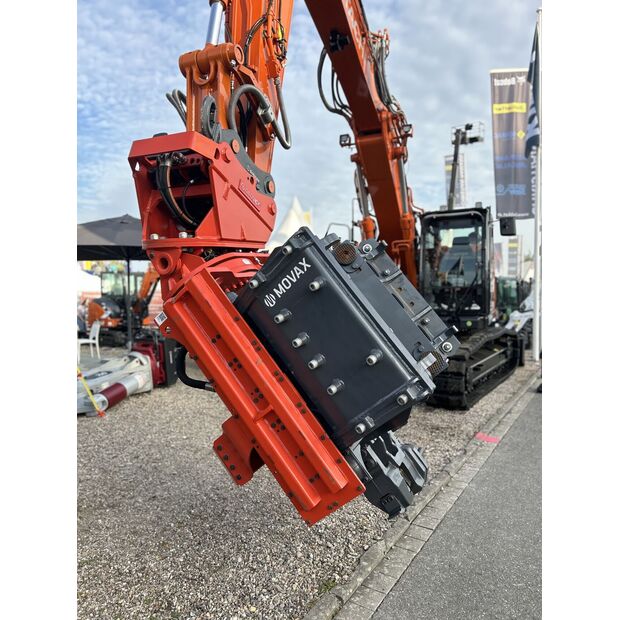

MOVAX SG-75 Side Grip Pile Driver

Technical Specifications
General
- Weight (excl. adapter): 3,370–3,620 kg
- Height: 2,615 mm
- Depth: 1,115 mm
- Width: 1,270 mm
- Driving method: Vibration
- Ground vibration level: Normal
- Resonance-free start/stop: No

Performance:
- Frequency: 2,300–3,000 (1/min)
- Eccentric moment: 7.6 kgm
- Max. centrifugal force: 750 kN
- Swing / tilt angle: 360° / 30°

Hydraulics:
- Return pressure (max): 5 bar
- Pressure setting: 350 bar

Excavator Requirements:
- Excavator class: 33 tons
- Minimum engine power:
Tier III: 180 kW
Tier IV: 200 kW

Length & Weight Capacity:
- 6 m piles up to: 2,800 kg
- 12 m piles up to: 1,900 kg
- 16 m piles up to: 1,300 kg

Pile Types & Dimensions:
- Sheet piles: 400–1200 mm (width), 265 mm (depth)
- H-beams: H100–H500
- Timber piles: Ø 160–420 mm and Ø 430–600 mm
- Tubular piles / tubes: Ø 88.9 mm – 762 mm (up to 1220 mm with specific clamps)
