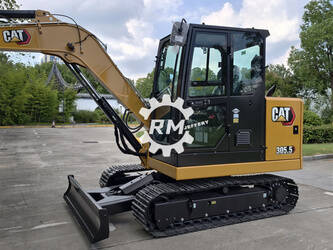

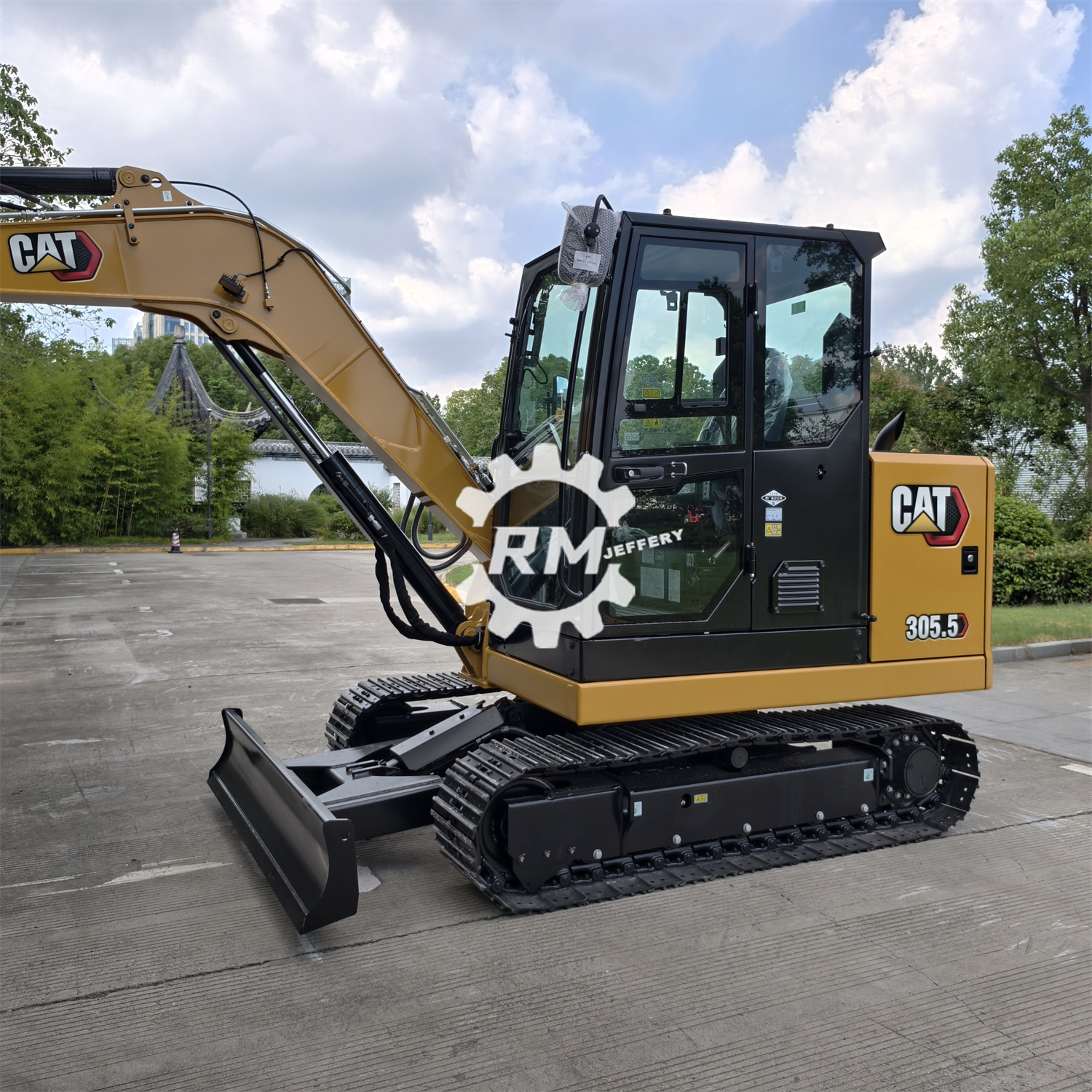

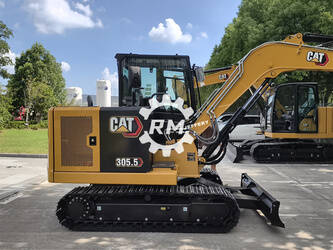

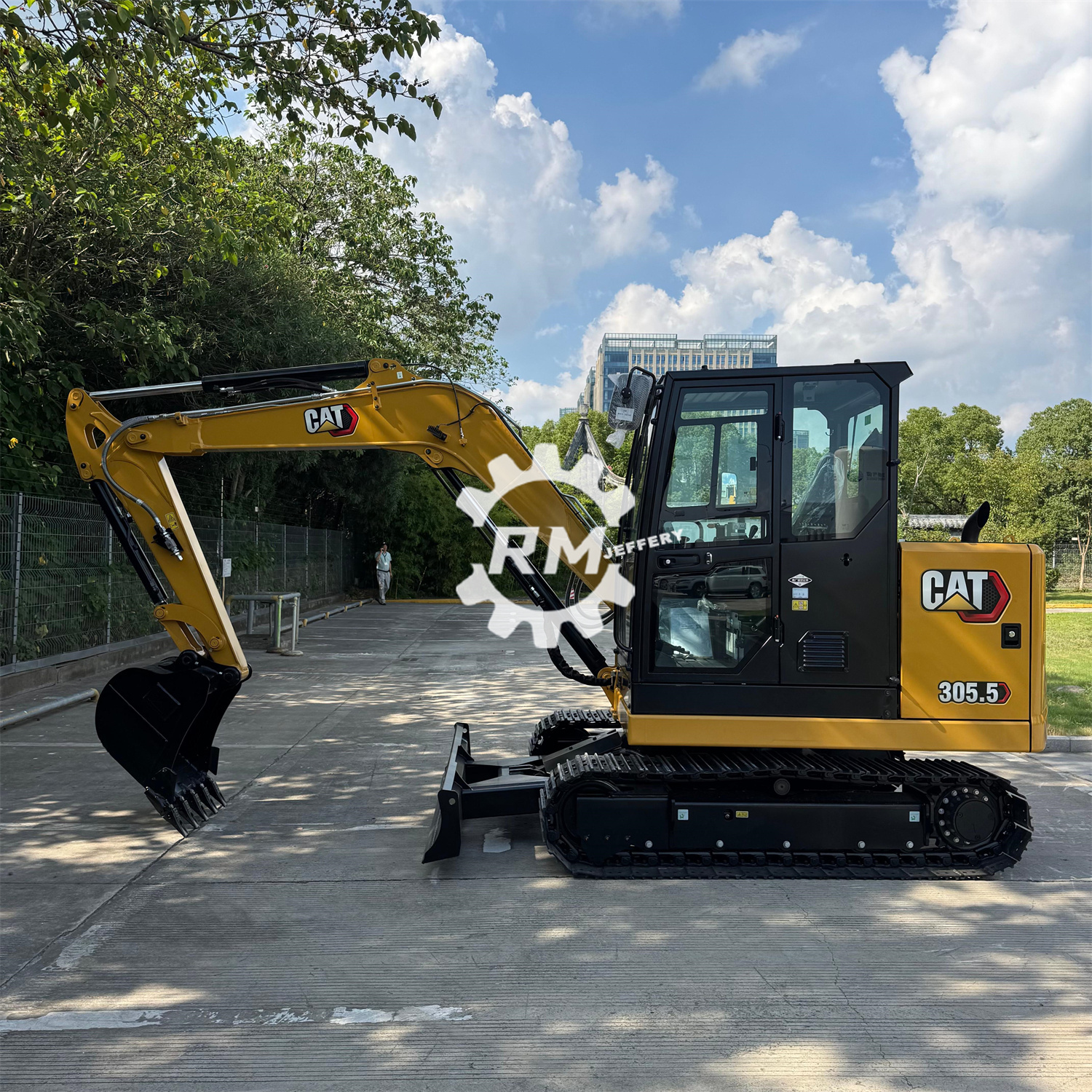

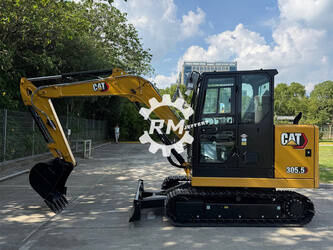

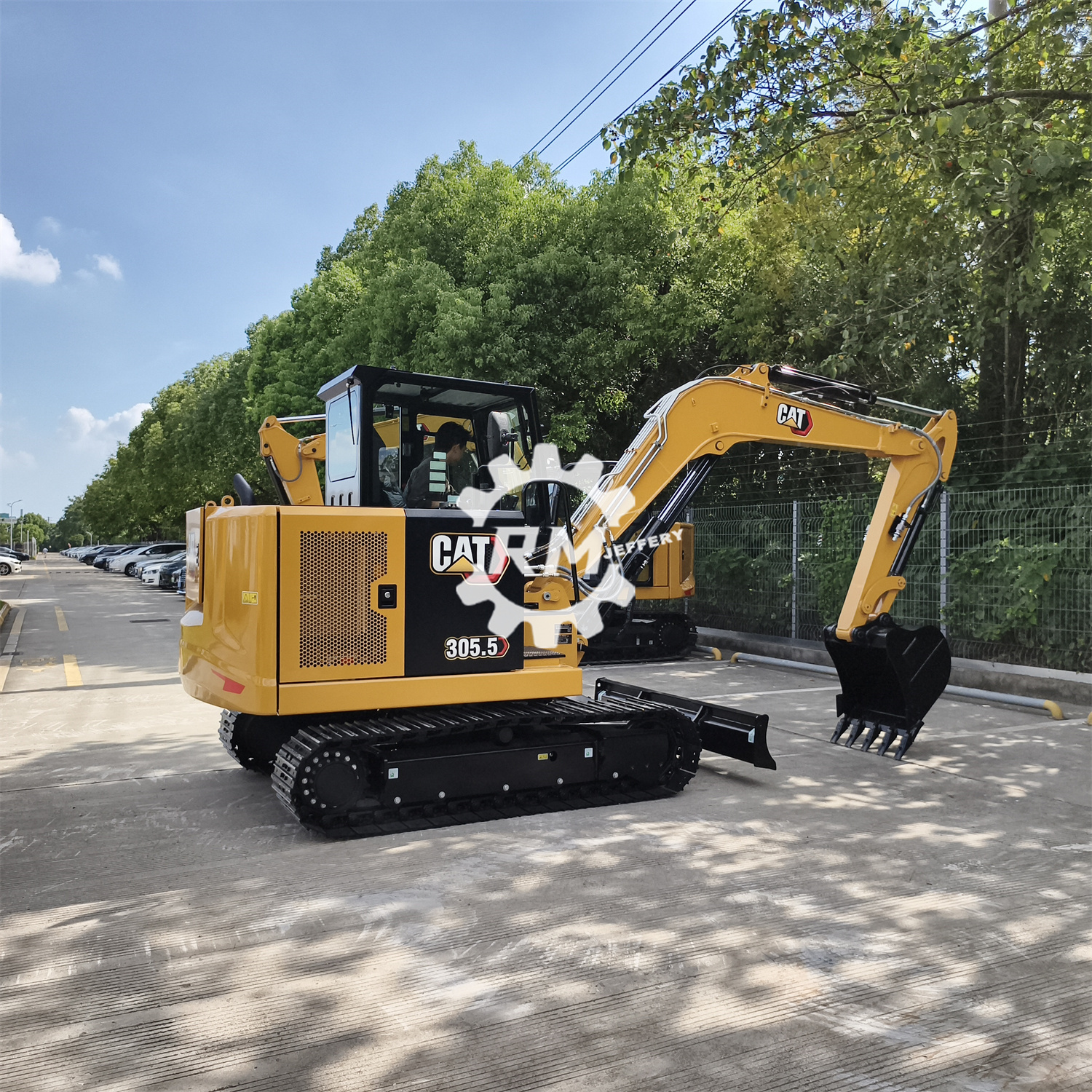

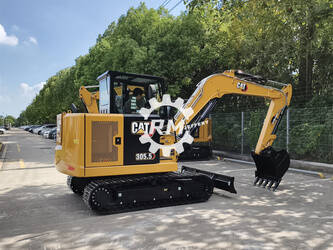

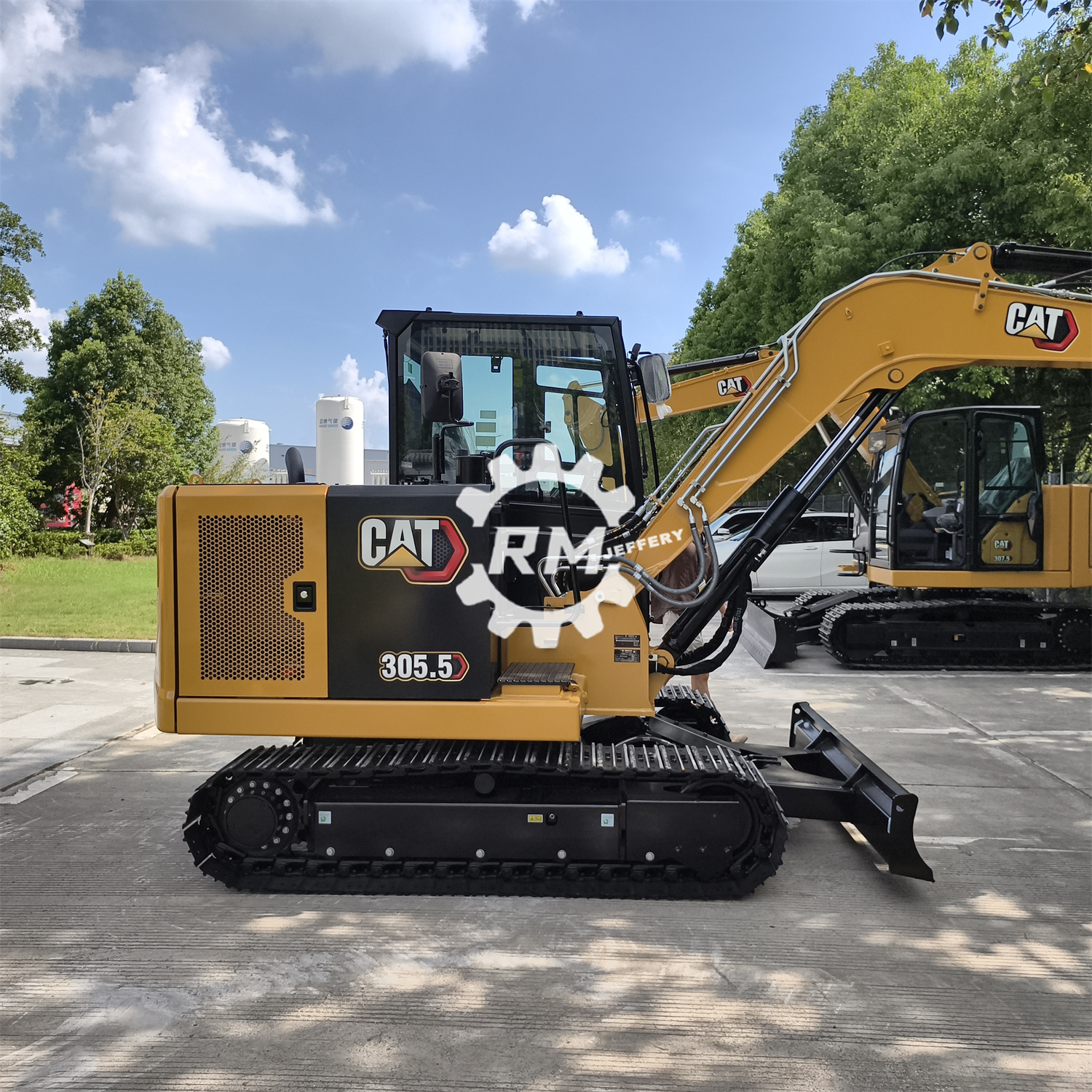

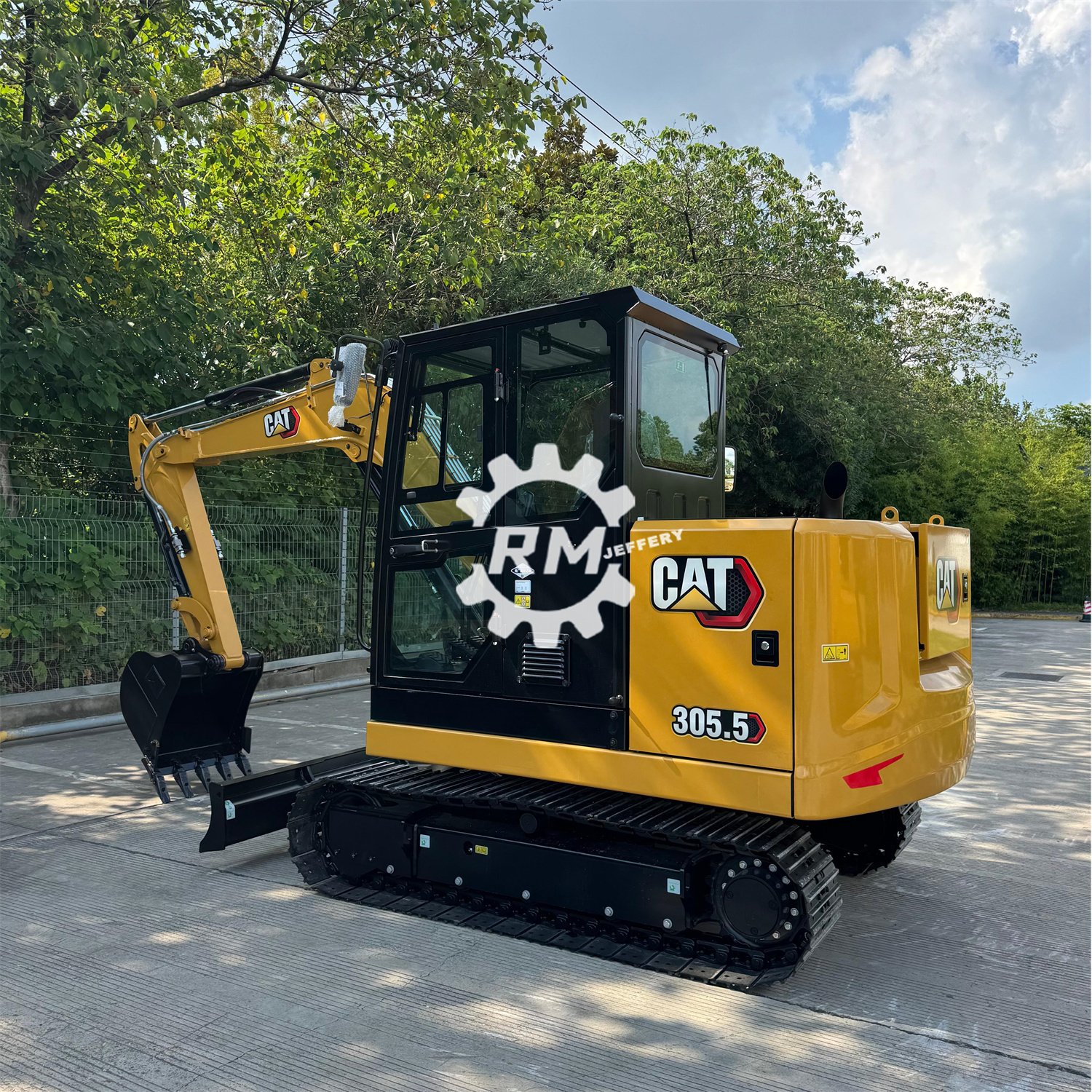

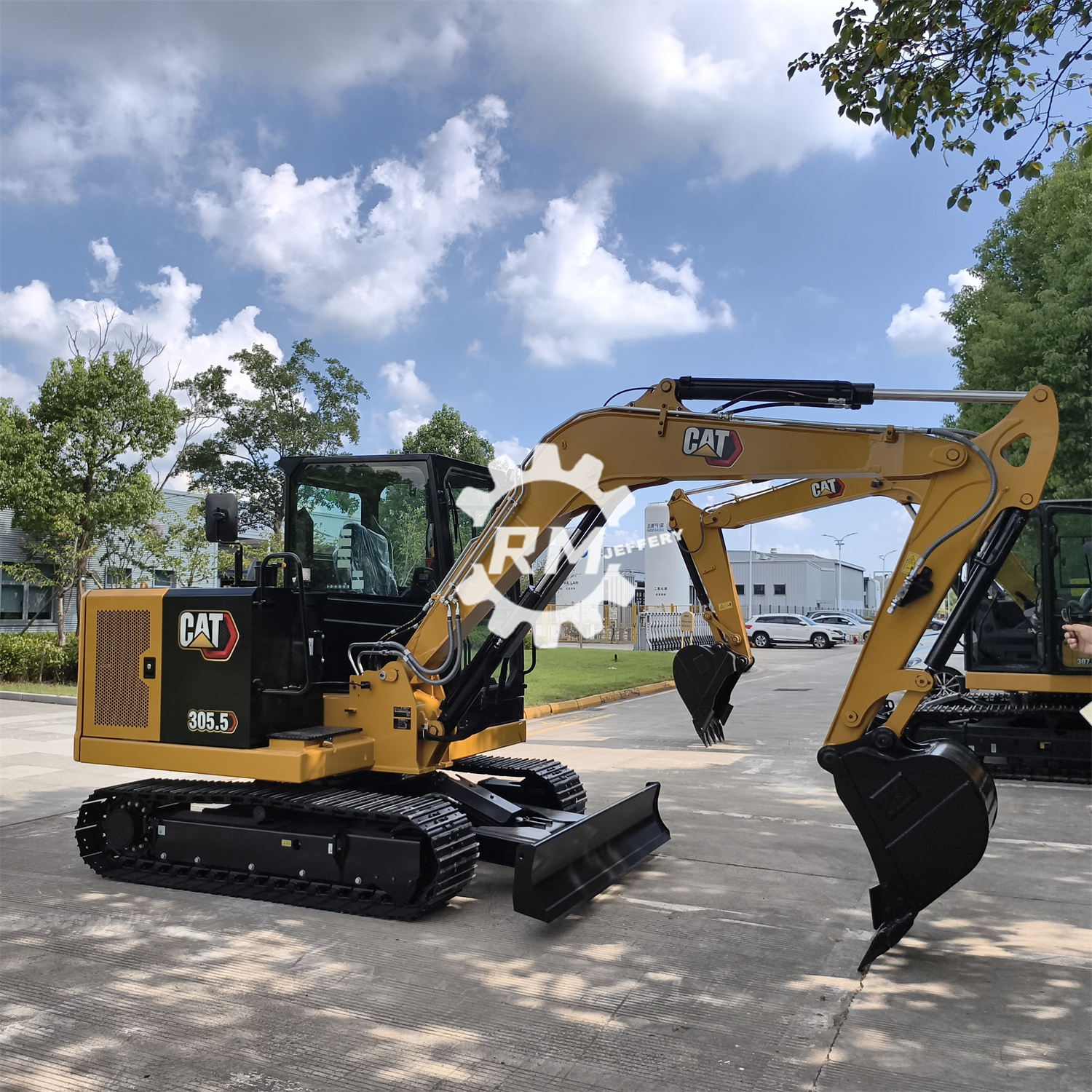

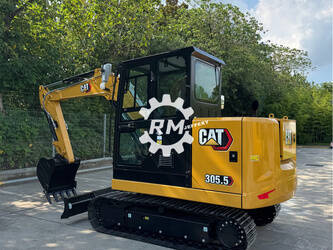

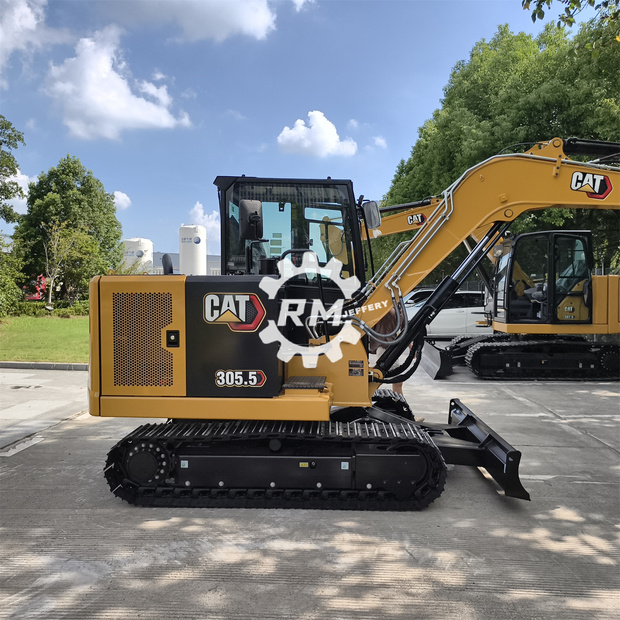

2025 كاتربيلر 305.5

Engine.

Model: Cat ® C2.2 (some models are C2.4 DI). ‌‌
Rated power: 34.1 kW (net power 32.6 kW). ‌‌
Displacement: 2.2 L (C2.2) or 2.4 L (C2.4 DI). ‌‌
Working weight.

The overall working mass of the machine is 5400-5611 kg (slightly different from different sources). ‌‌
Hydraulic system.

Maximum flow rate of the main pump: 110-140 L/min. ‌‌
Work pressure: 25200 kPa (equipment/driving). ‌‌

Bucket and operating range.

Bucket capacity: 0.22 m ³. ‌‌
Maximum excavation depth: 3720 mm
Maximum excavation height: 5460 mm
Size and walking performance.

Overall dimensions (length x width x height): 5765 x 1950 x 2540 mm
