2024 سيم 656F

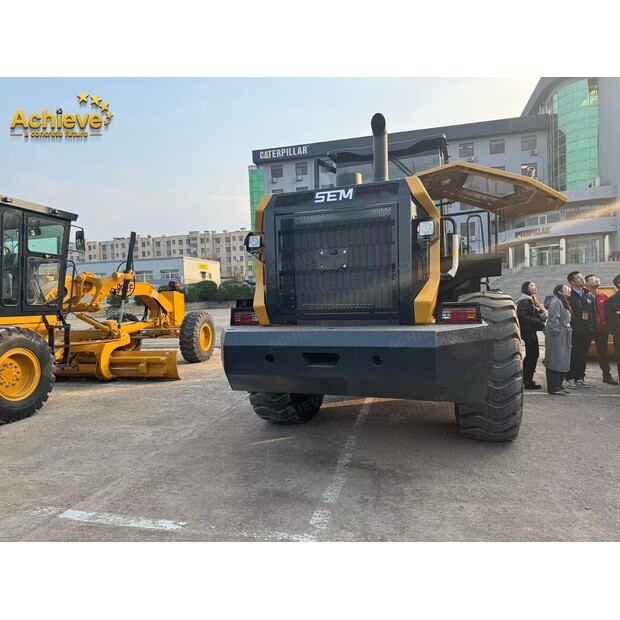

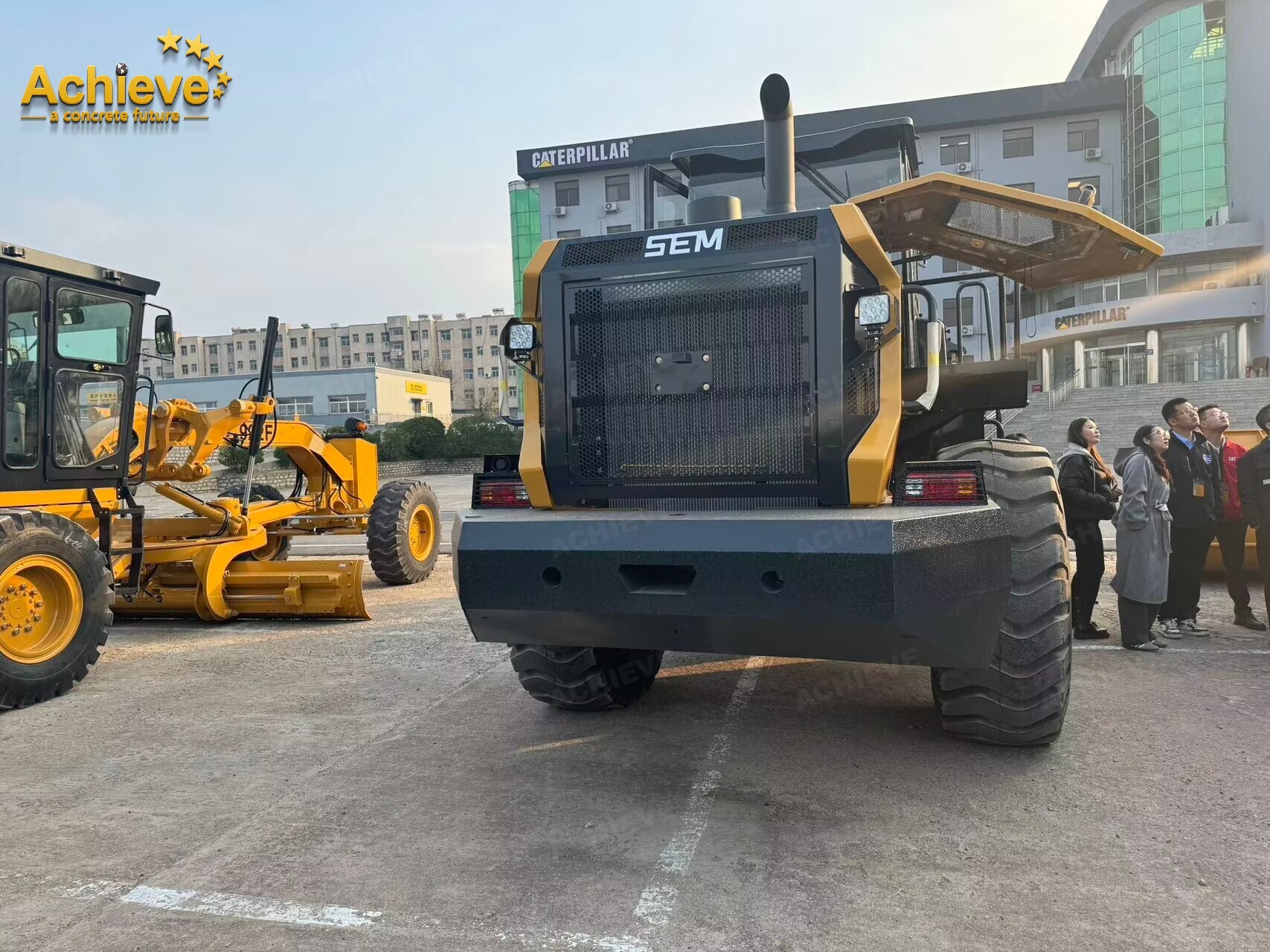

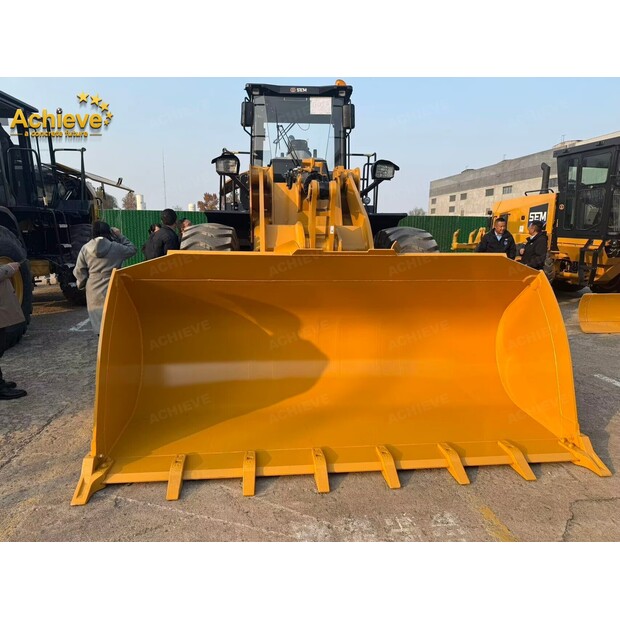

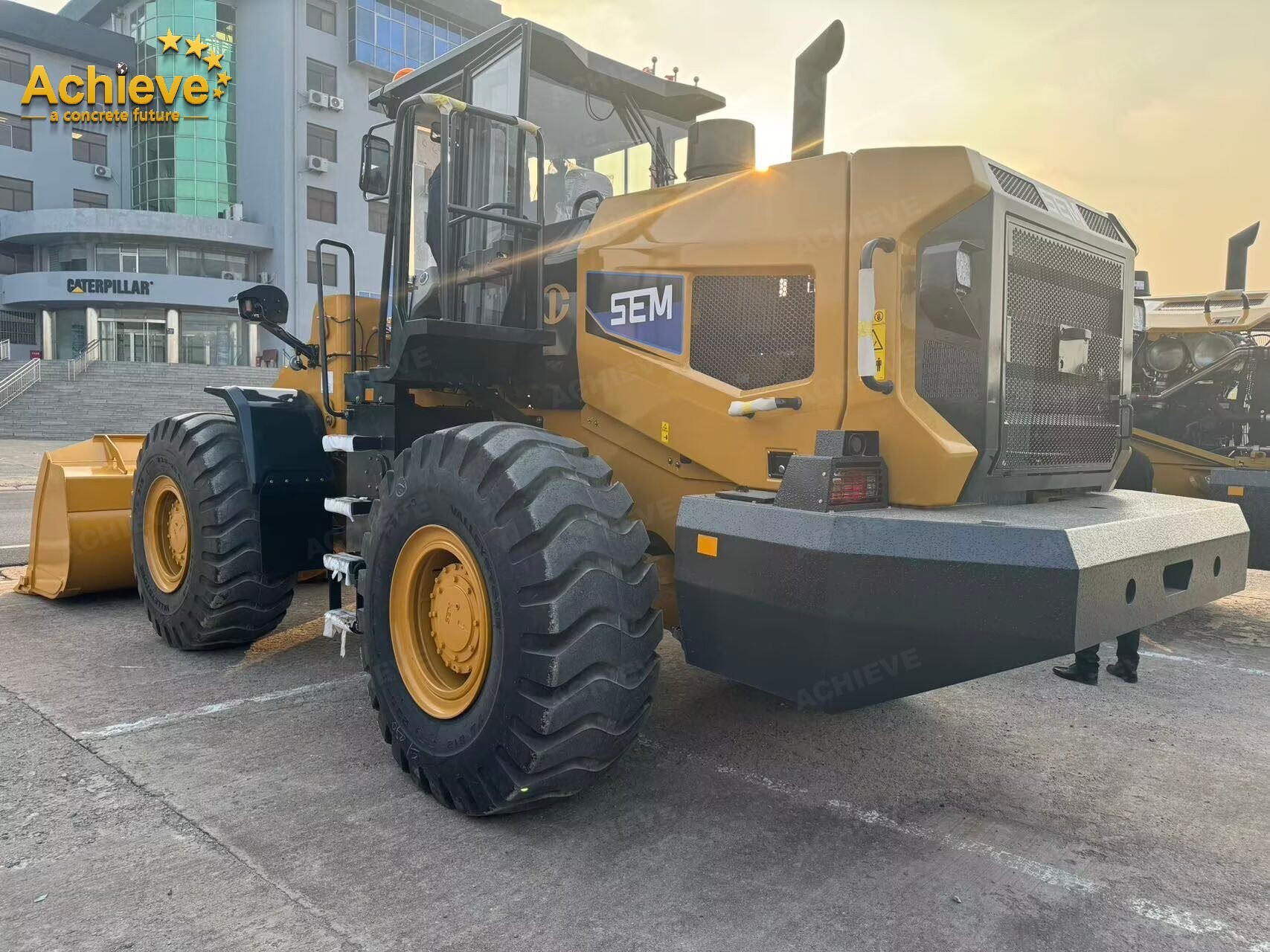

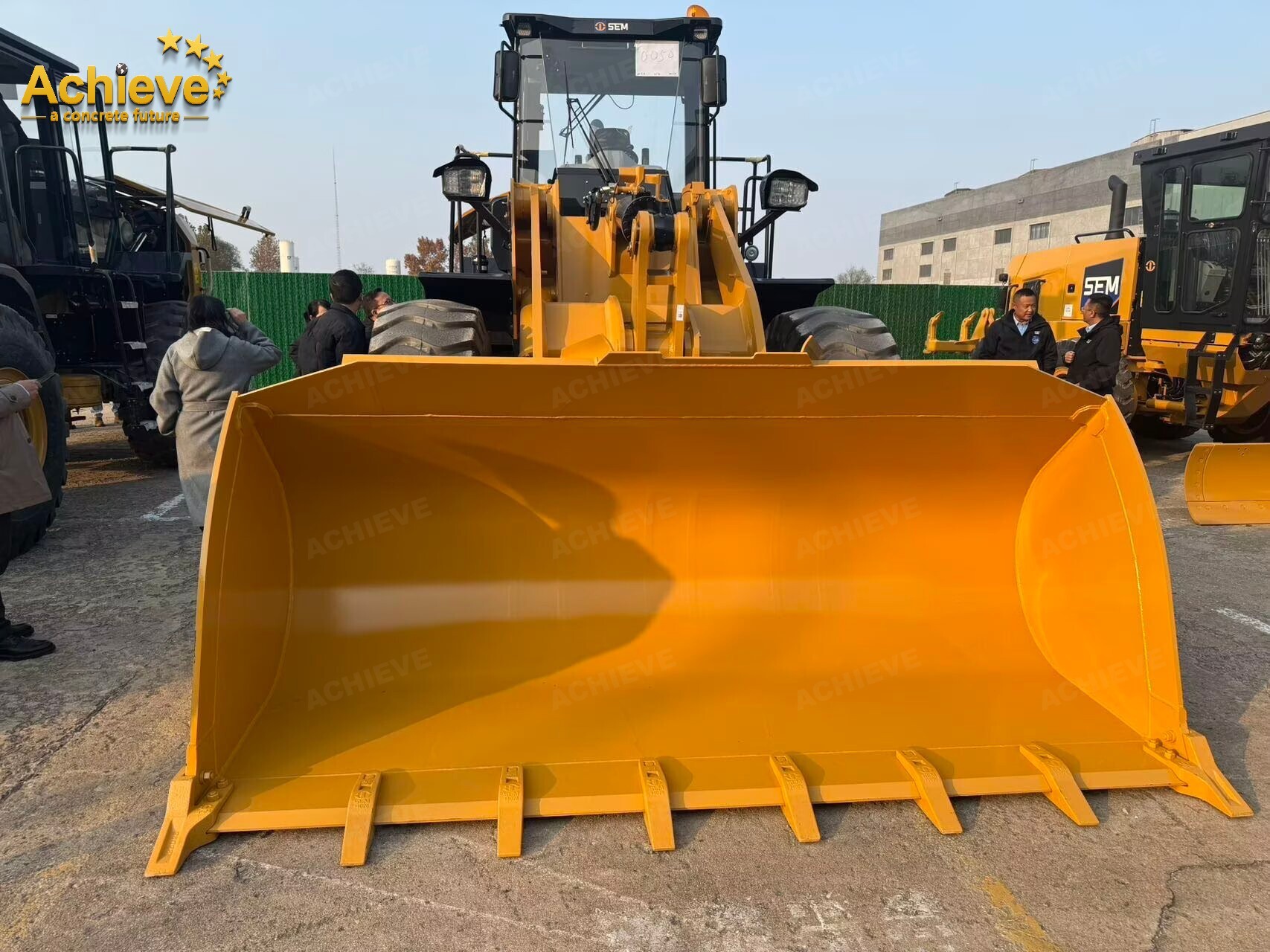

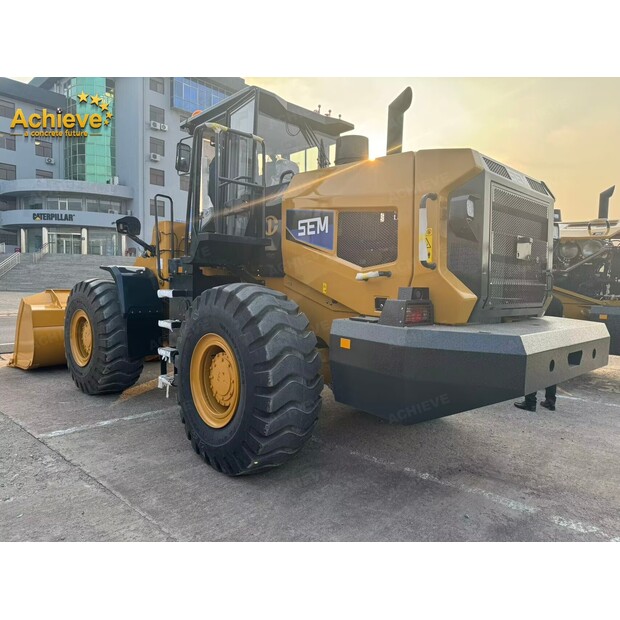

SEM SEM 656F Wheel loader Rated Payload 5,500 kg Bucket Capacity: 2.6-5 ms 17,385 kg【ACHIEVE】 TOP CONDITION!!!

Model
Model SEM 656F
Main Specifications
Rated Load 5,500kg
Operating Weight with Standard Bucket 17,385kg
Bucket Capacity 2.6-5m³
Wheel Base 3,350mm
Overall Dimension 8,472*3,117*3,465mm
Max. Drawbar Force 170kN
Breakout Force 161kN
Dump Clearance 2,991mm
B-Pin Height 4,162mm
Transmission
Transmission Type Countershaft, power shift
Transmission Gears F4/R4
Torque Converter Type Single stage, 3 elements
Forward I/Reverse I 7.6/7.6
Forward II/Reverse II 14/14
Forward III/Reverse III 22/22
Forward IV/Reverse IV 39/39
Maker & Type TR200
Axle (Axle, Tire & Brakes)
Main Drive Type Spiral bevel gear, single stage
Final Drive Reduction Type Planetary type, single stage
Rear- oscillation +/- ±11
Engine
Engine Model WD10G220E23
Rated Power 162kW
Rated Speed 2,000r/min
Displacement 9.7L
Implement Hydraulic System
Implement System Type Open center flow sharing
Boom Raise Time 5.13s
Hydraulic Cycle Time 9.3s
System Pressure Setting 17MPa
Brake System
Service Brake Dry&caliper, air to oil control
Parking Brake Drum/Shoe
Steering System
System Type Load sensing
Steering Pump Type Gear pump
System Pressure Setting 16MPa
Steering Angle (L/R) 38±1
Tires
Size 23.5-25
Type Bias
Layer 16
Textured Type L-3
