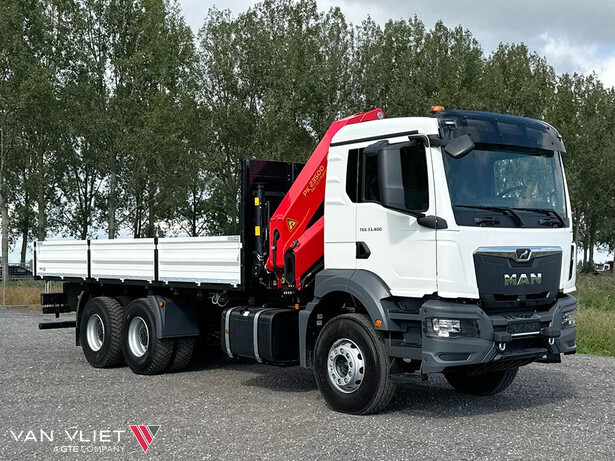

2024 مان TGS 33.400 BB

General information

Technical information

Transmission

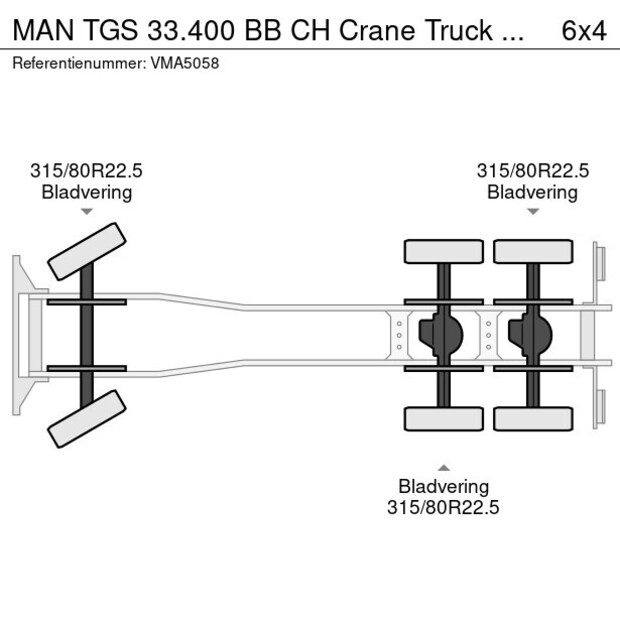

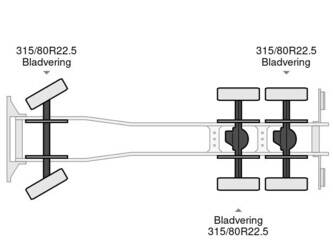

Axle configuration

Functional

Environment

Financial information

Air conditioning
Fuel tank: 400 ltr.

Equipped with crane and flatbed:
Type: Palfinger PK23500C
Lifting moment 226.0 kNm / 23.0mt
Emergency cut off
Digital hour counter
Oil cooler 10,5kW
Hydraulic overload protection
Outriggers hydraulic long
4 section hydraulic extension boom
+ 2 manual extensions
Stabilizer pads 400x400x50mm
2 tool boxes

Lifting capacity:
5.850 kg / 3.80 m
4.680 kg / 4.60 m
3.360 kg / 6.10 m
2.480 kg / 8.00 m
1.920 kg / 10.10 m
1.570 kg / 12.30 m

Open flatbed body with foldable sideboards:
Twistlocks for 20 ft container
Dimensions: 630 x 248 x 60 cm
