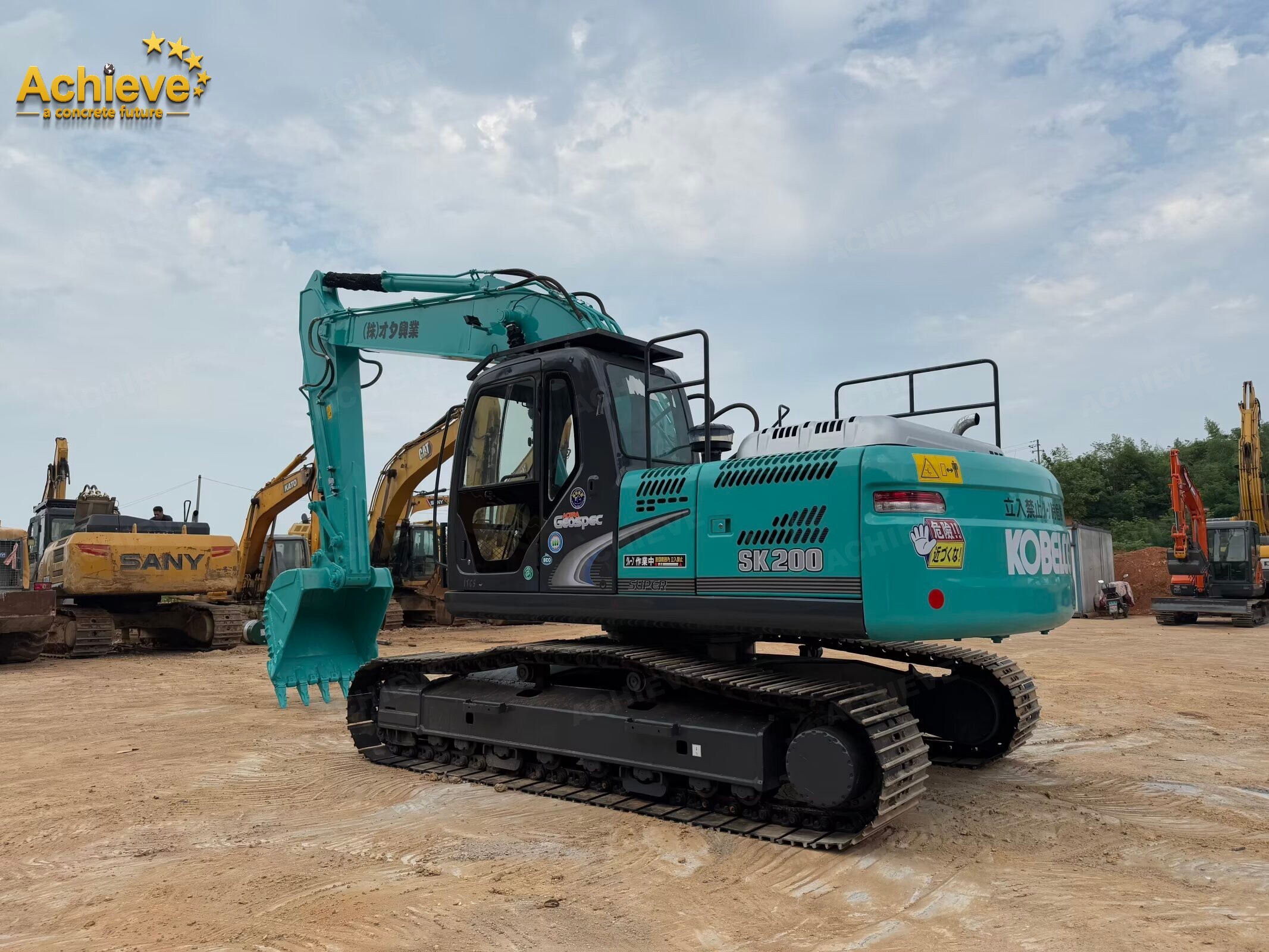

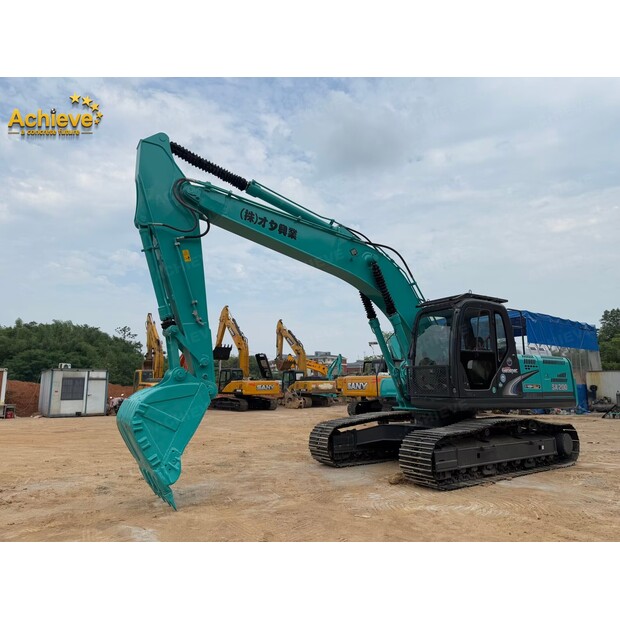

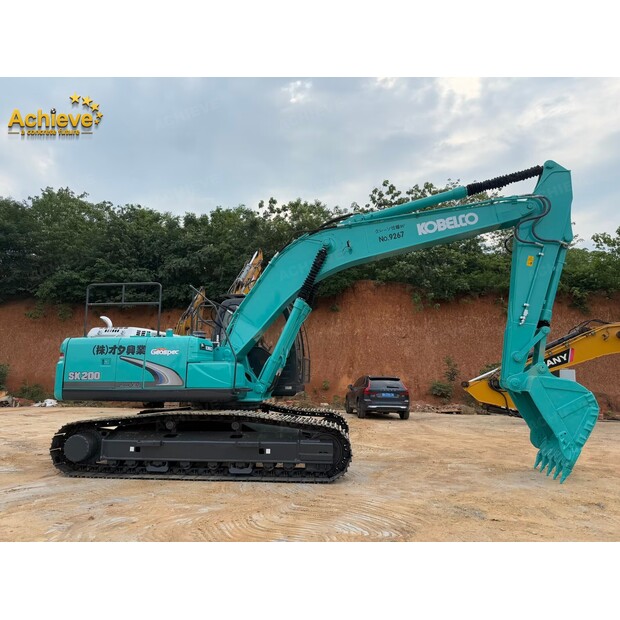

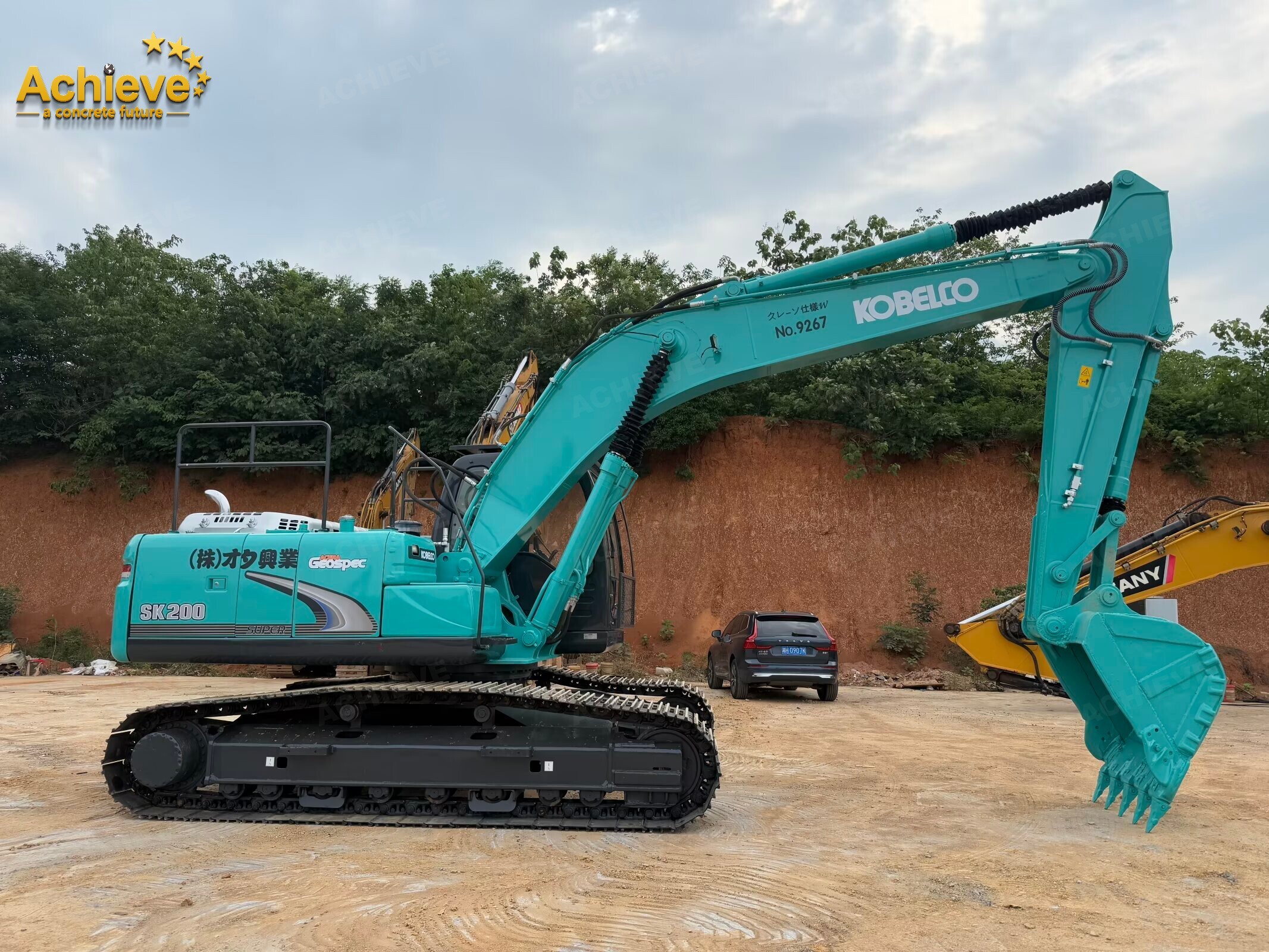

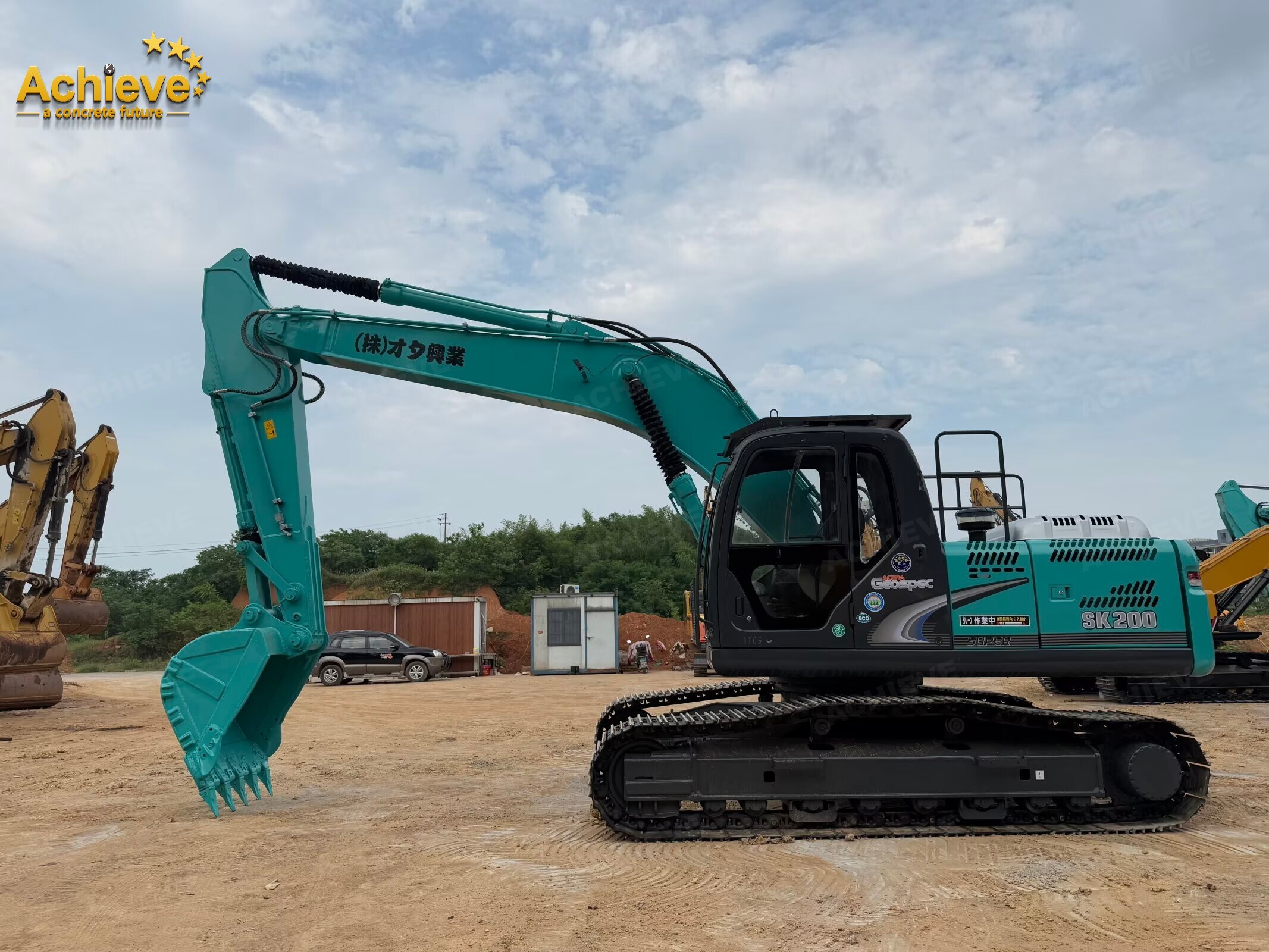

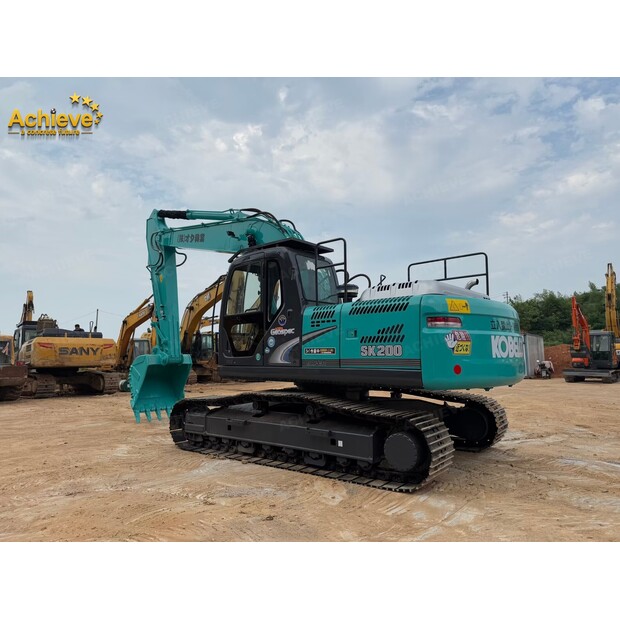

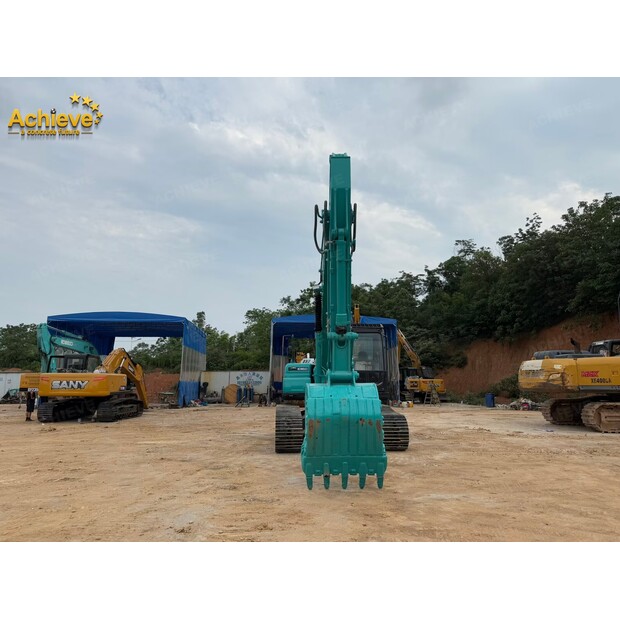

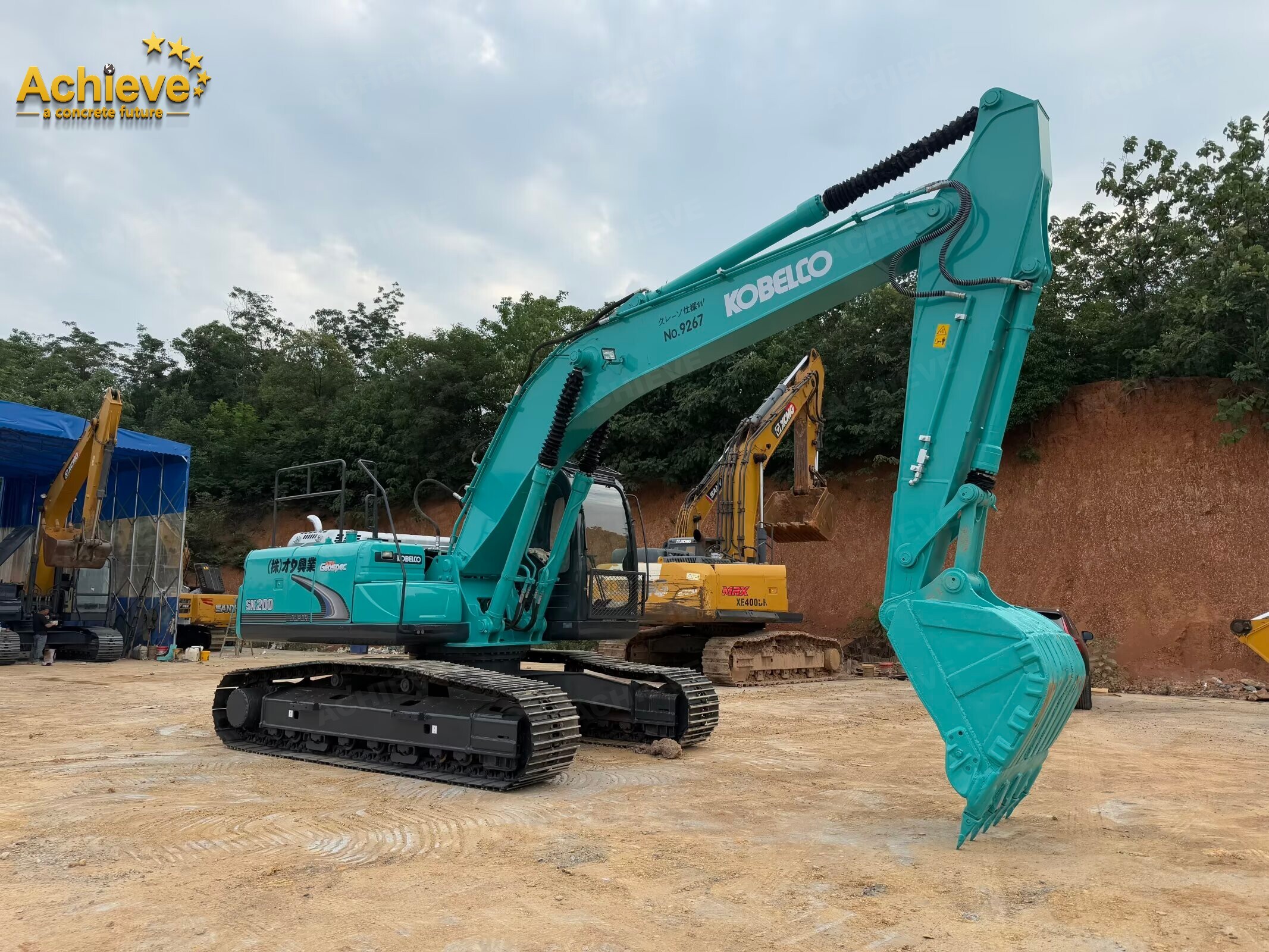

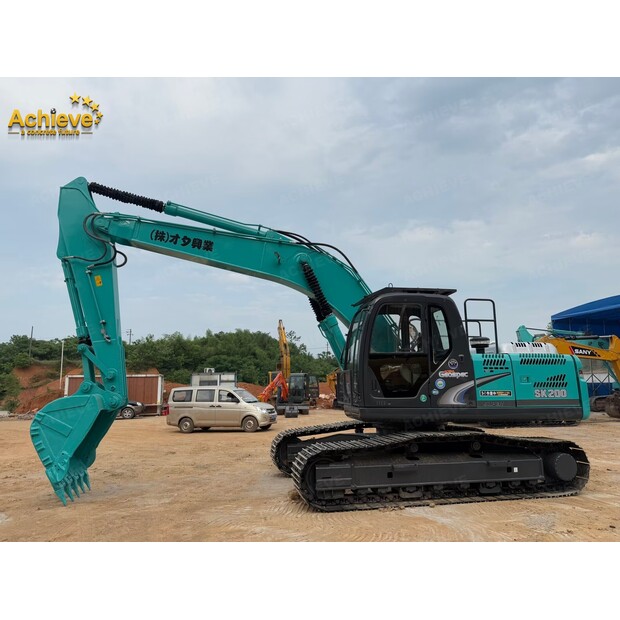

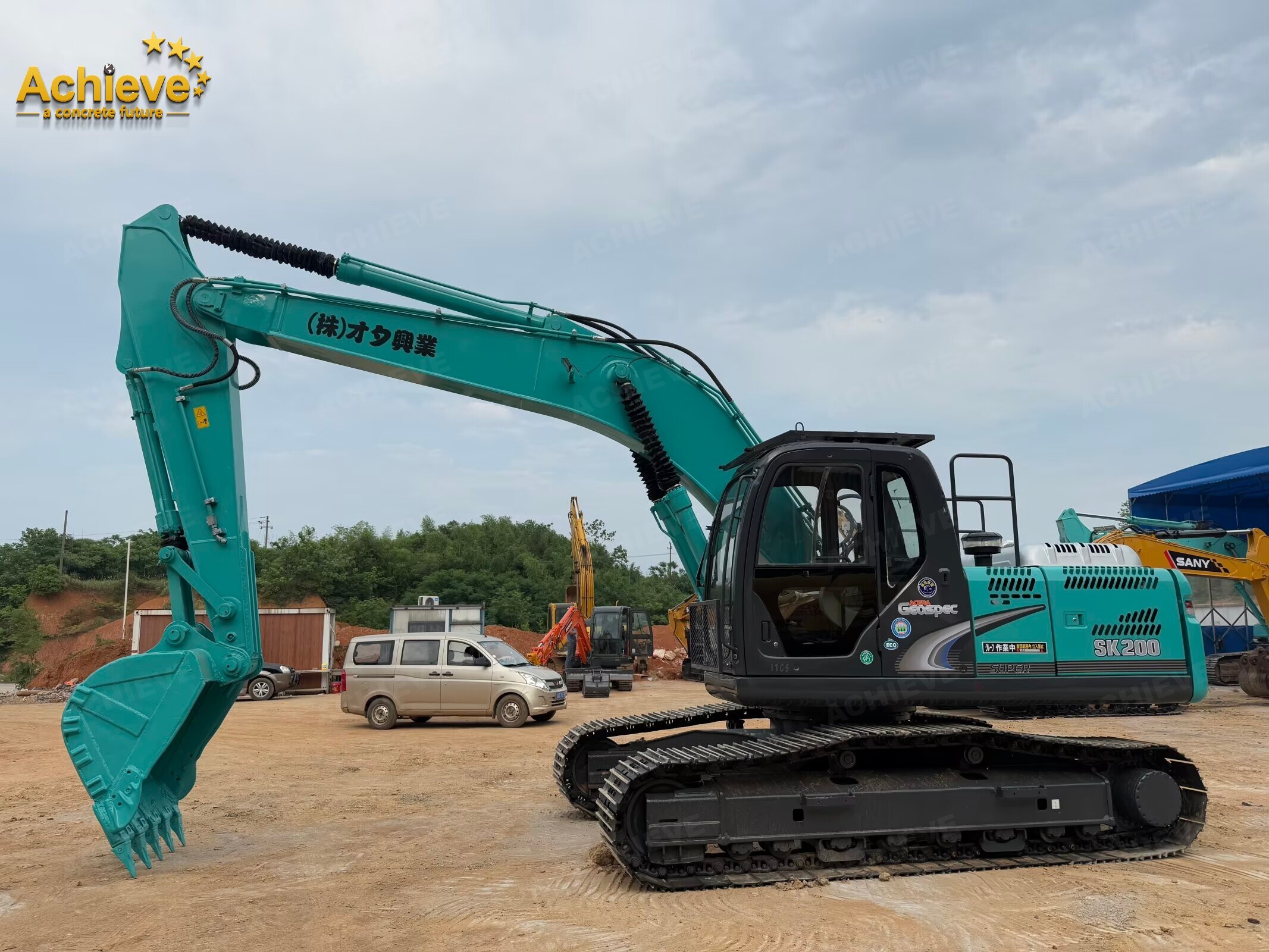

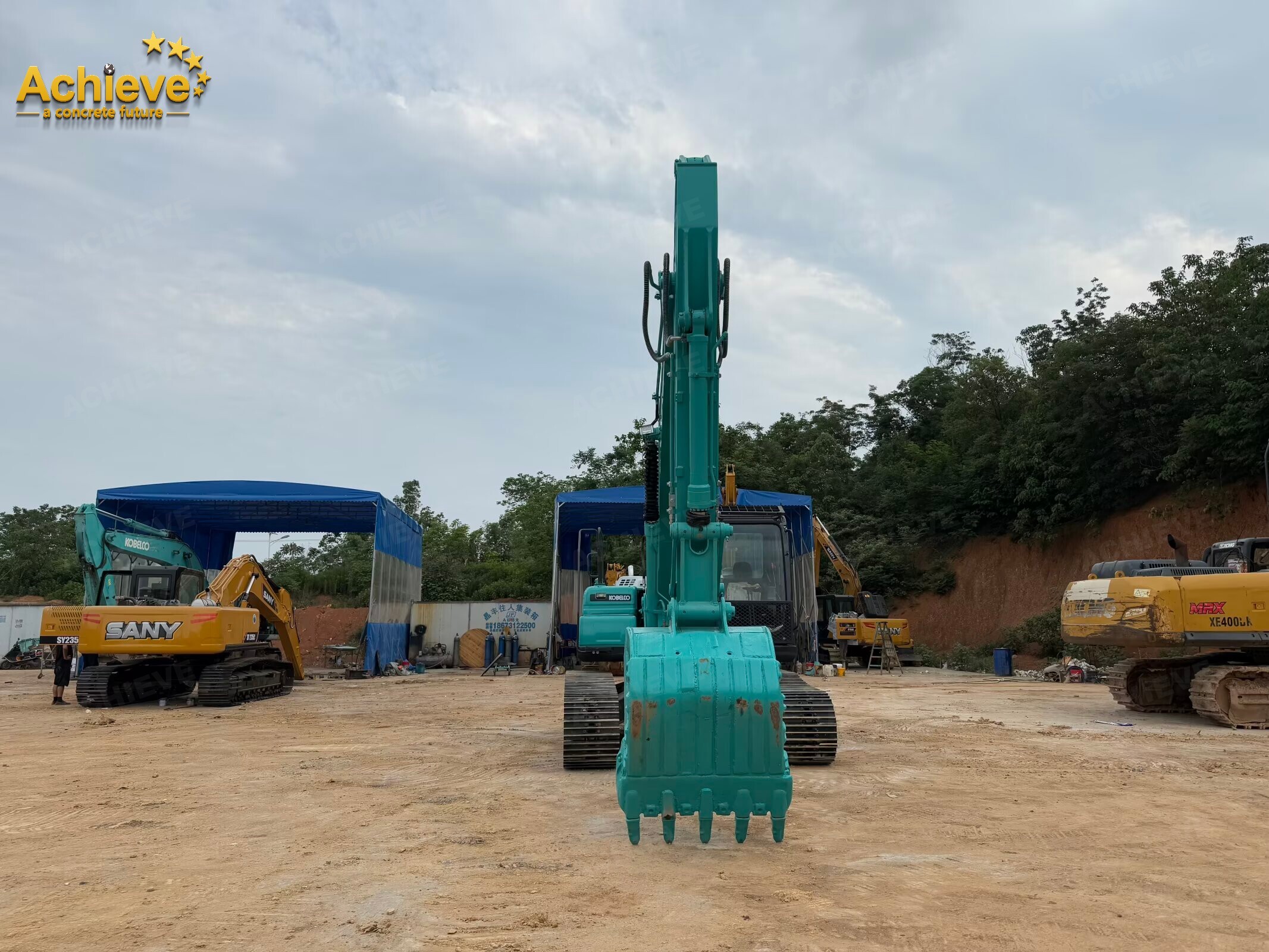

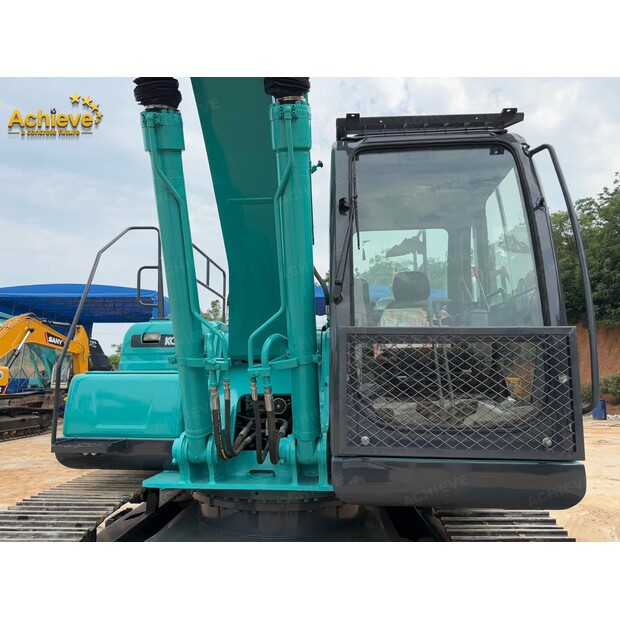

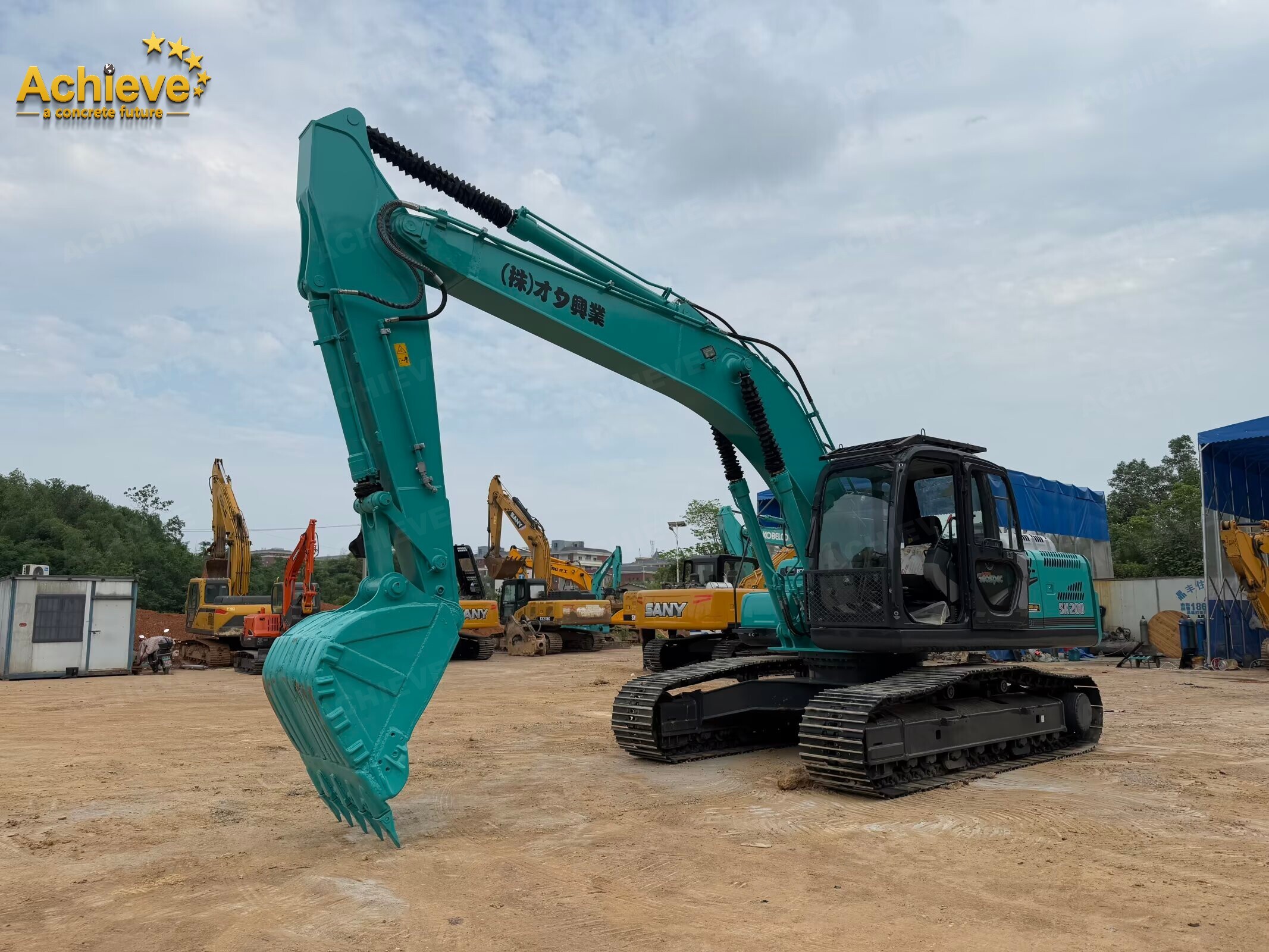

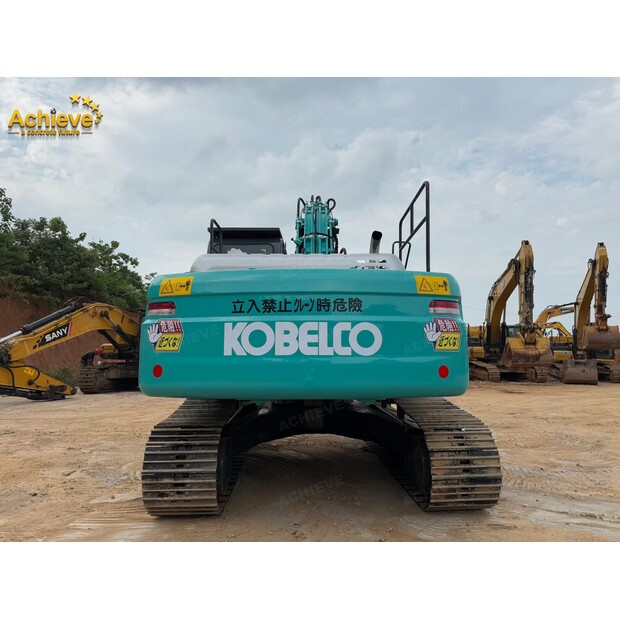

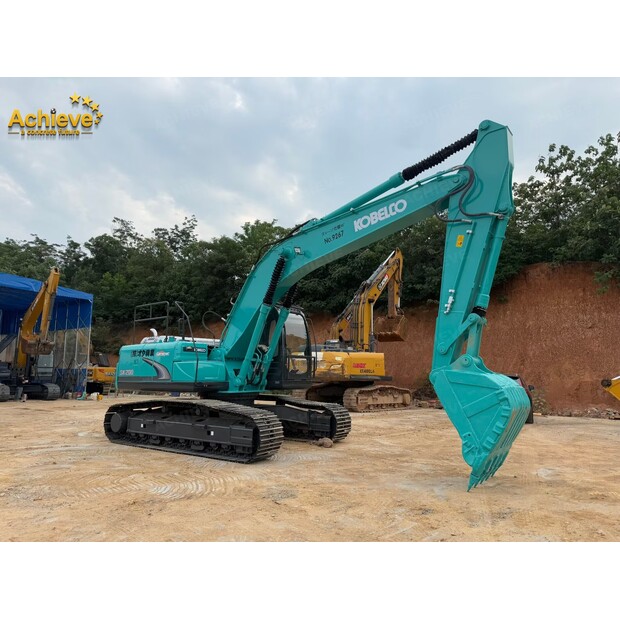

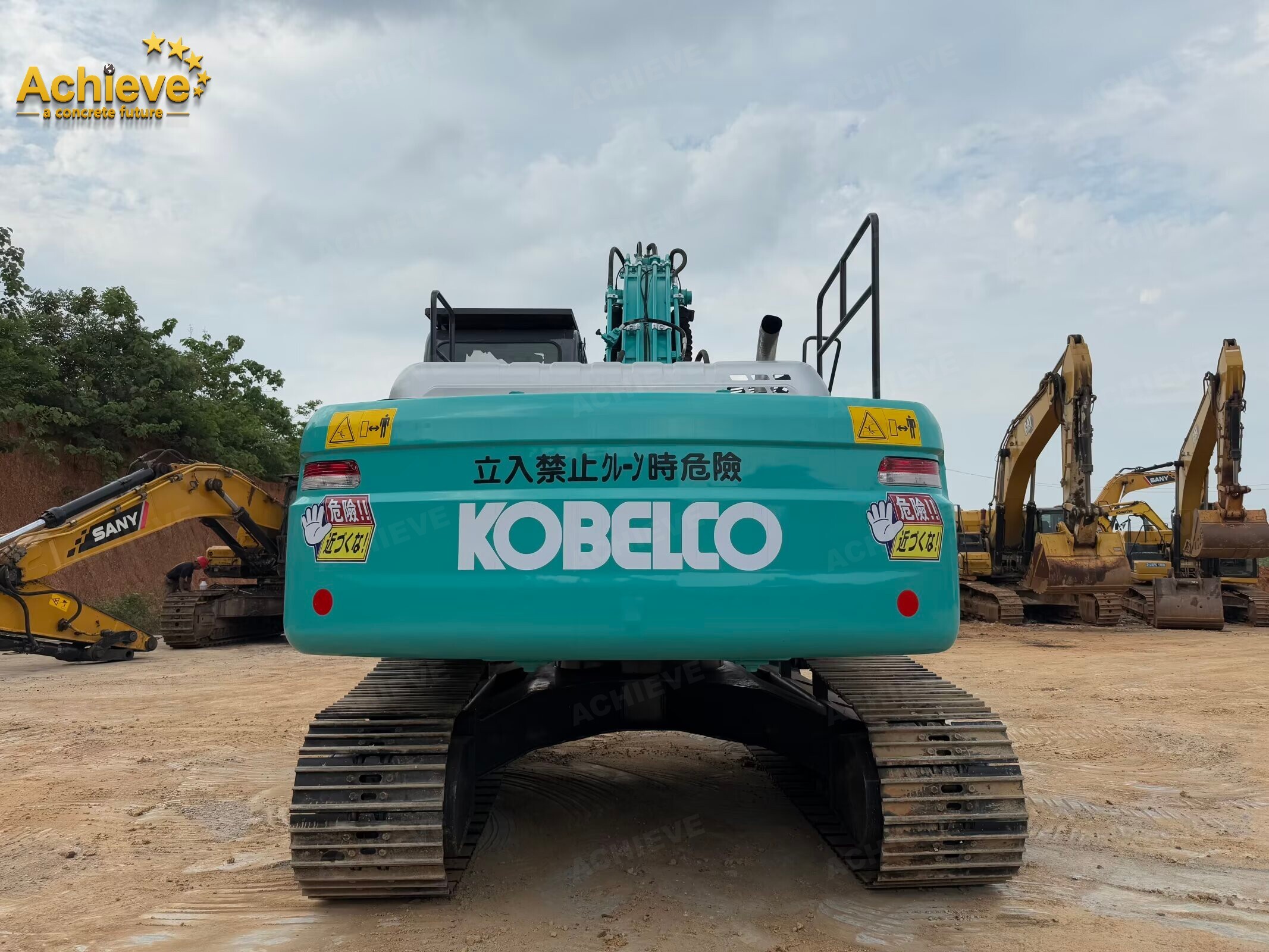

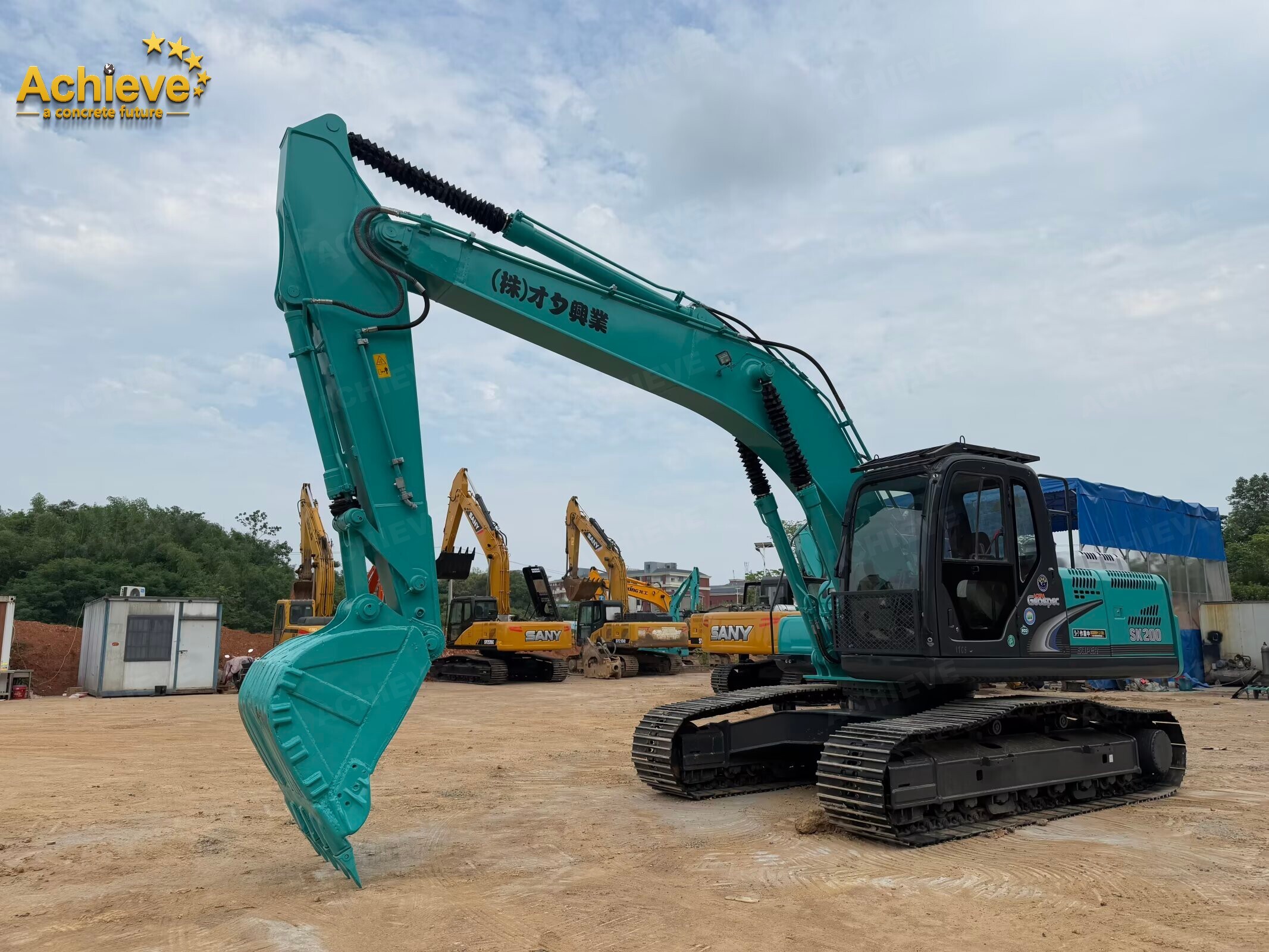

2024 كوبيلكو SK200

Specification

powerTraditional power

ManufacturerJoint venture/import

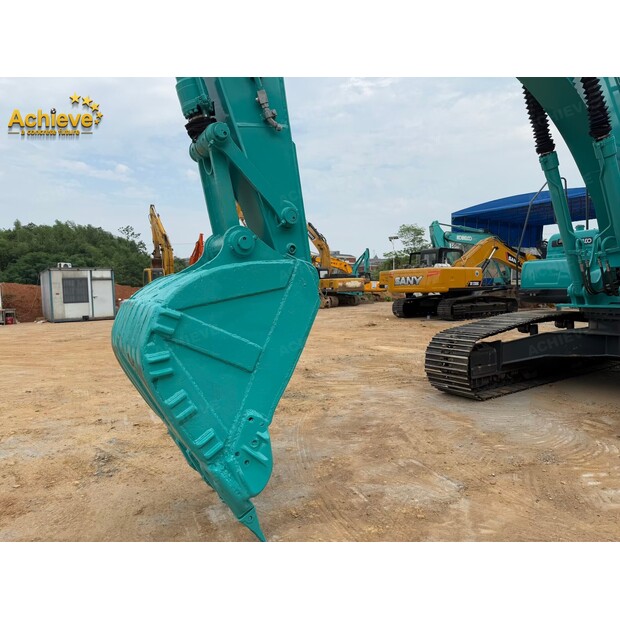

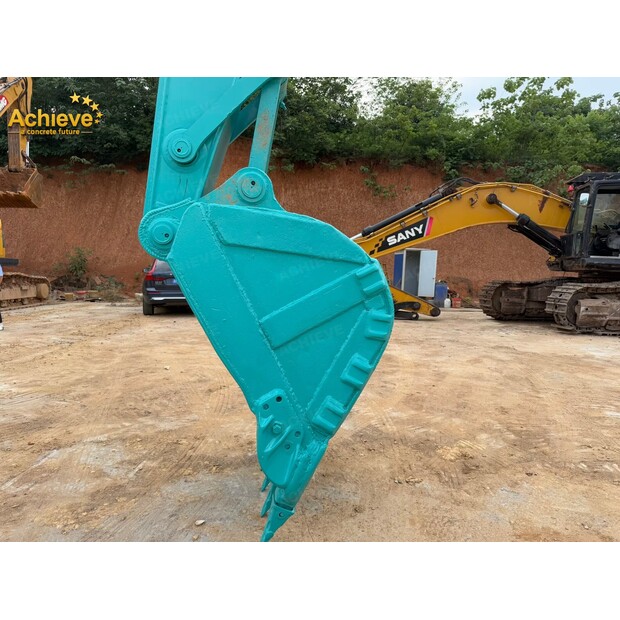

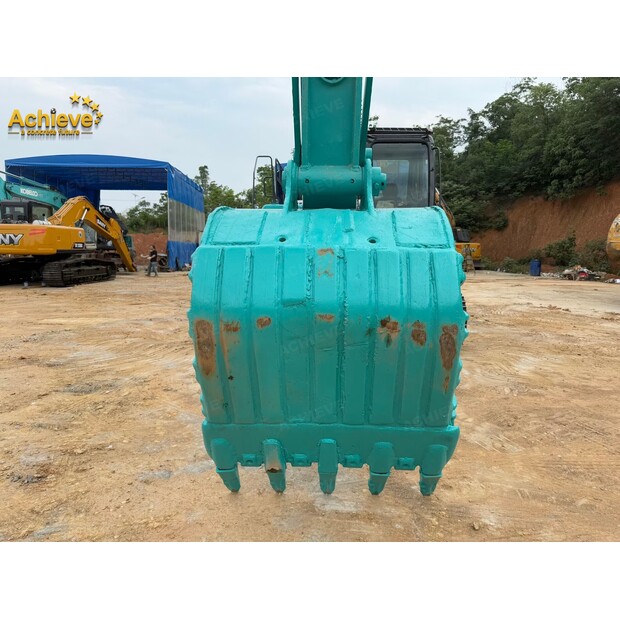

bucketbackhoe

Tonnage (tons)20

Machine operating weight (kg)20000

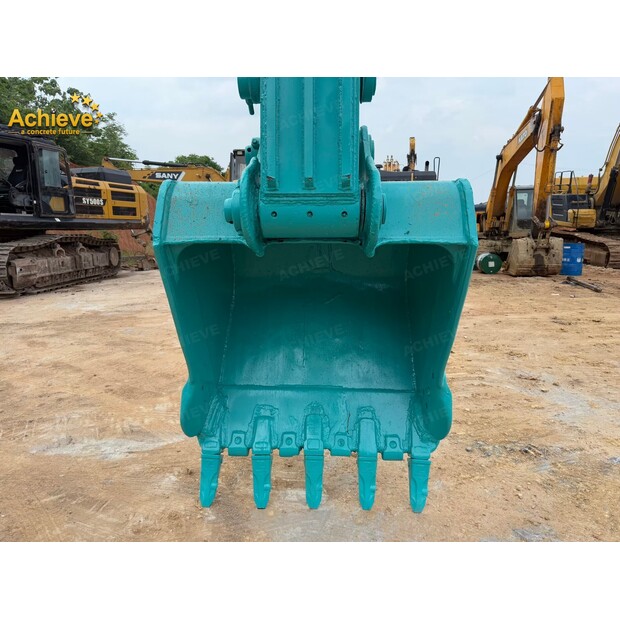

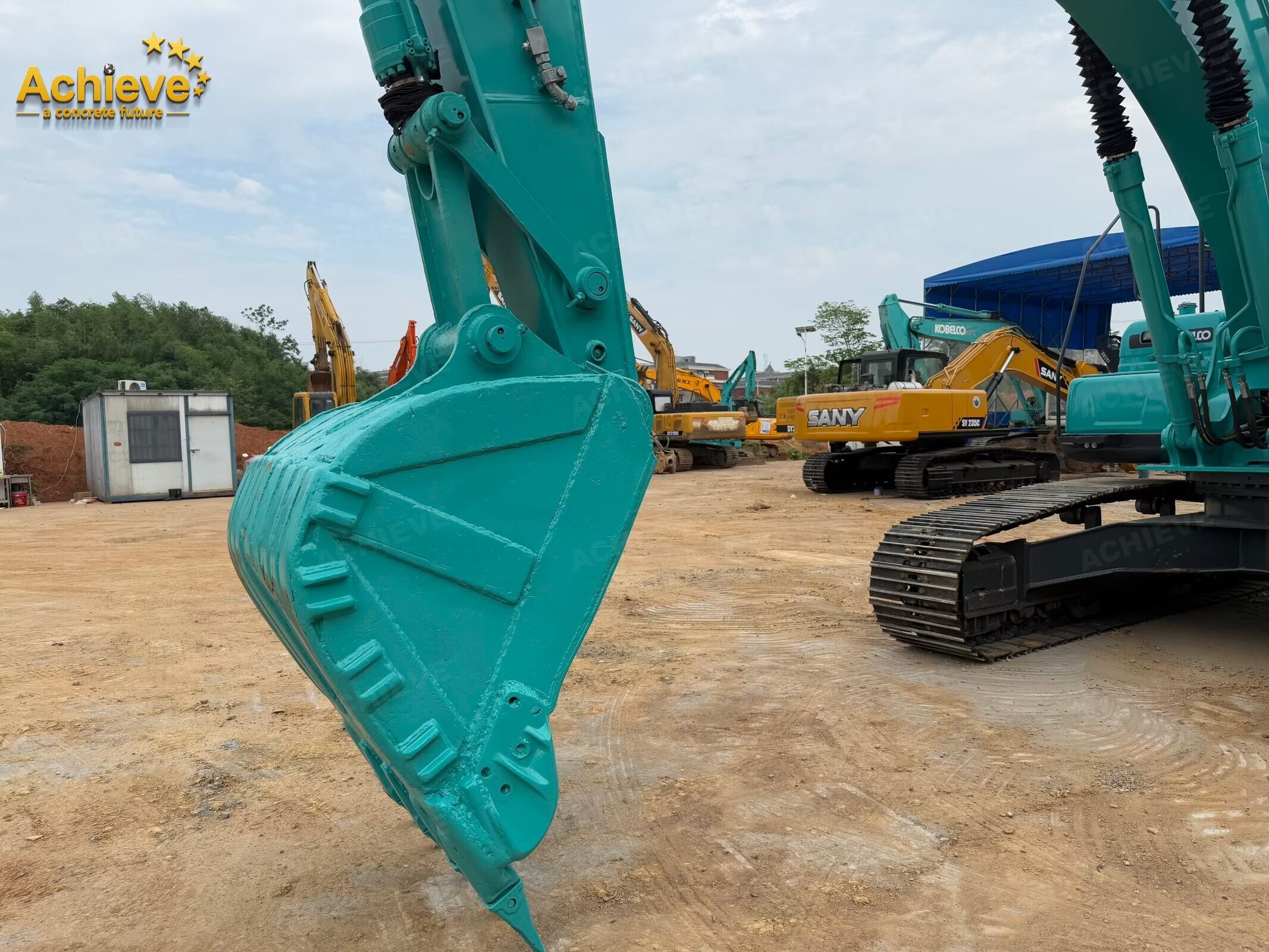

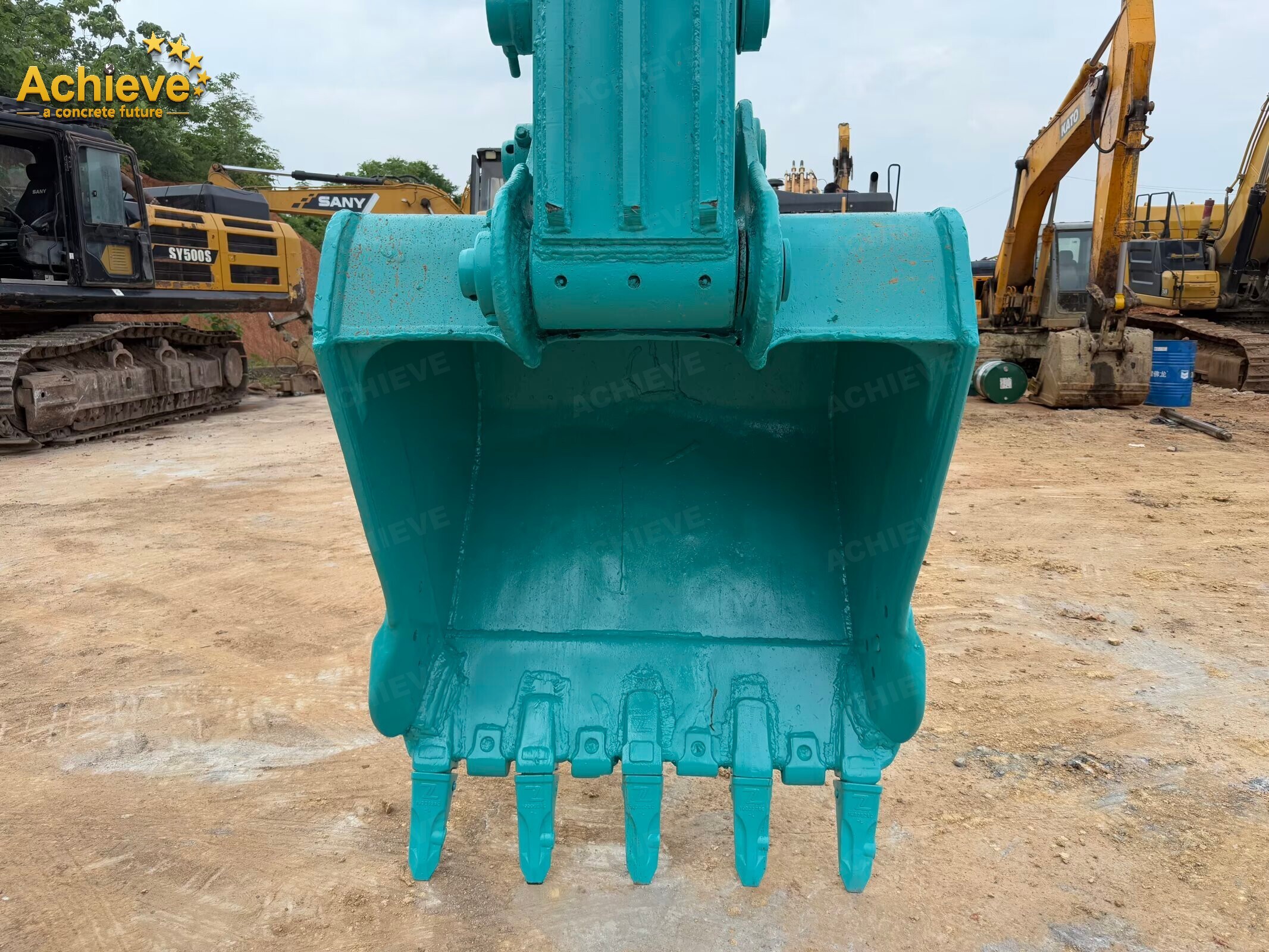

Bucket capacity (m³)0.8

performance

Rotation speed (rpm)11

Walking speed (km/h)1st speed: 4.0 2nd speed: 6.0

Gradeability (%)70

Ground pressure (Kpa)45；35

Bucket digging force (kN)143; Boost state: 157

Arm digging force (kN)97.1; boost state: 107

Powertrain

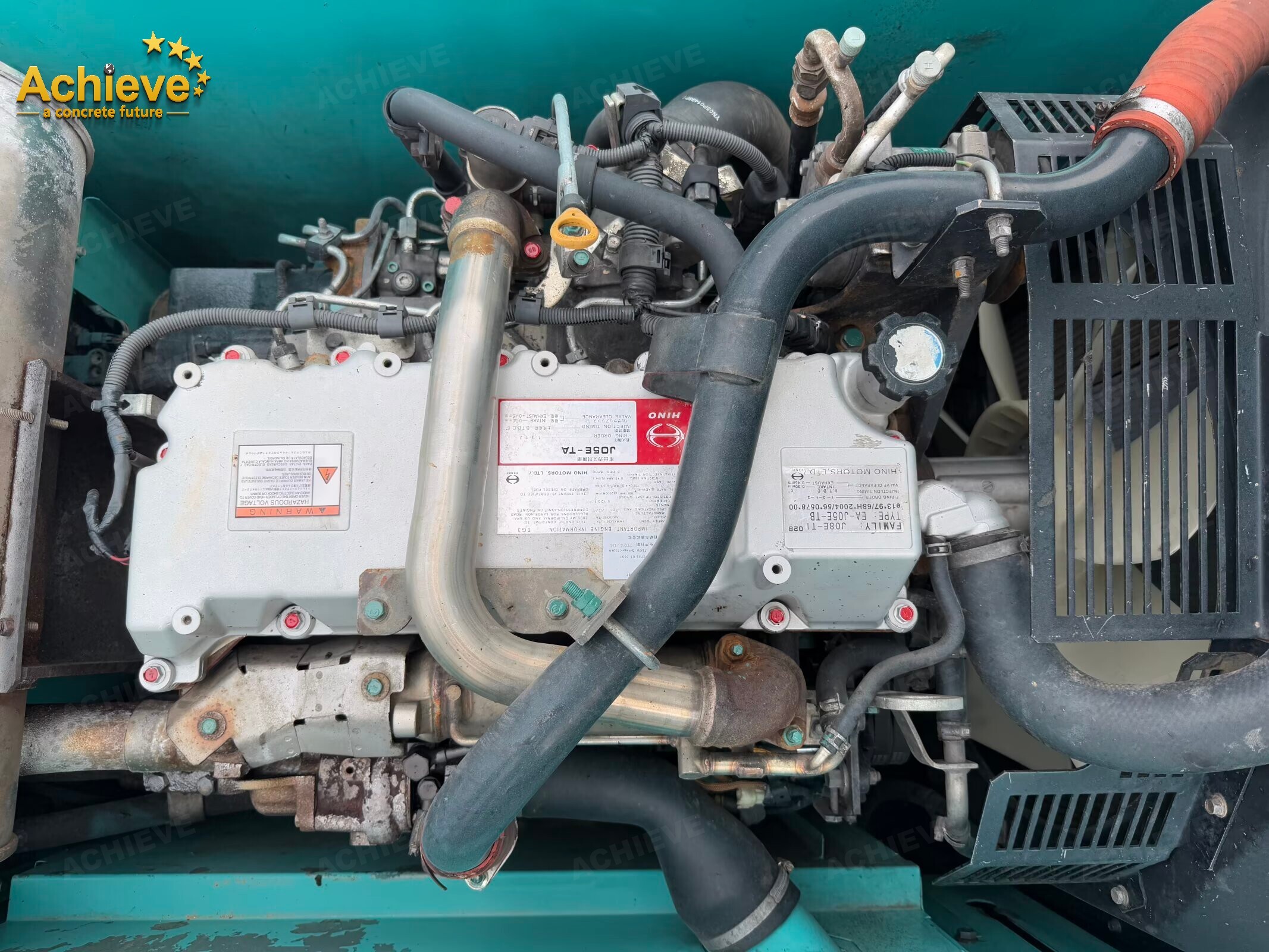

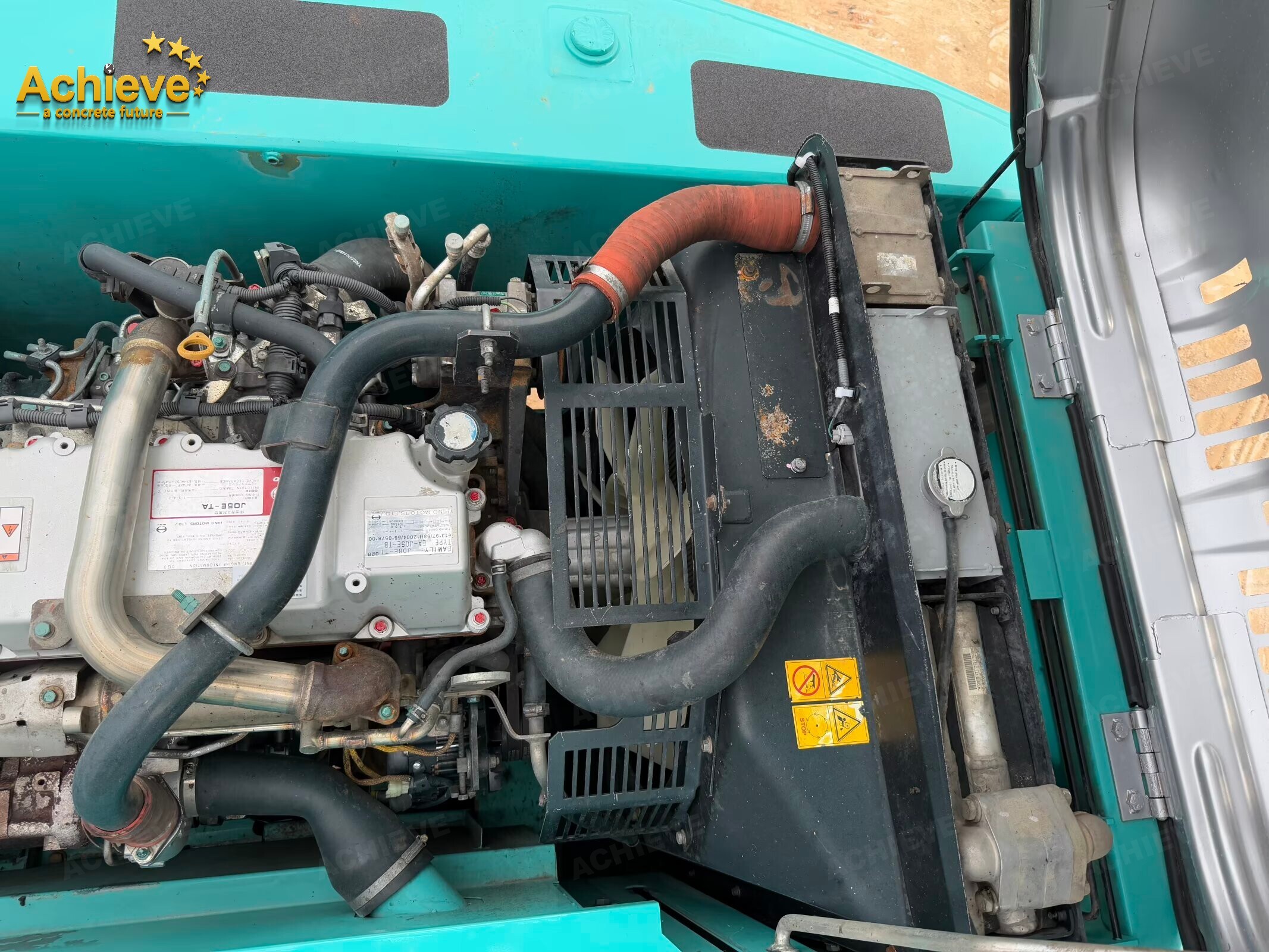

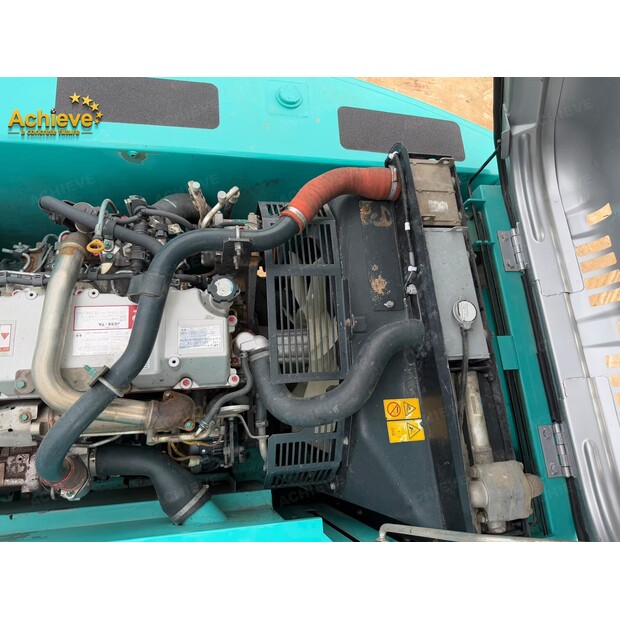

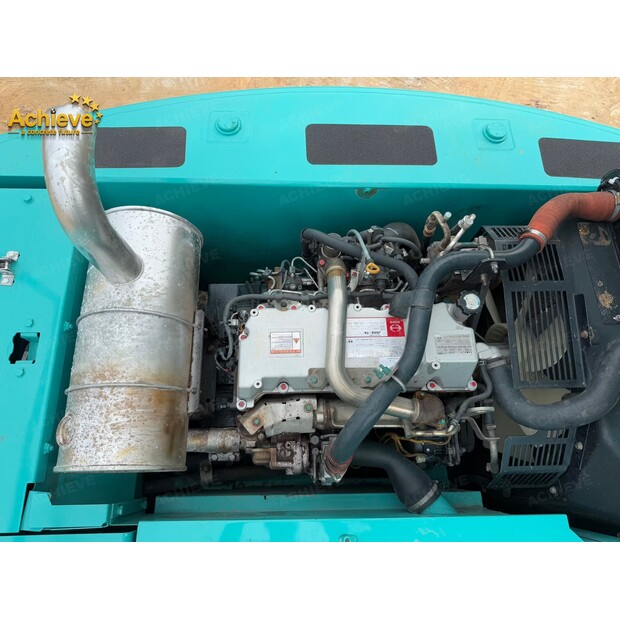

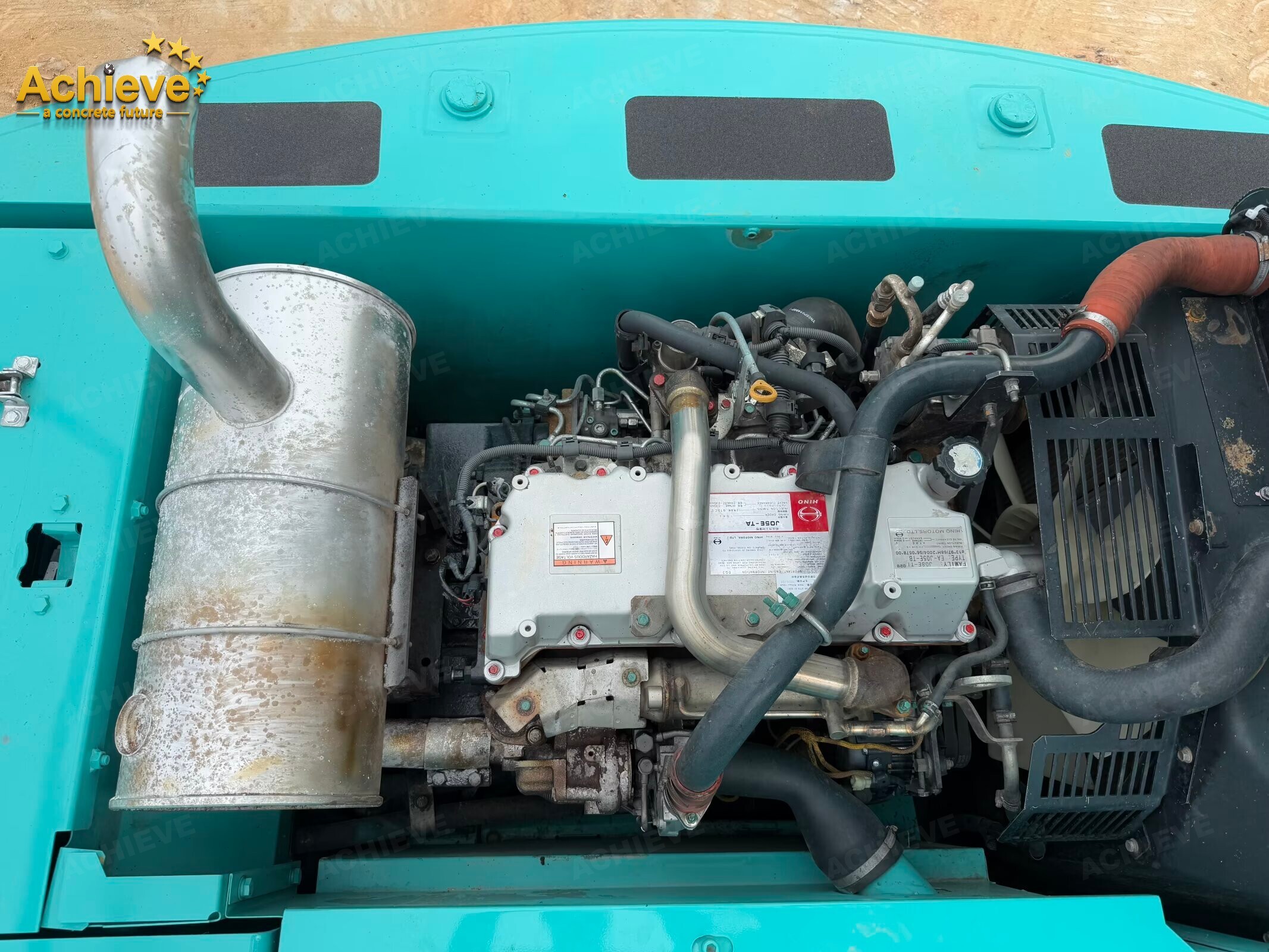

Engine modelMitsubishi 6D34-TLU2D

Rated power (kw/rpm)110/2000

Cooling methodWater cooling

Working formWater-cooled, four-stroke, six-cylinder, direct injection, turbocharged, built-in intercooler

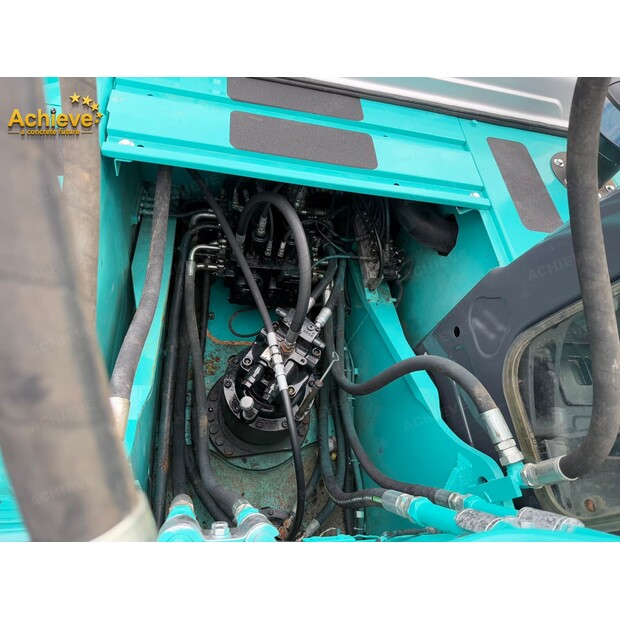

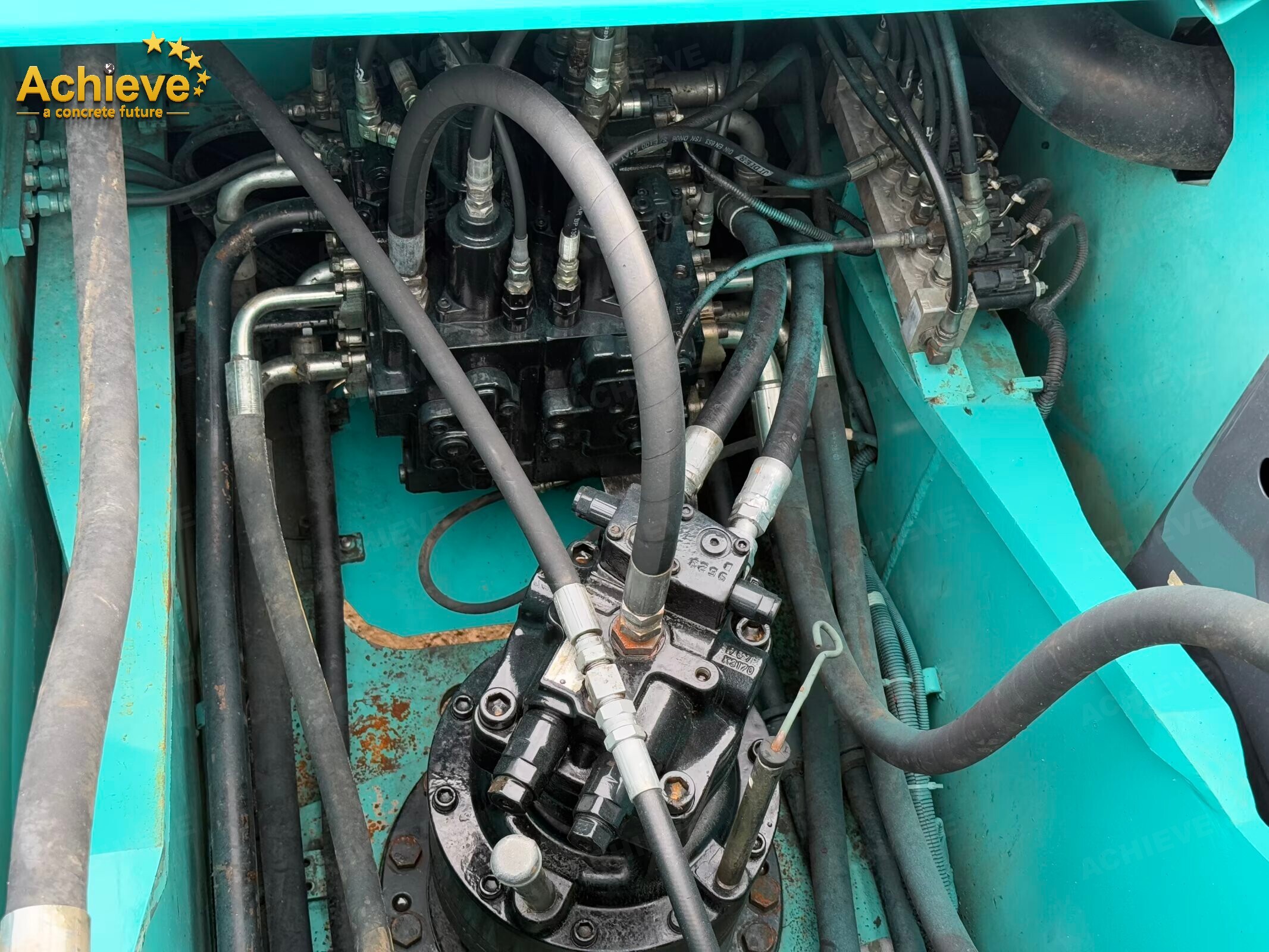

hydraulic system

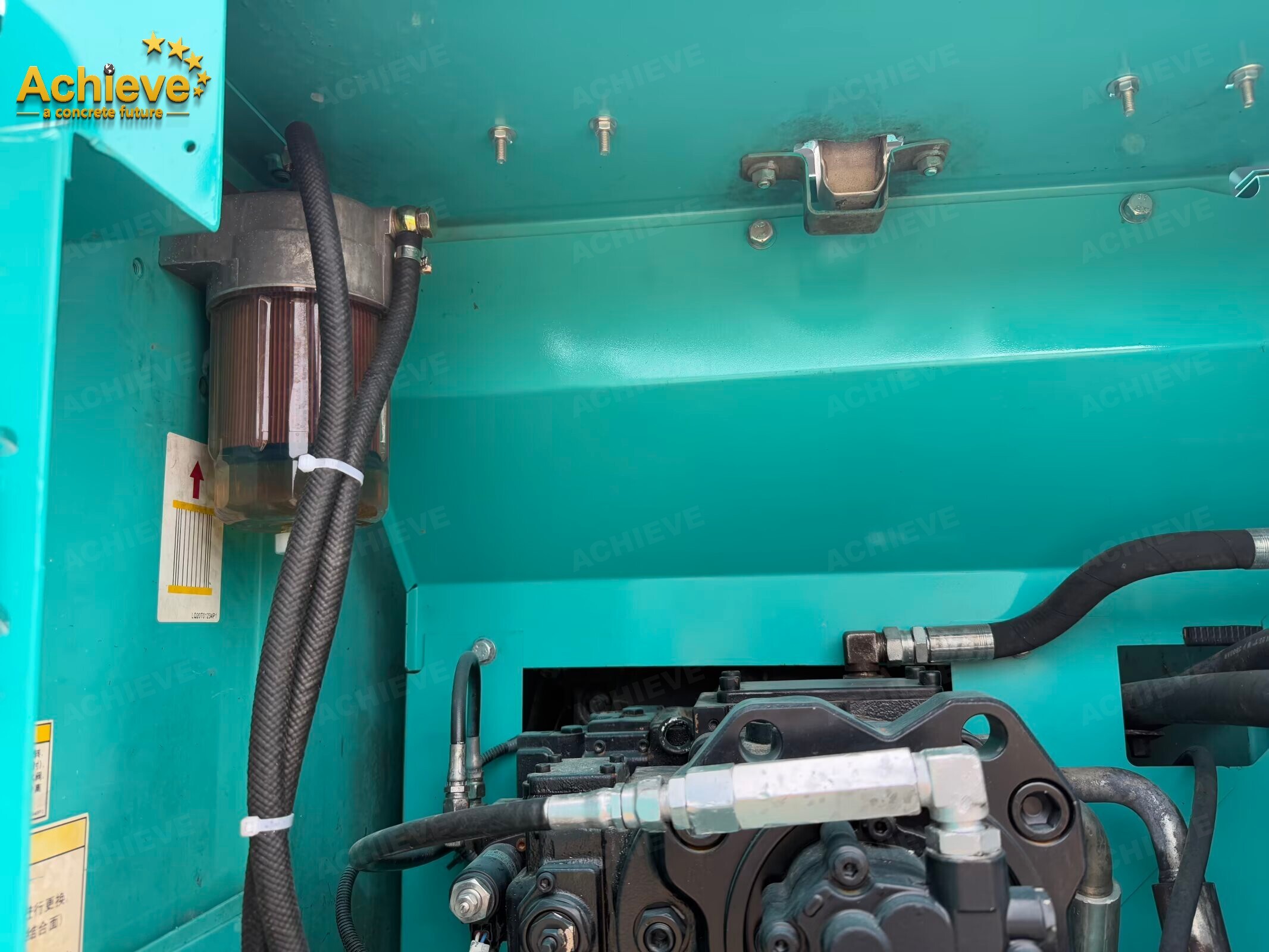

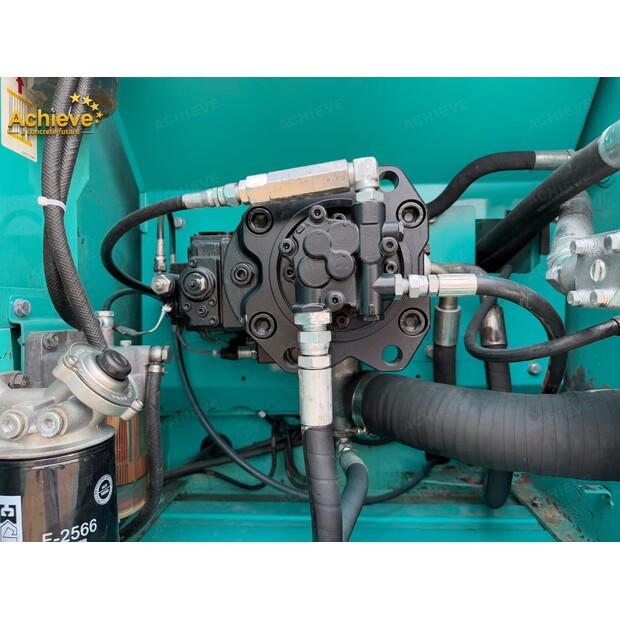

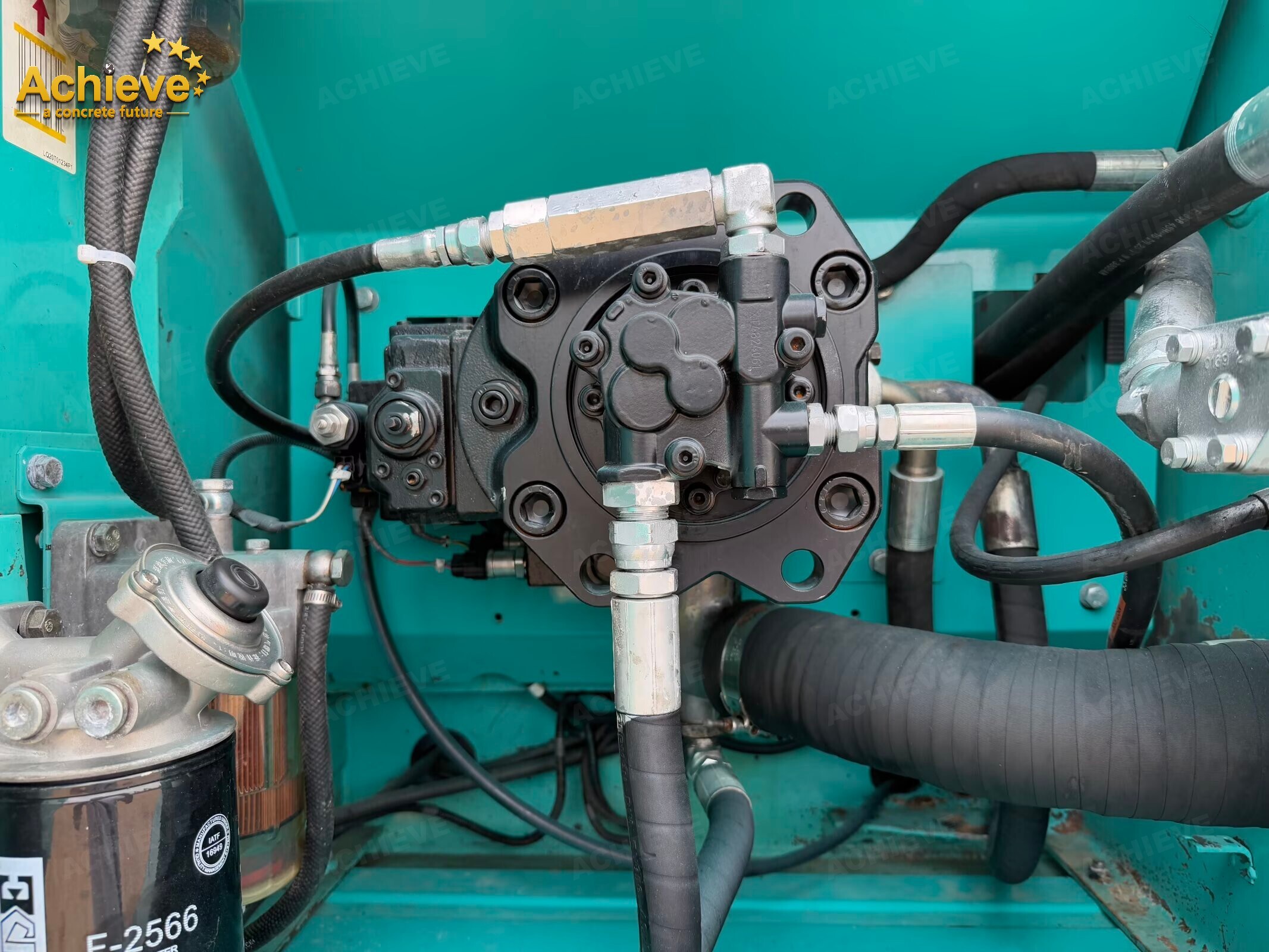

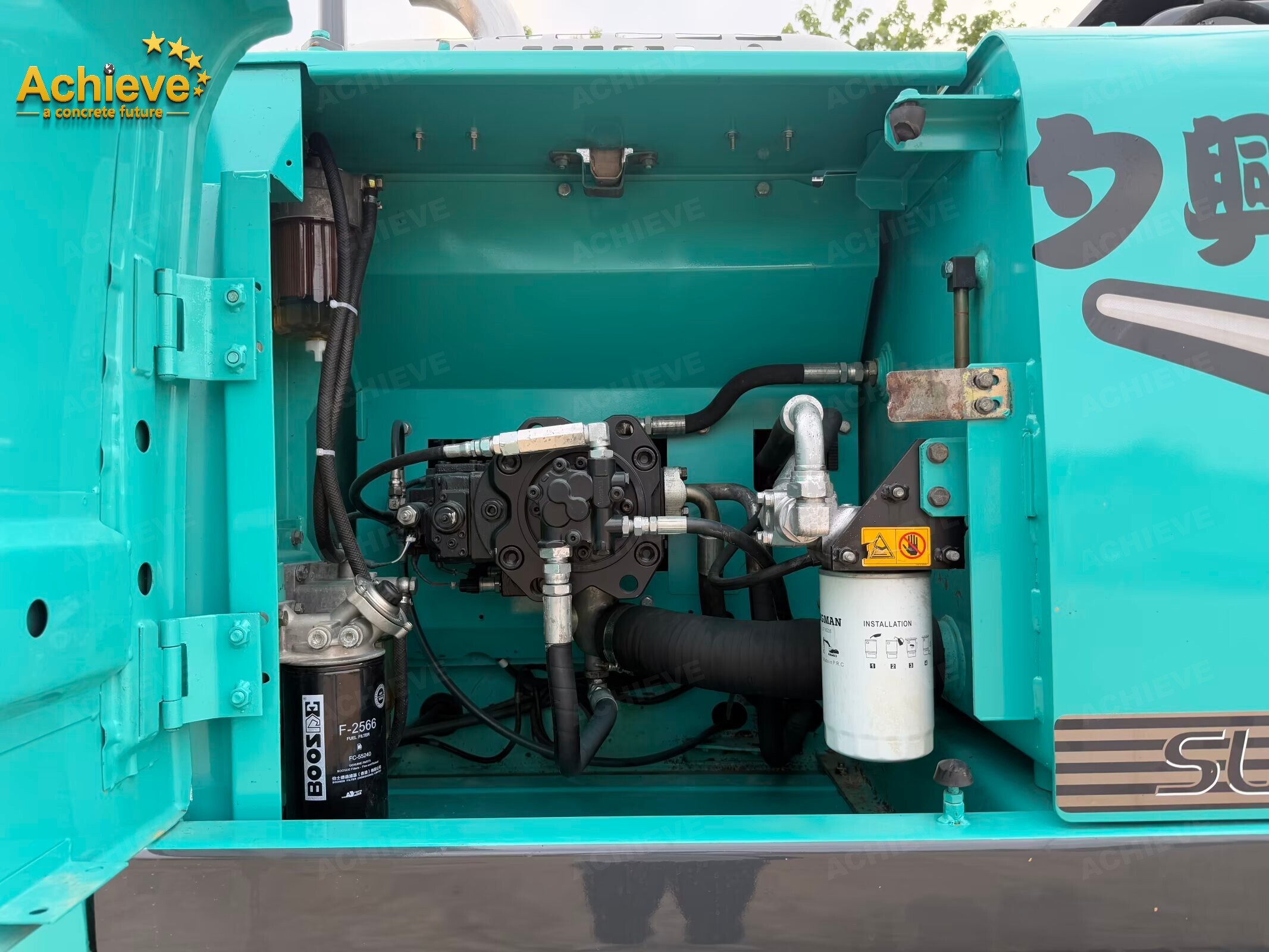

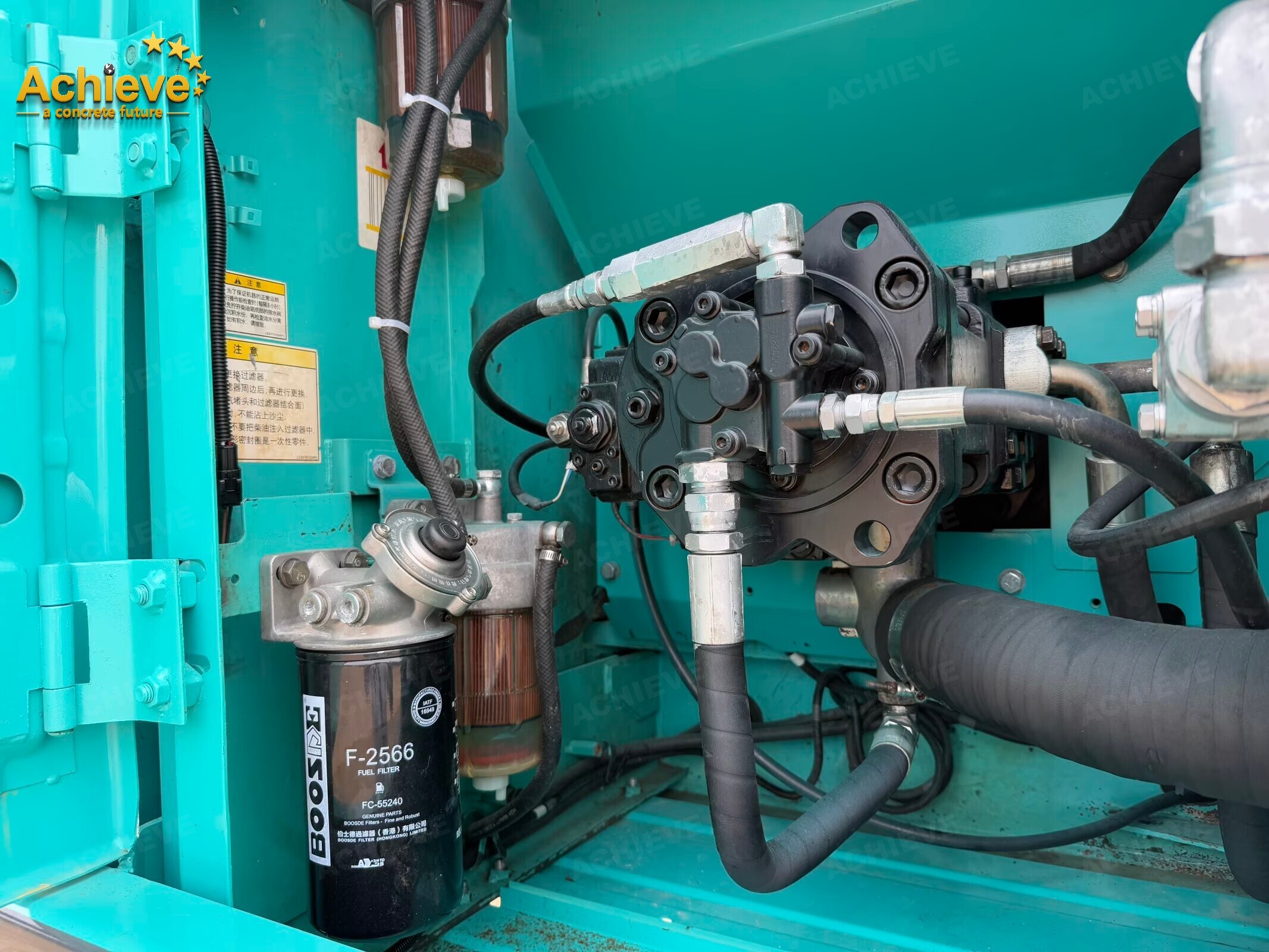

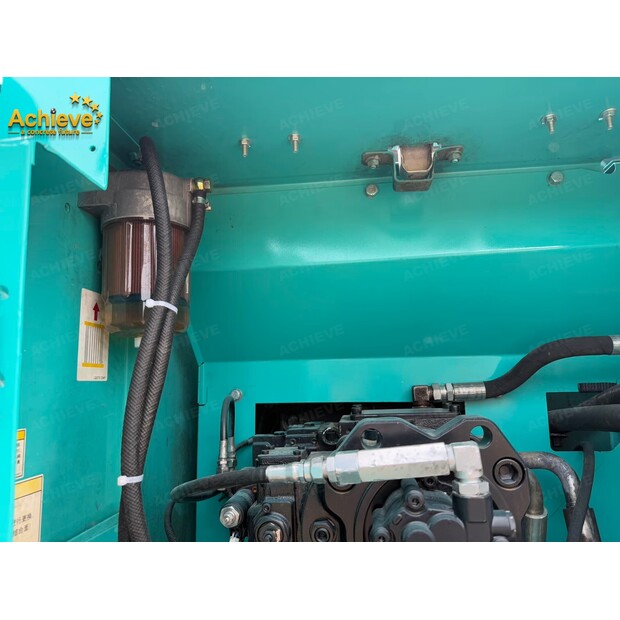

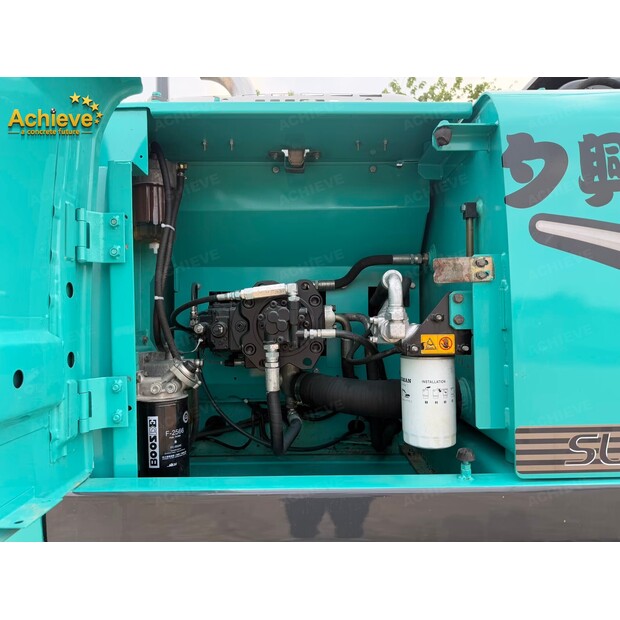

Main pump typeDuplex variable displacement axial piston pump pilot gear pump

Main overflow setting pressure (Mpa)34.3; Boost: 37.8

Oil capacity

Fuel tank (L)340

Main body size

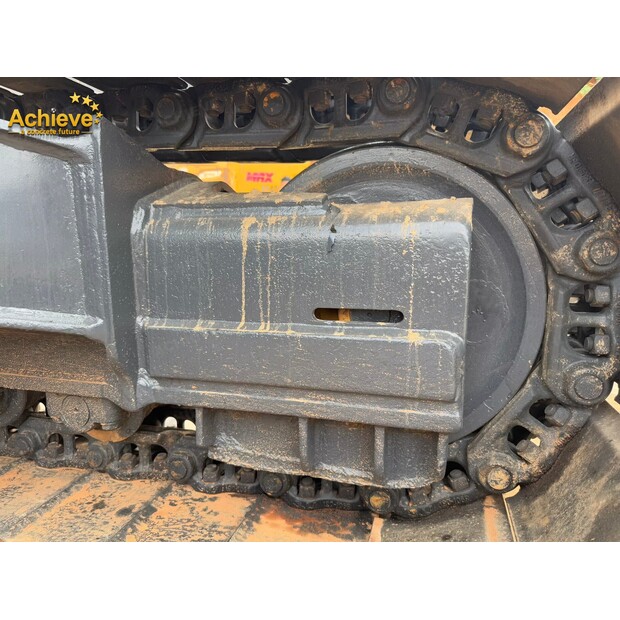

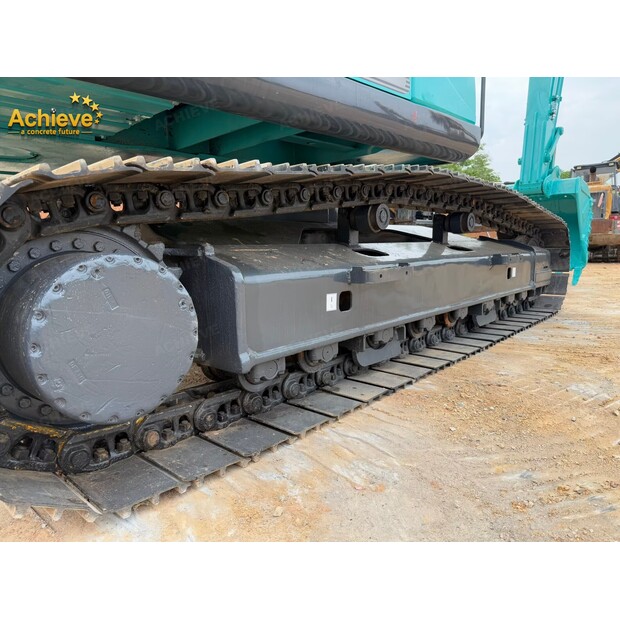

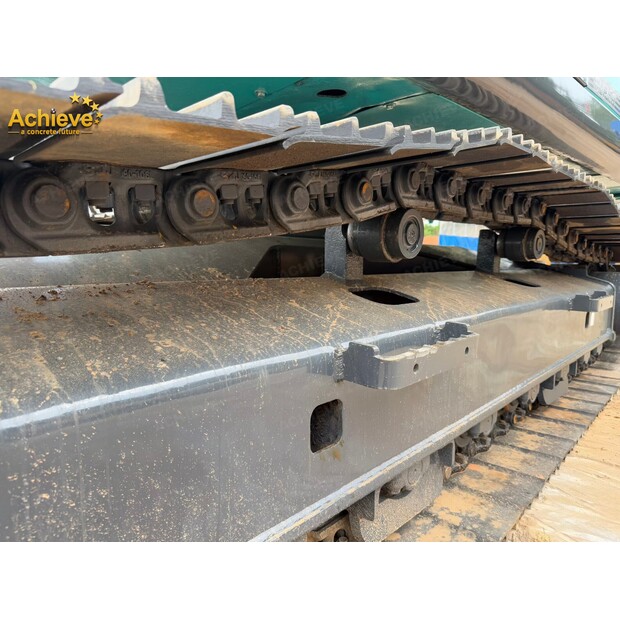

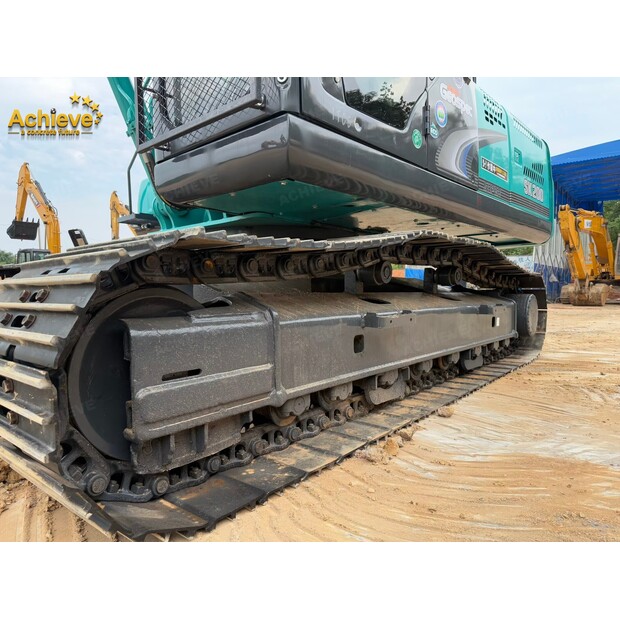

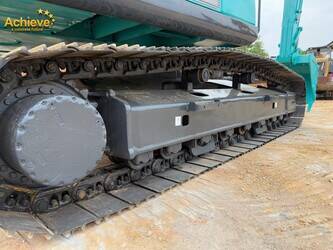

Track shoe width (mm)600；800
