Maximum lift capacity: 230.00
Transport dimensions (LxWxH): 6.44x1.4x1.98
Front tyres remaining: 0
Rear tyres remaining : 0
Internal stock no.: JLG - X22SJP - 63097
Gross Weight: 3350.00
Tyre brand: -
VAT: 0.00
Power type: Diesel
Working height: 2200.00
Max horizontal reach: 1255.00
Other information:

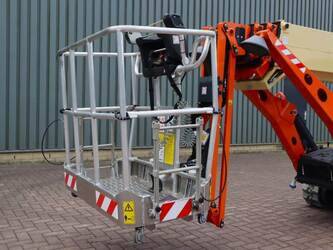

New and unused JLG X22SJP Compact Crawler Lift

This boomlift has a valid inspection and can be sold with warranty. Inform about our conditions!

This lift is also available for rent!

Manufacturer: JLG
Typ: X22SJP
Manuf. year: 2023
Fuel: Diesel
Serial nr: C170003444

Working Height: 22 m
Platform Height: 20 m
Horizontal Outreach (Std Platform): 11.9 m (230kg)
Horizontal Working Outreach (Std Platform): 12.55 m (230kg)
Swing (non continuous): 360°
Platform Capacity (Restricted): 230 kg

Basket rotation: 124° (+/- 62°)
Jib – Overall Length: 1.43 m
Jib - Range of articulation: 89° (+0° / -89°)
Platform size (standard 2 persons): 0.69 m x 1.34 m

Gradeability: 16 %
Maximum operating slope: 15°
Non Marking Tracks
Max. Approach / Depart angles Front: 20° / Rear 19°
Width of Undercarriage (Retracted/Extended): 0.88 m/ 1.30 m

Engine Kubota Z602 10.8 kW (14.5 HP)
Diesel Engine Liquid Cooled

CE (Declaration of Conformity)

More detailed pictures / product movie on our website.

pfeifermachinery.com

Above specifications are subject to change without prior notice and subject to errors
Maximum lift capacity: 230.00
Transport dimensions (LxWxH): 6.44x1.4x1.98
Front tyres remaining: 0
Rear tyres remaining : 0
Internal stock no.: JLG - X22SJP - 63097
Gross Weight: 3350.00
Tyre brand: -
VAT: 0.00
Power type: Diesel
Working height: 2200.00
Max horizontal reach: 1255.00
Other information:
New and unused JLG X22SJP Compact Crawler Lift

This boomlift has a valid inspection and can be sold with warranty. Inform about our conditions!

This lift is also available for rent!

Manufacturer: JLG
Typ: X22SJP
Manuf. year: 2023
Fuel: Diesel
Serial nr: C170003444

Working Height: 22 m
Platform Height: 20 m
Horizontal Outreach (Std Platform): 11.9 m (230kg)
Horizontal Working Outreach (Std Platform): 12.55 m (230kg)
Swing (non continuous): 360°
Platform Capacity (Restricted): 230 kg

Basket rotation: 124° (+/- 62°)
Jib – Overall Length: 1.43 m
Jib - Range of articulation: 89° (+0° / -89°)
Platform size (standard 2 persons): 0.69 m x 1.34 m

Gradeability: 16 %
Maximum operating slope: 15°
Non Marking Tracks
Max. Approach / Depart angles Front: 20° / Rear 19°
Width of Undercarriage (Retracted/Extended): 0.88 m/ 1.30 m

Engine Kubota Z602 10.8 kW (14.5 HP)
Diesel Engine Liquid Cooled

CE (Declaration of Conformity)

More detailed pictures / product movie on our website.

pfeifermachinery.com

Above specifications are subject to change without prior notice and subject to errors
