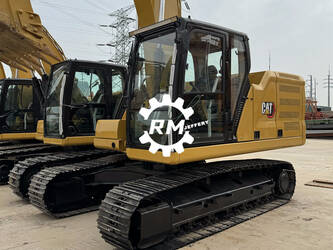

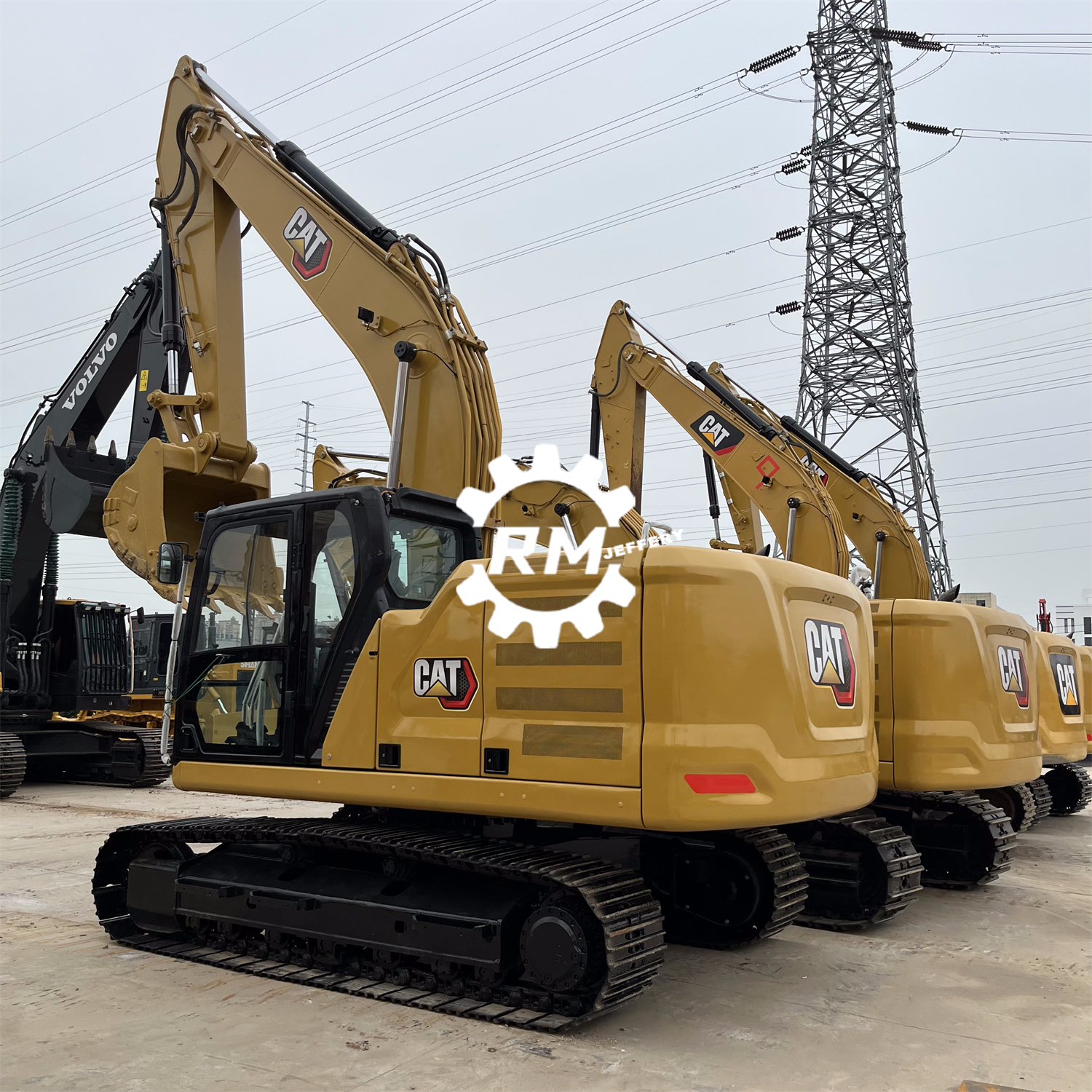

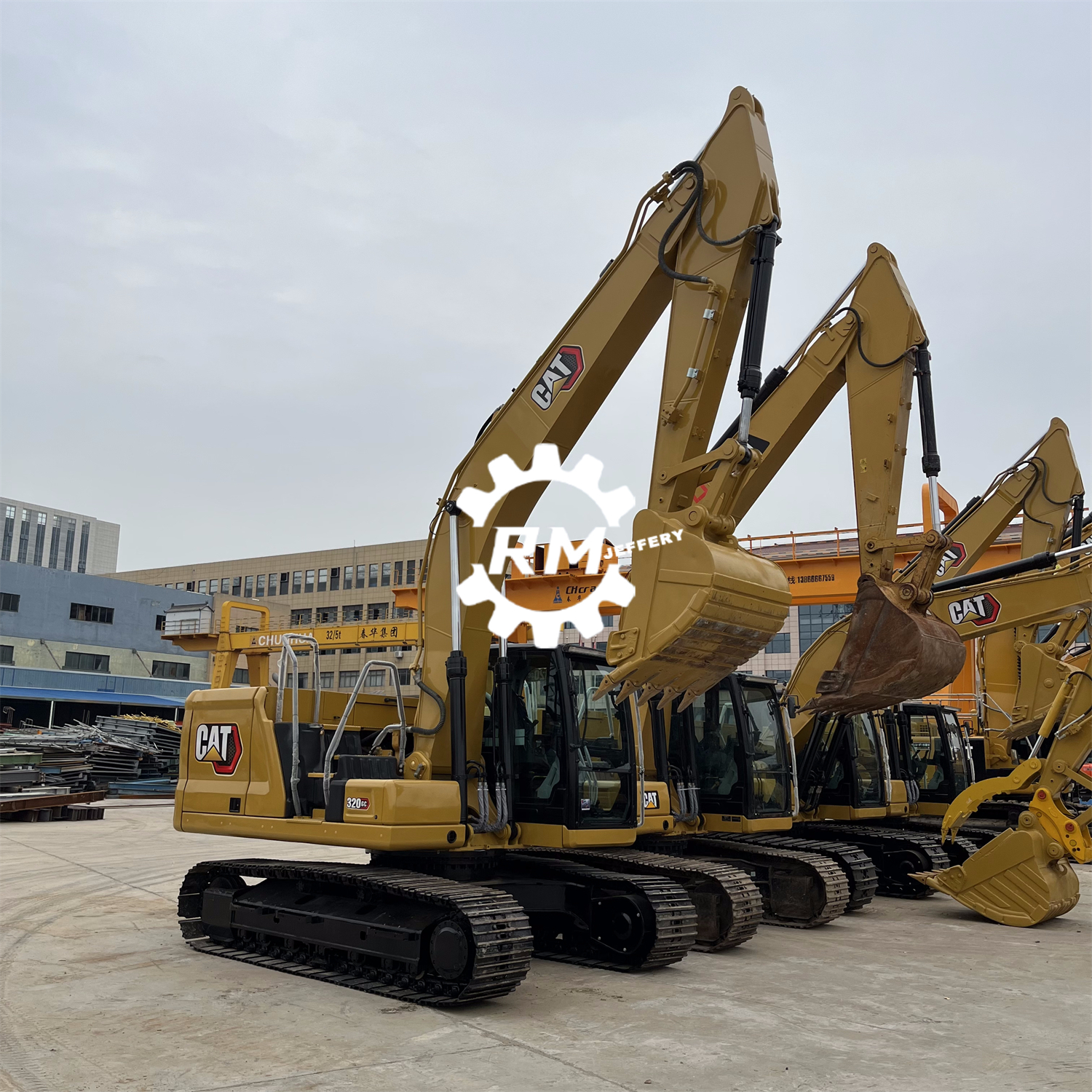

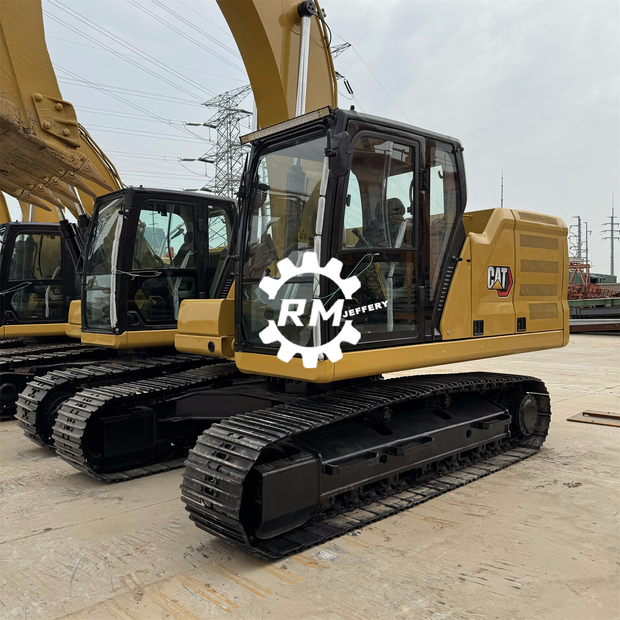

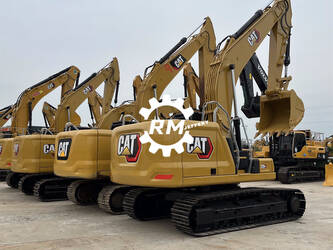

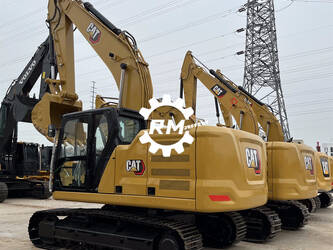

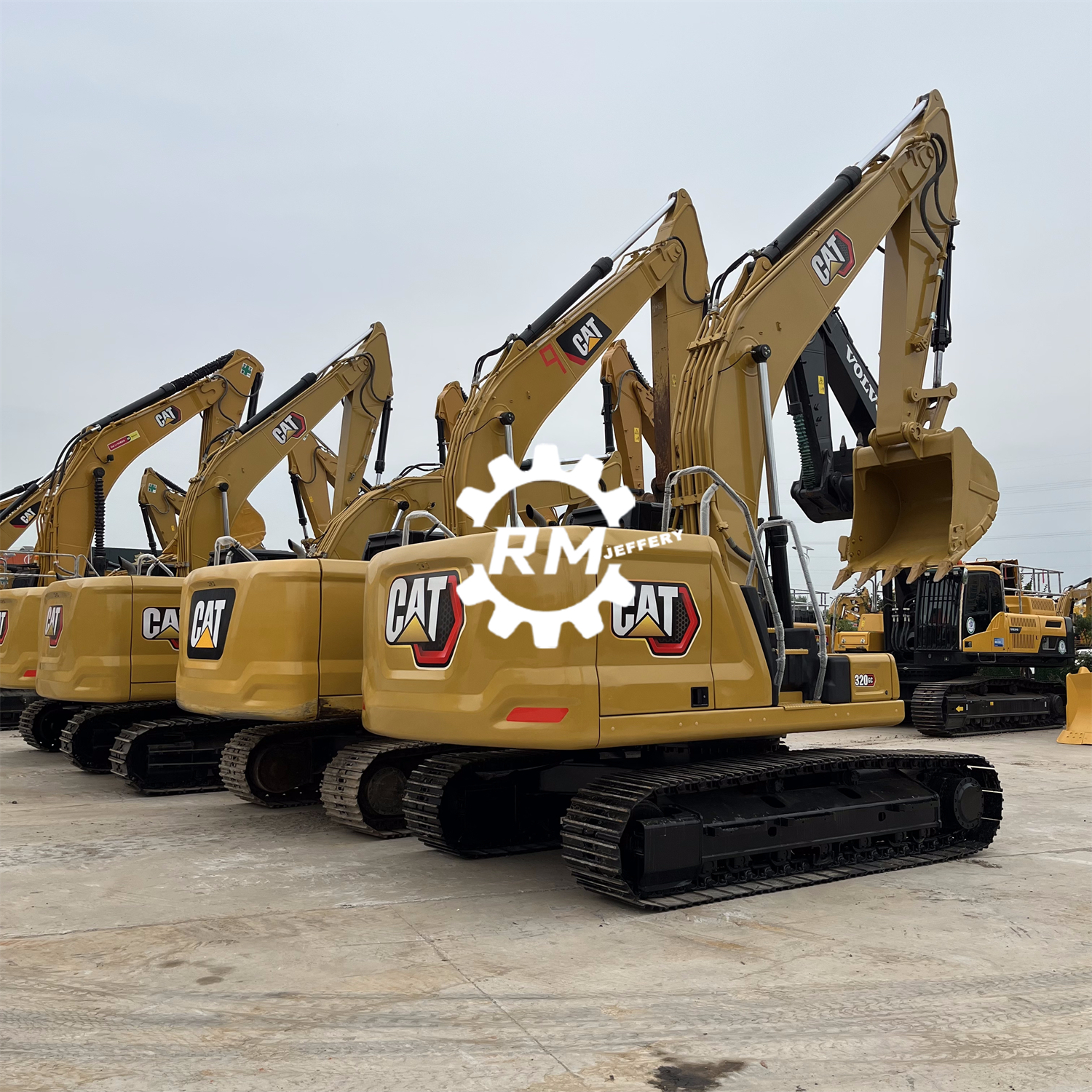

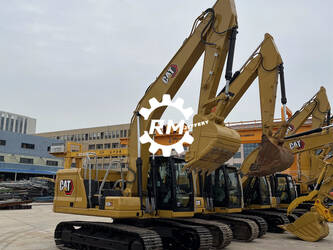

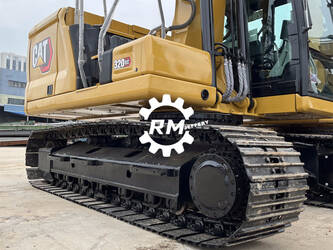

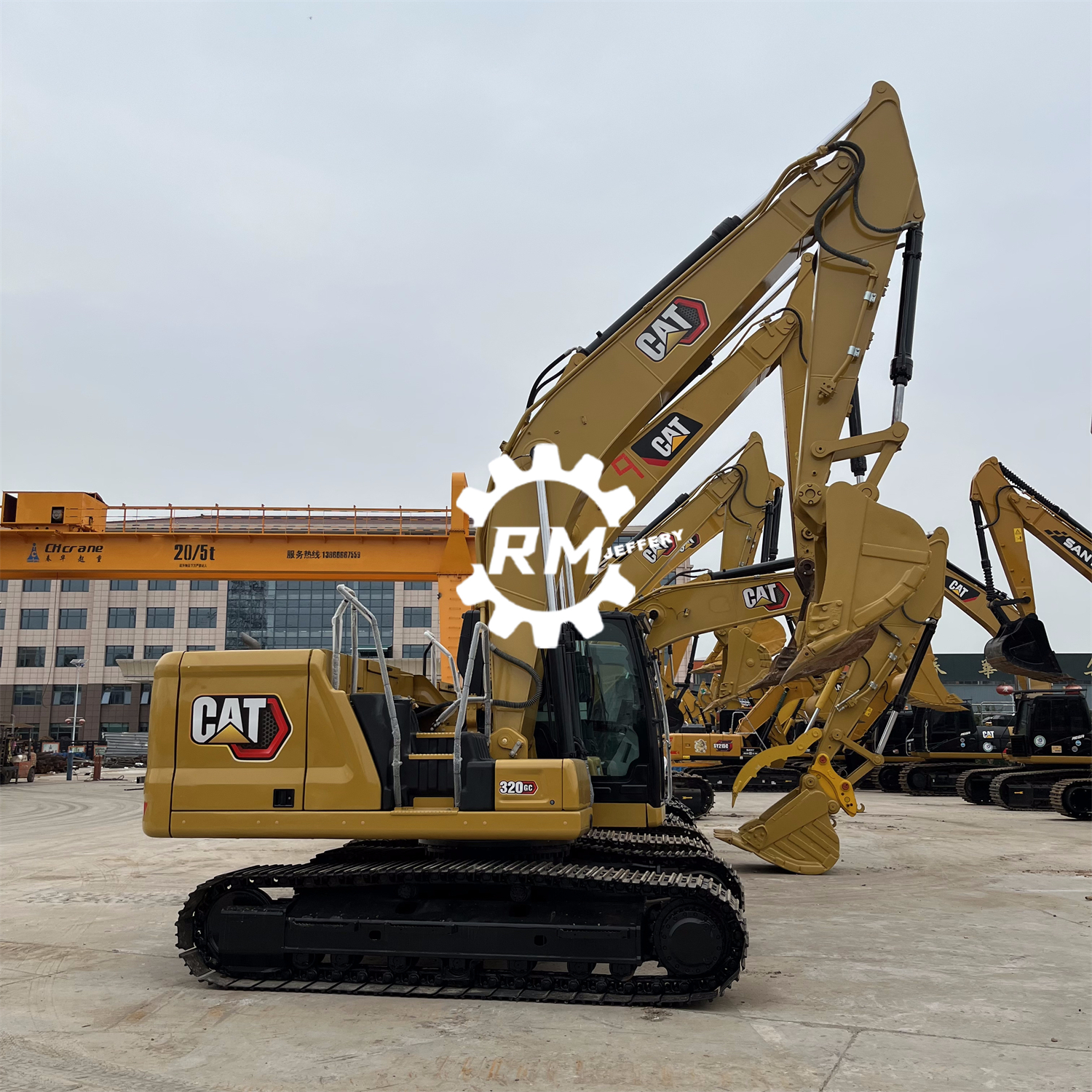

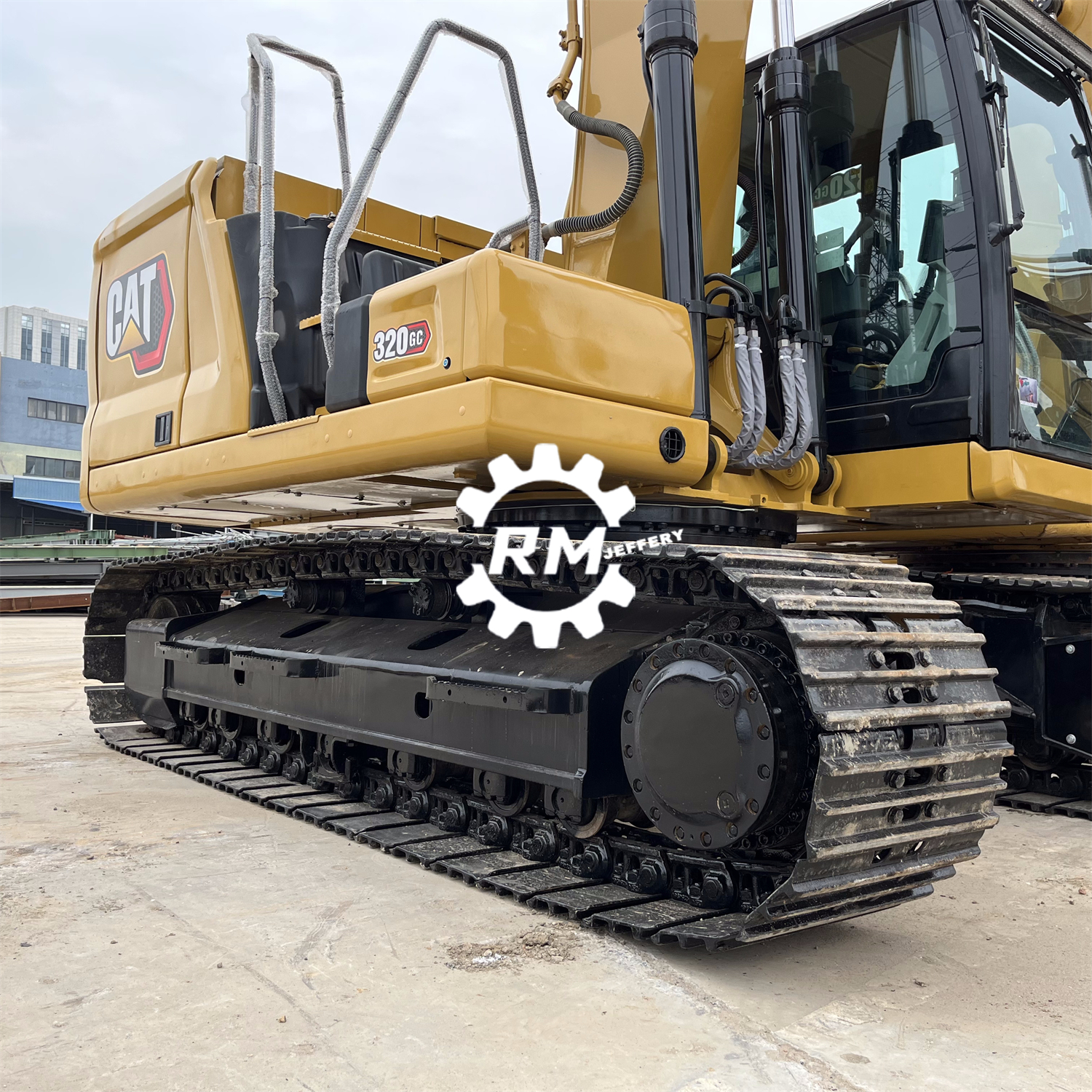

2023 كاتربيلر 320GC

Core parameters

Engine.

Model: Cat C4.4 ACERT (four cylinder). ‌‌
Net power: 90.0-110 kW (under different standards). ‌‌
Displacement: 4.4 L, cylinder diameter x stroke: 105 mm x 127 mm
Speed: Run at 1700 rpm, drive at 2000 rpm. ‌‌
Weight and size.

Working weight: 20300-20600 kg (including counterweight). ‌‌
Transportation dimensions (length x width x height): 9530 mm x 2800-3170 mm x 3100 mm (affected by track shoe width). ‌‌
Track gauge: 2200 mm, ground clearance: 470 mm
Hydraulic system.

Maximum flow rate: 429-442 L/min. ‌‌
Work pressure: 35000 kPa for equipment and 34300 kPa for driving. ‌‌
Rotation torque: 74.0-74.4 kN · m. ‌‌
Performance indicators.

Maximum excavation depth: 6630-6720mm
Maximum driving speed: 5.9 km/h, maximum traction force of 205 kN
Fuel tank capacity: 345-364 L
Technical features

Energy saving and efficient: adopting intelligent power mode, fuel consumption is reduced by 20% compared to the previous generation. ‌‌
Low maintenance cost: Maintenance interval extended to 1000 hours, supporting oil analysis and monitoring. ‌‌
National IV emission standard: No need for urea solution, suitable for operation at an altitude of 3000 meters. ‌‌
Intelligent operation: Comes standard with Cat GRADE assistance system to improve slope finishing accuracy
