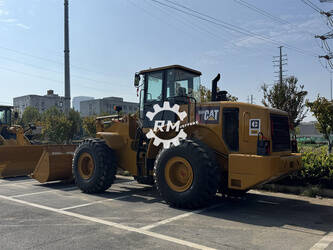

2022 كاتربيلر 966H

engine
Net power - ISO 9249
195 kW
Engine model
Cat ® C11 ACERT ™
Net power -80/1269/EEC
195 kW
Flywheel Power
195 kW
Total power - SAE J1995
213 kW
Net power - SAE J1349
193 kW
Net peak torque at 1400 rpm
1215 N·m
Cylinder diameter
130 mm
stroke
140 mm
displacement
11.1 L
weight
operating weight
23698 kg
bucket
Bucket capacity
3.4-4.2 m3 4.5-5.5 yd3
Maximum bucket capacity
4.2 m3
Bucket width
3145 mm
Capacity - Reference Bucket
3.5 m3
Type - Reference Bucket
GP
Refer to the excavation force of the bucket
216 kN
Work technical specifications
Unloading gap
3.005 m
Full steering static tipping load
15474 kg
digging force
188 kN
Transmission
Forward 1st gear
6.7 km/h
Forward 2nd gear
12.6 km/h
Forward 3 gears
22.1 km/h
Forward 4th gear
37.4 km/h
Step back 1 gear
7.4 km/h
Step back 2 gears
13.9 km/h
Step back 3 gears
24.3 km/h
Step back 4 gears
37.4 km/h
hydraulic system
Bucket/Work Tool System - Pump Output
305 L/min
Steering system pump type
Piston
Hydraulic cycle time - increase
5.9 Seconds
Hydraulic cycle time - unloading
1.6 Seconds
Hydraulic cycle time - descent, no-load, and floating descent
2.4 Seconds
Hydraulic cycle time - total
9.9 Seconds
Pilot system - pump output
320 L/min
Brake system
Brake system
Meets required standards.
axle
front
Fixed front
back
Oscillating +/- 13°
Maximum lifting distance per wheel
502 mm
