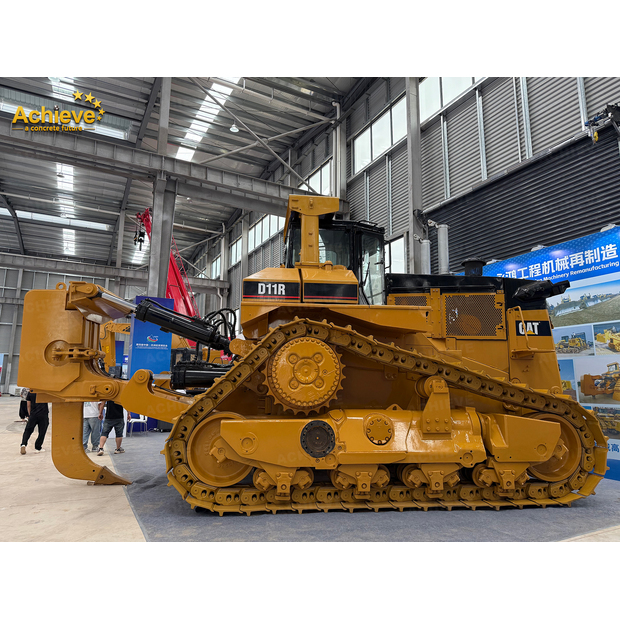

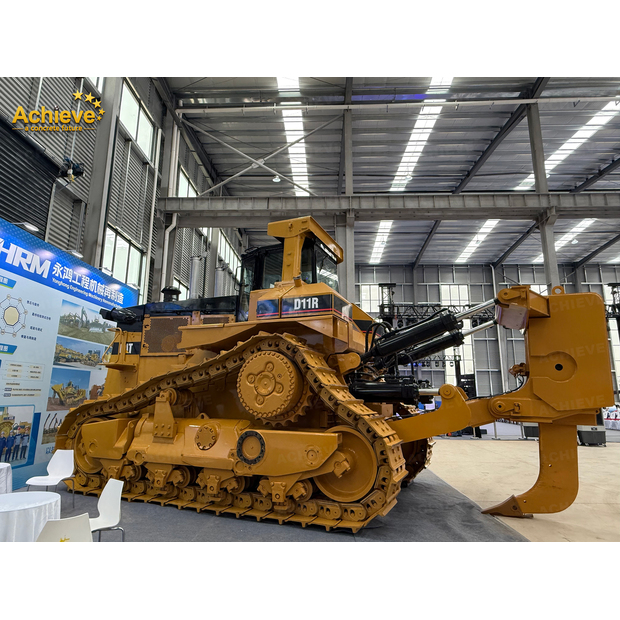

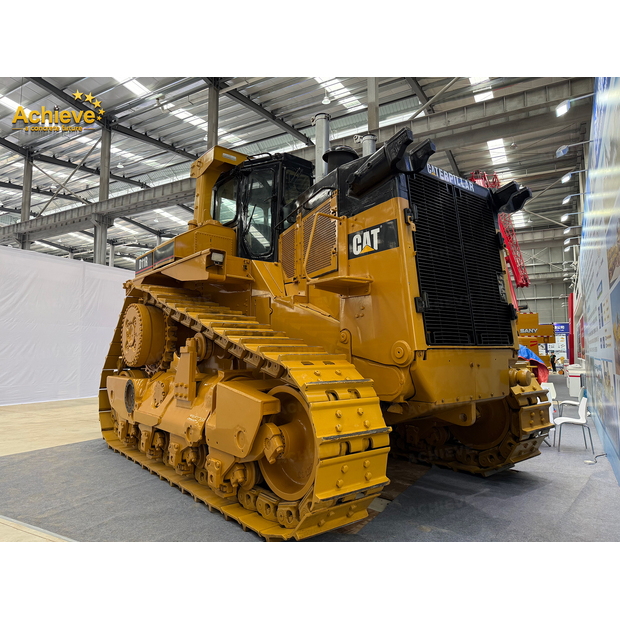

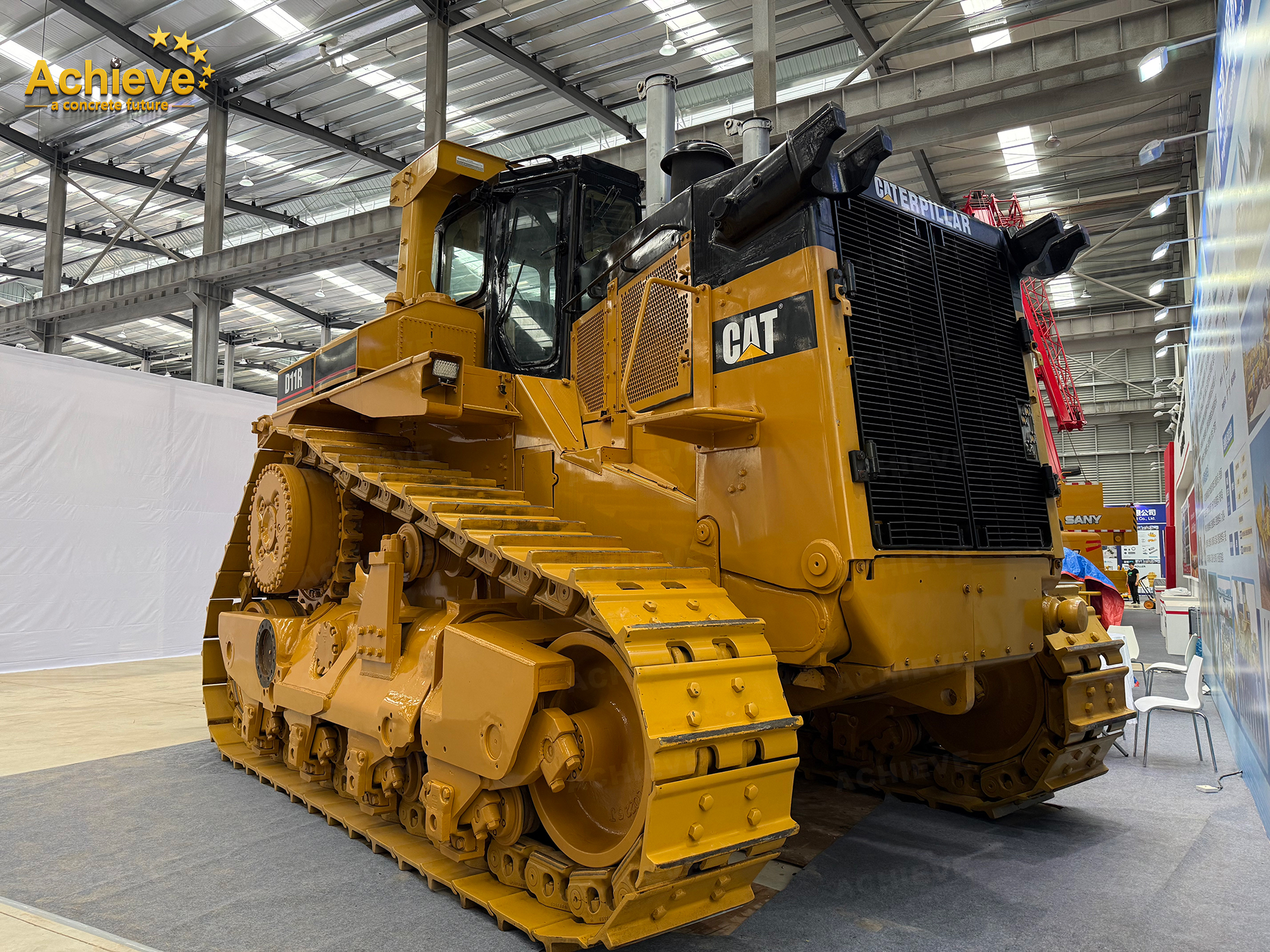

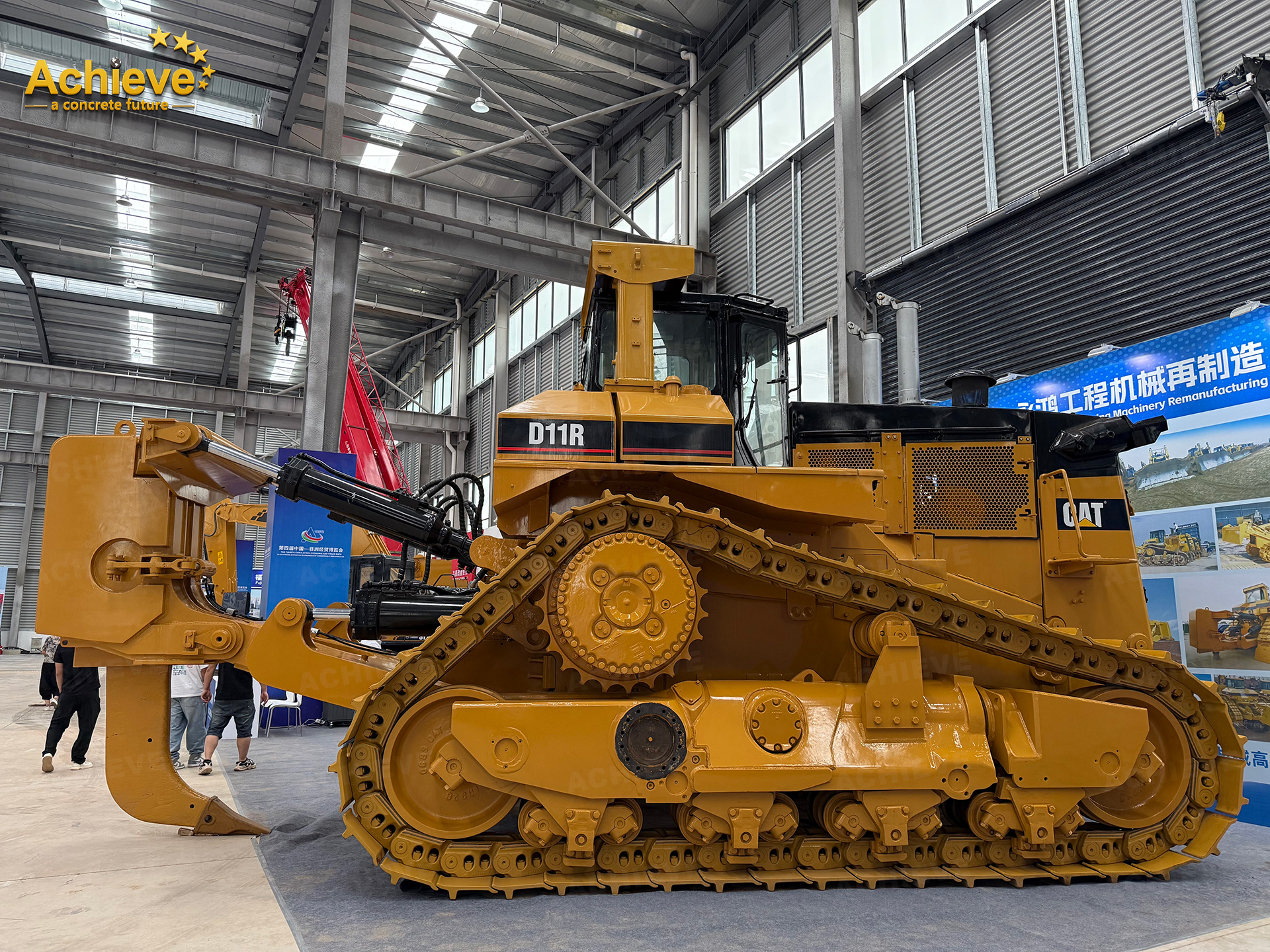

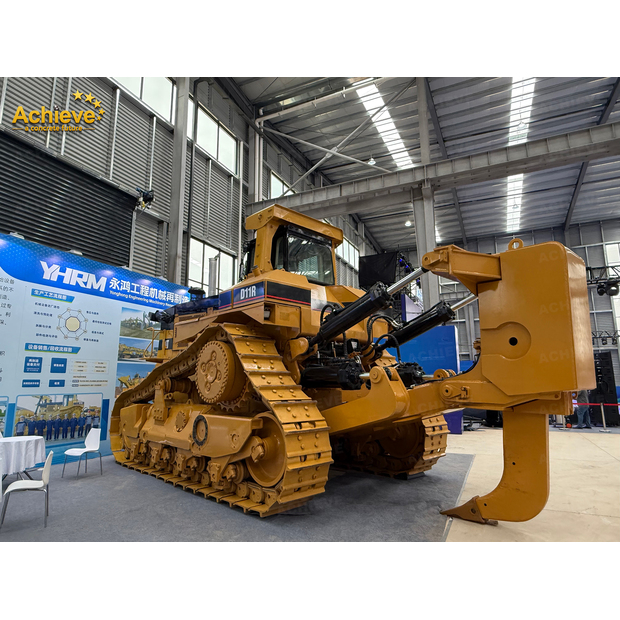

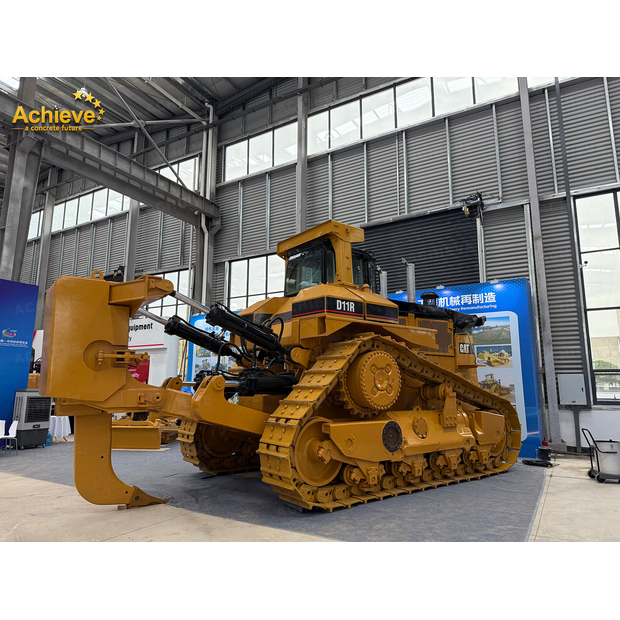

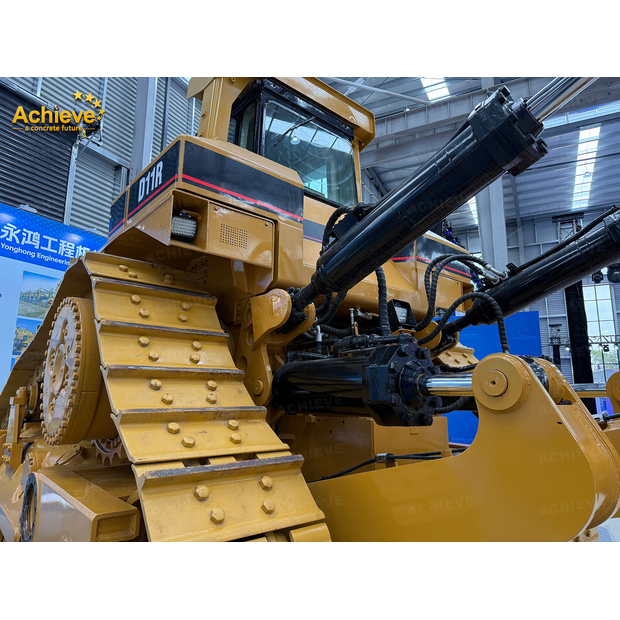

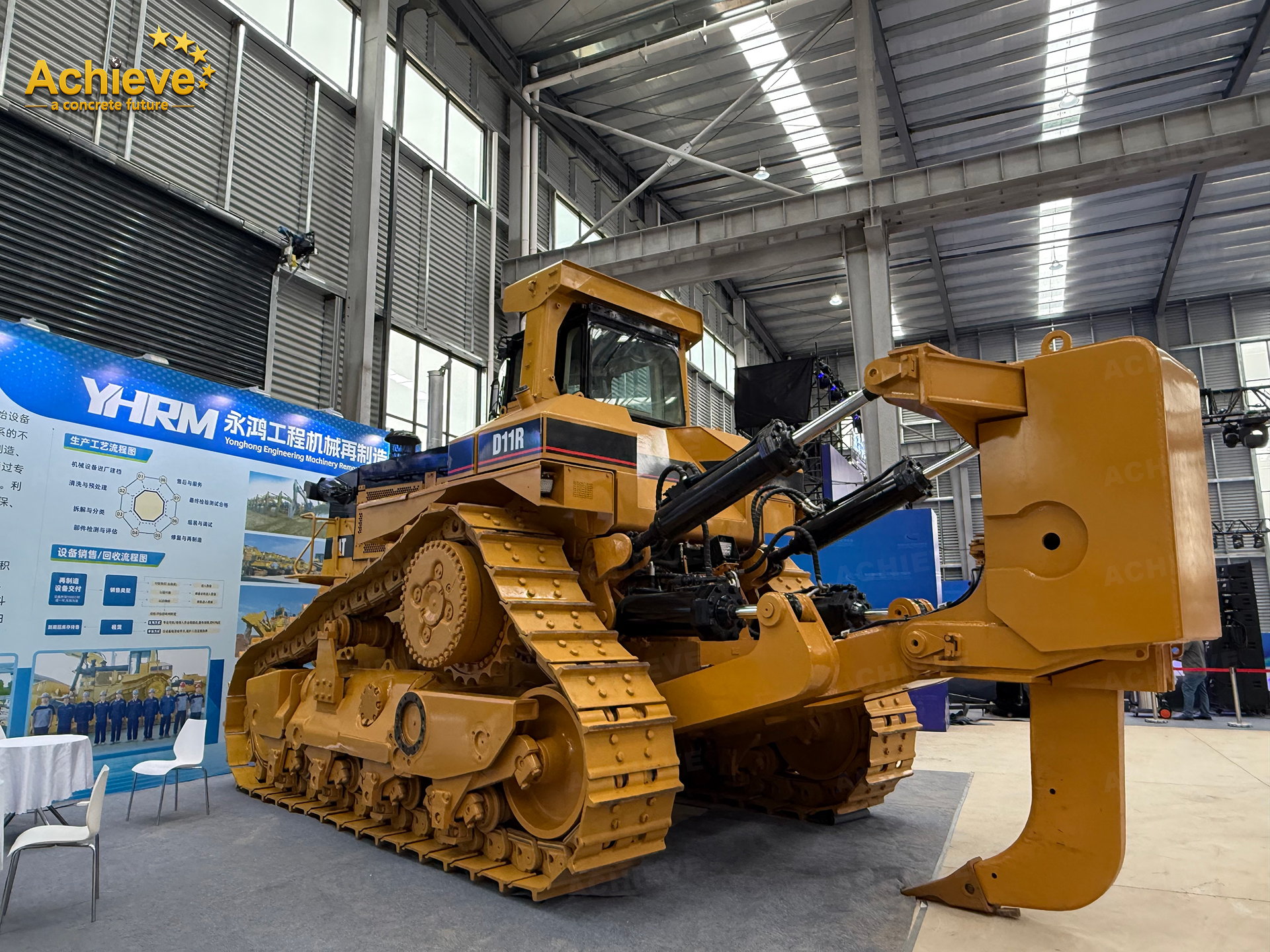

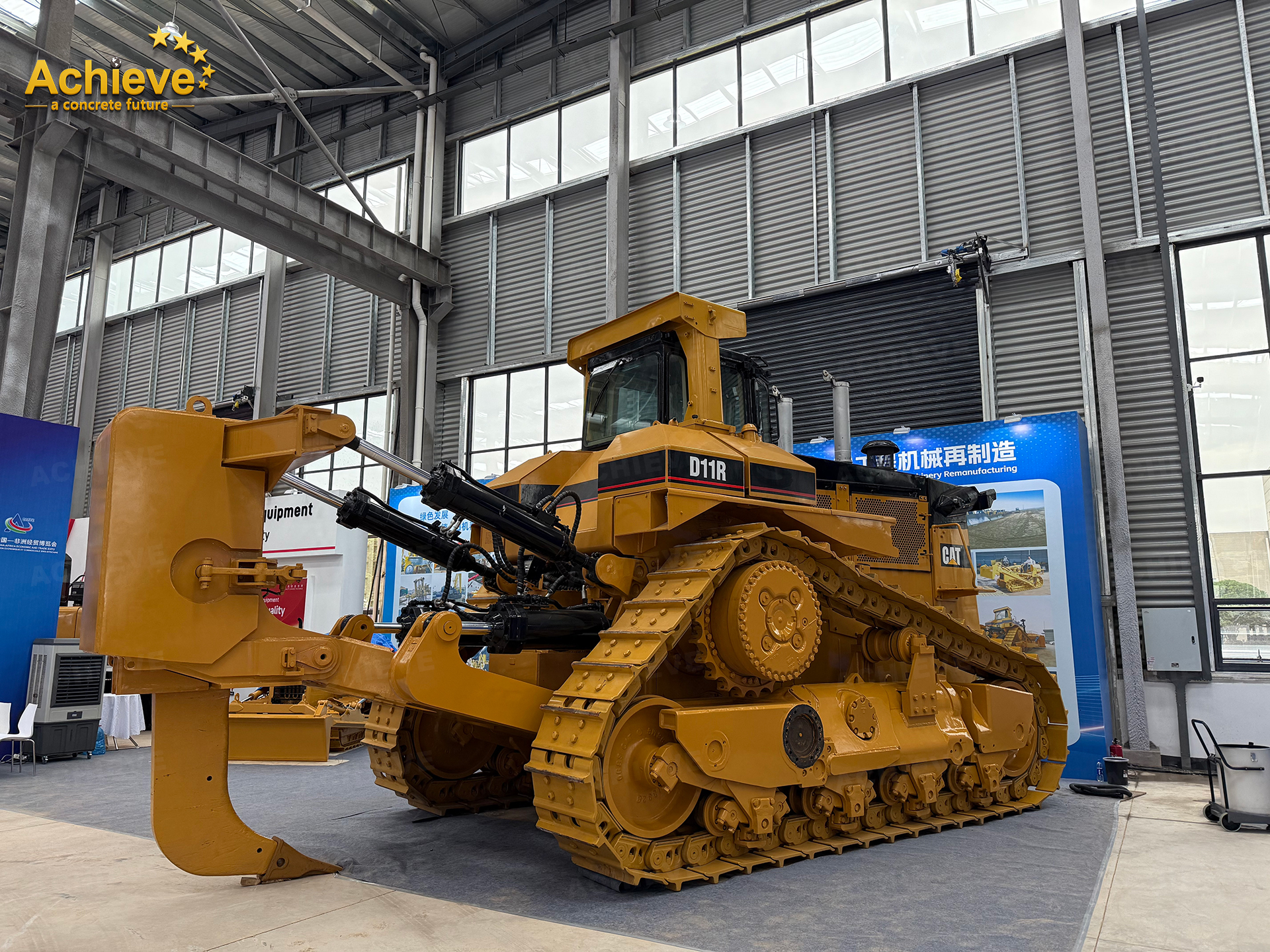

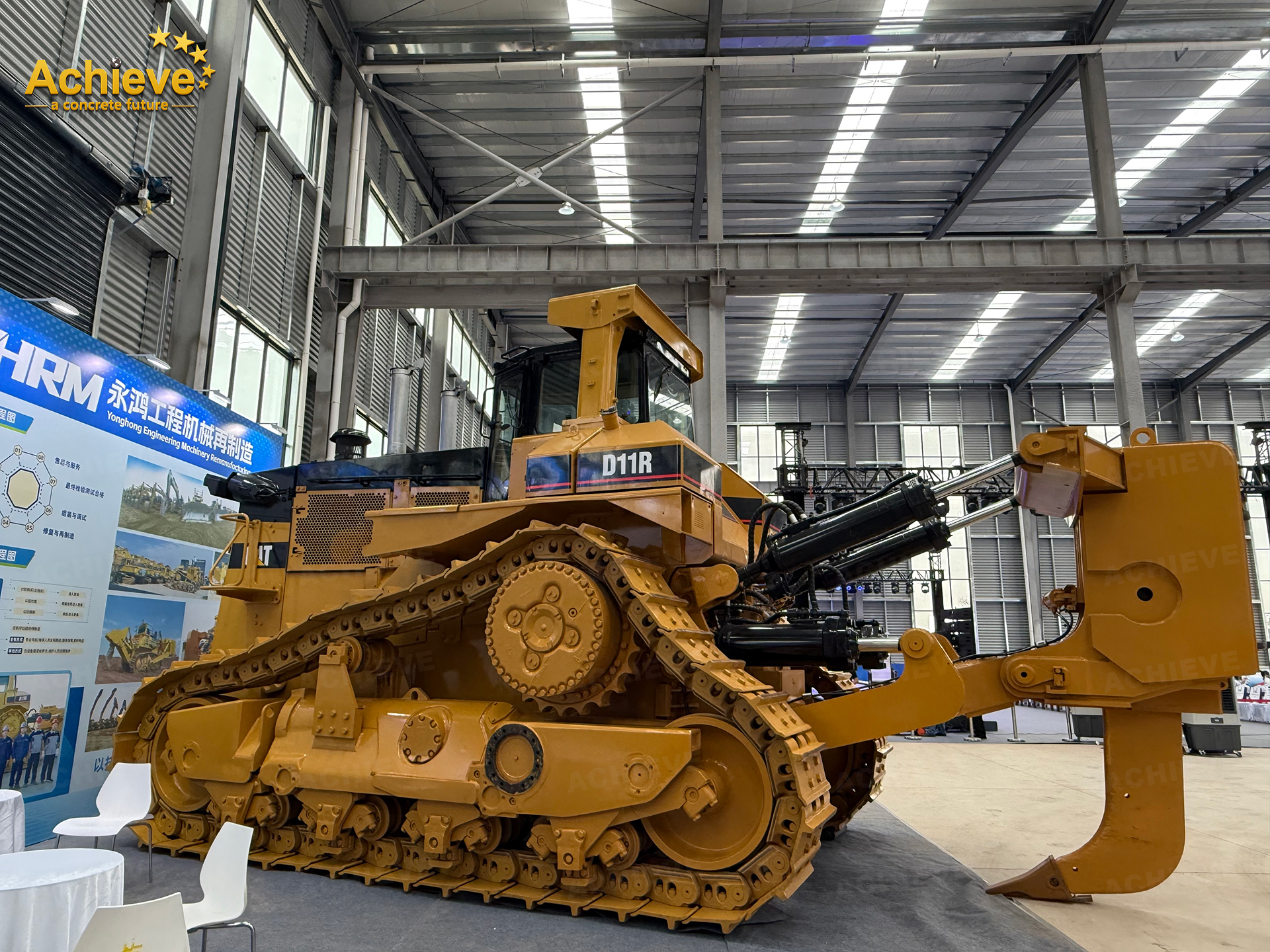

2022 CATERILLAR D11R

Dimensions

Dimensions

A

Length W/ Blade

8830mm

B

Width Over Tracks

3600mm

C

Height To Top Of Cab

4660mm

D

Length Of Track On Ground

4440mm

E

Ground Clearance

622.3mm

F

Length W/O Blade

6160mm

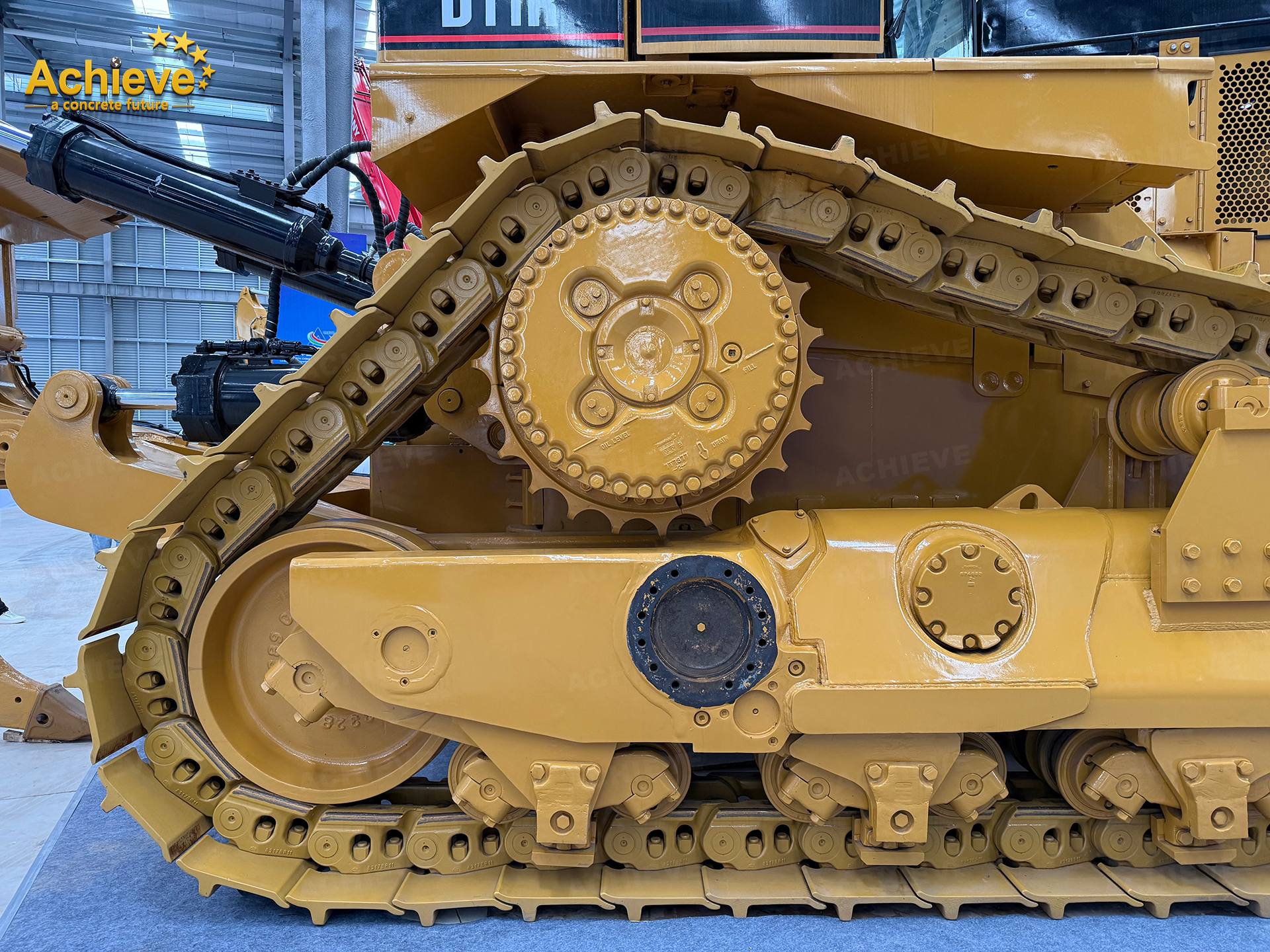

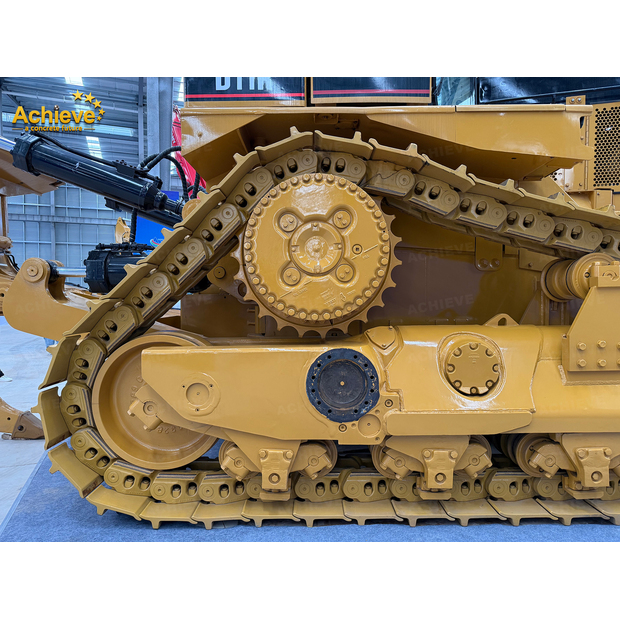

Undercarriage

G

Track Gauge

2895.6mm

H

Standard Shoe Size

710mm

Ground Contact Area

6.32m2

Number Of Track Rollers Per Side

8

Ground Pressure

162.51kPa

Specifications

Engine

Number Of Cylinders

8

Engine Make

2236

Engine Model

3508B

Gross Power

682.4kw

Net Power

633.9kw

Power Measured @

1800rpm

Displacement

34.5L

Aspiration

Turbocharged and Aftercooled

Operational

Operating Weight

102285.1kg

Fuel Capacity

1471L

Cooling System Fluid Capacity

231L

Engine Oil Capacity

106L

Hydraulic Fluid Capacity

205L

Powertrain Fluid Capacity

344L

Final Drives Fluid Capacity

30L

Operating Voltage

24V

Alternator Supplied Amperage

100amps

Transmission

Transmission Type

Power shift

Number Of Forward Gears

3

Number Of Reverse Gears

3

Max Speed - Forward

11.8km/h

Max Speed - Reverse

14.1km/h

Standard Blade

Width

6350mm

Height

2370mm

Capacity

34.5m3

Cutting Depth

766mm

Compare similar models

Caterpillar D11T CD

Ground Pressure--

Net Power850 hp

Operating Weight248600 lb

Caterpillar D11T

Ground Pressure20.1 psi

Net Power850 hp

Operating Weight230581.5 lb

Caterpillar D11R CD

Ground Pressure19.8 psi

Net Power850 hp

Operating Weight239550 lb

The advantages of the Caterpillar D11R bulldozer include: 1. Powerful Dozing Capacity: The D11R bulldozer is equipped with a powerful diesel engine, providing high power and torque, making it capable of moving heavy earth and rock with ease. 2. Efficient Working Capacity: The D11R bulldozer features a large dozer blade and wide tracks, enabling it to complete large volumes of dozing work in a short period of time, improving work efficiency. 3. Stable Operation: The D11R bulldozer utilizes an advanced suspension system and electronic control technology, ensuring smooth and precise operation, allowing the operator to better control and manage all machine functions. 4. High Adaptability: The D11R bulldozer's chassis and mountings can be adjusted to suit different work requirements, making it suitable for a variety of dozing tasks, including road grading and canal excavation. 5. Durability and Reliability: Caterpillar is a world-renowned heavy machinery manufacturer, renowned for its quality and reliability. The D11R bulldozer also boasts a long lifespan and durability, capable of operating for extended periods in harsh environments without damage. In general, the Caterpillar D11R bulldozer has the advantages of powerful bulldozing ability, efficient working capacity, stable operating performance, strong adaptability, durability and reliability, and is an excellent bulldozer.
