2021 سيمنز SGT-300

5 x Siemens SGT300 gas turbine (un-used) ready for sale

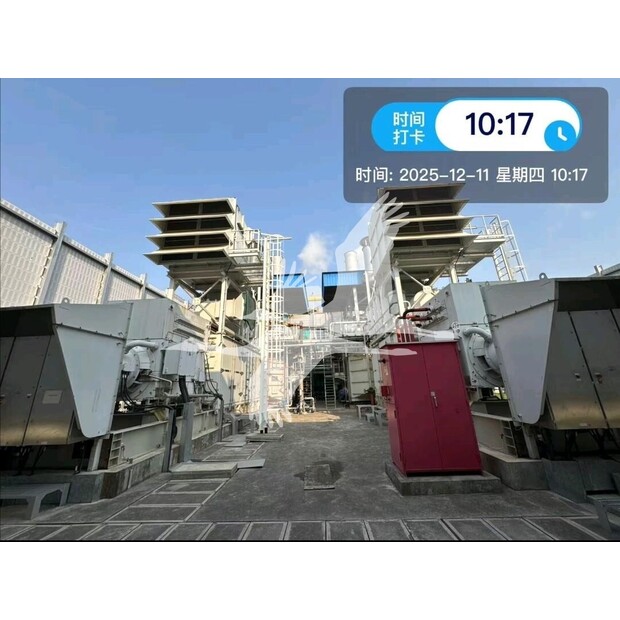

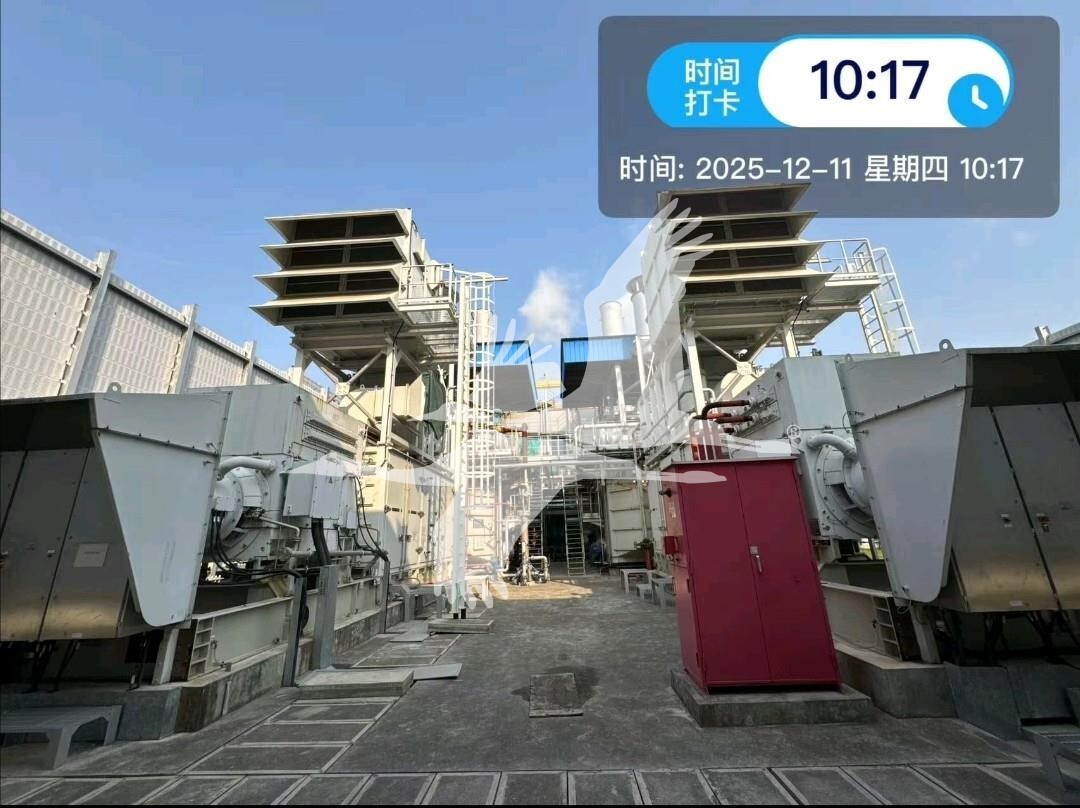

SIEMENS Gas Turbine Skid SGT-300 8MW

Base Module

Steel construction Skid

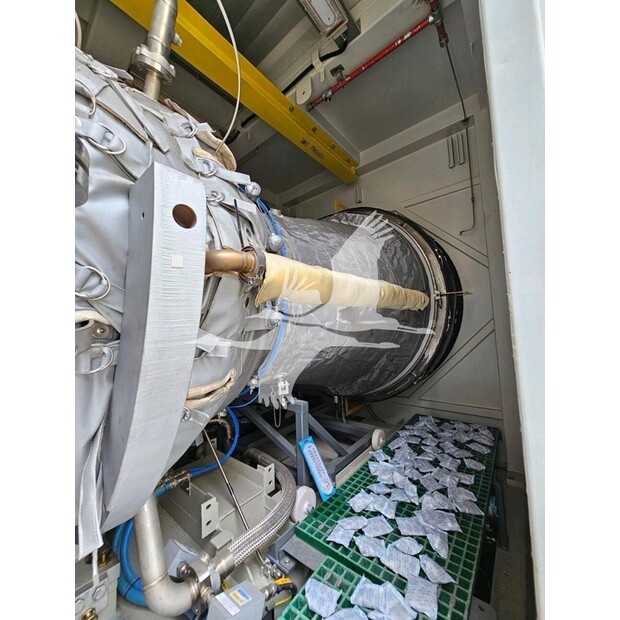

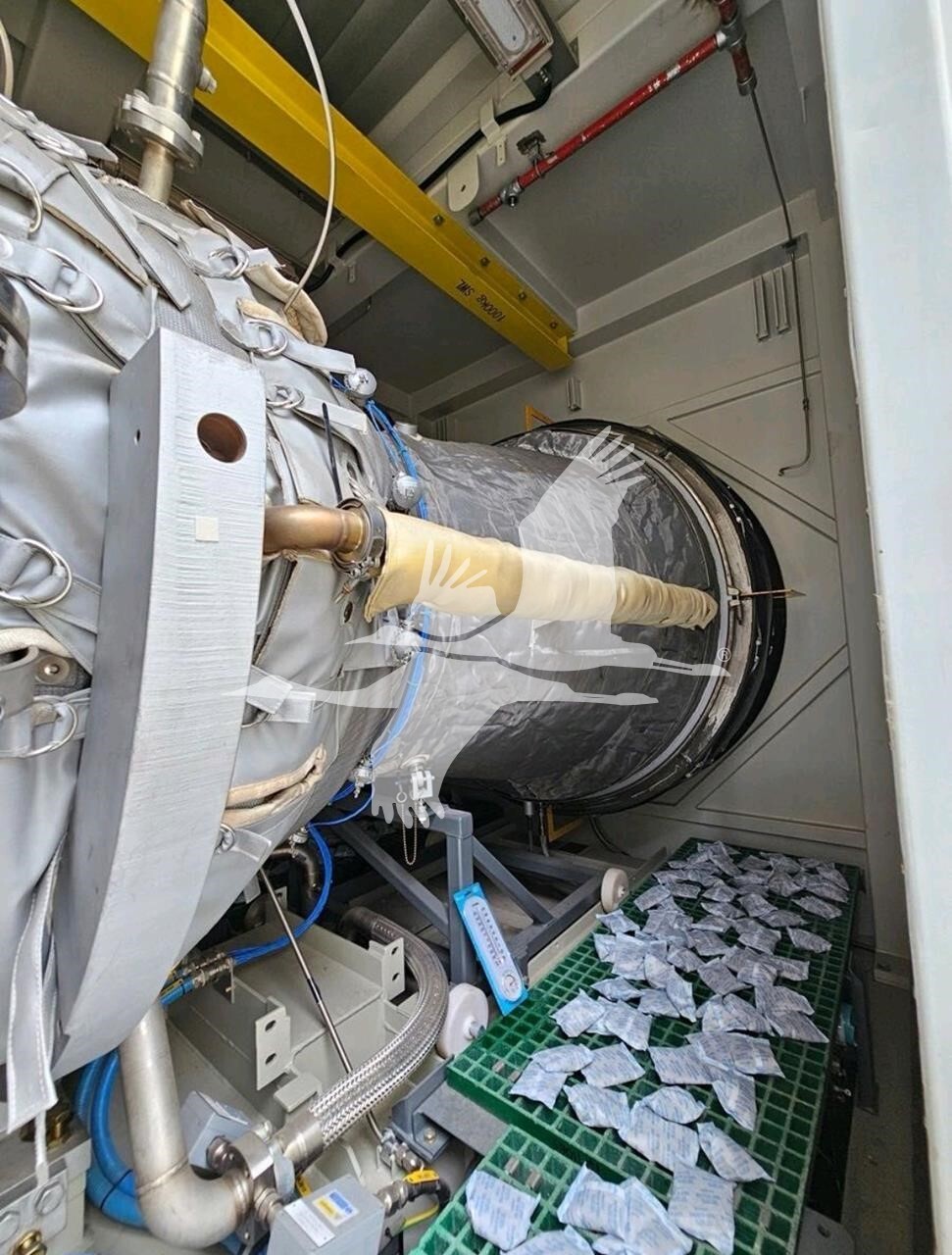

Gas Turbine Core Engine: Including 10-stage compressor, 2-stage turbine, 6 DLE burners, annular combustion chamber with ignition bolt and flame monitoring, adjustable inlet guide vane, tilting pad thrust bearing, body fuel line, cooling and sealing air system, cylinder, chassis, body paint insulation, etc

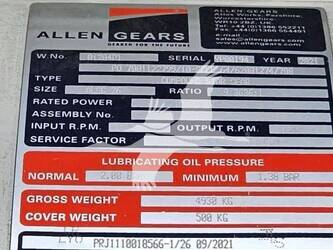

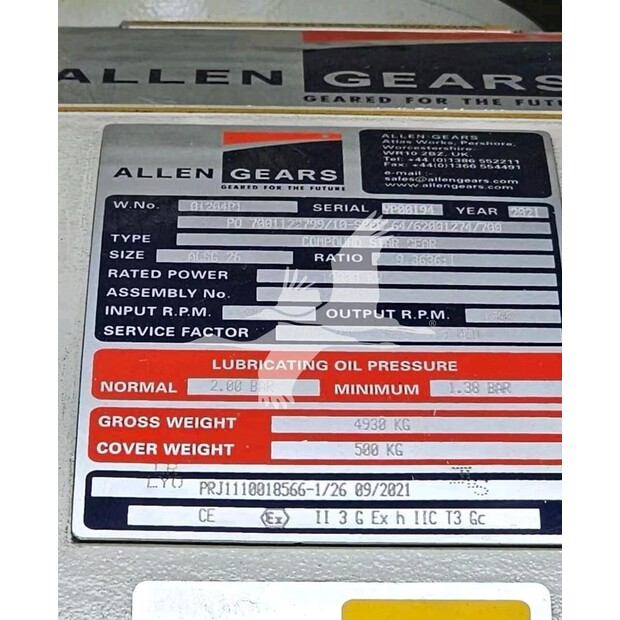

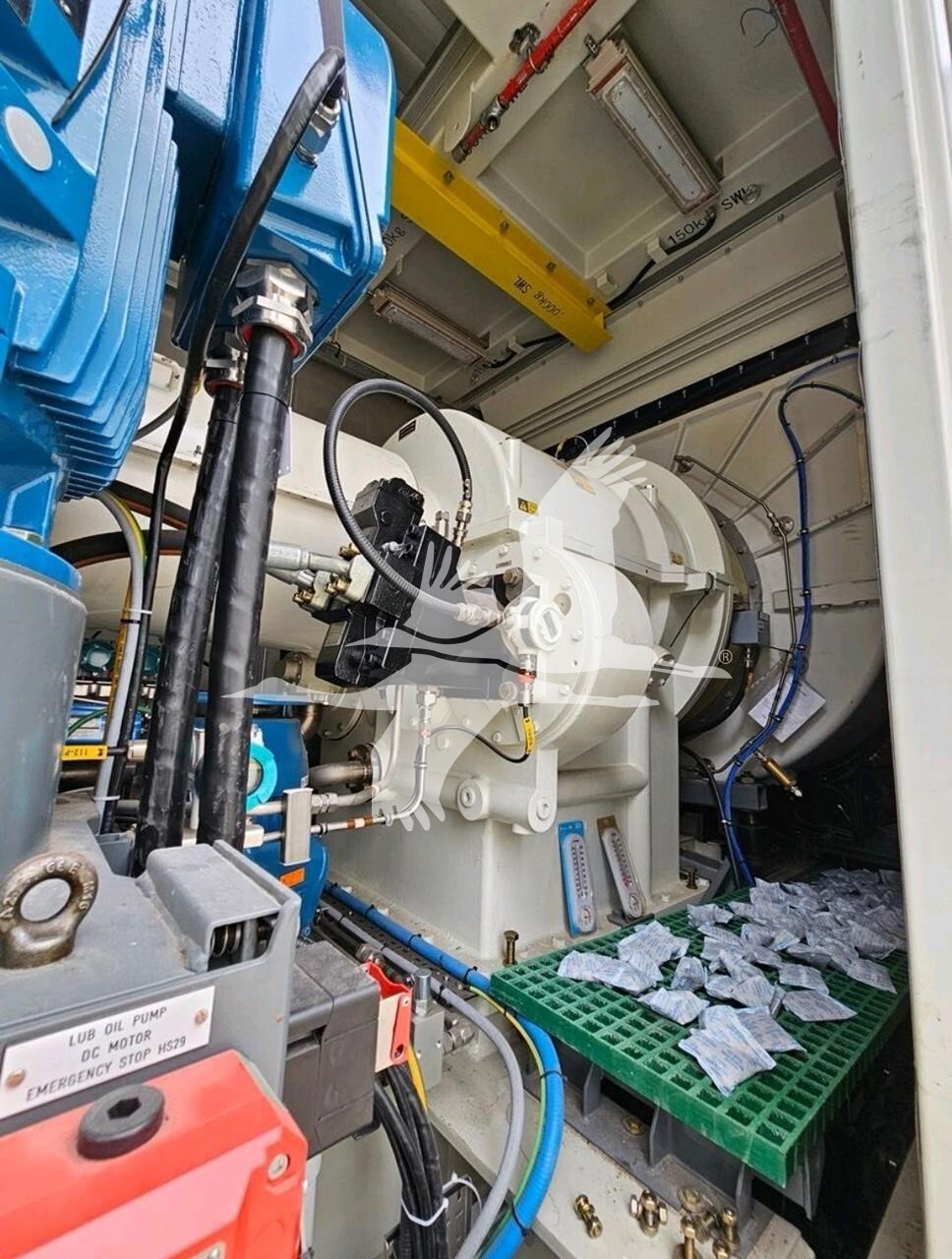

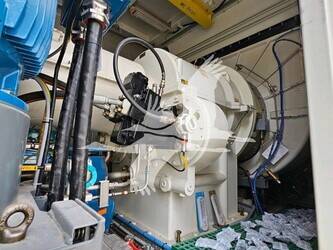

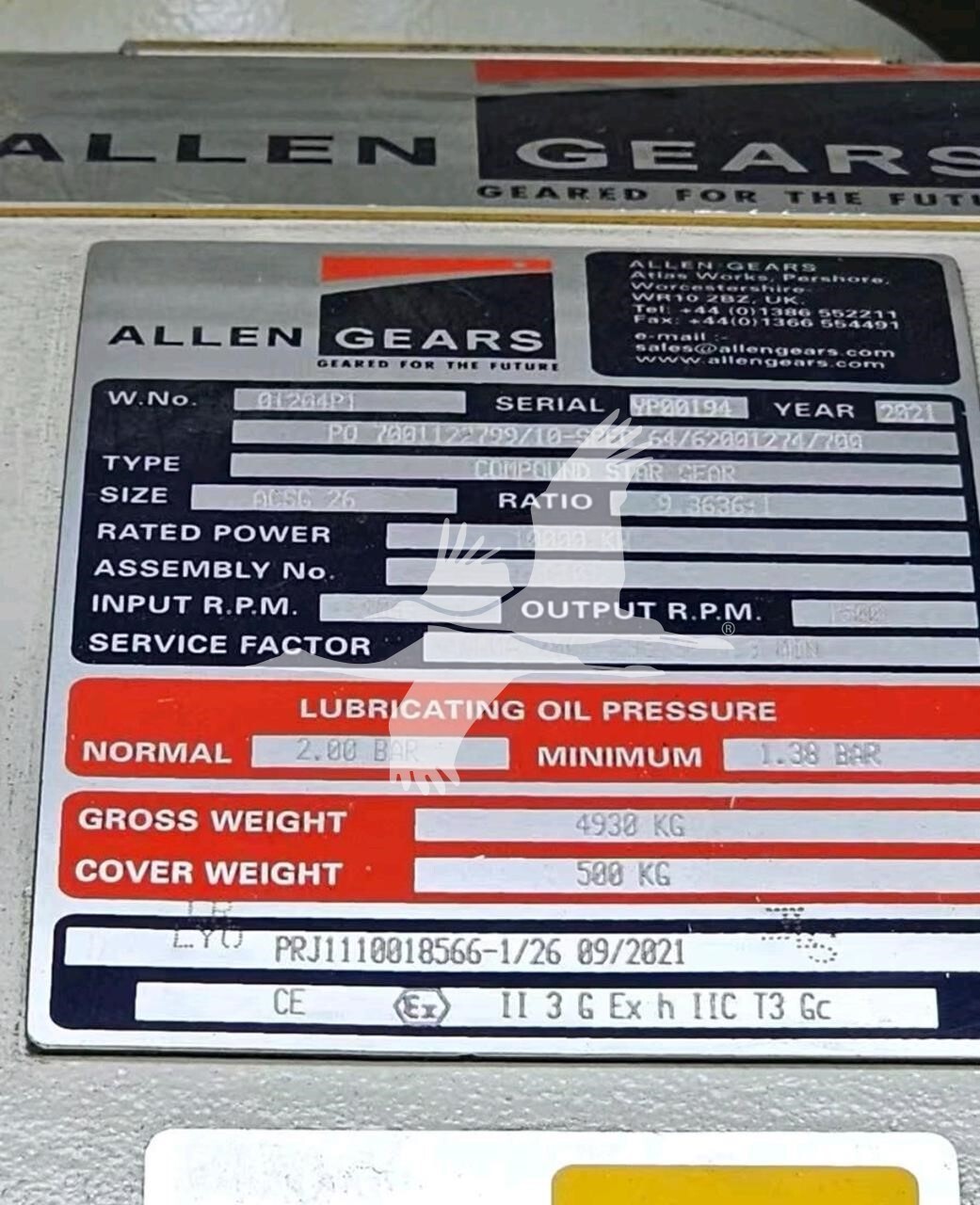

Gear Box: Including main reduction gear, auxiliary gear, coupling, monitoring instrument, etc

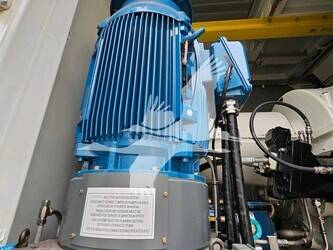

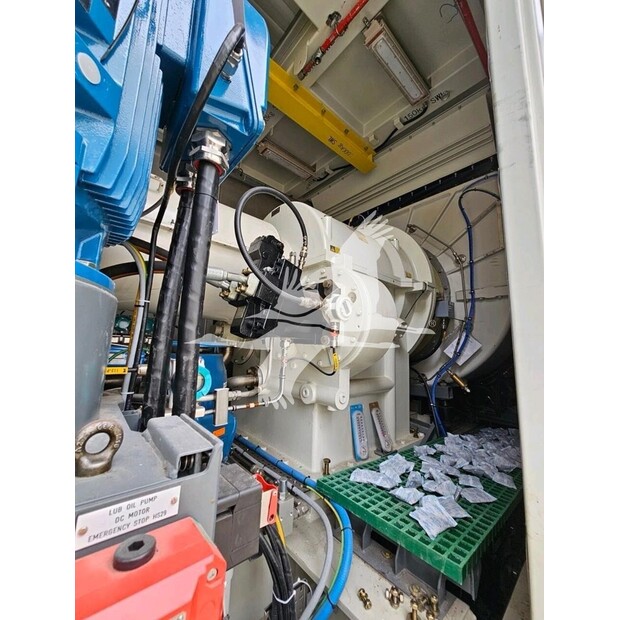

Lube Oil System: Including main lubricating oil pump, auxiliary lubricating oil pump, accident lubricating oil pump, oil mist separation, lubricating oil filter, heater, cooler, temperature, liquid level, pressure monitoring instrument, oil tank, pipeline, etc

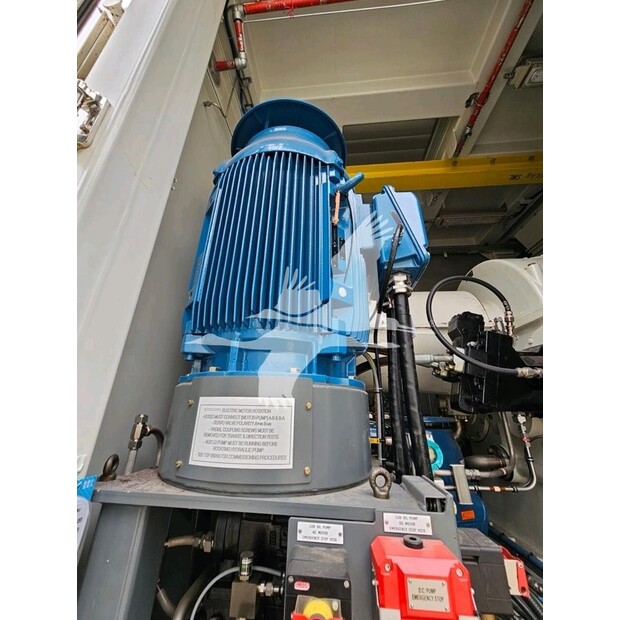

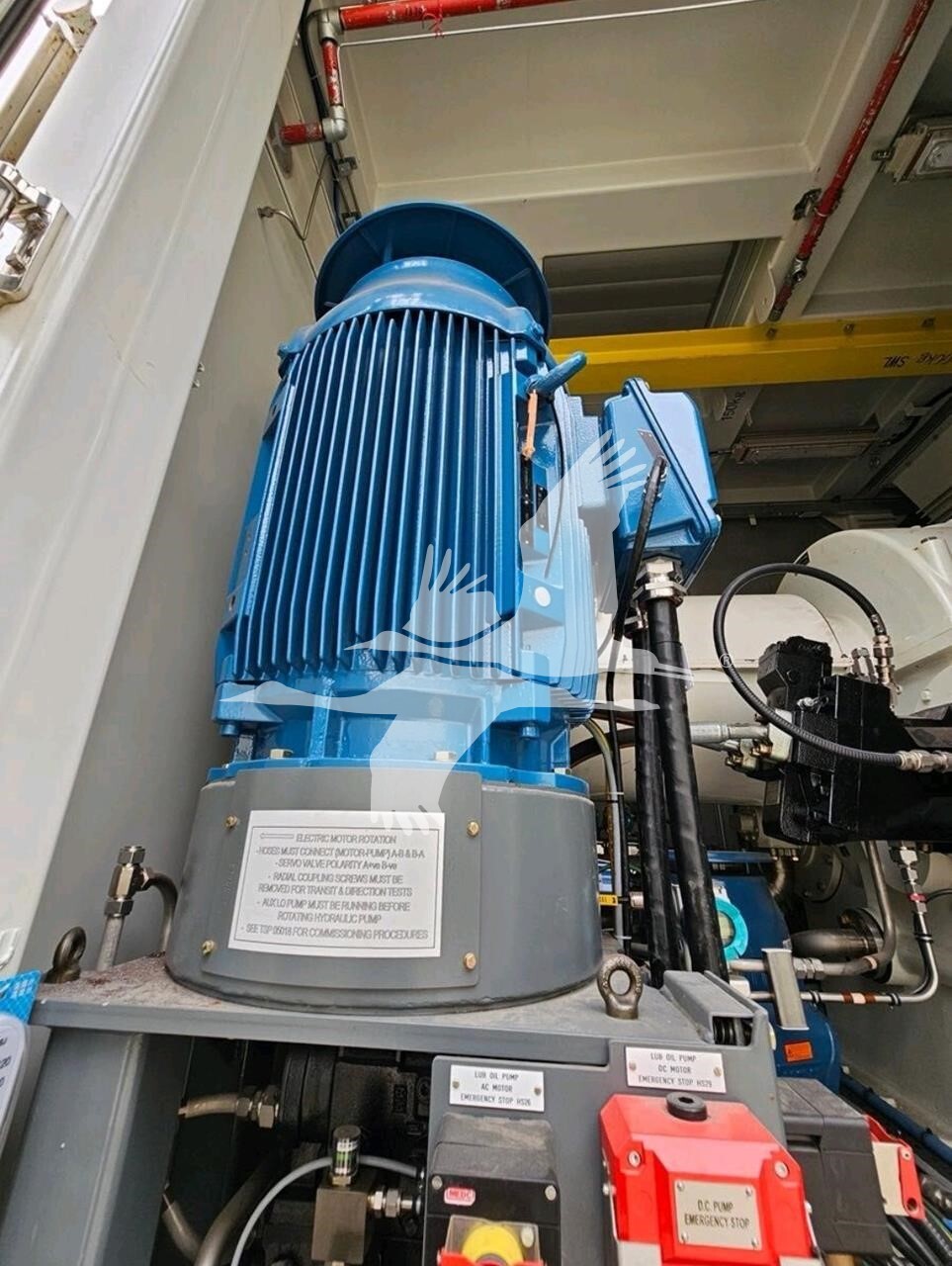

Start System: Including starting motor and hydraulic motor, etc

Gas Fuel System: Including flow control valve, filter, quick cut-off valve, release valve, monitoring instrument, etc

Generator TFW8-4 (XEMC CHINA)，8MW: Including generator body, air water cooler, brushless excitation, temperature and vibration monitoring instrument

Air Intake System: Including rain cover, water mist separator, two-stage static filtration (G4+F9), inlet, silencer, expansion joint, platform aisle, monitoring instrument, etc

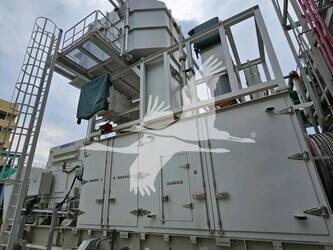

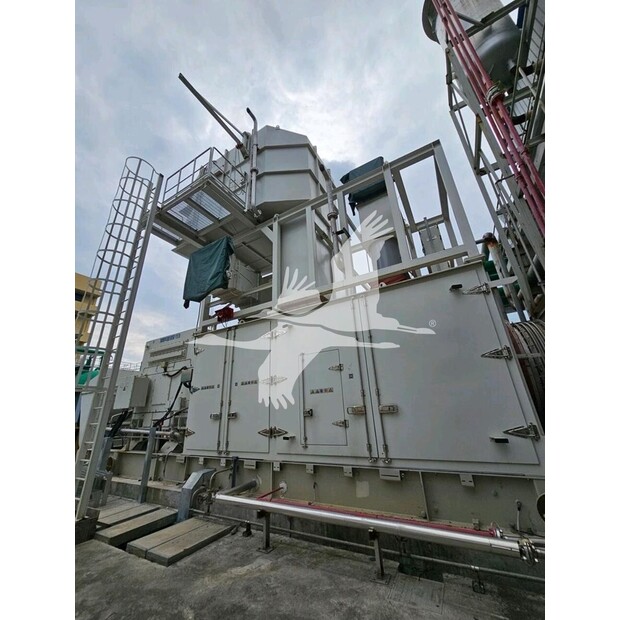

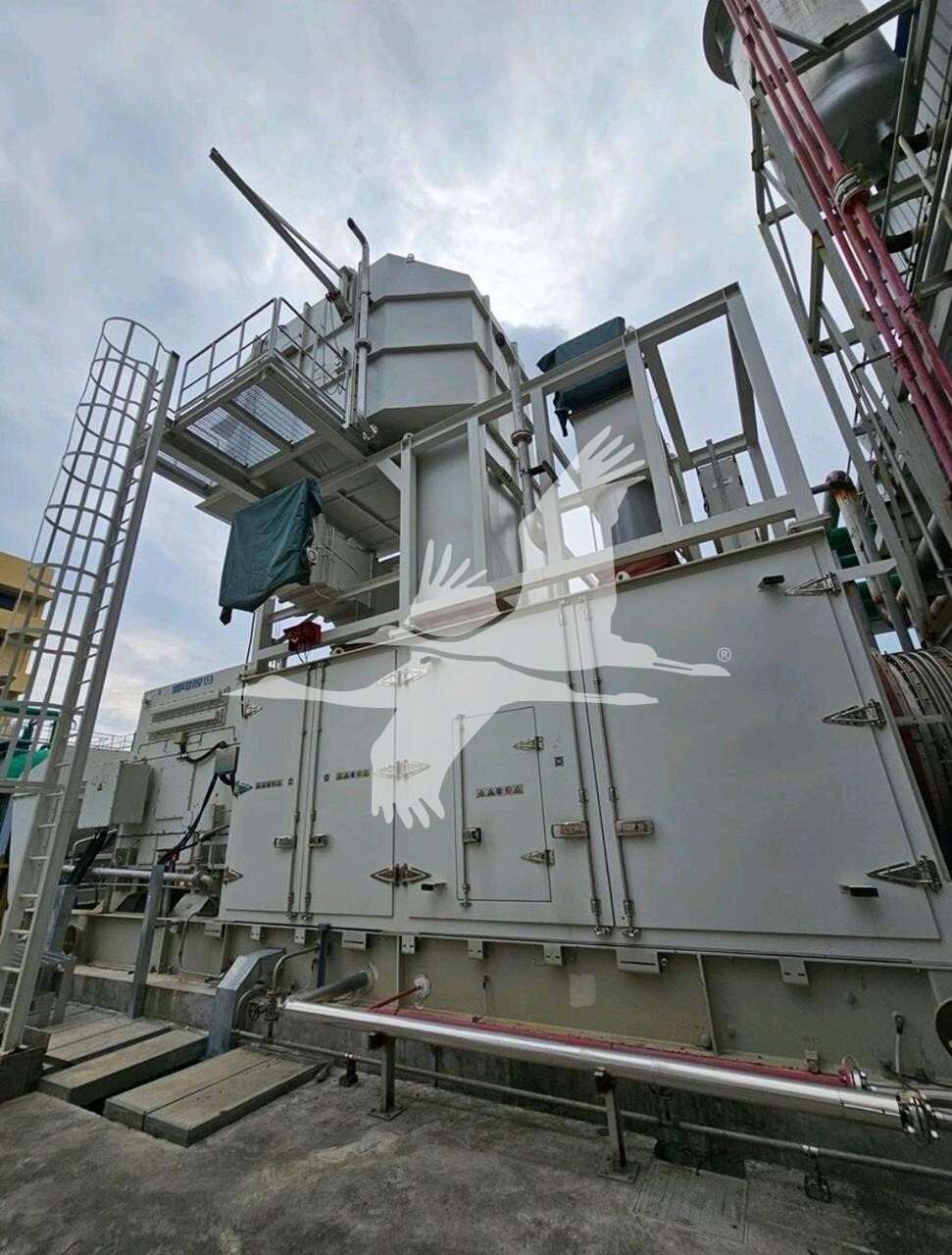

Enclosure and Ventilation System: Including open-air noise reduction cover, with lighting, ventilation fan, maintenance platform, baffle valve, etc

Exhaust System: Including body, insulation, expansion joint (with insulation), monitoring instrument, etc

Fire Fighting System: Temperature sensing probe, flame probe, infrared combustible gas detector, CO2 cylinder, nozzle, local cylinder room, connection pipe, etc

Compressor Washing Unit : Including water tank, diaphragm pump, low pressure water pipe, pressure gauge, etc

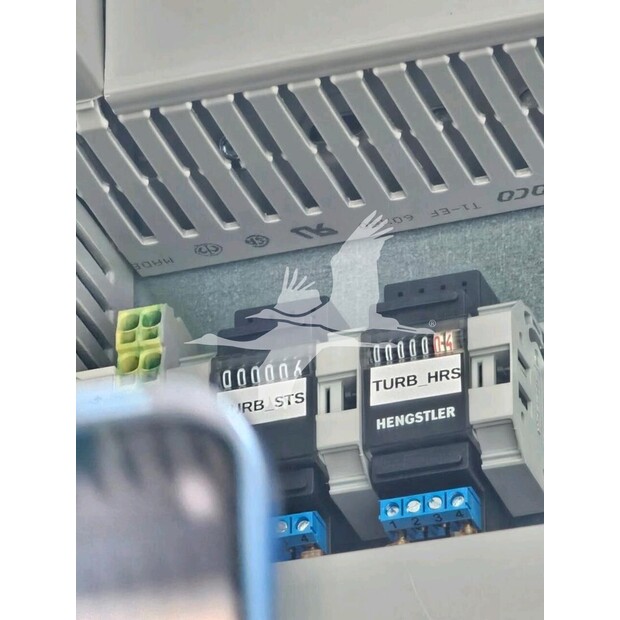

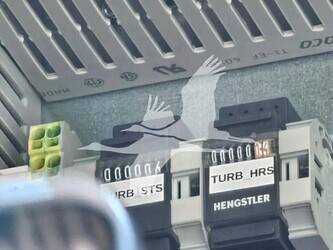

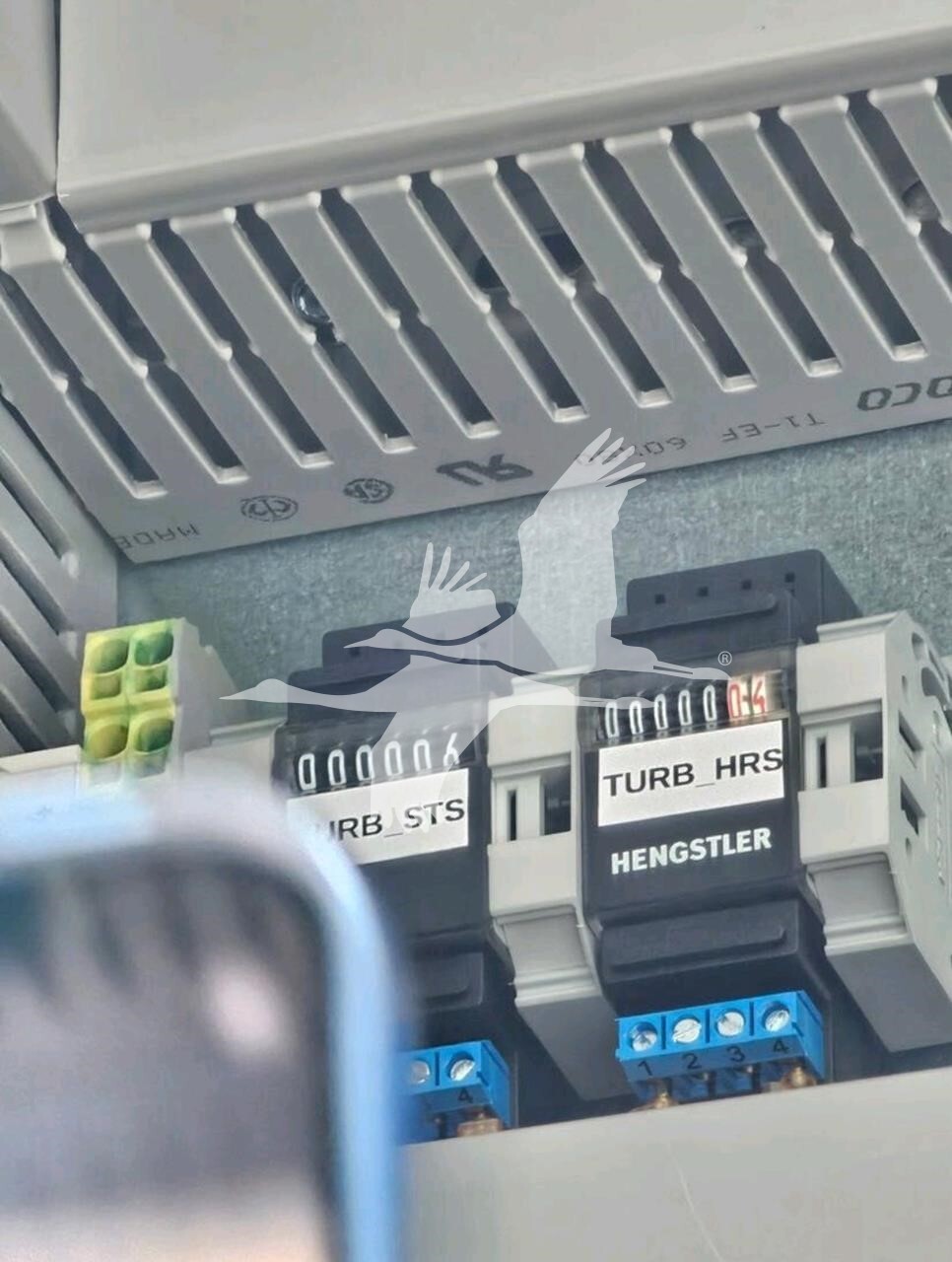

GT Control System: Including PCS7 control system, HMI operator station, disk-mounted emergency jump-off button, distributed I/O disk, etc

Special Tools: Including some installation, commissioning, maintenance tools

spare parts

Drawings: Including factory certificate, drawings and operation and maintenance manual
