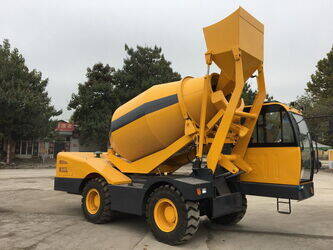

2020 Qingdao Promising Concrete Mixer Truck CML42

Water tank: 500 l
Original paint
Original varnish------
Concrete mixer trucks, or transit mixers, are used to mix and transport ready-mix concrete from the batch plant to the job site. Wherever concrete is produced and moved, concrete mixer loaders are employed. Our self-loading mixer is rough terrain machine which can be operated by one person. The automatic feeding mixer truck comes with electronic weight batching and has a typical concrete output of 14 CBM/hour.

Hydraulic cylinders activate 0.6 CBM capacity loading bucket. Single joystick control for easy loading and quick unloading bucket gate operations.
4 Wheel Drive, 4 speed automatic transmission. Electro-hydraulic control for “Slow” & “Fast” speeds.
Hydrostatic Drum drive with 3 gears both Forward & Reverse Rotation for homogenous mix, drum lift and slew for discharge concrete all around the machine on any terrain.
High precision concrete weighing system with micro printer can accurately weigh the weight of each batch for detailed data of weight price and date, etc.
Ease of operation by conveniently located Electronic/Hydraulic Switches, each for Travel, Gear Shift and Drum rotation. Hand lever provided for Drum Lift and Drum Slewing. Joystick provide for Bucket Arm Lift, Bucket Tilt and Bucket Gate operation.
Up to 30 degree gradeability to make tough environment look easy.
Hydraulic Rear Wheel Steering to operate in narrow spaces.
Full-Steel Welded Frame

Mixing Drum - Geometric Volume of Drum: 6.5 CBM
Mixing Drum - Actual Mixing Volume of Drum: 4.2 CBM
Mixing Drum - Residual Volume of Drum:
