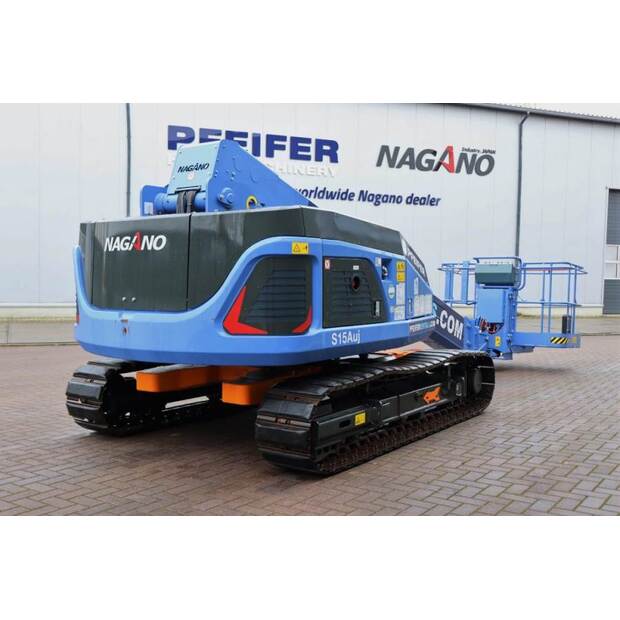

2020 ناغانو S15AUJ

Maximum lift capacity: 250.00
Transport dimensions (LxWxH): 7.36x2.25x2.16
Front tyres remaining: 0
Rear tyres remaining : 0
Internal stock no.: NAGANO - S15Auj - 60475
Gross Weight: 8420.00
Tyre brand: -
VAT: 0.00
Power type: Diesel
Working height: 1500.00
Traction type: Tracked
Max horizontal reach: 1100.00
Other information:
This machine has a valid inspection and can be sold with warranty. Inform about our conditions!

Pfeifer Heavy Machinery B.V is an official Nagano dealer

Manufacturer: Nagano.
Typ: S15Auj
Year of Manufacturing: 2020
Fuel: Diesel
Serial nr: 13NS10452
Working Hours: 347 h

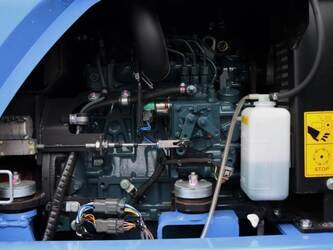

Engine: Kubota / D1305
Engine Output: 17.5 kW - 23.8 HP

TECHNICAL SPECS:
* Working Height: 15 m
* Lift Capacity: 250 kg
* Turntable Rotation: 360° Continuous
* Travel Speed: 0.3/1.0/1.5/2.5 km/h
* Gradeability - 36% (20°)

Rubber Pad Shoe
Minimizing scars and marks on the floor.

Oscillating Roller
Absorbing vibration in passing over rough terrain or steps.

Fire Resistant Coating
Hoses & Harnesses with Heat Protection.

Touch Rope Switch
Pull or Push the rope to cause an emergency stop of all operations.

Transport Size LxWxH:
7.36 x 2.25 x 2.16 m

CE (Declaration of Conformity).

More detailed pictures / product movie on our website

pfeifermachinery.com

Above specifications are subject to change without prior notice and subject to errors
