2020 كاتربيلر 306E2

2020year Used mini excavator Cat306e2 With CE EPA
Basic parameters
Working quality of the whole machine: 5800 kg
Rated bucket capacity: 0.25 m ³
Ground pressure ratio: 33.8 kPa
Engine
Model: Cat ® C2.4(DI Turbo)
Rated power: 34.7 kW (SAE J1349/ISO 9249)
Displacement: 2.4 L
Cooling method: Water cooling
Hydraulic system
Maximum digging force of bucket: 39 kN
System pressure: Main system 25000 kPa, rotary system 21600 kPa
Features: Manual dual speed driving (2.8/4.3 km/h), shovel float function, high-precision hydraulic control
Size and scope of work
Transportation dimensions: 5785 × 1950 × 2540mm (length × width × height)

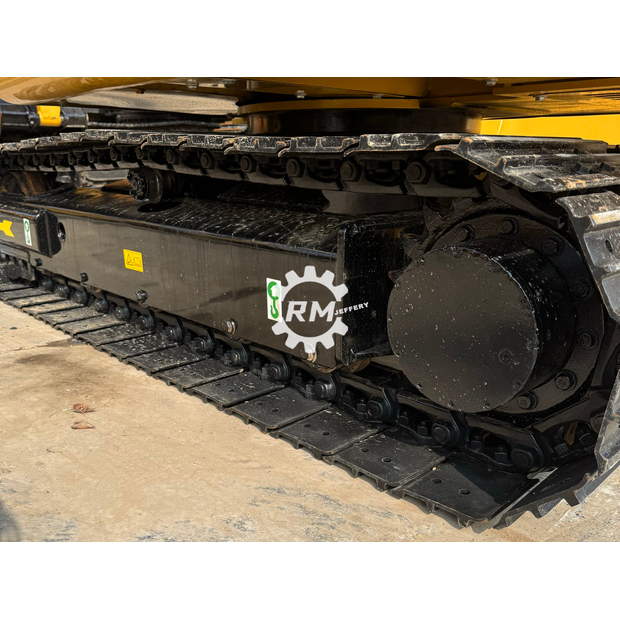

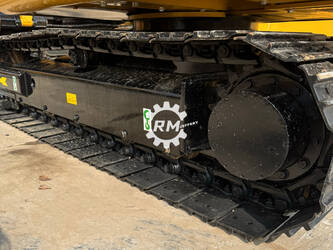

Track specifications: Length 1920 mm, Width 400 mm
Maximum excavation radius: 6090 mm
Maximum excavation depth: 3870 mm
Maximum excavation height: 5530 mm
Maximum unloading height: 3900 mm
Fuel and maintenance capacity
Fuel tank: 78 L
Hydraulic oil tank: 58 L
Engine oil change quantity: 9.5 L
Coolant capacity: 8.3 L
Other performance
Driving speed: 2.8 km/h (low speed), 4.3 km/h (high speed)
Climbing ability: ≥ 50%
Applicable altitude: up to 2500 meters
